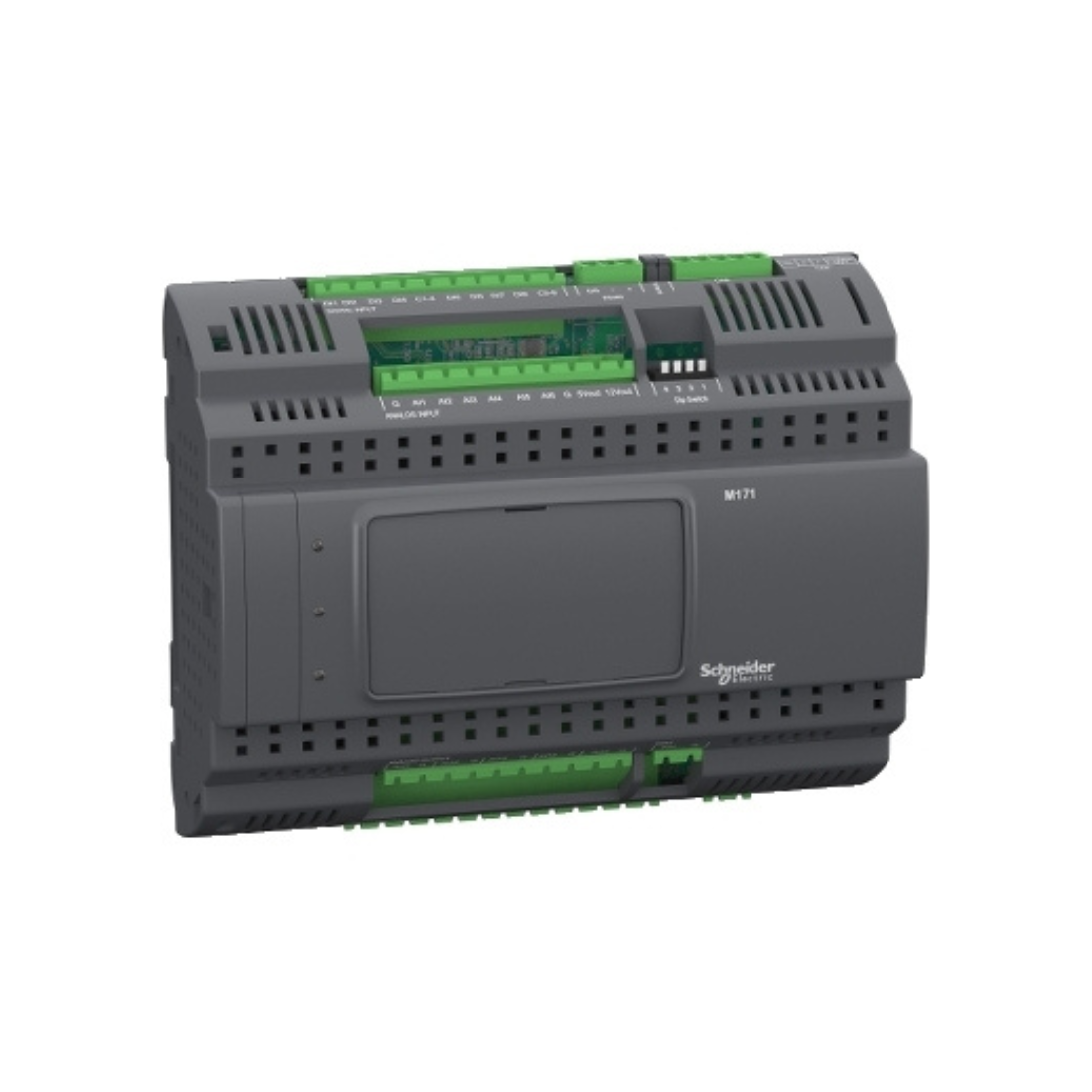

Schneider Electric Modicon M171 Performance Blind 27 I/Os Modbus TM171PBM27R
Schneider Electric Modicon M171 Performance Blind 27 I/Os Modbus TM171PBM27R

Schneider Electric Modicon M171 Performance Blind 27 I/Os Modbus TM171PBM27R

Regular price AED 2,104.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Programmable Controllers
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM171PBM27R Performance Blind 27 I/Os is part of the Modicon M171/M172 series, a range of controllers for HVAC solutions. This controller provides 2 discrete inputs with discrete source or sink (positive/negative) input logic. The nominal supply voltage ranges from 100 V to 240 V, ±10% AC. It has IP20 certification. Its dimensions are 140 mm (width) x 61.6 mm (depth) x 110 mm (height). The main application of this module is pump and HVAC solutions.

    Schneider Electric TM171PBM27R Modicon M171 Performance Blind 27 I/Os is certified by CE, CURus, CSA, and EAC. Complies with EN/IEC 60730 standard. It is suitable for DIN rail mounting. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.

    Features
    • The controller supports up to 27 input/output points.
    • Provides 2 discrete inputs with discrete source or sink input logic.
    • The Modbus communication protocol is used
    • IP20 certification.
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Programmable Controllers

    Model : TM171PBM27R

    Rated Supply Voltage : 24 V +/- 20 % AC/DC, 48 V +/- 20 % DC

    Depth : 61.6 mm

    Height : 110 mm

    IP Degree Of Protection : IP20

    Mounting Support : DIN rail

    Overvoltage Category : II

    Pollution Degree : 2

    Certifications : cURus, CSA, EAC, CE

    Range Of Product : Modicon M171/M172

    Relative Humidity : 10-90 % non-condensing

    Discrete Output Current : 8 A for relay SPDT, 5 A for relay SPST

    Discrete Input Current : 2.5 mA

    Discrete Input Voltage : 24 V AC/DC, 48 V DC

    Discrete Input Number : 8

    Analogue Input Number : 2 Analog input NTC, 4 configurable

    Analogue Input Type : Voltage 0...5 V (ratiometric), current 4...20 mA, impedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), voltage 0...10 V, Pt 1000 temperature probe - 200...800 °C - resolution: 0.1 °C, NTC temperature probe - 40...150 °C - resolution: 0.1 °C

    Analogue Output Number : 3 voltage/current, range: 4...20 mA or 0...10 V, 2 open collector, range: 1 kHz, 12 V, 35 mA

    Discrete Output Number : 3 for relay outputs SPST with same common, 2 for relay outputs SPST with same common, 2 for relay outputs SPDT with independent common

    Variant : Programmable

    Number Of Port : 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 1 RS485 - screw terminal block (Modbus serial link)

    Sensor Power Supply : 5-5 V DC at 50 mA, 12-12 V DC at 150 mA

    Realtime Clock : Built-in clock at -10-55 °C

    Discrete Input Logic : Sink or source (positive/negative)

    Number Of Inputs/Outputs : 27

    Input/Output Number : 6 Analog input(s), 5 analog
    output(s), 8 digital input(s), 7 digital output(s), 1 high-speed counter(s)

    Display Type : LCD display - 128 x 64 pixels

    Input Impedance : 20 kOhm

    Directives : 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive

    Width : 160 mm

    Ambient Air Temperature For Operation : -10-55 °C conforming to UL 60730-1

    Standards : EN/IEC 60730

    Local Signalling : 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable

    Ambient Air Temperature For Storage : -20-85 °C

    Standards : EN/IEC 60730

    Weight : 0.385 kg
