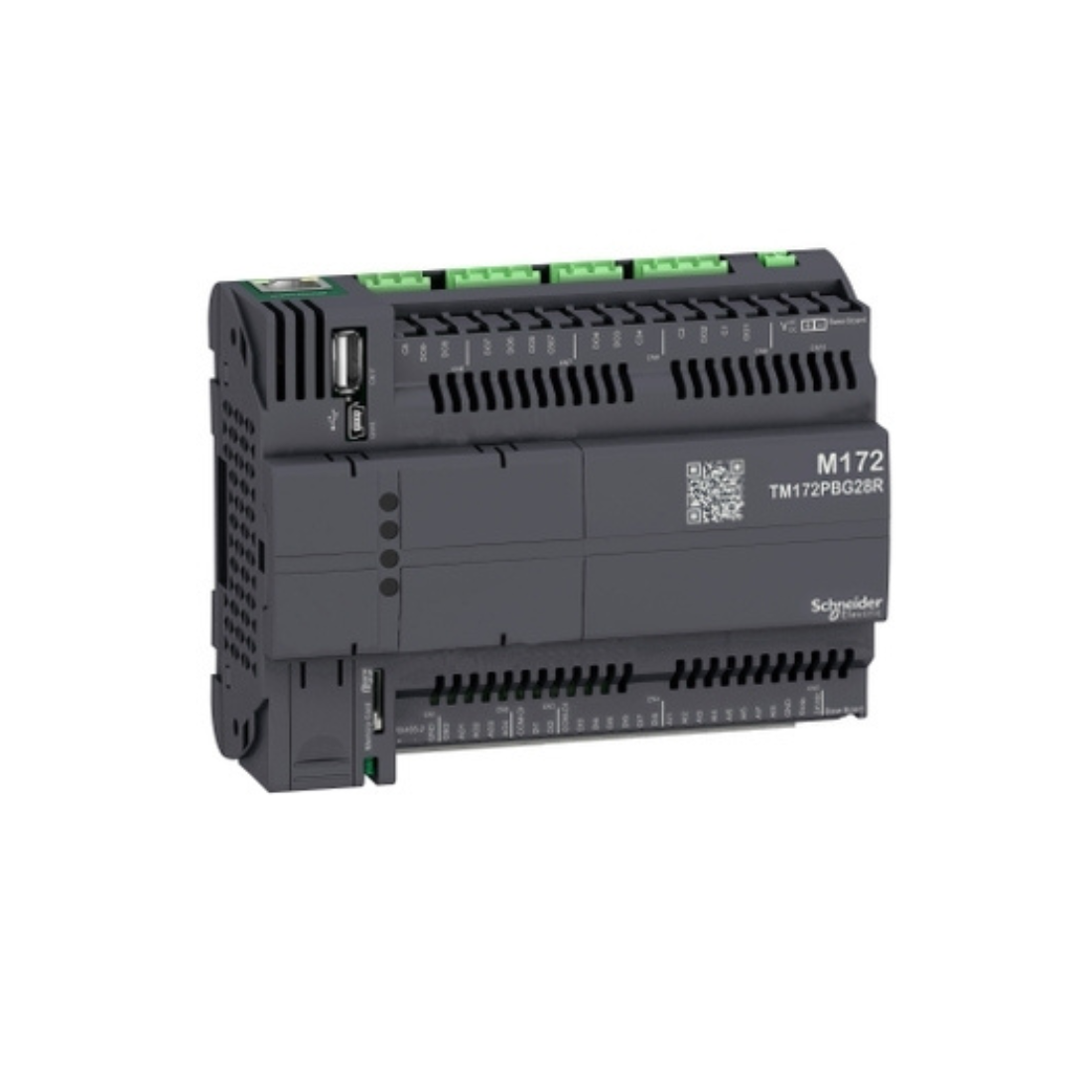

Schneider Electric Modicon M171/M172 Controller Performance Blind 28 IO Ethernet Modbus TM172PBG28R
Schneider Electric Modicon M171/M172 Controller Performance Blind 28 IO Ethernet Modbus TM172PBG28R

Schneider Electric Modicon M171/M172 Controller Performance Blind 28 IO Ethernet Modbus TM172PBG28R

Regular price AED 2,062.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Programmable Controllers
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM172PBG28R Performance Blind 28 I/Os is part of the Modicon M171/M172 series, a range of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with discrete source or sink logic (positive/negative). It is a module with a discrete input voltage of 24 V AC/DC, 2.5 mA. It offers 8 analog inputs configurable in pairs and 2 analog outputs from 4 mA to 20 mA, ±0 V to ±10 V. It has 3 LEDs for programming and 1 LED for current signaling. It has an IP20 certification. The main application of this module is HVAC control.

    Schneider Electric TM172PBG28R Modicon M172 Performance Blind 28 I/Os is certified by CE, EAC, CSA, and CURus. Complies with EN/IEC 60730. It is suitable for DIN rail mounting and panel mounting with accessories. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.

    Features
    • The controller supports up to 28 input/output points
    • Provides 8 discrete inputs with discrete source or sink logic
    • The Modbus communication protocol is used
    • IP20 certification
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Programmable Controllers

    Model : TM172PBG28R

    Rated Supply Voltage : 24 V +/- 10 % AC, 20...38 V DC

    Depth : 60.5 mm

    Height : 110 mm

    IP Degree Of Protection : IP20

    Mounting Support : DIN rail, panel mounting with accessory

    Operating Altitude : 0...2000 m

    Overvoltage Category : II

    Pollution Degree : 2

    Certifications : EAC, CE, cURus, CSA

    Range Of Product : Modicon M171/M172

    Relative Humidity : 5-95 % non-condensing

    Width : 144 mm

    Discrete Output Current : 1 A for relay SPDT, 3 A for relay SPST

    Discrete Input Current : 2.5 mA

    Discrete Input Voltage : 24 V AC/DC

    Discrete Input Number : 8

    Analogue Input Number : 8 configurable by pair

    Analogue Input Type : Impedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended), voltage 0...10 V, NTC temperature probe - 40...150 °C - resolution: 0.1 °C, current 0...20 mA/4...20 mA, PTC temperature probe - 55...150 °C - resolution: 0.1 °C, voltage 0...5 V (absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C

    Analogue Output Number : 2 voltage, range: 0...10 V, 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)

    Discrete Output Number : 1 for relay outputs SPDT with independent common, 3 for relay outputs SPST with same common, 2 for relay outputs SPST with same common, 2 for relay outputs SPST with independent common

    Variant : Programmable

    Number Of Port : 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver)

    Sensor Power Supply : 5-5 V DC at 50 mA supplied by the controller, 24-24 V DC at 150 mA supplied by the controller

    Realtime Clock : Built-in clock at -20-60 °C

    Discrete Input Logic : Sink or source (positive/negative)

    Number Of Inputs/Outputs : 28

    Input/Output Number : 8 digital input(s), 8 analog input(s), 4 analog output(s), 8 digital output(s)

    Display Type : Without display

    Input Impedance : 20 kOhm

    Directives : 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive

    Ambient Air Temperature For Operation : -20-60 °C conforming to UL 60730-1, -20-65 °C with derating conforming to UL 60730-1

    Standards : EN/IEC 60730, UL94 (material V0)

    Local Signalling : 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power

    Ambient Air Temperature For Storage : -30-70 °C

    Standards : EN/IEC 60730

    Weight : 0.3 kg
