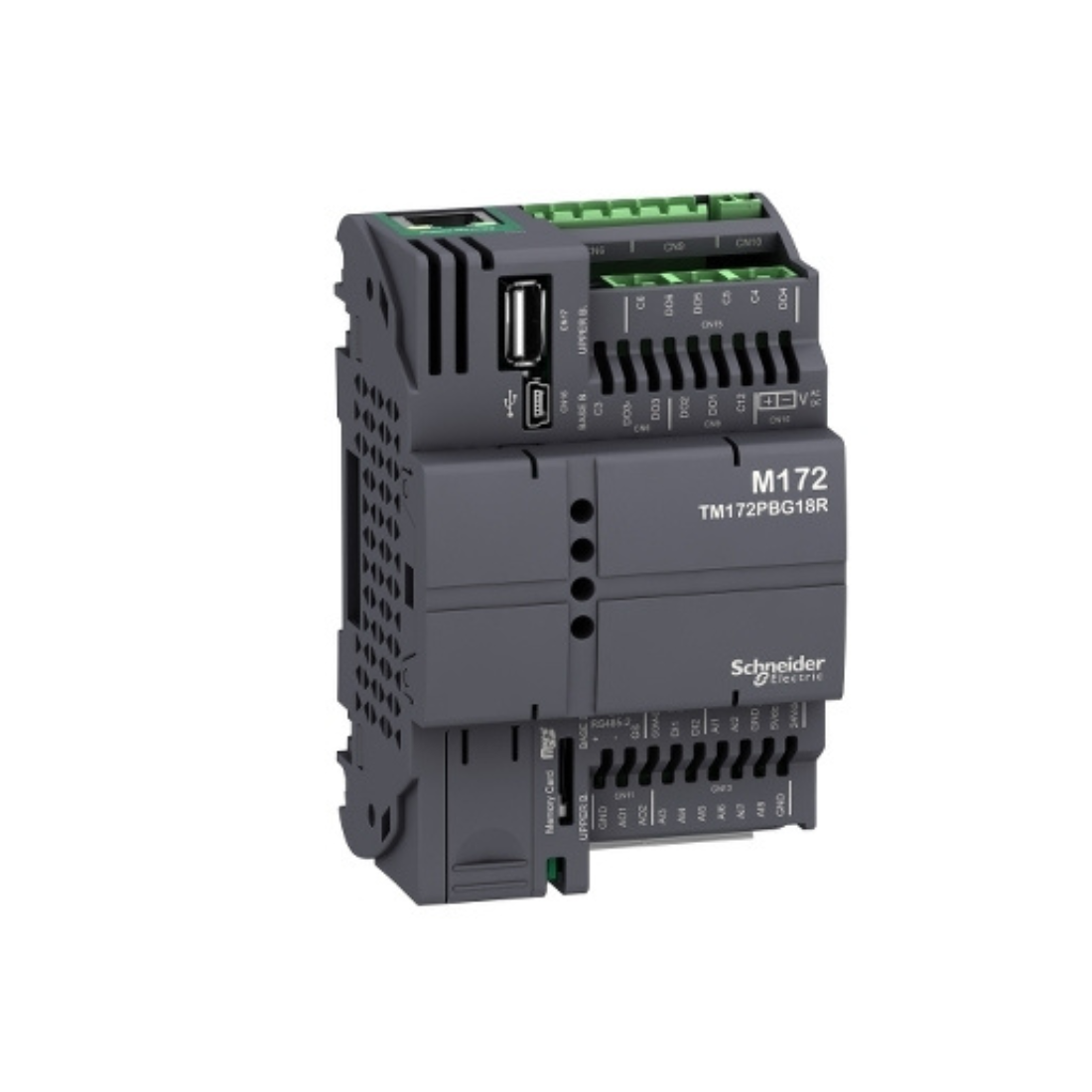

Schneider Electric Modicon M171/M172 Controller Performance Blind 18 I/O Ethernet Modbus TM172PBG18R
Schneider Electric Modicon M171/M172 Controller Performance Blind 18 I/O Ethernet Modbus TM172PBG18R

Schneider Electric Modicon M171/M172 Controller Performance Blind 18 I/O Ethernet Modbus TM172PBG18R

Regular price AED 1,432.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Programmable Controllers
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric TM172PBG18R Performance Blind 18 I/Os is part of the Modicon M171/M172 series, a range of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with discrete sink or source logic (positive/negative) up to 2 kHz. It is a module with a discrete input voltage of 24 V AC/DC, 5 mA. It has 3 programming LEDs and 1 power signaling LED. It has an IP20 certification. The main application of this module is HVAC control.

    Schneider Electric TM172PBG18R Modicon M172 Performance Blind 18 I/Os is certified by CE, RCM, EAC, CSA, and CURus. Complies with IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mounting and panel mounting with accessories. Modicon M171/M172 benefits maximize cost effectiveness and energy efficiency by using scalable automation control with Modicon M171/M172. Modicon M171/M172 logic controls and intuitive EcoStruxure Machine Expert – HVAC software are designed for maximum cost-effectiveness and energy efficiency.

    Features
    • The controller supports up to 18 input/output points
    • It offers 2 discrete inputs with discrete sink or source logic up to 2 kHz
    • The Modbus communication protocol is used
    • IP20 certification
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Programmable Controllers

    Model : TM172PBG18R

    Rated Supply Voltage : 24 V +/- 10 % AC, 20...38 V DC

    Depth : 60.5 mm

    IP Degree Of Protection : IP20

    Mounting Support : DIN rail, panel mounting with accessory

    Operating Altitude : 0...2000 m

    Overvoltage Category : II

    Pollution Degree : 2

    Certifications : CSA, EAC, RCM, CE, cURus

    Range Of Product : Modicon M171/M172

    Relative Humidity : 5-95 % non-condensing

    Width : 72 mm

    Discrete Output Current : 3 A for relay SPST, 3 A for relay SPDT

    Discrete Input Current : 5 mA AC/DC

    Discrete Input Voltage : 24 V AC/DC

    Discrete Input Number : 2

    Analogue Input Number : 8 configurable by pair

    Analogue Input Type : NTC NK103 Beta 3977 temperature probe - 40...137 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), NTC 103AT-2 Beta 3435 temperature probe - 50...110 °C - resolution: 0.1 °C at 10 kOhm (at 25 °C), voltage 0...10 V - resolution: 1 digit at > 10 kOhm, voltage 0...5 V - resolution: 1 digit at > 20 kOhm (absolute or ratiometric), impedance 0...1500 hOhm - resolution: 1 hOhm at 10 kOhm, impedance 0...300 daOhm - resolution: 1 daOhm at 1500 Ohm, PTC temperature probe - 55...150 °C - resolution: 0.1 °C at 1500 Ohm, Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C at 1500 Ohm, current 0...20 mA/4...20 mA - resolution: 1 digit at < 150 Ohm, direct input at 10 kOhm (Dry contact)

    Analogue Output Number : 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz)

    Discrete Output Number : 1 for relay outputs SPDT with independent common, 2 for relay outputs SPST with same common, 3 for relay outputs SPST with independent common

    Variant : Programmable

    Number Of Port : 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver)

    Sensor Power Supply : 5-5 V DC at 40 mA supplied by the controller, 24-24 V DC at 100 mA supplied by the controller

    Realtime Clock : Built-in clock, clock drift <= 30 s/month at -20-60 °C

    Discrete Input Logic : Sink or source (positive/negative) up to 2 kHz

    Number Of Inputs/Outputs : 18

    Input/Output Number : 2 analog output(s), 6 digital output(s), 8 analog input(s), 2 digital input(s)

    Display Type : Without display

    Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility

    Ambient Air Temperature For Operation : -20-60 °C

    Standards : IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-2, EN 60068-2-27, EN 60730-1, EN 60068-2-6 Fc, UL 60730-1, UL 60730-2-9, IEC 61000-4-4, CAN/CSA-E60730-1, IEC 61000-4-11, IEC 61000-4-6, CSA E60730-2-9, EN 60730-2-9, UL94 (material V0)

    Local Signalling : 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power

    Ambient Air Temperature For Storage : -30-70 °C
