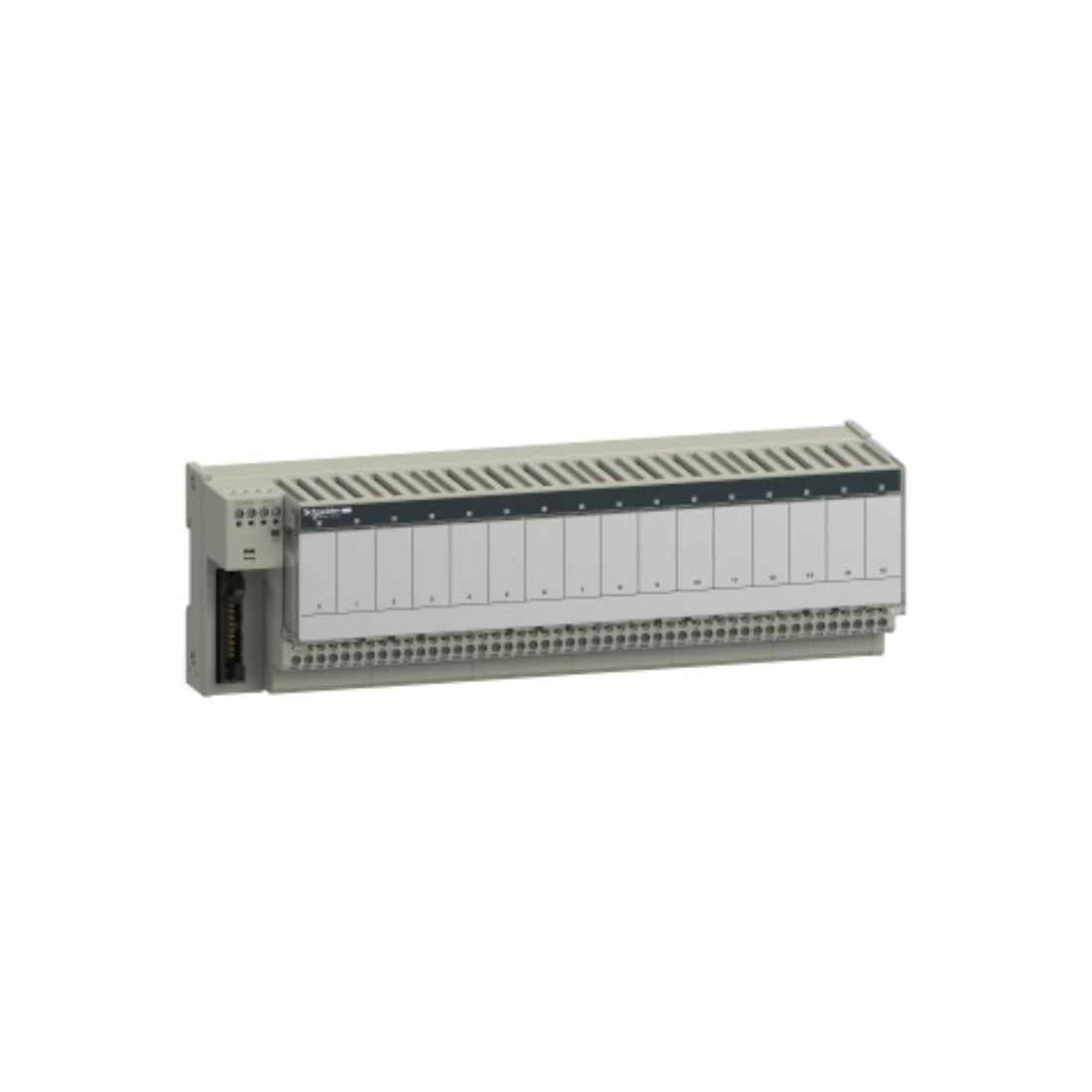

Schneider Electric Modicon ABE7 Sub-Base With Plug-in Electromechanical Relay 16 Channels ABE7R16T330

Schneider Electric Modicon ABE7 Sub-Base With Plug-in Electromechanical Relay 16 Channels ABE7R16T330

Name: Schneider Electric Modicon ABE7 Sub-Base With Plug-in Electromechanical Relay 16 Channels ABE7R16T330
Brand: Schneider Electric
Price: 1914.0 AED
Availability: InStock

AED 1,914.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Sub-base

Description

Schneider Electric ABE7R16T330 Sub-Base With Plug-in Electromechanical Relay is part of the Modicon ABE7 range, a range of terminal blocks for the Telefast pre-wired system. The substructure with a plug-in electromechanical relay offers 16 channels. Sub-Base has reversing contact. It allows quick connection of I/O modules. It is a relay subbase with a supply voltage of 19V to 30V DC and a maximum supply current of 1A.

Schneider Electric ABE7R16T330 Sub-Base With Plug-in Electromechanical Relay is IP2x-certified. Suitable for all types of industrial applications. It is certified by GL, CSA, DNV, BV, LROS, and UL. This base is suitable for use with the ABR7S33 plug-in relay. Fixing is done using clips (symmetrical 35mm DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means easier simplification of wiring in automation system devices. A pre-wired system that allows the connection and adjustment of control signals from PLC cards with HE10 connectors.

Features

It is a relay subbase with a supply voltage of 19V to 30V DC and a maximum supply current of 1A.
Offers 16 channels
IP20 certification

Specifications

Brand : Schneider Electric

Item Name : Sub-Base With Plug-in Electromechanical Relay

Model : ABE7R16T330

Voltage Drop On Power Supply Fuse : 0.3 V

Resistance To Electrostatic Discharge : 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2

Rated Impulse Withstand Voltage : 2.5 kV

Rated Supply Voltage : 19...30 V conforming to IEC 61131-2

Rated Insulation Voltage : 2000 V terminals/mounting rails, 300 V coil circuit/contact circuits conforming to IEC 60947-1

Ambient Air Temperature For Storage : -40-80 °C conforming to IEC 61131-2

Fixing Mode : By clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)

IP Degree Of Protection : IP2X conforming to IEC 60529

Minimum Switching Current : 1 mA for PLC end

Pollution Degree : 2 conforming to IEC 60664-1

Certifications : UL, DNV, CSA, GL, EAC

Range Of Product : Modicon ABE7

Shock Resistance : 15 gn for 11 ms conforming to IEC 60068-2-27

Short-Circuit Protection : 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)

Tightening Torque : 0.6 N.m with flat Ø 3.5 mm screwdriver

Contacts Type And Composition : 1 C/O

Maximum Supply Current : 1 A

Supply Voltage Limits : 19-30 V DC (PLC end) conforming to IEC 61131-2

Resistance To Fast Transients : 2 kV level 3 conforming to IEC 61000-4-4

Supply Circuit Type : DC

Number Of Channels : 16

Resistance to Radiated Fields : 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3

Installation Category : II conforming to IEC 60664-1

Resistance to Incandescent Wire : 750 °C conforming to IEC 60695-2-11

Polarity Distribution : Volt-free

Sub-base Type : Output sub-base

Vibration Resistance : 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -5-60 °C conforming to IEC 61131-2

Status LED : 1 LED per channel (green) channel status, 1 LED (green) power ON

Compatibility : ABR7S33

Weight : 1.3 kg
