Schneider Electric Modicon ABE7 Sub-Base For Soldered Solid State Output Relay ABE7 16 Inputs 24V DC ABE7S16E2B1
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Sub-base
Description

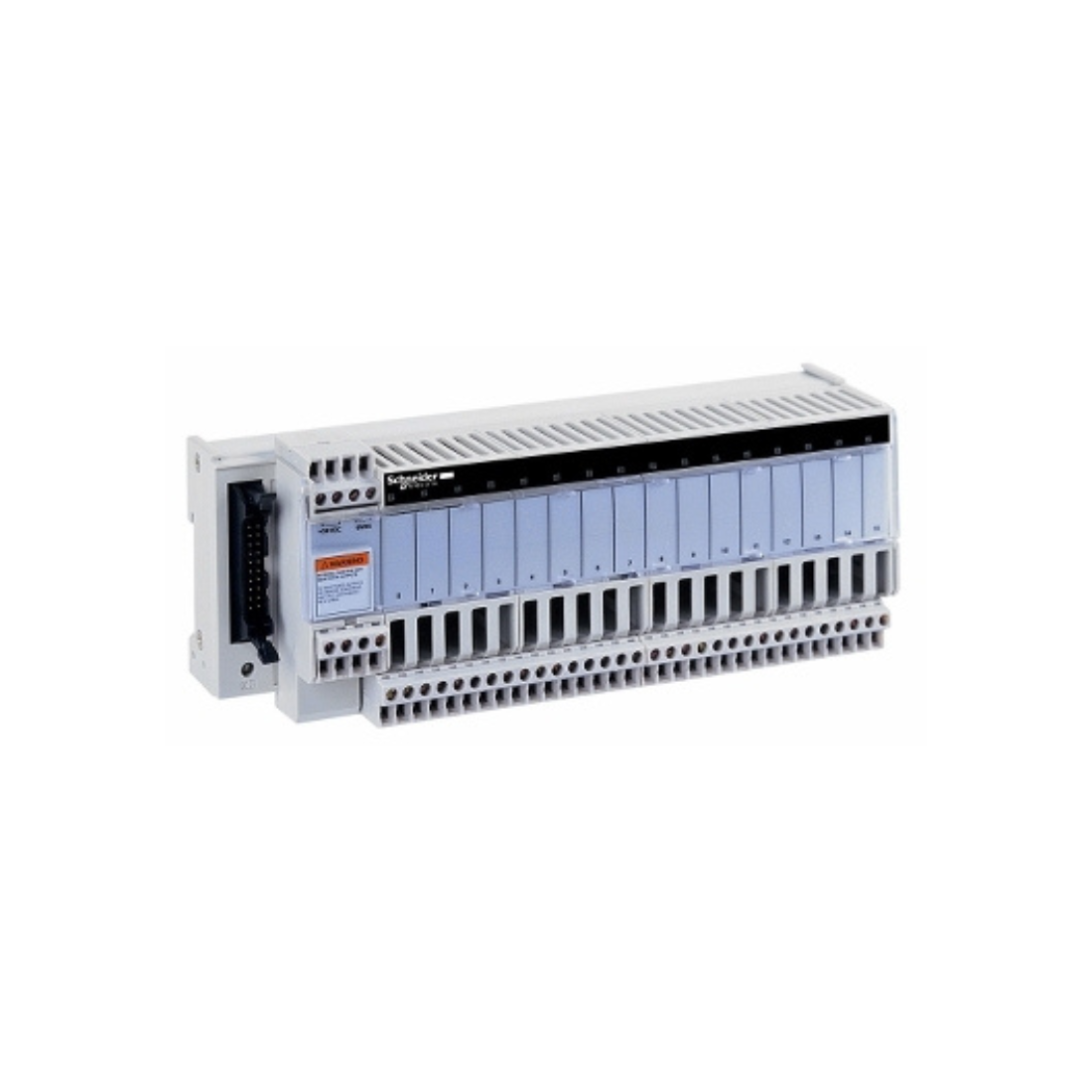

Schneider Electric ABE7S16E2B1 Sub-Base is part of the Modicon ABE7 range, a range of terminal blocks for the Telefast pre-wired system. The motherboard with soldered solid state relay output offers 16 channels. It has 2 ports per channel. Sub-base allows quick connection of I/O modules. It is a relay subbase with a supply voltage of 19V to 30V DC and a current of 0.012A per channel.
Schneider Electric ABE7S16E2B1 Sub-Base is equipped with screw terminals. It is IP2x certified. It is suitable for all types of industrial applications. It is certified by GL, CSA, DNV, BV, LROS and UL. Fixing is done using clips (symmetrical 35mm DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means easier simplification of wiring in automation system devices. Pre-wired system that allows the connection and adjustment of control signals from PLC cards with HE10 connectors.
Features
- It is a relay subbase with a supply voltage of 19V to 30V DC and a current of 0.012A per channel.
- Offers 16 channels
- IP20 certification
- It has 2 ports per channel
| Brand | Schneider Electric |
| Item Name | Solid State Output Relay Sub-base |
| Model | ABE7S16E2B1 |
| Resistance To Electrostatic Discharge | 4 kV (contact) level 3 conforming to IEC 61000-4-2, 8 kV (air) level 3 conforming to IEC 61000-4-2 |
| Control Circuit Voltage | 24 V DC |
| Rated Insulation Voltage | 2000 V |
| Ambient Air Temperature For Storage | -40-80 °C conforming to IEC 61131-2 |
| Connections - Terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² (AWG 28...AWG 16) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² (AWG 24...AWG 14) solid |
| Dielectric Strength | 2000 V at 50/60 Hz conforming to IEC 60947-1 |
| Fixing Mode | By clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit) |
| IP Degree Of Protection | IP2X conforming to IEC 60529 |
| Minimum Switching Current | 1 mA for PLC end |
| Pollution Degree | 2 conforming to IEC 60664-1 |
| Certifications | UL, DNV, CSA, GL, EAC |
| Protective Treatment | TC |
| Range Of Product | Modicon ABE7 |
| Shock Resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Tightening Torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Supply Voltage Limits | 19-30 V DC (PLC end) conforming to IEC 61131-2 |
| Resistance To Fast Transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Number Of Channels | 16 |
| Current Per Channel | 0.012 A |
| Resistance to Radiated Fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Installation Category | II conforming to IEC 60664-1 |
| Resistance to Incandescent Wire | 750 °C conforming to IEC 60695-2-11 |
| Isolation PLC/Operative Part | Yes |
| Terminal Block Type | Removable |
| Number Of Terminal Per Channel | 2 |
| Vibration Resistance | 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -5…60 °C conforming to IEC 61131-2 |
| Weight | 0.37 kg |
