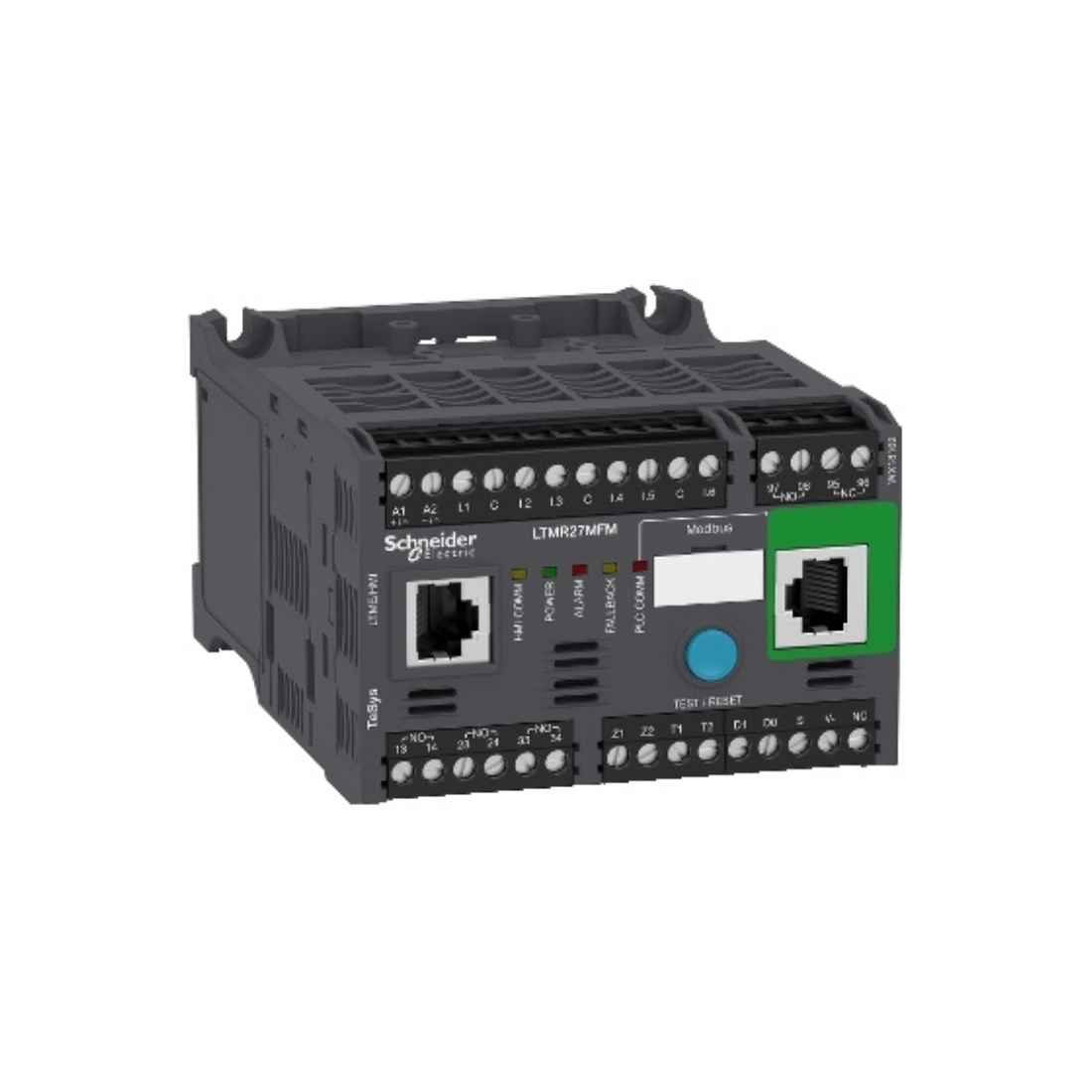

Schneider Electric LTMR TeSys T Motor Controller 100-240V AC 27A for Modbus LTMR27MFM

Name: Schneider Electric LTMR TeSys T Motor Controller 100-240V AC 27A for Modbus LTMR27MFM
Brand: Schneider Electric
Price: 2276.4 AED
Availability: InStock

AED 2,276.40

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Motor Controller

Description

Schneider Electric LTMR27MFM TeSys T Motor Management Motor Controller is a motor management system that provides complete motor monitoring, control, and protection when used with short circuit protection and a contactor. Manage the most critical processes, reduce downtime increase productivity, and predict what will happen in the process by accurately monitoring current, voltage, and power over a wide range.

This engine management system is also a flexible system that supports six communication protocols: Modbus™, CANopen, DeviceNet™, Profibus™, Ethernet/IP, and Modbus/TCP. The TeSys T engine management system consists of several components, including the LTMR controller, expansion module, HMI, and software, as well as various accessories. The LTMR controller is the main component of the system that manages the basic functions. This includes measuring ground current, motor temperature, and three-phase motor current.

The controller also has logic inputs and outputs that are used in error management. The expansion module connects directly to the controller and provides additional inputs as well as phase-to-phase voltage measurement, allowing the controller to monitor additional functions. TeSys T is extremely reliable and has a very long life thanks to the state-of-the-art component selection, all-in-one design, and advanced electronic protection.

TeSys T can be integrated into many different types of harsh environments such as B. dusty atmospheres, marine applications, high vibration applications, and corrosive atmospheres and is used in the metals/mining/minerals, oil and gas, and water and water sectors. residuals. This is a TeSys T LTMR controller that measures a current range of 1.35 to 27 A with a supply voltage of 100 to 240 VAC and uses CANopen as the communication protocol.

Schneider Electric LTMR27MFM TeSys T Motor Management Motor Controller measures temperature, phase current, unbalanced current, average current, and ground fault current.

Features

Provides complete motor monitoring, control, and protection
PVC free
Mercury-free
RoHS exemption information
Halogen-free plastic parts

Specifications

Brand : Schneider Electric

Item Name : Motor Controller

Model : LTMR27MFM

Conventional Free Air Thermal Current : 200 A (at 60 °C) for power circuit

Rated Operational Voltage : Power Circuit: <= 690 V AC 25...400 Hz, power circuit: <= 300 V DC

Rated Insulation Voltage : 690 V conforming to EN/IEC 60947-1, 690 V conforming to CSA C22.2 No 14, 690 V conforming to UL 508

Rated Impulse Withstand Voltage : 4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1, 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1, 0.8 kV communication circuit conforming to EN/IEC 60947-4-1

Rated Supply Voltage : 100...240 V AC 50/60 Hz

Ambient Air Temperature For Storage : -40-80 °C

Associated Fuse Rating : 4 A gG for output, 0.5 A gG for control circuit

Compatibility Code : LTMR

Connections - Terminals : Control Circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.25-2.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 1 cable(s) 0.2-2.5 mm² (AWG 24...AWG 14) solid without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) flexible with cable end, control circuit: connector 2 cable(s) 0.2-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.5-1.5 mm² (AWG 24...AWG 14) flexible without cable end, control circuit: connector 2 cable(s) 0.2-1 mm² (AWG 24...AWG 14) solid without cable end

Current Consumption : 8...62.8 mA

Depth : 122.5 mm

Contactor Application : Equipment Monitoring And Control

Fire Resistance : 650 °C conforming to EN/IEC 60695-2-12, 960 °C conforming to UL 94

Flame Retardance : V1 Conforming to UL 94

Heat Dissipation : 3-8 W at 50/60 Hz

Height : 61 mm

Load Current : 5 A at 250 V AC for logic output, 5 A at 30 V DC for logic output

Insulation Resistance : > 10 MOhm for Signalling Circuit

IP Degree Of Protection : IP20

Maximum Operating Rate : 1800 cyc/h 60 °C

Operating Altitude : <= 2000 m without derating

Operating Time : 6...20 ms opening, 20...50 ms closing

Overvoltage Category : III

Pollution Degree : 3

Certifications : RMRoS, LROS (Lloyds register of shipping), RINA, ABS, CCC, EAC, UL, GL, NOM, DNV, KERI, ATEX, BV, CSA, C-Tick

Protective Treatment : 12 x 24 hour cycles conforming to EN/IEC 60068-2-30, 48 h conforming to EN/IEC 60070-2-11, TH conforming to EN/IEC 60068

Range : TeSys

Short-Circuit Withstand : 100 kA conforming to EN/IEC 60947-4-1

Supply Voltage Limits : 93.5-264 V AC

Signalling Circuit Frequency : 25...400 Hz

Standards : CSA C22.2 No 14, UL 508, EN 60947-4-1, IEC 60947-4-1, IACS E10

Tightening Torque : Control circuit: 0.5-0.6 N.m flat screwdriver 3 mm

Width : 91 mm

Contacts Type And Composition : 1 NO + 1 NC fault signal, 3 NO

Current State 1 Guaranteed : Logic input: 79...264 V and >= 2 mA for 25 ms

Current State 0 Guaranteed : Logic input: 0...40 V and <= 15 mA for 25 ms

Input Current : 3.1 mA at 100 V, 7.5 mA at 240 V

Bus Type : Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, RJ45 with 2 shielded twisted pairs, Modbus 2-wire RS 485 interface, addressing 1...247, transmission rate 1.2...19.2 kbit/s, terminal block with 2 shielded twisted pairs

Web Services : Web Server

Network And Machine Diagnosis Type : Fault Recording, starting current and time, remaining operating time before overload tripping, waiting time after overload tripping, motor control command recording, event recording, trip history information, running hours counter/operating time, phase fault and earth fault trip counters, trip context information

Measurement Current : 1.35-27 A

Maximum Operating Frequency : 2 Hz

Permissible Power : 480 VA (AC-15), Ie = 2 A, 500000 cycles (output), 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)

Logic Input Number : 6

Metering Type : Temperature, phase current I1, I2, I3 RMS, average current Iavg, earth-fault current, imbalance current

Electromagnetic Compatibility : Electrostatic Discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5, relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5, radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3, fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4, fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4, voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11, conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6, temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5, temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5, control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5

Ambient Air Temperature For Operation : -20-60 °C

Mechanical Robustness : Vibrations Mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6, shocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27

Measurement Accuracy : 5...15 % earth fault current internal measurement, 1 % voltage (100...830 V), 3 % power factor, 5 % earth fault current external measurement, +/- 30 min/year internal clock, 0,02 temperature, 1 % current, 5 % active and reactive power

Communication Port Protocol : Modbus

Connection Pitch : 5.08 mm

Weight : 0.53 kg
