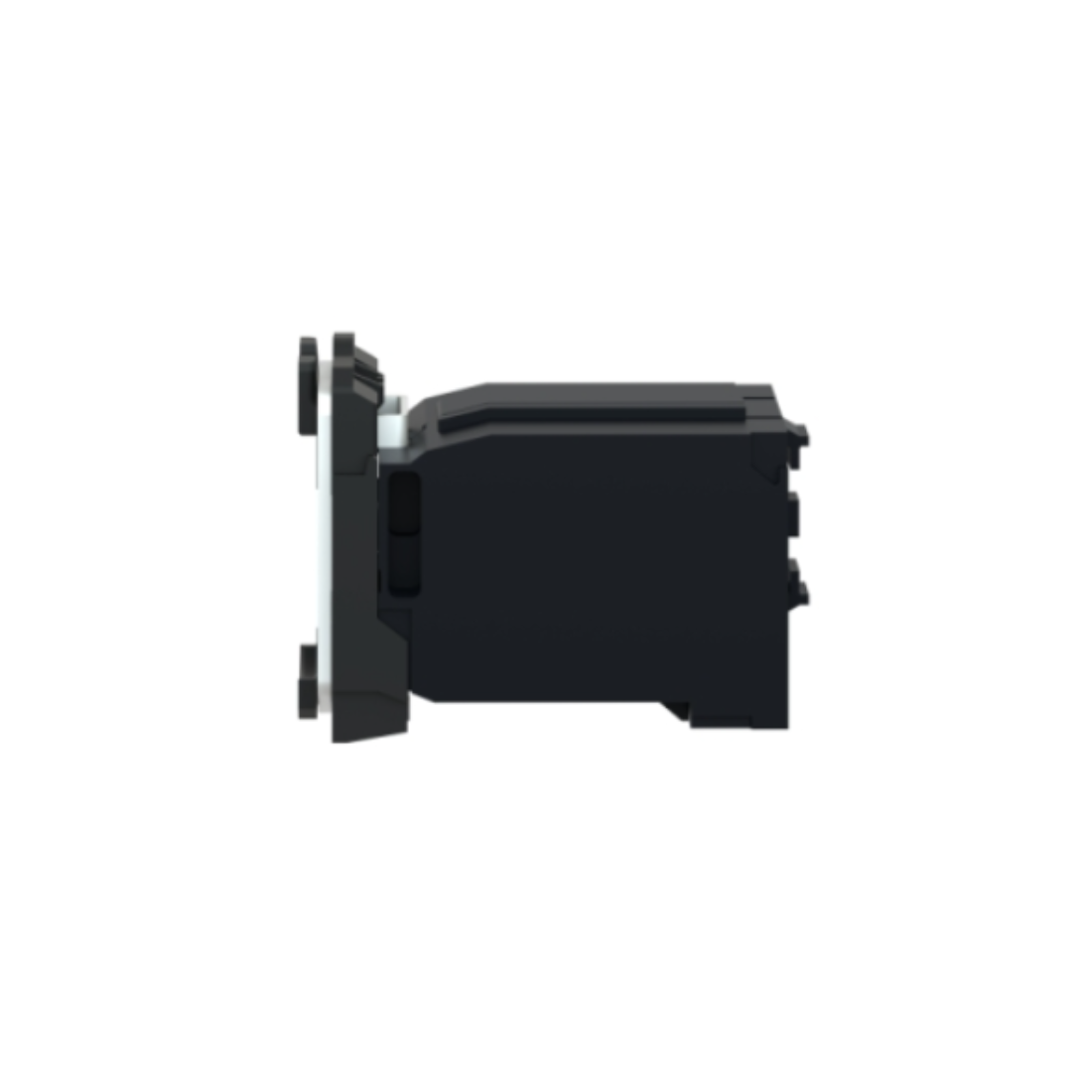

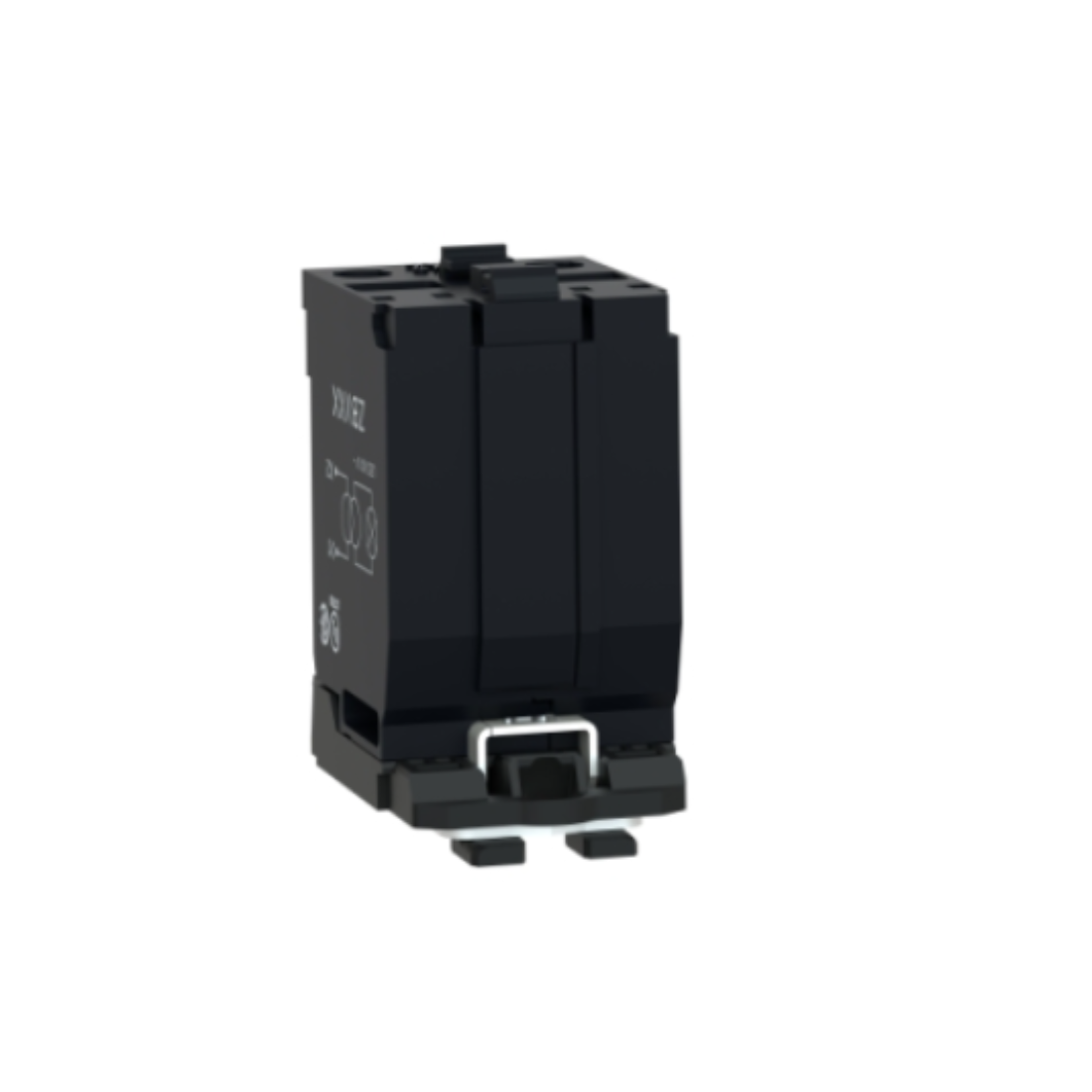

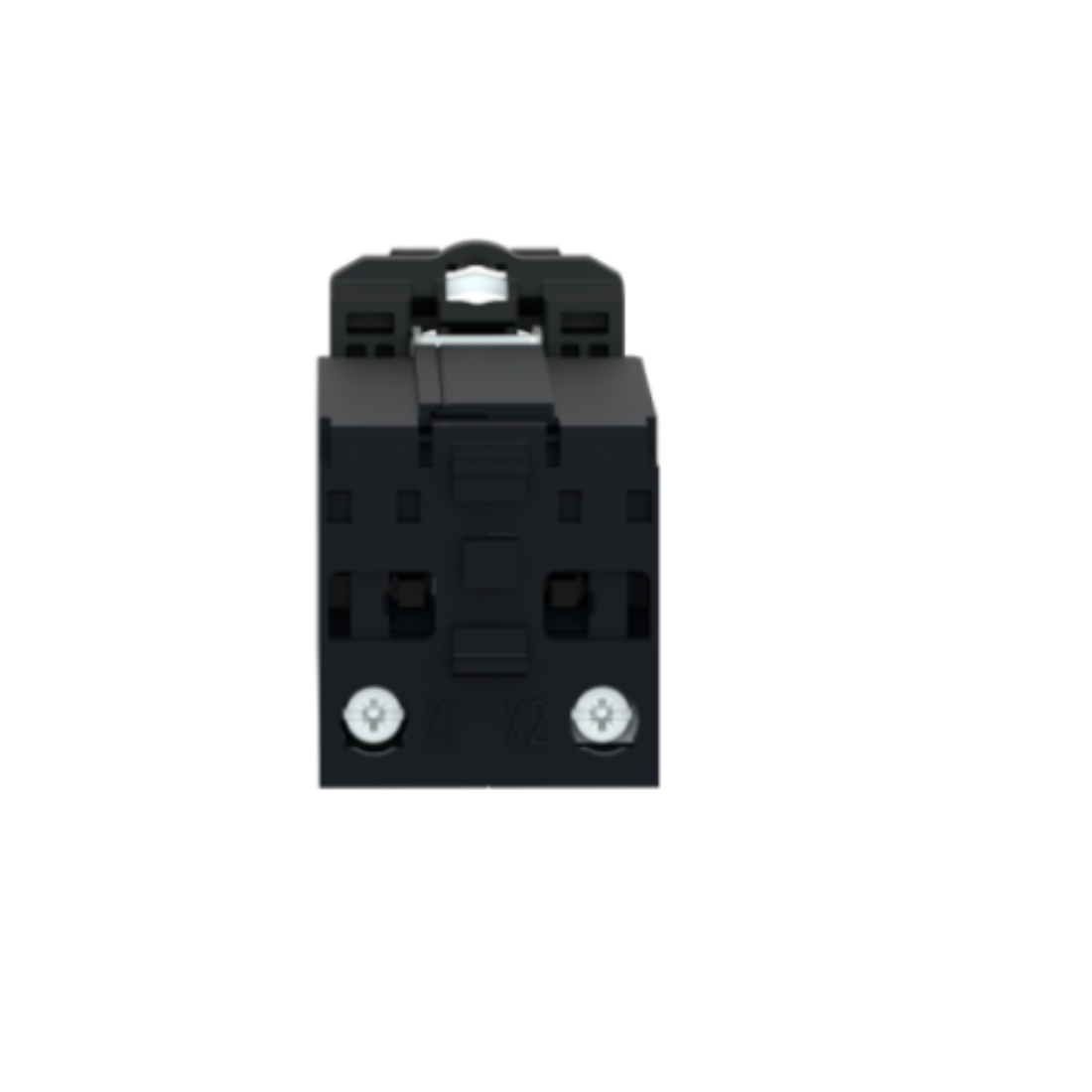

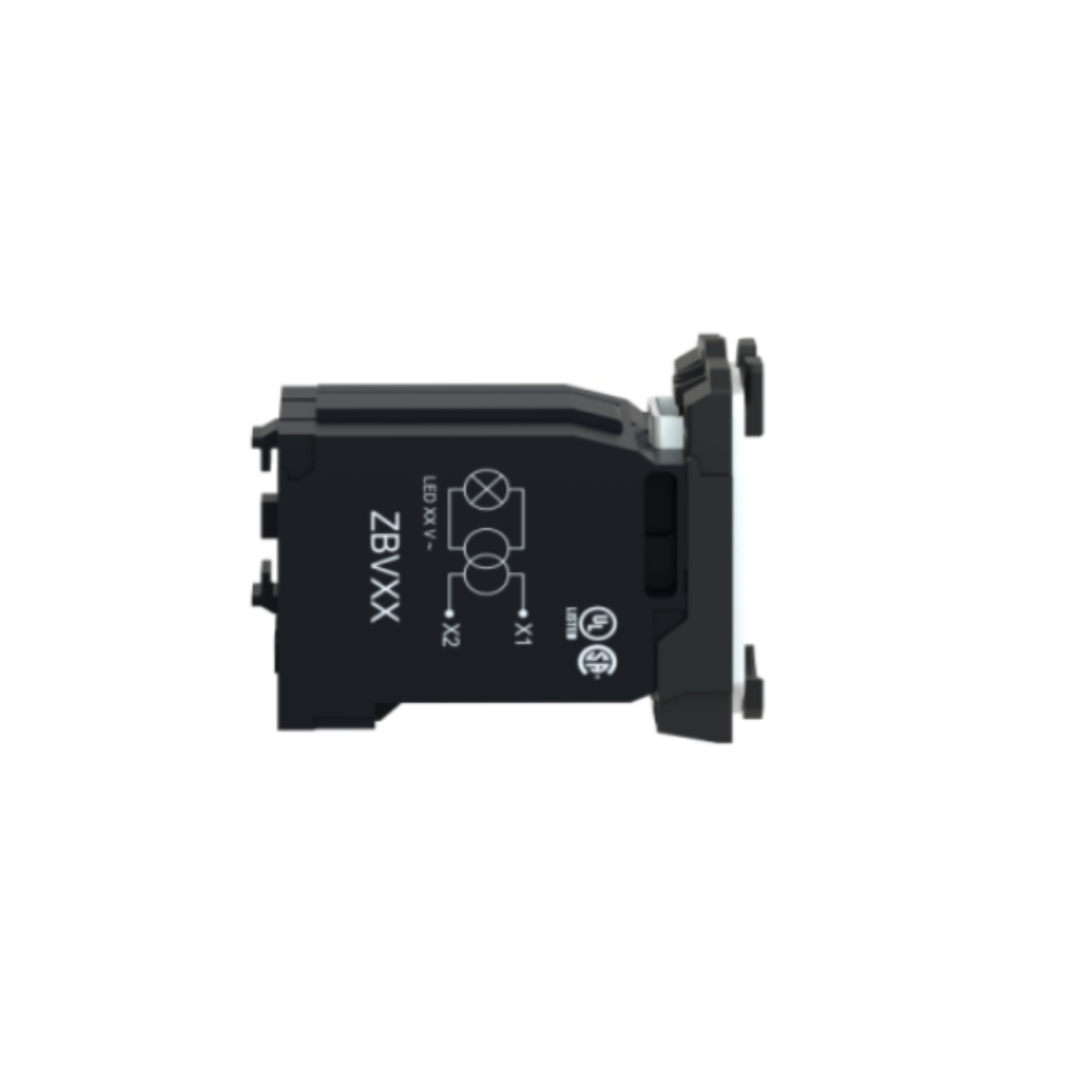

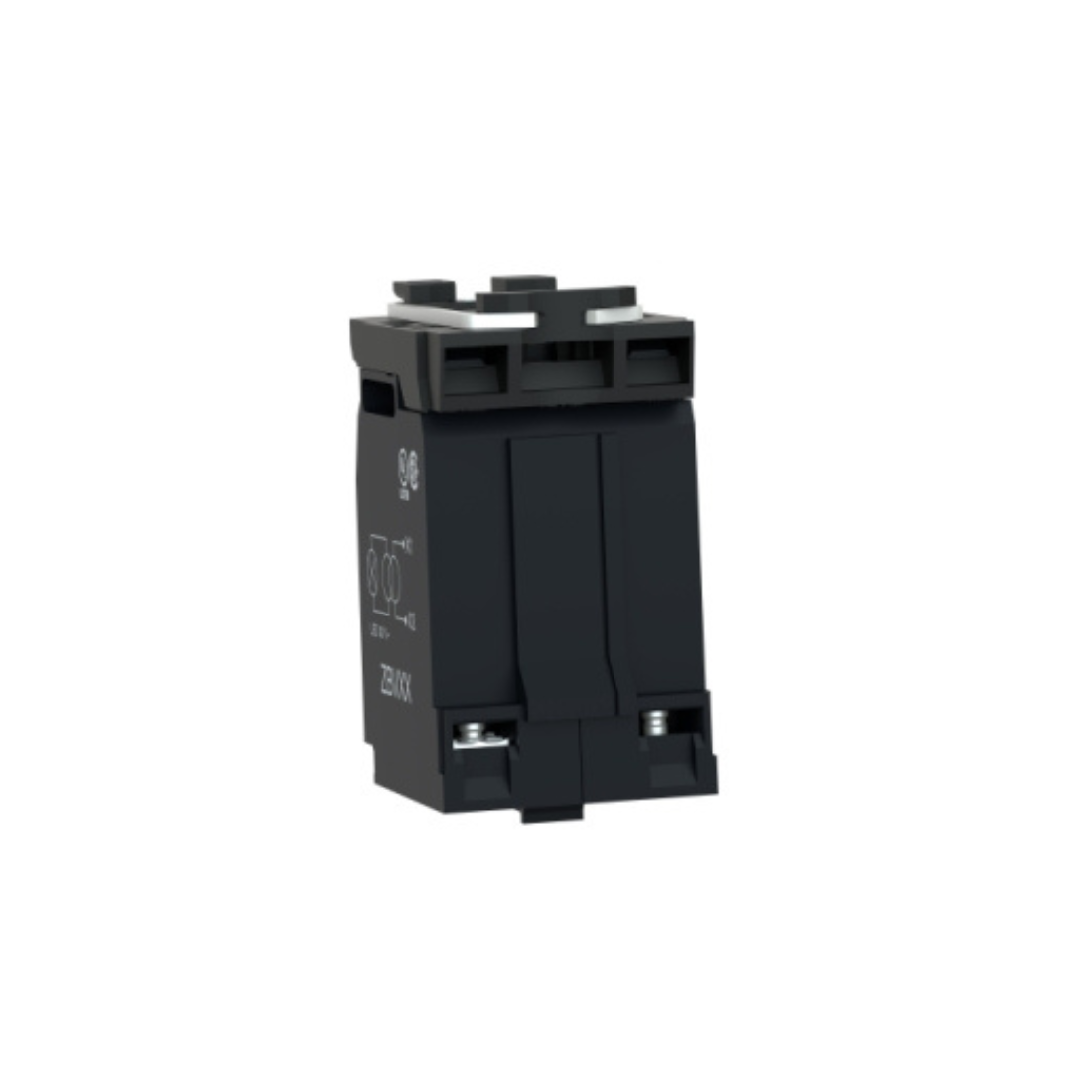

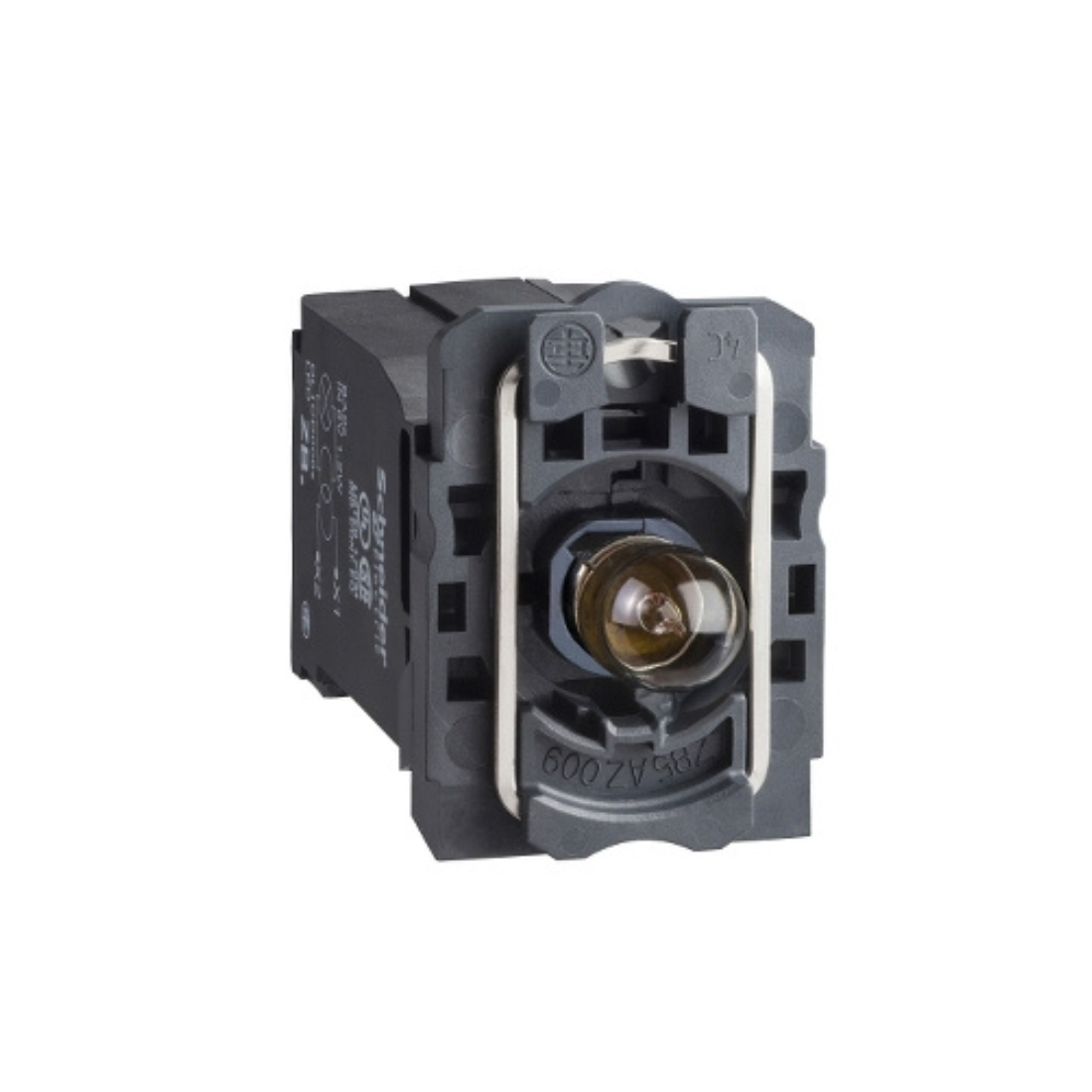

Schneider Electric Light Block with Body/Fixing Collar with BA9s Incandesc. Bulb 110-120V ZB5AV3
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Light Block
Description
Schneider Electric ZB5AV3 Light Block With Body allows for quick and easy replacement and setup of the signaling devices. It is easy to install and replace on compatible illuminated pushbutton or selector switch units. Mounting is done using clips and connection is done using simple screw clamp connections. It allows visual differentiation of signaling units through the lighting provided by the integrated LED of the BA9 base. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits.
Features
- Quick and easy replacement and setup of the signaling devices.
- Easy to install and replace on compatible illuminated pushbutton or selector switch units.
- IP20 rating
| Brand | Schneider Electric |
| Item Name | Complete Body/Light Body Assembly |
| Model | ZB5AV3 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 110...120 V |
| Bulb Base | BA 9s |
| CAD Overall Depth | 55 mm |
| CAD Overall Height | 42 mm |
| CAD Overall Width | 30 mm |
| Compatibility Code | ZB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Fixing Collar Material | Plastic |
| Light Source | Incandescent |
| Certifications | BV, CSA, GL, UL listed, LROS (Lloyds register of shipping), DNV |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Light Block Supply Via Integral Transformer | 1.2 VA 6 V |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Customizable | 0 |
| Electrical Composition Code | P4, M9 |
| Mounting Of Block Front | Mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-55 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C8201-1 |
| Device Presentation | Basic sub-assemblies |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
