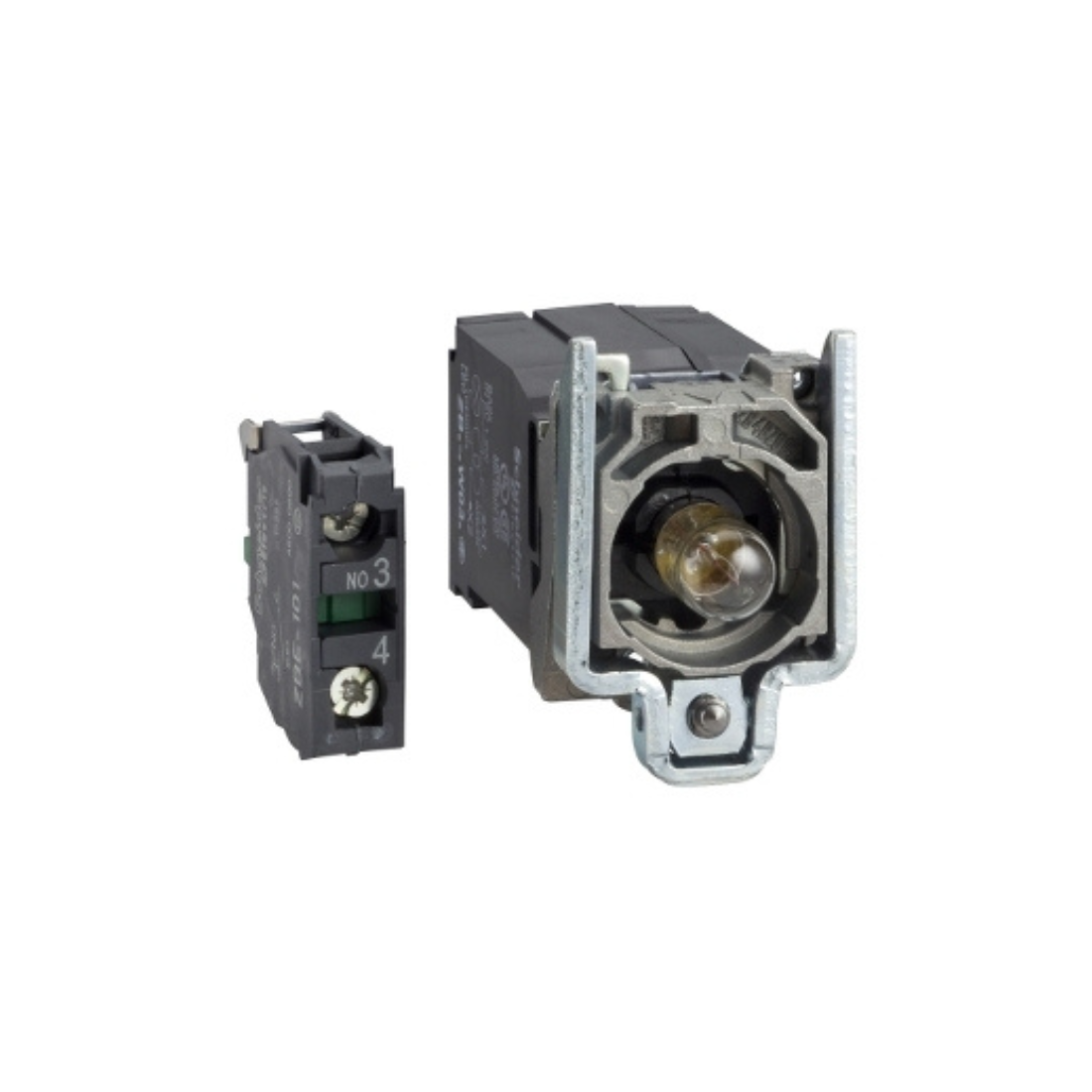

Schneider Electric Light Block with Body/Fixing Collar with BA9s Incandesc. Bulb 110-120V 1NO ZB4BW031
Schneider Electric Light Block with Body/Fixing Collar with BA9s Incandesc. Bulb 110-120V 1NO ZB4BW031

Schneider Electric Light Block with Body/Fixing Collar with BA9s Incandesc. Bulb 110-120V 1NO ZB4BW031

Regular price AED 102.90
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Light Block
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ZB4BW031 Light Block With Body/Fixing Collar works with the integrated BA9 LED base. It has 1 normally open contact and a metal casing and is compatible with Harmony XB4 indicator lights. This light block allows for quick and easy replacement and setup of the signaling devices. Installation and replacement of compatible illuminated pushbutton or selector switch units is simply done using a clip assembly and connection is made using simple screw terminal connections.

    Schneider Electric ZB4BW031 Light Block allows visual differentiation of signaling units through the lighting provided by the integrated LED of the BA9 base. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. It is designed to fit standard 22mm signaling and control units, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 55°C allows the product to be used in a variety of ways.

    Features
    • Quick and easy replacement and setup of the signaling devices.
    • Easy to install and replace on compatible illuminated pushbutton or selector switch units.
    • IP20 rating
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Complete Body/Contact Assembly And Light Block

    Model : ZB4BW031

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

    Rated Impulse Withstand : 6 kV conforming to EN 60947-1

    Rated Supply Voltage : 110...120 V

    Bulb Base : BA 9s

    CAD Overall Height : 47 mm

    CAD Overall Width : 30 mm

    Compatibility Code : ZB4

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

    Fixing Collar Material : Zamak

    Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

    Mechanical Durability : 5000000 cycles

    Light Source : Incandescent

    Positive Opening : Without

    Certifications : CSA, DNV, GL, BV, LROS (Lloyds register of shipping), UL listed

    Protective Treatment : TH

    Range Of Product : Harmony XB5

    Sale Per Indivisible Quantity : 1

    Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Signalling Type : Steady

    Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    Terminals Description ISO n°1 : (X1-X2)PL

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Customizable : 0

    Operating Force : 2.3 N NO changing electrical state

    Operating Travel : 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

    Operating Torque : 0.05 N.m NO changing electrical state

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-55 °C

    Standards : EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C8201-5-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C8201-1

    Device Presentation : Basic sub-assemblies

    Electrical Shock Protection Class : Class I conforming to IEC 60536

    Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    Weight : 0.141 kg
