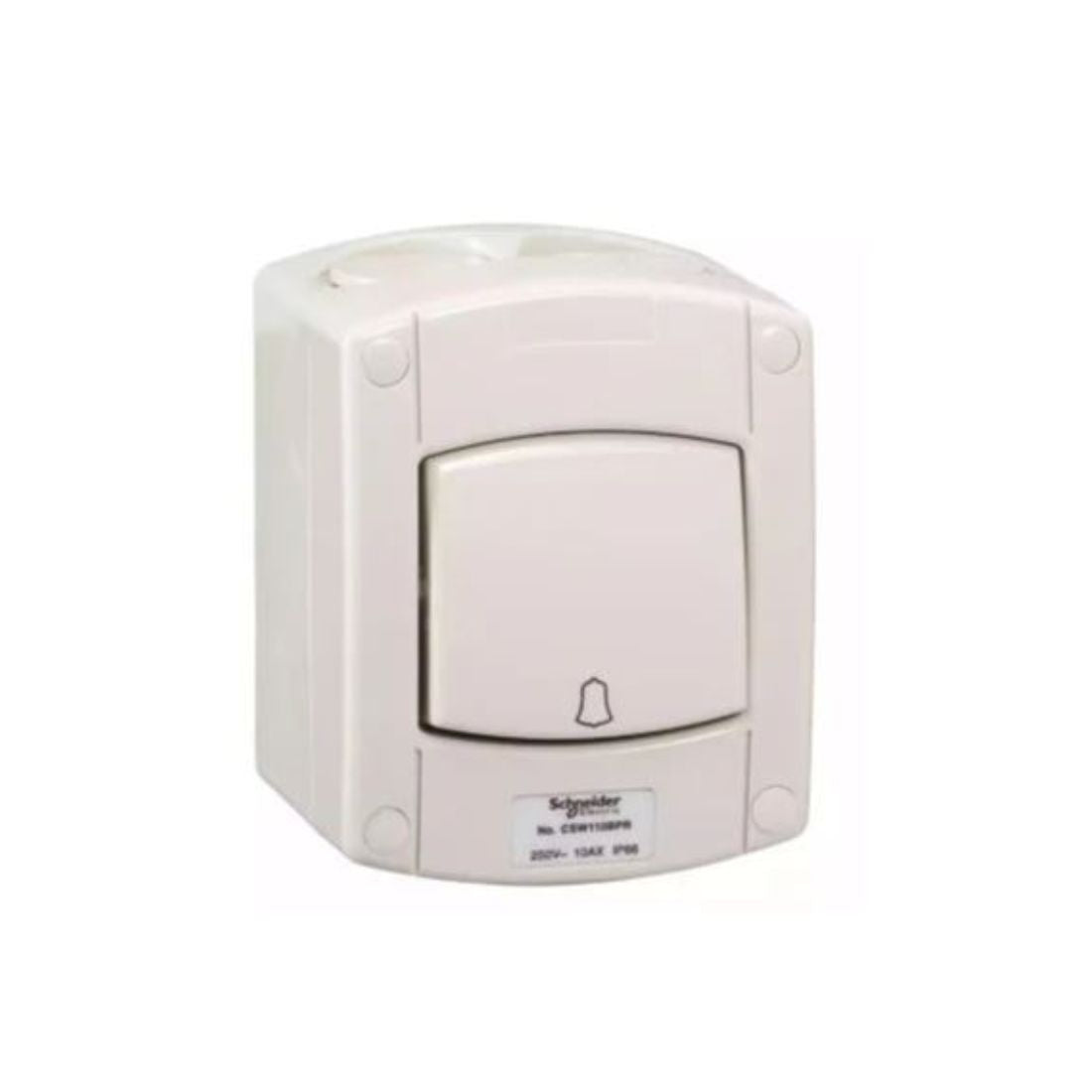

Schneider Electric Kavacha Switch 10AX 250V 1 Gang IP66 CSW110BPR-GY

AED 106.00

(Price Includes VAT)

Delivery truck icon

Order Now & Get it by 2 days

Shop logo

Sold by: Marketplace

Free delivery inside Dubai on all orders with no order limit. Pay in 4 interest-free installments for Dubai orders using Tabby.
Cash on delivery payment method icon
Cash on Delivery
7 Days Returnable icon
7 Days Returnable
15+ Years Of Trust icon
15+ Years Of Trust
15+ Branches icon
15+ Branches
Quantity

Brand : Schneider Electric

Type : Switch

Collections

Description

Schneider Electric CSW110BPR-GY Switch is a device used to interrupt or divert the flow of electric current in a circuit. It can be manually operated (like a light switch) or automatically operated (like a sensor-triggered switch). 10A is the maximum current the switch is rated to handle safely.

250V is the maximum voltage the switch is designed to handle. 1G is the number of gangs available in the switch. A gang in this context usually means the number of independent circuits the switch can control. The switch has both momentary and alternate action capabilities.

Momentary action means that the switch returns to its default position when released, while alternate action means it toggles between positions. IP66 is an Ingress Protection (IP) rating. It is dust-tight, providing complete protection against contact. It is protected against powerful jets of water from all directions.

In summary, the Schneider Electric CSW110BPR-GY Switch is a 10A, 250V switch with 1 gang, capable of both Momentary and Alternate action, and it has an IP66 rating, indicating high levels of dust and water resistance. This type of switch might be used in outdoor or industrial applications where it's exposed to harsh environmental conditions.

Features
  • IP 56/66 rating / 16 up to 40A / 250 up to 500V / SP up to TP
  • Neat & compact modern design
  • Large switch actuator provides easy switching even with gloved hands
  • It is made of heat-resistant polycarbonate
Specifications
Brand Schneider Electric
Item Name Switch
Model CSW110BPR-GY
Rated Current 10 A at 250 V AC
Color Grey
Depth 65mm
Wiring Device Mounting Surface
Switch Function 2-Way Switch With Looping Terminal
Height 103mm
IP Degree Of Protection IP66
Material PC (Polycarbonate)
Number Of Gangs 1 Gang
Range Kavacha
Range Of Product Kavacha
Width 80 mm
Standards BS EN 60669-1 : 2000, IEC 60529
Environmental Characteristic Weatherproof
