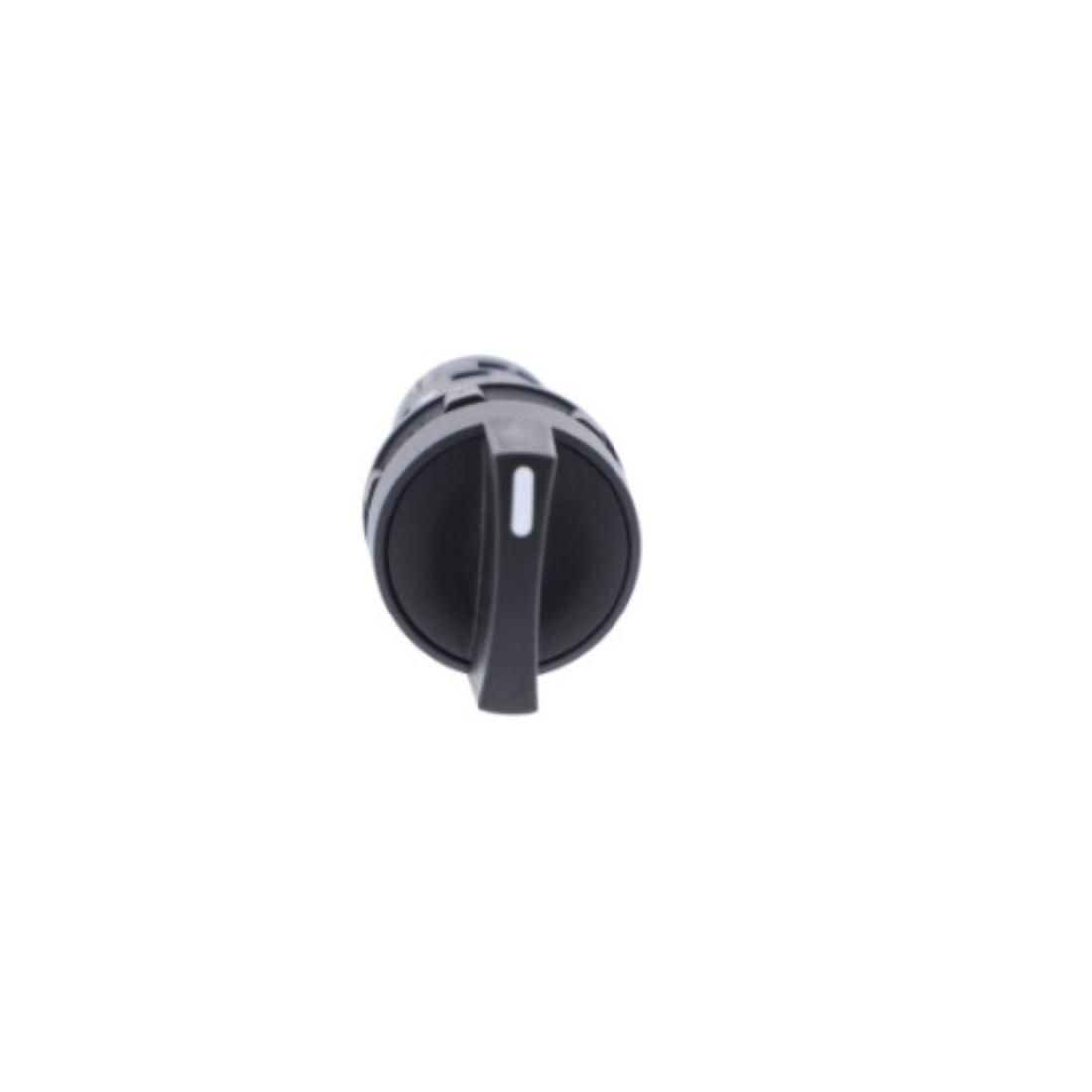

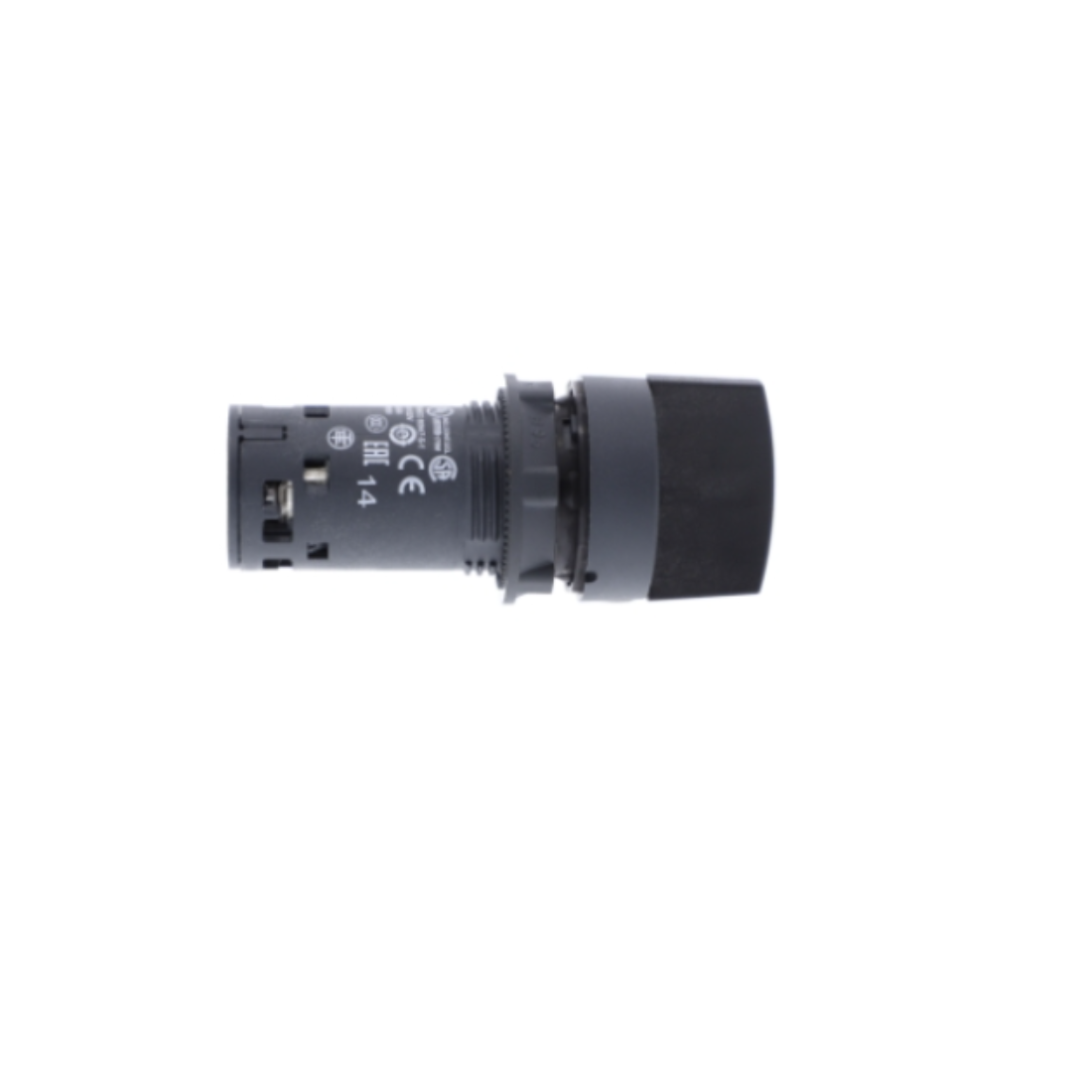

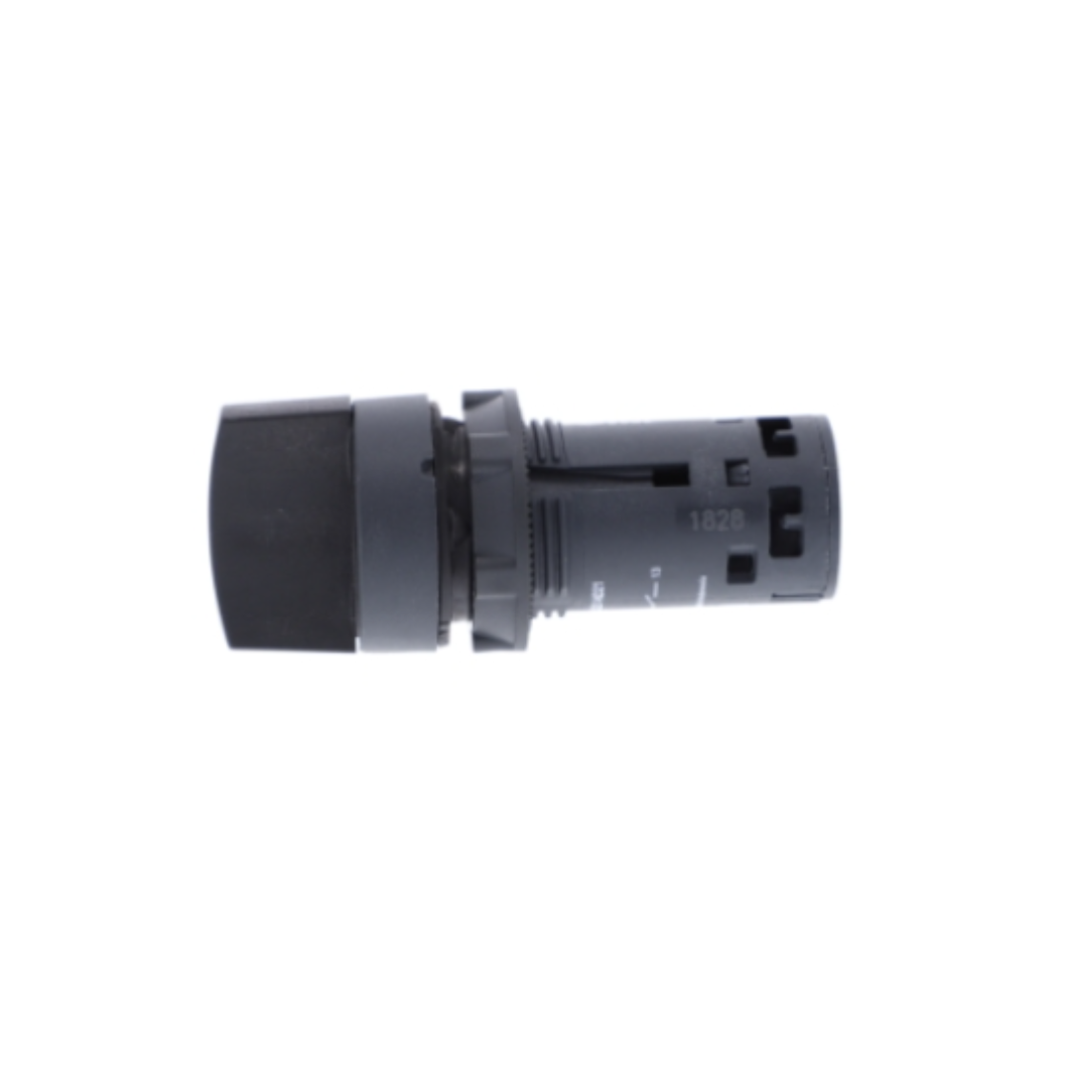

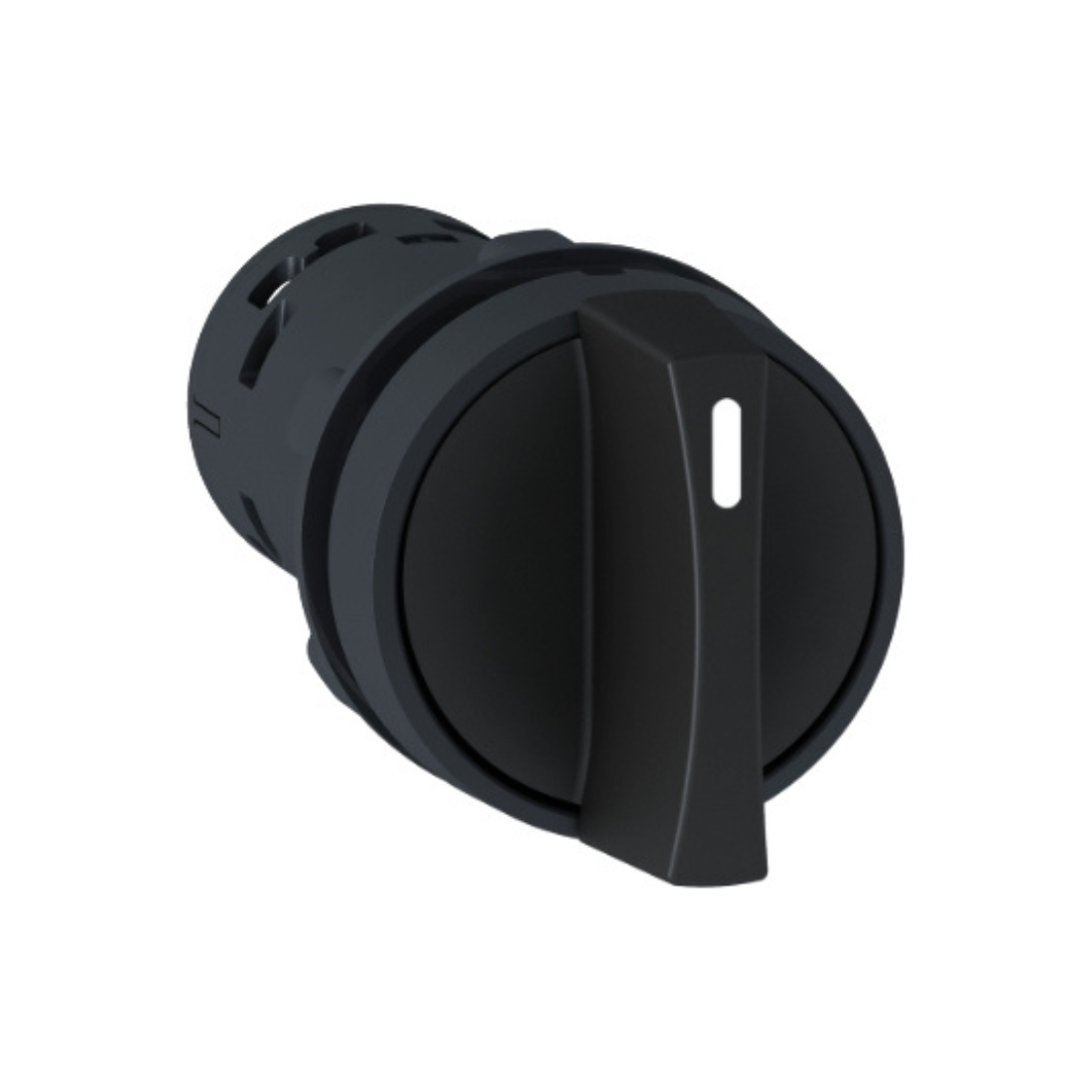

Schneider Electric Harmony XB7 Monolithic Selector Switch Plastic Black Ø22 Stay Put 2 Positions Stay Put 1 NO + 1 NC XB7ND25
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Monolithic Selector Switch
Description
Schneider Electric XB7ND25 Black Monolithic Selector Switch has 2 positions, operates with a latching mechanism and screw terminal connections. Easily installs into standard 22mm diameter cutouts and connects to the control circuits using simple screw terminal connections.
Schneider Electric XB7ND25 Black Monolithic Selector Switch provides an efficient way to provide the machine with multiple different inputs. Thanks to IP65, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. It features a double insulated plastic bezel. Its wide operating temperature range of -25°C to 70°C allows the product to be used in a variety of ways.
Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Wide range of operating temperatures from -25°C to 70°C/-13 to +158 °F
| Brand | Schneider Electric |
| Item Name | Selector Switch |
| Model | XB7ND25 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 |
| CAD Overall Depth | 68.5 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width 29 mm | |
| Cap/Operator Or Lens Color | Black |
| Compatibility Code | XB7 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Device Mounting | Fixing Hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm |
| Fixing Mode | Fixing nut: 2-2.4 N.m |
| Electrical Reliability | λ < 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4 |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 |
| Mechanical Durability | 300000 cycles |
| Mounting Diameter | 22 mm |
| Operator Position Information | 2 positions 90° |
| Operator Profile | Black standard handle |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Protective Treatment | TH |
| Certifications | UL, CSA, BV, DNV, LROS (Lloyds register of shipping), GL |
| Range Of Product | Harmony XB7 |
| Sale Per Indivisible Quantity | 10 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Supply Voltage Limits | 195-264 V AC |
| Terminals Description ISO n°1 | (21-22)NC, (13-14)NO |
| Type Of Operator | Stay put |
| Contacts Type And Composition | 1 NO + 1 NC |
| NEMA Degree Of Protection | NEMA 12 conforming to UL 50 E, NEMA 3 conforming to UL 50 E |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
| Rated Operational Current | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1, 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Electrical Shock Protection Class | Class II conforming to IEC 61140 |
| Weight | 0.026 kg |
