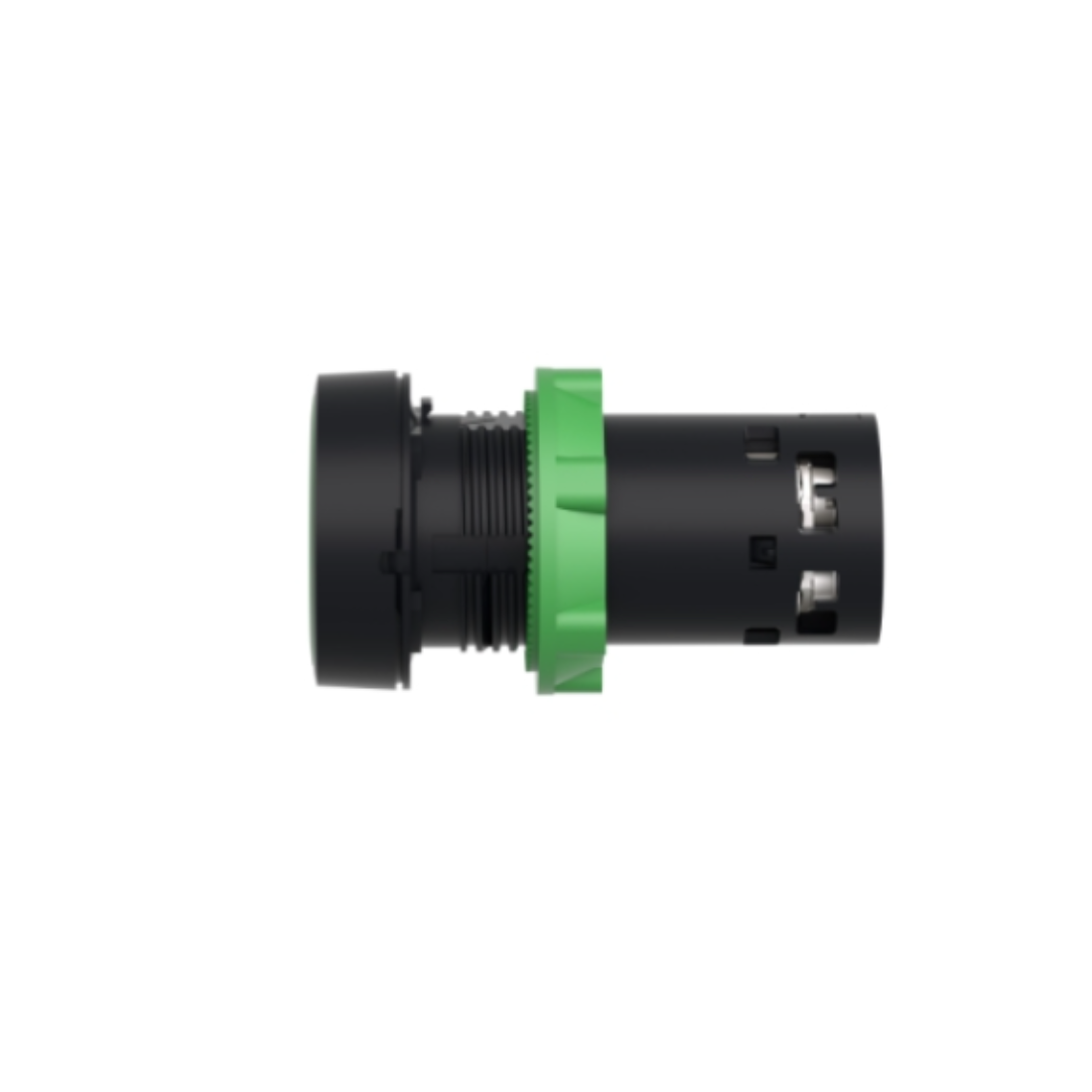

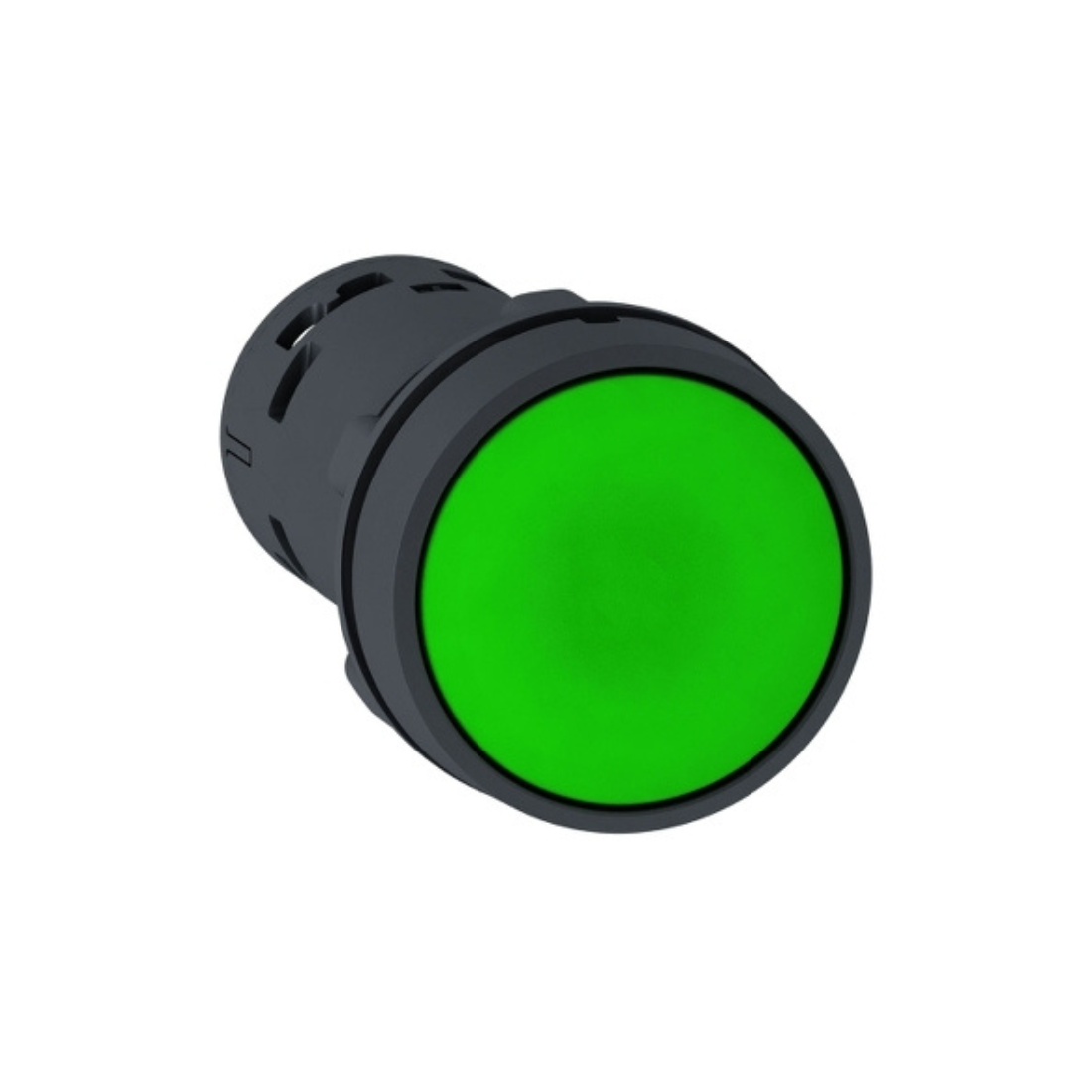

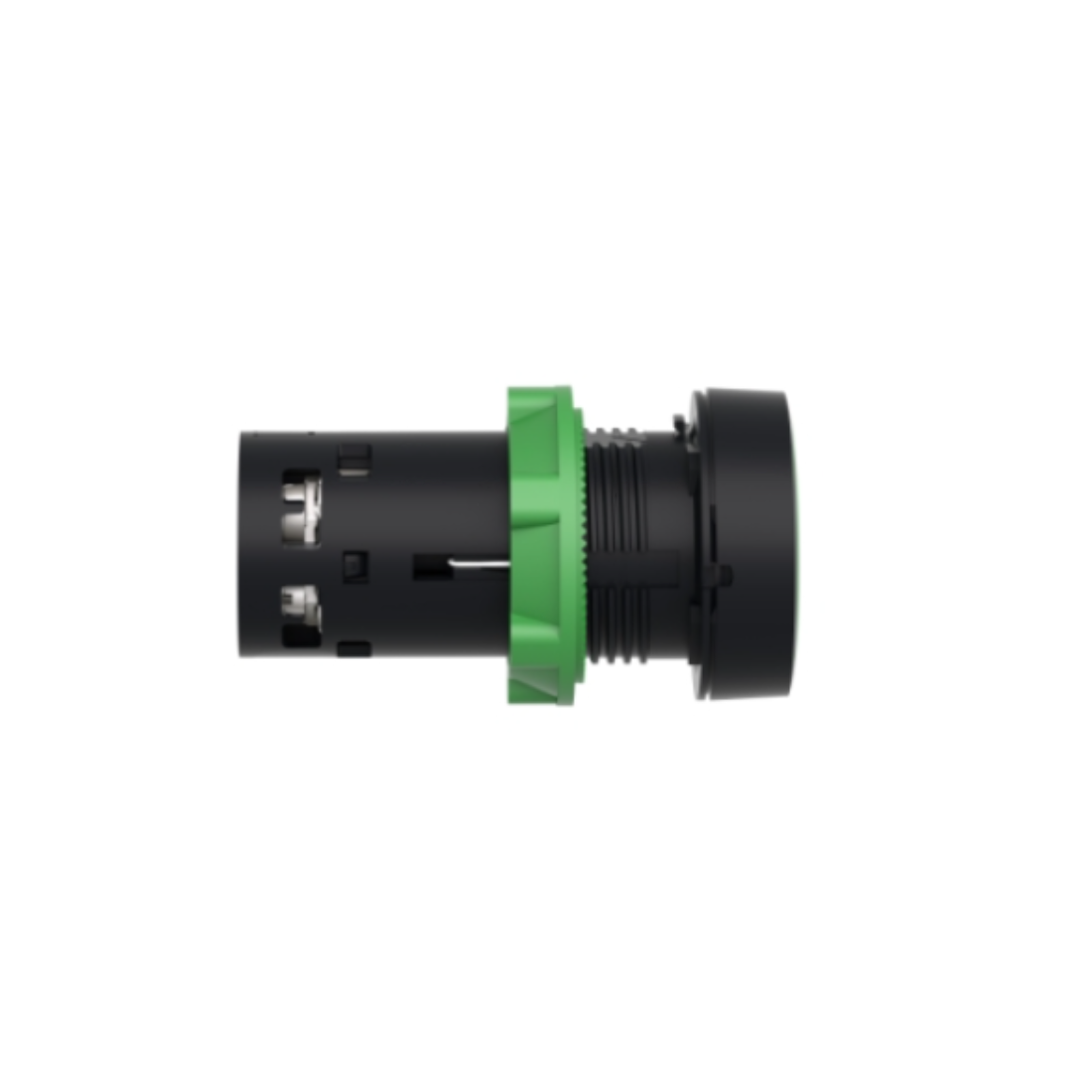

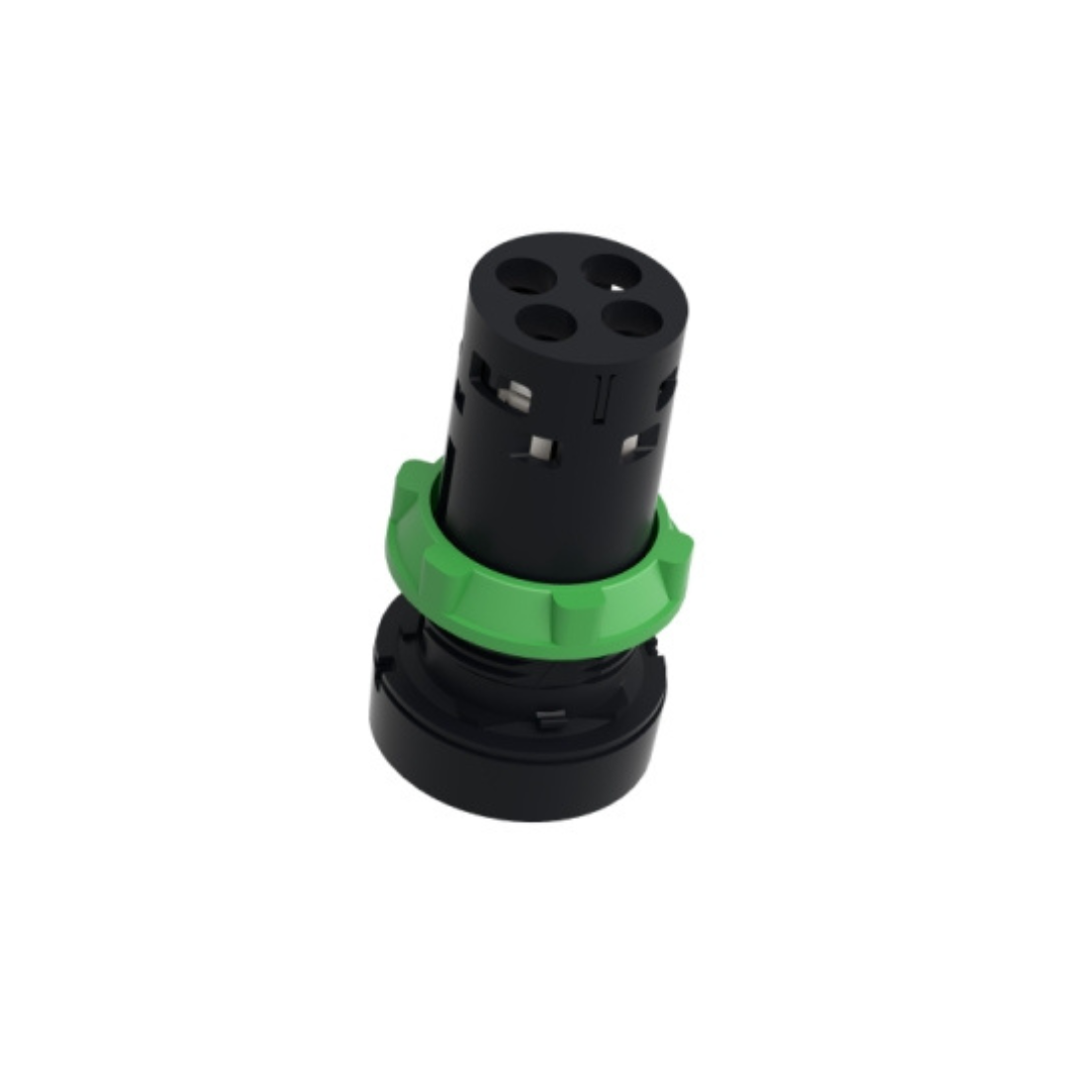

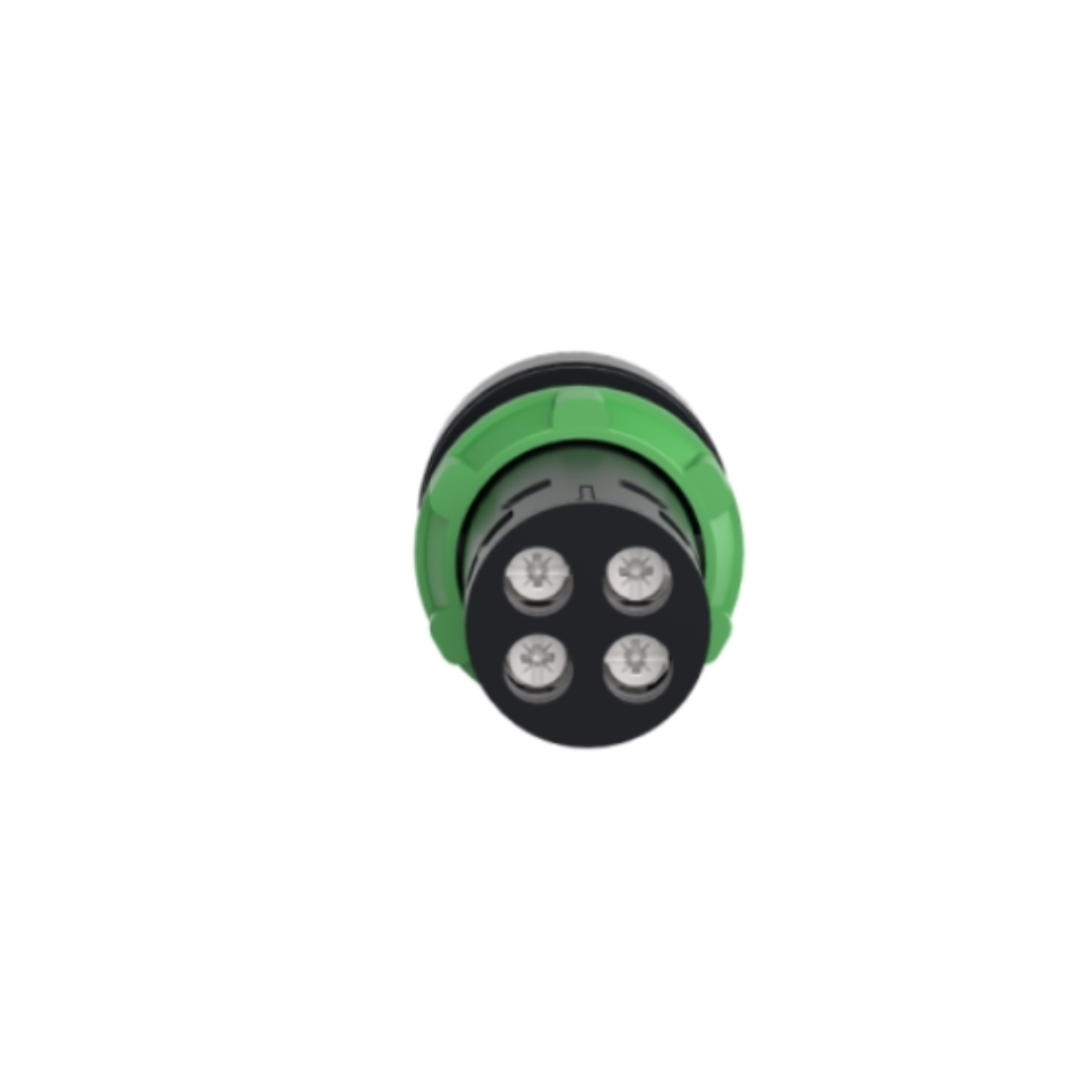

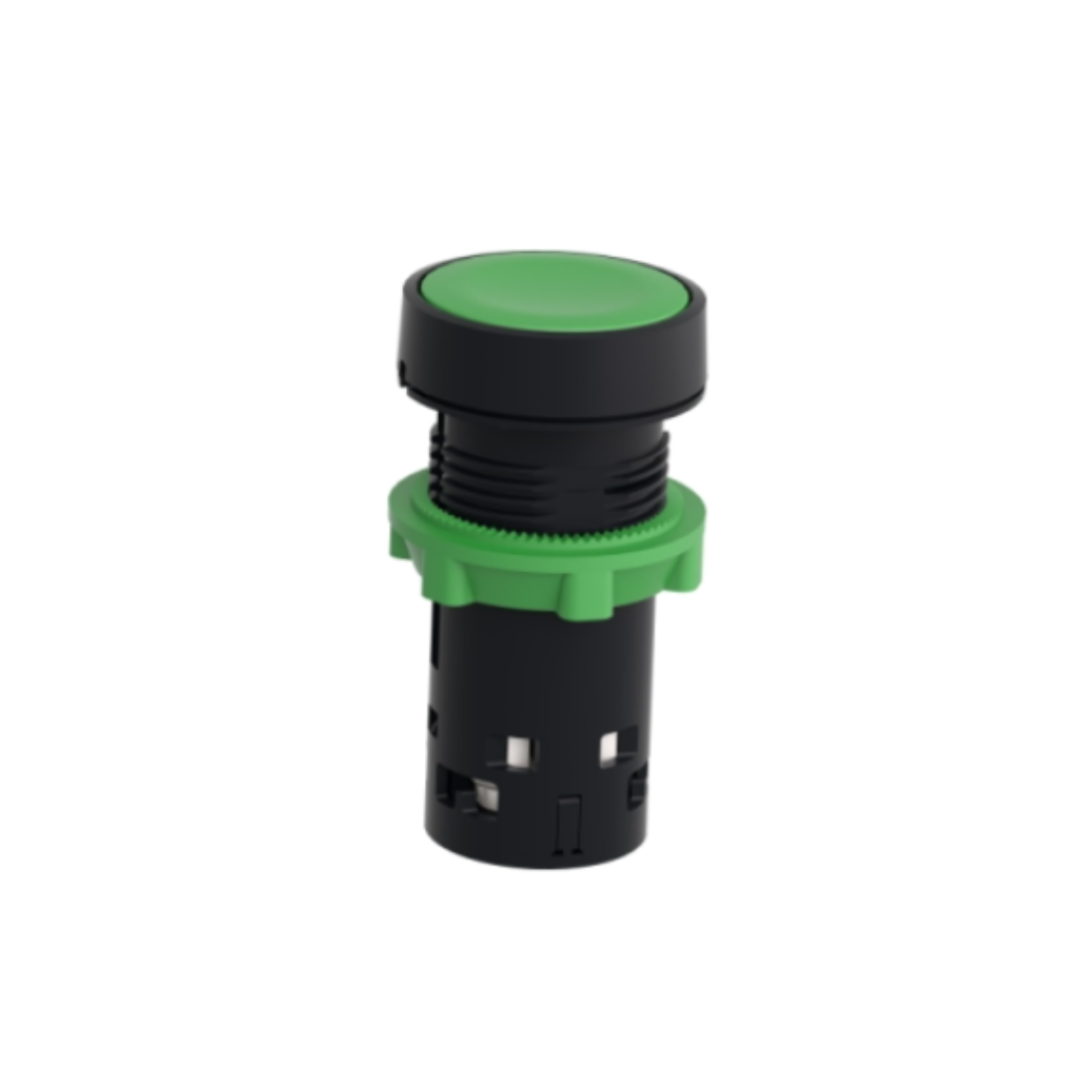

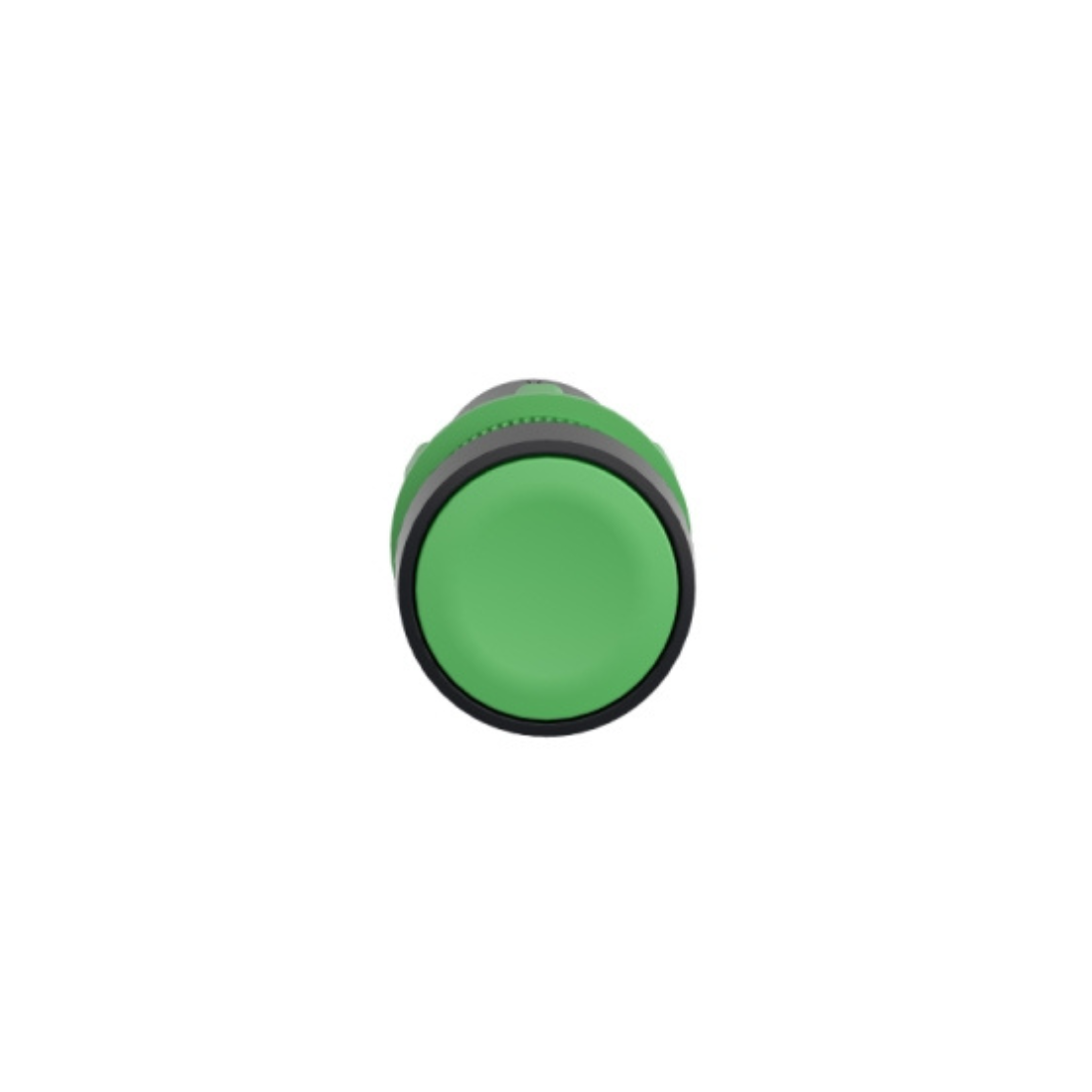

Schneider Electric Harmony XB7 Monolithic Push Button Plastic Green Ø22 Spring Return Unmarked 1 NO + 1 NC XB7NA35

Schneider Electric Harmony XB7 Monolithic Push Button Plastic Green Ø22 Spring Return Unmarked 1 NO + 1 NC XB7NA35

Name: Schneider Electric Harmony XB7 Monolithic Push Button Plastic Green Ø22 Spring Return Unmarked 1 NO + 1 NC XB7NA35
Brand: Schneider Electric
Price: 27.3 AED
Availability: InStock

AED 27.30

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Monolithic Push Button

Description

Schneider Electric XB7NA35 Green Monolithic Push Button operates with a spring-loaded push/return mechanism and uses screw terminals. It can be easily installed into standard 22mm diameter panel cutouts and connected to control circuits using classic screw terminal connections. Your wiring diagram is clearly visible thanks to clear colors and markings, minimizing errors during initial wiring and subsequent maintenance.

Thanks to IP65, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. It features a double insulated plastic bezel. Its wide operating temperature range of -25°C to 70°C allows the push button to be used in a variety of ways.

Features

Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
Wide range of operating temperatures from -25°C to 70°C/-13 to +158 °F
Clear and resilient symbol marking on the button

Specifications

Brand : Schneider Electric

Item Name : Push-Button

Model : XB7NA35

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN/IEC 60947-1

CAD Overall Depth : 51.5 mm

CAD Overall Height : 29 mm

CAD Overall Width : 29 mm

Cap/Operator Or Lens Color : Green

Compatibility Code : XB7

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Contact Operation : Slow-break

Device Mounting : Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1

Electrical Reliability : λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4

Fixing Center : >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm

Fixing Mode : Fixing nut beneath head: 2-2.4 N.m

IP Degree Of Protection : IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529

Mechanical Durability : 10000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Green flush, Unmarked

Overvoltage Category : Class II conforming to IEC 61140

Certifications : GOST, CCC

Protective Treatment : TH

Range Of Product : Harmony XB7

Sale Per Indivisible Quantity : 10

Shape of Signaling Unit Head : Round

Shape Of Screw Head : Cross compatible with JIS No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Terminals Description ISO n°1 : (13-14)NO, (23-24)NO

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Contacts Type And Composition : 1 NO + 1 NC

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 12 conforming to UL 50 E, NEMA 3 conforming to UL 50 E

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -25-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : JIS C8201-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1

Rated Operational Current : 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1, 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1

Device Presentation : Monolithic Product

Electrical Durability : 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Weight : 0.021 kg
