Name: Schneider Electric Harmony XB7 Monolithic Pilot Light Plastic Orange Ø22 Integral LED 110-120V AC XB7EV08GP
Brand: Schneider Electric
Price: 16.8 AED
Availability: InStock

AED 16.80

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Monolithic Pilot Light

Description

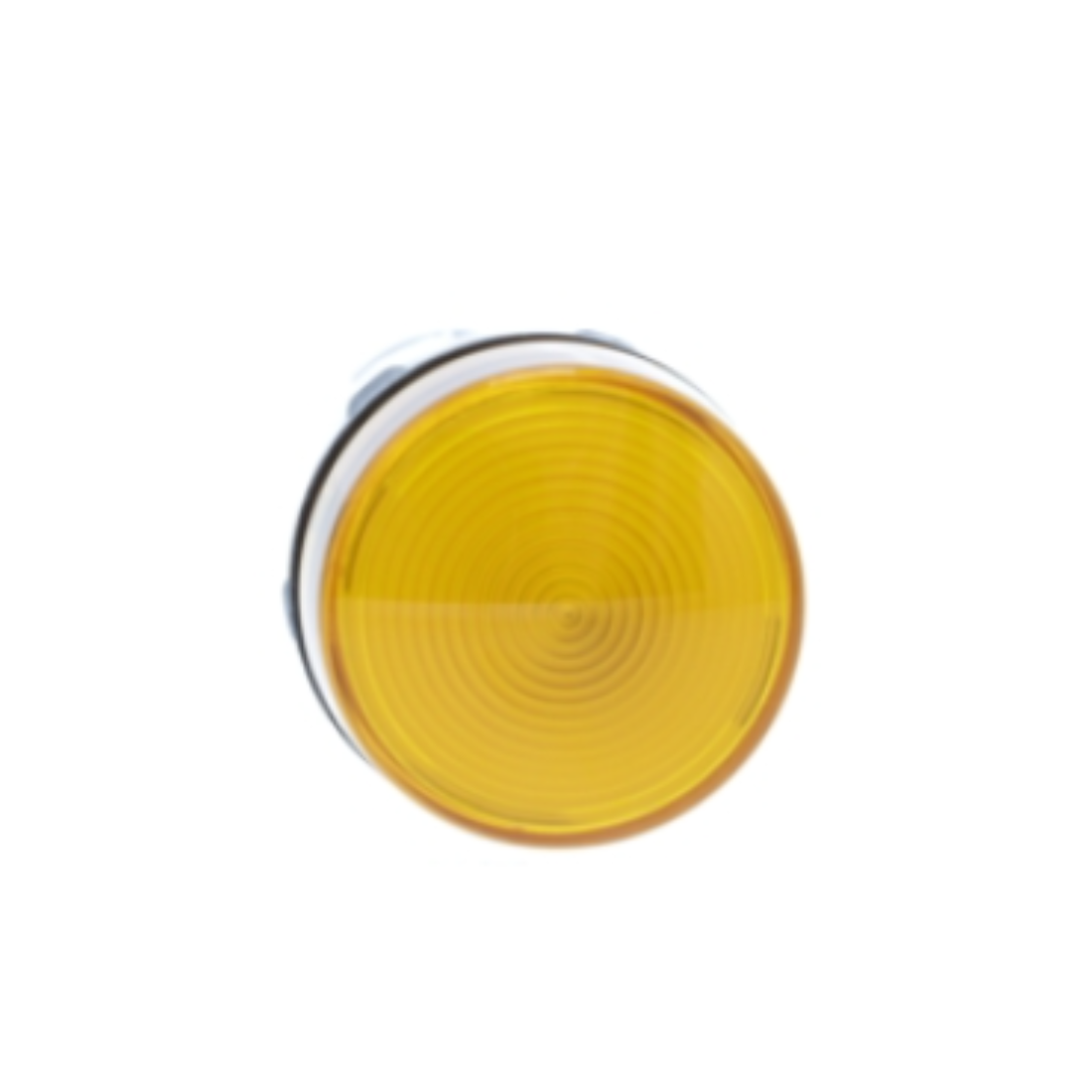

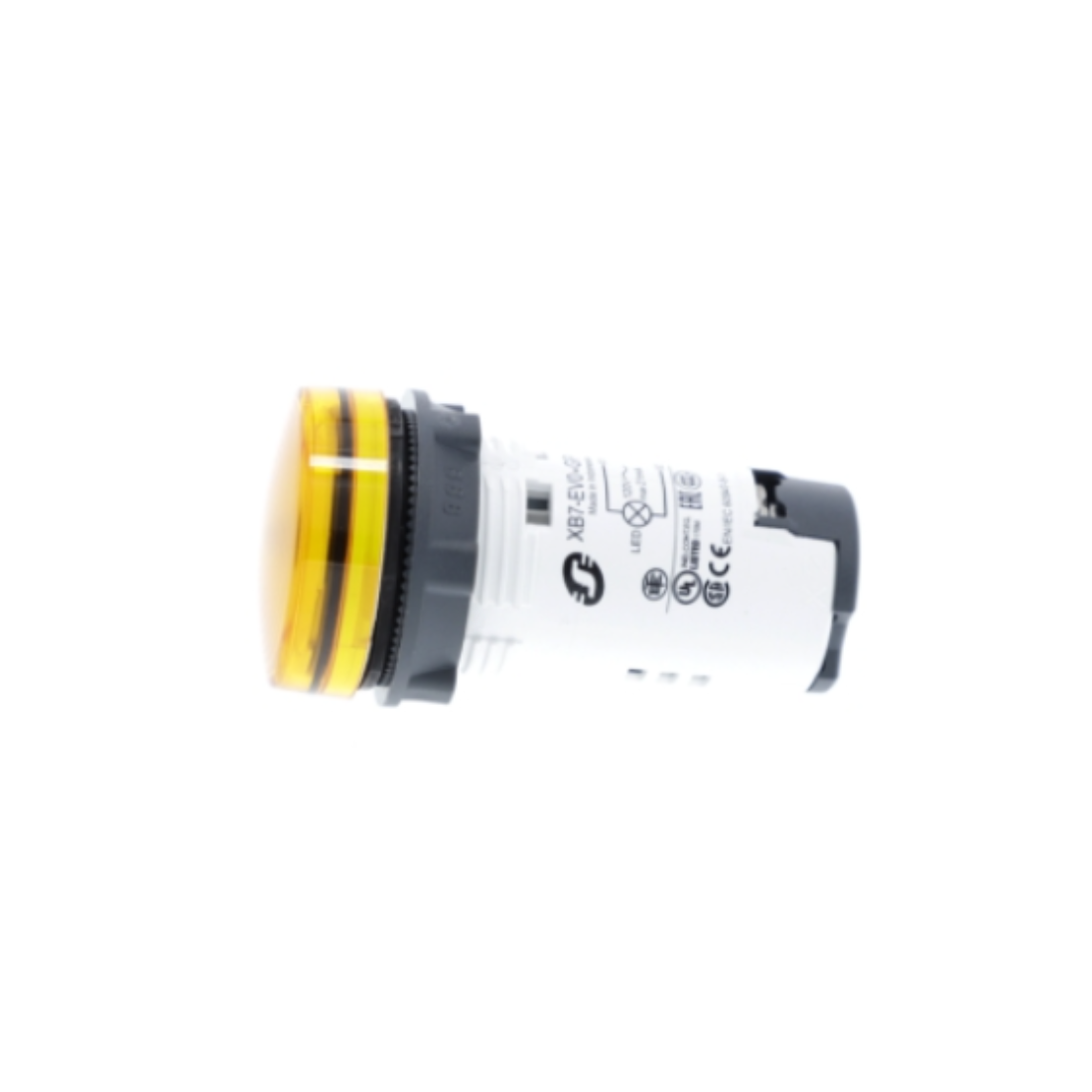

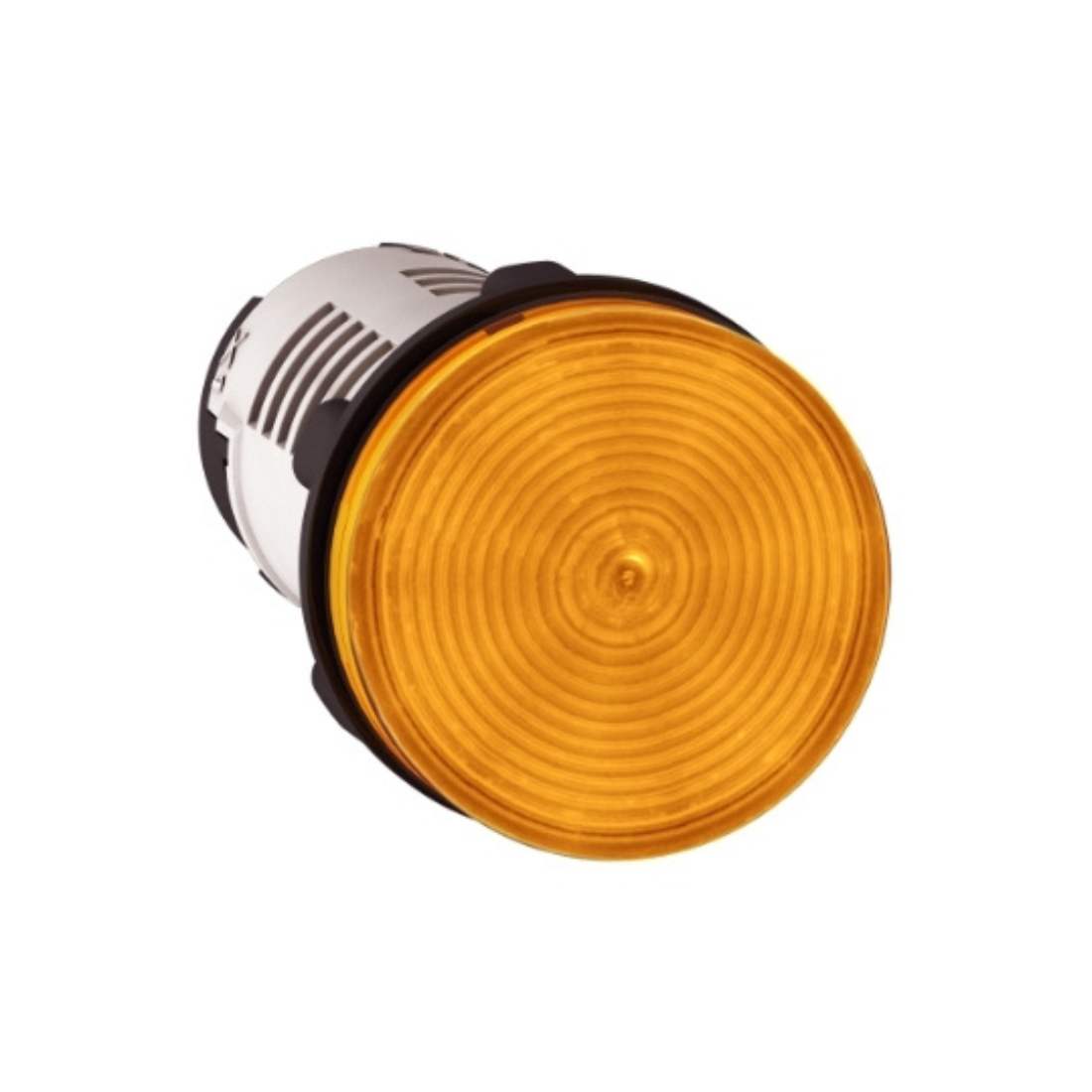

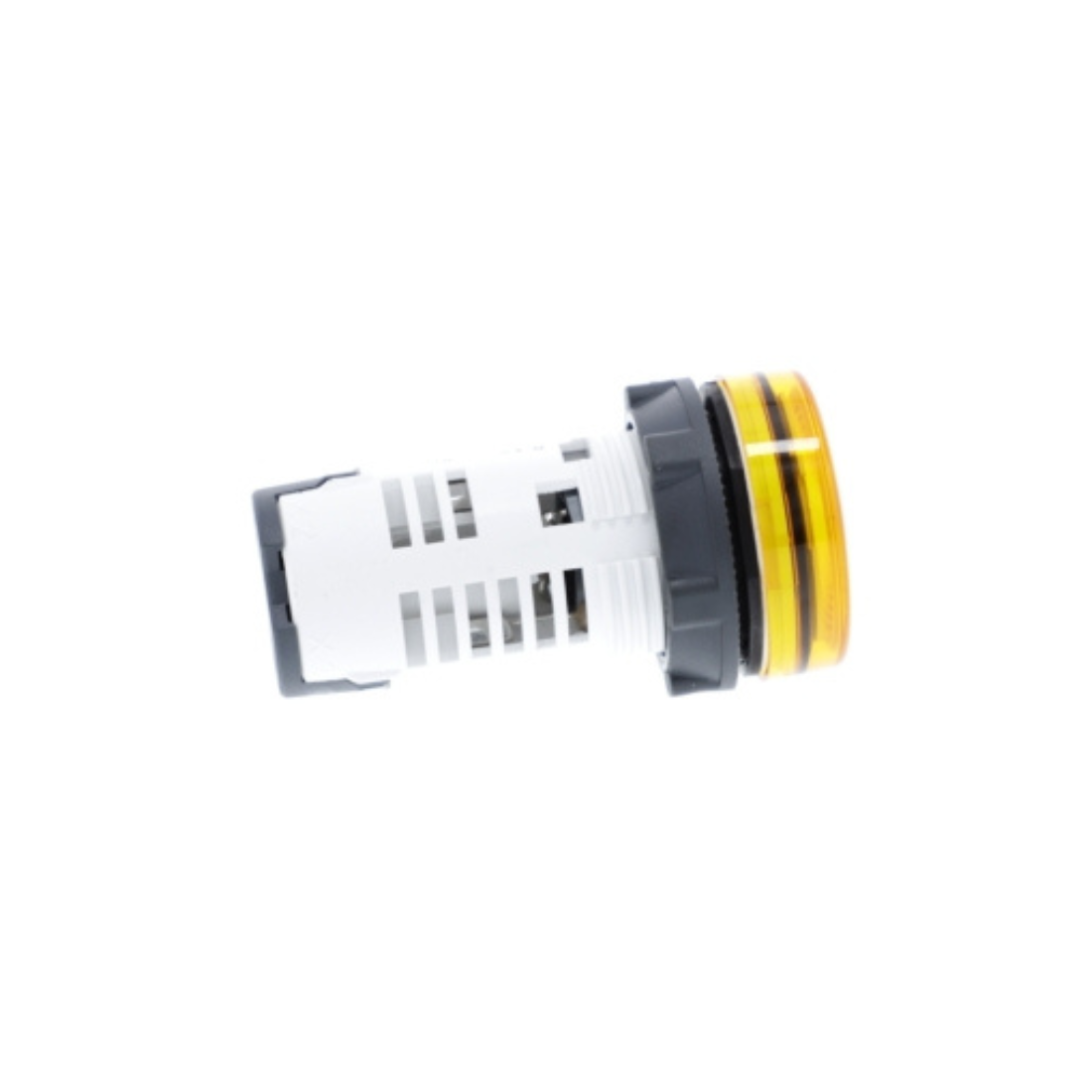

Schneider Electric XB7EV08GP Orange Monolithic Pilot Light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections. Thanks to the clear color scheme and integrated LED lighting, it is easily visible even from a distance, allowing complex machine states to be read at a glance.

Thanks to IP65, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. It features a double insulated plastic bezel. Its wide operating temperature range of -25°C to 70°C allows the product to be used in a variety of ways.

Features

Finger safe screw clamp terminals
High chemical resistance
Modern design; reinforced with flush mounting kit
High brightness of the LED illuminated functions
Simple to choose

Specifications

Brand : Schneider Electric

Item Name : Monolithic Pilot Light

Model : XB7EV08GP

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand Voltage : 6 kV conforming to EN/IEC 60947-1

Rated Supply Voltage : 120 V, 120 V AC 50/60 Hz

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Orange

Compatibility Code : XB7

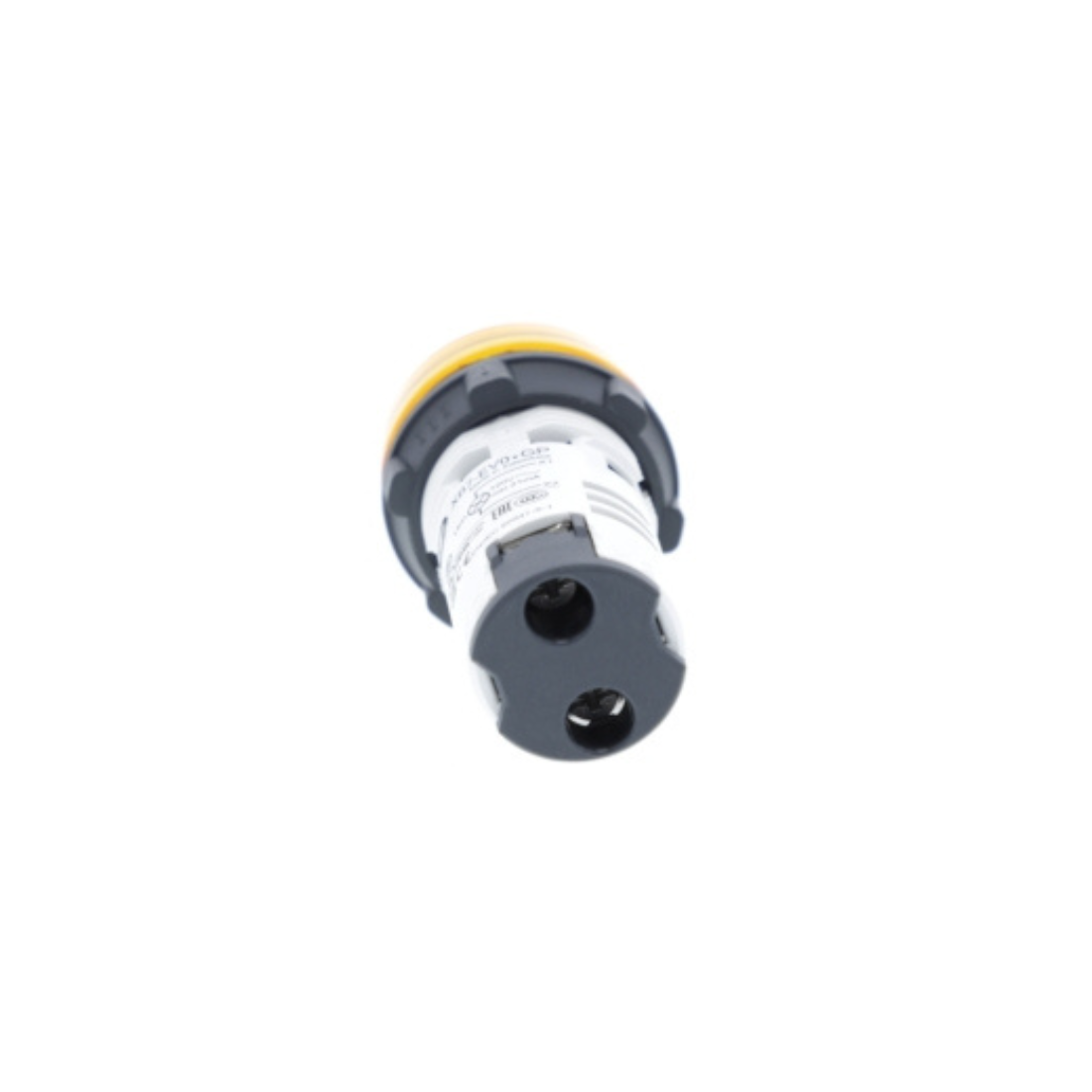

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 18...21 mA

Depth : 54 mm

Device Mounting : Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1

Fixing Center : >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm

Fixing Mode : Fixing nut beneath head: 2-2.4 N.m

Height : 29 mm

IP Degree Of Protection : IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529

Light Source : LED

Overvoltage Category : Class II conforming to IEC 60536

Mounting Diameter : 22 mm

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB7

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 100-132 V AC

Terminals Description ISO n°1 : (X1-X2)PL

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Width : 29 mm

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

NEMA Degree Of Protection : NEMA 4 conforming to UL 50 E, NEMA 12 conforming to UL 50 E

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Electromagnetic Compatibility : Disturbing field emission class B conforming to EN 55011

Ambient Air Temperature For Operation : -25-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, JIS C8201-1

Device Presentation : Monolithic product

Weight : 0.02 kg
