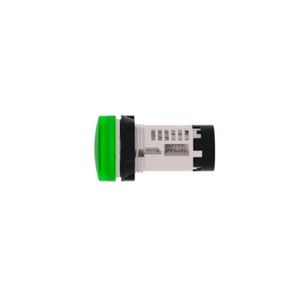

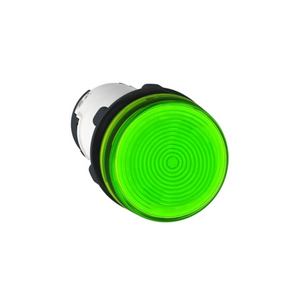

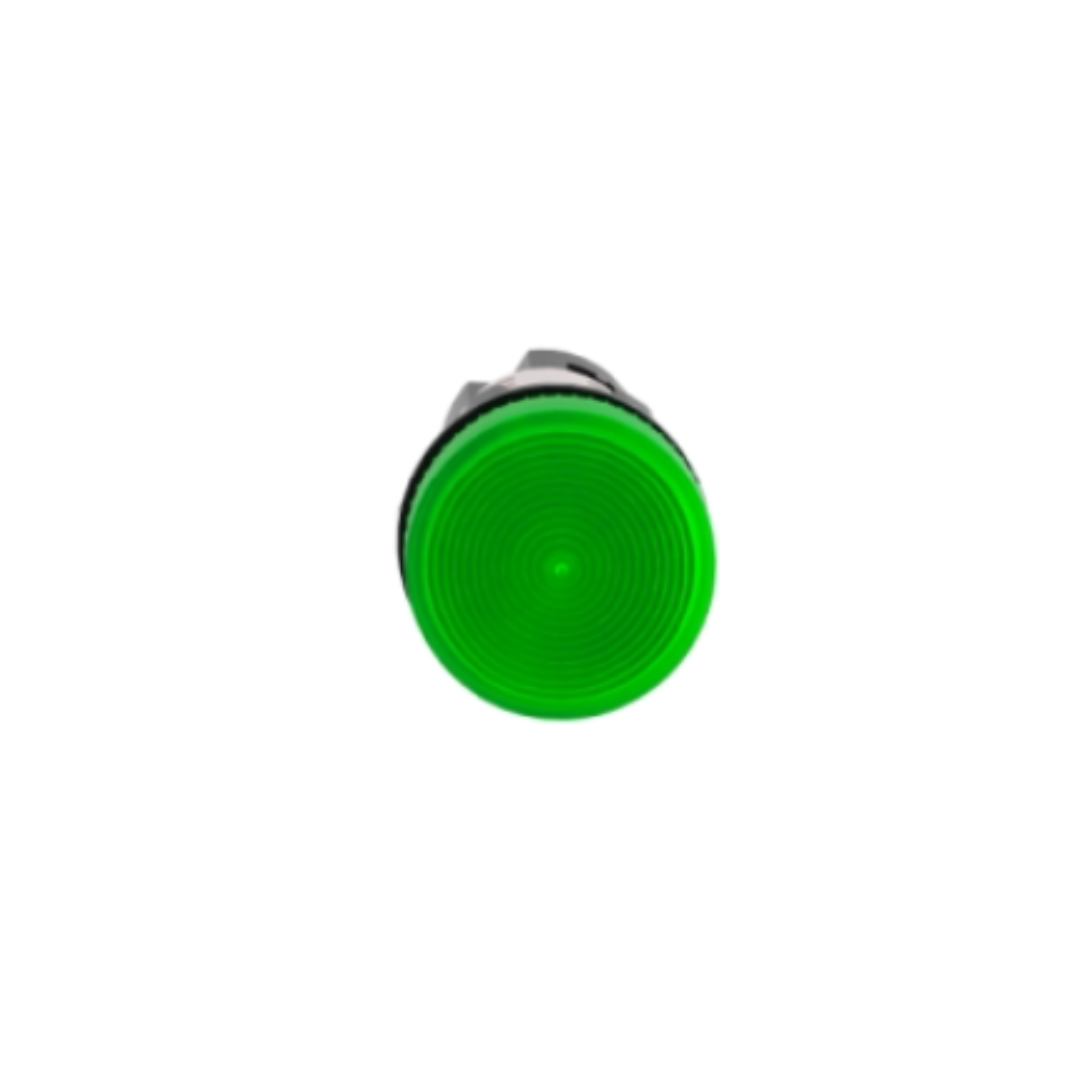

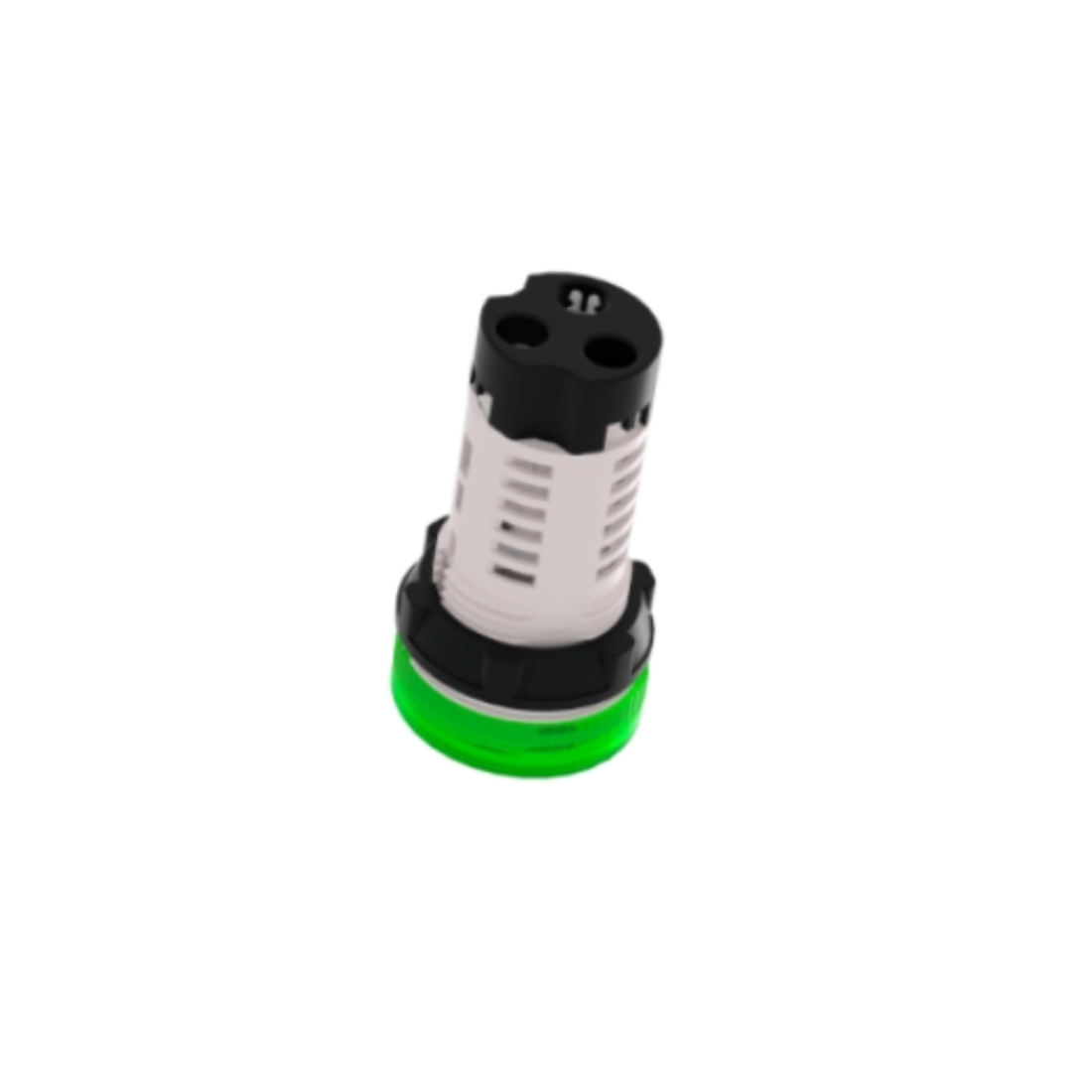

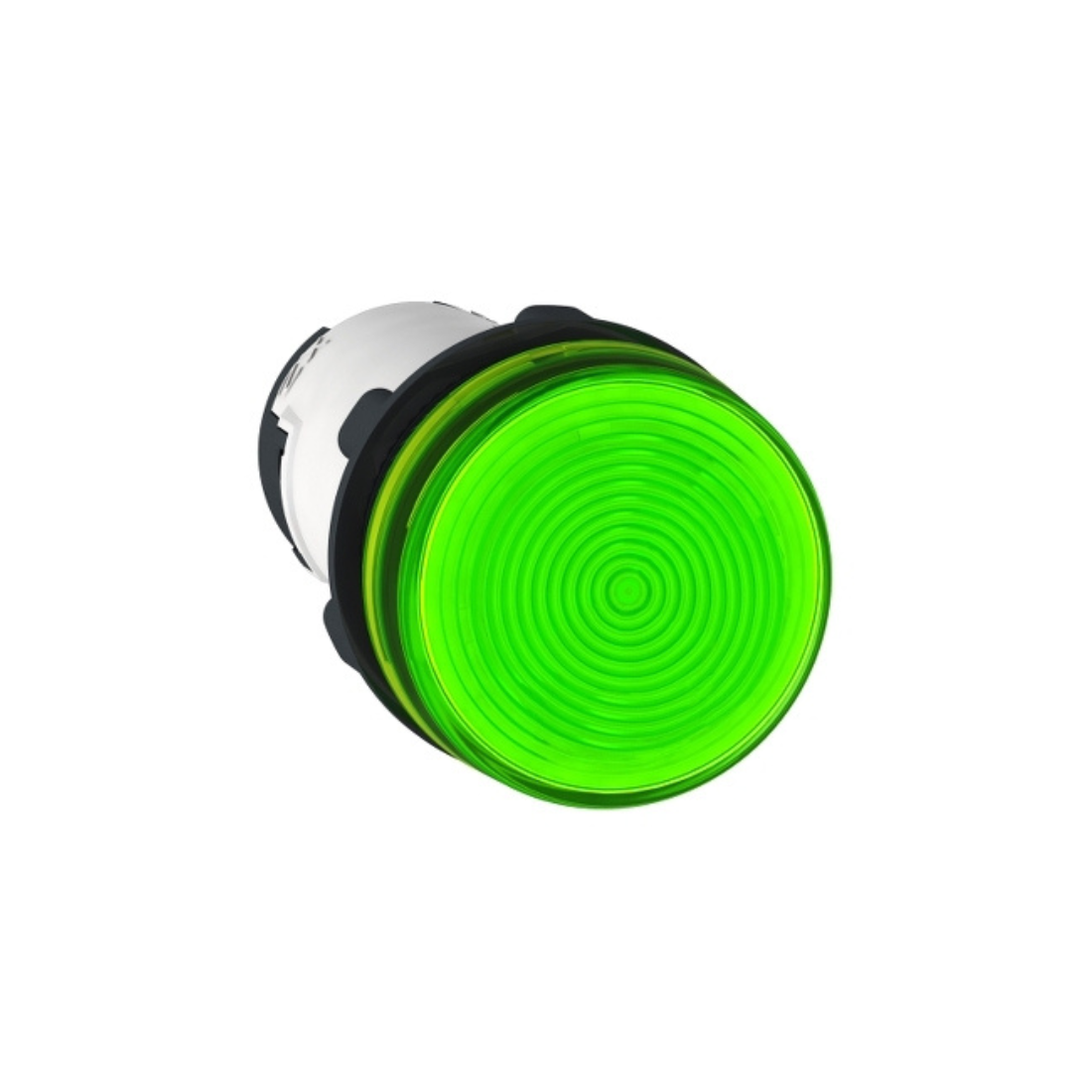

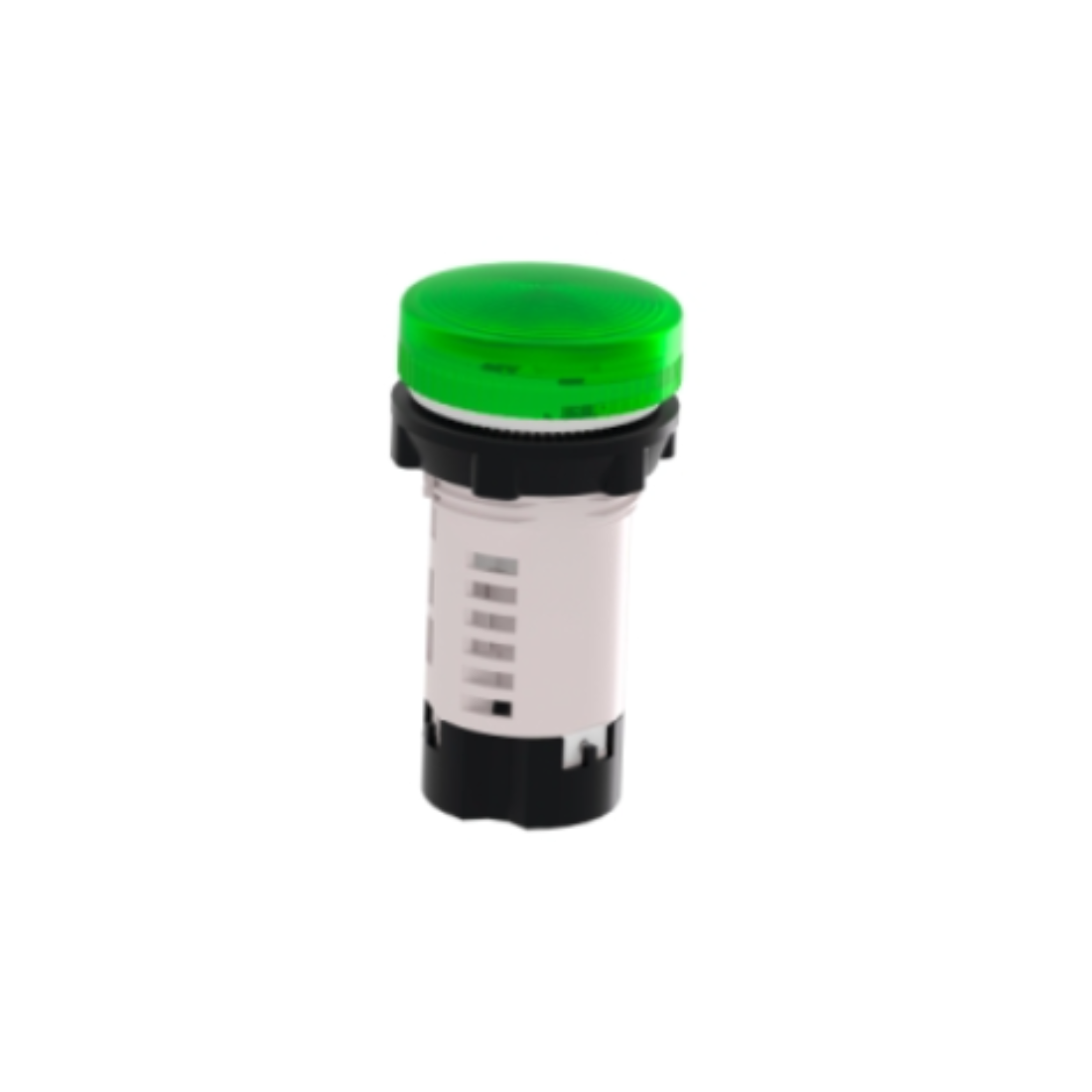

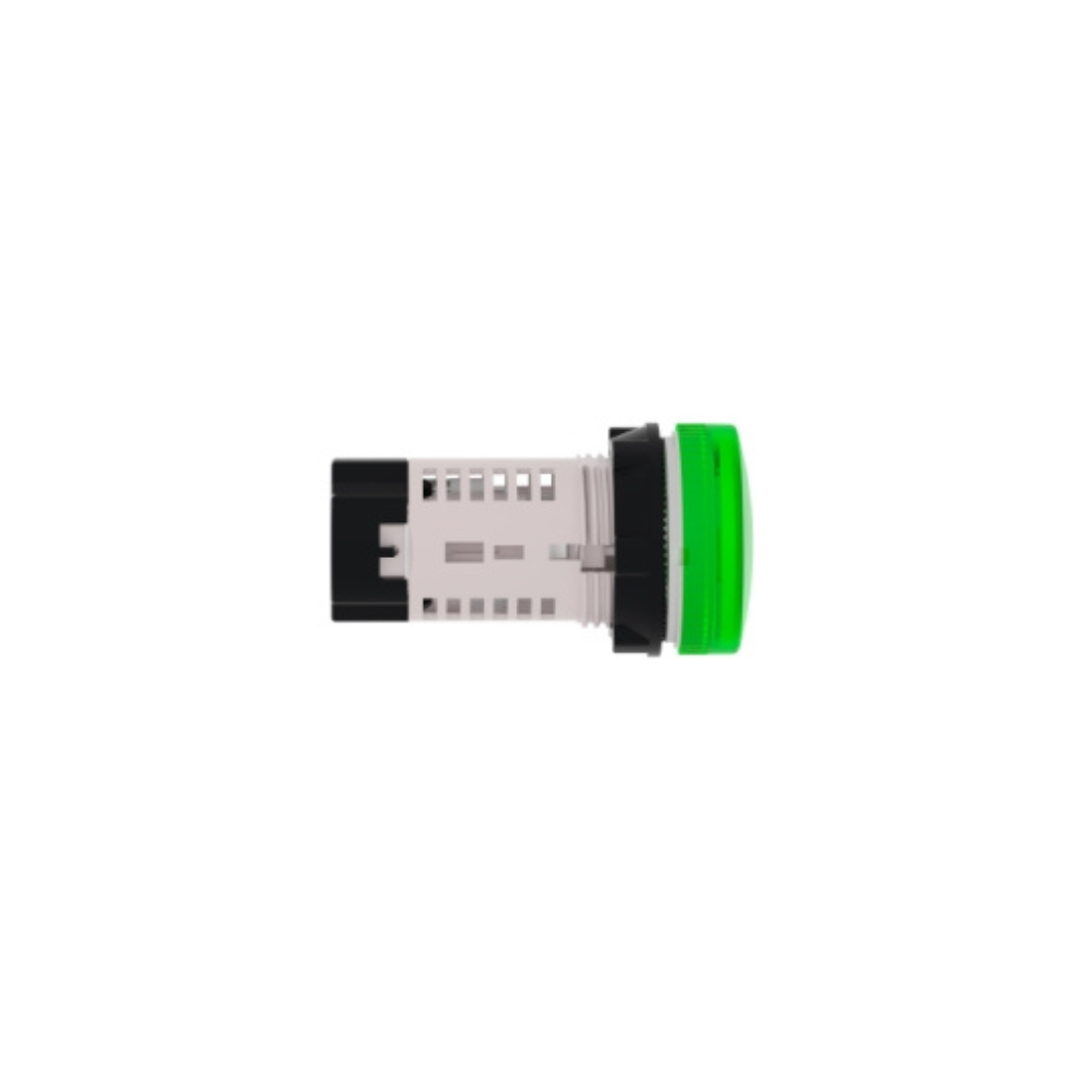

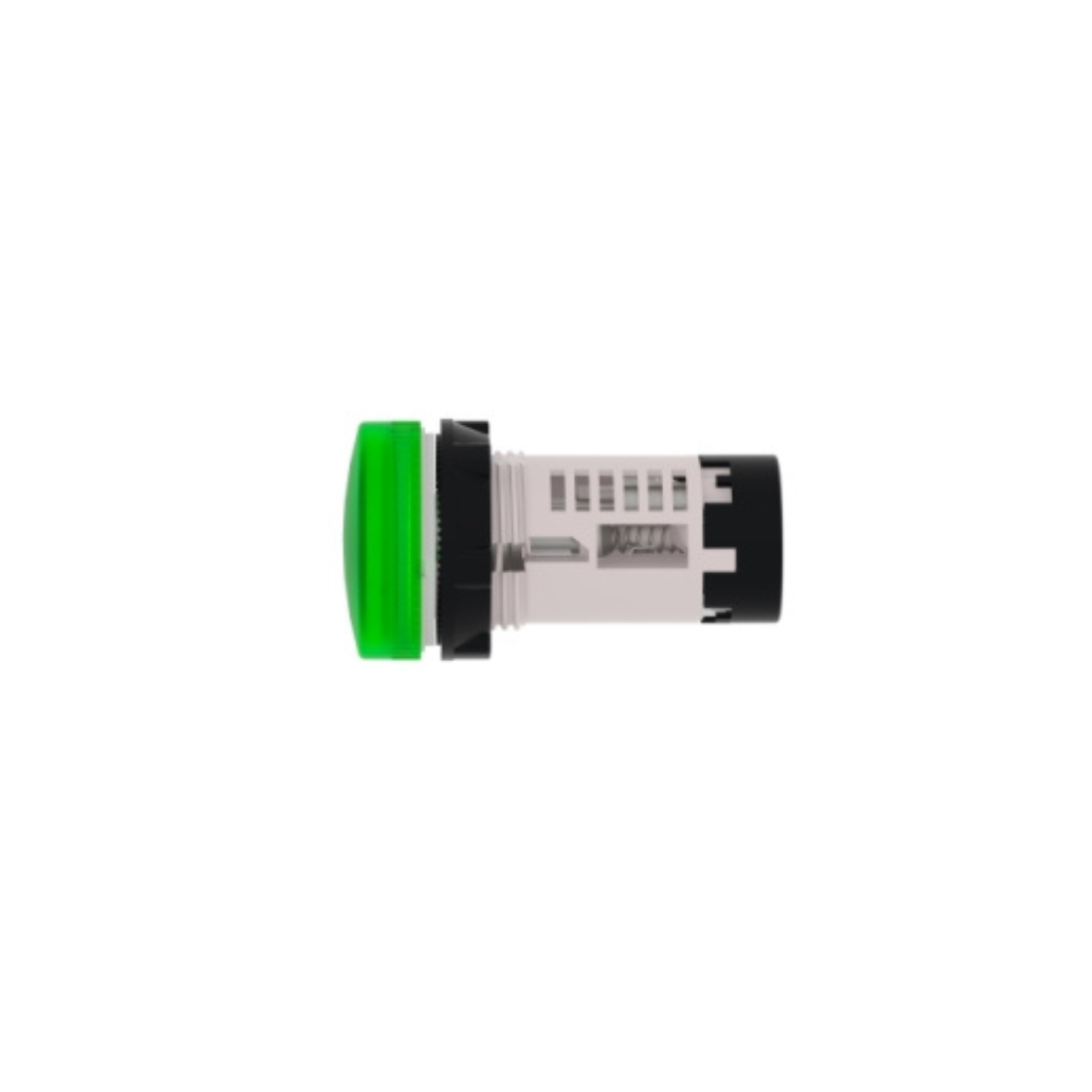

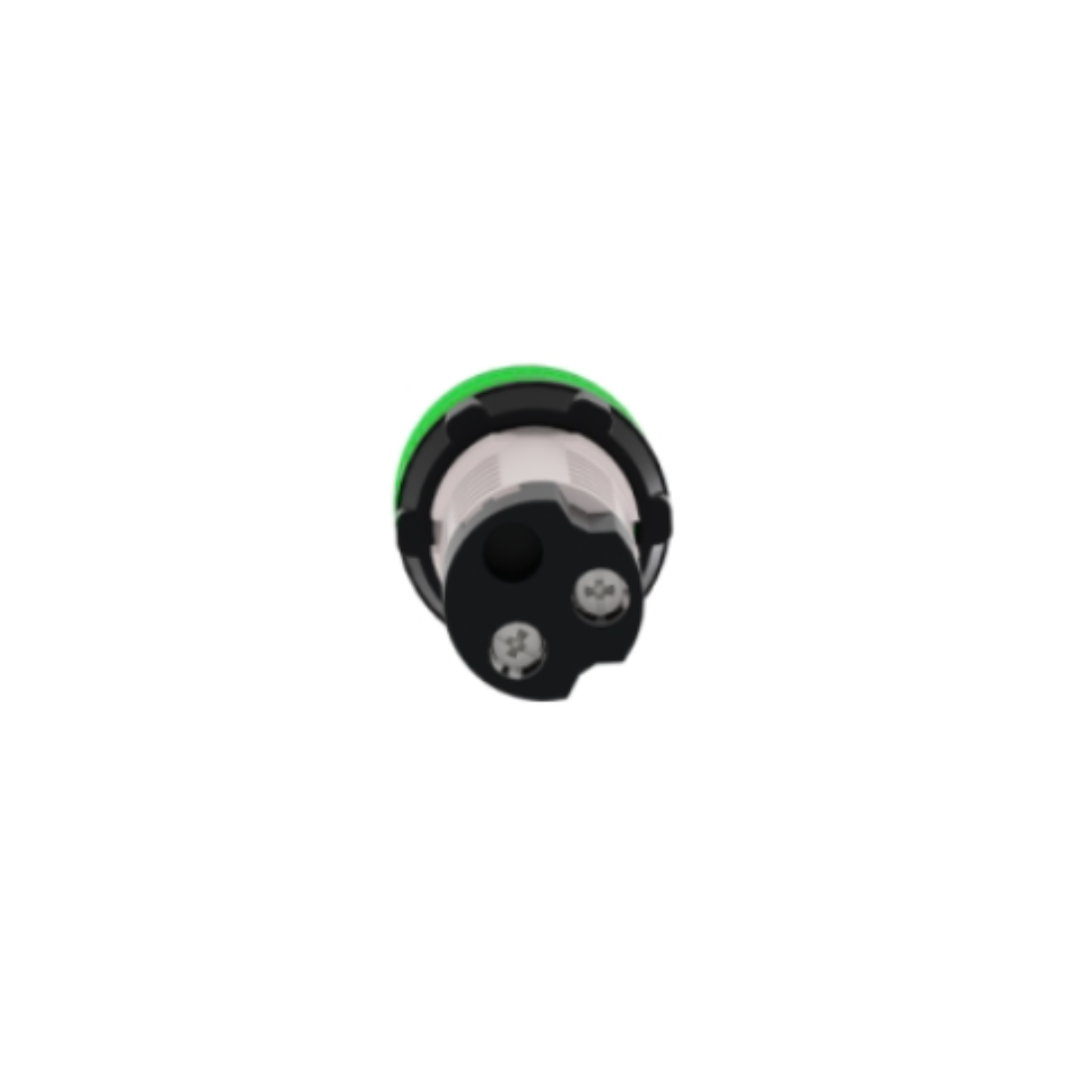

Schneider Electric Harmony XB7 Monolithic Pilot Light Plastic Green Ø22 Plain Lens for BA9s Bulb <= 250V XB7EV63P
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Monolithic Pilot Light
Description
Schneider Electric XB7EV63P Green Monolithic Pilot Light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It can be easily installed into standard 22mm diameter cutouts and connected using simple screw terminal connections. Thanks to the clear colors and illumination through the BA9 base, it is easily visible from a distance, allowing complex machine statuses to be read at a glance.
Thanks to IP54, it is resistant to shocks, dust and water, making it ideal for operating in low pressure environments. It features a double insulated plastic bezel. Its wide operating temperature range of -25°C to 70°C allows the product to be used in a variety of ways.
Features
- Supplied with 250V AC, uses BA9s base and has screw-clamp terminals
- Features a double insulated plastic bezel
- Shock, dust, water and vibration proof
- Ideal for use in harsh environments.
Brand | Schneider Electric |
Item Name | Monolithic Pilot Light |
Model | XB7EV63P |
Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
Rated Impulse Withstand Voltage | 6 kV conforming to EN/IEC 60947-1 |
Rated Supply Voltage | <= 250 V |
Bulb Base | BA 9s |
Cap/Operator Or Lens Color | Green |
Compatibility Code | XB7 |
Connections - Terminals | Faston connectors, connection size: 6.35 x 0.8 mm conforming to EN/IEC 60947-1, forked type tag connectors, connection size: 6.5 mm conforming to EN/IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
Depth | 54 mm |
Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
Fixing Fenter | >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm |
Fixing Mode | Fixing nut beneath head: 2-2.4 N.m |
Height | 29 mm |
IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529, IP54 (front face) conforming to IEC 60529 |
Light Source | Incandescent (bulb not included) |
Overvoltage Category | Class II conforming to IEC 60536 |
Mounting Diameter | 22 mm |
Protective Treatment | TH |
Certifications | UL listed, CSA |
Range Of Product | Harmony XB7 |
Sale Per Indivisible Quantity | 10 |
Service Life | 100000 h at rated voltage and 25 °C |
Shape of Signaling Unit Head | Round |
Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
Shock Resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Signalling Type | Steady |
Terminals Description ISO n°1 | (X1-X2)PL |
Width | 29 mm |
Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
NEMA Degree Of Protection | NEMA 12 |
Operator Additional Information | With plain lens |
Light Block Supply | Direct |
Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
Ambient Air Temperature For Operation | -25-55 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Electromagnetic Compatibility | Disturbing field emission class B conforming to EN 55011 |
Standards | EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, JIS C8201-1 |
Device Presentation | Monolithic product |
Weight | 0.018 kg |
