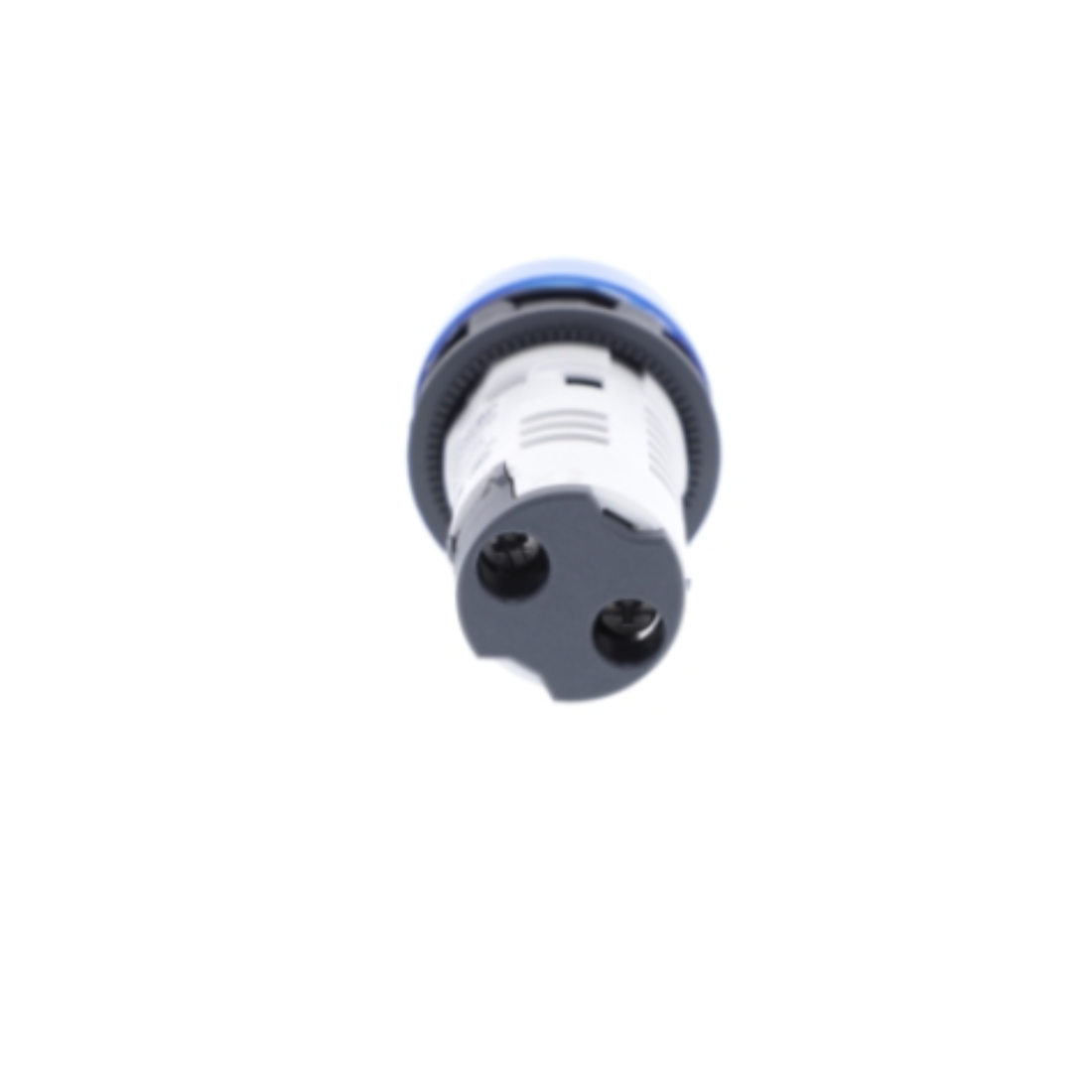

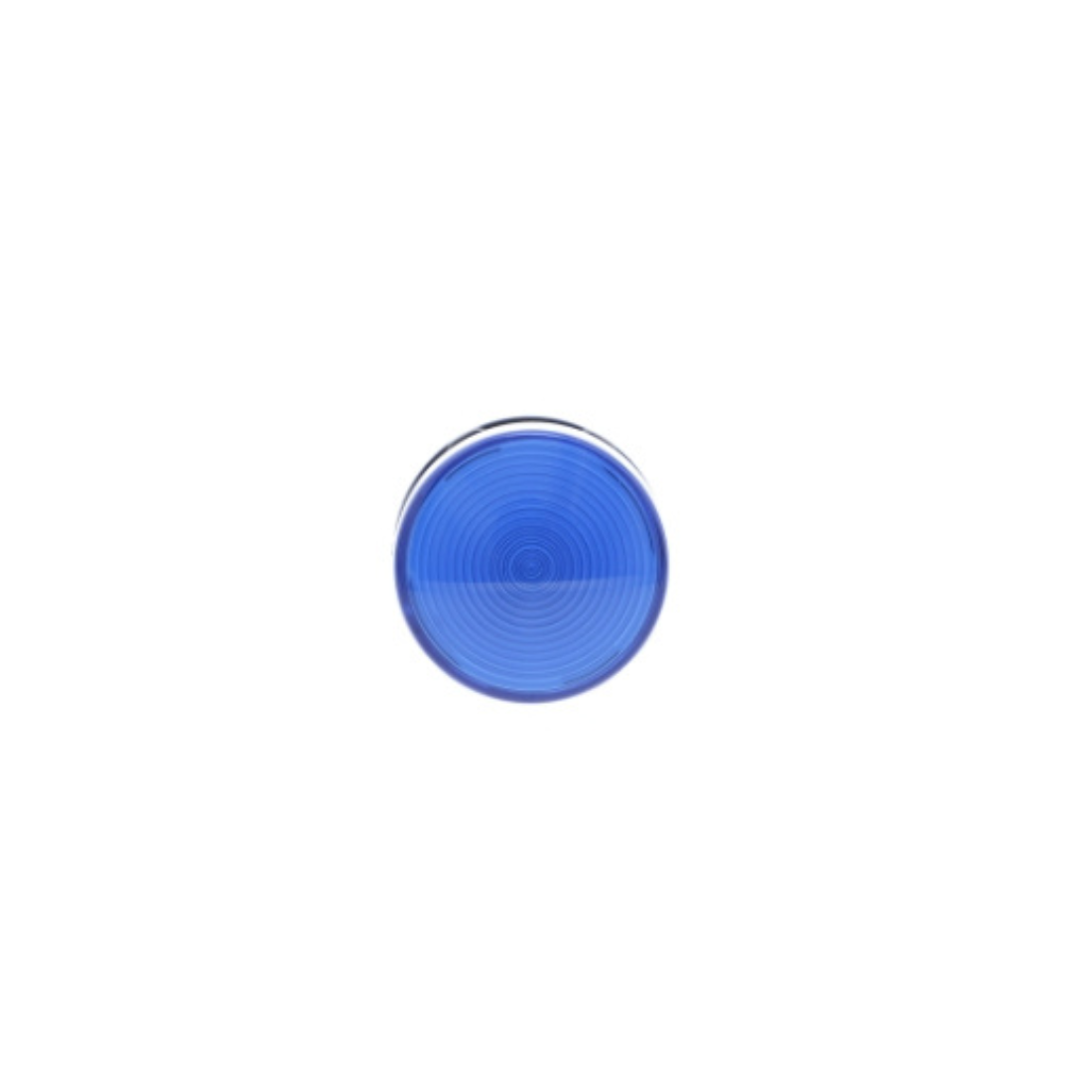

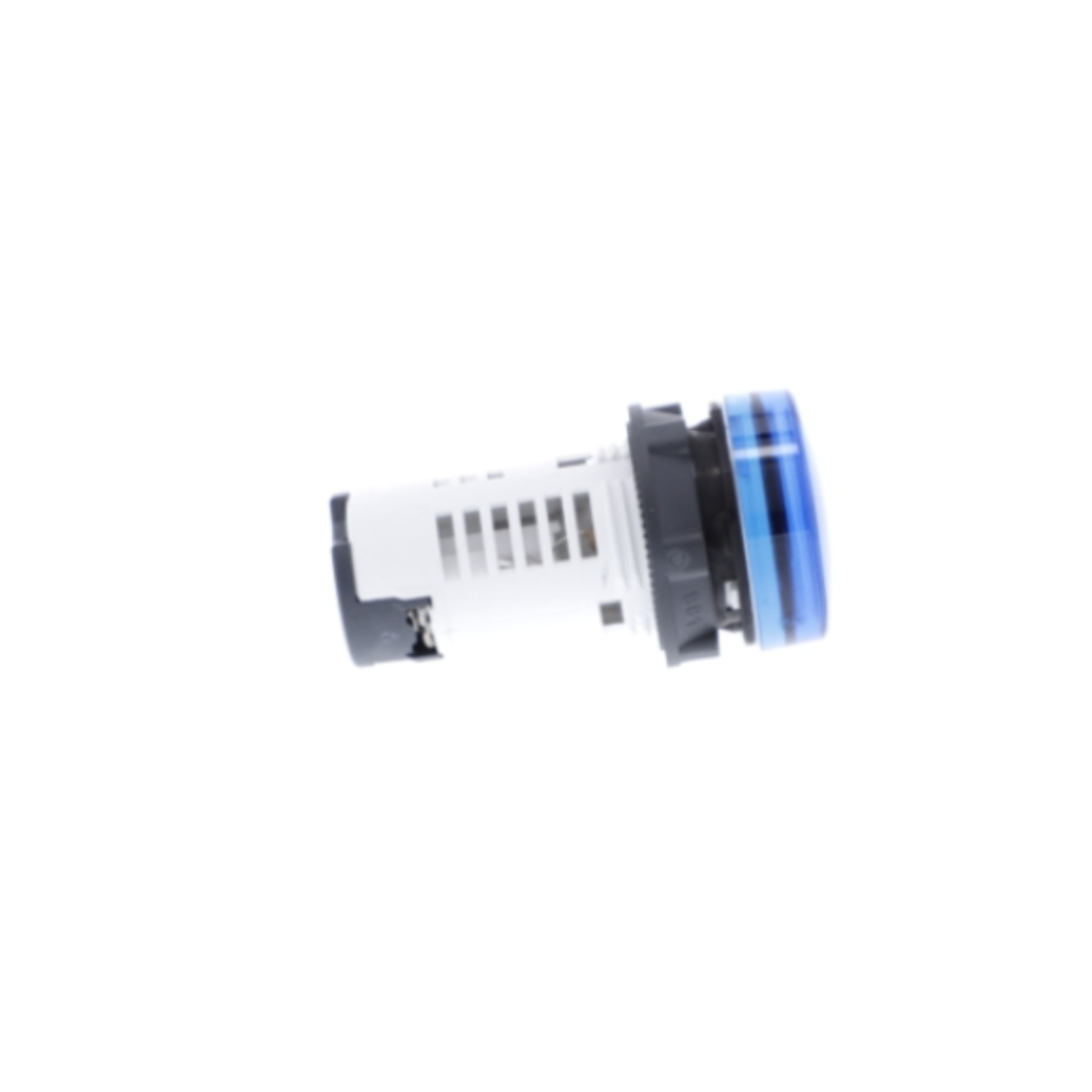

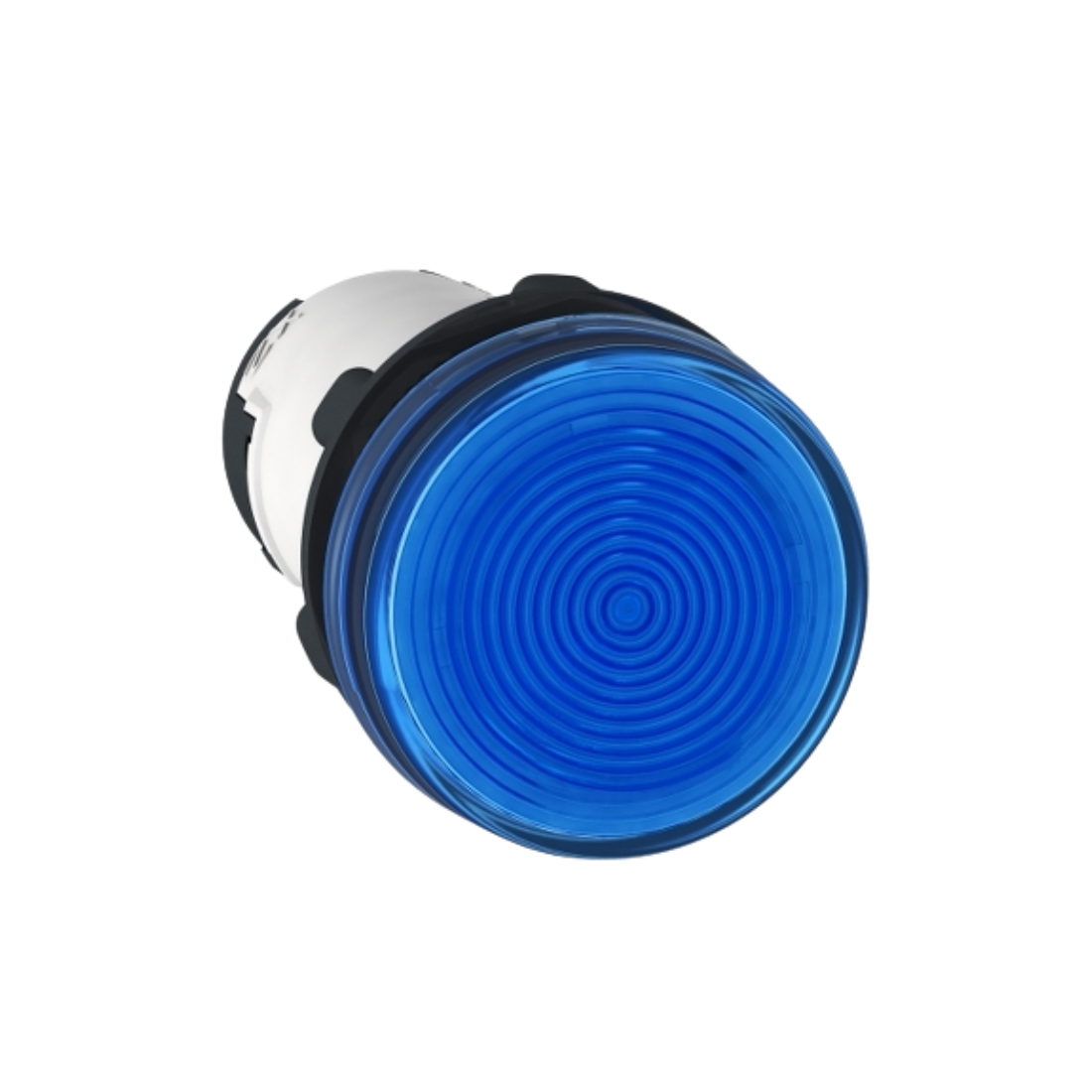

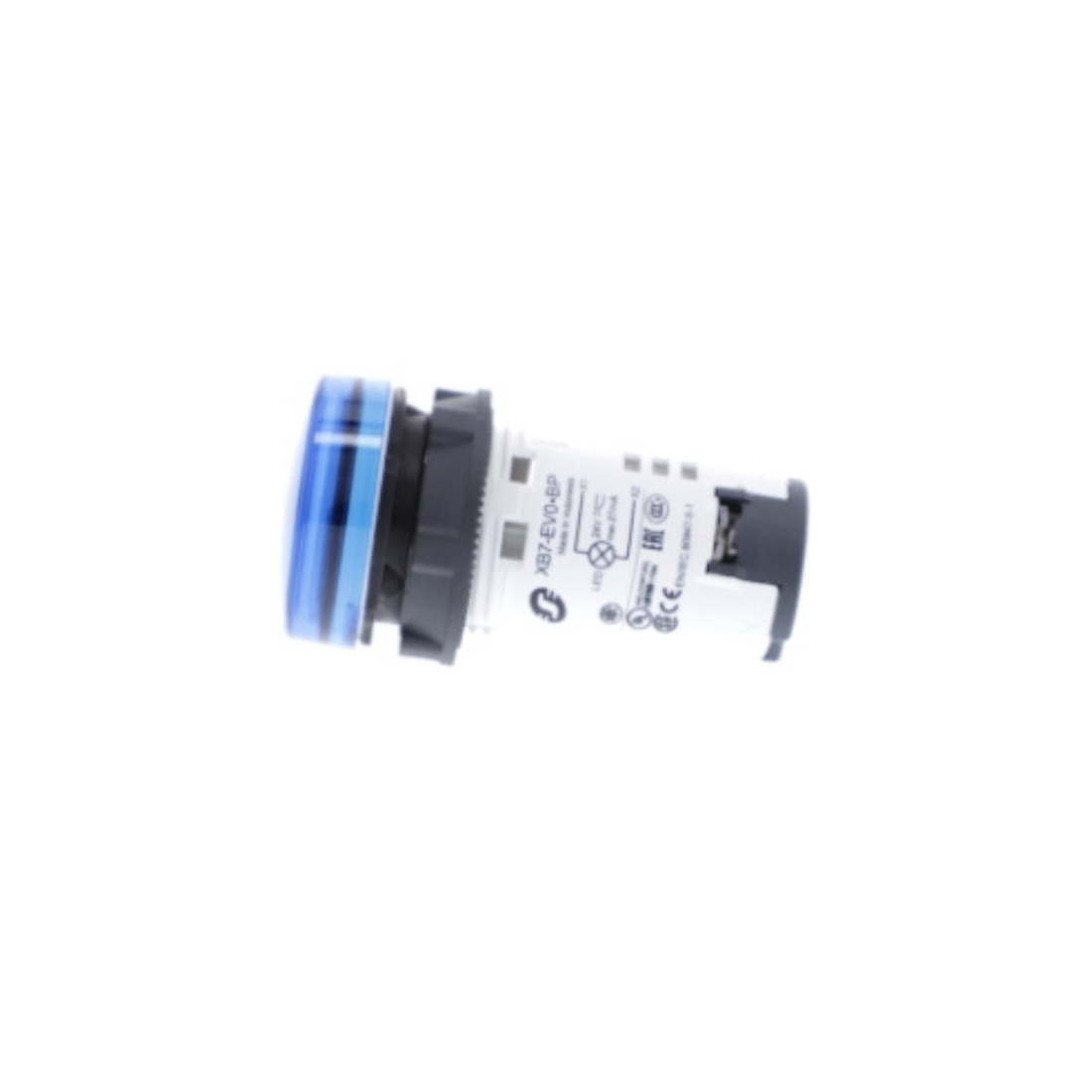

Schneider Electric Harmony XB7 Monolithic Pilot Light Plastic Blue Ø22 Integral LED 110-120V AC XB7EV06GP
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Monolithic Pilot Light
Description
Schneider Electric XB7EV06GP Blue Monolithic Pilot Light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections. Thanks to the clear color scheme and integrated LED lighting, it is easily visible even from a distance, allowing complex machine states to be read at a glance.
Thanks to IP65, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. It features a double insulated plastic bezel. Its wide operating temperature range of -25°C to 70°C allows the product to be used in a variety of ways.
Features
- Finger safe screw clamp terminals
- High chemical resistance
- Modern design; reinforced with flush mounting kit
- High brightness of the LED illuminated functions
- Simple to choose
| Brand | Schneider Electric |
| Item Name | Monolithic Pilot Light |
| Model | XB7EV06GP |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 120 V, 120 V AC 50/60 Hz |
| Bulb Base | Integral LED |
| Cap/Operator Or Lens Color | Blue |
| Compatibility Code | XB7 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Current Consumption | 18...21 mA |
| Depth | 54 mm |
| Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm |
| Fixing Mode | Fixing nut beneath head: 2-2.4 N.m |
| Height | 29 mm |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529 |
| Light Source | Universal LED |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Mounting Diameter | 22 mm |
| Protective Treatment | TH |
| Range Of Product | Harmony XB7 |
| Sale Per Indivisible Quantity | 10 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Supply Voltage Limits | 100-132 V AC |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Width | 29 mm |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| NEMA Degree Of Protection | NEMA 4 conforming to UL 50 E, NEMA 12 conforming to UL 50 E |
| Operator Additional Information | With plain lens |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Light Source Color | Blue |
| Resistance To Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to EN 55011 |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, UL 508, JIS C8201-1 |
| Device Presentation | Monolithic product |
| Weight | 0.02 kg |
