Brand : Schneider Electric

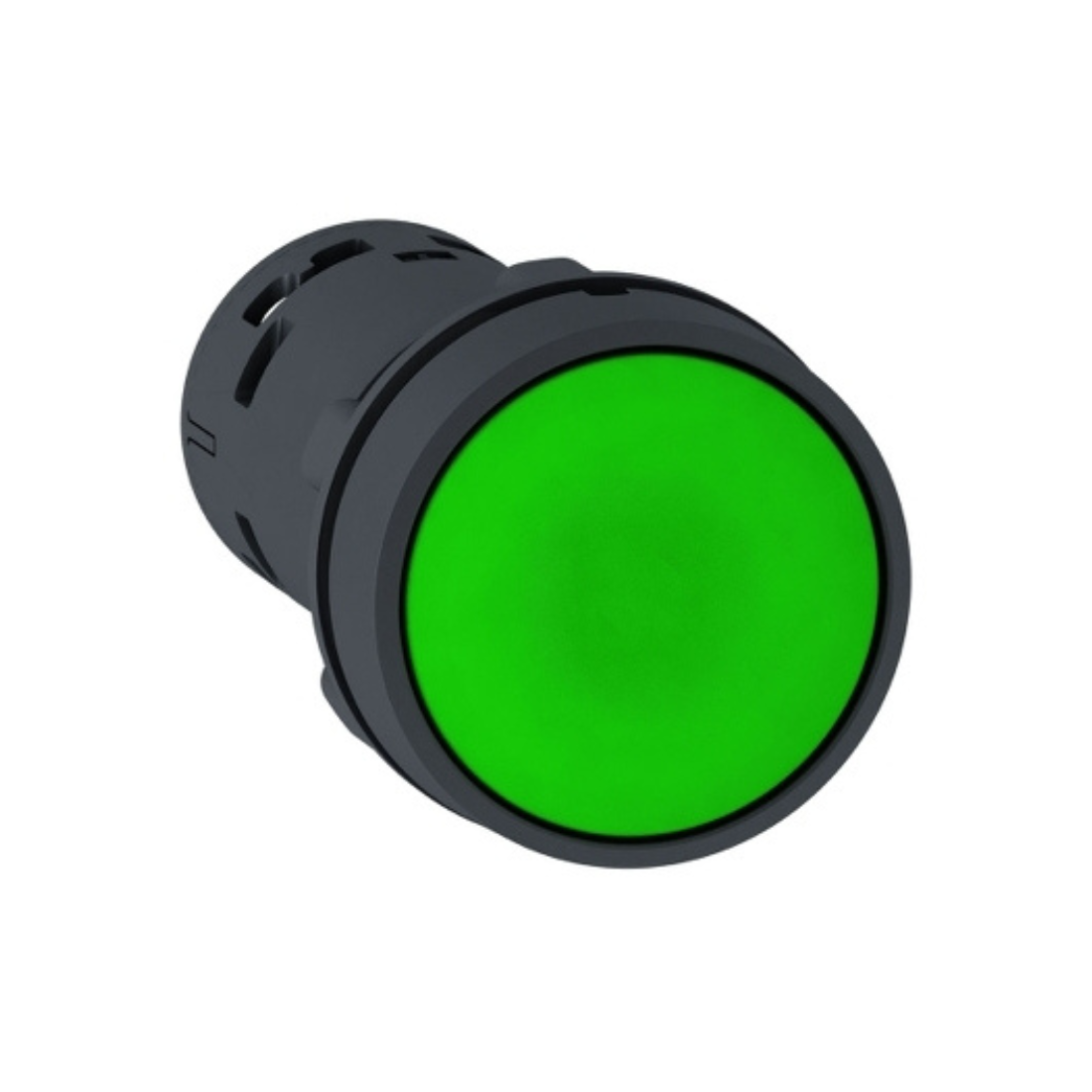

Item Name : Push-Button
Model : XB7NA33
Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN/IEC 60947-1
Rated Impulse Withstand Voltage : 4 kV conforming to EN/IEC 60947-1
Bezel Material : Chromium Plated Metal
CAD Overall Depth : 51.5 mm
CAD Overall Height : 29 mm
CAD Overall Width : 29 mm
Cap/Operator Or Lens Color : Green
Compatibility Code : XB7
Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
Contact Operation : Slow-break
Device Mounting : Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-1
Electrical Reliability : λ <= 10exp(-6) at 17 V, 5 mA conforming to EN/IEC 60947-5-4
Fixing Center : >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm, >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm
Fixing Mode : Fixing nut beneath head: 2-2.4 N.m
IP Degree Of Protection : IP20 (rear face) conforming to IEC 60529, IP65 (front face) conforming to IEC 60529
Mechanical Durability : 10000000 cycles
Mounting Diameter : 22 mm
Operator Profile : Green flush, Unmarked
Overvoltage Category : Class II conforming to IEC 61140
Positive Opening : With (only NO)
Certifications : GOST, CCC
Protective Treatment : TH
Range Of Product : Harmony XB7
Sale Per Indivisible Quantity : 10
Shape of Signaling Unit Head : Round
Shape Of Screw Head : Cross compatible with JIS No 1 screwdriver, cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver
Shock Resistance : 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Short-Circuit Protection : 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Terminals Description : ISO n°1 (13-14)NO, (23-24)NO
Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1
Contacts Type And Composition : 2 NO
Type of Operator : Spring Return
NEMA Degree Of Protection : NEMA 12 conforming to UL 50 E, NEMA 3 conforming to UL 50 E
Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ambient Air Temperature For Operation : -25-70 °C
Ambient Air Temperature For Storage : -40-70 °C
Standards : CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, UL 508, JIS C8201-1
Rated Operational Current : 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1, 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1
Device Presentation : Monolithic Product
Electrical Durability : 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate <216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate <108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
Weight : 0.021 kg
