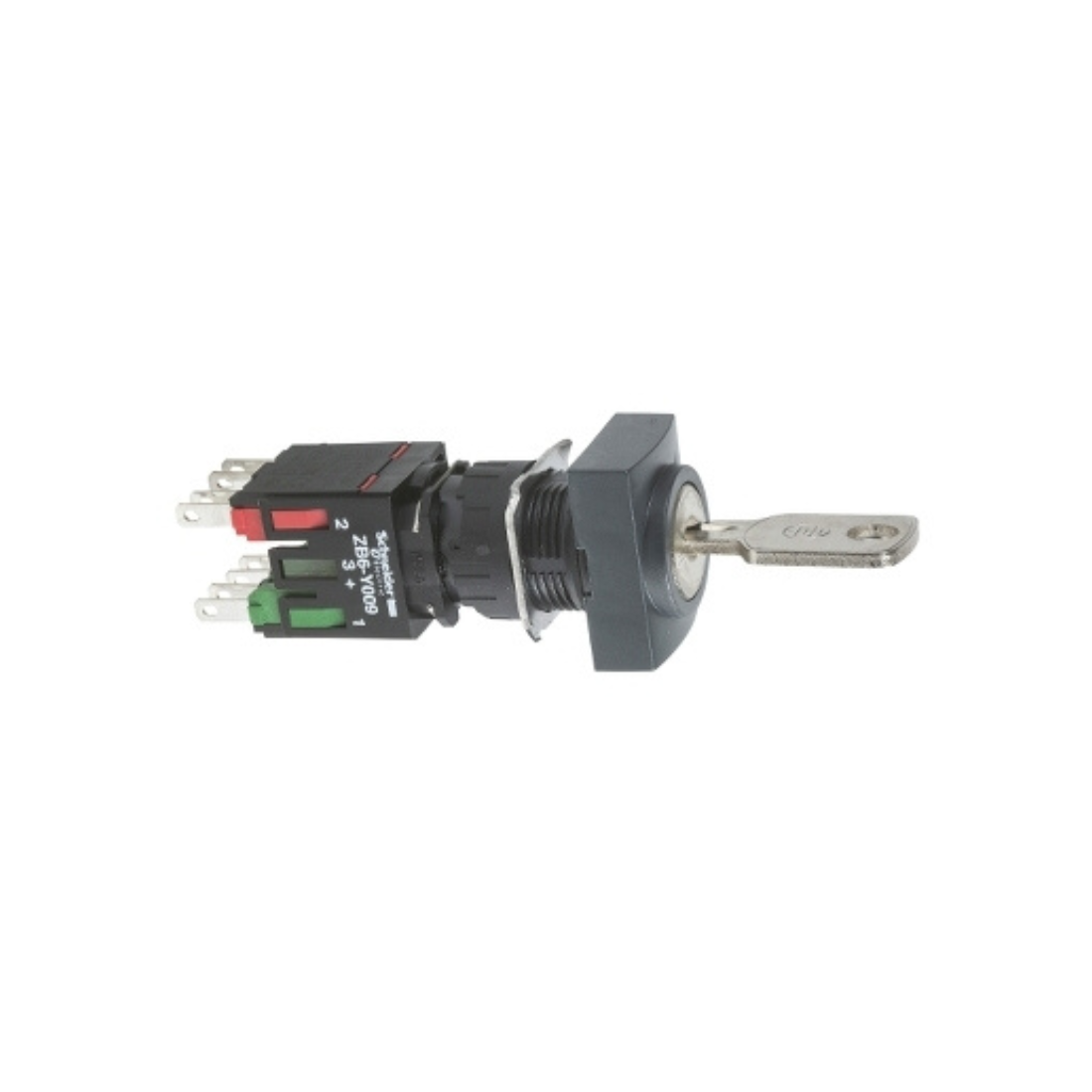

Schneider Electric Harmony XB6 Black Complete Rectang Selector Switch Ø16 2-Position Stay Put 1NO+1NC Ronis 200 XB6DGC5B
Schneider Electric Harmony XB6 Black Complete Rectang Selector Switch Ø16 2-Position Stay Put 1NO+1NC Ronis 200 XB6DGC5B

Schneider Electric Harmony XB6 Black Complete Rectang Selector Switch Ø16 2-Position Stay Put 1NO+1NC Ronis 200 XB6DGC5B

Regular price AED 155.40
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Key Switch Selector
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric XB6DGC5B Black Complete Rectangle Selector Switch has a rectangular head shape and comes with a Ronis key no. 200 button pressed. It has 2 clamping positions at 70°. It has 1NO+1NC, slow opening contacts and Faston connection type. Thanks to IP65, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. Its reduced diameter of 16 mm makes it suitable for applications where there is less space available for mounting, like small machines and control panels.

    Features
    • It has 2 clamping positions at 70°
    • Shock, dust, water and vibration resistant
    • Ideal for use in harsh environments
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Selector Switch

    Model : XB6DGC5B

    Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN/IEC 60947-1

    Rated Impulse Withstand Voltage : 4 kV conforming to EN/IEC 60947-1

    Bezel Material : Plastic

    CAD Overall Depth : 80 mm

    CAD Overall Height : 18 mm

    CAD Overall Width : 24 mm

    Compatibility Code : XB6

    Connections - Terminals : Faston connectors, connection size: 2.8 x 0.5 mm

    Contact Operation : Slow-break

    Contacts Material : Silver alloy (Ag/Ni)

    Electrical Reliability : λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to EN 60947-5-4

    IP Degree Of Protection : IP65 conforming to IEC 60529

    Key Withdrawal Position : In any position

    Mechanical Durability : 200000 cycles

    Mounting Diameter : 16 mm

    Light Source : Protected LED

    Operating Position : Any position

    Operator Position Information : 2 positions 70°

    Operator Profile : Key switch

    Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

    Protective Treatment : TC

    Certifications : CCC, UL, CSA, GOST

    Range Of Product : Harmony XB6

    Sale Per Indivisible Quantity : 1

    Shape Of Signaling Unit Head : Rectangular

    Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Short-Circuit Protection : 6 A cartridge fuse type gG

    Terminals Description ISO n°1 : (13-14)NO, (21-22)NC

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Type Of Operator : Stay put

    Contacts Type And Composition : 1 NO + 1 NC

    Type Of Keylock : Key 200

    Vibration Resistance : +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -25-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-5, JIS C8201-5-1, JIS C8201-1

    Rated Operational Current : 3 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1, 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1

    Electrical Durability : 1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    Electrical Shock Protection Class : Class II conforming to IEC 61140

    Weight : 0.036 kg
