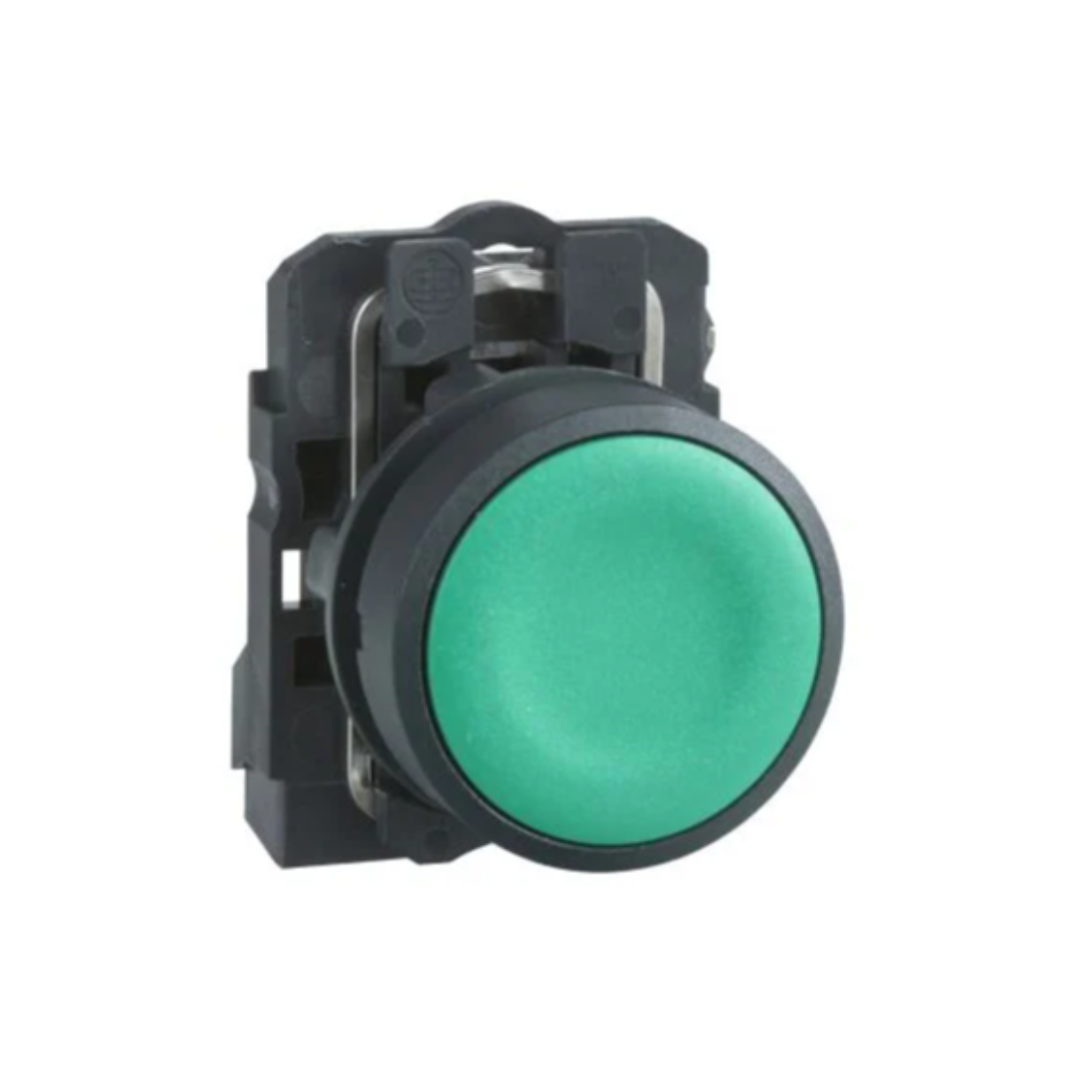

Schneider Electric Harmony XB5N XB7N Push Button Plastic Flush Green 22mm Spring Return Unmarked 1 NO XB5AA31N

Name: Schneider Electric Harmony XB5N XB7N Push Button Plastic Flush Green 22mm Spring Return Unmarked 1 NO XB5AA31N
Brand: Schneider Electric
Price: 22.05 AED
Availability: InStock

AED 22.05

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Push Button

Description

Schneider Electric XB5AA31N Green Flush Push Button operates with a spring return / impulse mechanism and uses screw clamp terminals. It allows simple and robust control of machines and processes. Easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections. Its wiring diagram is clearly visible from a distance thanks to clear colors and markings, minimizing errors during initial wiring and subsequent maintenance.

Thanks to IP66, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Operates with a spring return/impulse mechanism and uses screw clamp terminals
Simple and robust control of machines and processes.
It is shock, dust, water and vibration proof

Specifications

Brand : Schneider Electric

Item Name : Push-Button

Model : XB5AA31N

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

Bezel Material : Plastic, Dark grey plastic

Cap/Operator Or Lens Color : Green

Compatibility Code : XB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Depth : 52 mm

Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4

Fixing Collar Material : Plastic

Height : 42 mm

IK Degree Of Protection : IK03 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529

Light Source : Universal LED

Mechanical Durability : 5000000 cycles

Mounting Diameter : 22 mm

Operator Profile : Green flush, unmarked

Positive Opening : Without

Overvoltage Category : Class II conforming to IEC 60536

Certifications : LROS (Lloyds register of shipping), CSA, RINA, BV, UL listed, DNV, GL

Protective Treatment : TH

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Terminals Description ISO n°1 : (13-14)NO

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Width : 30 mm

Contacts Type And Composition : 1 NO

Type of Operator : Spring Return

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Operator Additional Information : With plain lens

Customizable : 0

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Contacts Usage : Standard contacts

Operating Force : 3.8 N NO changing electrical state

Operating Travel : 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -25-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Complete product

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Weight : 0.037kg
