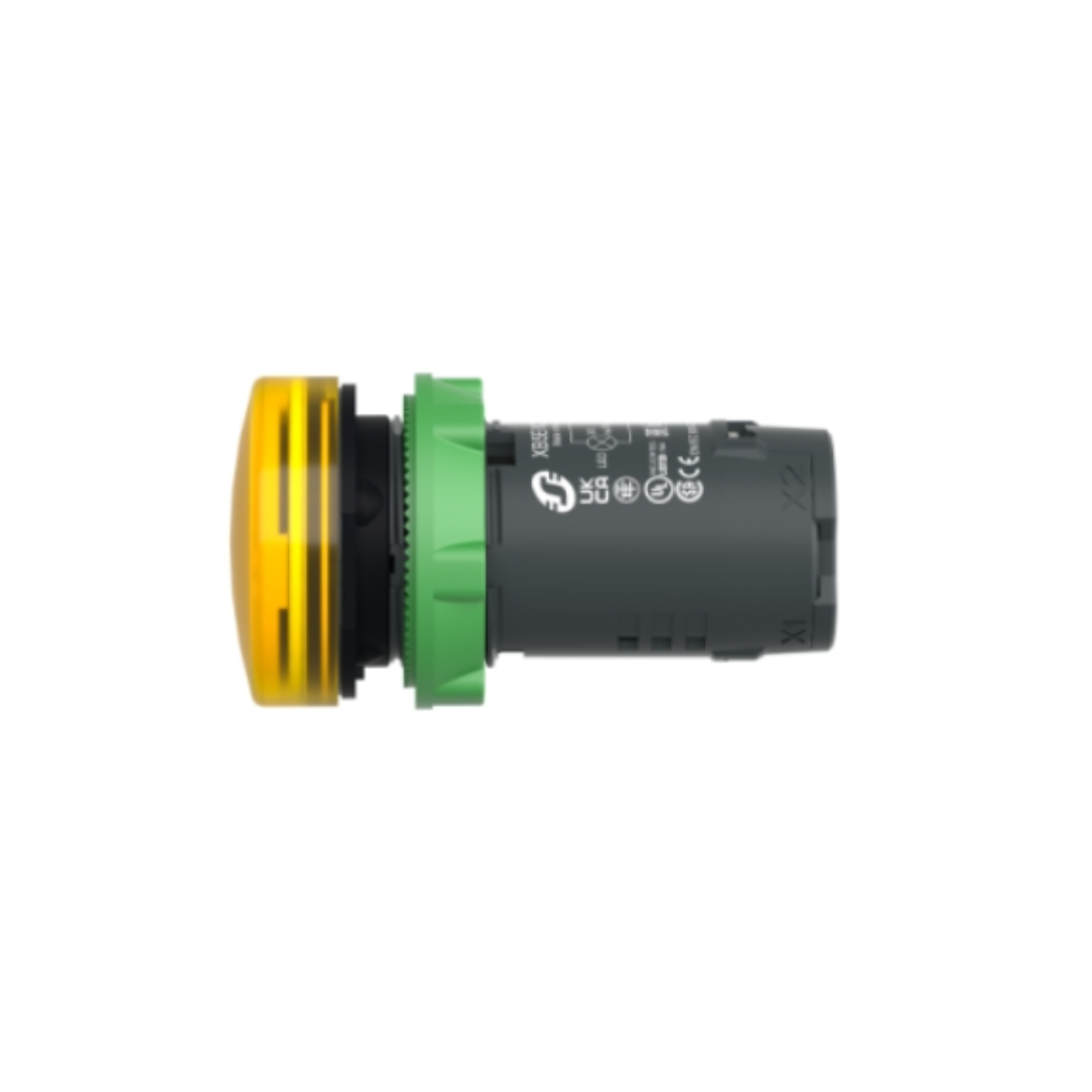

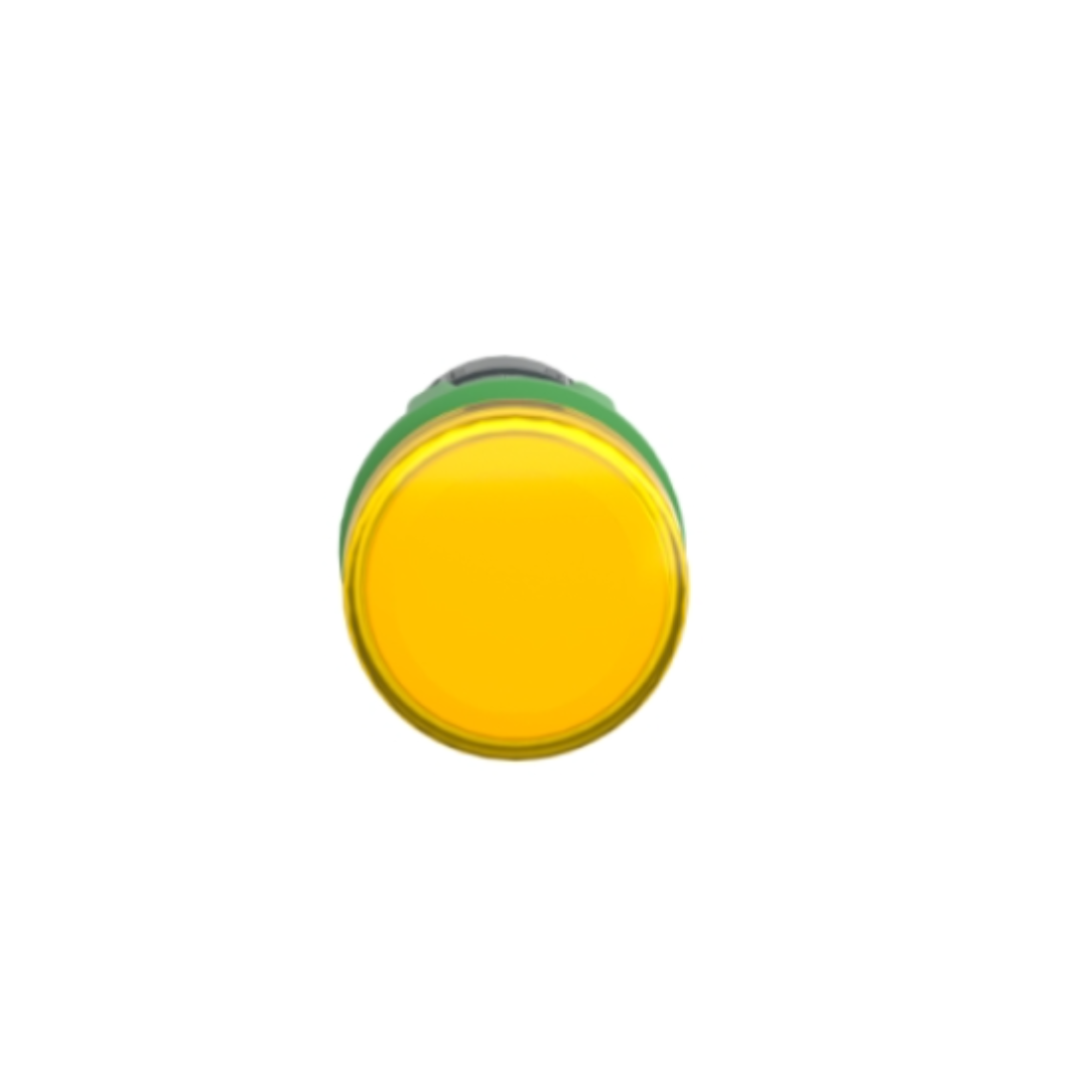

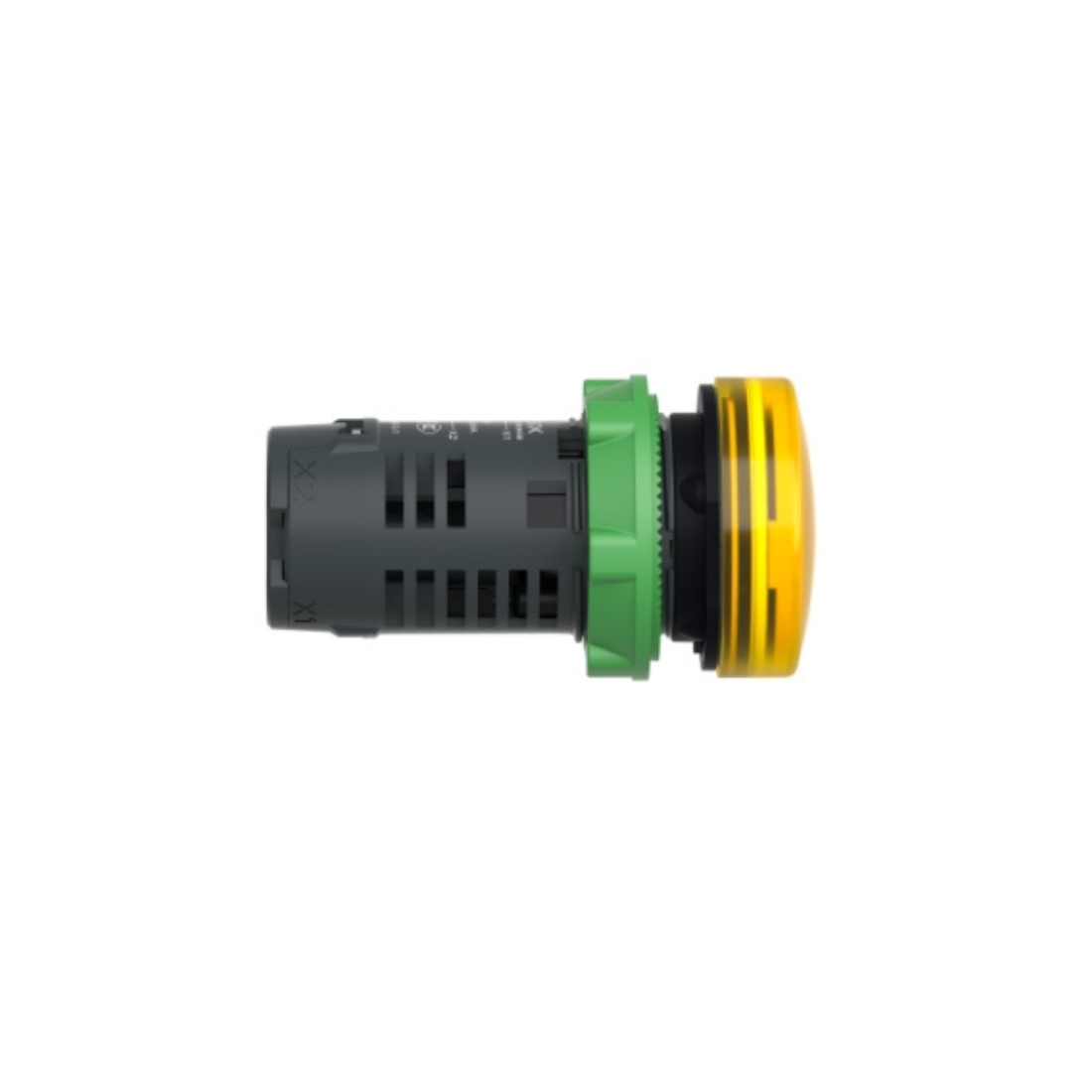

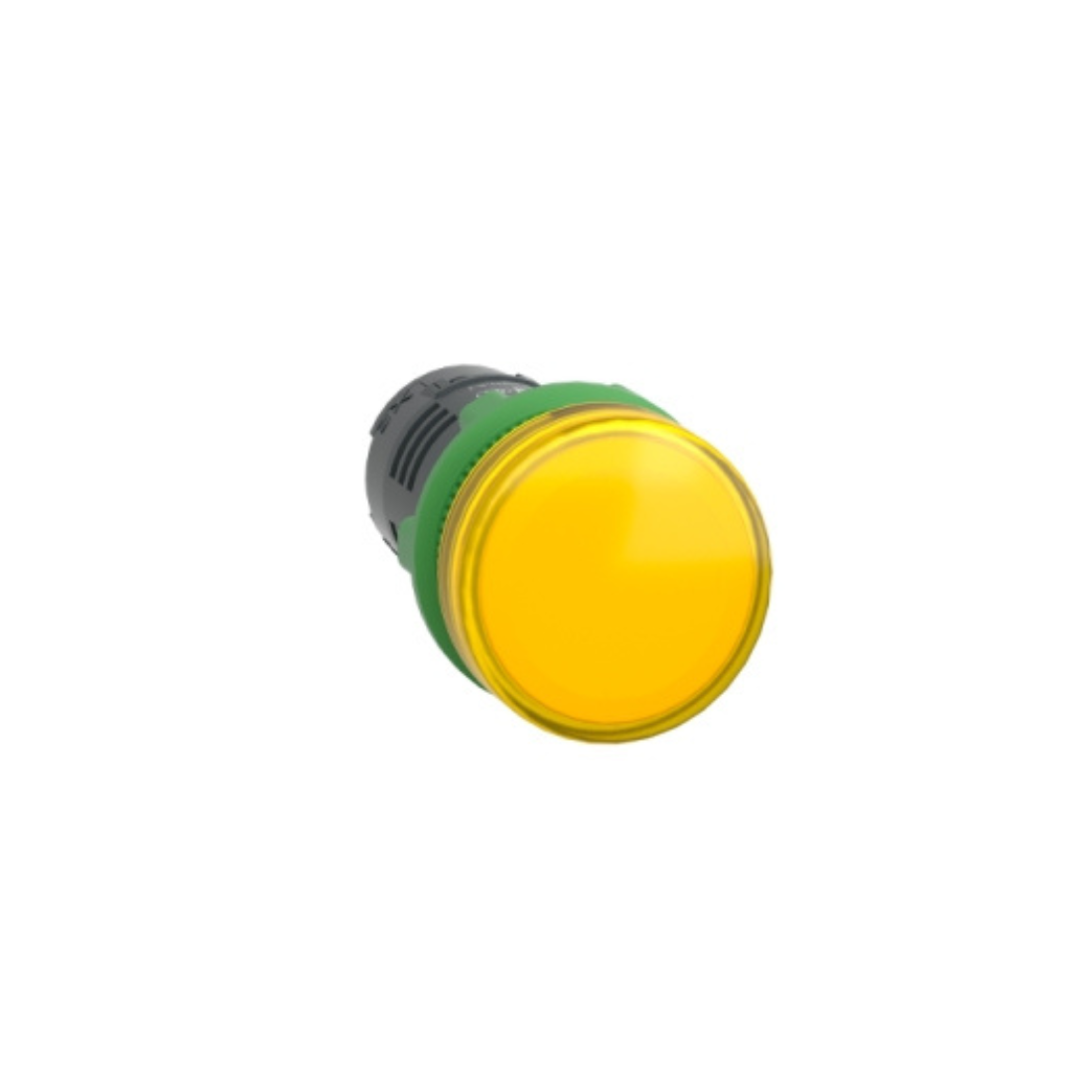

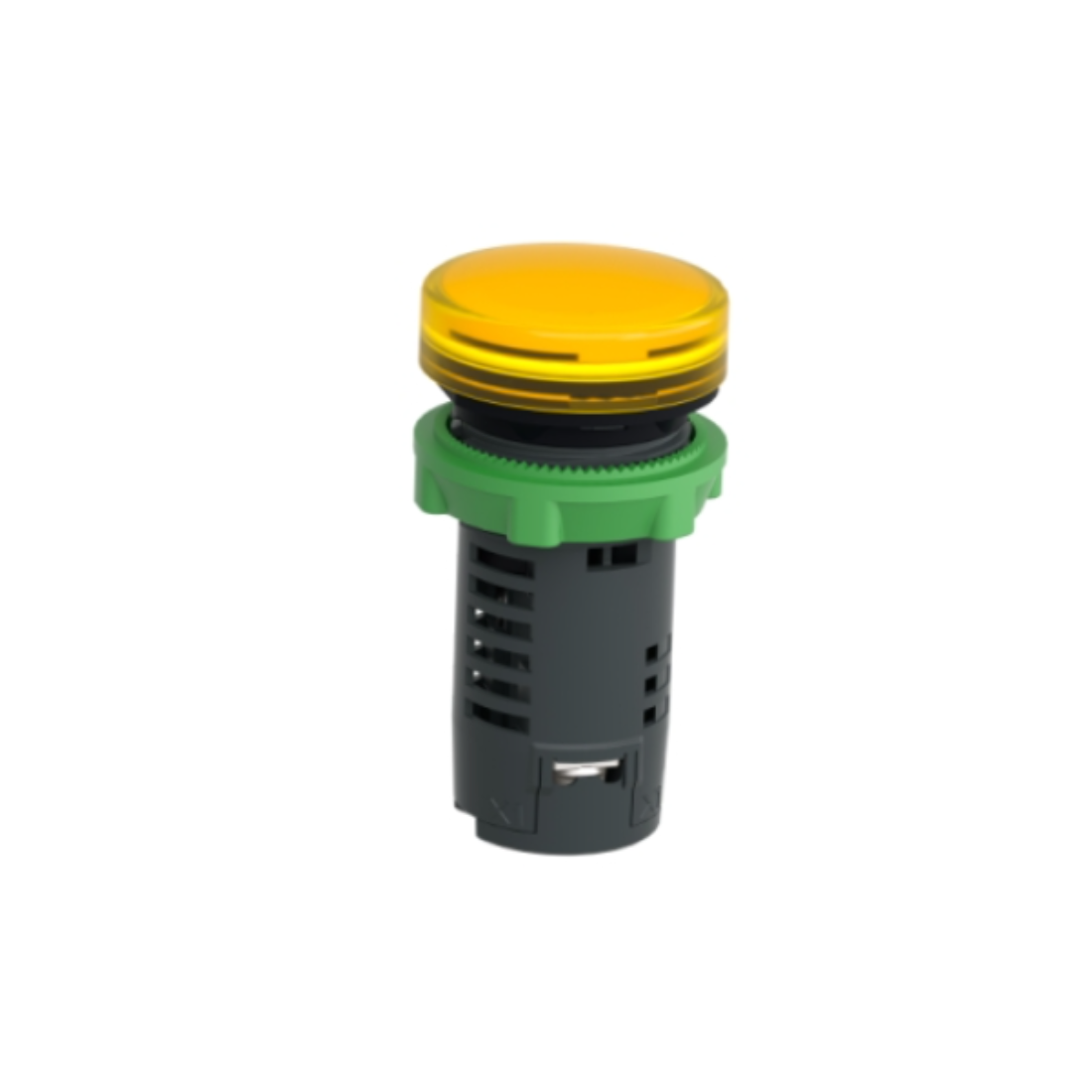

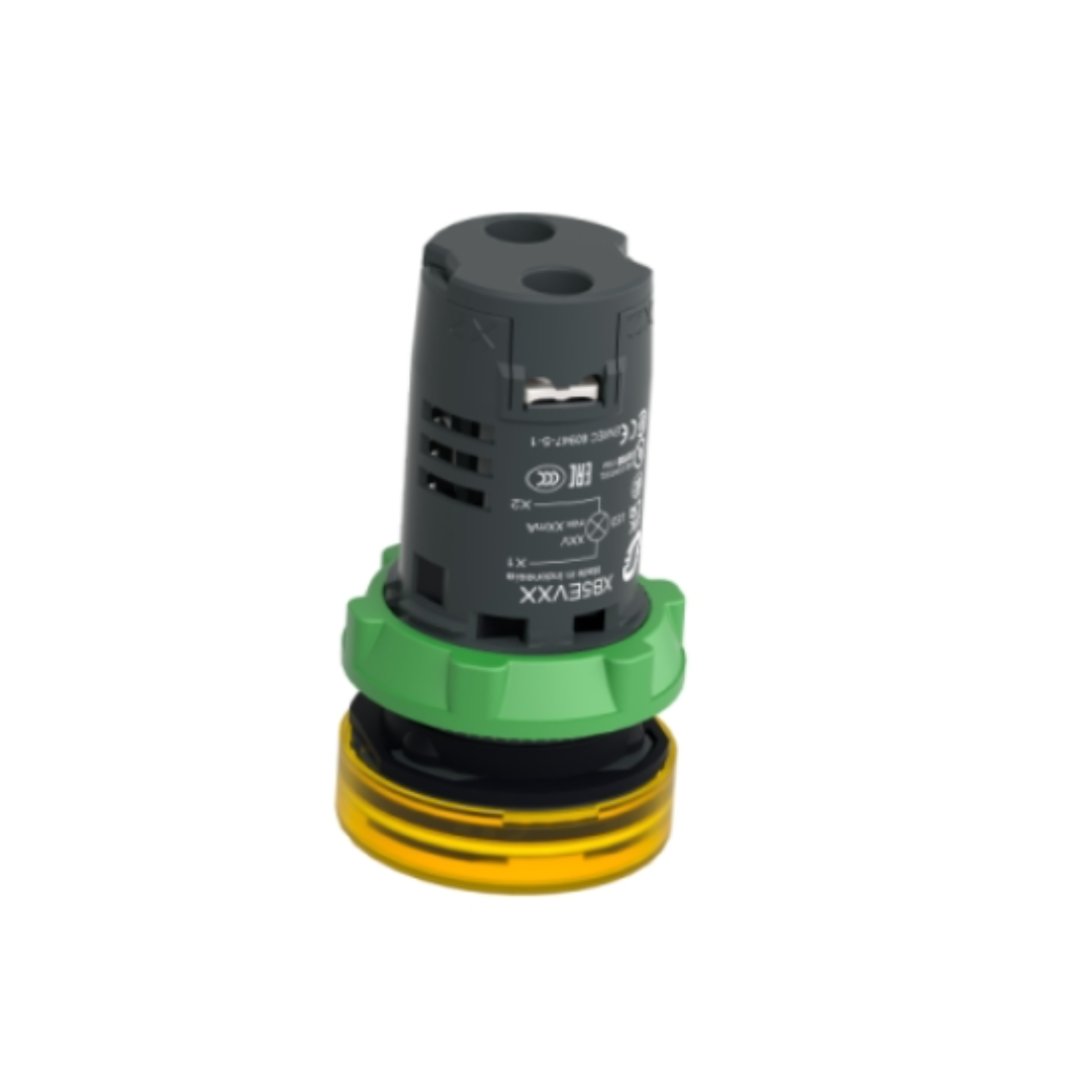

Schneider Electric Harmony XB5 Yellow Monolithic Pilot Light Ø22 Plain Lens with Integral LED 24V XB5EVB8

Schneider Electric Harmony XB5 Yellow Monolithic Pilot Light Ø22 Plain Lens with Integral LED 24V XB5EVB8

Name: Schneider Electric Harmony XB5 Yellow Monolithic Pilot Light Ø22 Plain Lens with Integral LED 24V XB5EVB8
Brand: Schneider Electric
Price: 49.35 AED
Availability: InStock

AED 49.35

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Monolithic Pilot Light

Description

Schneider Electric XB5EVB8 Yellow Monolithic Pilot Light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It provides clear visual information about the status of the machines. Easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections. Thanks to the clear color scheme and integrated LED lighting, it is easily visible even from a distance, allowing complex machine states to be read at a glance.

Thanks to IP66 / IP67 / IP69 / IP69K, it is resistant to impacts, dust, water & vibrations, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Provides clear visual information about the status of the machines.
Shock, dust, water and vibration proof
Ideal for use in harsh environments.

Specifications

Brand : Schneider Electric

Item Name : Monolithic Pilot Light

Model : XB5EVB8

Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : 24V

Bezel Material : Dark Grey Plastic

Bulb Base : Integral LED

Cap/Operator Or Lens Color : Yellow

Compatibility Code : XB5

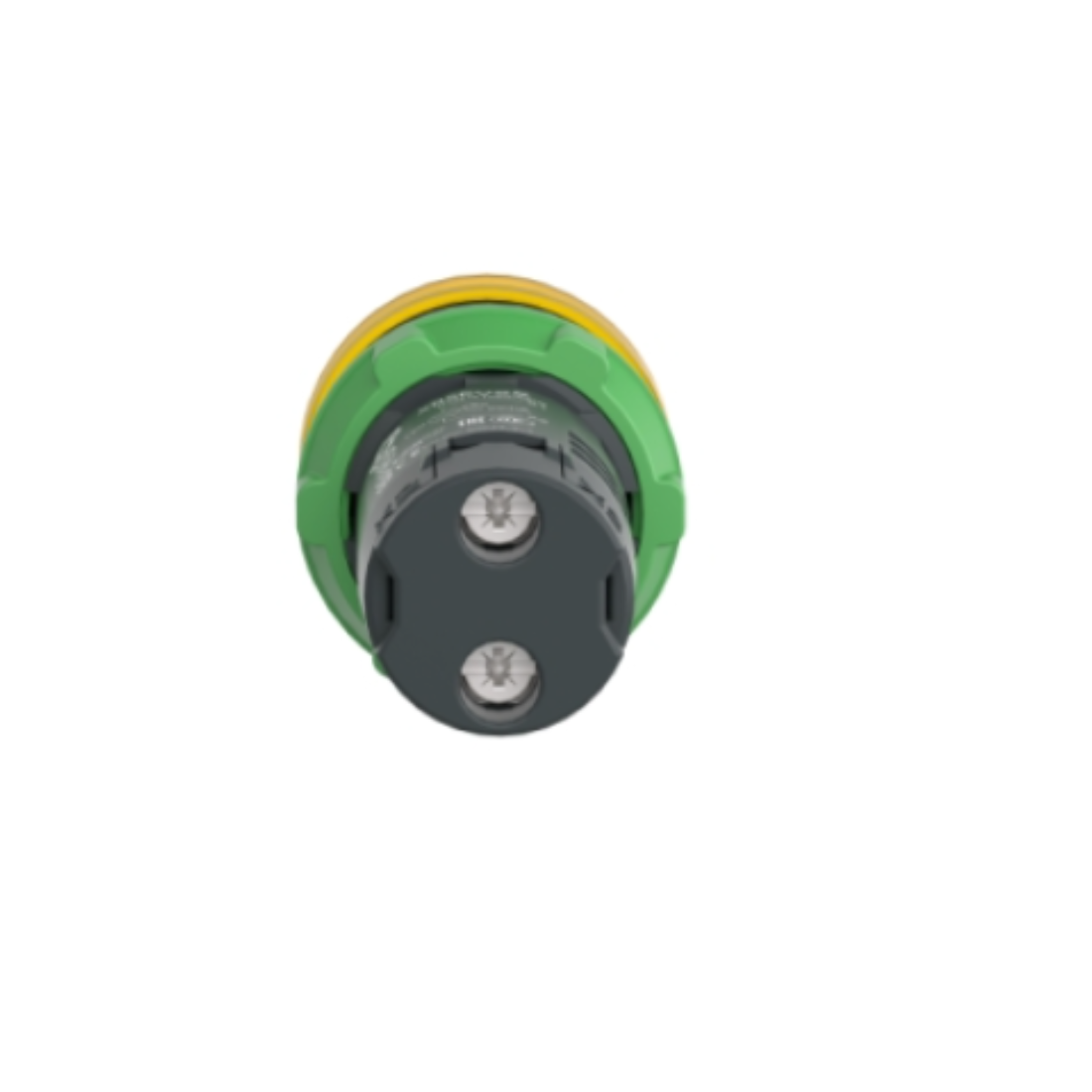

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Current Consumption : 18 mA

Depth : 54 mm

Fixing Collar Material : Plastic

Height : 29 mm

IK Degree Of Protection : IK05 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

Light Source : Universal LED

Overvoltage Category : Class II conforming to IEC 60536

Mounting Diameter : 22 mm

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC

Terminals Description ISO n°1 : (X1-X2)PL

Width : 29 mm

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : 0

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Light Source Color : Yellow

Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Electromagnetic Compatibility : Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011

Ambient Air Temperature For Operation : -25-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1

Device Presentation : Monolithic product

Weight : 0.038 kg
