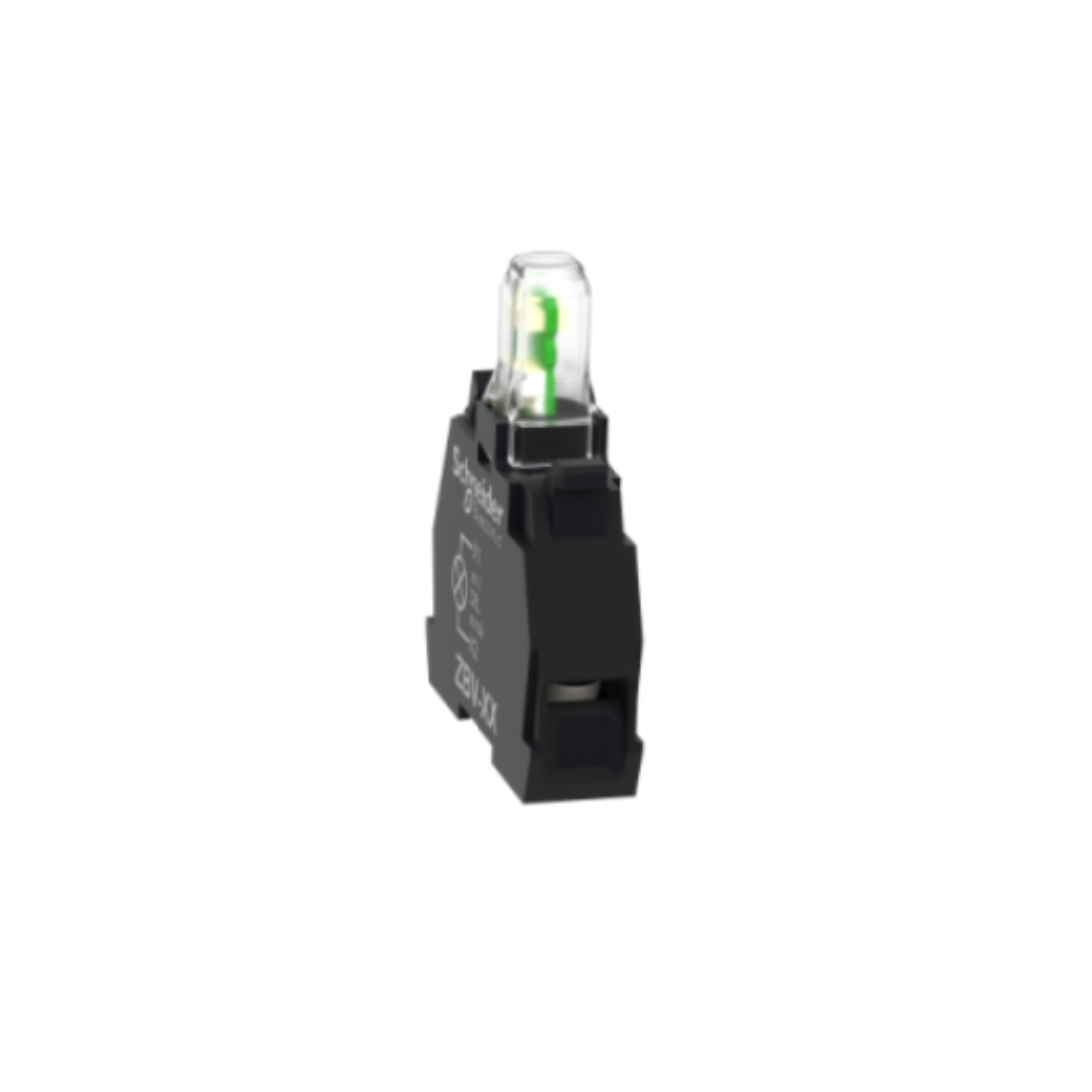

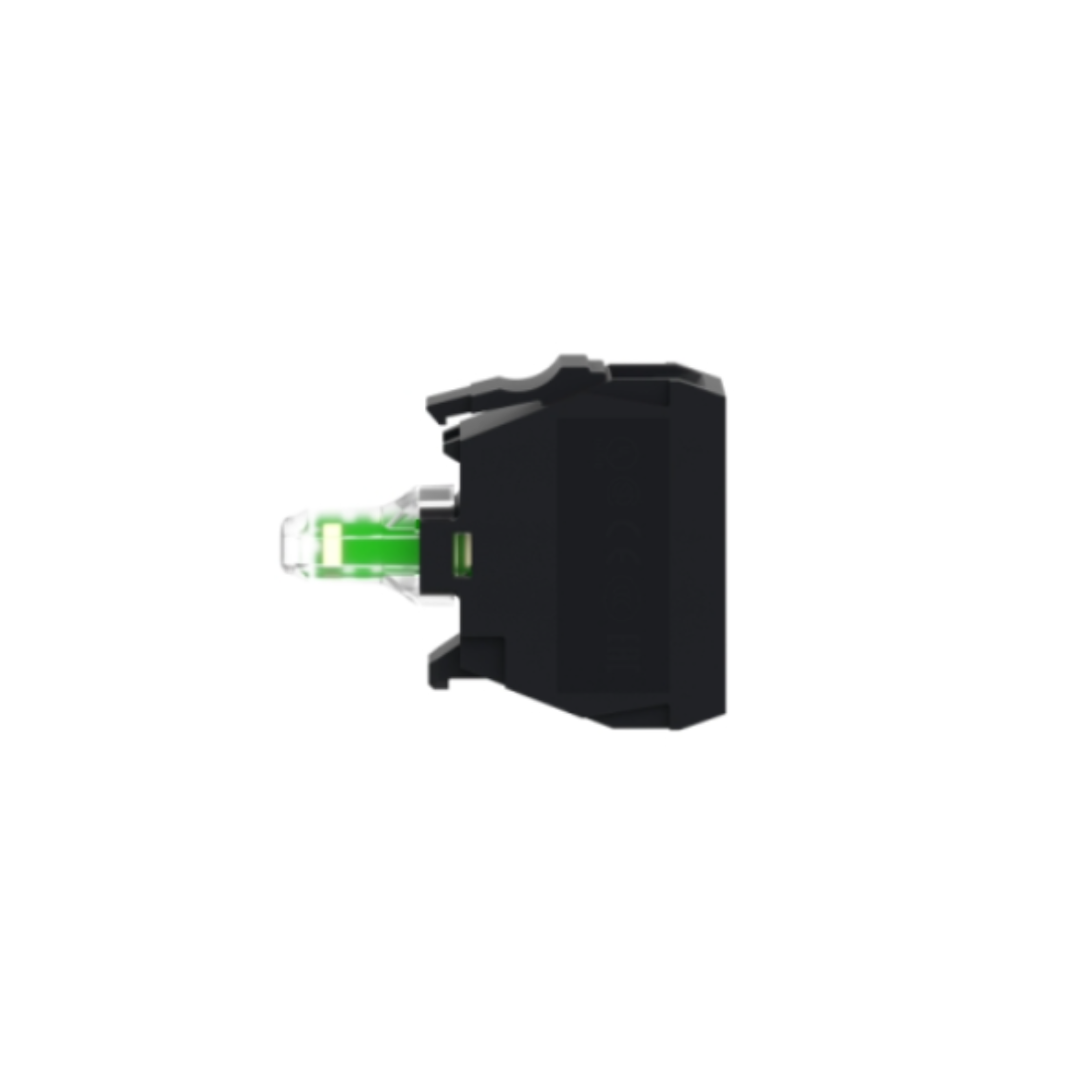

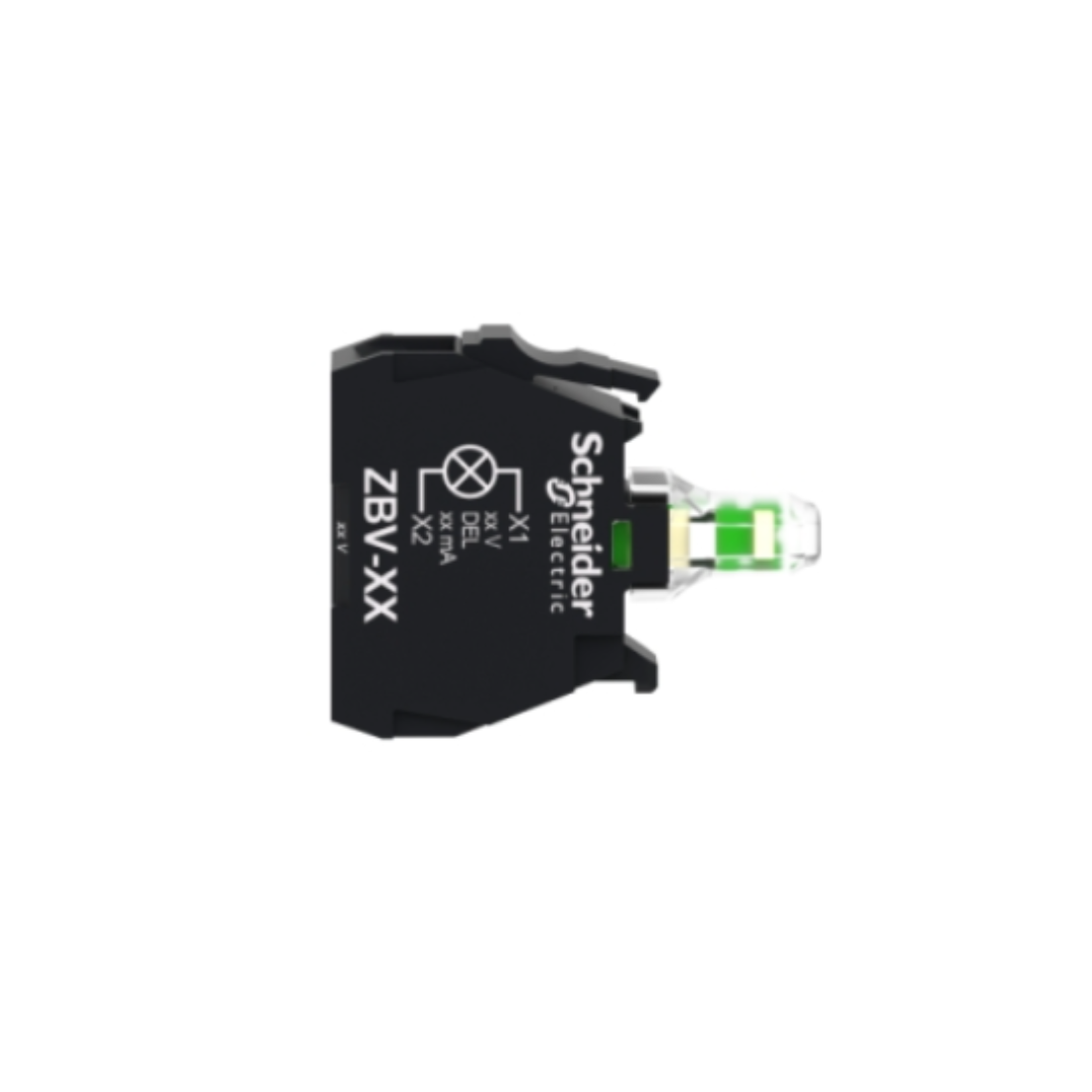

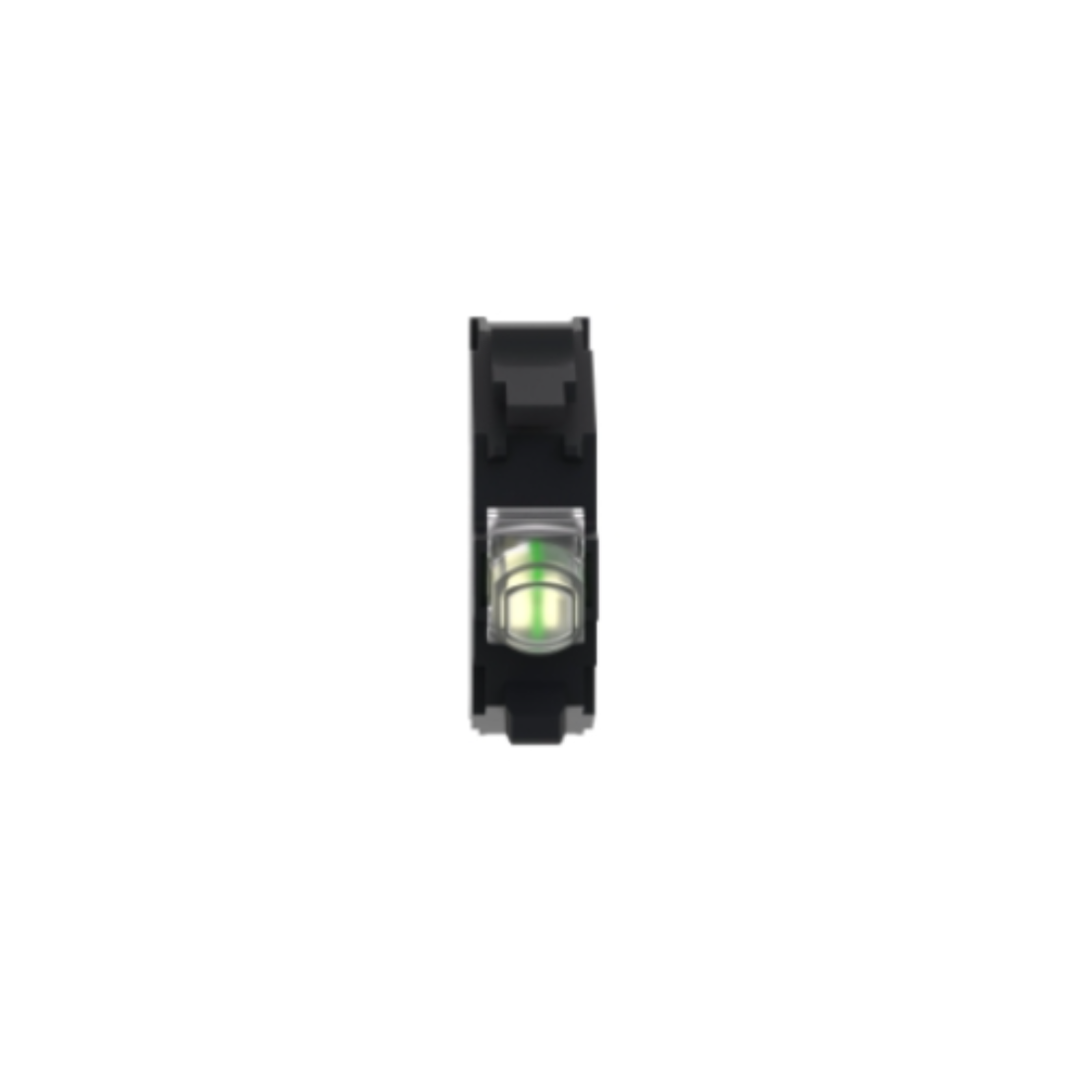

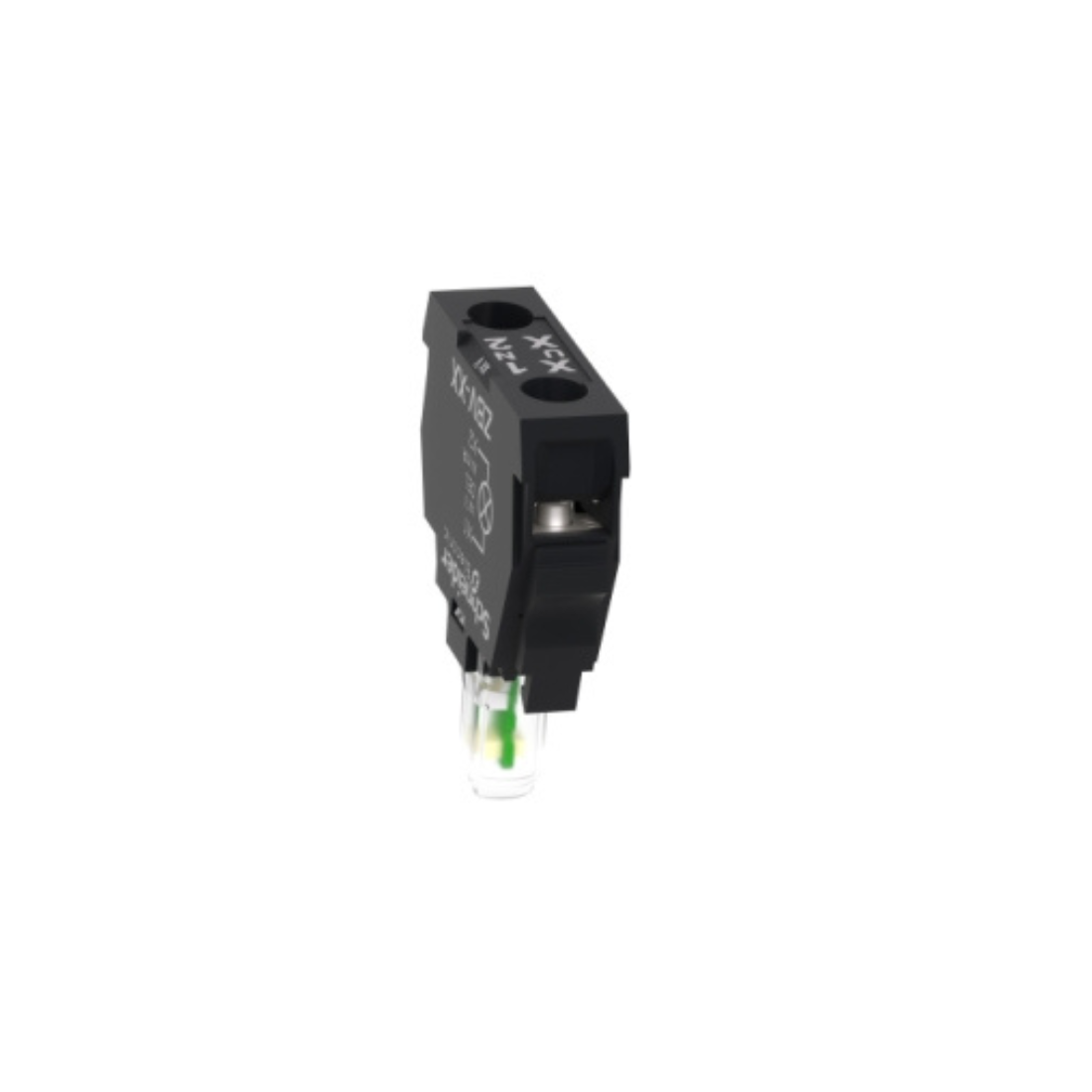

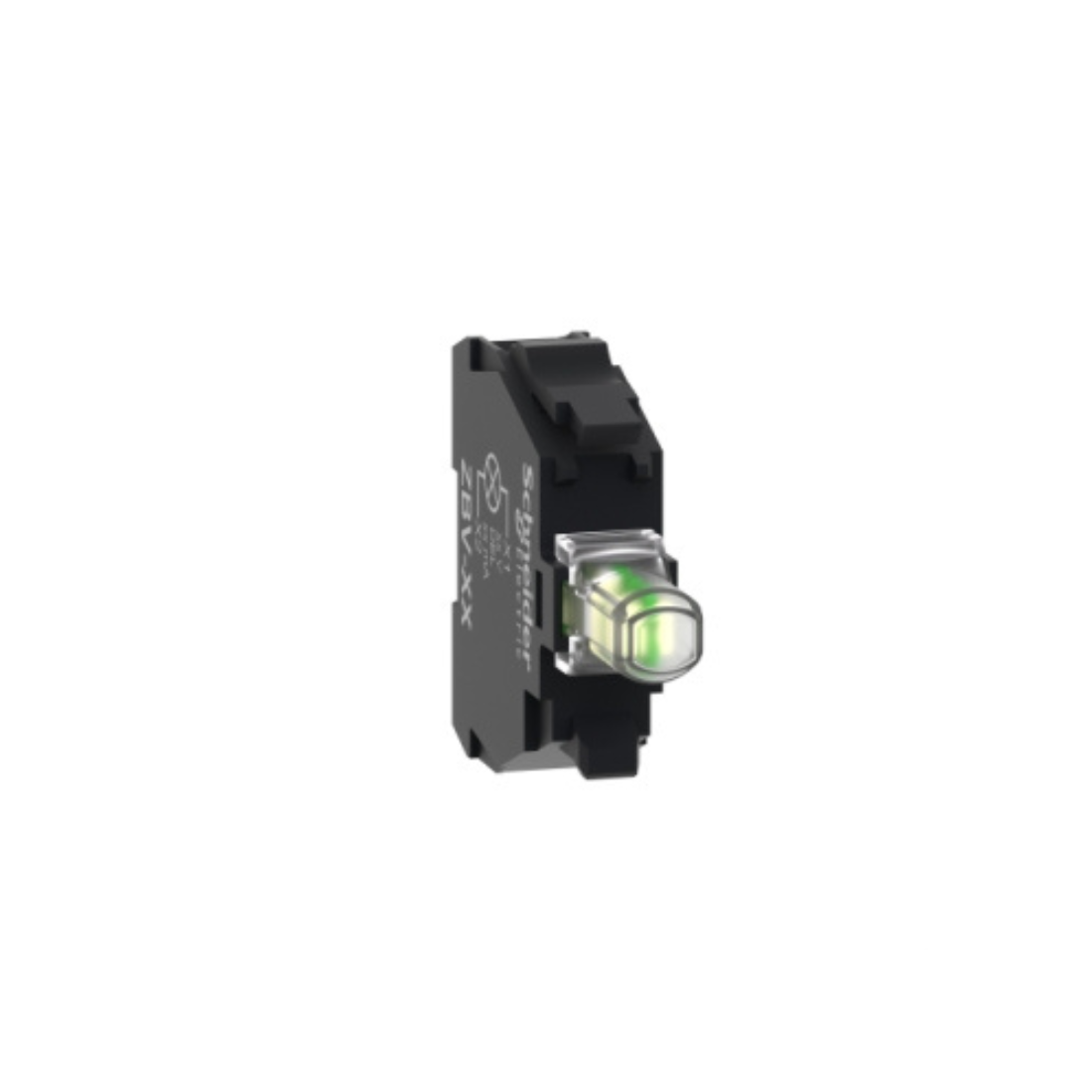

Schneider Electric Harmony XB5 XB4 White Light Block for Head Ø22 Integral LED 24V Screw Clamp Terminals ZBVB1
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Light Block
Description
Schneider Electric ZBVB1 White Light Block works with an integrated LED. It is powered by 24V AC/DC and has screw terminals. It has a plastic body. This light block allows for quick and easy replacement and setup of the signaling devices. Installation and replacement on compatible illuminated pushbutton or selector switch units is accomplished simply by clip-on mounting and connection is made using simple screw terminal connections.
Schneider Electric ZBVB1 White Light Block allows signaling devices to be visually distinguished by lighting using integrated LEDs. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. Features long-lasting LED lighting to reduce replacements and process downtime. Vibration resistant screw terminal lugs ensure high vibration resistance and allow proper installation of the product on machines with high impact loads.
Features
- The supply 24V AC/DC and has screw terminals
- IP20 rating
- Quick and easy replacement and setup of the signaling devices
- It has a plastic body
| Brand | Schneider Electric |
| Item Name | Light Block |
| Model | ZBVB1 |
| Resistance to Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Rated Supply Voltage | 24V |
| Bulb Base | Integral LED |
| Compatibility Code | ZBV |

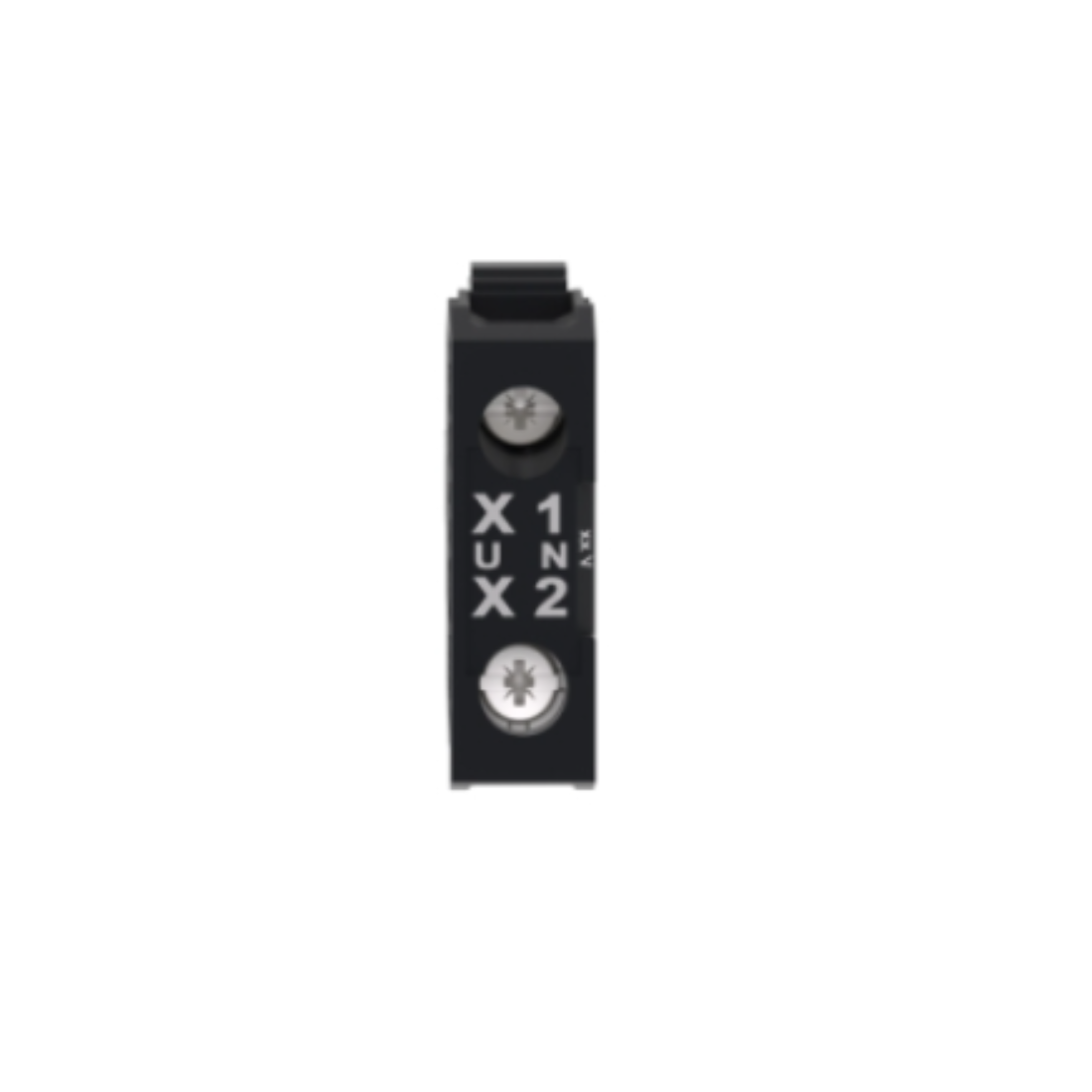

| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Current Consumption | 18 mA |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| Light Source | Universal LED |
| Certifications | UL listed, CSA |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5, Harmony XB4 |
| Sale Per Indivisible Quantity | 5 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver |
| Signalling Type | Steady |
| Light Block Supply | Direct |
| Supply Voltage Limits | 19.2-30 V DC, 21.6-26.4 V AC |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Resistance to Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Light Source Color | White |
| Resistance to Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Electrical Composition Code | M1, M2, M3, M4, M5, M6, M10, MF1, P1, P2, PF1 |
| Mounting of Block | Front mounting |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-5-4, UL 508, JIS C8201-1 |
| Device Presentation | Basic elements |
| Weight | 0.017 kg |
