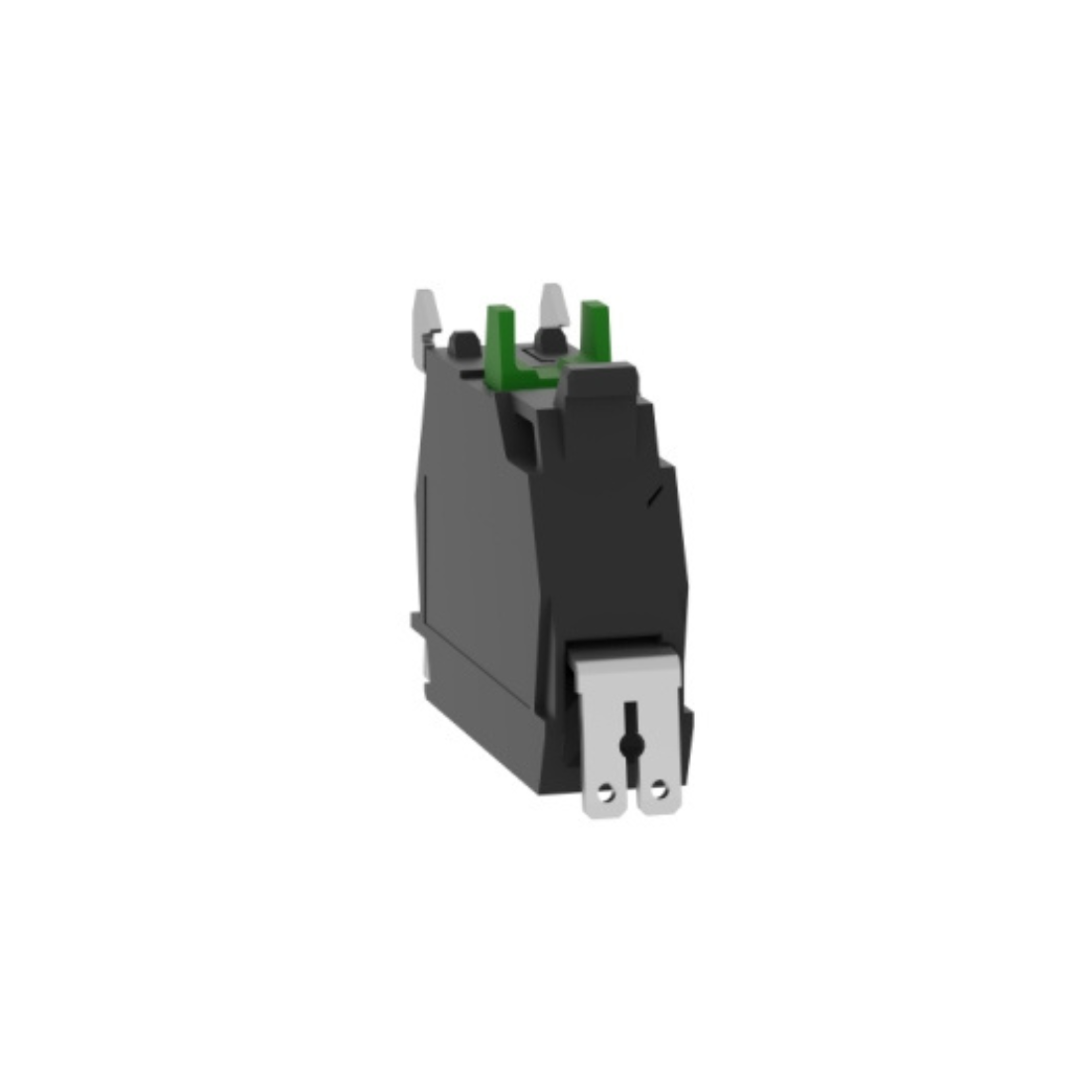

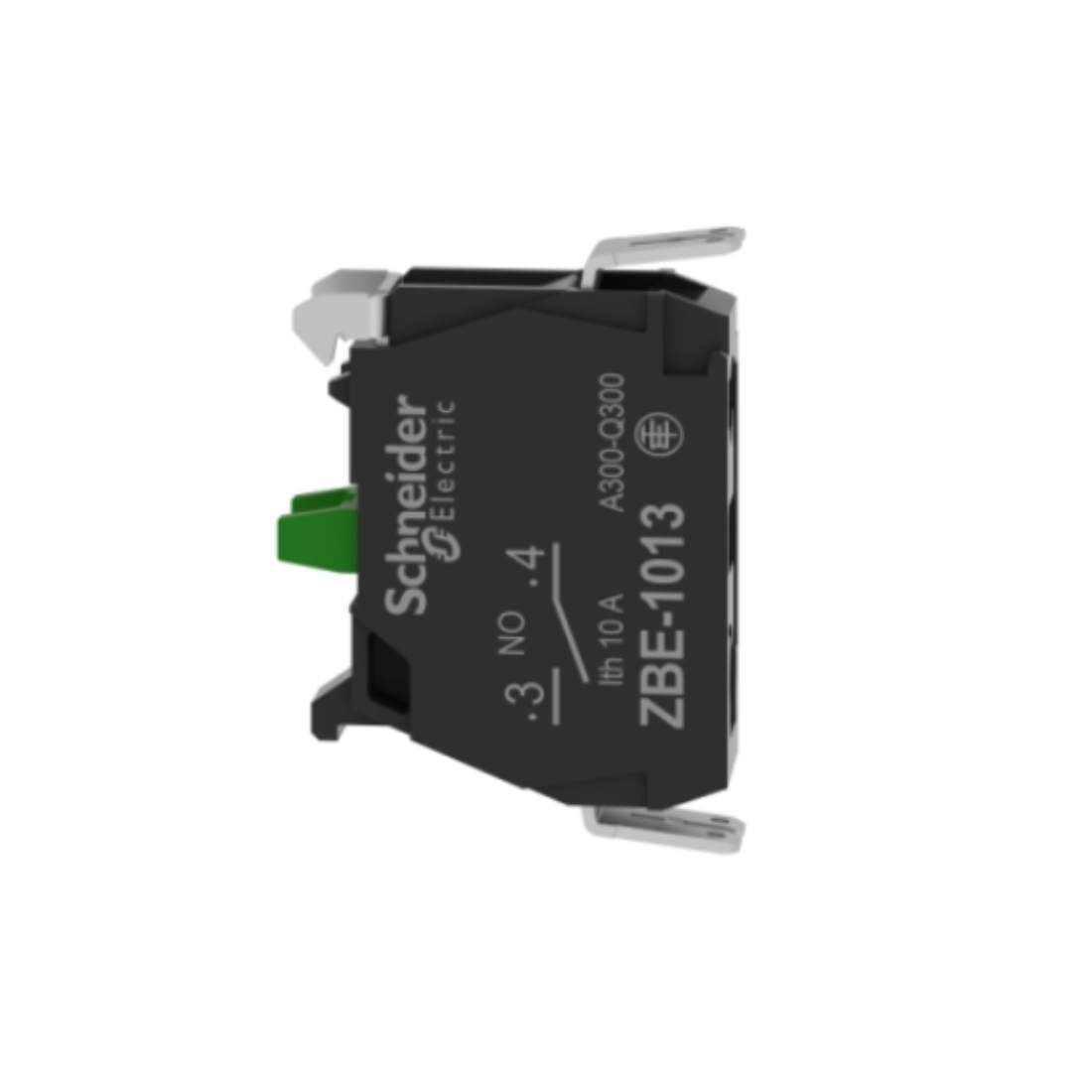

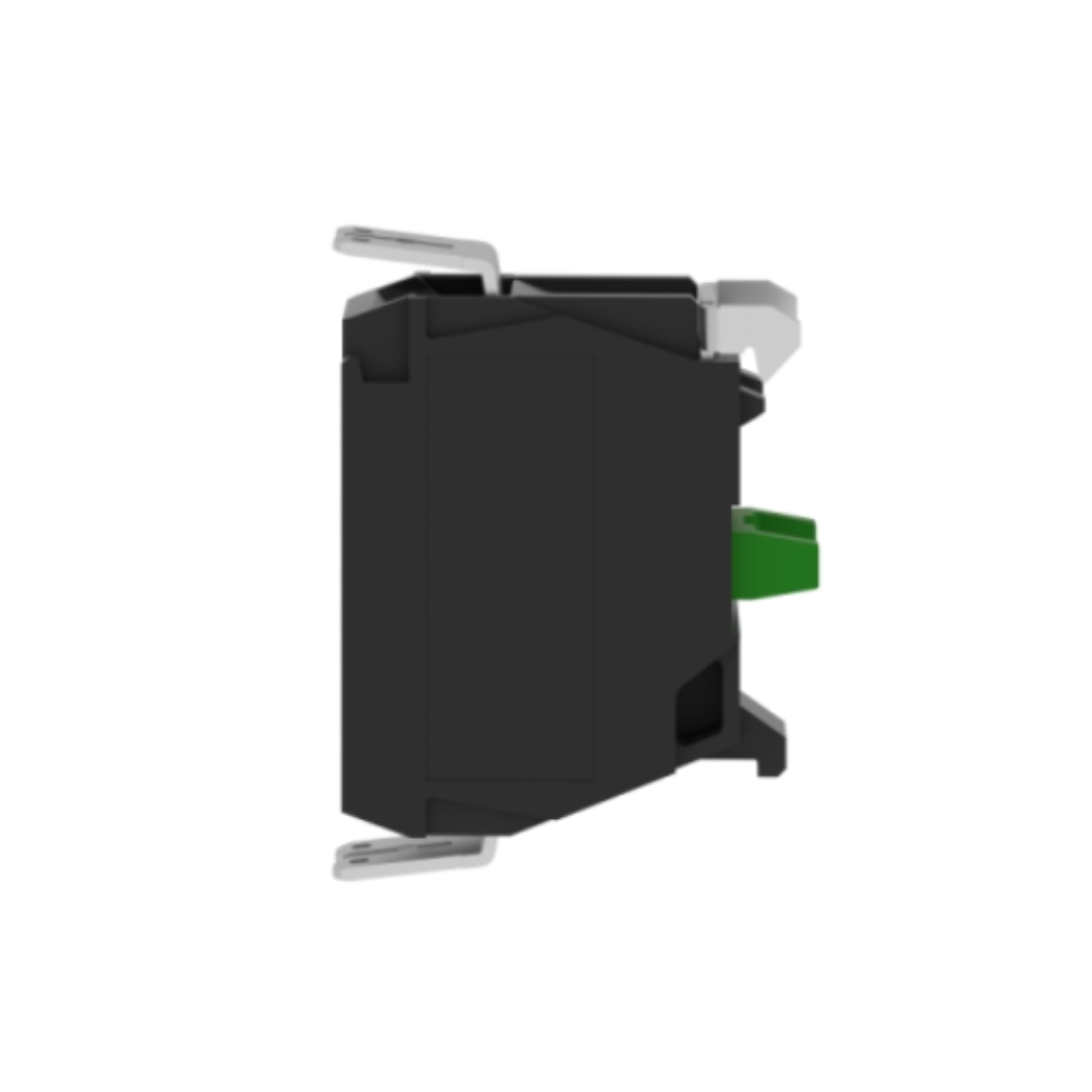

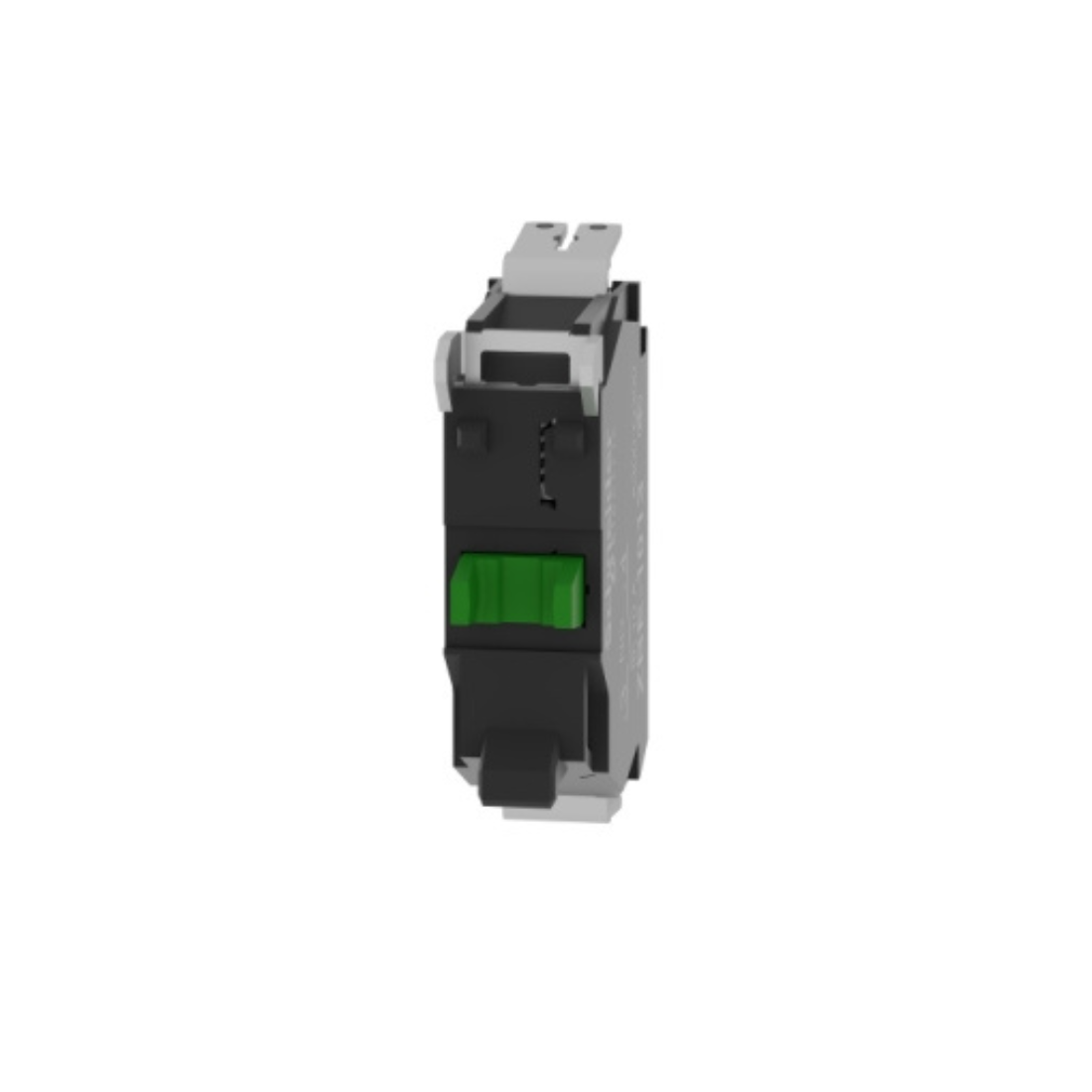

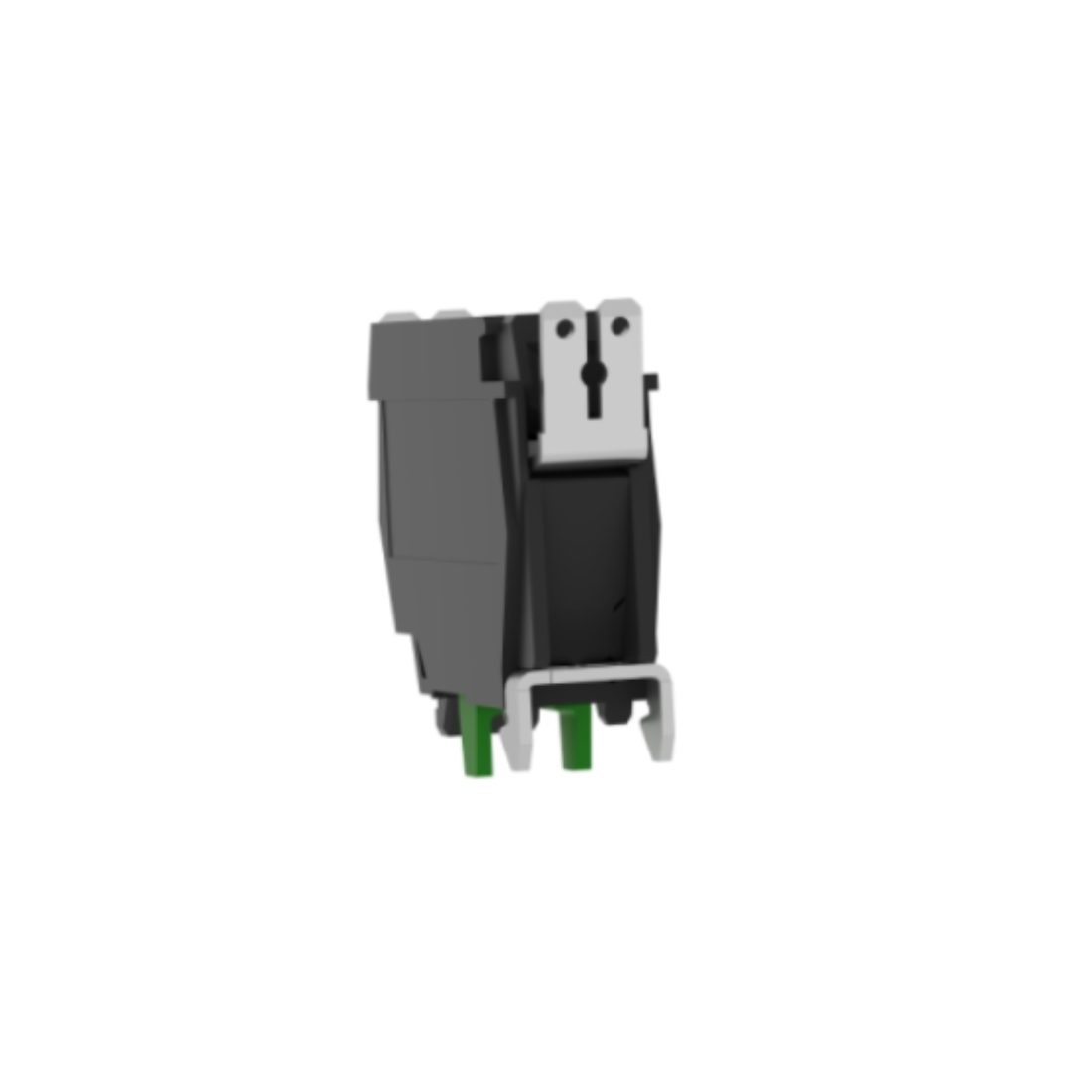

Schneider Electric Harmony XB5 XB4 Single Contact Block for Head Ø22 1NO Silver Alloy Faston Connector ZBE1013

Schneider Electric Harmony XB5 XB4 Single Contact Block for Head Ø22 1NO Silver Alloy Faston Connector ZBE1013

Name: Schneider Electric Harmony XB5 XB4 Single Contact Block for Head Ø22 1NO Silver Alloy Faston Connector ZBE1013
Brand: Schneider Electric
Price: 21.0 AED
Availability: InStock

AED 21.00

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Single Contact Block

Description

Schneider Electric ZBE1013 Single Contact Block uses fast-on terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows for quick and easy replacement and configuration of the push buttons and selector switches. It easily connects to the XB4 and thanks to its IP20 protection rating, it protects operators from unexpected contact with active circuits.

The long life of 1 million cycles with 6 A load allows for less maintenance and damage to your installation. Features a clear color scheme for NO and NC contact block types. Its wide operating temperature range of -40°C to 70°C allows the Single Contact Block to be used in a variety of ways.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Faston connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Specifications

Brand : Schneider Electric

Item Name : Contact Block

Model : ZBE1013

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Compatibility Code : ZBE

Connections - Terminals : Faston connector, connection size: 1 x 6.35 mm, Faston connector, connection size: 2 x 2.8 mm

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

IP Degree Of Protection : IP20 conforming to IEC 60529

Mechanical Durability : 10000000 cycles

Positive Opening : Without

Certifications : GL, CSA, UL, DNV, LROS (Lloyds register of shipping), BV

Protective Treatment : TH

Range Of Product : Harmony XB4, Harmony XB5

Sale Per Indivisible Quantity : 5

Shape Of Screw Head : Cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Terminals Description ISO n°1 : (13-14)NO

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Contacts Type And Composition : 1 NO

Operating Force : 2.3 N NO changing electrical state

Contacts Usage : Low Power Switching Contacts

Operating Travel : 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Contact Block Type : Single

Electrical Composition Code : C1 (quantity <= 9 ), C2 (quantity <= 7 ), C3 (quantity <= 6 ), C4 (quantity <= 4 ), C5 (quantity <= 5 ), C6 (quantity <= 3 ), C7 (quantity <= 4 ), C8 (quantity <= 2 ), C9 (quantity <= 3 ), C12 (quantity <= 6 ), M1 (quantity <= 6 ), M2 (quantity <= 4 ), M3 (quantity <= 4 ), M5 (quantity <= 2 ), M6 (quantity <= 2 ), M7 (quantity <= 6 ), M8 (quantity <= 4 ), M9 (quantity <= 2 ), SF1 (quantity <= 3 ), SF2 (quantity <= 2 ), MF1 (quantity <= 2 ), MF2 (quantity <= 2 ), C10 (quantity <= 2 ), M4 (quantity <= 2 ), C13 (quantity <= 1 )

Contact Block Type : Single

Mounting of Block : Front mounting

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1

Weight : 0.011 kg
