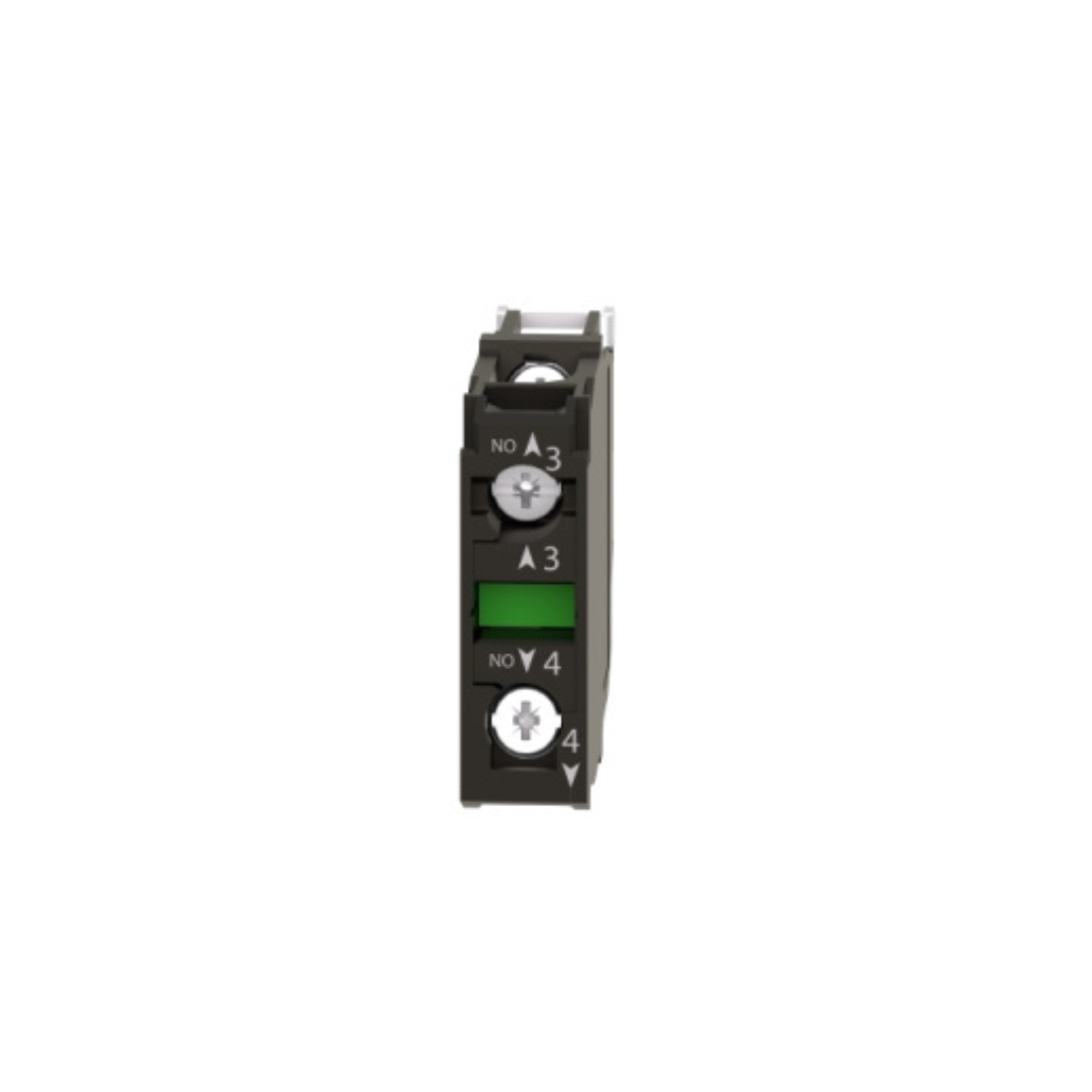

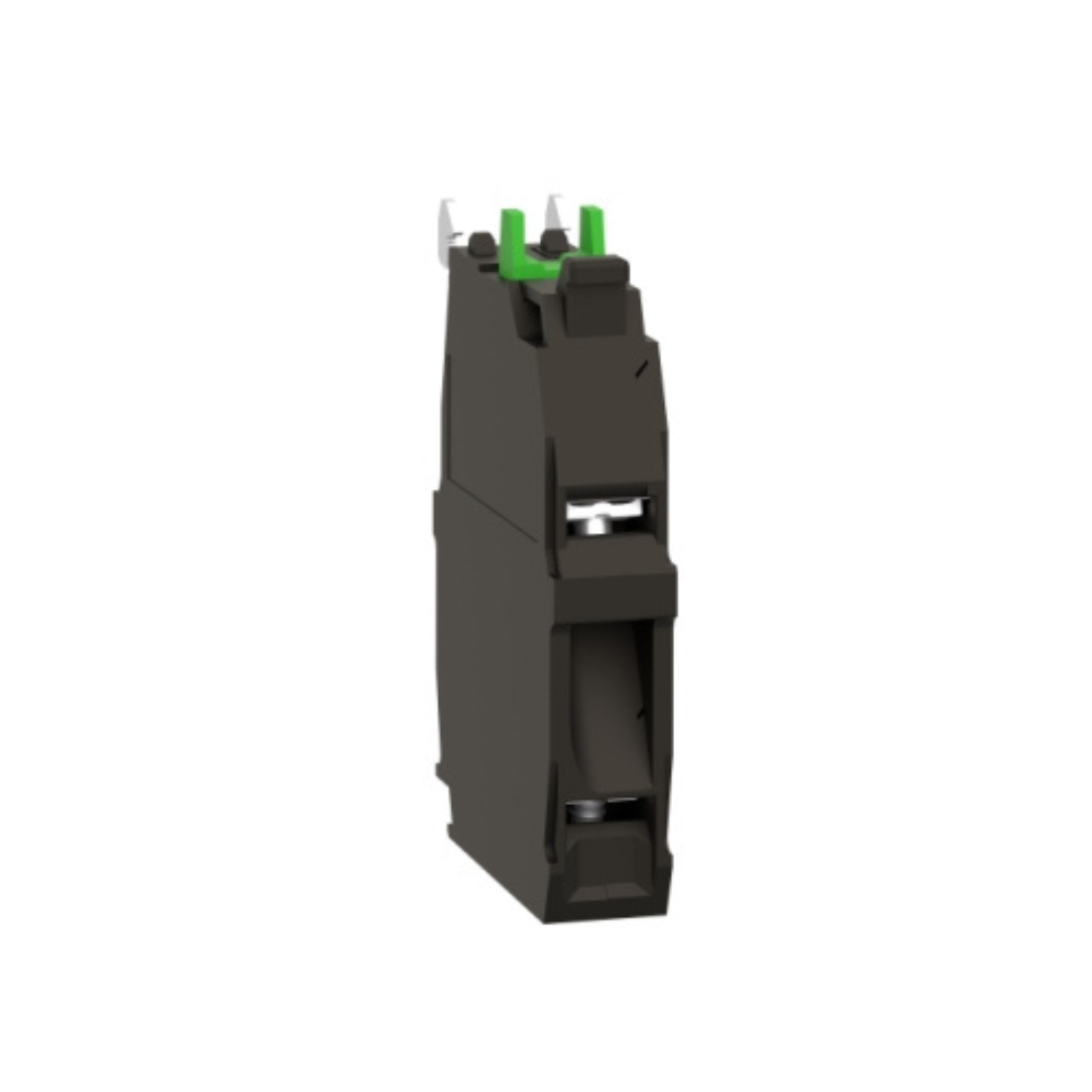

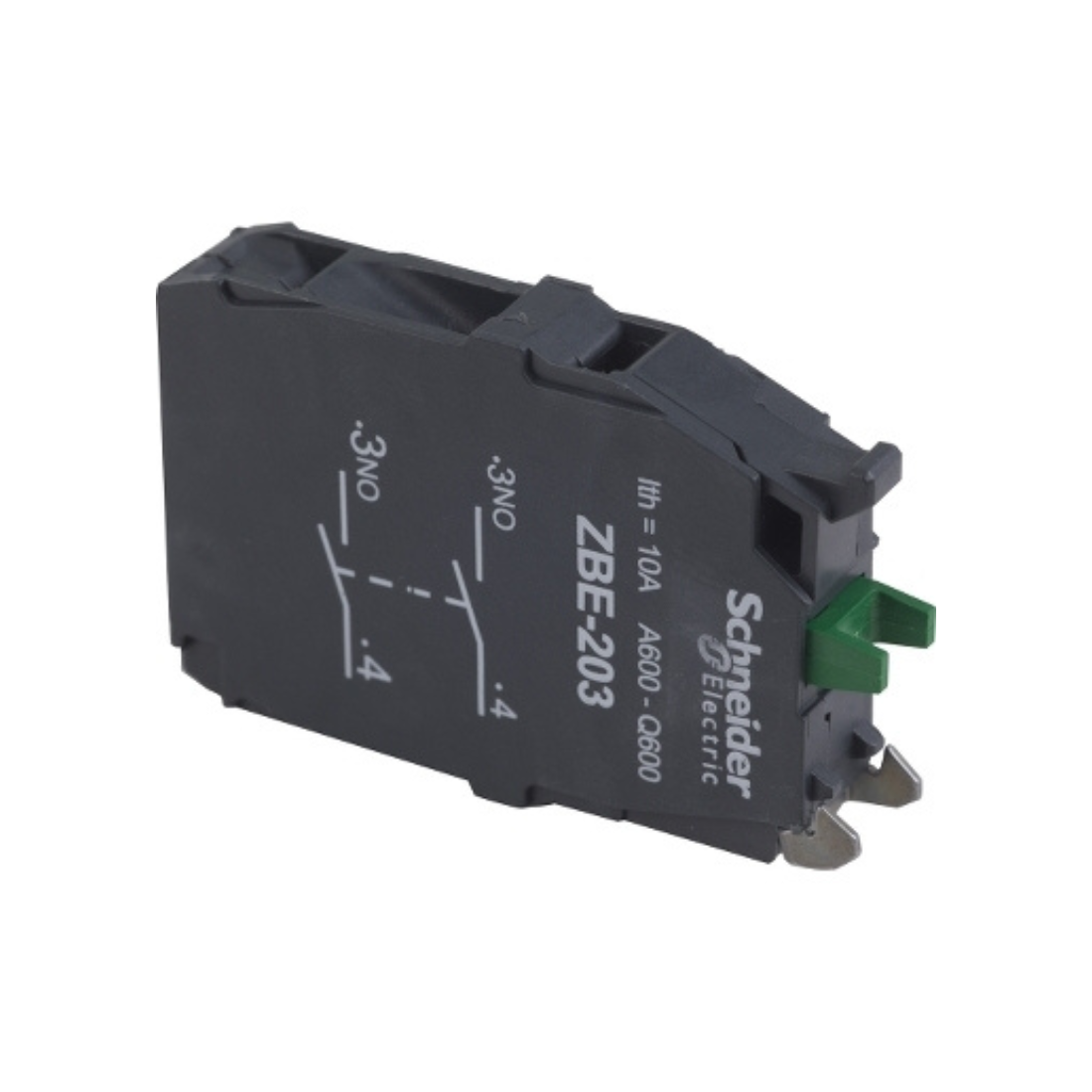

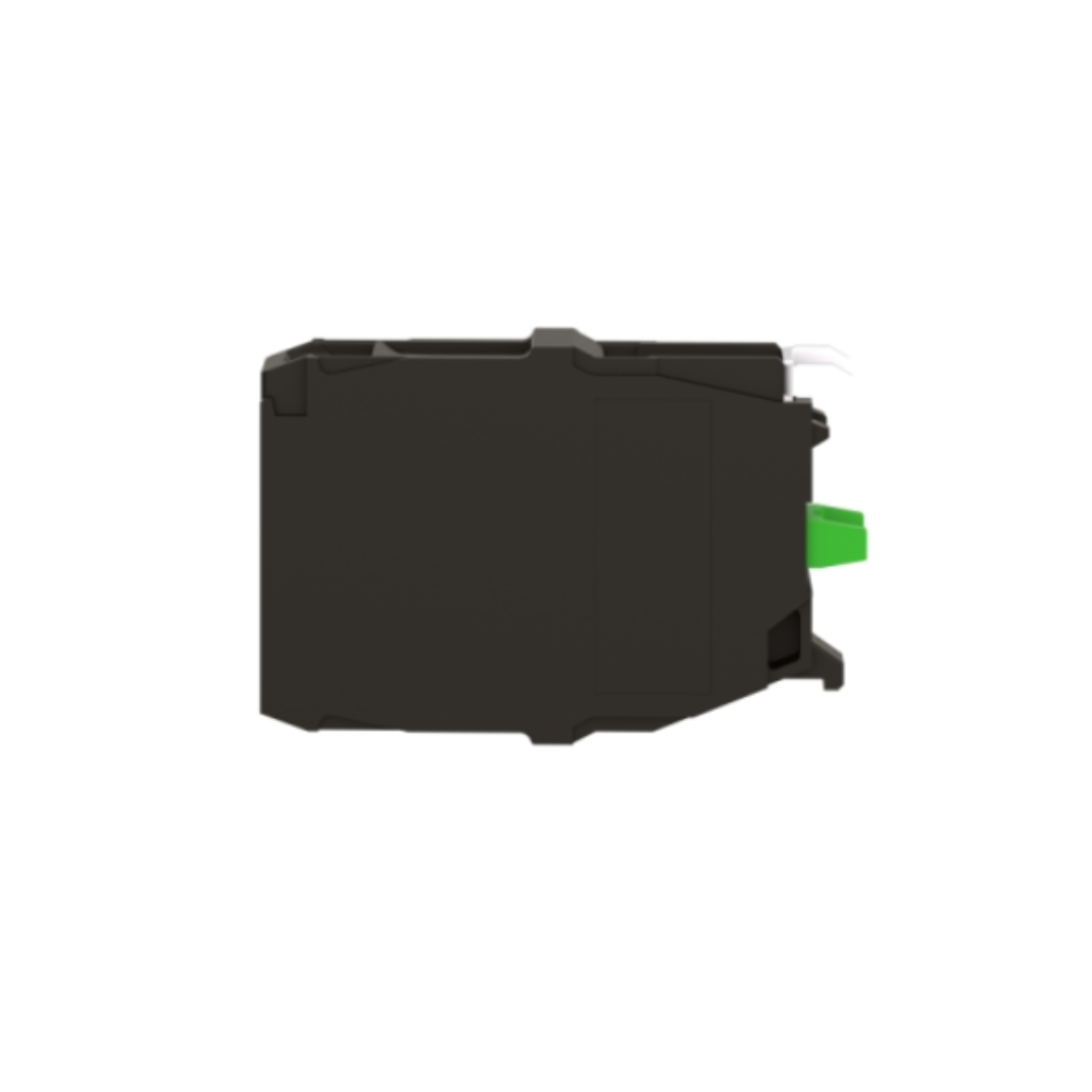

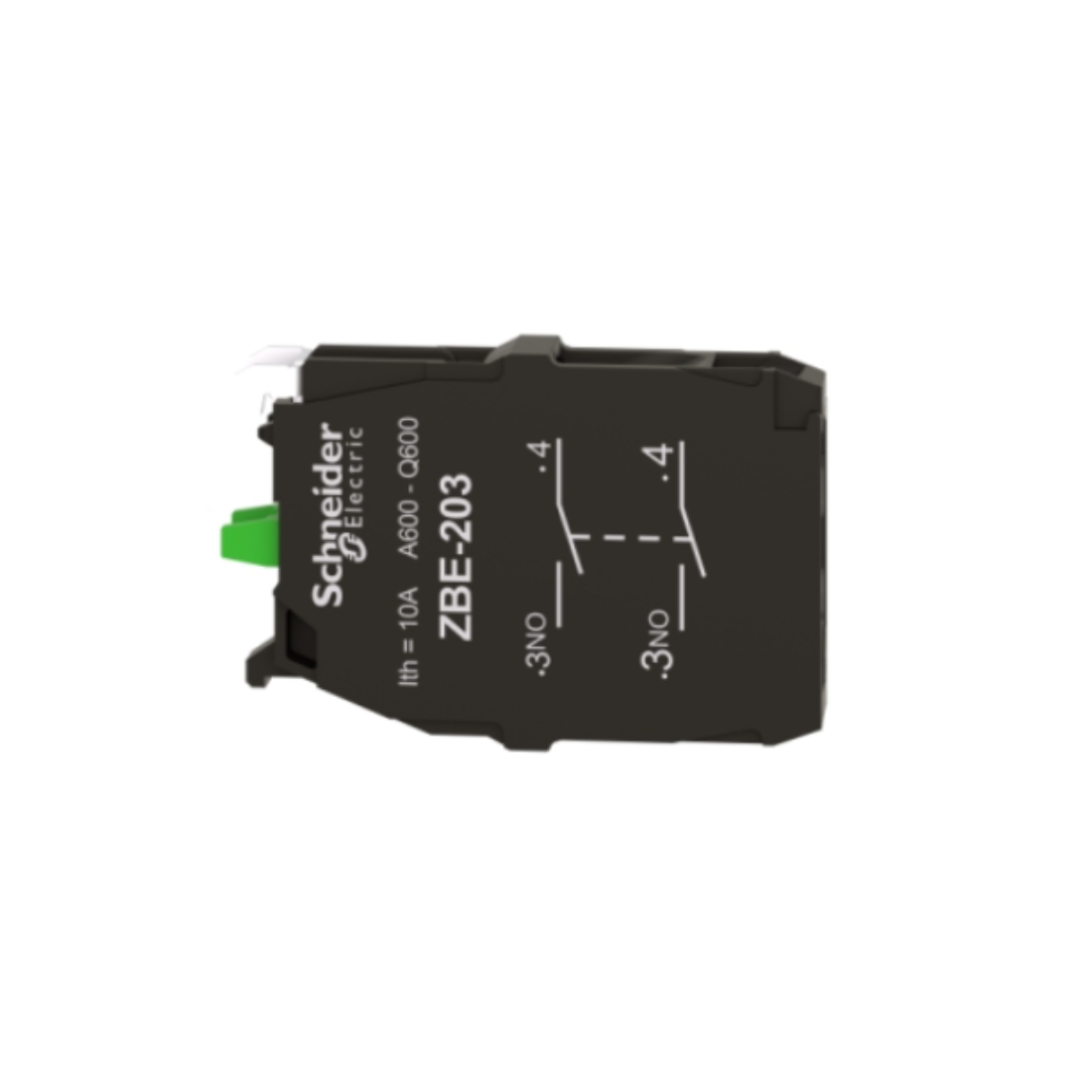

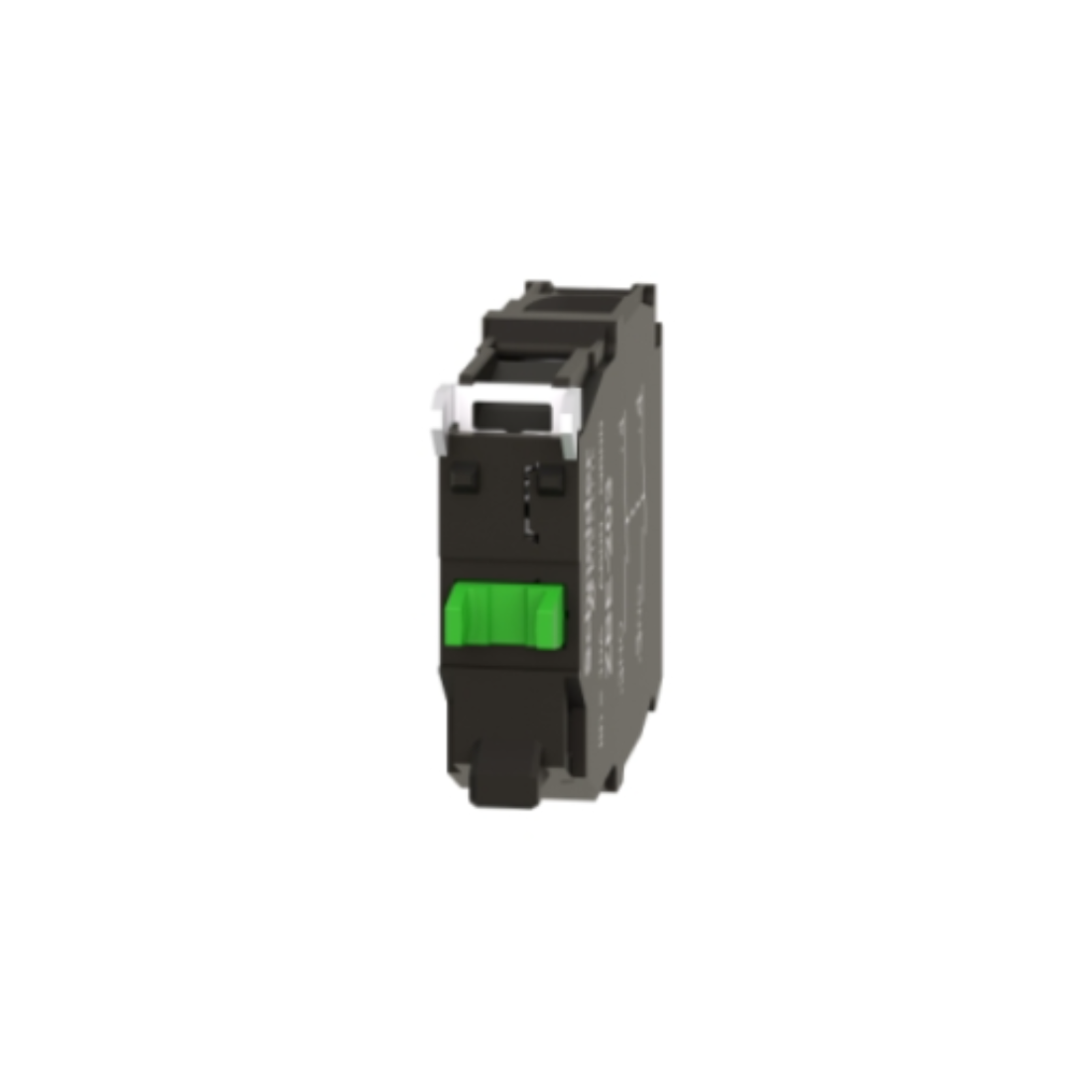

Schneider Electric Harmony XB5 XB4 Double Contact Block's for Head Ø22 2NO Screw Clamp Terminal ZBE203
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double Contact Block's
Description
Schneider Electric ZBE203 Double Contact Block's For Head uses screw terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. Schneider Electric ZBE203 Double Contact Block's For Head allows for quick and easy replacement and configuration of the push buttons and selector switches. It easily connects to the XB4 and thanks to its IP20 protection rating, it protects operators from unexpected contact with active circuits.
The long life of 1 million cycles with 6 A load allows for less maintenance and damage to your installation. Features a clear color scheme for NO and NC contact block types. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Fast on connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Contact Block |
| Model | ZBE203 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to EN 60947-1 |
| Compatibility Code | ZBE |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Mechanical Durability | 10000000 cycles |
| Positive Opening | Without |
| Certifications | GOST, DNV, CSA, UL, LROS (Lloyds register of shipping), CCC, GL, BV |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4, Harmony XB5 |
| Sale Per Indivisible Quantity | 5 |
| Shape Of Screw Head | Cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Contacts Type And Composition | 2 NO |
| Contacts Usage | Standard contacts |
| Operating Force | 5 N NO changing electrical state |
| Operating Travel | 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Contact Block Type | Double |
| Electrical Composition Code | C2 (quantity <= 3 ), C4 (quantity <= 2 ), C6 (quantity <= 2 ), C8 (quantity <= 1 ), C10 (quantity <= 2 ), C13 (quantity <= 3 ), M2 (quantity <= 2 ), M4 (quantity <= 2 ), M8 (quantity <= 2 ) |
| Mounting Of Block | Front mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Basic element |
| Electrical Durability | 1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Weight | 0.02 kg |
