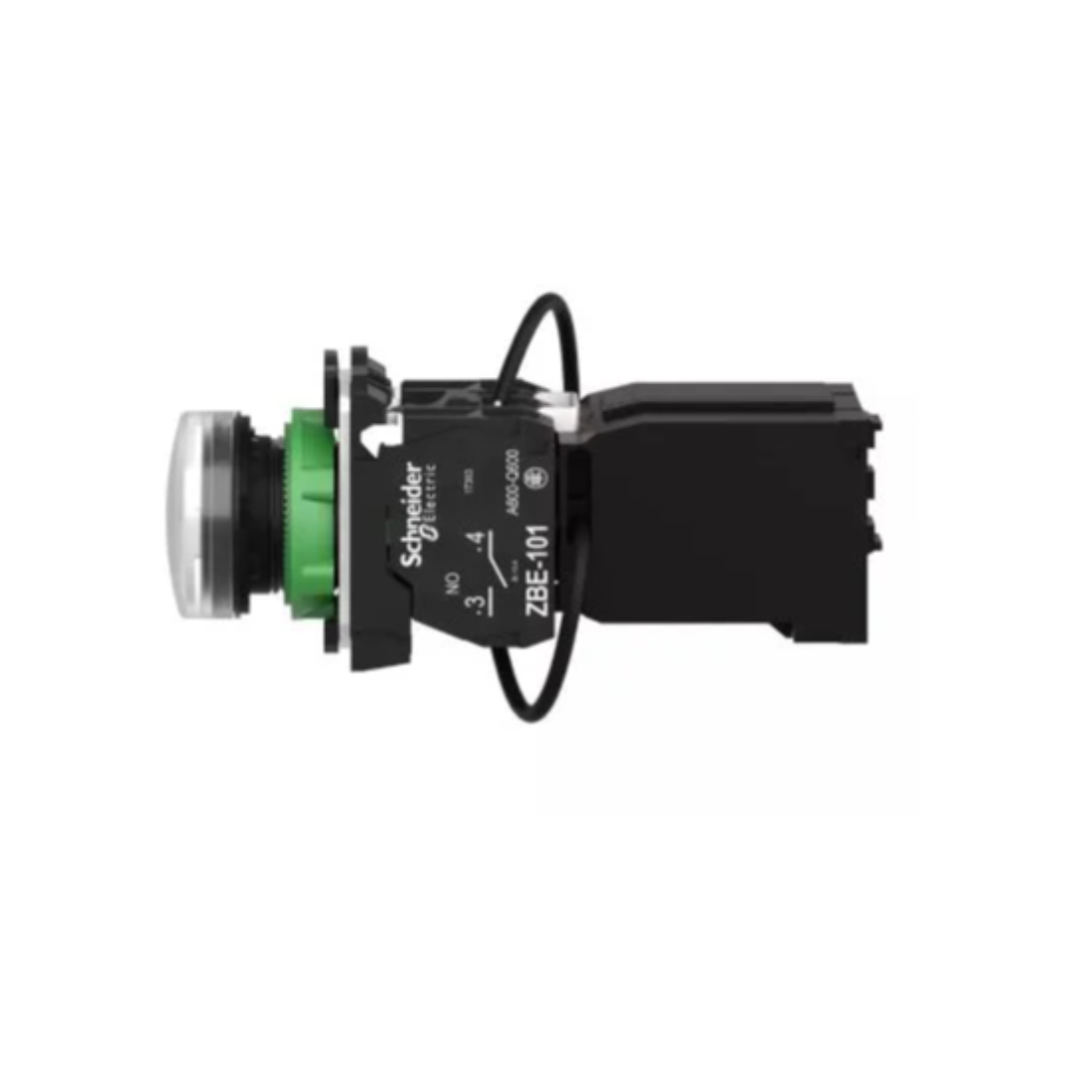

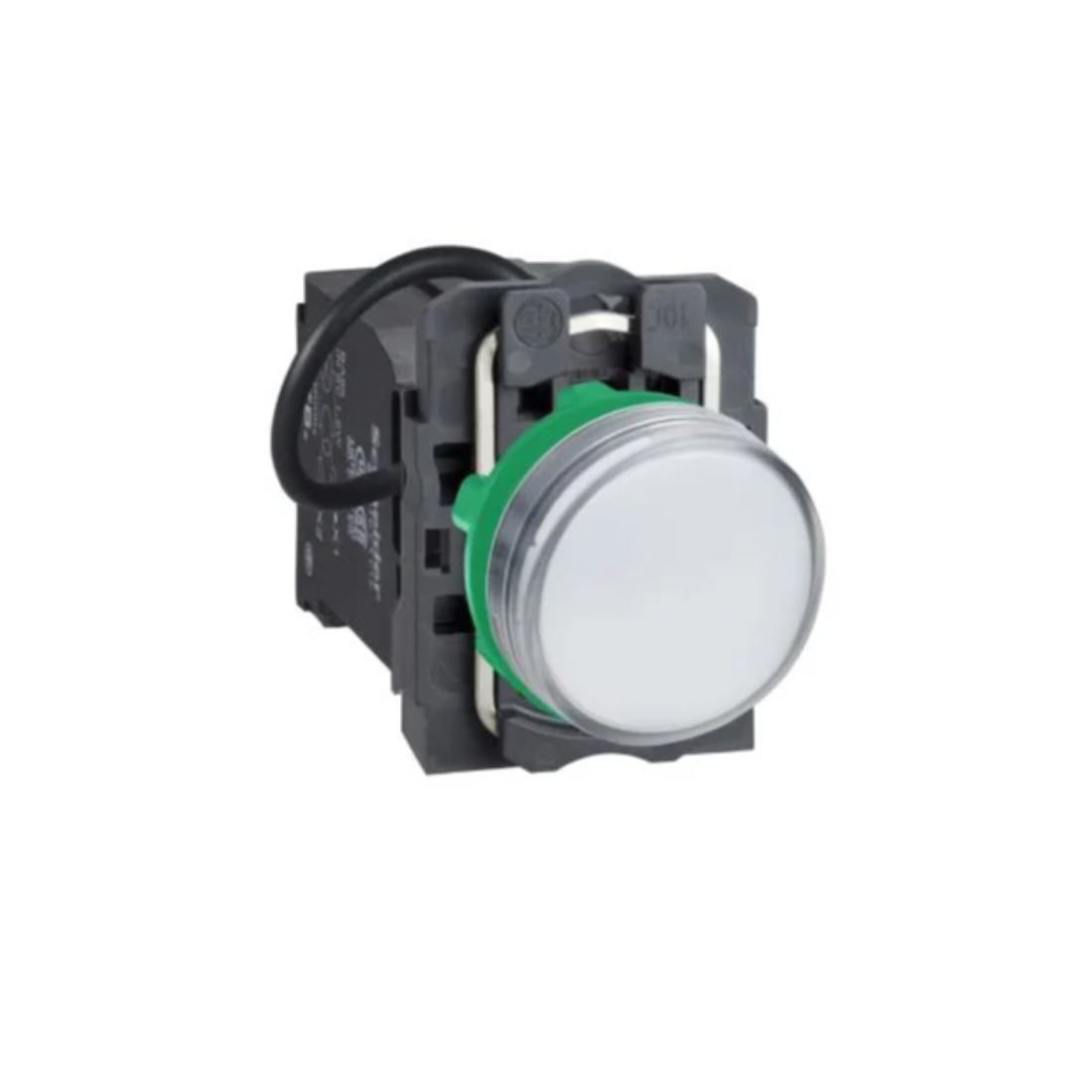

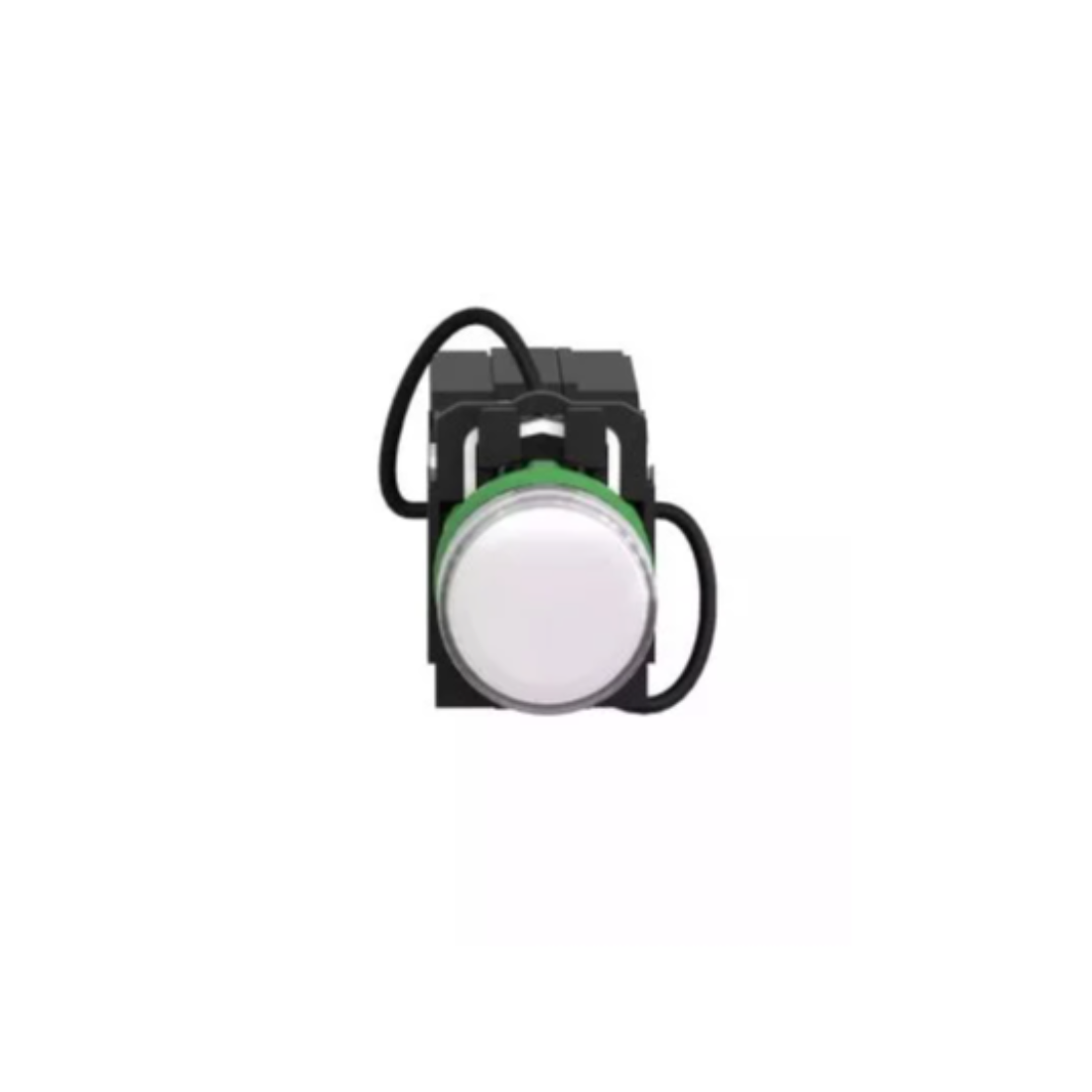

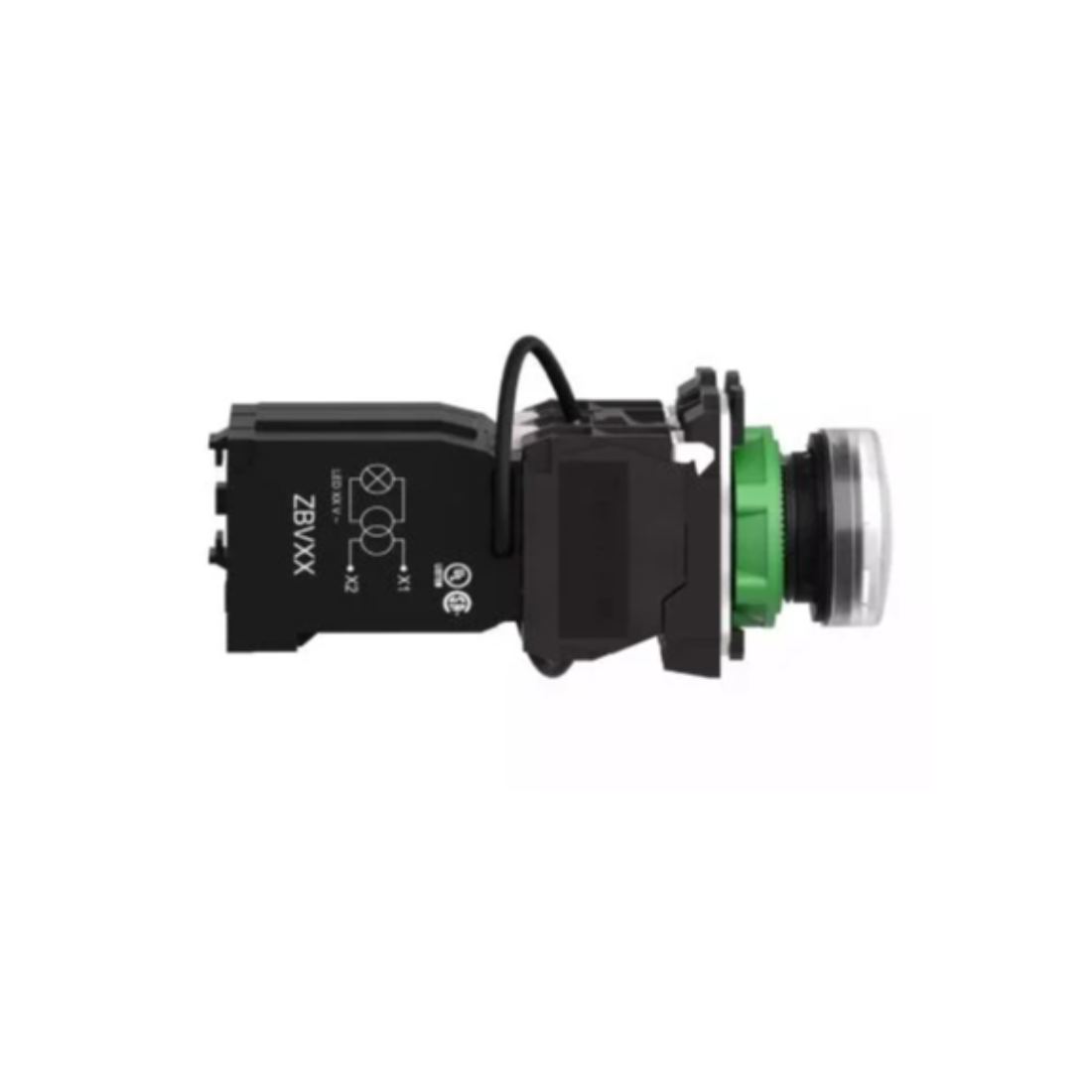

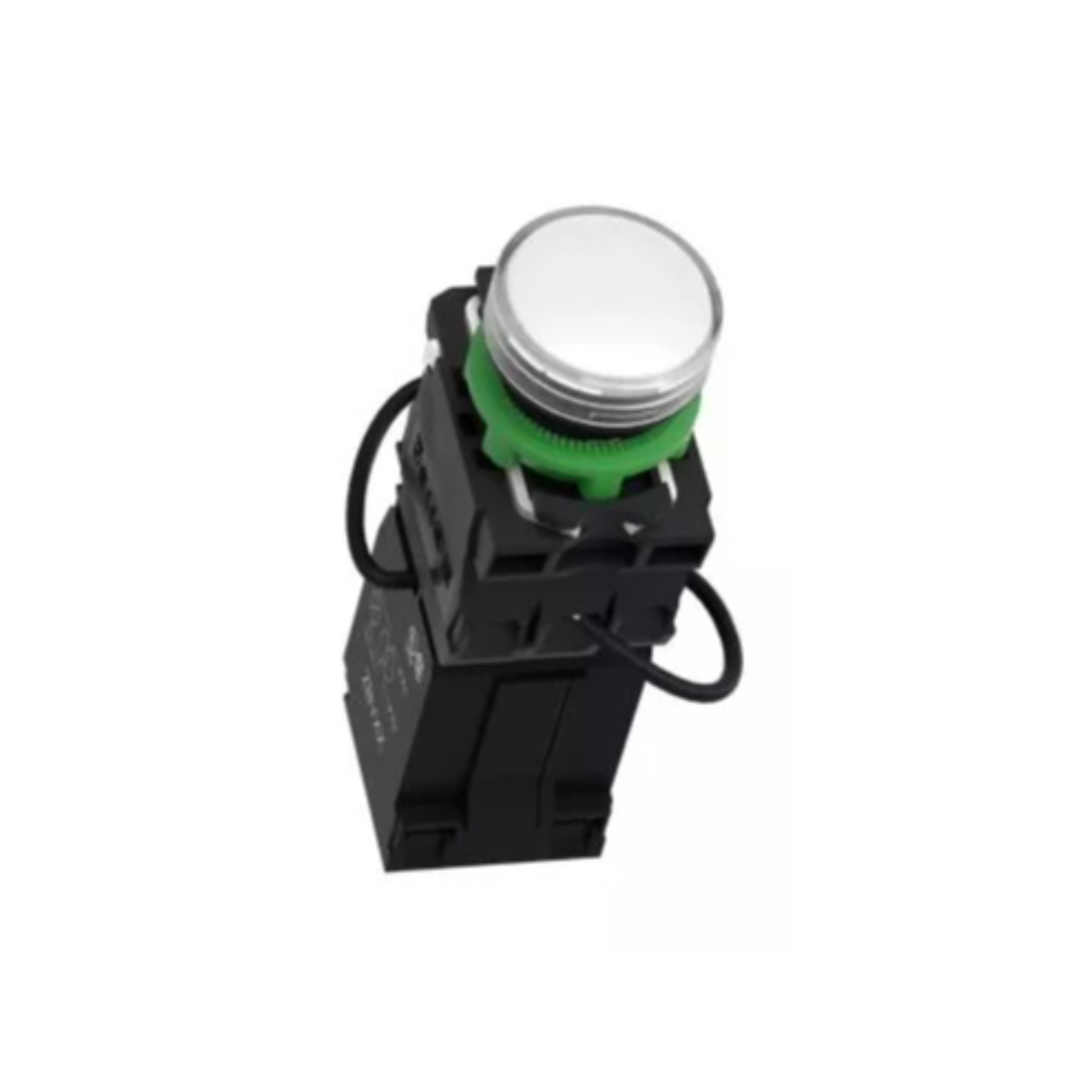

Schneider Electric Harmony XB5 White Complete Pilot Light Ø22 Plain Lens with Integral LED 440V XB5AV5B1
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Complete Pilot Light
Description
Schneider Electric XB5AV5B1 White Complete Pilot Light operates on 24V AC/DC and uses an integrated LED. It has a metal bezel. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.
Features
- Provide a bright indication of process and machine operation
- It has a metal bezel
- Connected with simple screw terminal connections.
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB5AV5B1 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated Supply Voltage | 400V |
| Bezel Material | Dark Grey Plastic |
| CAD Overall Depth | 101 mm |
| CAD Overall Height | 45 mm |
| CAD Overall Width | 40 mm |
| Cap/Operator Or Lens Colour | White |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 |
| Fixing Collar Material | Plastic |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Light Source | Universal LED |
| Mounting Diameter | 22 mm |
| Protective Treatment | TH |
| Certifications | UL listed, CSA |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Supply Voltage Limits | 407-423 V AC |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Light Block Supply Via Transformer | 1.2 VA 24 V |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST01 |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Light Source Colour | White |
| Resistance To Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Vibration Resistance | 2 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-1 |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Device Presentation | Complete Product |
| Weight | 0.133 kg |
