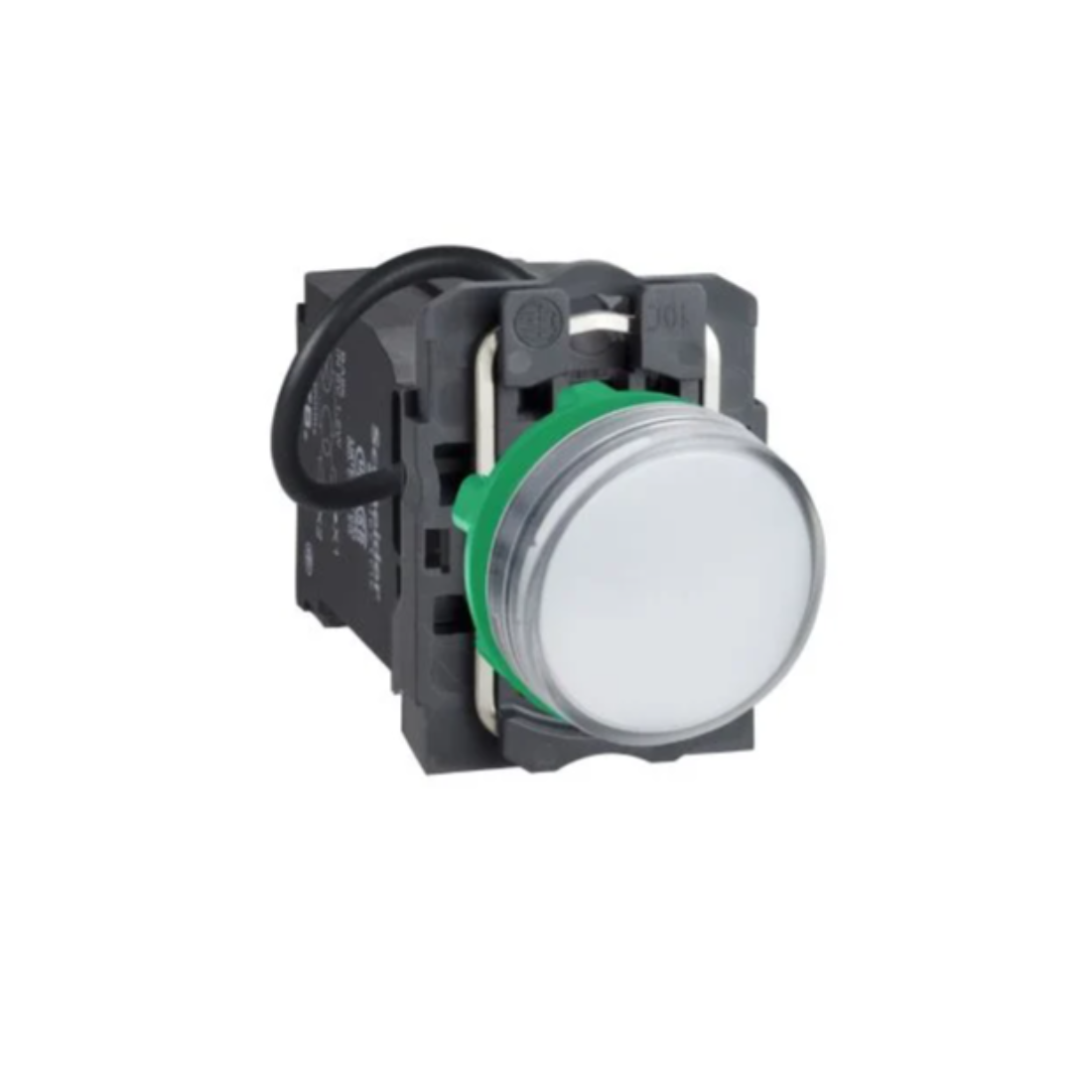

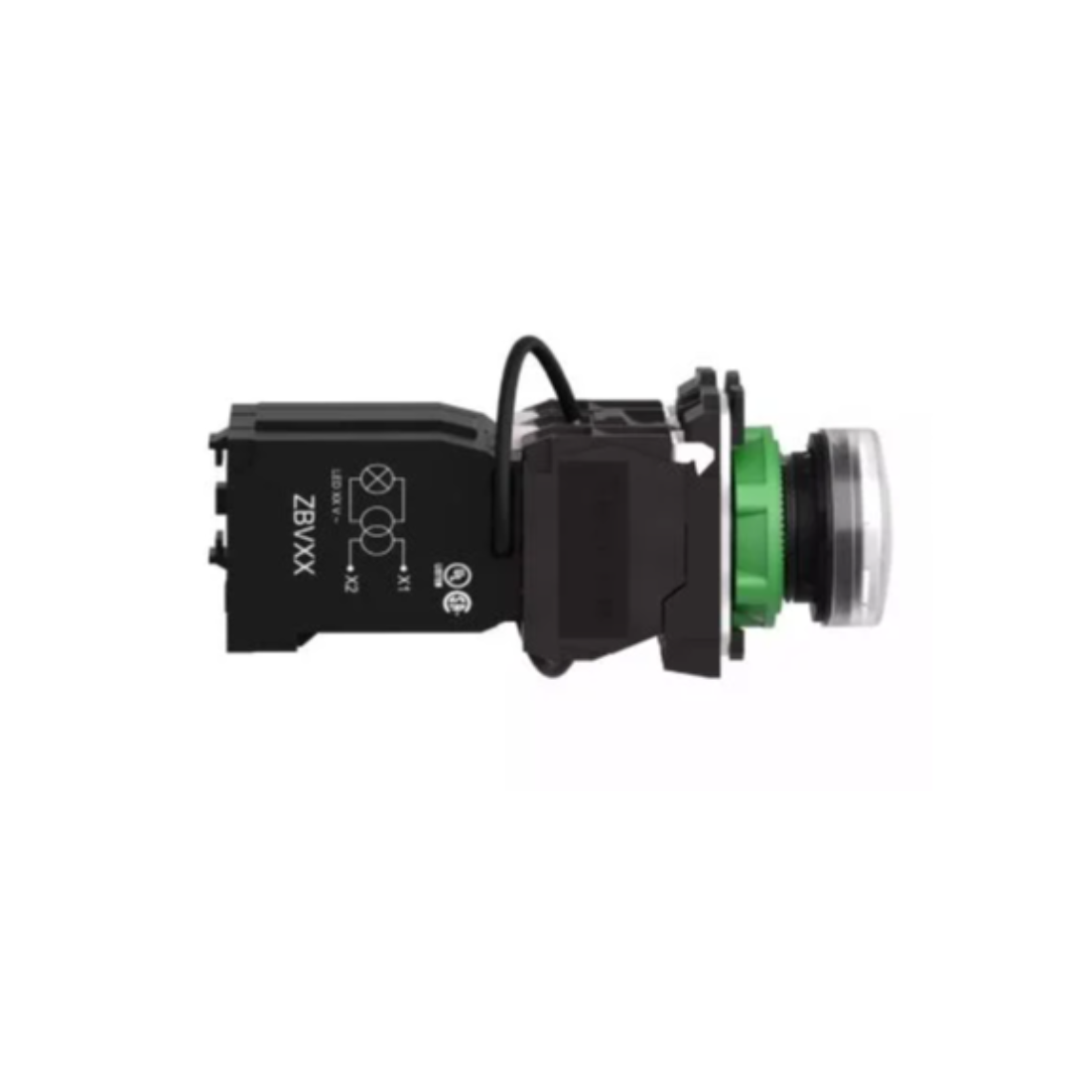

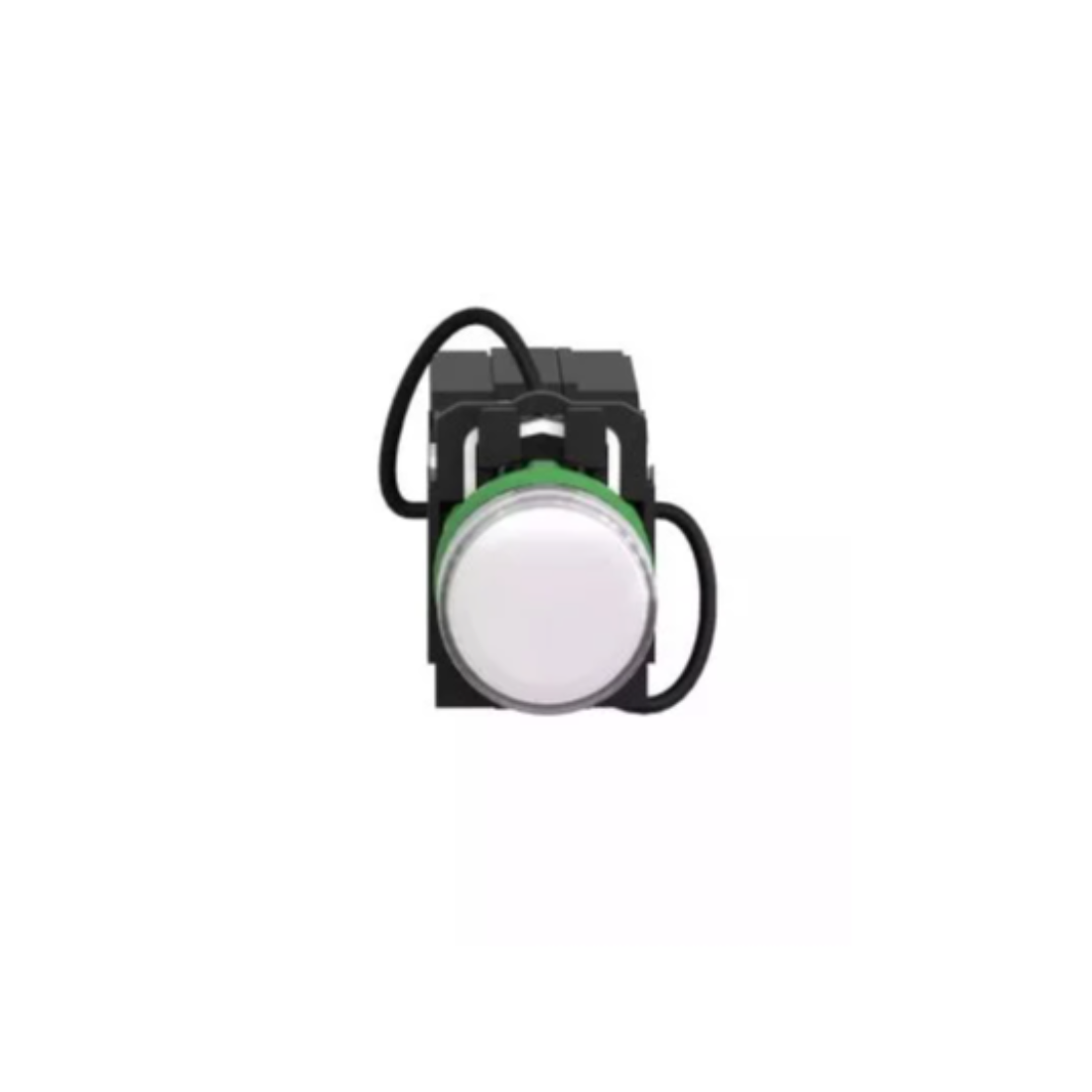

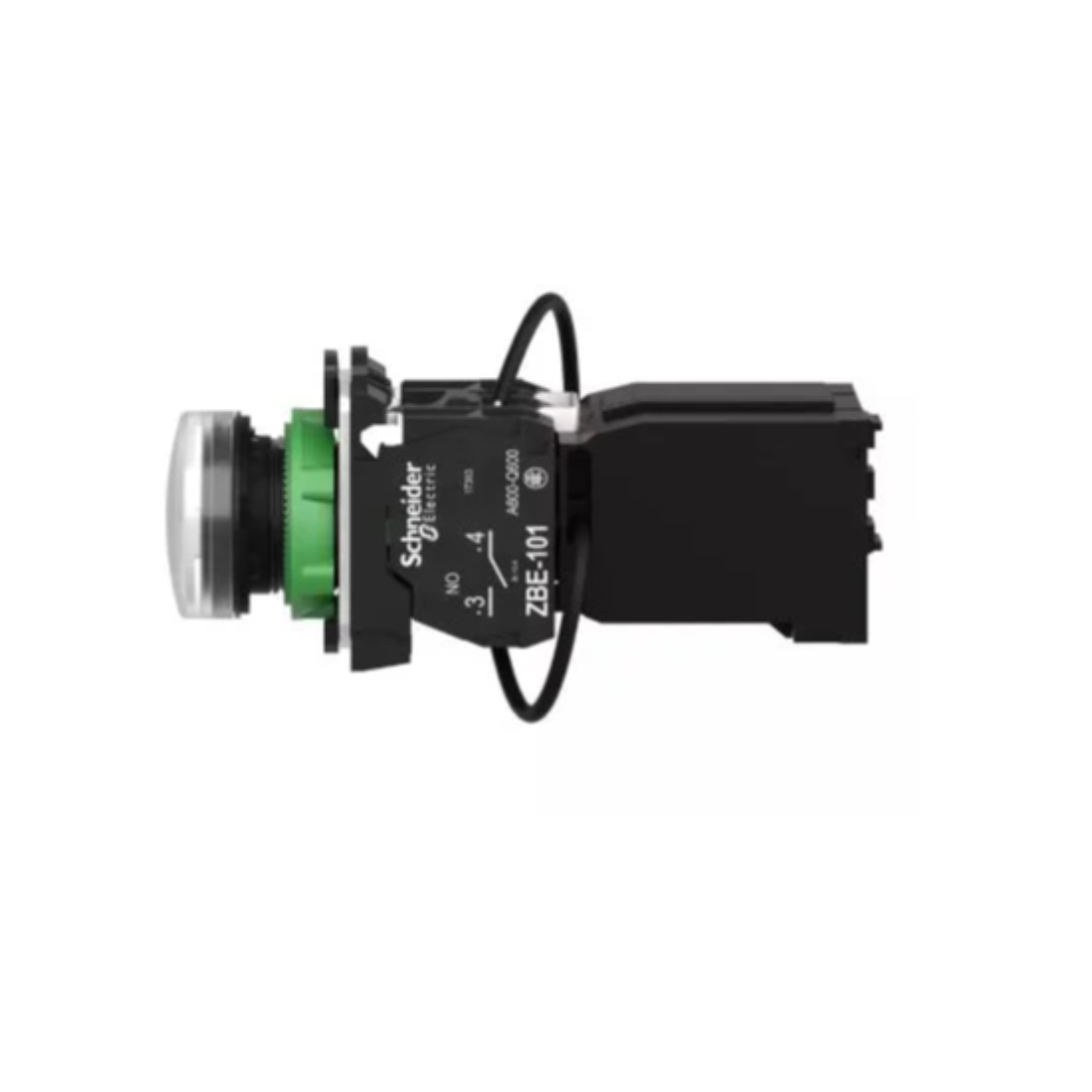

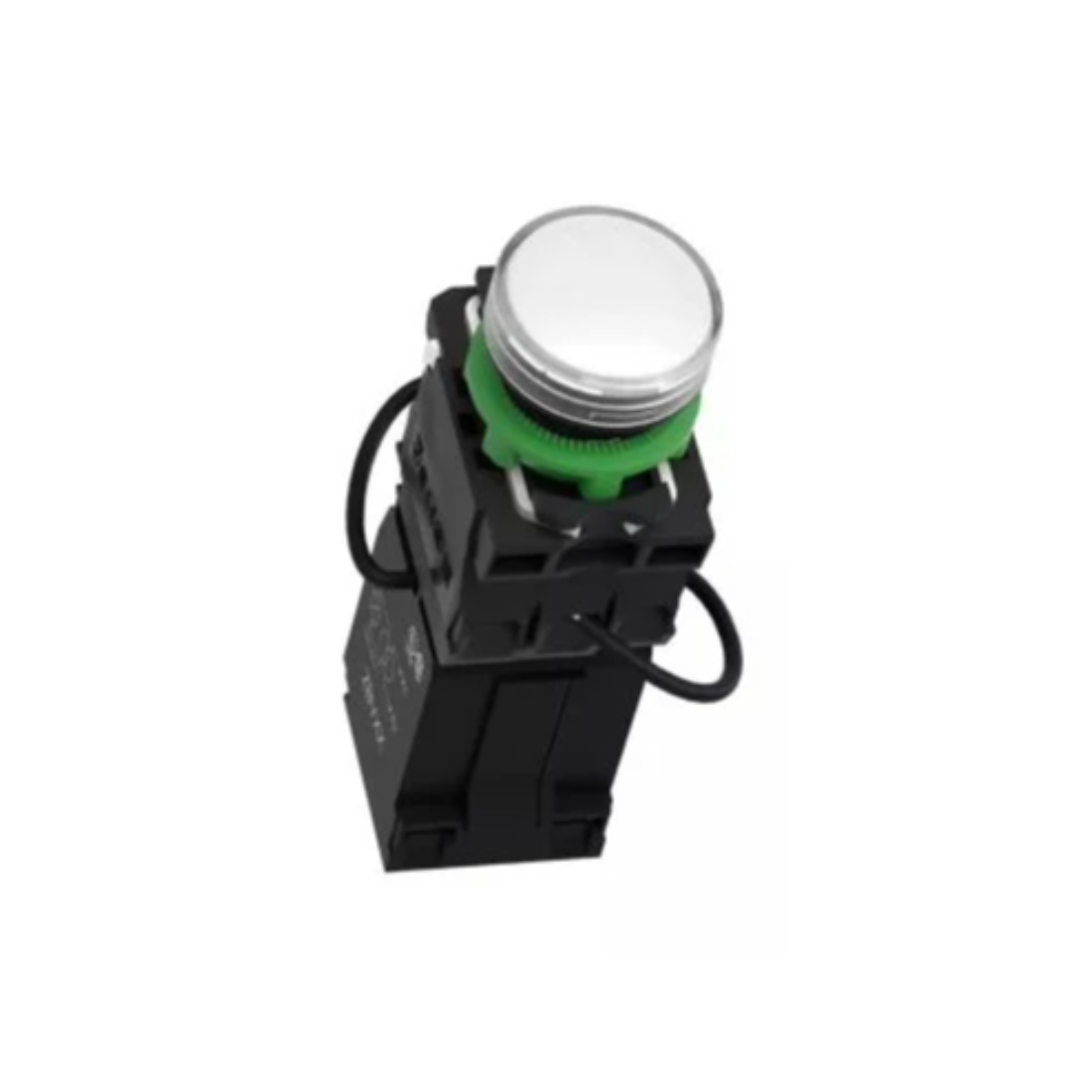

Schneider Electric Harmony XB5 White Complete Pilot Light Ø22 Plain Lens with Integral LED 440V XB5AV5B1

Schneider Electric Harmony XB5 White Complete Pilot Light Ø22 Plain Lens with Integral LED 440V XB5AV5B1

Name: Schneider Electric Harmony XB5 White Complete Pilot Light Ø22 Plain Lens with Integral LED 440V XB5AV5B1
Brand: Schneider Electric
Price: 223.65 AED
Availability: InStock

AED 223.65

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Complete Pilot Light

Description

Schneider Electric XB5AV5B1 White Complete Pilot Light operates on 24V AC/DC and uses an integrated LED. It has a metal bezel. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

Features

Provide a bright indication of process and machine operation
It has a metal bezel
Connected with simple screw terminal connections.

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB5AV5B1

Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

Rated Supply Voltage : 400V

Bezel Material : Dark Grey Plastic

CAD Overall Depth : 101 mm

CAD Overall Height : 45 mm

CAD Overall Width : 40 mm

Cap/Operator Or Lens Colour : White

Compatibility Code : XB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1

Fixing Collar Material : Plastic

IK Degree Of Protection : IK05 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

Light Source : Universal LED

Mounting Diameter : 22 mm

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 15 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 407-423 V AC

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

Light Block Supply Via Transformer : 1.2 VA 24 V

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : 1

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB5AVCUST01

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Light Source Colour : White

Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Vibration Resistance : 2 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-1

Electrical Shock Protection Class : Class II conforming to IEC 60536

Device Presentation : Complete Product

Weight : 0.133 kg
