Name: Schneider Electric Harmony XB5 Single Contact Block with Body/Fixing Collar Plastic Screw Clamp Terminal 2 NO ZB5AZ103
Brand: Schneider Electric
Price: 24.15 AED
Availability: InStock

AED 24.15

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Single Contact Block

Description

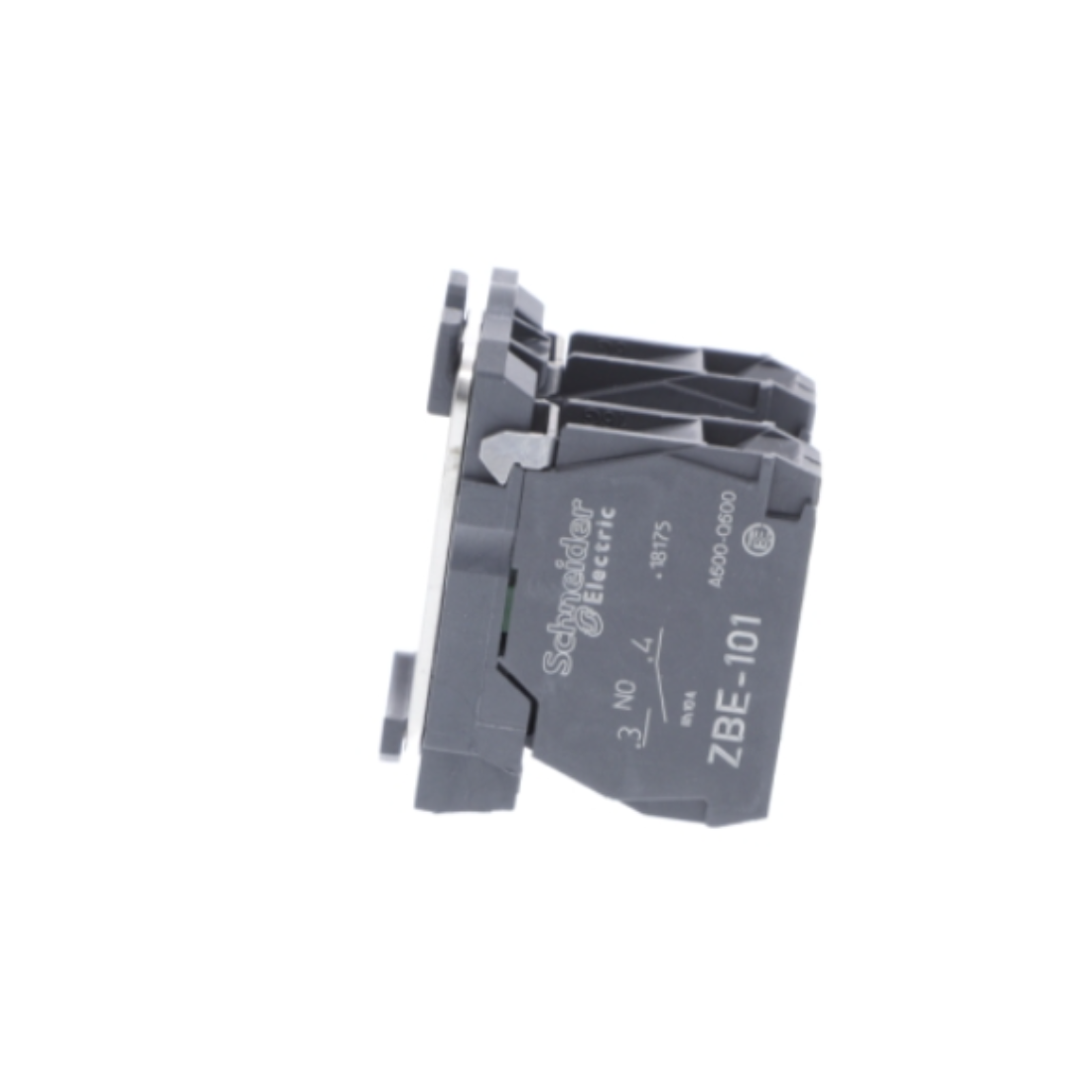

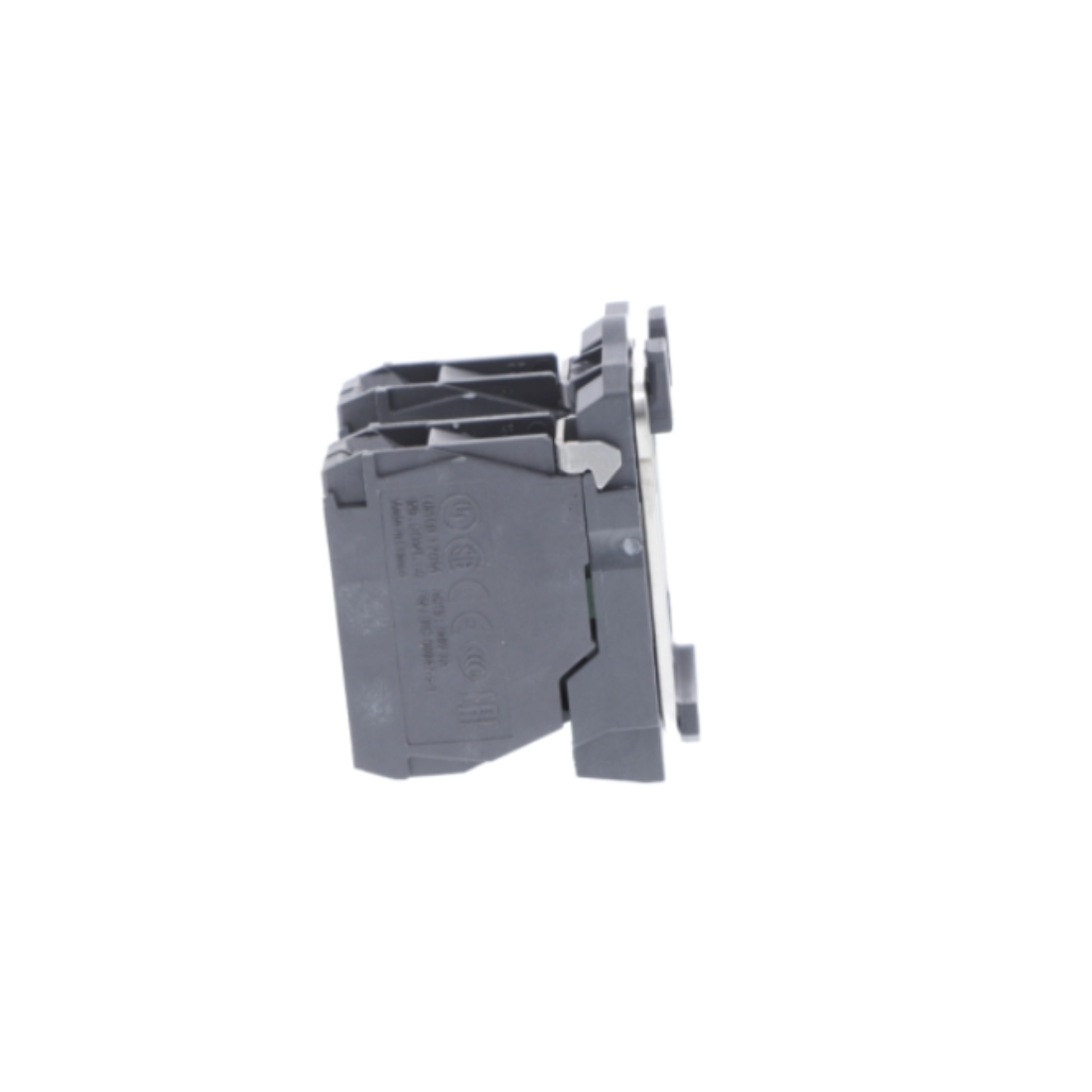

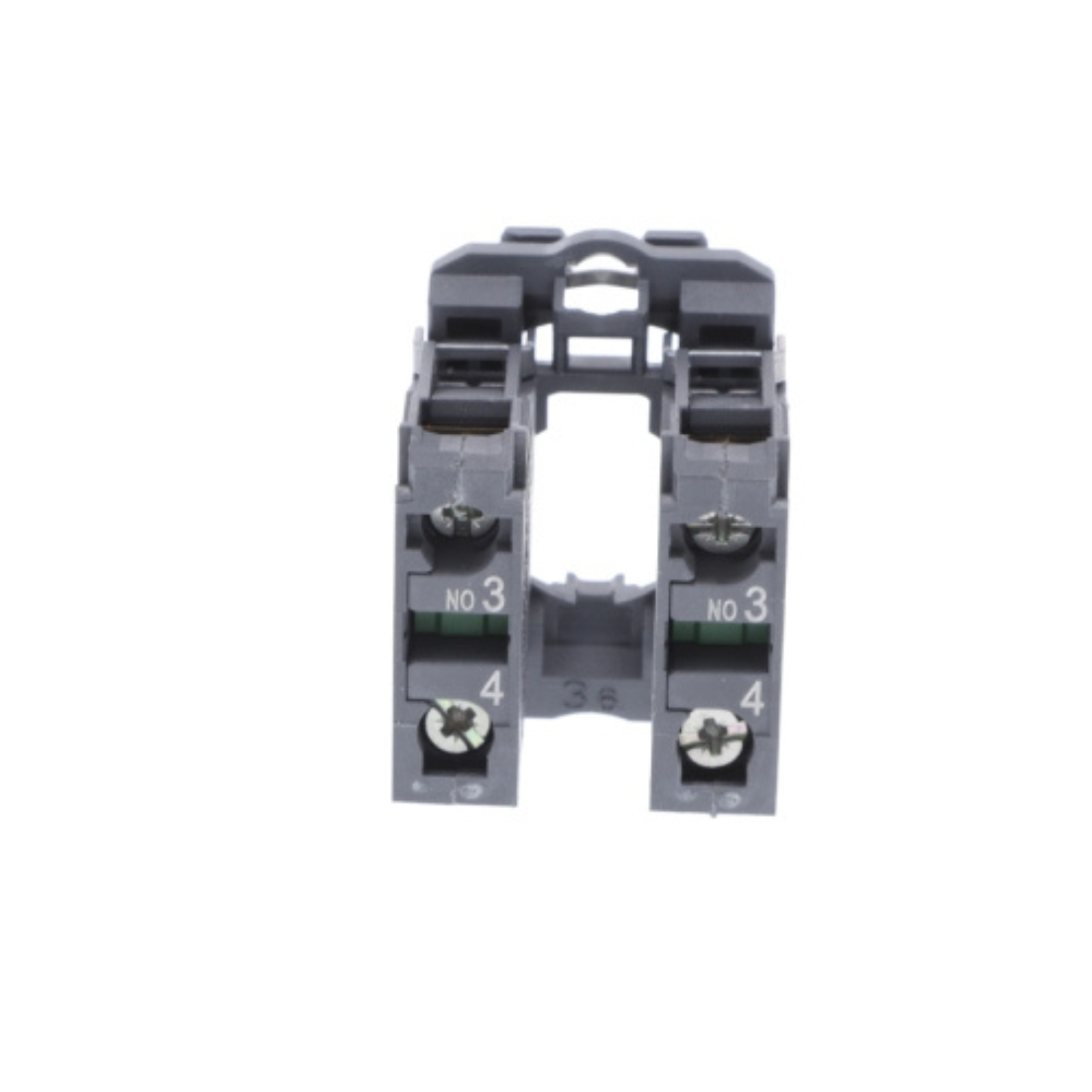

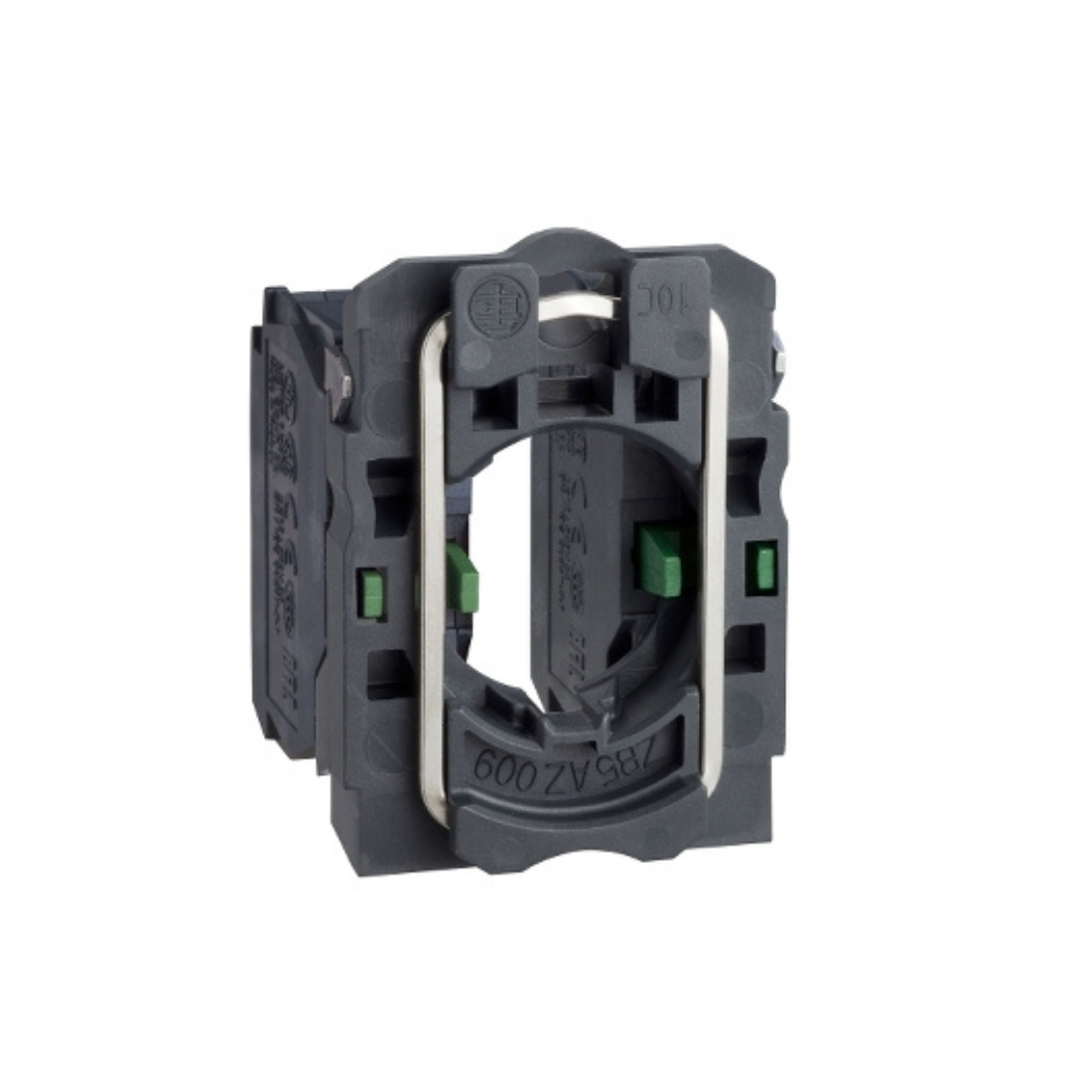

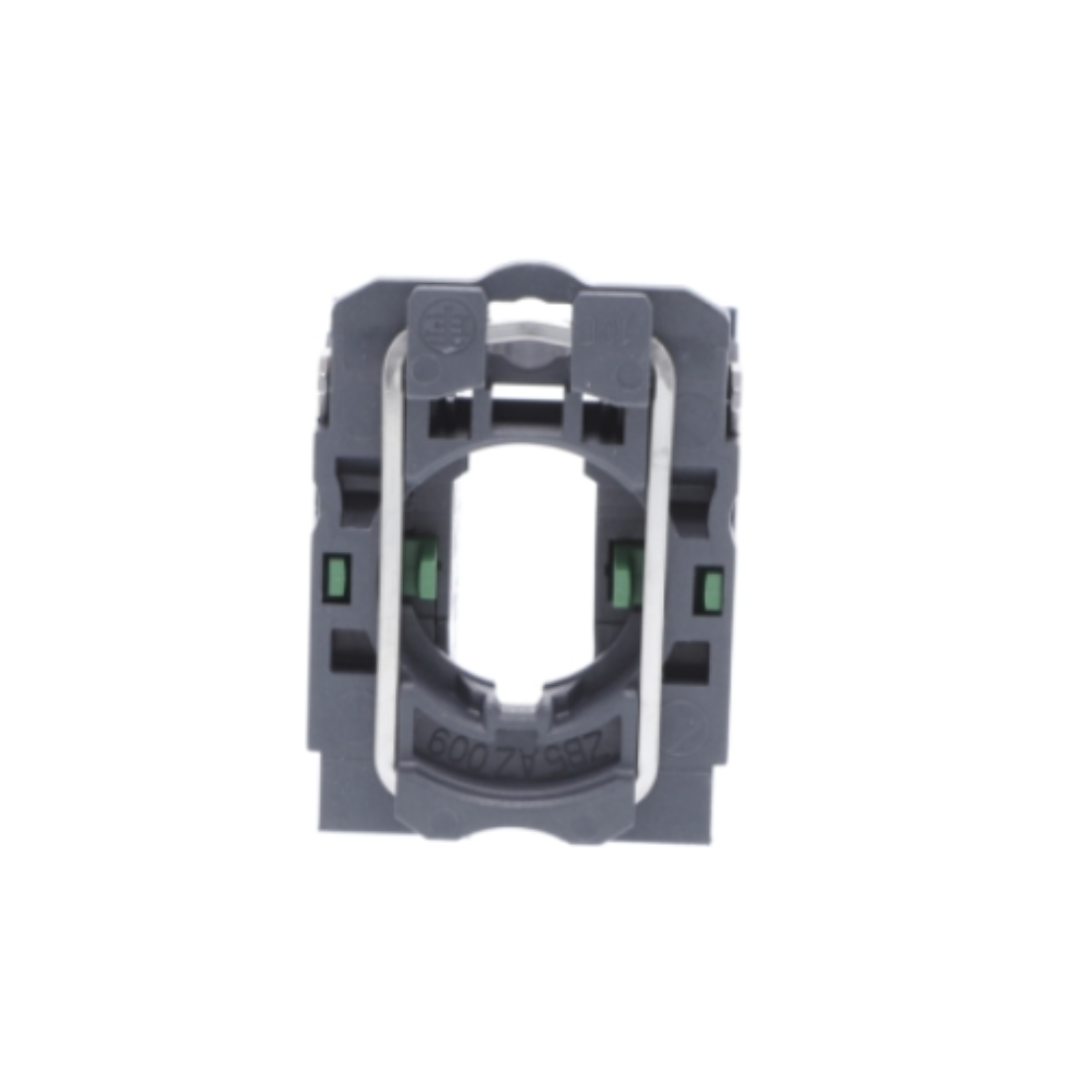

Schneider Electric ZB5AZ103 Single Contact Block With Body/Fixing Collar uses screw terminal blocks. This contact block allows for quick and easy replacement and configuration of your push buttons and selector switches. Easily installs and replaces in complete XB5 push button and selector switch assemblies using a clip assembly and connects to control circuits using simple screw terminal connections. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits.

The base unit with which you can start assembling your plastic button or switch. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways. Vibration resistant screw terminal lugs ensure high vibration resistance and allow proper installation of the product on machines with high impact loads.

Features

Quick and easy assembly and disassembly
Programmable sounders that is configurable via the sd card
Moduler design supporting customization up to 5 light units
A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Excellent mechanical connection with operator head

Specifications

Brand : Schneider Electric

Item Name : Complete Body/Contact Assembly

Model : ZB5AZ103

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand : 6 kV conforming to EN 60947-1

CAD Overall Depth : 32 mm

CAD Overall Height : 42 mm

CAD Overall Width : 30 mm

Compatibility Code : ZB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

Contact Operation :Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Current Consumption : 14 mA

Depth : 57 mm

Electrical Reliability : λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Fixing Collar Material : Plastic

IP Degree Of Protection : IP20 conforming to IEC 60529

Mechanical Durability : 10000000 cycles

Positive Opening : Without

Certifications : GL, LROS (Lloyds register of shipping), BV, UL, DNV, CSA

Protective Treatment : TH

Range Of Product : Harmony XB5

Service Life : 100000 h at rated voltage and 25 °C

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Terminals Description ISO n°1 : (13-14)NO

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Contacts Type And Composition : 2 NO

Customizable : 0

Head Type : Standard

Operating Travel : 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Contact Block Type : Single

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Basic sub-assemblies

Device Composition : Fixing collar, body

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
