Brand : Schneider Electric

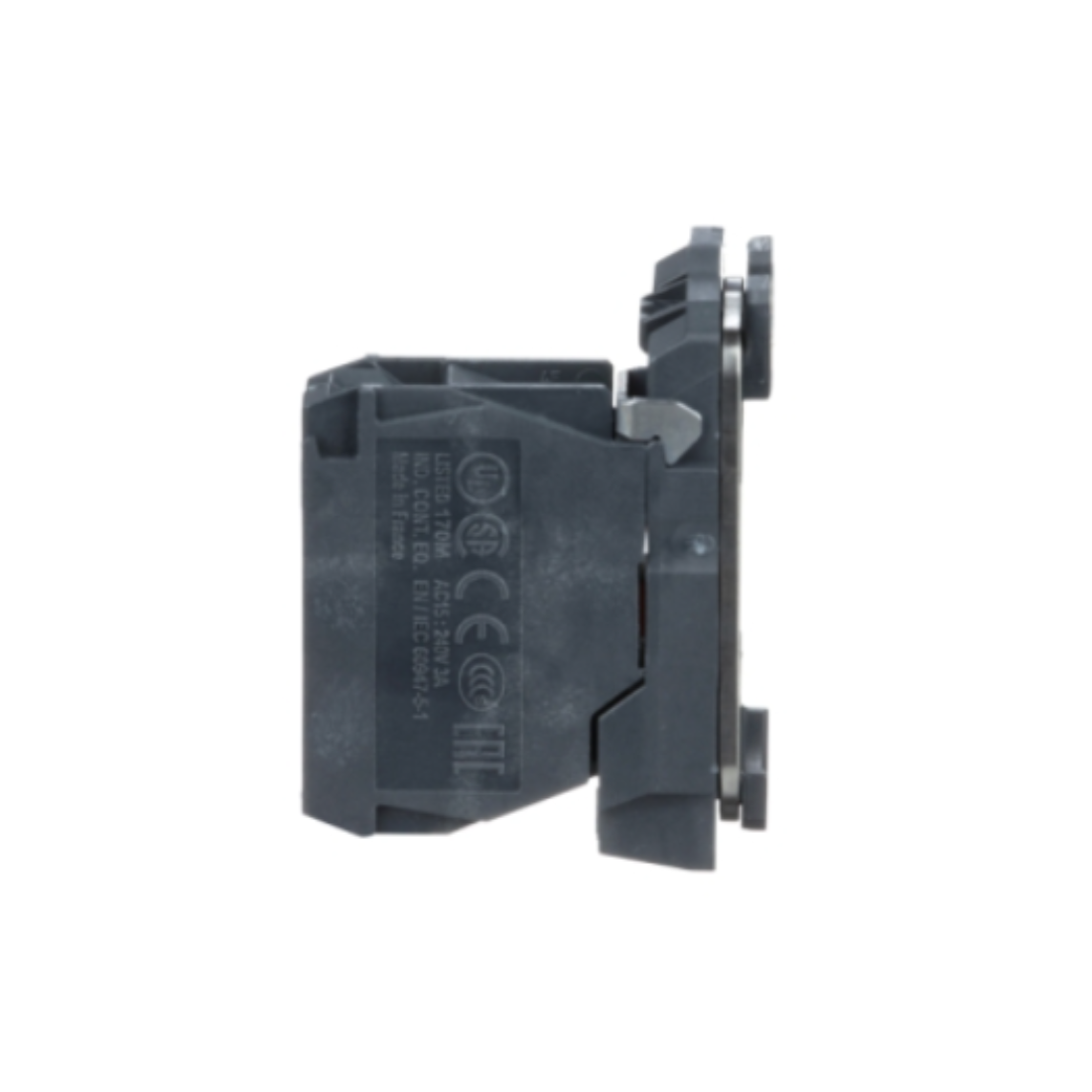

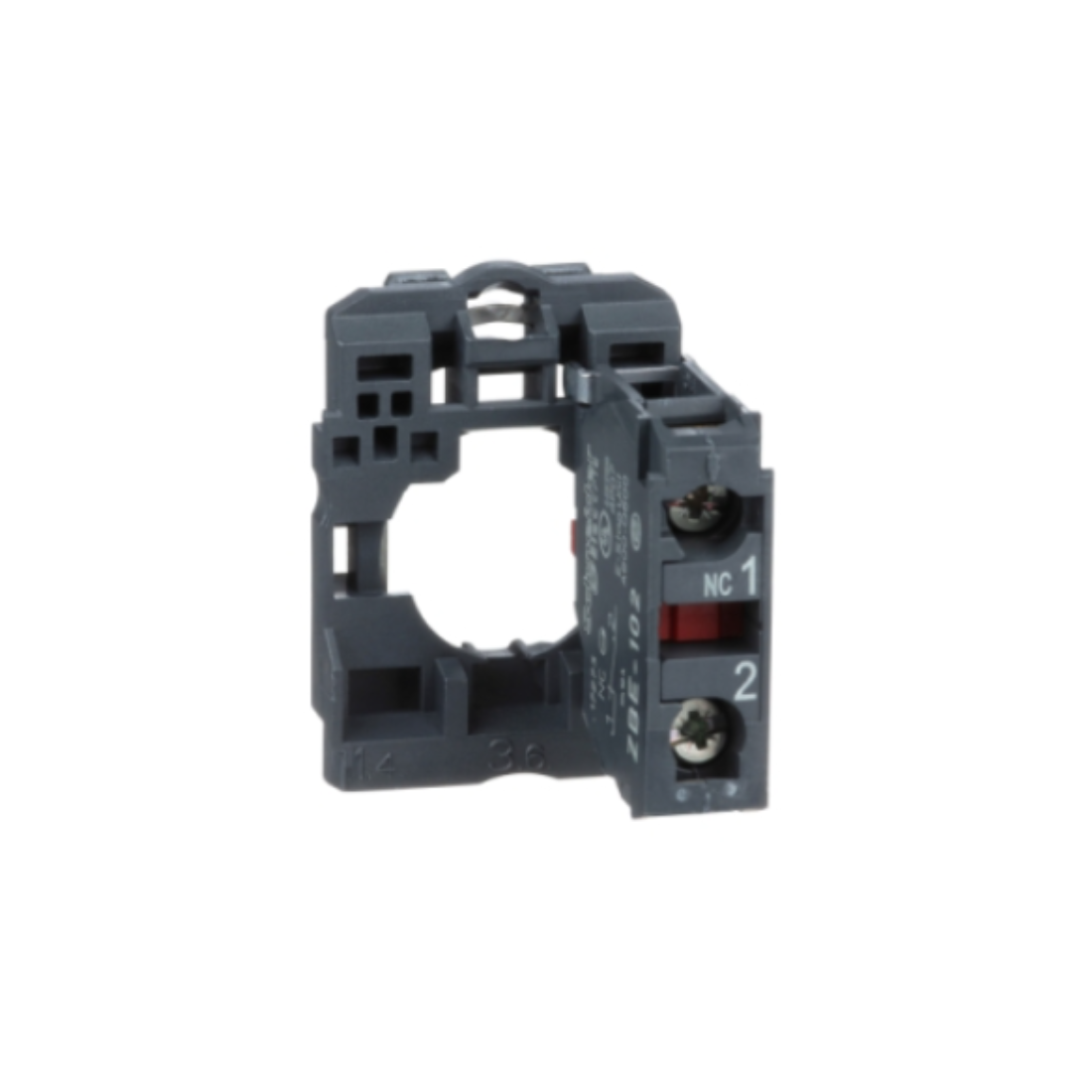

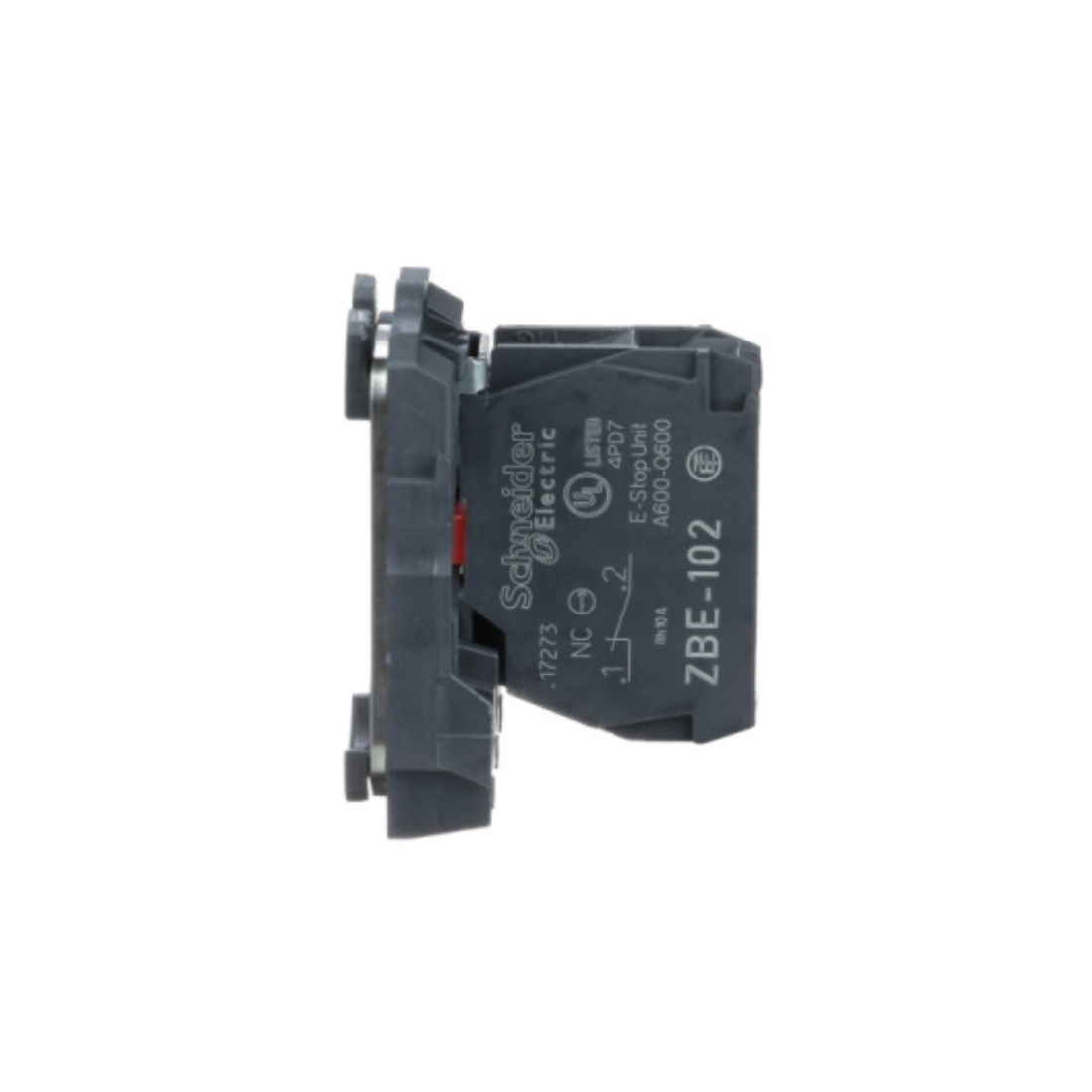

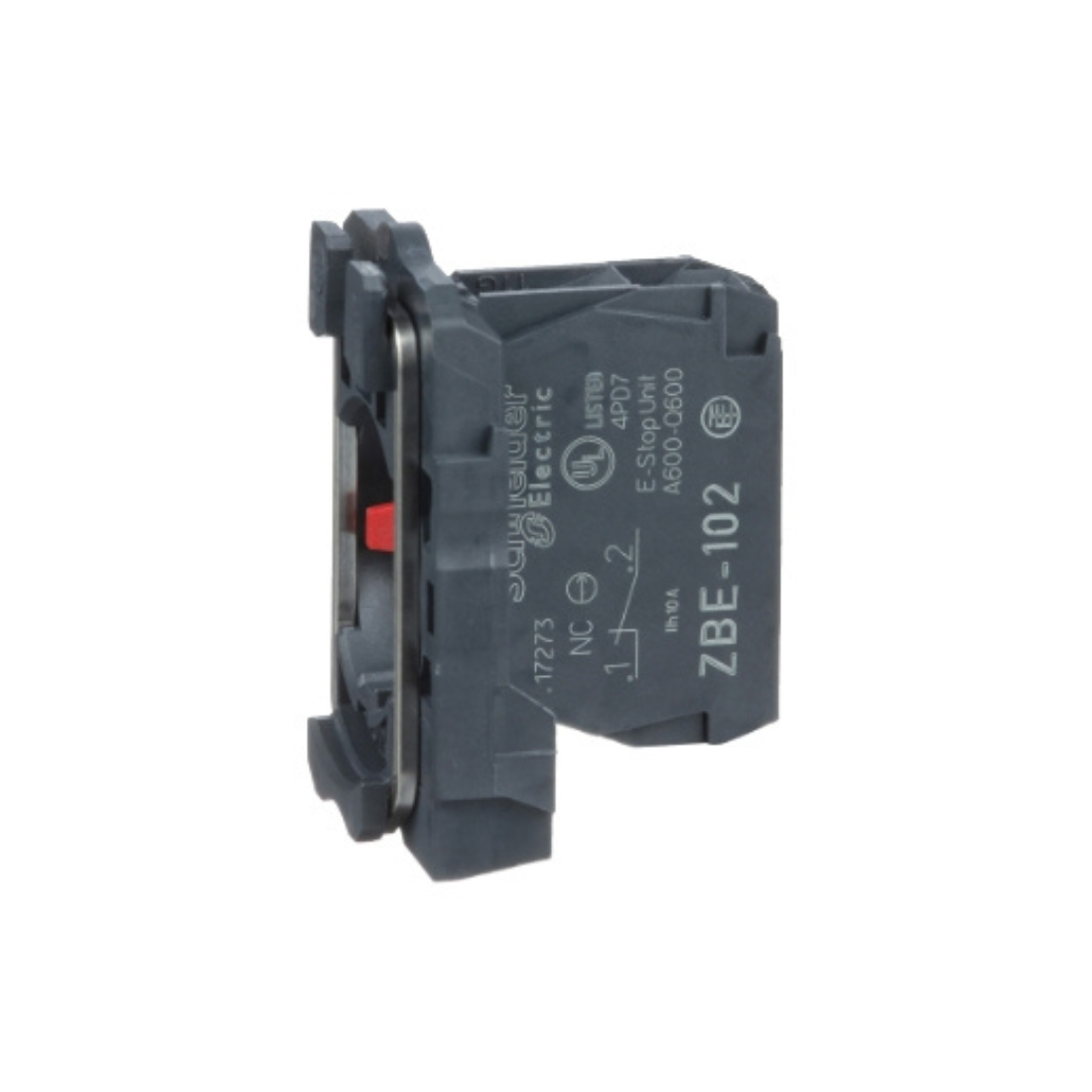

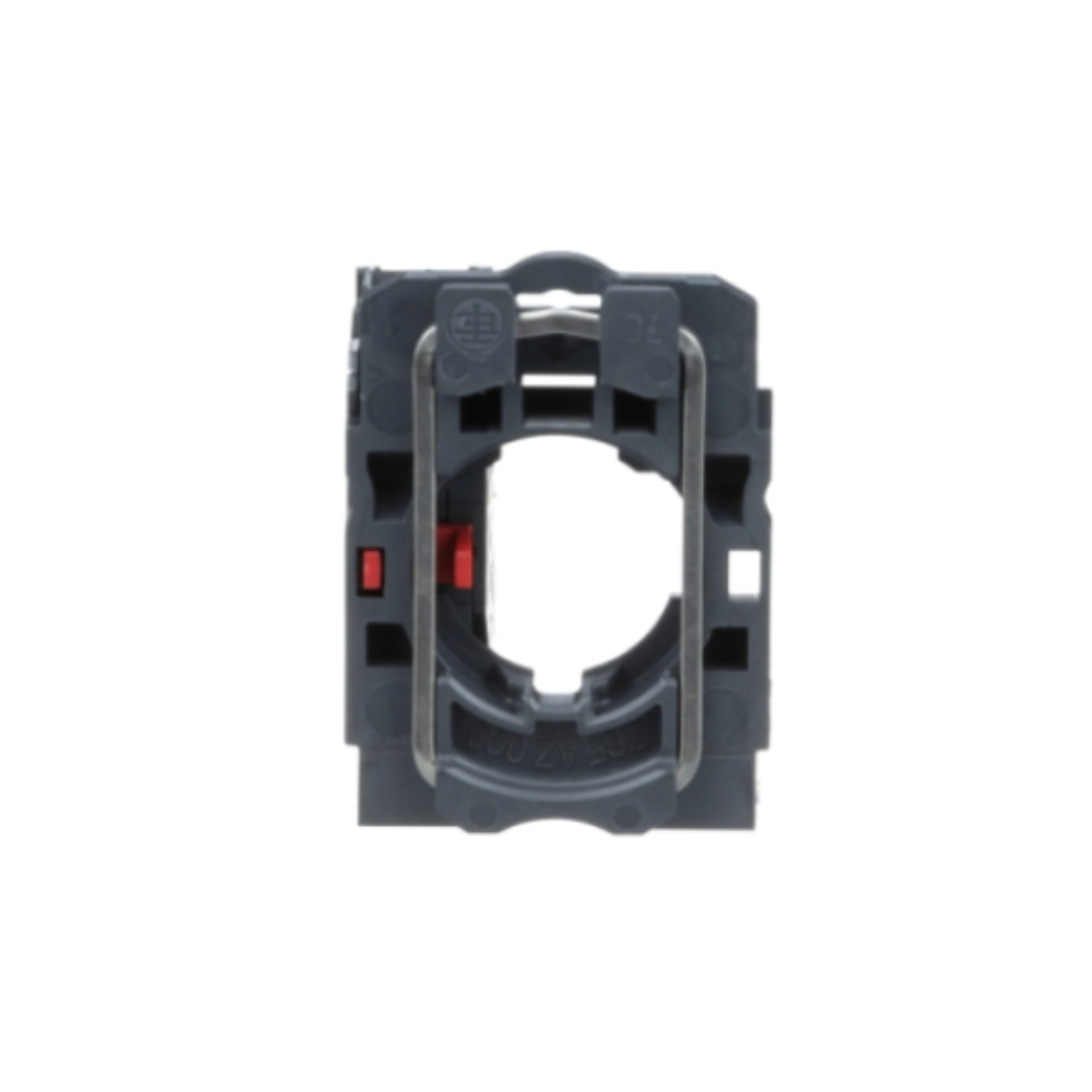

Item Name : Complete Body/Contact Assembly

Model : ZB5AZ102

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand : 6 kV conforming to EN 60947-1

CAD Overall Depth : 32 mm

CAD Overall Height : 42 mm

CAD Overall Width : 30 mm

Compatibility Code : ZB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Electrical Reliability : λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

Fixing Collar Material : Plastic

IP Degree Of Protection : IP20 conforming to IEC 60529

Mechanical Durability : 10000000 cycles

Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

Certifications : CSA, UL, GL, LROS (Lloyds register of shipping), BV, DNV

Protective Treatment : TH

Range Of Product : Harmony XB5

Service Life : 100000 h at rated voltage and 25 °C

Sale Per Indivisible Quantity : 1

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Terminals Description ISO n°1 : (11-12)NC

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Contacts Type And Composition : 1 NC

Customizable : 0

Head Type : Standard

Contacts Usage Standard : Contacts

Operating Force : 2 N NC changing electrical state

Operating Travel : 1.5 mm (NC changing electrical state), 4.3 mm (total travel)

Contact Block Type : Single

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-1, JIS C8201-5-1, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Basic sub-assemblies

Device Composition : Fixing collar, body

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Weight : 0.21kg

Quantity : 1 Pcs
