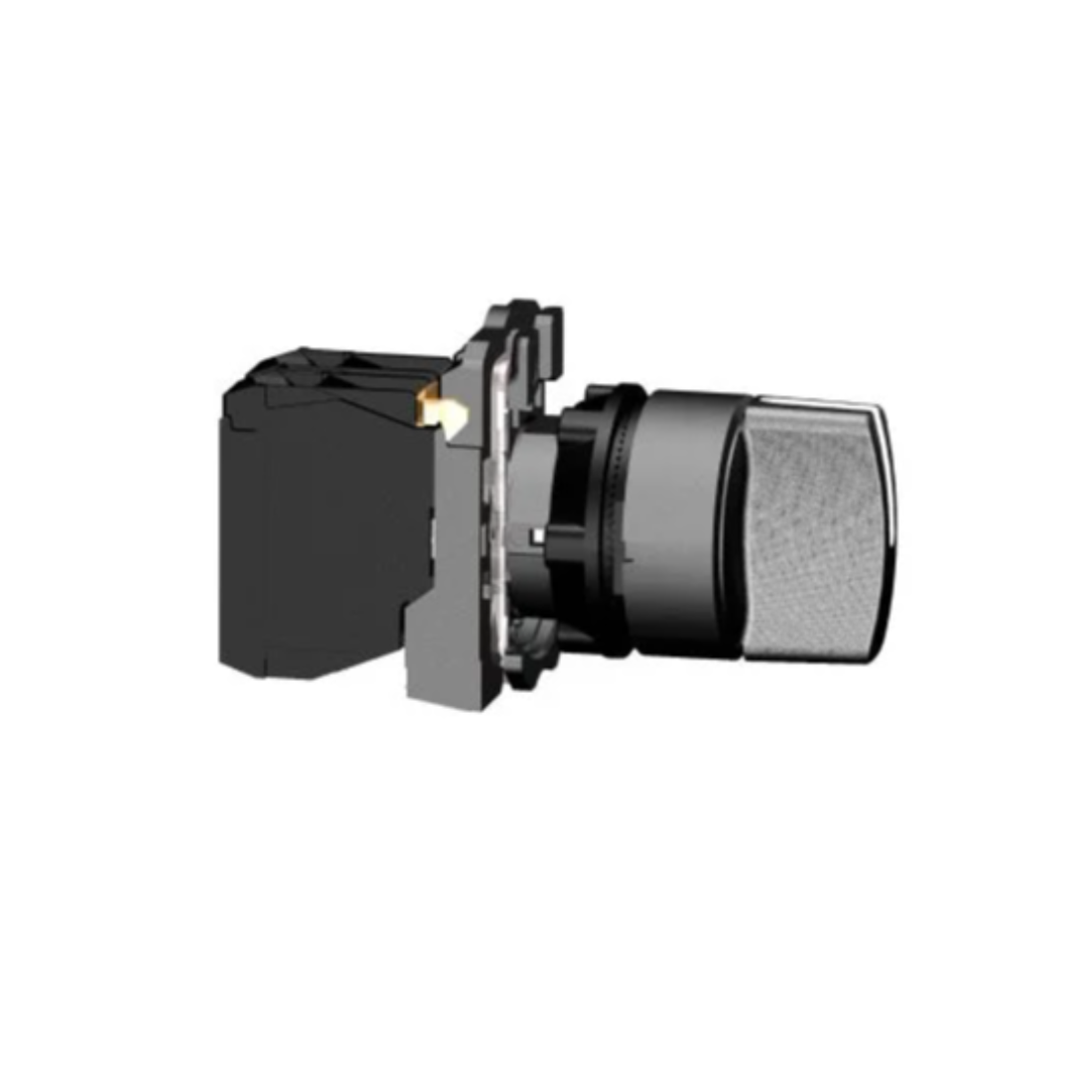

Schneider Electric Harmony XB5 Selector Switch Plastic Black Ø22 3 Positions Spring Return to Center 2 NO XB5AD53N
Schneider Electric Harmony XB5 Selector Switch Plastic Black Ø22 3 Positions Spring Return to Center 2 NO XB5AD53N

Schneider Electric Harmony XB5 Selector Switch Plastic Black Ø22 3 Positions Spring Return to Center 2 NO XB5AD53N

Regular price AED 36.75
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Selector Switch
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric XB5AD53N Black Selector Switch has 3 positions and operates with a Spring Return mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling the machines. Easily installs into standard 22mm diameter cutouts and connects to control circuits using simple screw terminal connections.

    Schneider Electric XB4BJ33 Black Selector Switch provides an efficient way to set the machine to different operating modes. Thanks to IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments.

    Features
    • Provides an efficient way to set the machine to different operating modes.
    • It has a metal bezel.
    • Provides a versatile interface for controlling the machines
    • Shock, dust, water and vibration proof



Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Selector Switch

    Model : XB5AD53N

    Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

    Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1

    Rated Supply Voltage : 600 V

    Bezel Material : Dark Grey Plastic

    Cap/Operator Or Lens Color : Black

    Compatibility Code : XB5

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

    Contact Operation : Slow-break

    Contacts Material : Silver alloy (Ag/Ni)

    Depth : 70 mm

    Electrical Reliability : λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

    Height : 42 mm

    IK Degree Of Protection : IK06 Conforming to IEC 50102

    IP Degree Of Protection : IP69K conforming to IEC 60529

    Mechanical Durability : 1000000 cycles

    Mounting Diameter : 22 mm

    Operator Position Information : 3 positions +/- 45°

    Operator Profile : Black Standard Handle

    Positive Opening : Without

    Protective Treatment : TH

    Certifications : RINA, CSA, DNV, UL, GL, LROS (Lloyds register of shipping), BV

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape Of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Short-circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    Terminals Description ISO n°1 : (13-14)NO

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Type of Operator : To Centre Spring Return

    Width : 30 mm

    Contacts Type And Composition : 2 NO

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Customizable : 0

    Head Type : Standard Contacts

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Torque Value : 0.14 N.m NO changing electrical state

    Contacts Usage : Standard contacts

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -25-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

    Device Presentation : Complete product

    Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C

    Weight : 0.052 kg
