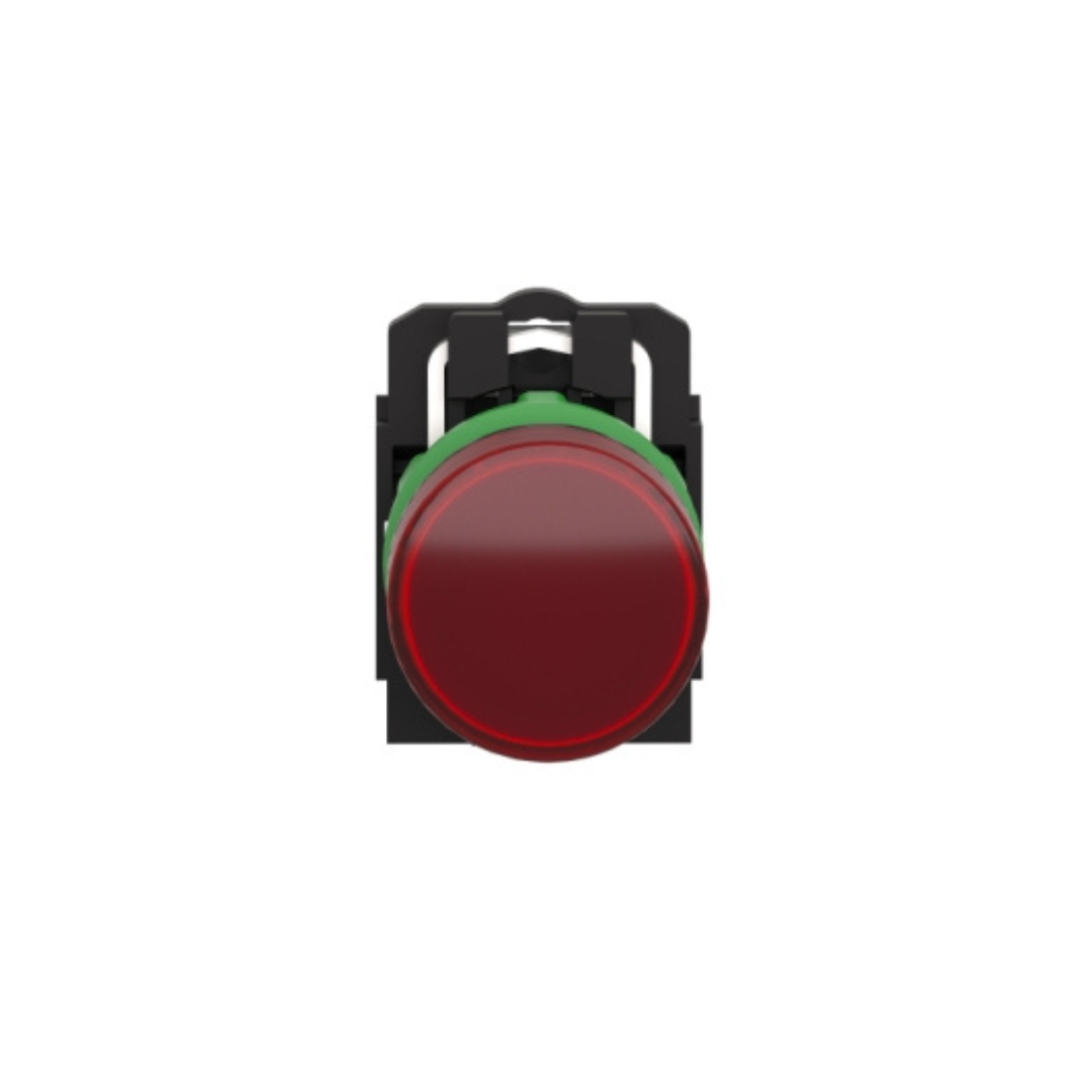

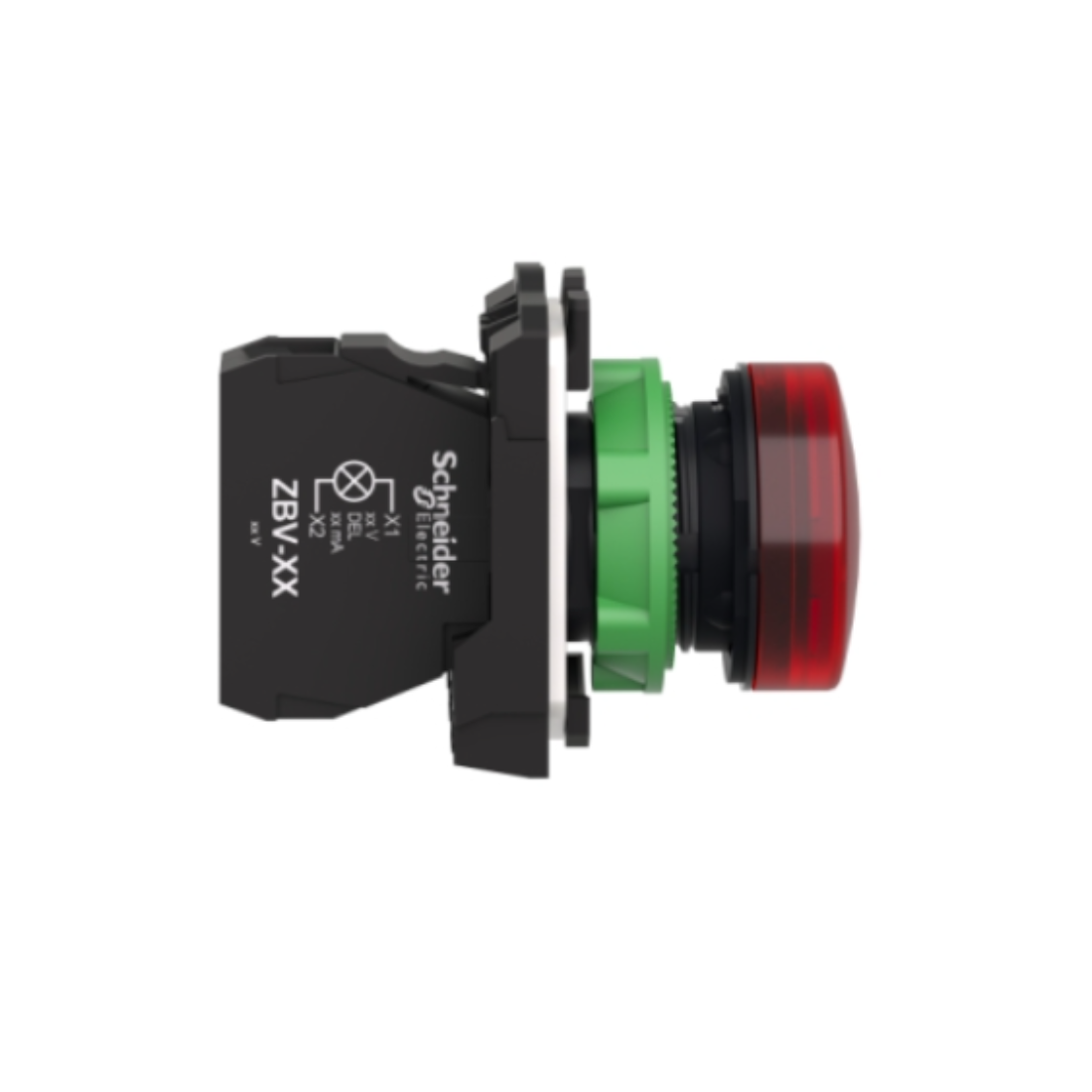

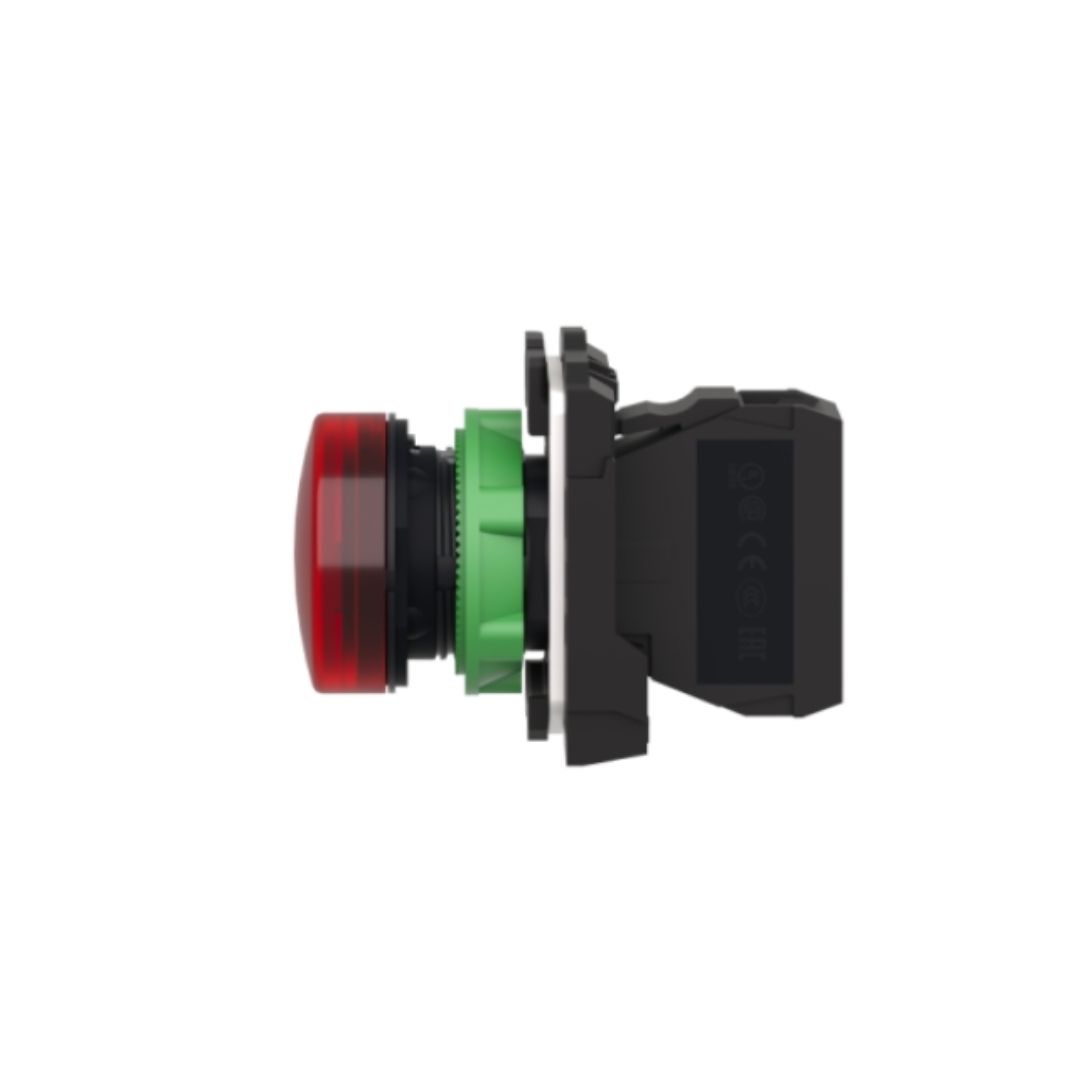

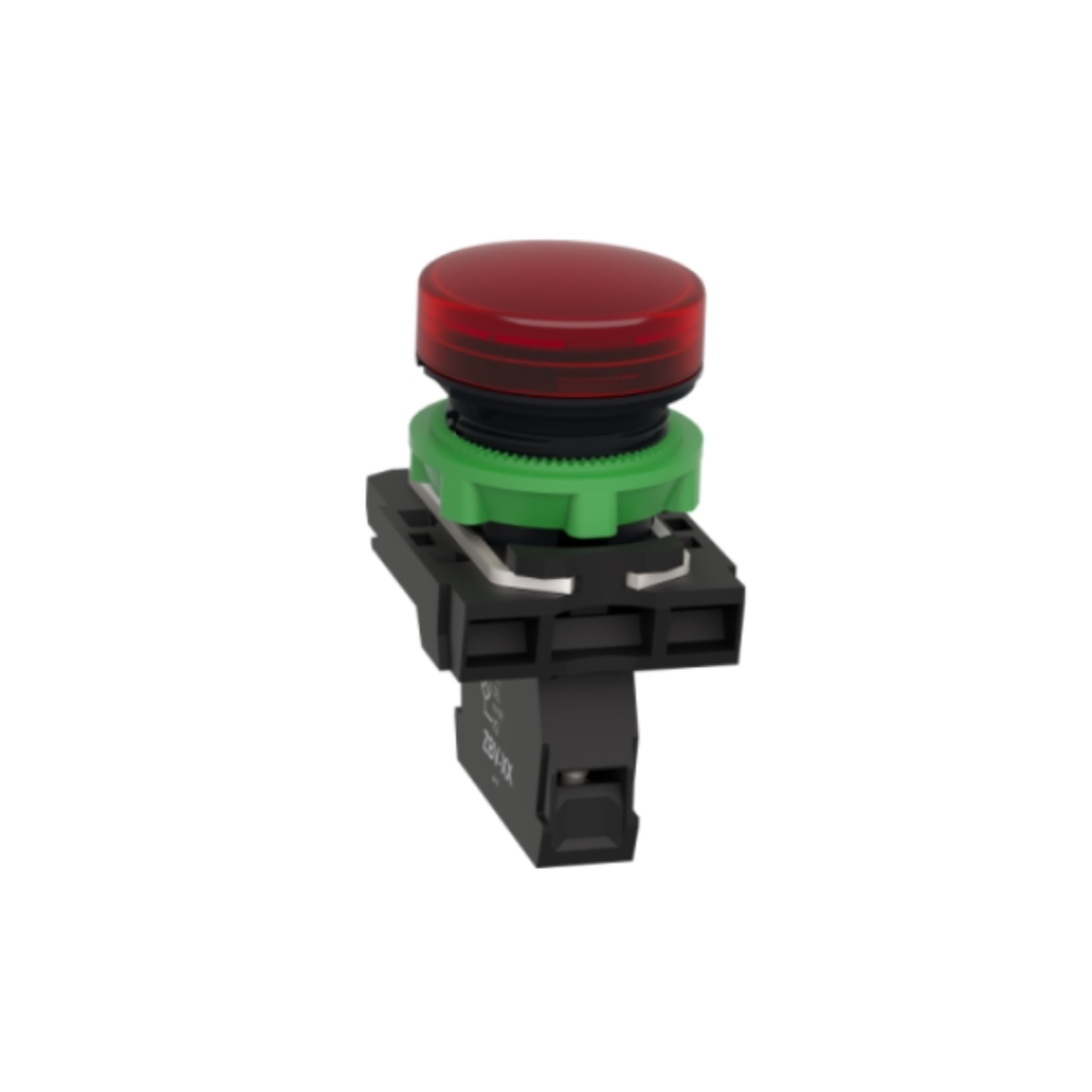

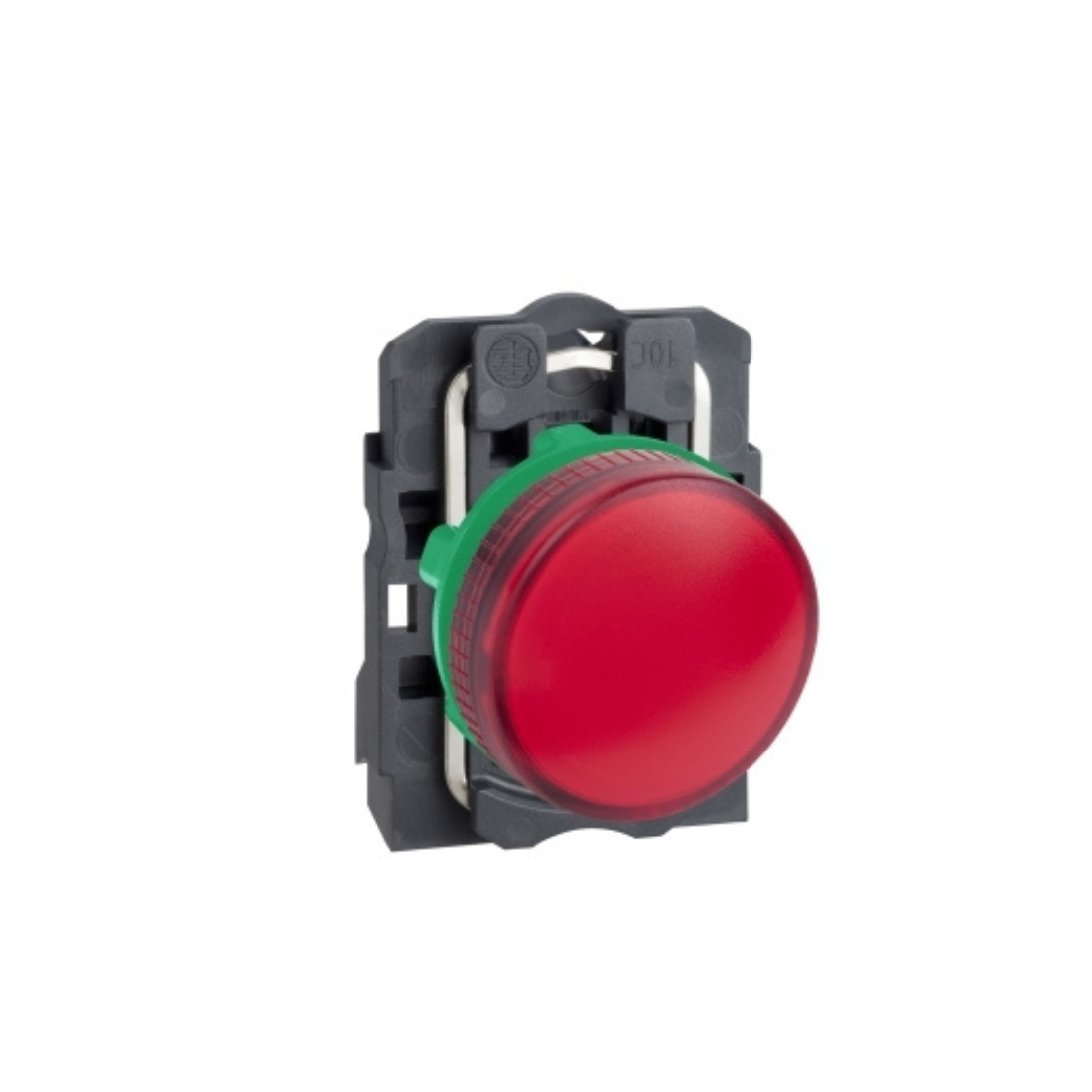

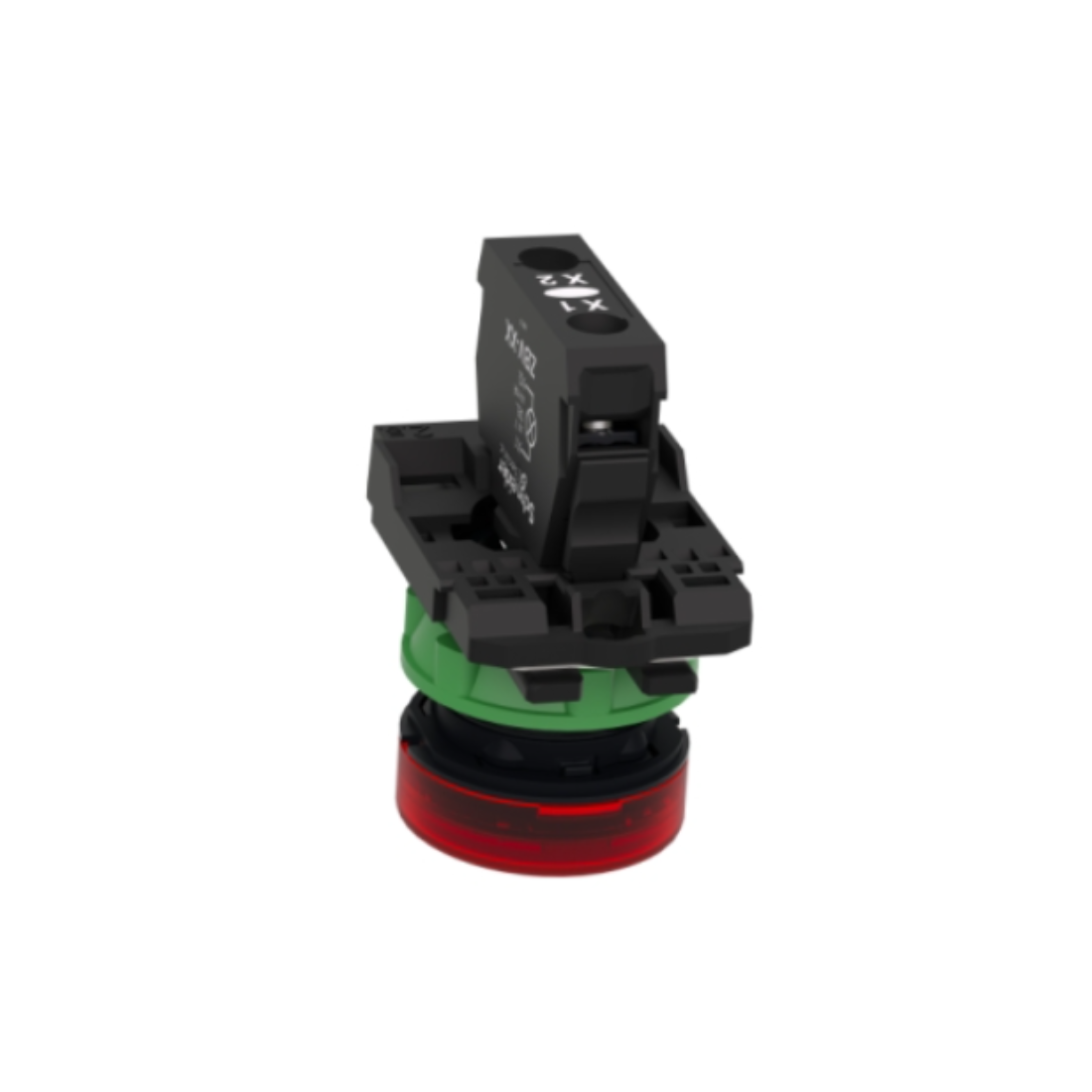

Schneider Electric Harmony XB5 Red Pilot Light Plastic Ø22 Plain Lens for BA9s Bulb <= 250V XB5AV64
(Price Includes VAT)
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
During Ramadan, customer care and delivery services are available from 7:30 AM to 3:30 PM. You can place orders on the website anytime — we’ll process them within service hours.
Brand : Schneider Electric
Type : Pilot Light
Description
Schneider Electric XB5AV64 Red Pilot Light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. This red pilot light is designed to be maintenance-free and provide a bright indication of process and machine operation. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.
Thanks to a bright and long-lasting BA9s basic illumination, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Maintenance-free and provide a bright indication of process and machine operation.
- Supplied with 250V AC, uses BA9s base and has screw-clamp terminals.
- Shock, dust, water and vibration proof
- Bright and long-lasting BA9s basic illumination
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB5AV64 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN 60947-1 |
| Rated Supply Voltage | <= 250 V |
| Bezel Material | Dark Grey Plastic |
| Bulb Base | BA 9s |
| Cap/Operator Or Lens Colour | Orange |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Depth | 55 mm |
| Fixing Collar Material | Plastic |
| Height | 42 mm |
| IK Degree Of Protection | IK06 conforming to EN 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Light Source | Bulb not included |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | UL listed, CSA |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Terminals description ISO n°1 | (X1-X2)PL |
| Width | 30 mm |
| Operator Additional Information | With plain lens |
| Light Block Supply | Direct <2.4 W |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST02 |
| Light Source Color | Red |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-1 |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Device Presentation | Complete Product |
| Weight | 0.037 kg |
