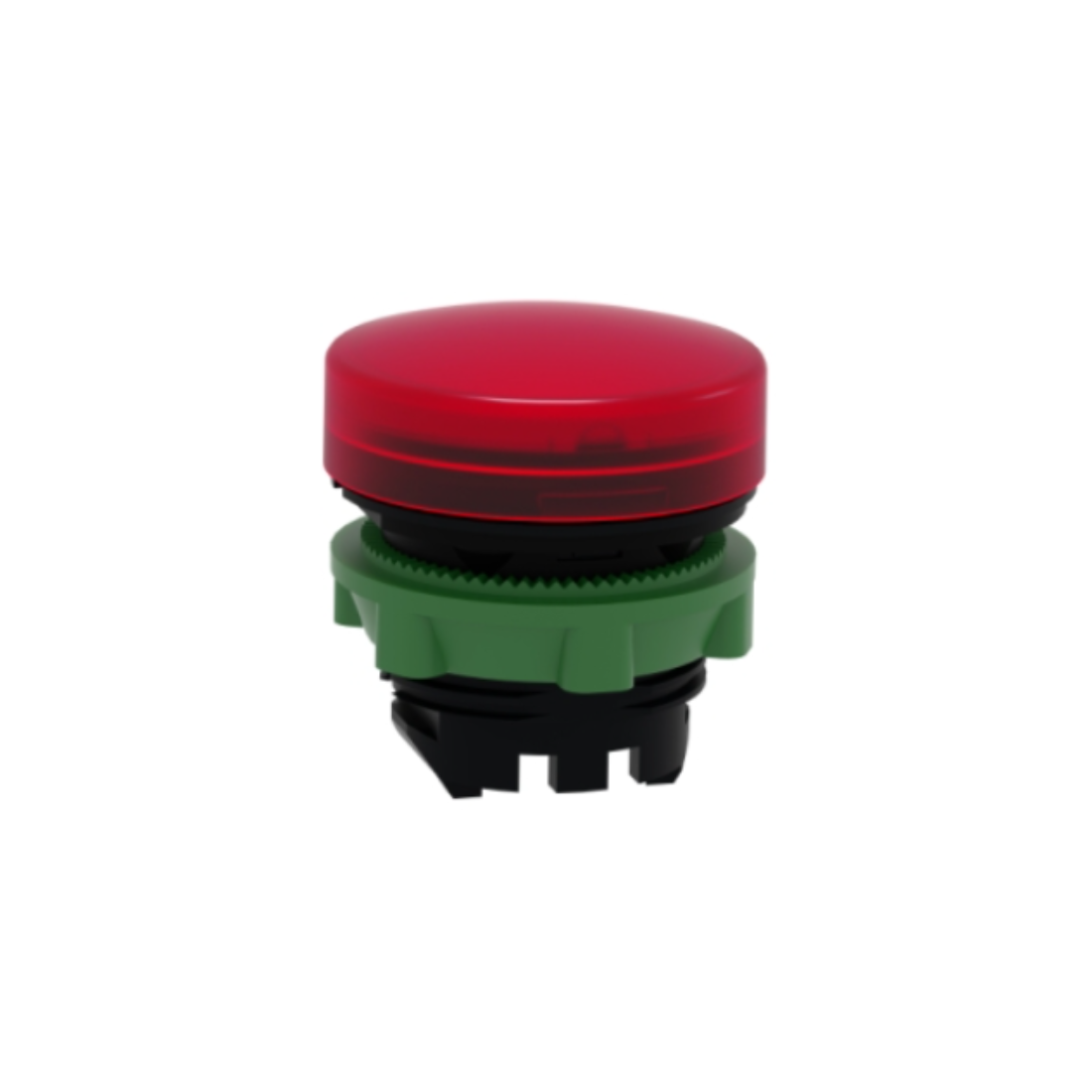

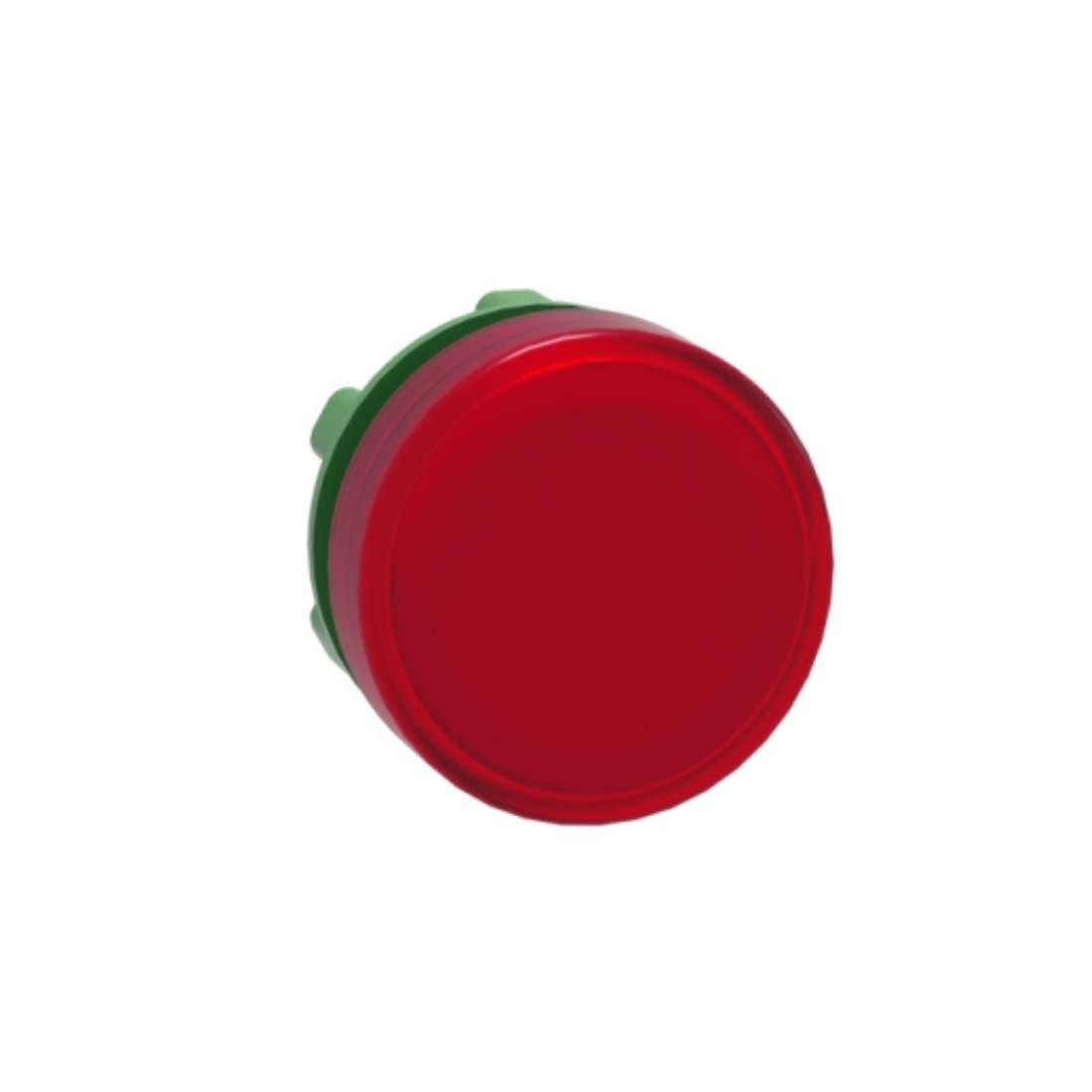

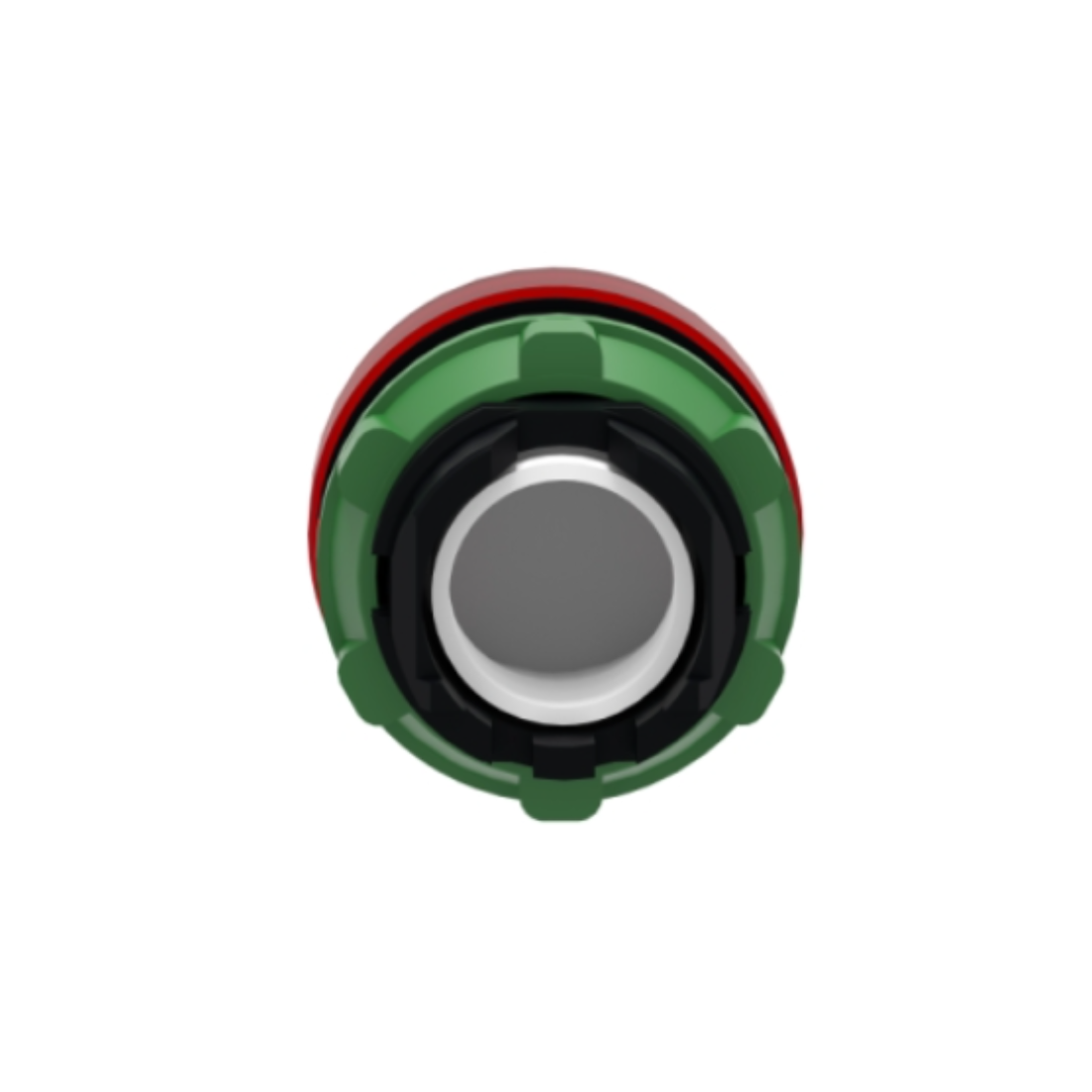

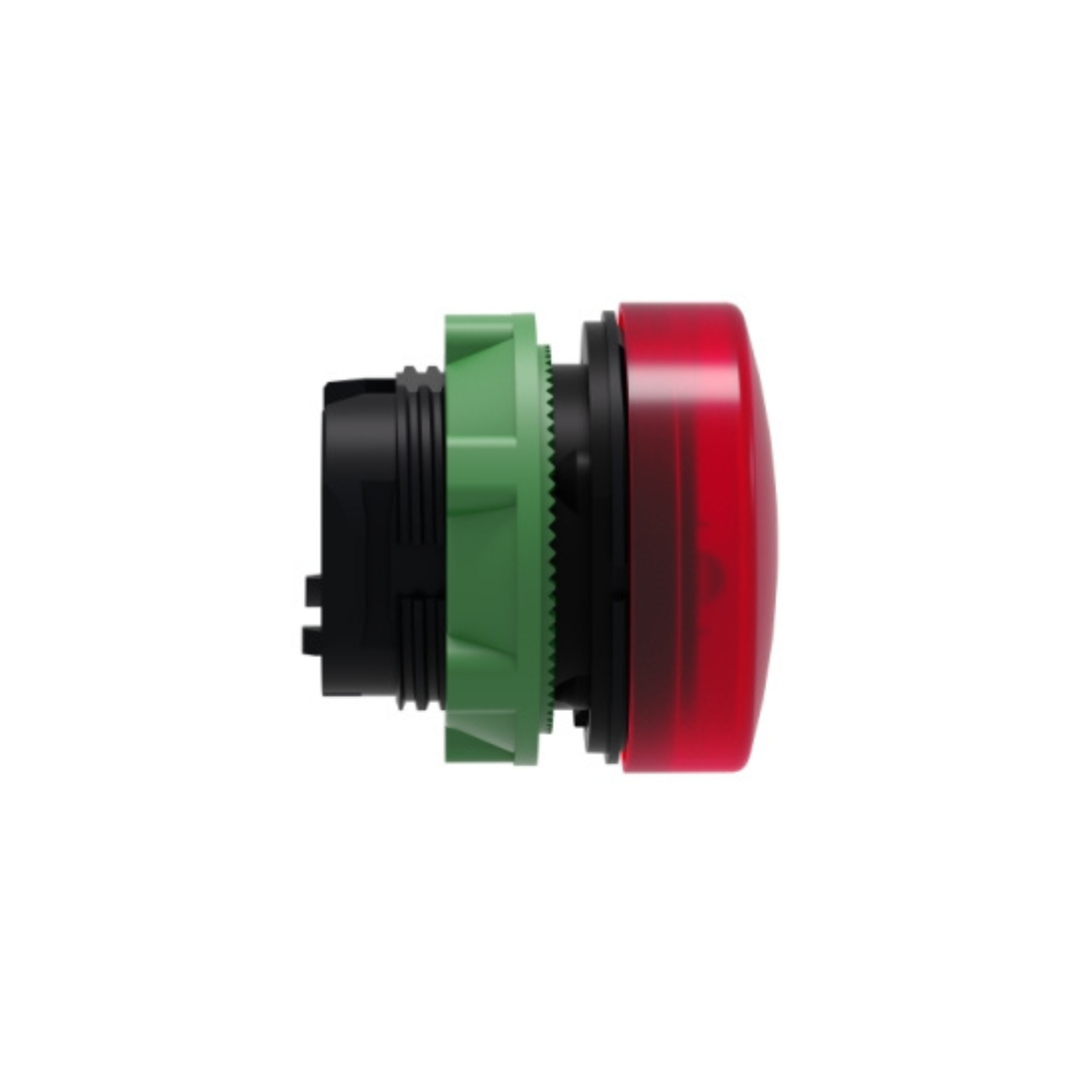

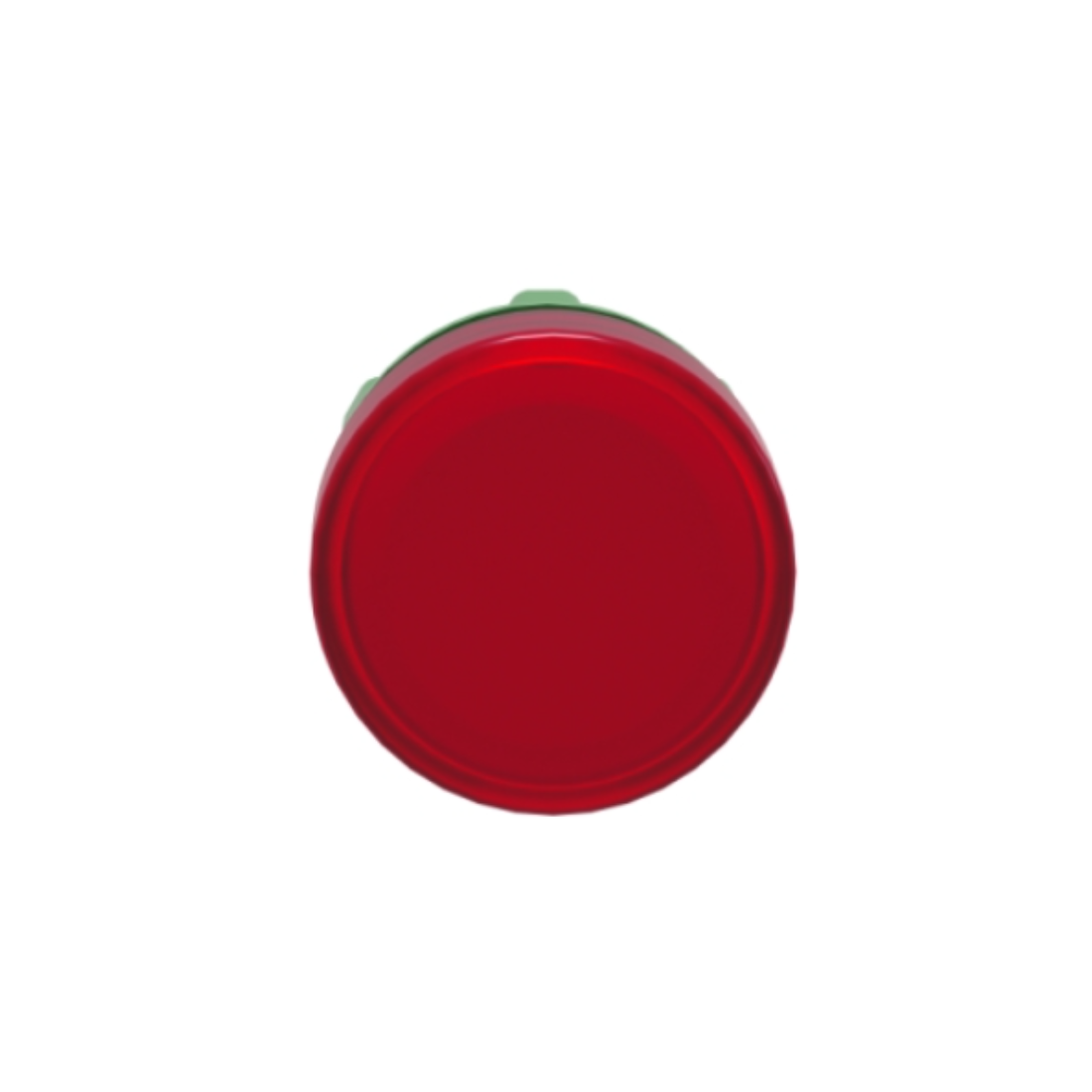

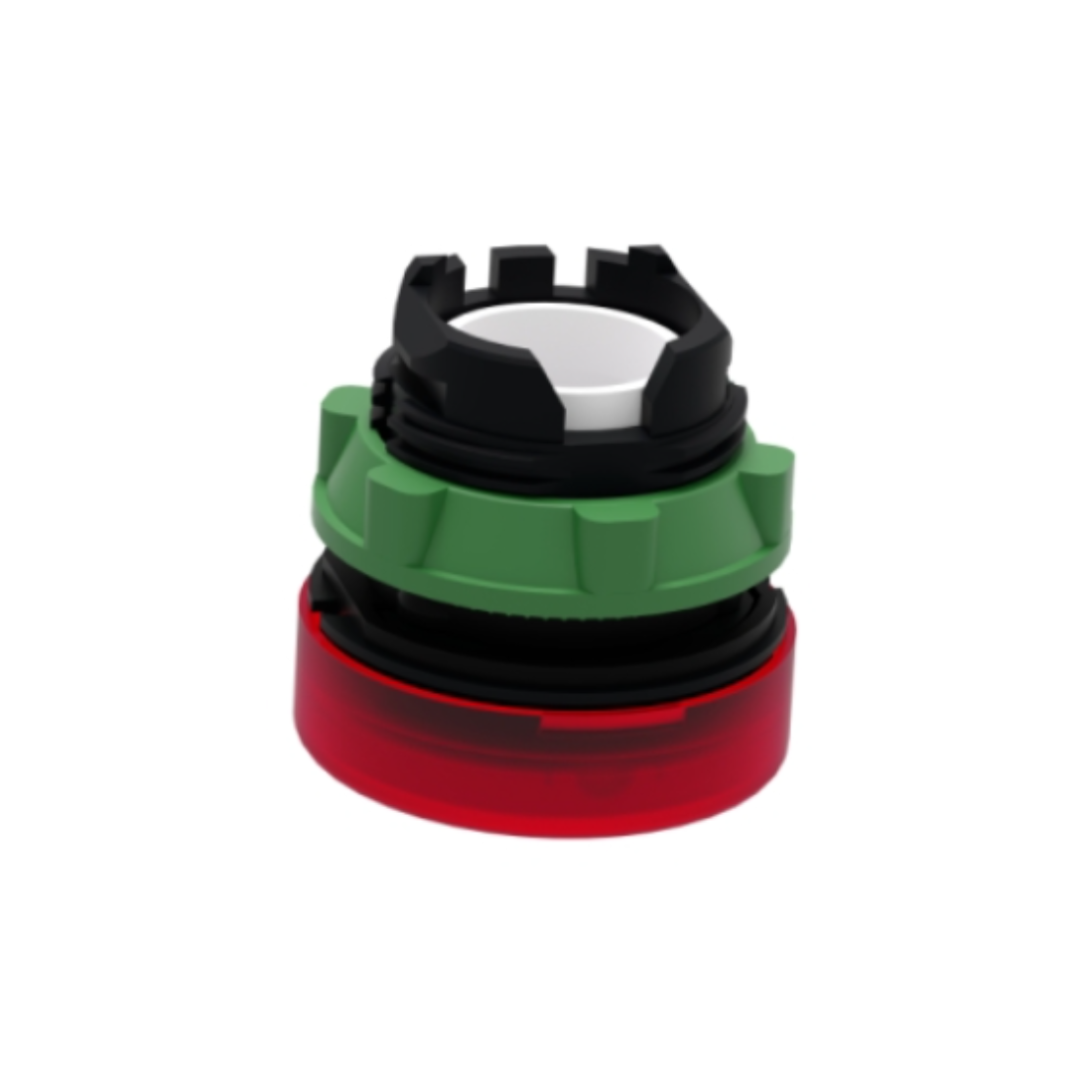

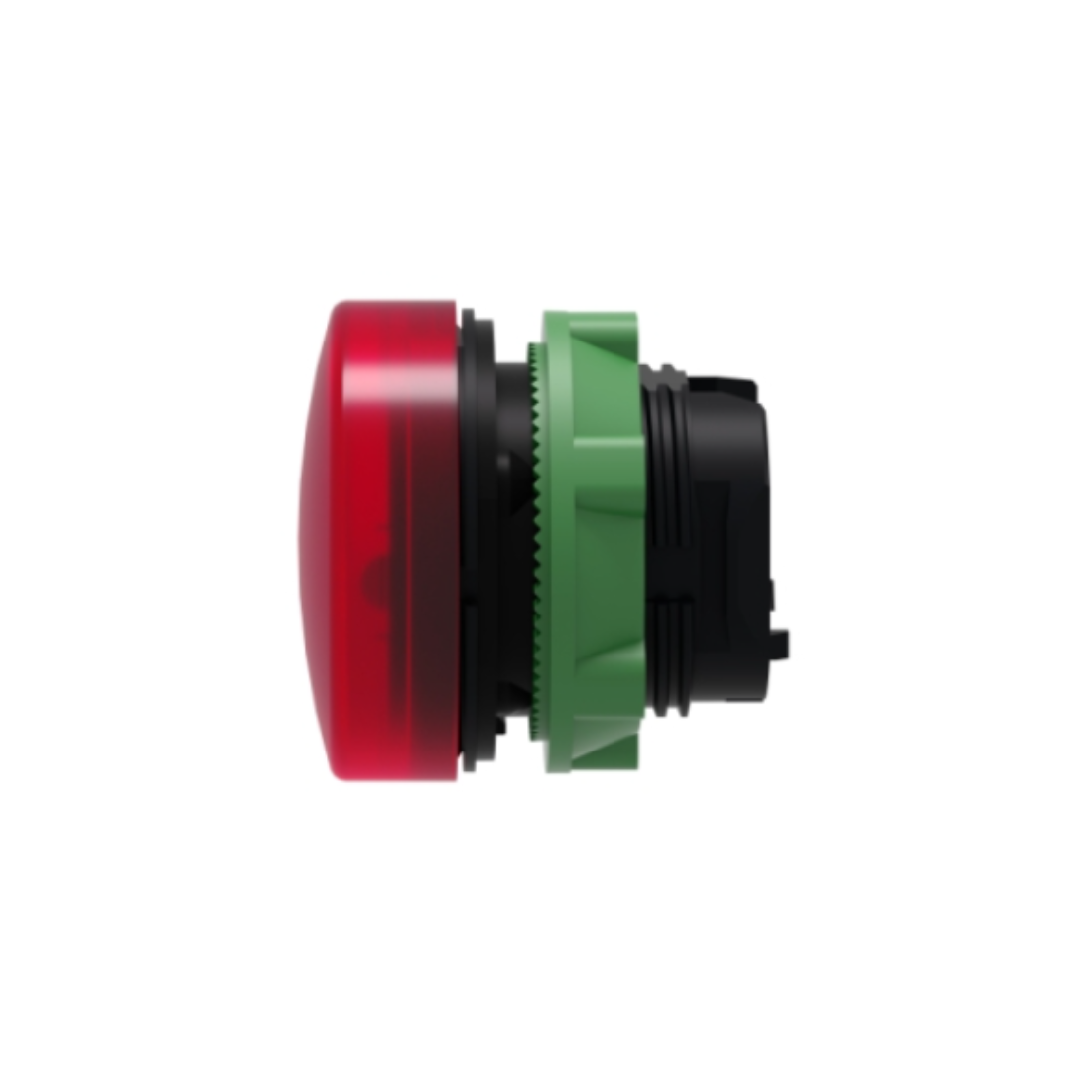

Schneider Electric Harmony XB5 Red Pilot Light Head Ø22 Plain Lens for Integral LED ZB5AV043
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light Head
Description
Schneider Electric ZB5AV043 Red Pilot Light Head is designed to be maintenance-free and provide a bright display of process and machine operations. Thanks to the light color of the lens, it is easily visible even from afar, allowing complex machine states to be read at a glance. Thanks to IP66, it is shock, dust, water and vibration proof.
Schneider Electric ZB5AV043 Red Pilot Light Head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the Pilot Light Head to be used in a variety of ways.
Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Wide range of operating temperatures from -40 to +70 °C/-40 to +158 °F
| Brand | Schneider Electric |
| Item Name | Pilot Light Head |
| Model | ZB5AV043 |
| Bezel Material | Dark Grey Plastic |
| Cap/Operator Or Lens Color | Red |
| CAD Overall Depth | 31 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Compatibility Code | ZB5 |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Group of Product Lens | Fitted integral LED |
| Operator Additional Information | With plain lens |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB5AVCUST01 |
| Light Source Color | Red |
| Main Group | Pilot light |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Electrical Composition Code | P1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, PF1 in front mounting with integral LED, PR1 in rear mounting with integral LED |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1 |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Compatibility | Universal LED |
| Device Presentation | Basic Element |
| Weight | 0.017 kg |
