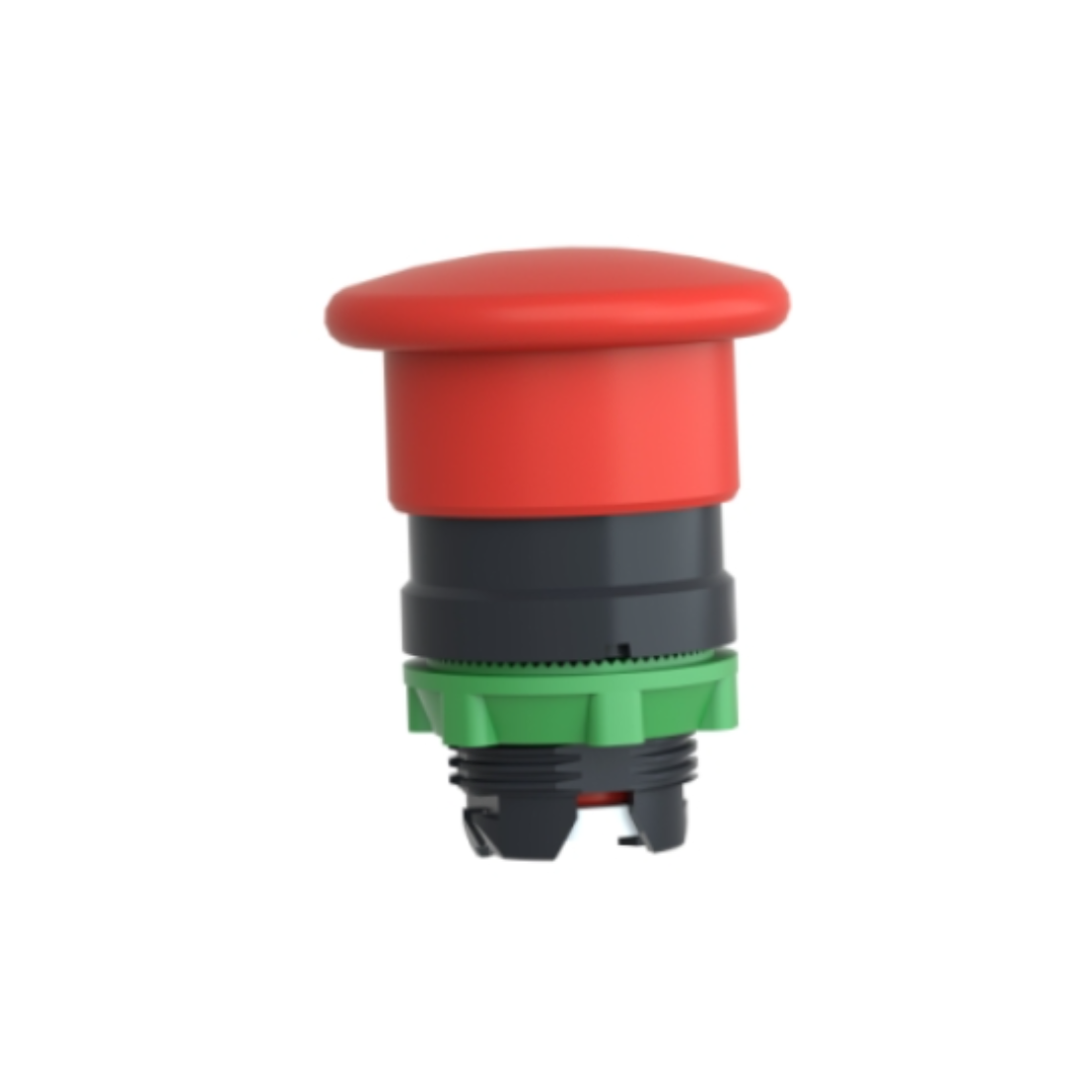

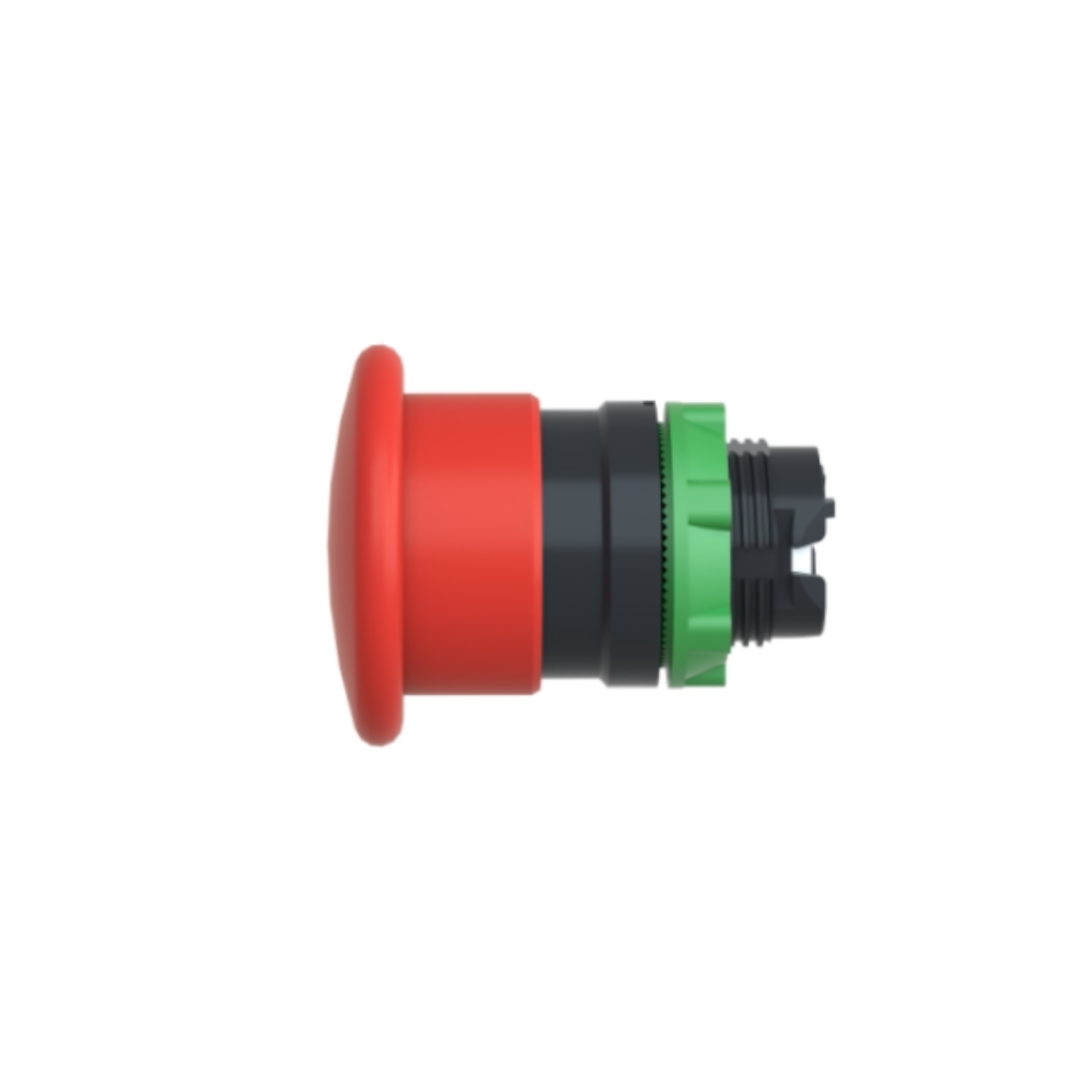

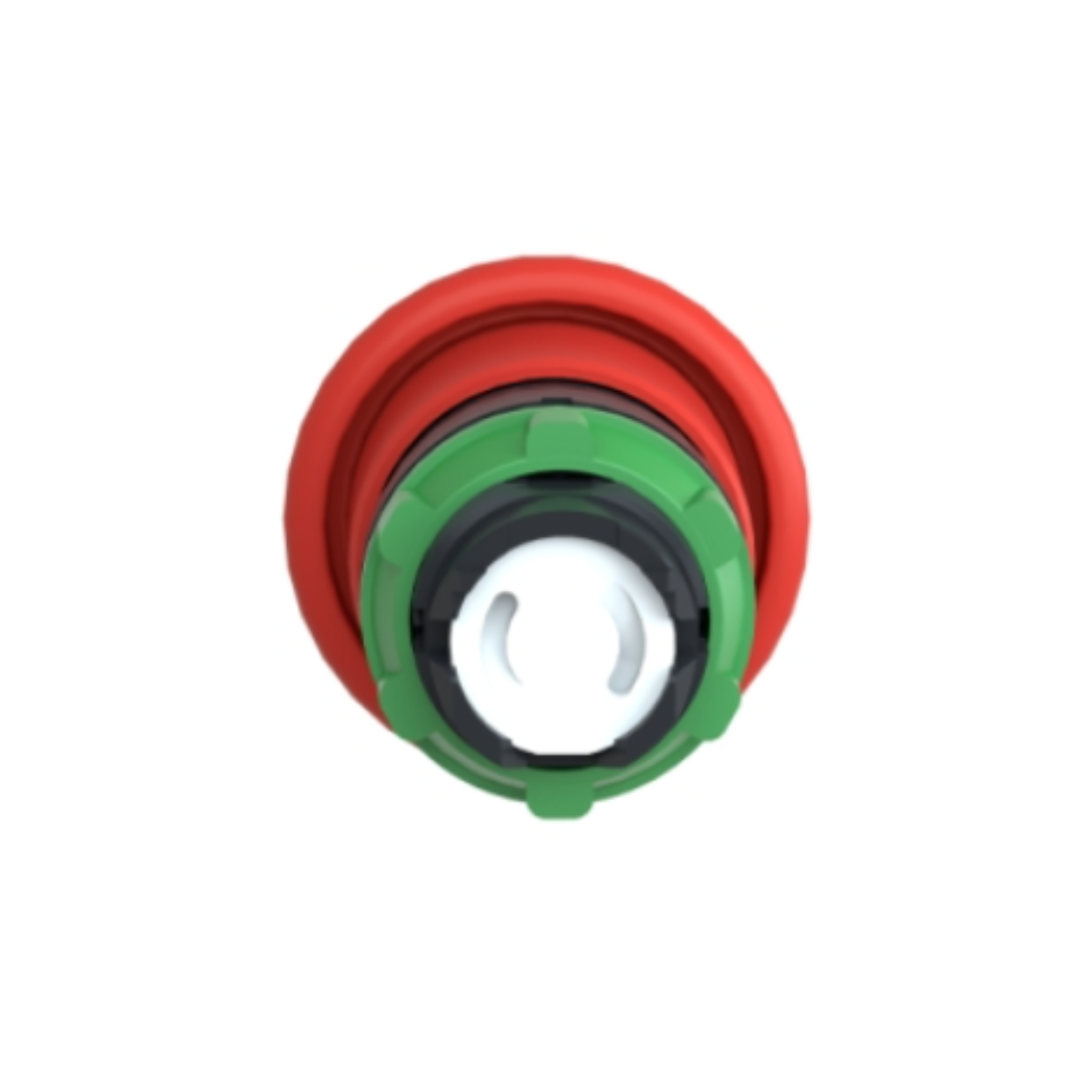

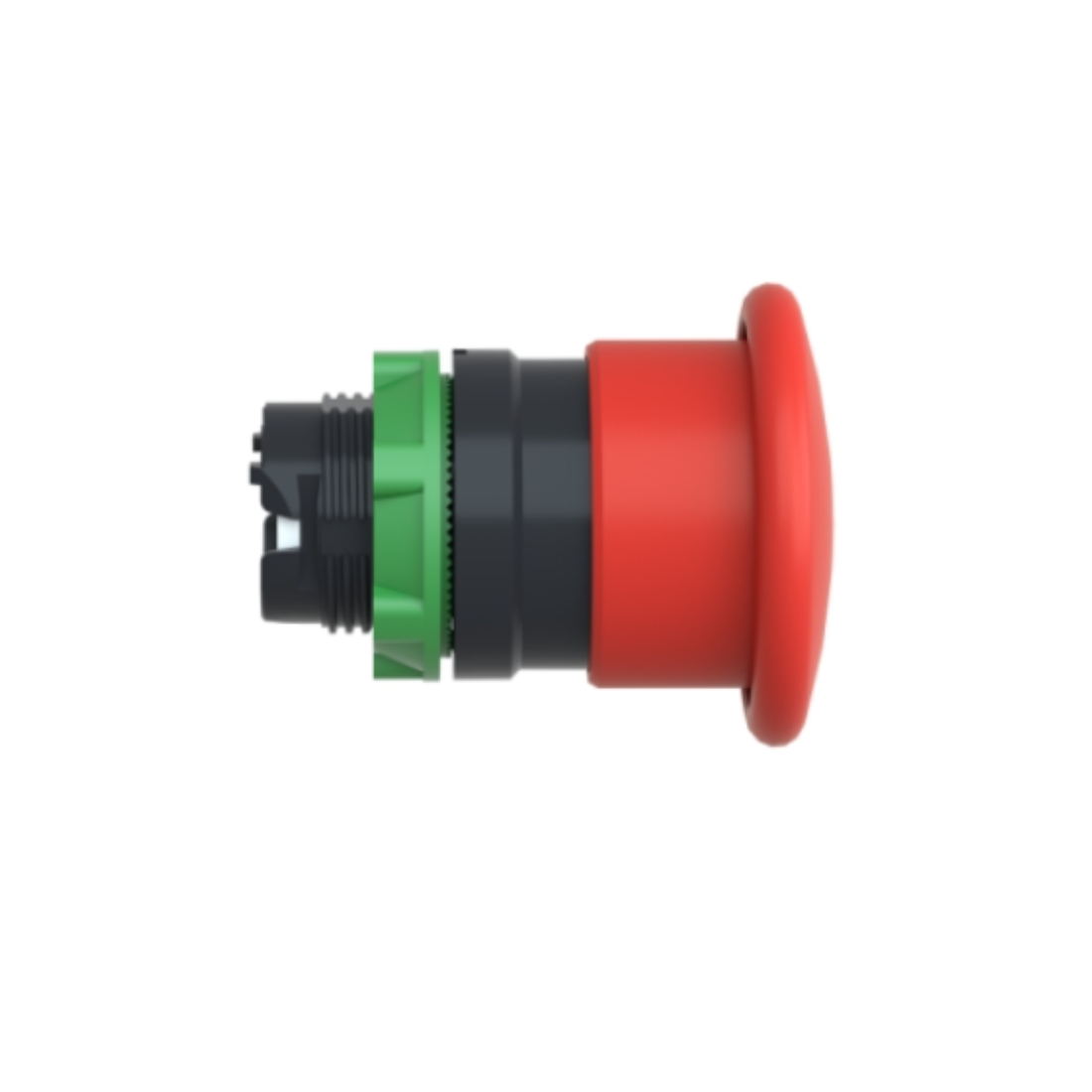

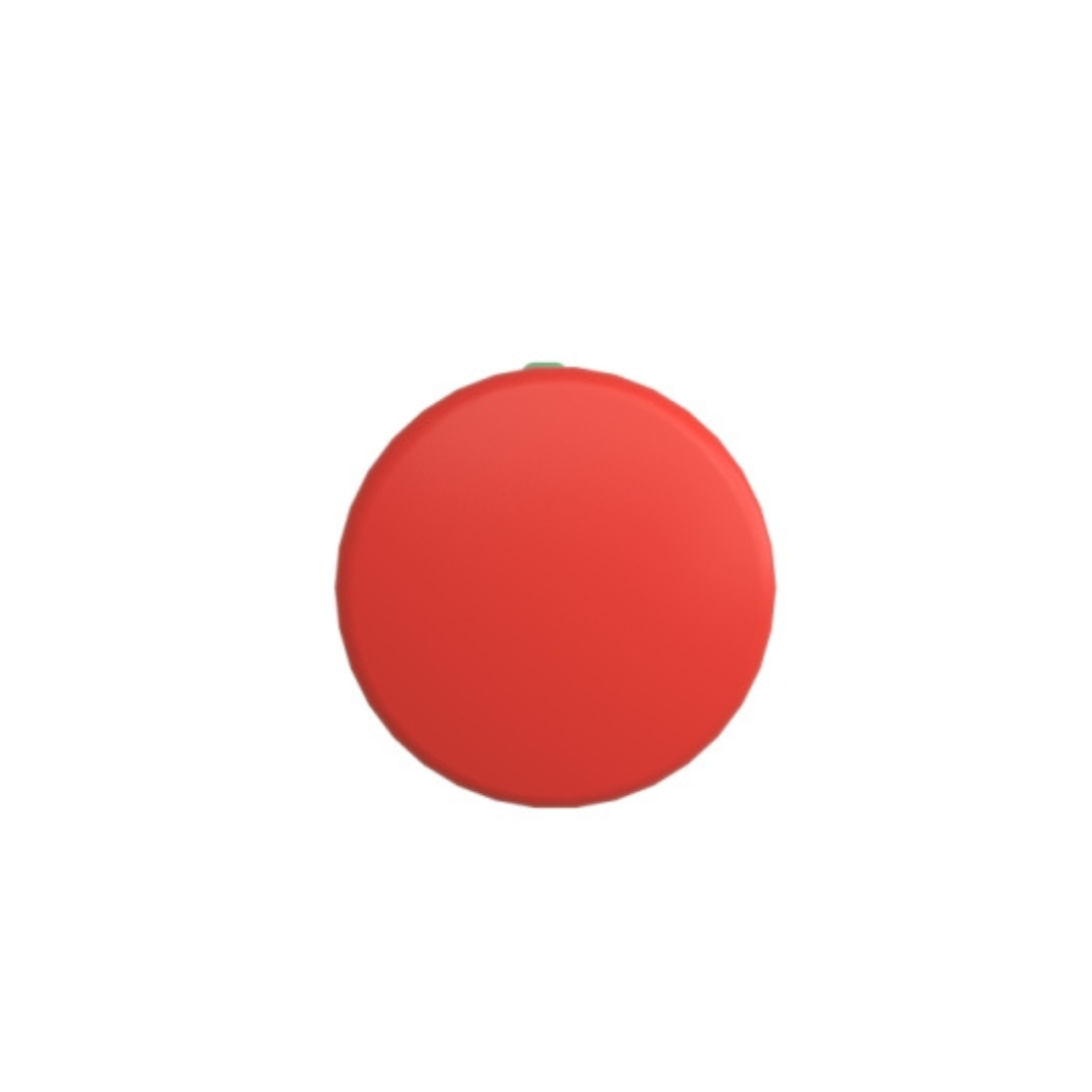

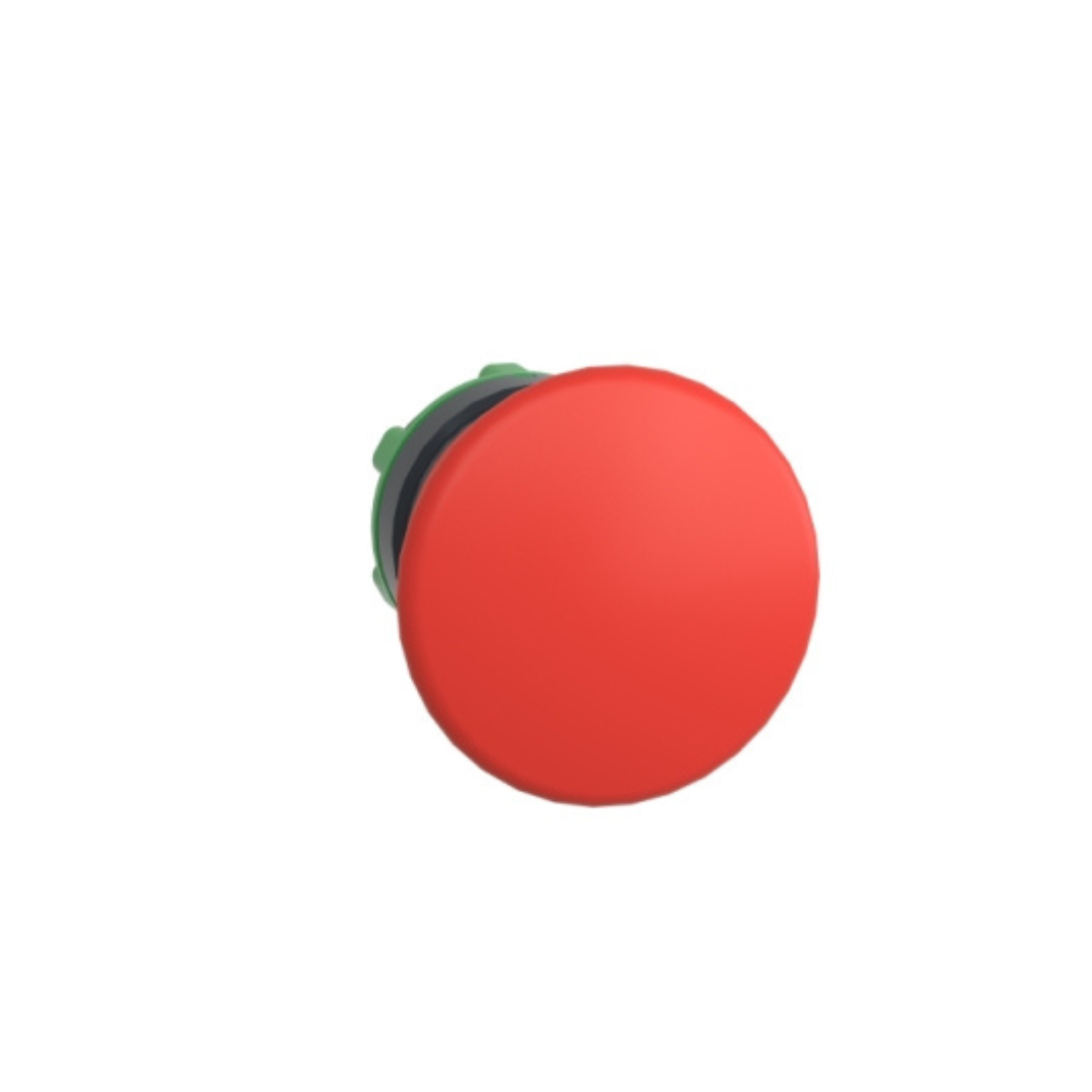

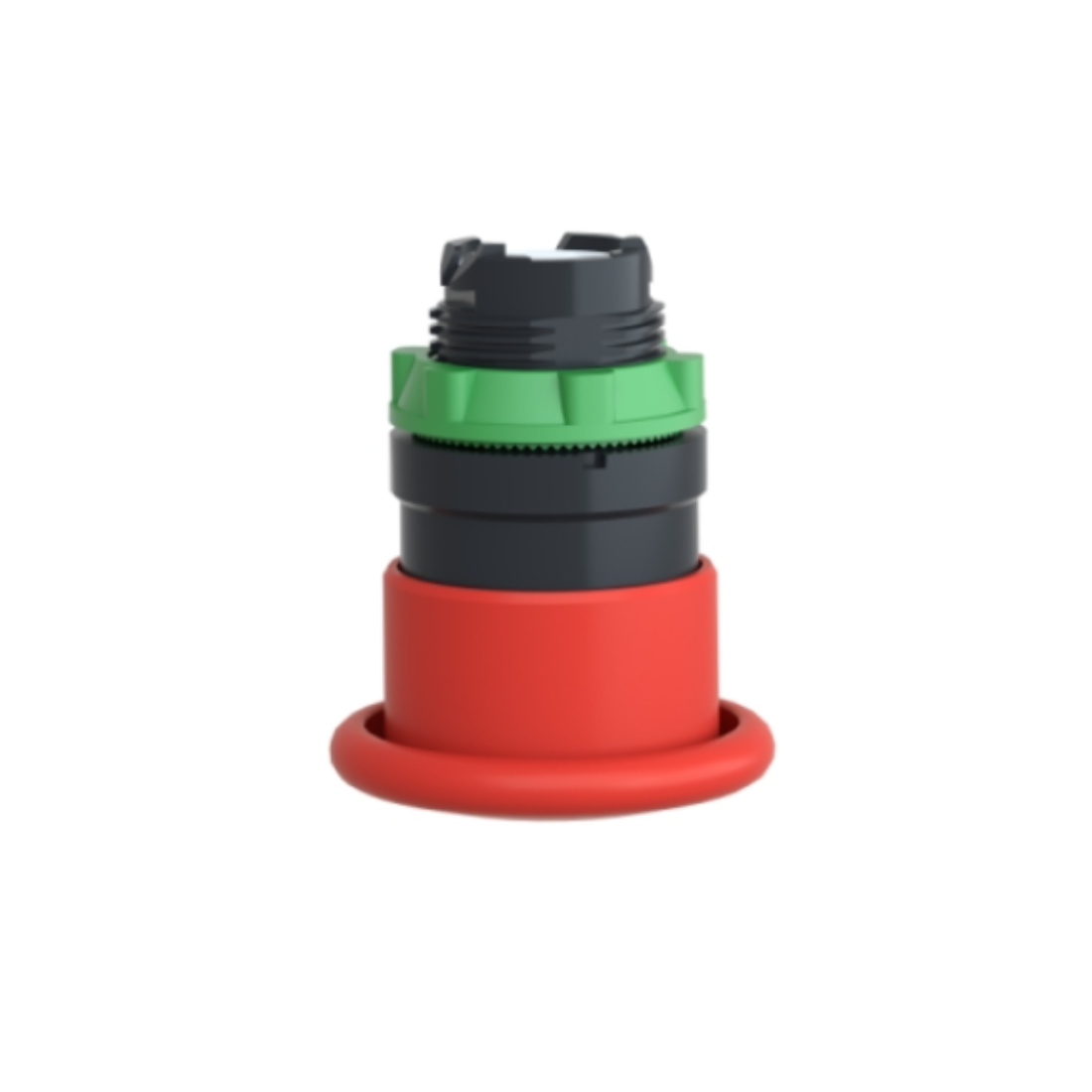

Schneider Electric Harmony XB5 Red Ø40 Mushroom Push Button Head Ø22 Spring Return ZB5AC4
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pushbutton Head
Description
Schneider Electric ZB5AC4 Red Ø40 Mushroom Pushbutton Head is ideal when fast action is required. It is suitable for the correct operation of a process or machine or when the operator's movements require maximum ergonomics. Easily combines with Harmony series contact blocks to perform a variety of control functions. Thanks to its distinctive 40mm mushroom shape, it is clearly visible from afar. Thanks to IP66, it is shock, dust, water and vibration proof. This makes it ideal for use in harsh environments.
Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Designed as per international standards for high performance
- Wide range of operating temperatures from -40 to +70 °C/-40 to +158 °F
| Brand | Schneider Electric |
| Item Name | Head For Non-illuminated Push-Button |
| Model | ZB5AC4 |
| Bezel Material | Dark Grey Plastic |
| CAD Overall Depth | 52 mm |
| CAD Overall Height | 40 mm |
| CAD Overall Width | 40 mm |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | ZB5 |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 5000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red mushroom Ø 40 mm, unmarked |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | GL, BV, DNV, LROS (Lloyds register of shipping), CSA, UL listed |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Mush. spring return non illum. |
| Customizable | 0 |
| Head Type | Standard |
| Main Group | Mushroom head |
| Resistance to High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting |
| Station Name | XALD 1 cut-out, XALK 1 cut-out |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, JIS C8201-1 |
| Device Presentation | Basic element |
| Weight | 0.046 kg |
