Schneider Electric Harmony XB5 Red Ø40 Emergency Stop Switching Off Head Ø22 Trigger and Latching Push-Pull ZB5AT84
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Head
Description

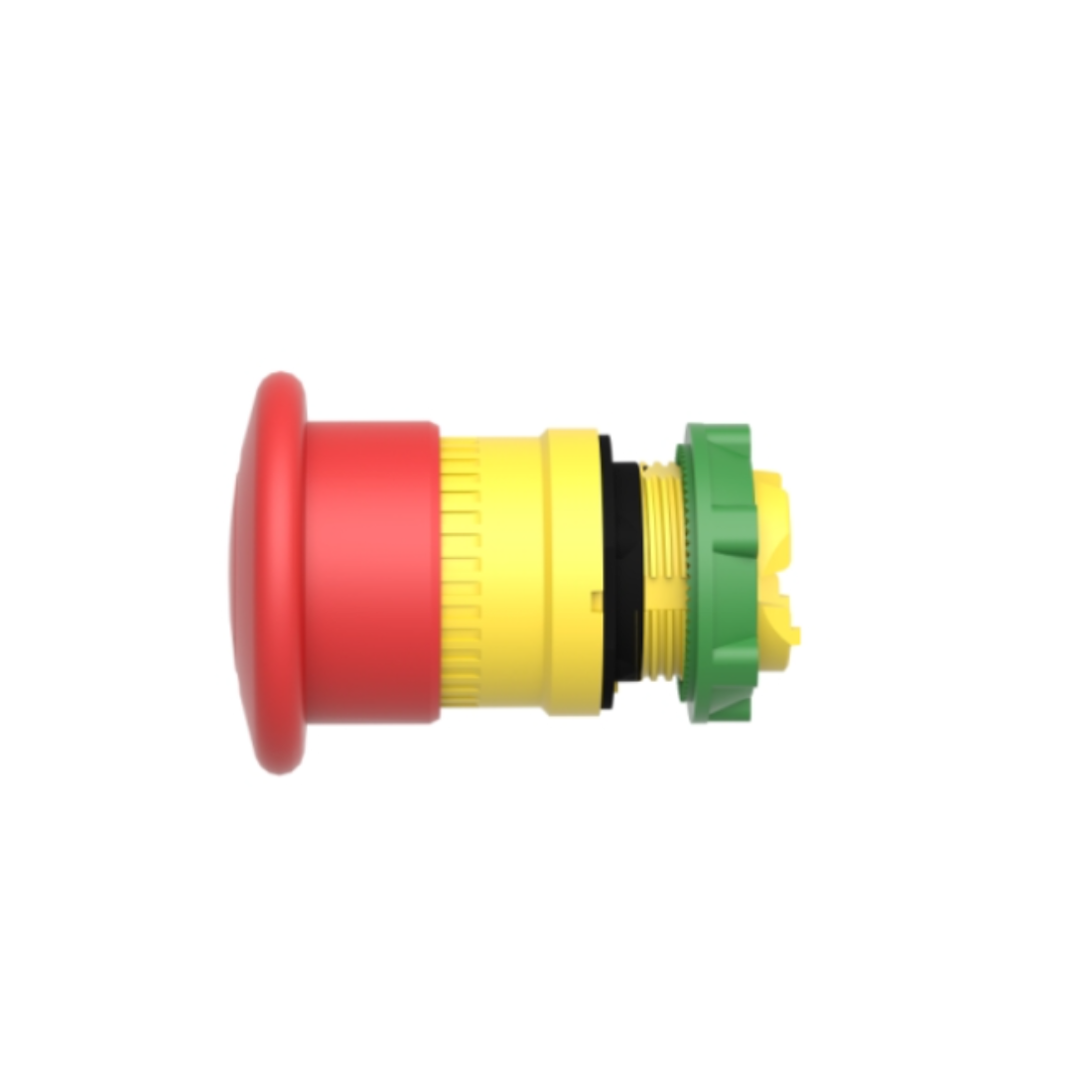

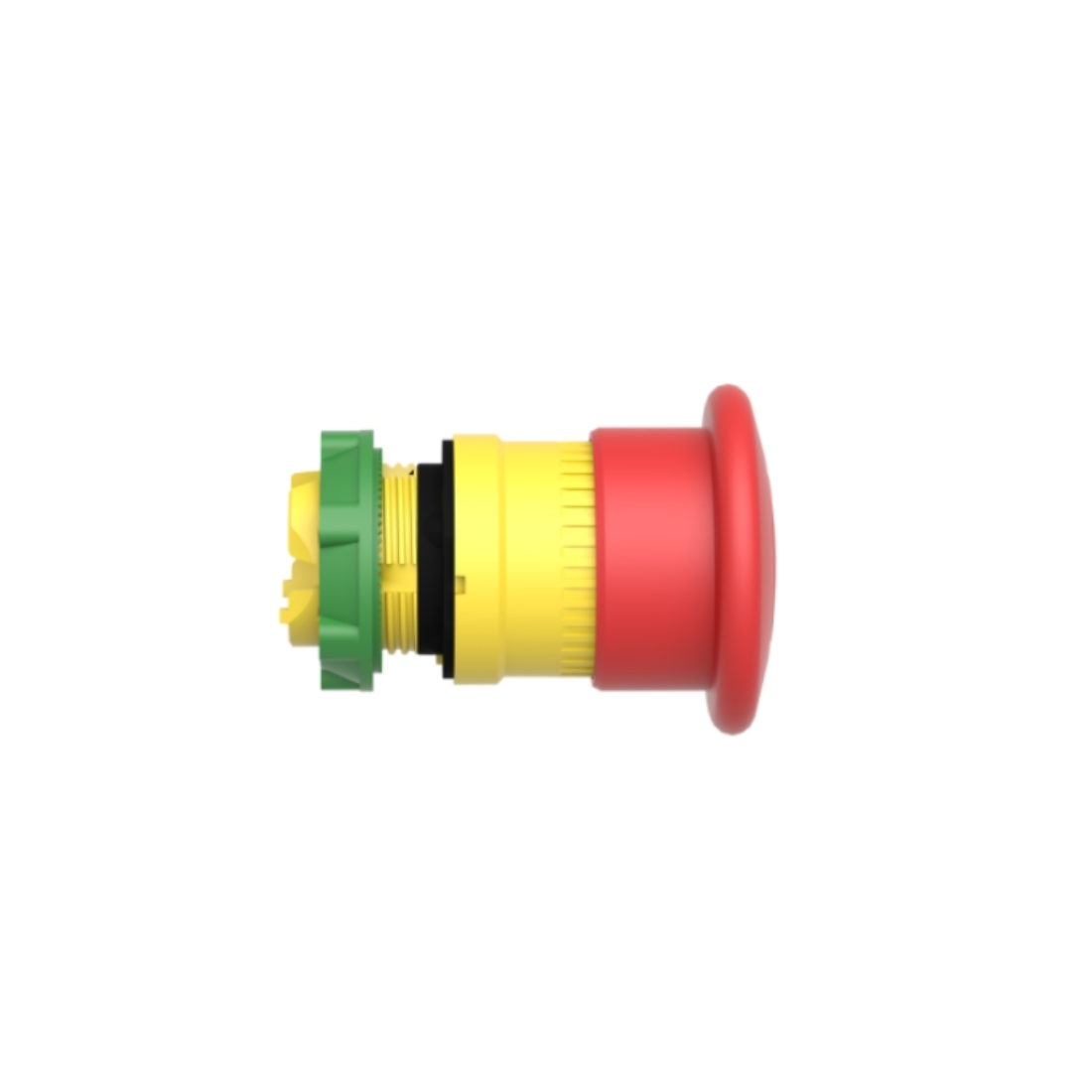

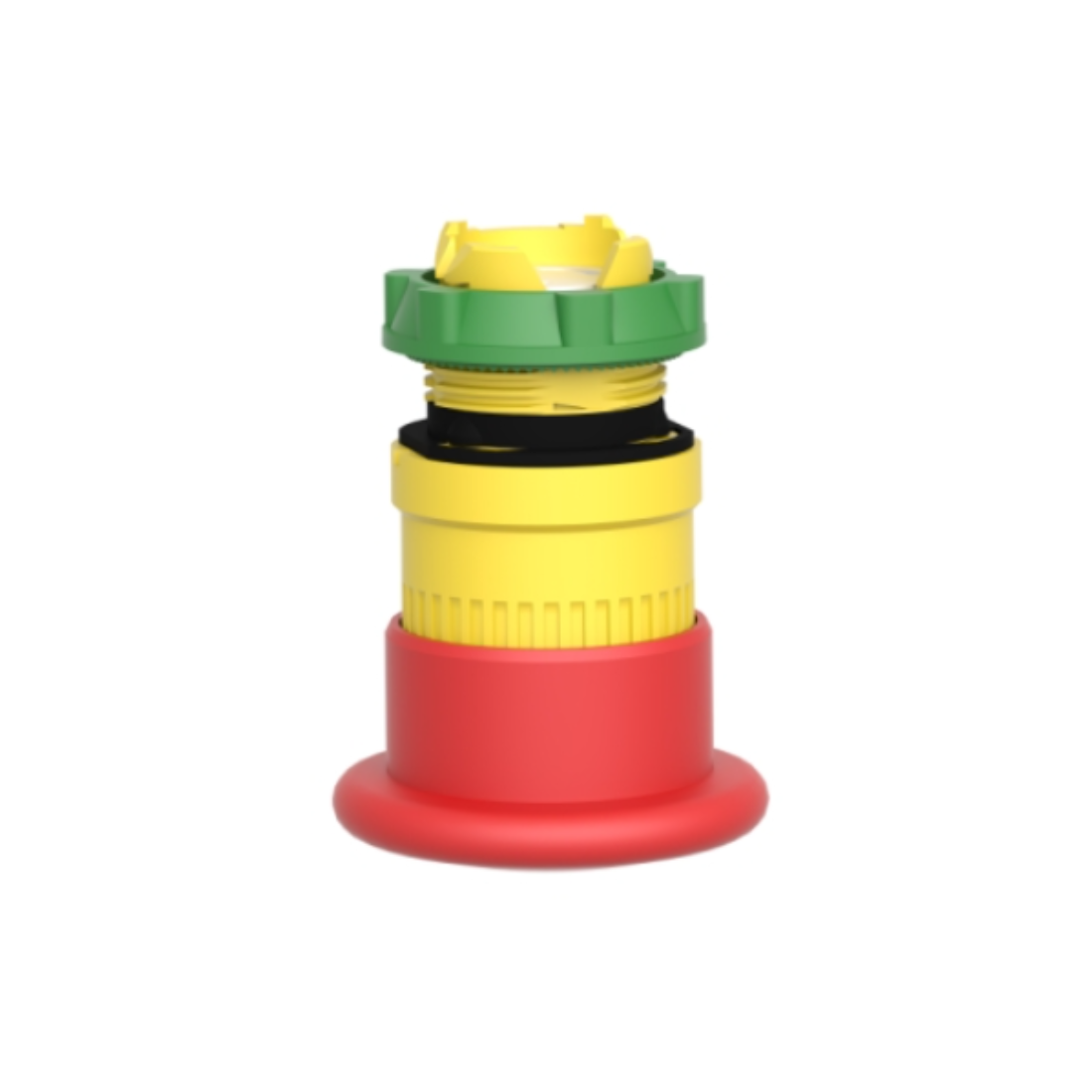

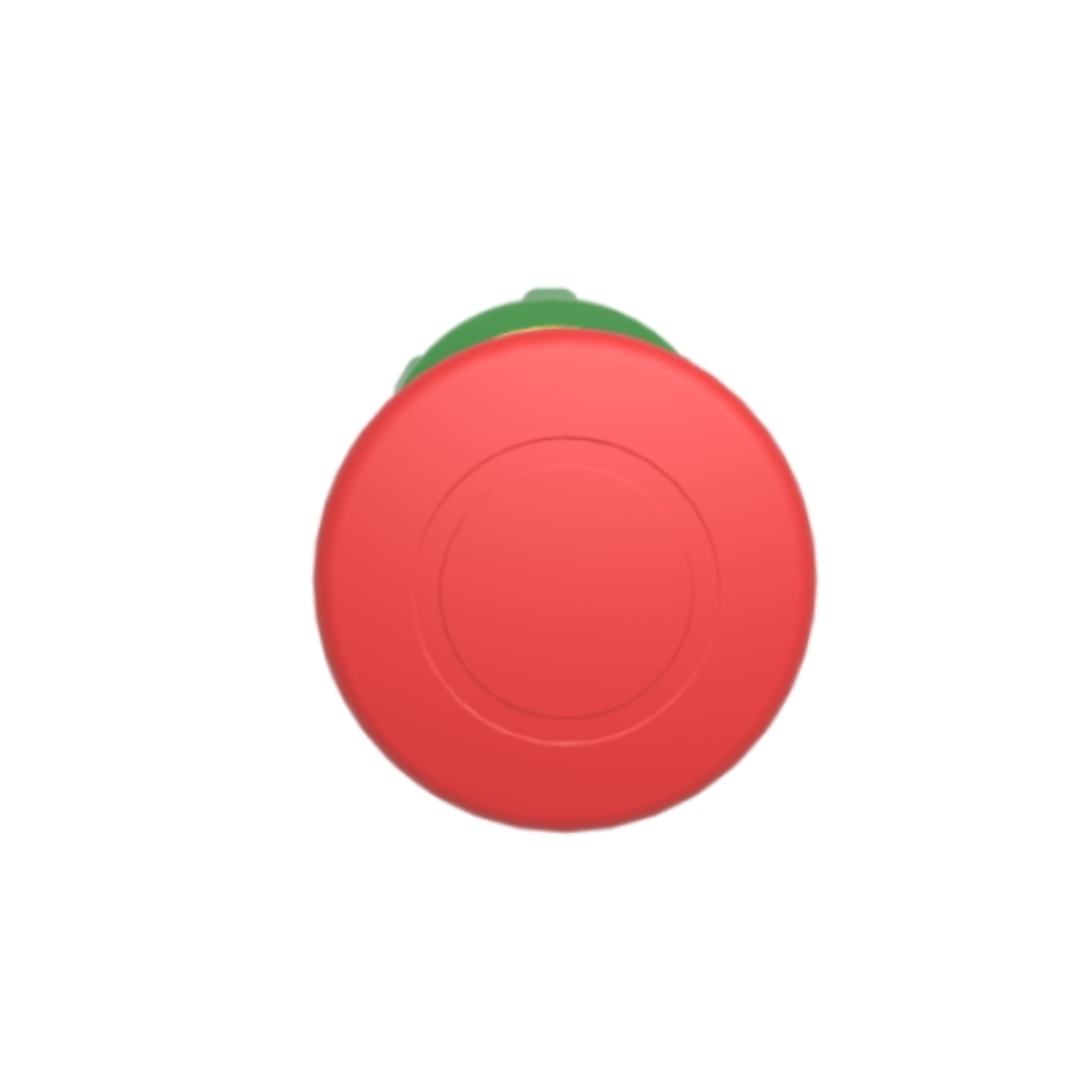

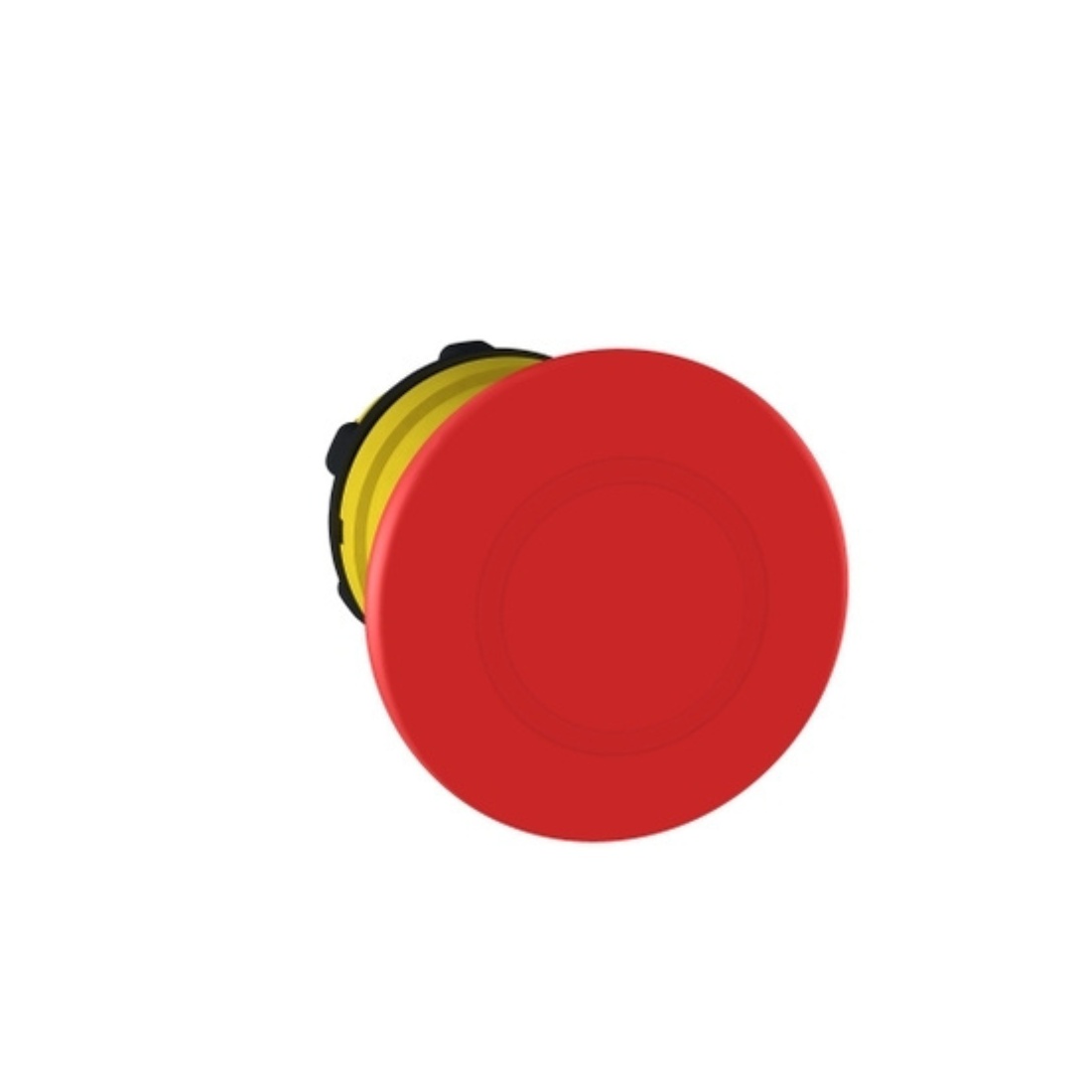

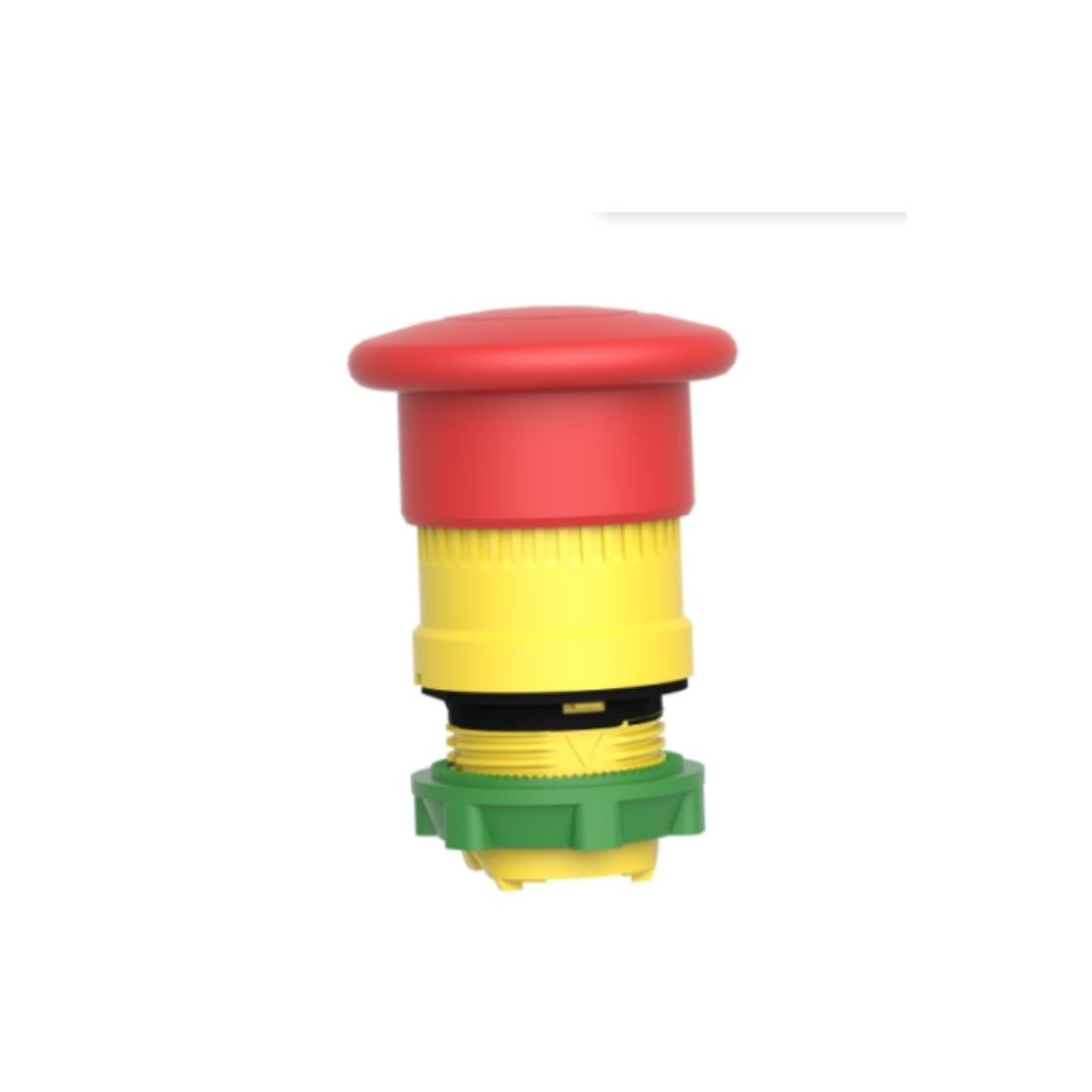

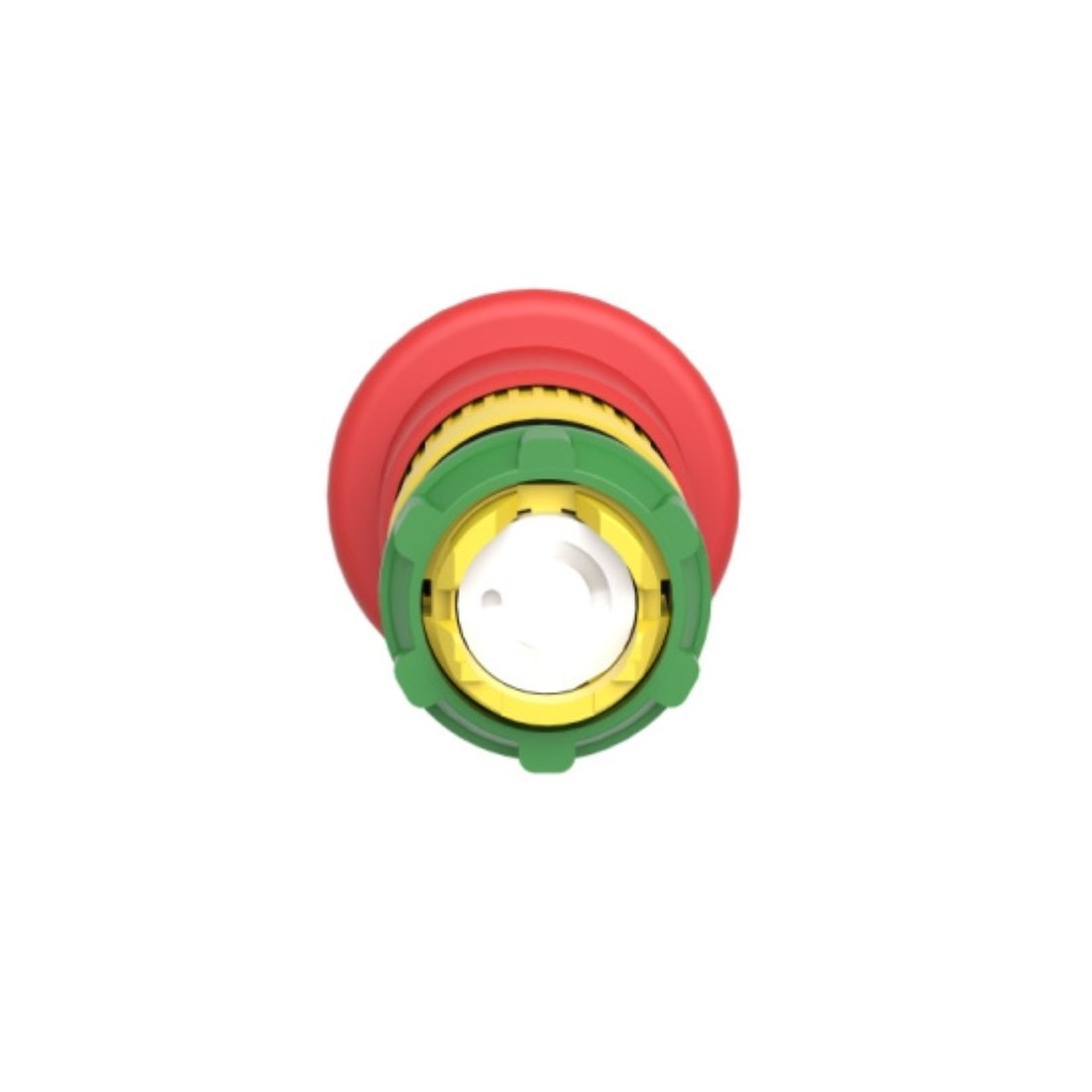

Schneider Electric ZB5AT84 Red Ø40 Emergency Stop head operates with a push-pull mechanism. This emergency stop/off button head is easily combined with contact blocks, installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. It is clearly visible from a distance thanks to its light color and distinctive 40mm mushroom shape. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof.
Schneider Electric ZB5AT84 Red Ø40 Emergency Stop head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the emergency stop head to be used in a variety of ways.
Features
- Operates with a push-pull mechanism.
- It has a plastic frame,
- Shock, dust, water and vibration proof
| Brand | Schneider Electric |
| Item Name | Head For Emergency Stop Push-Button |
| Model | ZB5AT84 |
| Bezel Material | Dark Grey Plastic |
| CAD Overall Depth | 56 mm |
| CAD Overall Height | 40 mm |
| CAD Overall Width | 40 mm |
| Cap/Operator Or Lens Colour | Red |
| Compatibility Code | ZB5 |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 300000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red Mushroom Ø 40 mm, unmarked |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Certifications | LROS (Lloyds register of shipping), BV, DNV, UL listed, GL, CSA |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Reset | Push-Pull |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Trigger Action and mechanical latching |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Emergency stop turn to release |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Main Group | E-stop |
| Electrical Composition Code | C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, C10 for <4 contacts using single and double blocks in front mounting |
| Station Name | XALD 1 cut-out, XALK 1 cut-out |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/ISO 13850, EN/IEC 60947-5-1, CSA C22.2 No 14, IEC 60364-5-53, JIS C8201-5-1, UL 508, EN/IEC 60947-1, GB 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60204-1, JIS C8201-1 |
| Device Presentation | Basic element |
| Weight | 0.05 kg |
