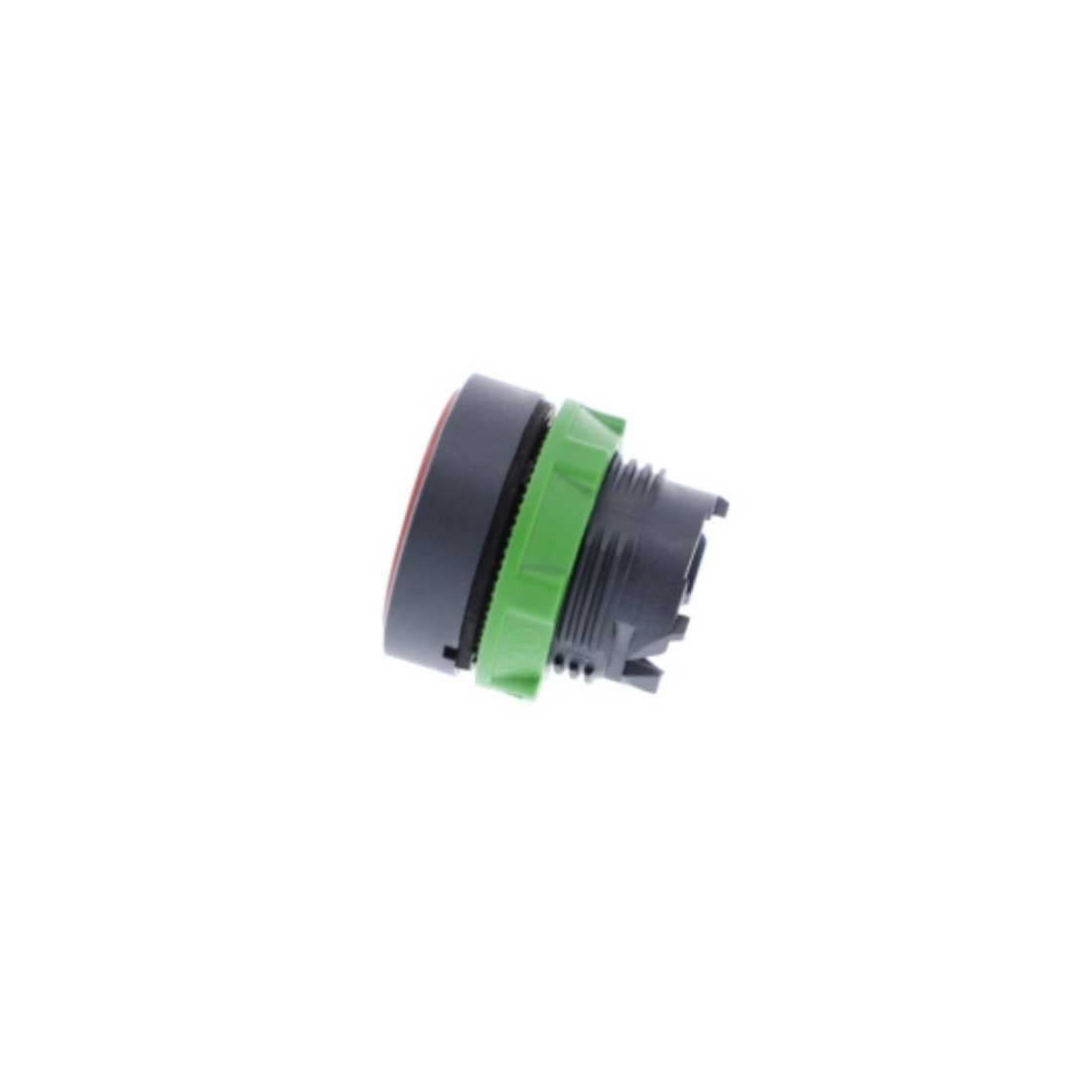

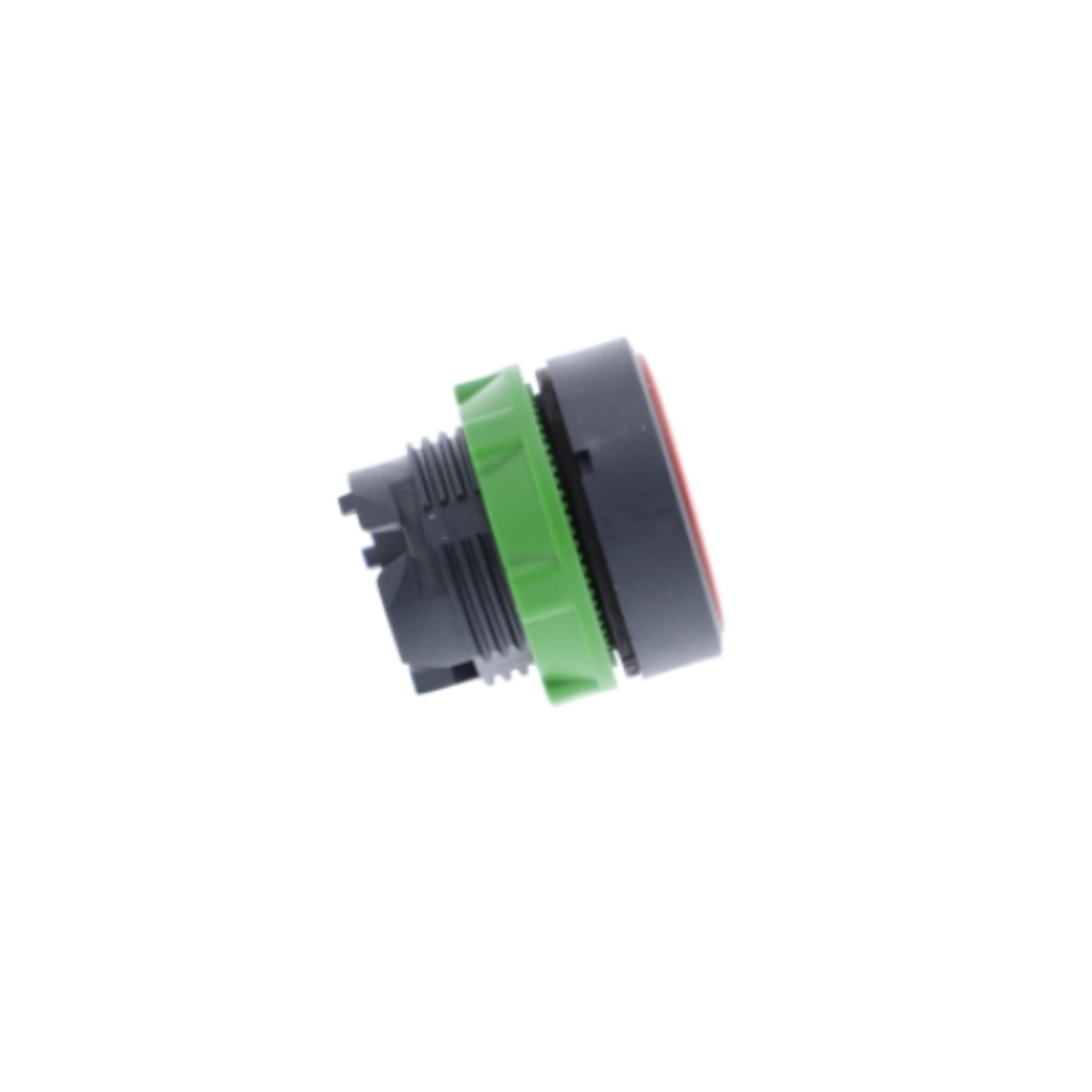

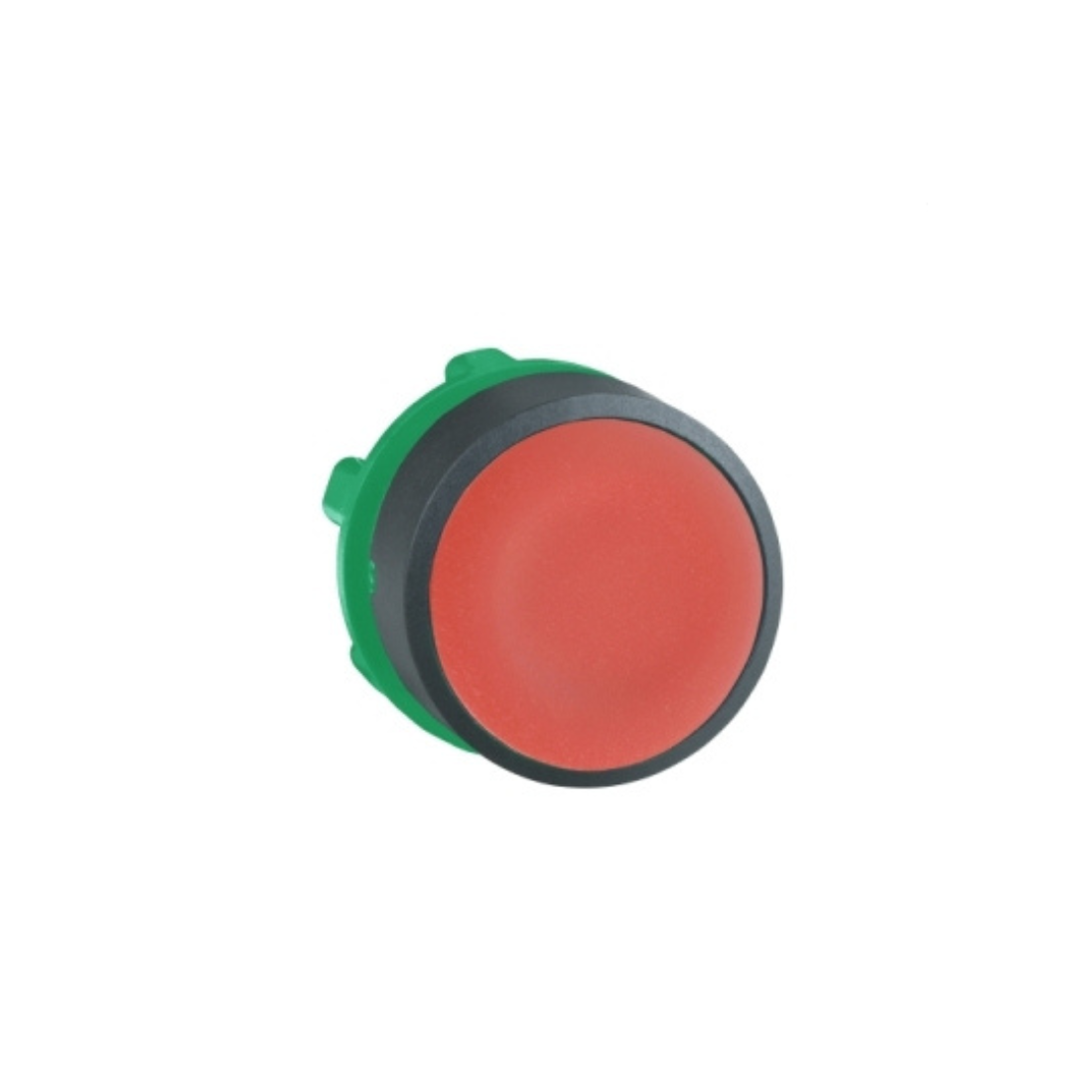

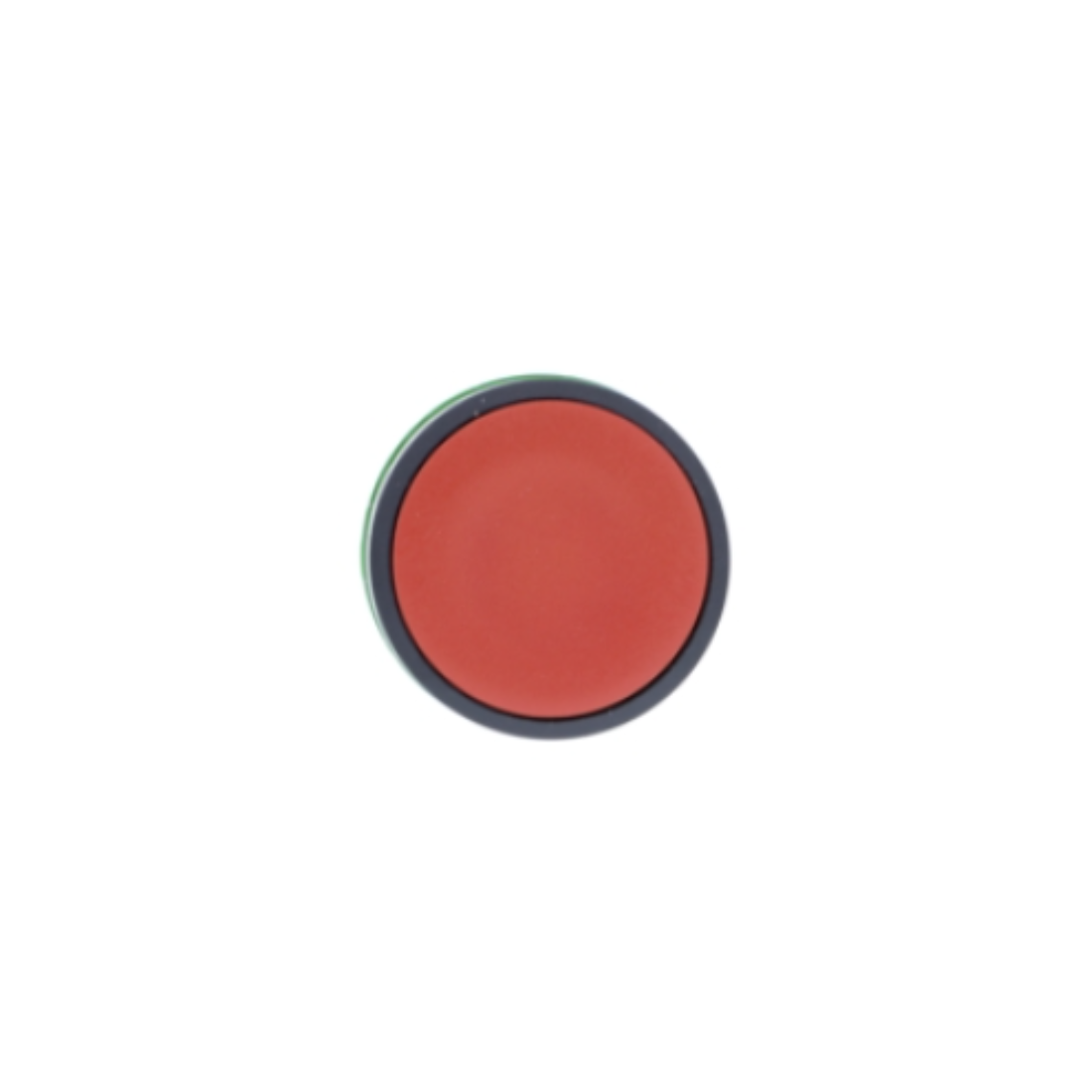

Schneider Electric Harmony XB5 Red Flush Push Button Head Ø22 Spring Return Unmarked ZB5AA4
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Push Button
Description
Schneider Electric ZB5AA4 Red Flush Push Button Head operates with a spring return mechanism. This button head provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof.
Schneider Electric ZB5AA4 Red Flush Push Button Head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Designed as per international standards for high performance
- Wide range of operating temperatures from -40 to +70 °C/-40 to +158 °F
| Brand | Schneider Electric |
| Item Name | Head For Non-Illuminated Push-Button |
| Model | ZB5AA4 |
| Bezel Material | Dark Grey Plastic |
| CAD Overall Depth | 28 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | ZB4 |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red flush, Unmarked |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Certifications | UL listed, DNV, LROS (Lloyds register of shipping), CSA, BV, GL |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Flush push non illuminated |
| Customizable | 1 |
| Head Type | Standard |
| Resistance to High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB5AACUST01 |
| Main Group | Push-button |
| Electrical Composition Code | C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-4, UL 508, JIS C8201-1 |
| Device Presentation | Basic element |
| Weight | 0.018 kg |
