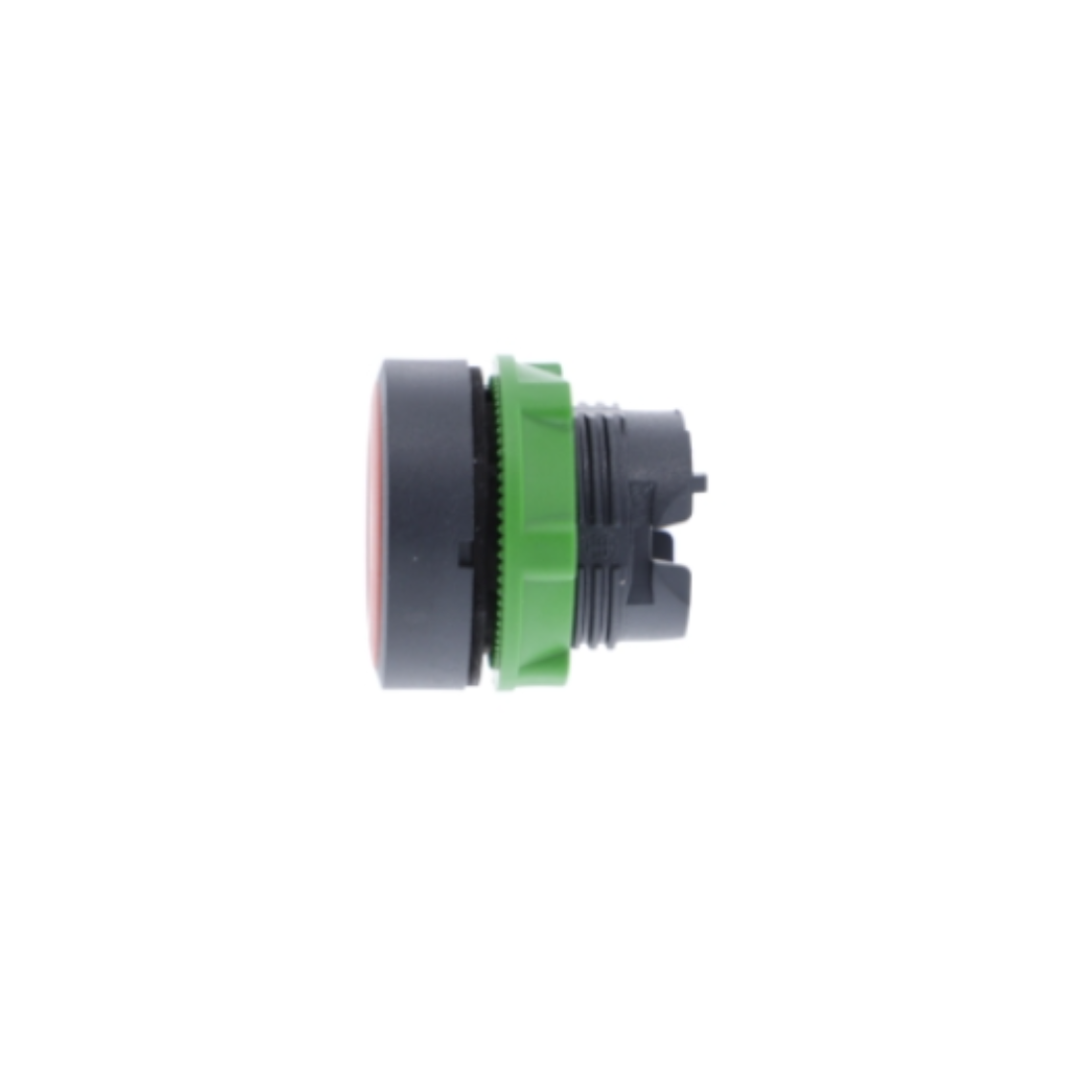

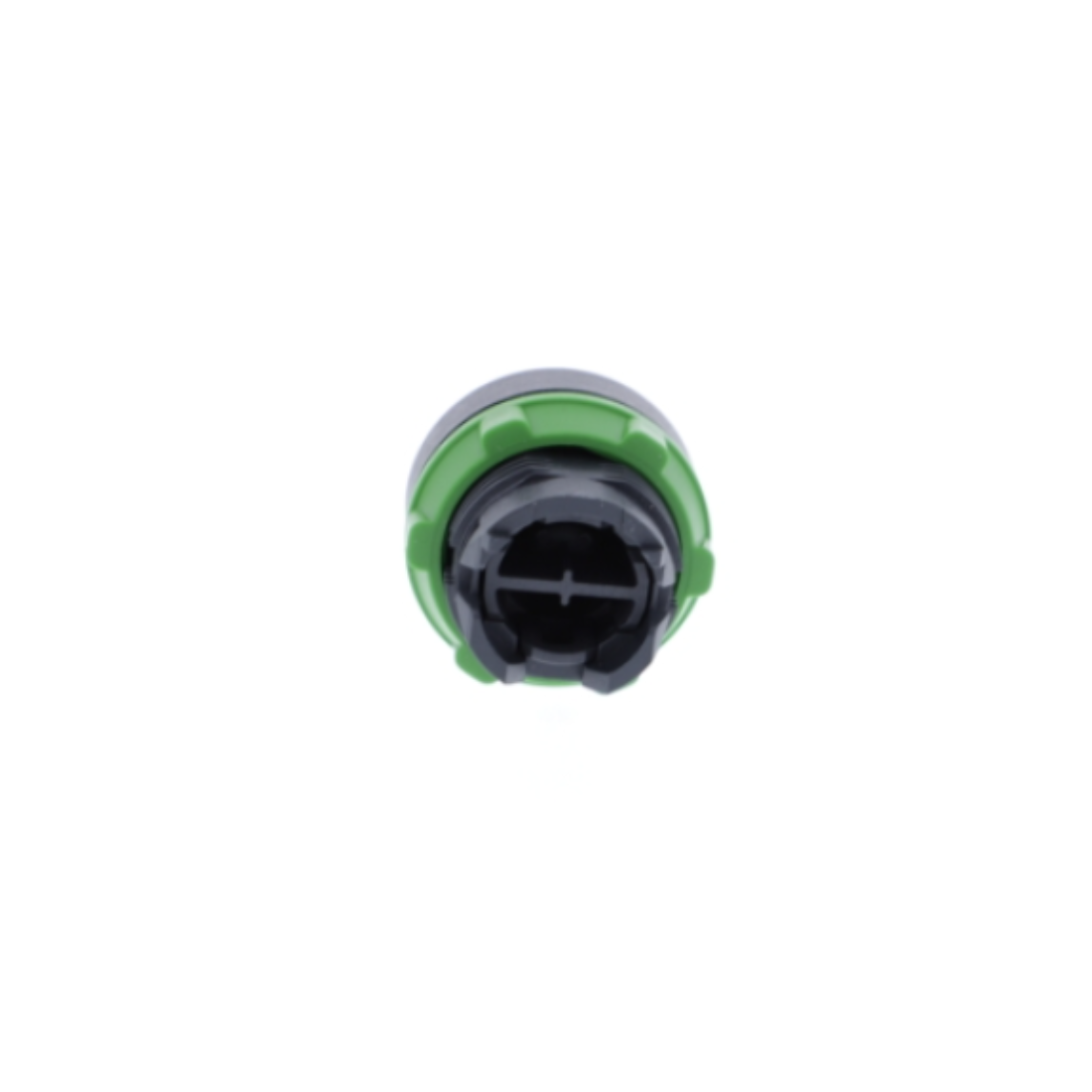

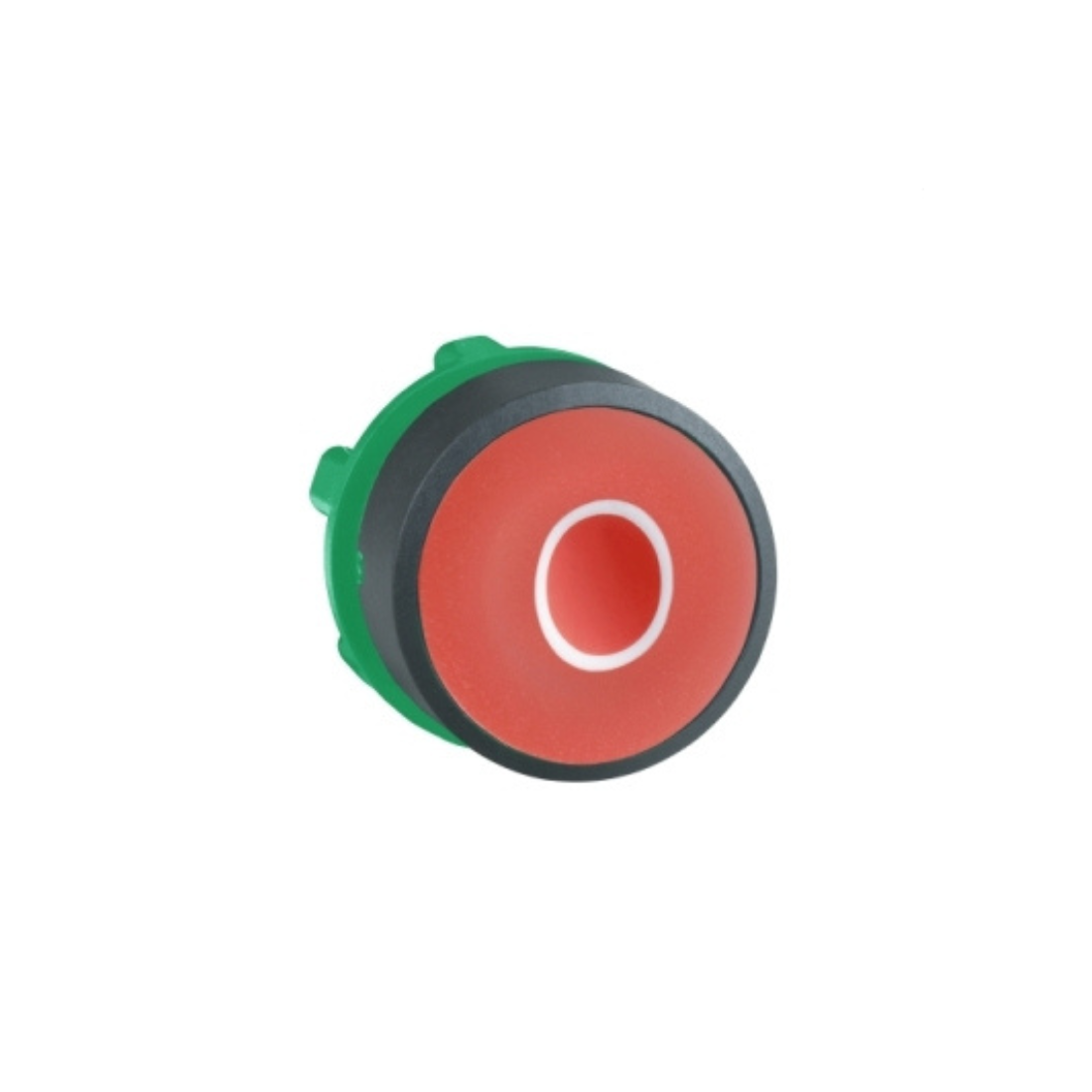

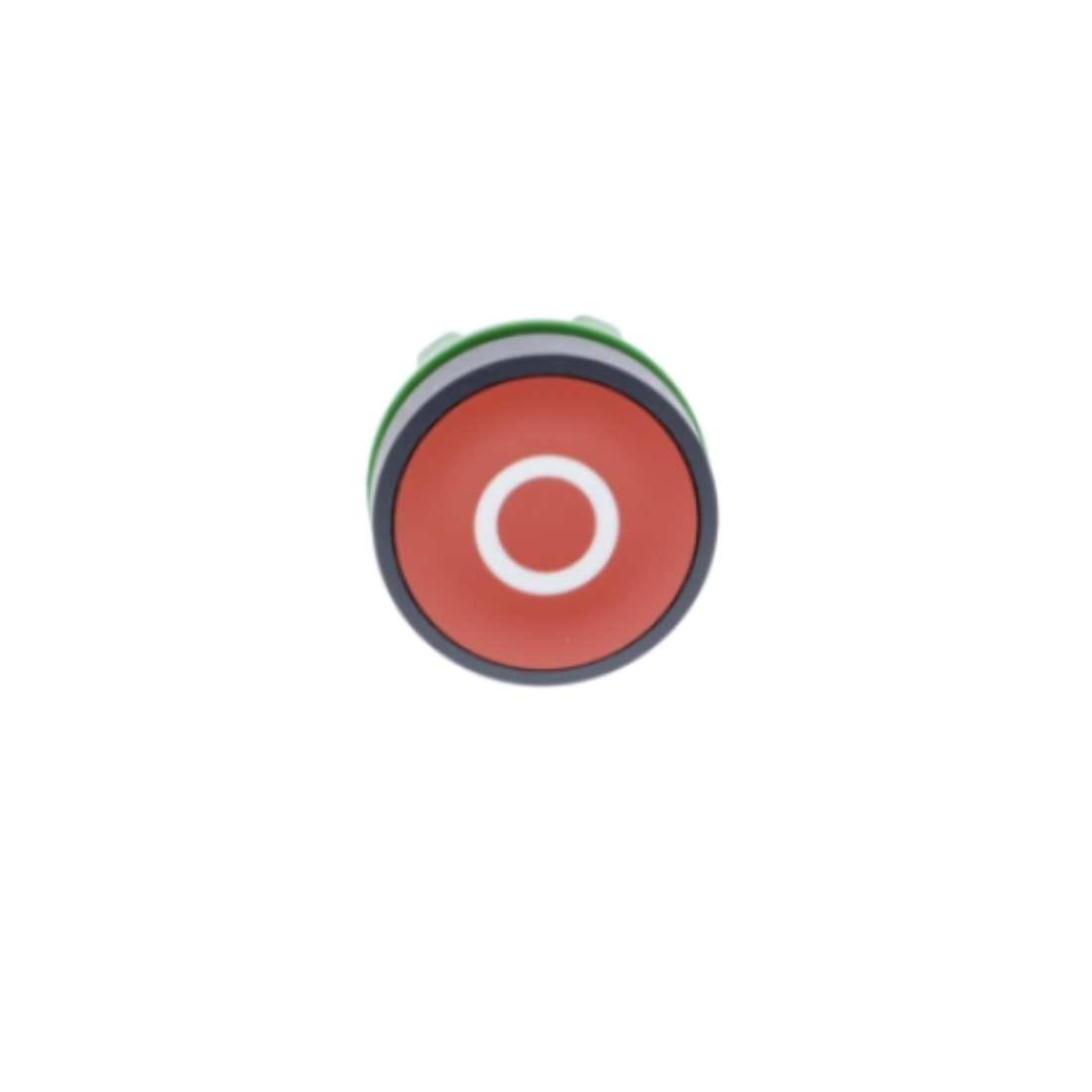

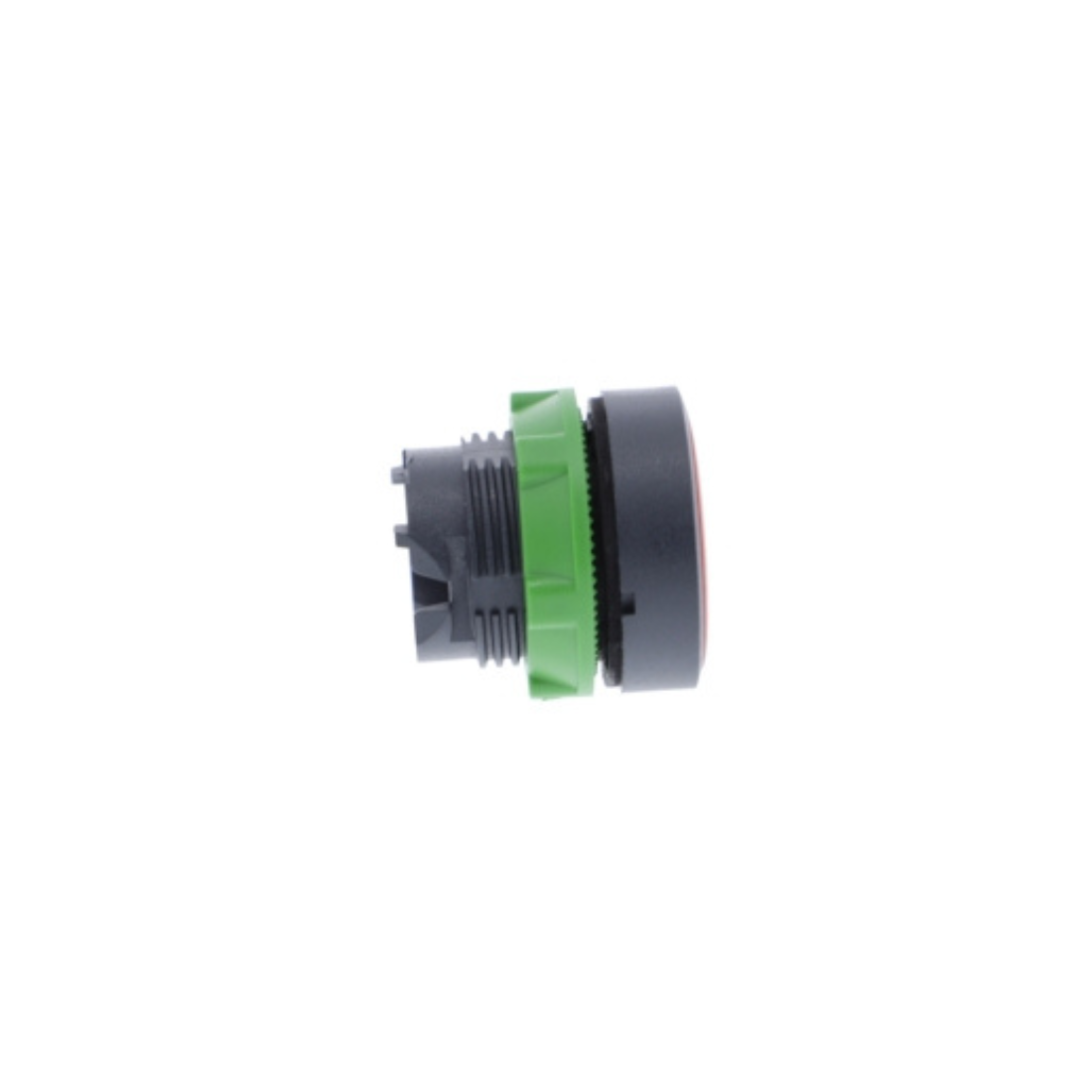

Schneider Electric Harmony XB5 Red Flush Push Button Head Ø22 Spring Return "O" ZB5AA432

Regular price AED 21.00
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Pushbutton Head
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric ZB5AA432 Red Flush Pushbutton Head features a spring return mechanism. It is marked with an "O" symbol. This button head provides an ergonomic interface to control the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof.

    Schneider Electric ZB5AA432 Red Flush Pushbutton Head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

    Features
    • Spring return mechanism
    • Provides an ergonomic interface to control the machines.
    • Shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Head For Non-illuminated Push-Button

    Model : ZB5AA432

    Bezel Material : Dark grey plastic

    CAD Overall Depth : 28 mm

    CAD Overall Height : 29 mm

    CAD Overall Width : 29 mm

    Cap/Operator Or Lens Color : Red

    Compatibility Code : ZB5

    IK Degree Of Protection : IK06 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67, IP69, IP69K

    Marking : O

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Red flush, O (white)

    Overvoltage Category : Class II conforming to IEC 60536

    Protective Treatment : TH

    Certifications : DNV, CSA, UL listed, GL, LROS (Lloyds register of shipping), BV

    Range Of Product : Harmony XB4

    Sale Per Indivisible Quantity : 1

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Group Of Product : Flush push with marking

    Customizable : 0

    Head Type : Standard

    Color Of Marking : White

    Resistance to High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Main Group : Push-button

    Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs

    Electrical Composition Code : C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : JIS C8201-5-1, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-1

    Device Presentation : Basic element
