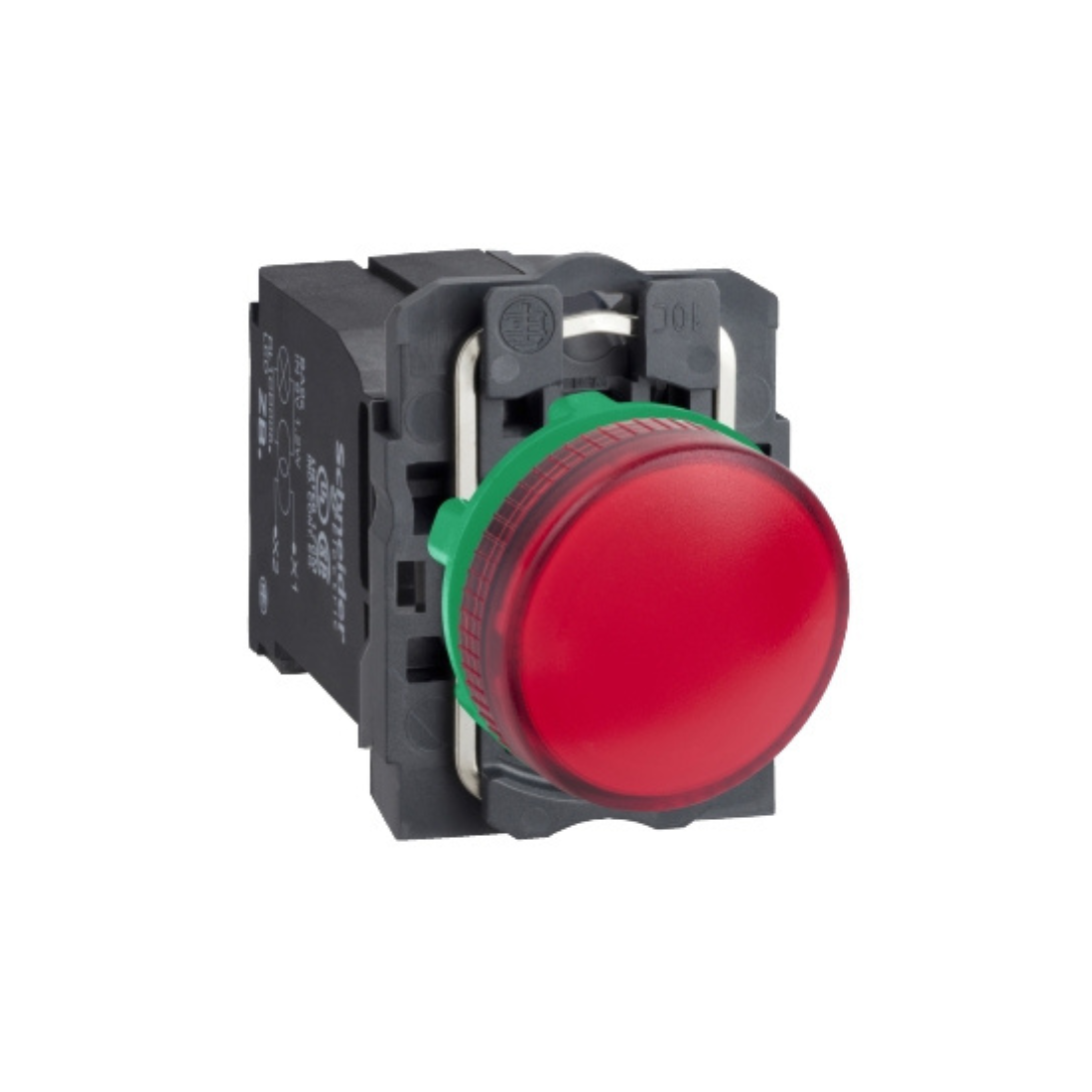

Schneider Electric Harmony XB5 Red Complete Pilot Light Ø22 Plain Lens with BA9s Bulb 220-240V XB5AV44
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Complete Pilot Light
Description
Schneider Electric XB5AV44 Red Complete Pilot Light is supplied with 220V to 240V AC, uses an integral transformer with BA9s base and has screw-clamp terminals. It is designed to be maintenance-free and provide a bright indication of the process and operation of the machine. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.
Thanks to a bright and long-lasting BA9s base illumination and a transformer, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Provide a bright indication of process and machine operation
- Ideal for use in harsh environments
- Connected with simple screw terminal connections.
- It is shock, dust, water and vibration proof
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB5AV44 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 230...240 V |
| Bezel Material | Dark Grey Plastic |
| Bulb Base | BA 9s |
| Cap/Operator Or Lens Colour | Red |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Depth | 55 mm |
| Height | 42 mm |
| Fixing Collar Material | Plastic |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Light Source | Incandescent |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Mounting Diameter | 22 mm |
| Protective Treatment | TH |
| Certifications | CSA, UL listed |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Terminals Description ISO n°1 | (X1-X2)PL |
| Width | 30 mm |
| Signalling Type | Steady |
| Operator Additional Information | With plain lens |
| Light Block Supply | Via Transformer 1.2 VA 6 V |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST01 |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Light Source Colour | Red |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, JIS C8201-5-1, UL 508, JIS C8201-1 |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| Device Presentation | Complete Product |
| Weight | 0.11 kg |
