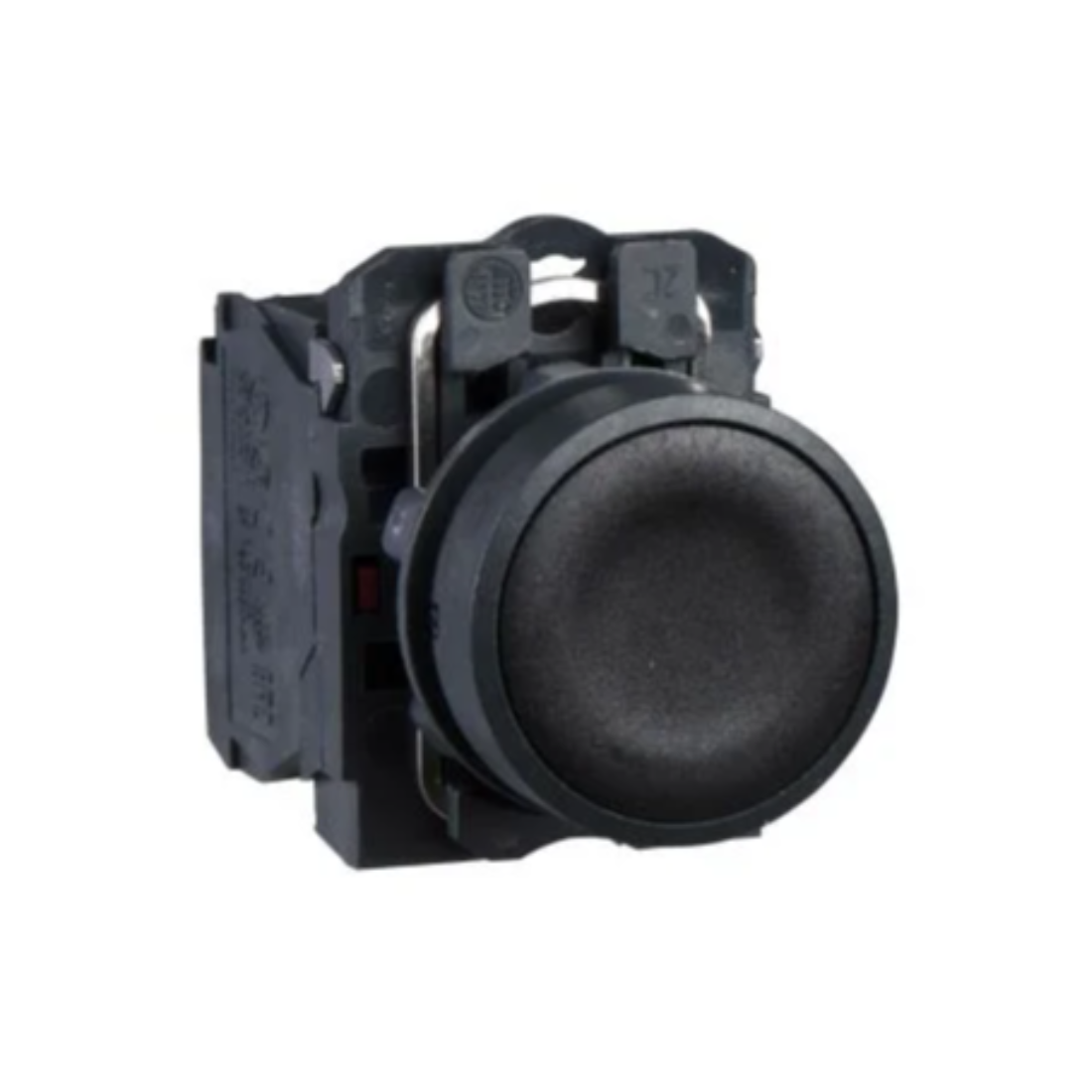

Schneider Electric Push Button Plastic Flush Black Ø22 Spring Return Unmarked 1 NO XB5AA21N
Schneider Electric Push Button Plastic Flush Black Ø22 Spring Return Unmarked 1 NO XB5AA21N

Schneider Electric Harmony XB5 Push Button Plastic Flush Black Ø22 Spring Return Unmarked 1 NO XB5AA21N

Regular price AED 22.05
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Push Button
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric XB5AA21N Black Flush Push Button operates with a spring return / impulse mechanism and uses screw terminal blocks. This pushbutton allows simple and robust control of machines and processes. Easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections.

    Schneider Electric XB5AA21N Black Flush Push Button wiring diagram is clearly visible from a distance thanks to clear colors and markings, minimizing errors during initial wiring and subsequent maintenance. Thanks to IP66, it is shock, dust, water and vibration resistant, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

    Features
    • Operates with a spring return/impulse mechanism and uses screw terminal blocks.
    • Simple and robust control of machines and processes.
    • It is shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Push-Button

    Model : XB5AA21N

    Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

    Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

    Bezel Material : Plastic, Dark grey plastic

    Cap/Operator Or Lens Color : Black

    Compatibility Code : XB5

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Contact Operation : Slow-break

    Contacts Material : Silver alloy (Ag/Ni)

    Depth : 52 mm

    Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4

    Fixing Collar Material : Plastic

    Height : 42 mm

    IK Degree Of Protection : IK03 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529

    Light Source : Universal LED

    Mechanical Durability : 5000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Black flush, unmarked

    Positive Opening : Without

    Overvoltage Category : Class II conforming to IEC 60536

    Certifications : UL listed, BV, RINA, LROS (Lloyds register of shipping), CSA, GL, DNV

    Protective Treatment : TH

    Range Of Product : Harmony XB5

    Sale Per Indivisible Quantity : 1

    Service Life : 100000 h at rated voltage and 25 °C

    Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    Terminals Description ISO n°1 : (13-14)NO

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Width : 30 mm

    Contacts Type And Composition : 1 NO

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Operator Additional Information : With plain lens

    Customizable : 0

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Contacts Usage : Standard contacts

    Operating Force : 3.8 N NO changing electrical state

    Operating Travel : 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -25-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

    Device Presentation : Complete product

    Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    Weight : 0.037kg
