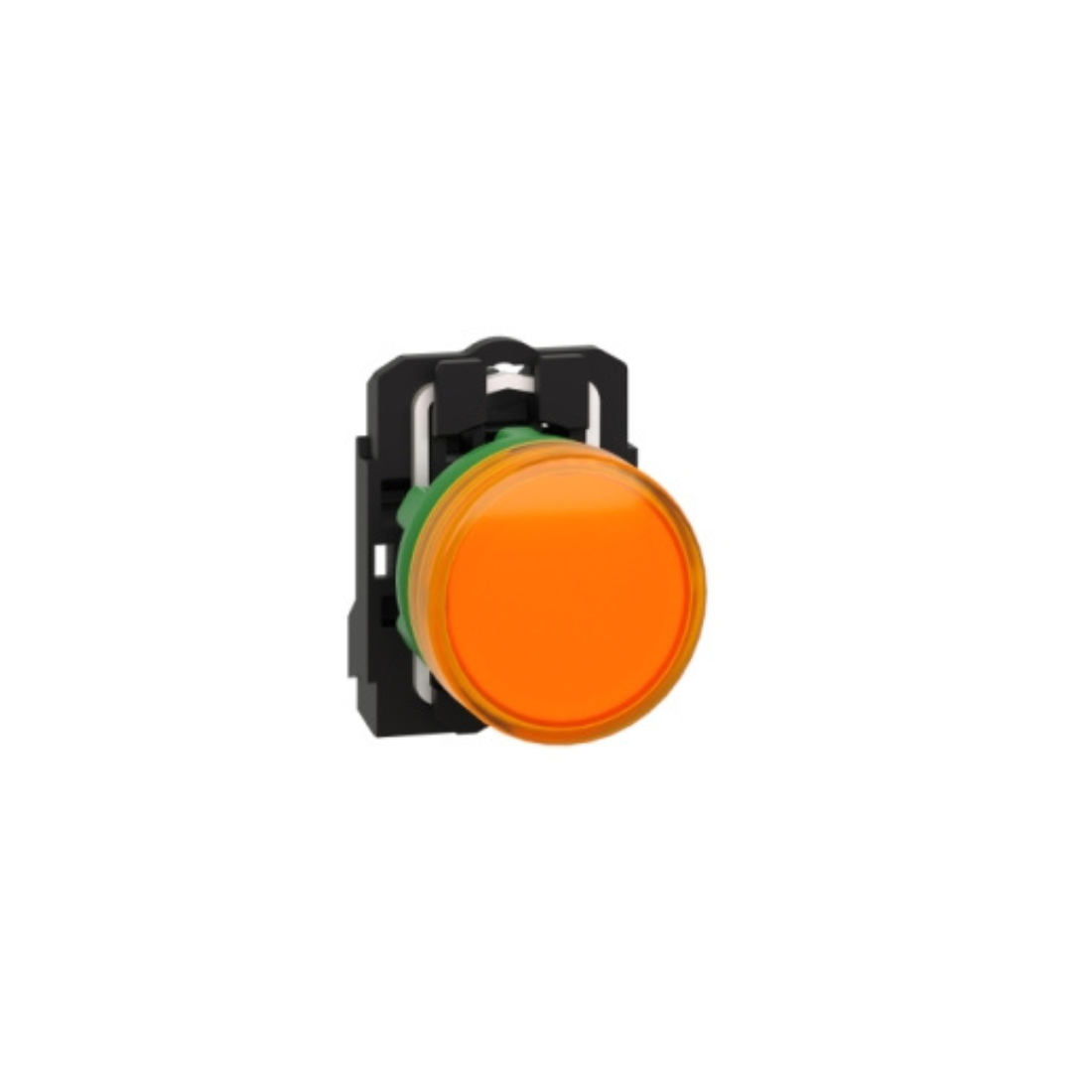

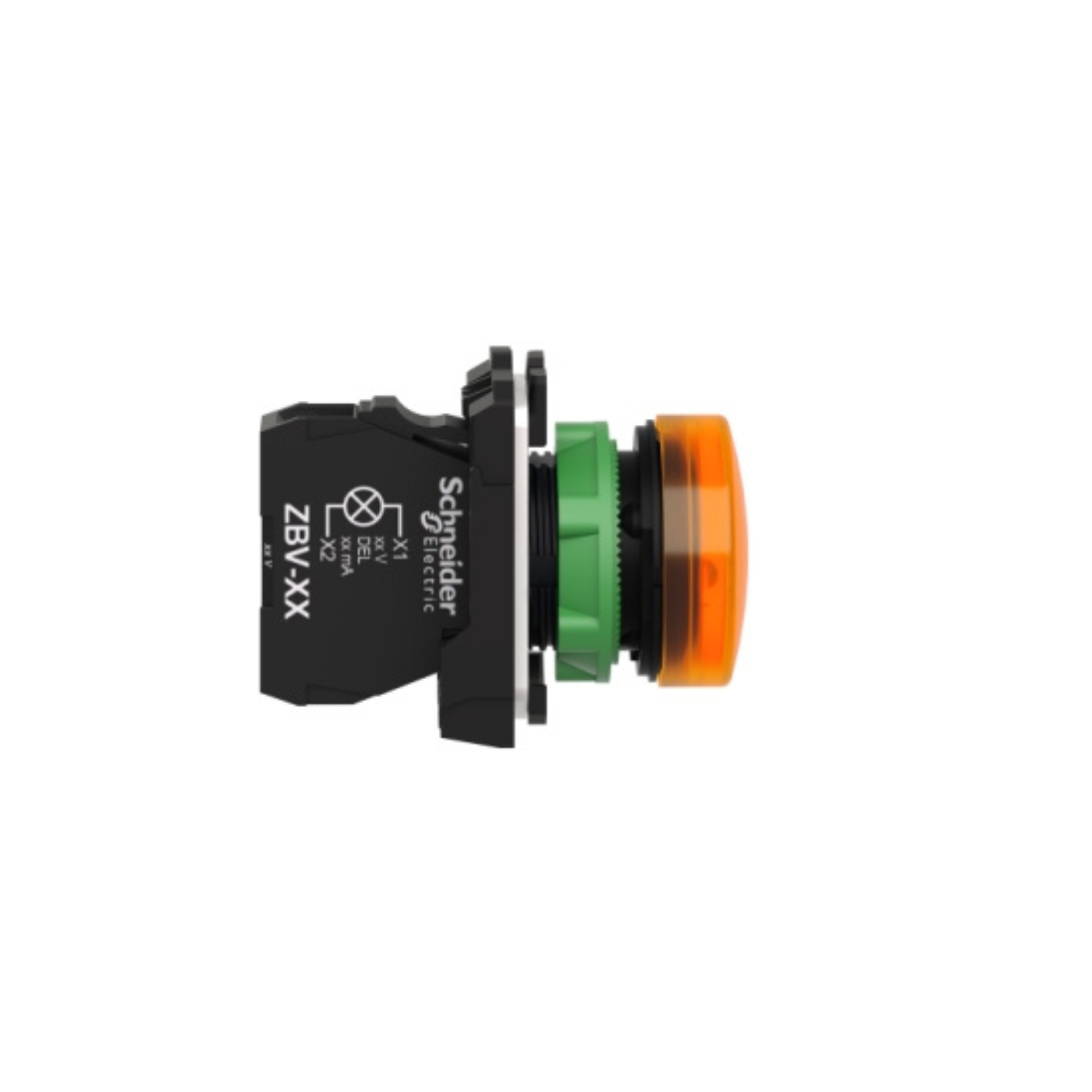

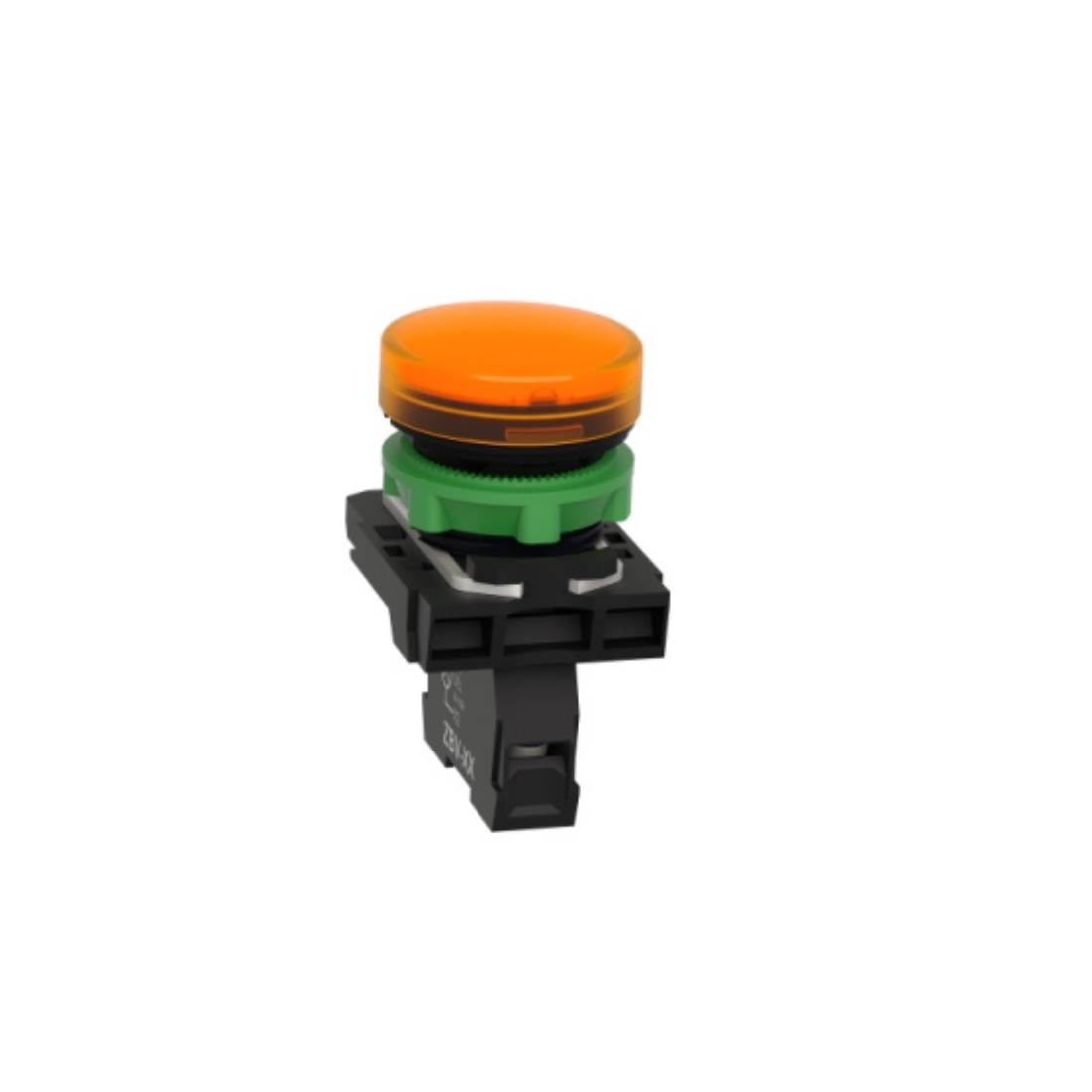

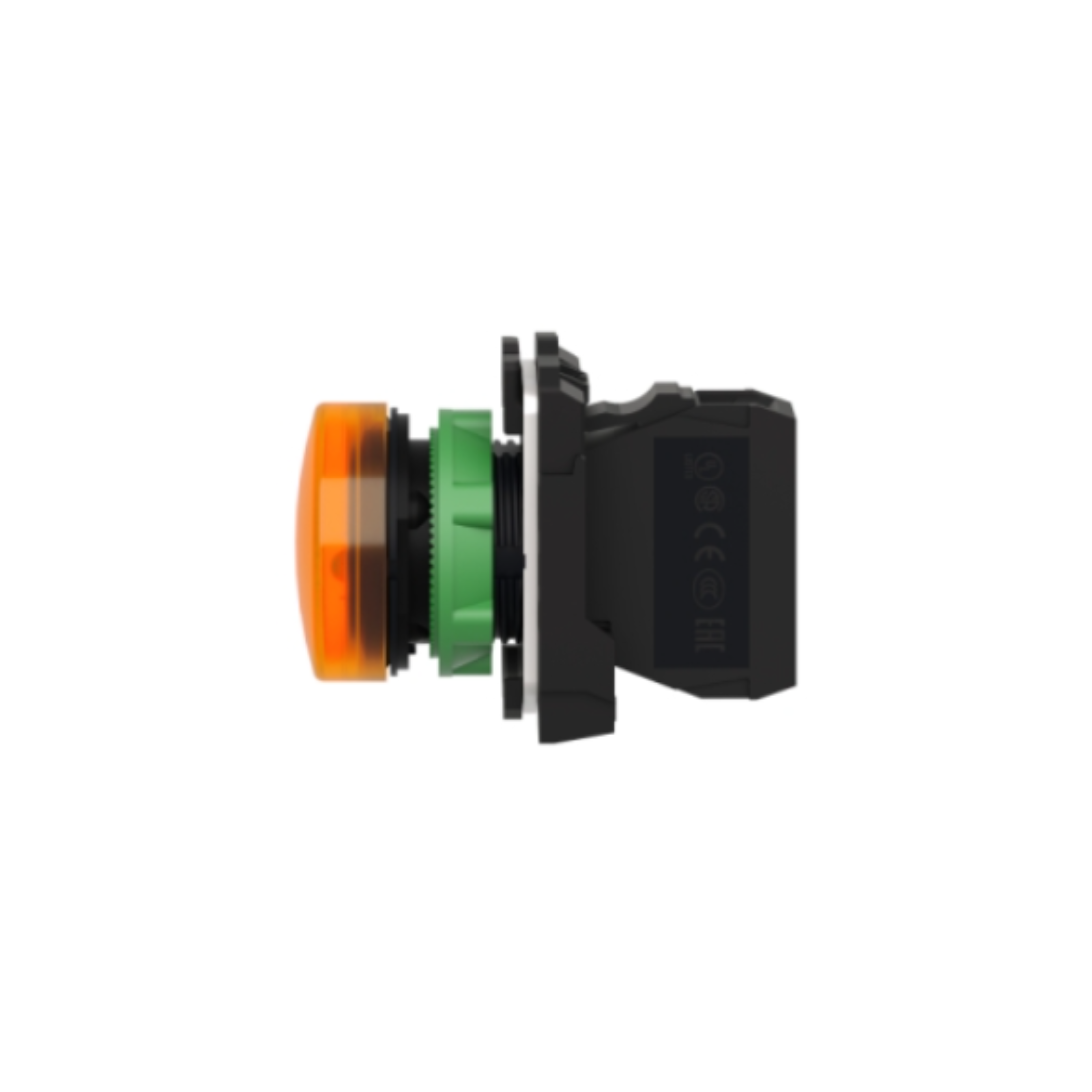

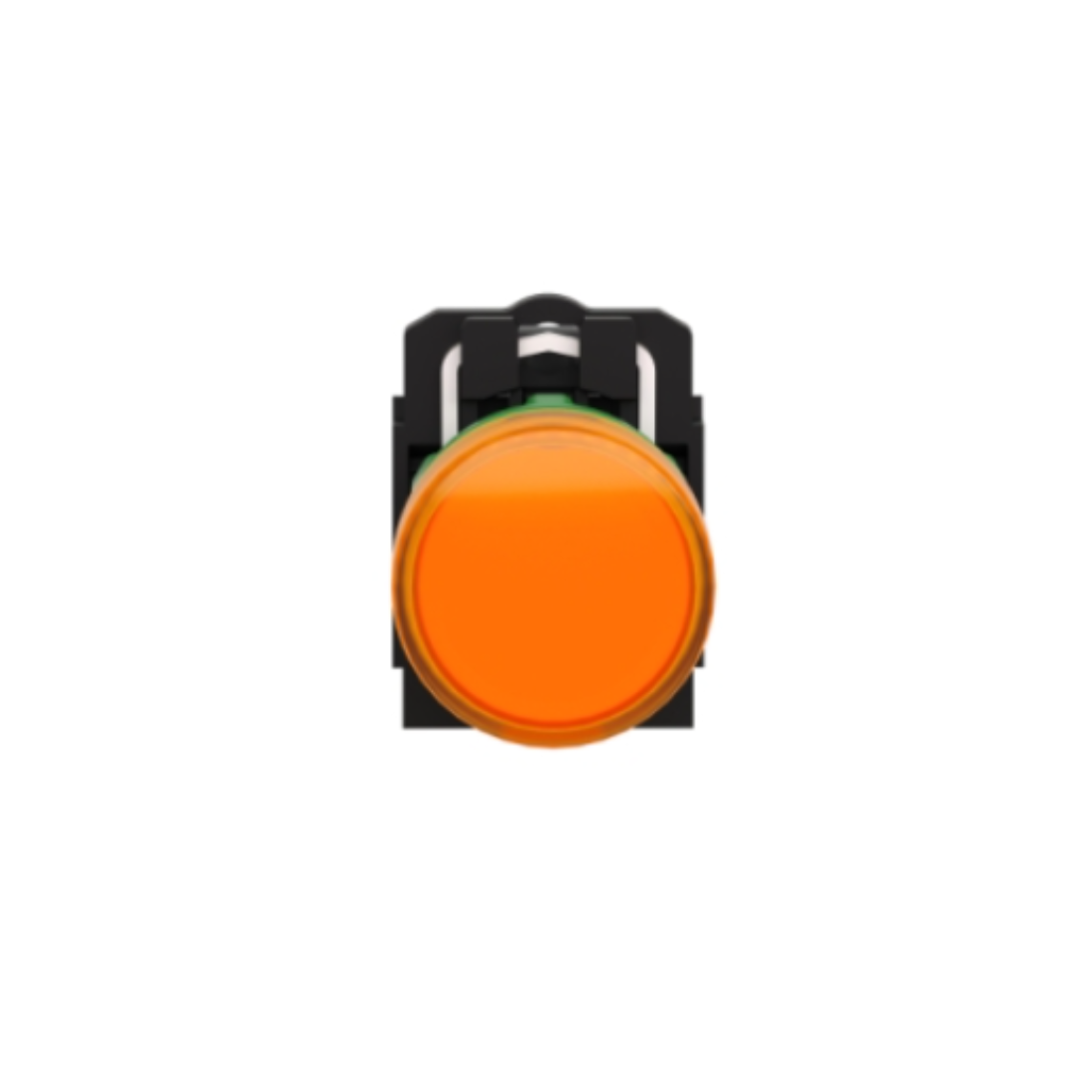

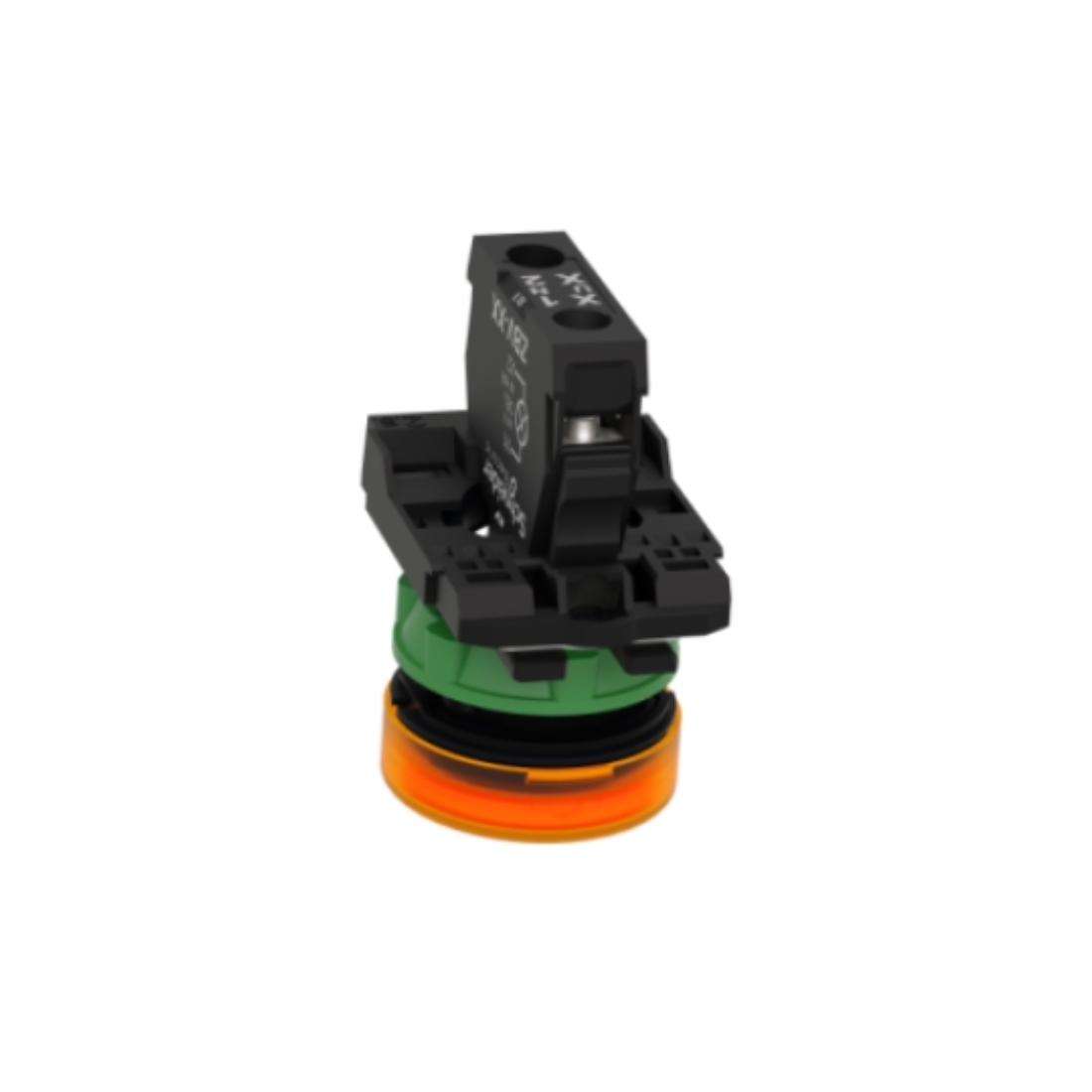

Schneider Electric Harmony XB5 Pilot Light Plastic Orange Ø22 Plain Lens with Integral LED 110-120V AC XB5AVG5
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light
Description
Schneider Electric XB5AVG5 Orange Pilot Light operates on 110V to 120V AC power, uses a universal LED and screw terminal connections. This maintenance-free indicator light provides a bright display of process and machine operations. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar.
Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB5AVG5 |
| Resistance to Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 110...120 V AC at 50/60 H |
| Bezel Material | Dark Grey Plastic |
| Bulb Base | Integral LED |
| Cap/Operator Or Lens Color | Orange |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Current Consumption | 14 mA |
| Depth | 54 mm |
| Fixing Collar Material | Plastic |
| Height | 42 mm |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Mounting Diameter | 22 mm |
| Light Source | Universal LED |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shock Resistance | 50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Supply Voltage Limits | 100-132 V AC |

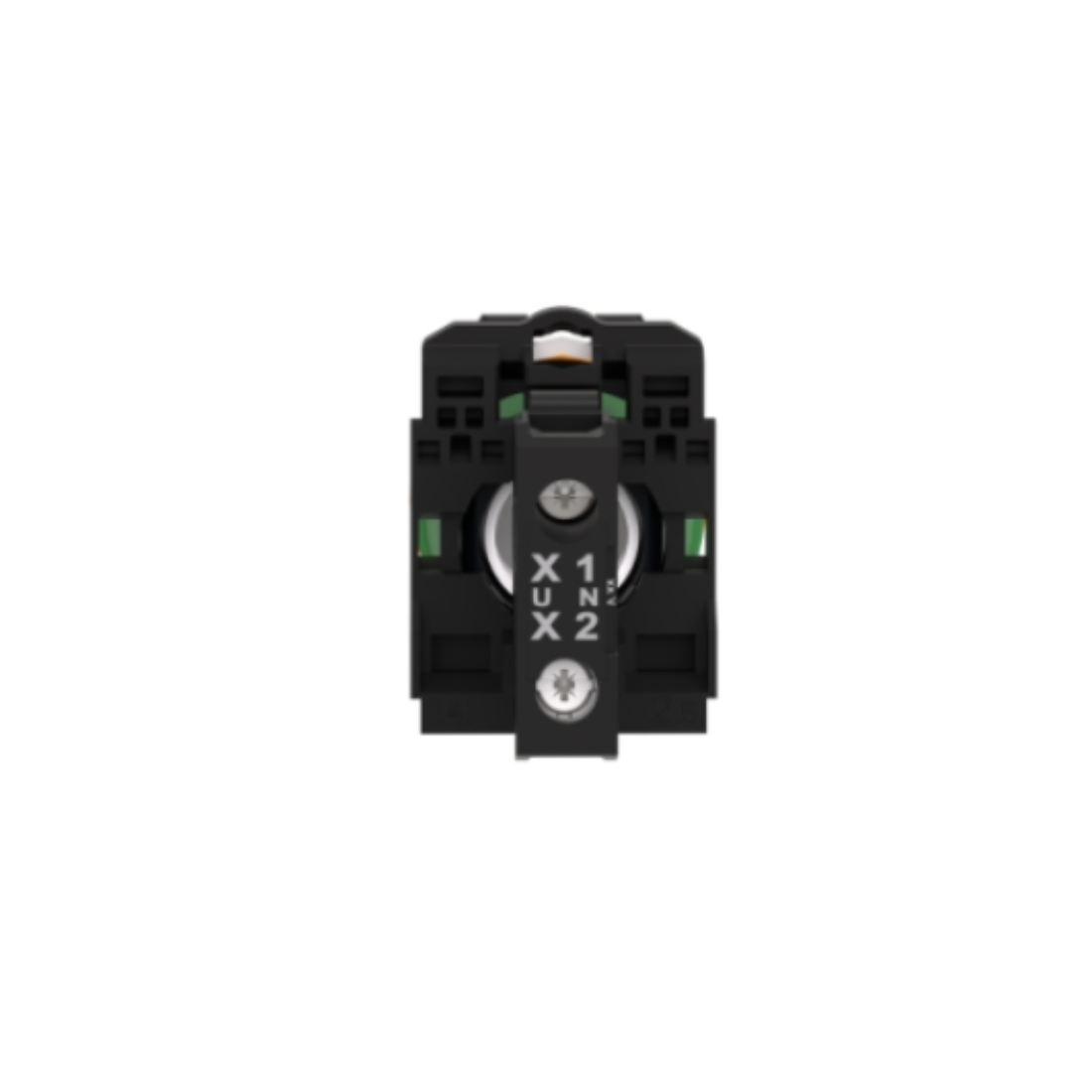

| Terminals Description ISO n°1 | (X1-X2)PL |
| Width | 30 mm |
| Resistance to Electromagnetic | 10 V/m conforming to IEC 61000-4-3 |
| Operator Additional Information | With plain lens |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | No |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST04 |
| Light Source Color | Orange |
| Resistance to Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-1 |
| Device Presentation | Complete product |
| Weight | 0.038 kg |
