Name: Schneider Electric Harmony XB5 Pilot Light Plastic Orange Ø22 Plain Lens for BA9s Bulb <= 250V XB5AV65
Brand: Schneider Electric
Price: 31.5 AED
Availability: InStock

AED 31.50

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Pilot Light

Description

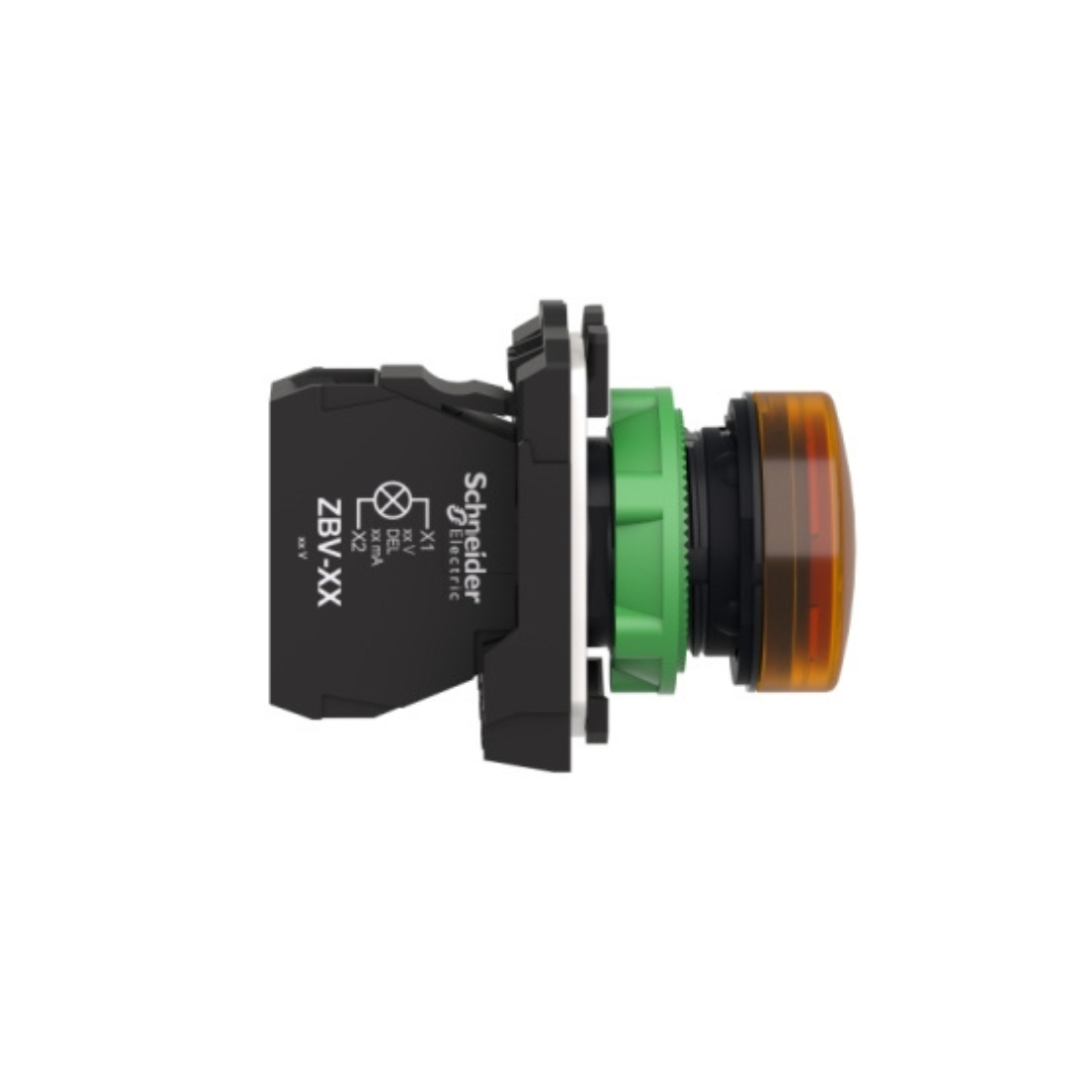

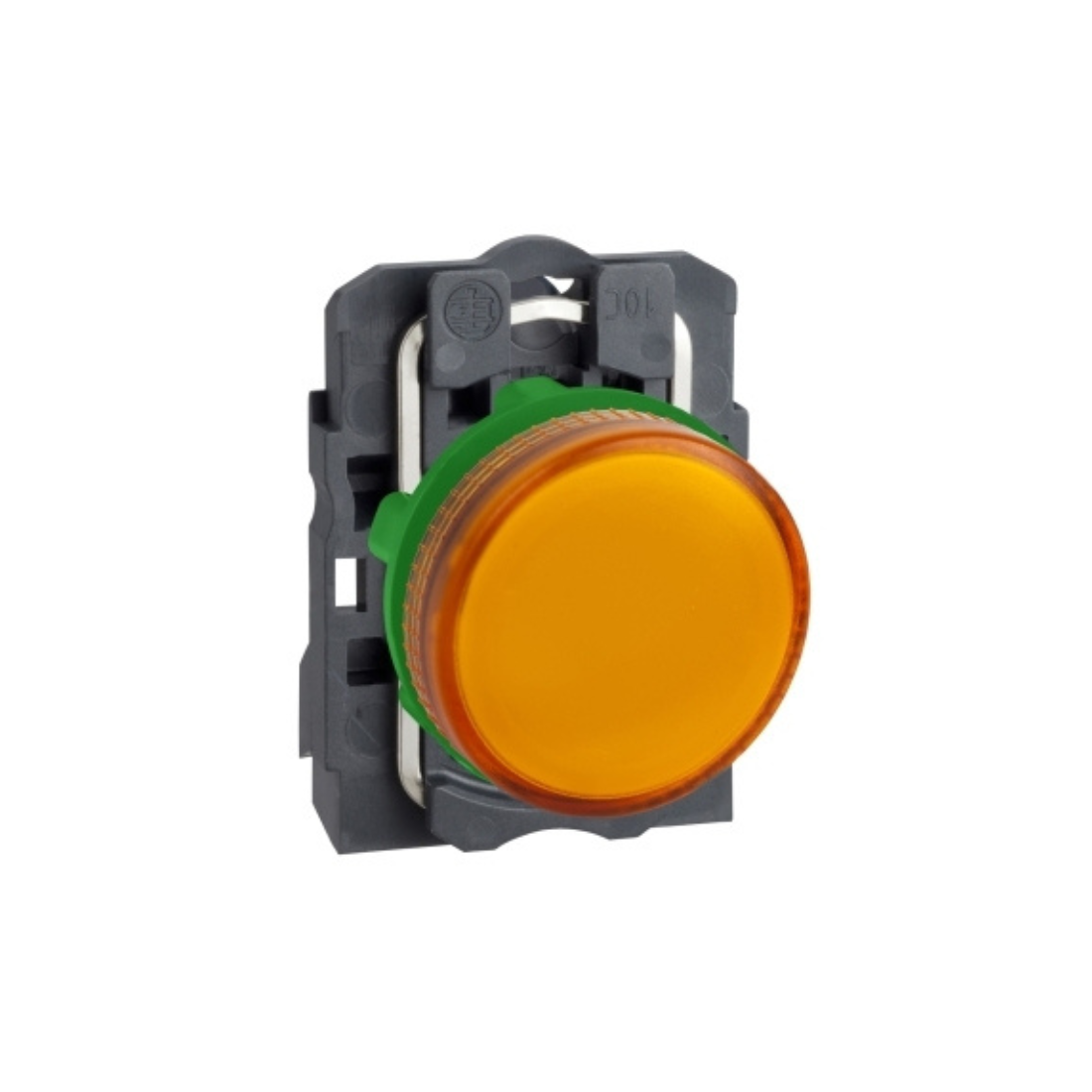

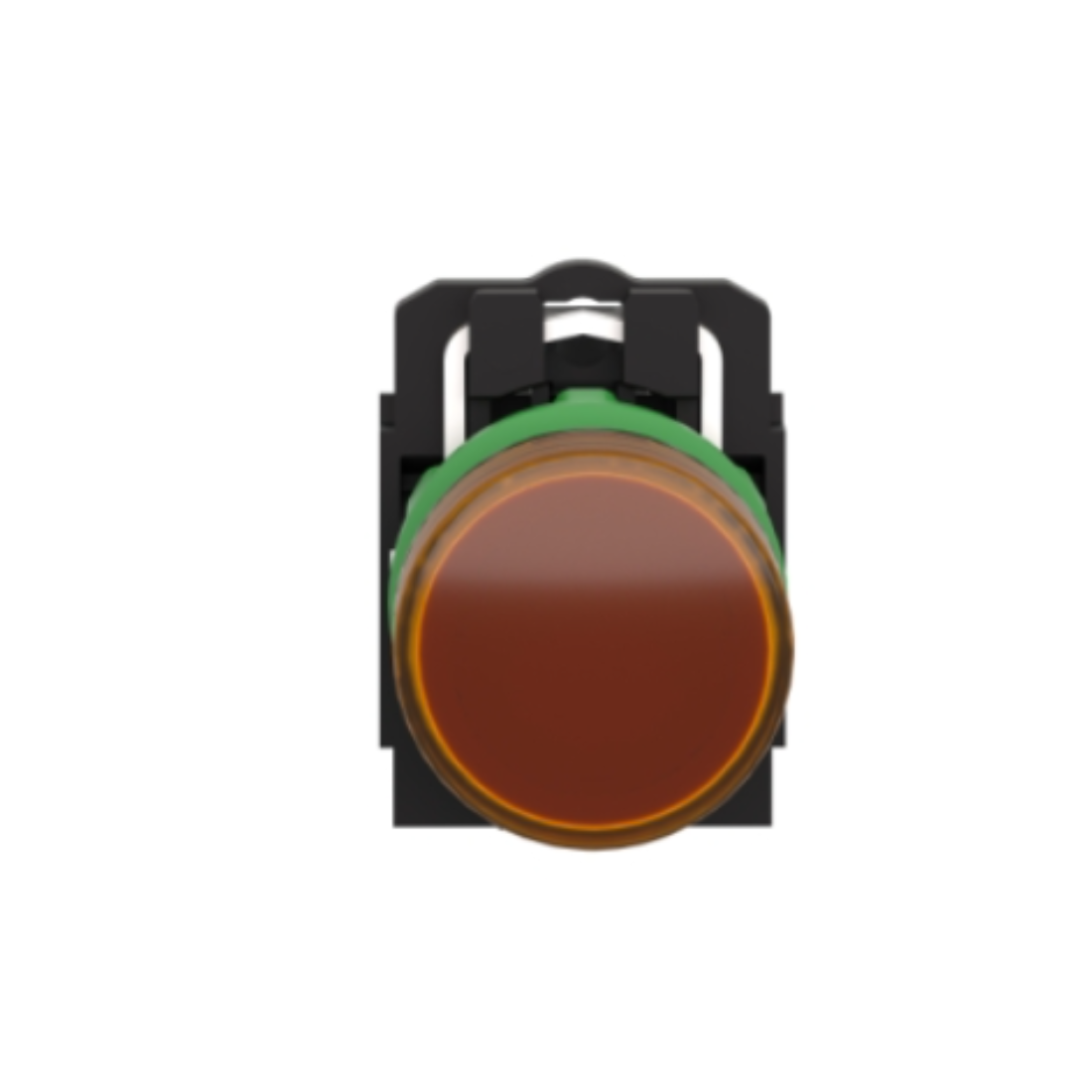

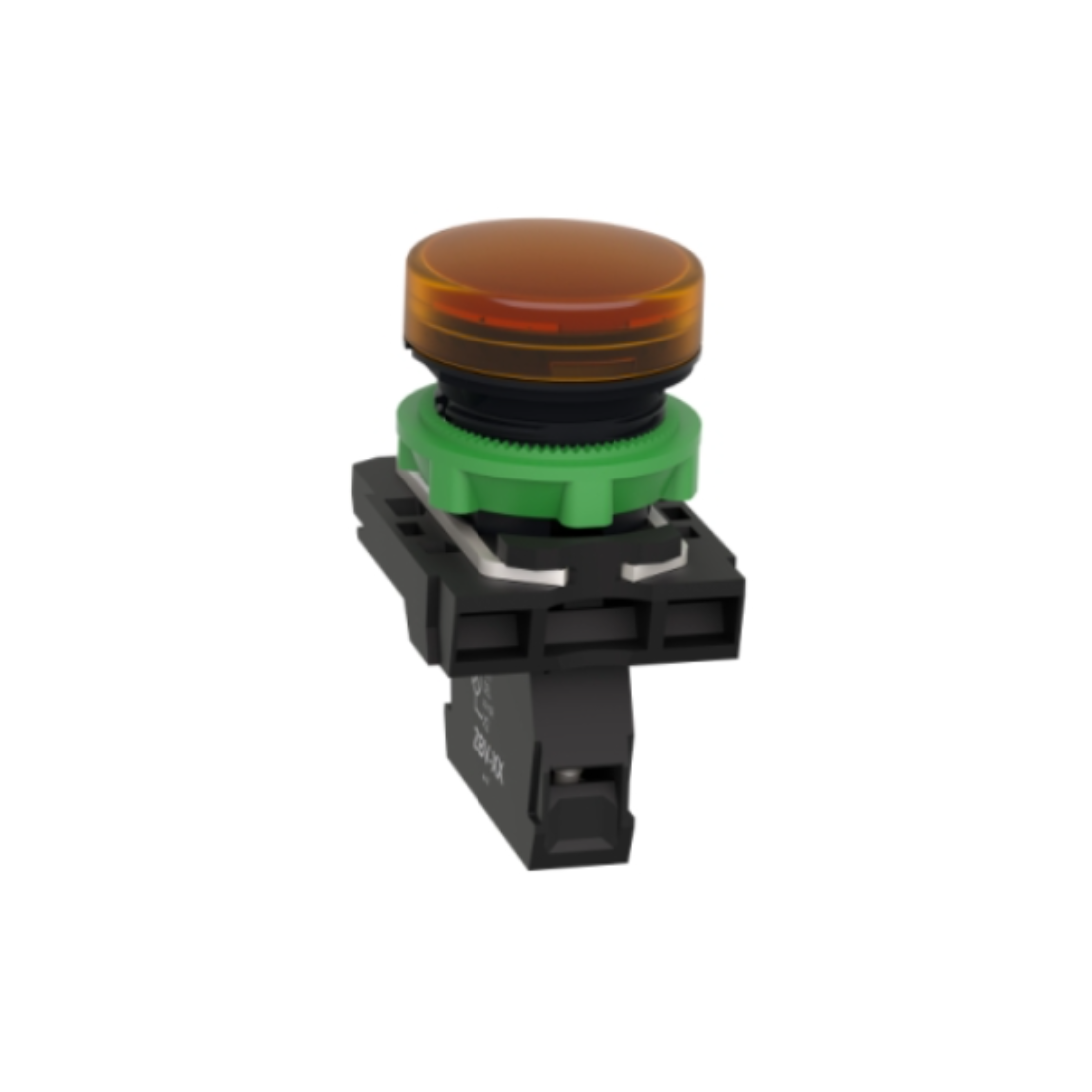

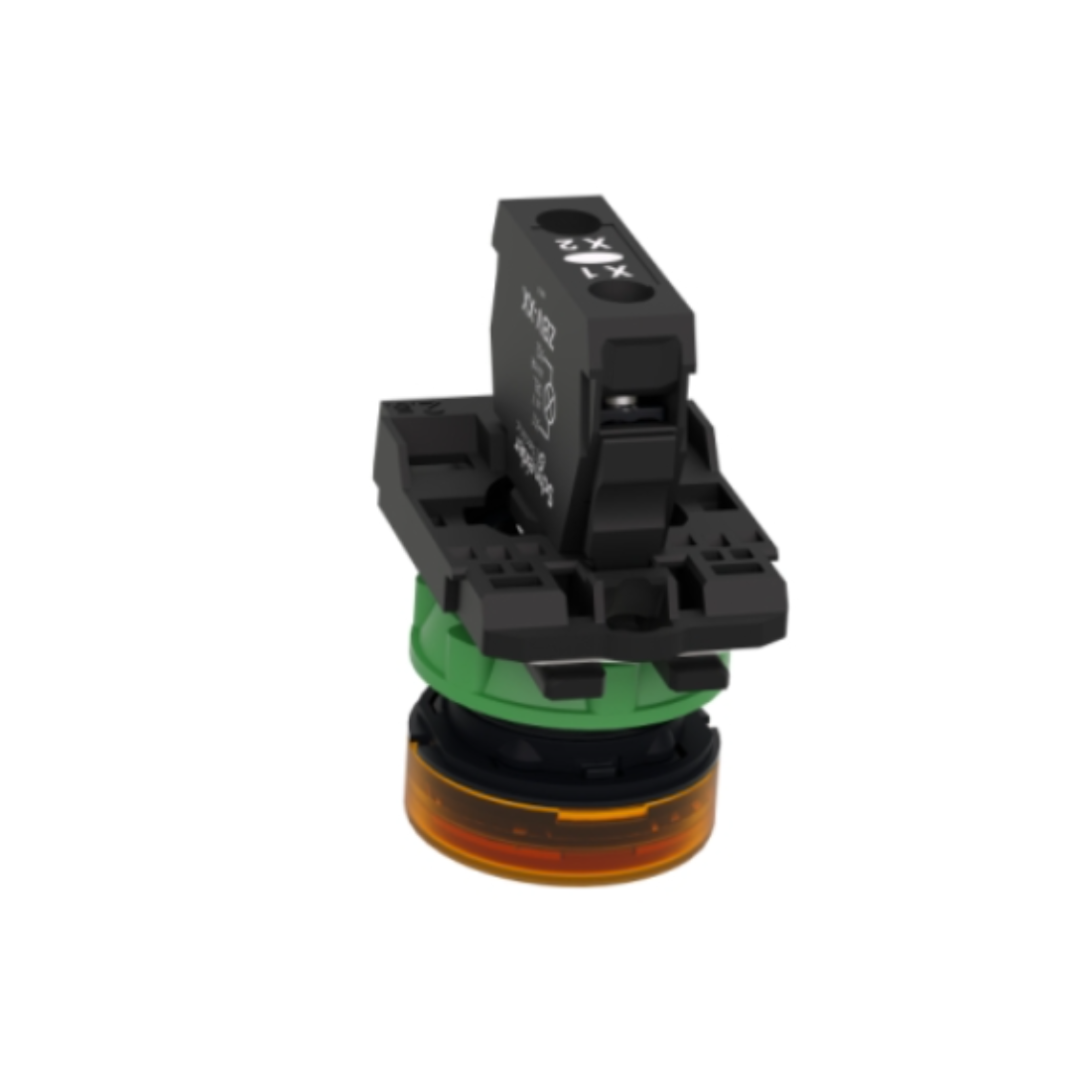

Schneider Electric XB5AV65 Orange Pilot Light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. This Harmony modular orange indicator light is designed to be maintenance-free and provide a bright indication of process and machine operation. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.

Thanks to a bright and long-lasting BA9s basic illumination, it is visually clearly visible from afar. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Maintenance-free and provide a bright indication of process and machine operation.
Supplied with 250V AC, uses BA9s base and has screw-clamp terminals.
Shock, dust, water and vibration proof

Specifications

Brand : Schneider Electric

Item Name : Pilot Light

Model : XB5AV65

Rated Insulation Voltage : 250 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 4 kV conforming to EN 60947-1

Rated Supply Voltage : <= 250 V

Bezel Material : Dark Grey Plastic

Bulb Base : BA 9s

Cap/Operator Or Lens Colour : Orange

Compatibility Code : XB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

Depth : 55 mm

Fixing Collar Material : Plastic

Height : 42 mm

IK Degree Of Protection : IK06 conforming to EN 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

Light Source : Bulb not included

Mounting Diameter : 22 mm

Overvoltage Category : Class II conforming to IEC 60536

Protective Treatment : TH

Certifications : UL listed, CSA

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

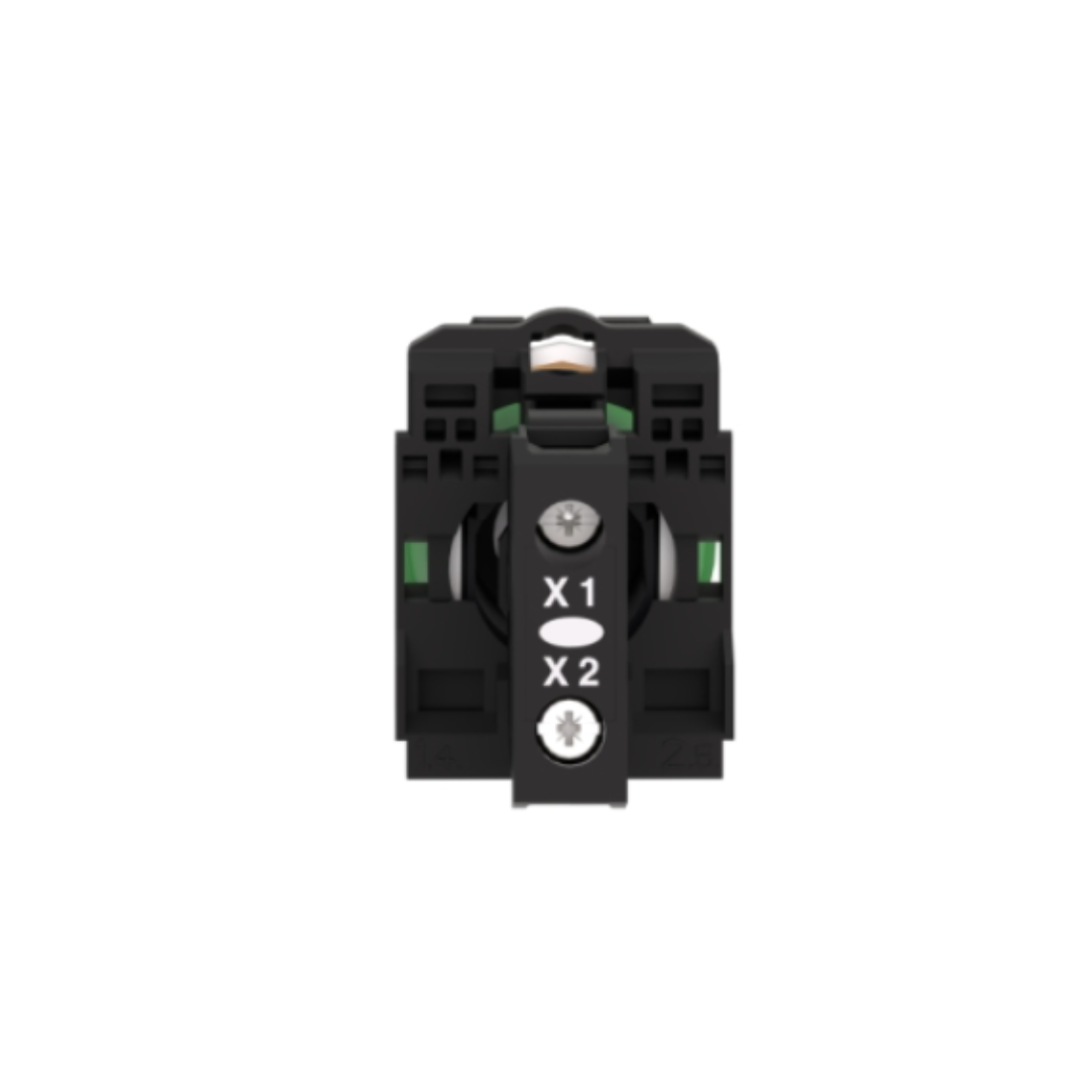

Terminals description ISO n°1 : (X1-X2)PL

Width : 30 mm

Operator Additional Information : With plain lens

Light Block Supply : Direct <2.4 W

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : 1

Head Type : Standard

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

GCR BRIDGE : XB5AVCUST02

Light Source Colour : Orange

Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-55 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : UL 508, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-1

Electrical Shock Protection Class : Class II conforming to IEC 60536

Device Presentation : Complete Product

Weight : 0.037 kg
