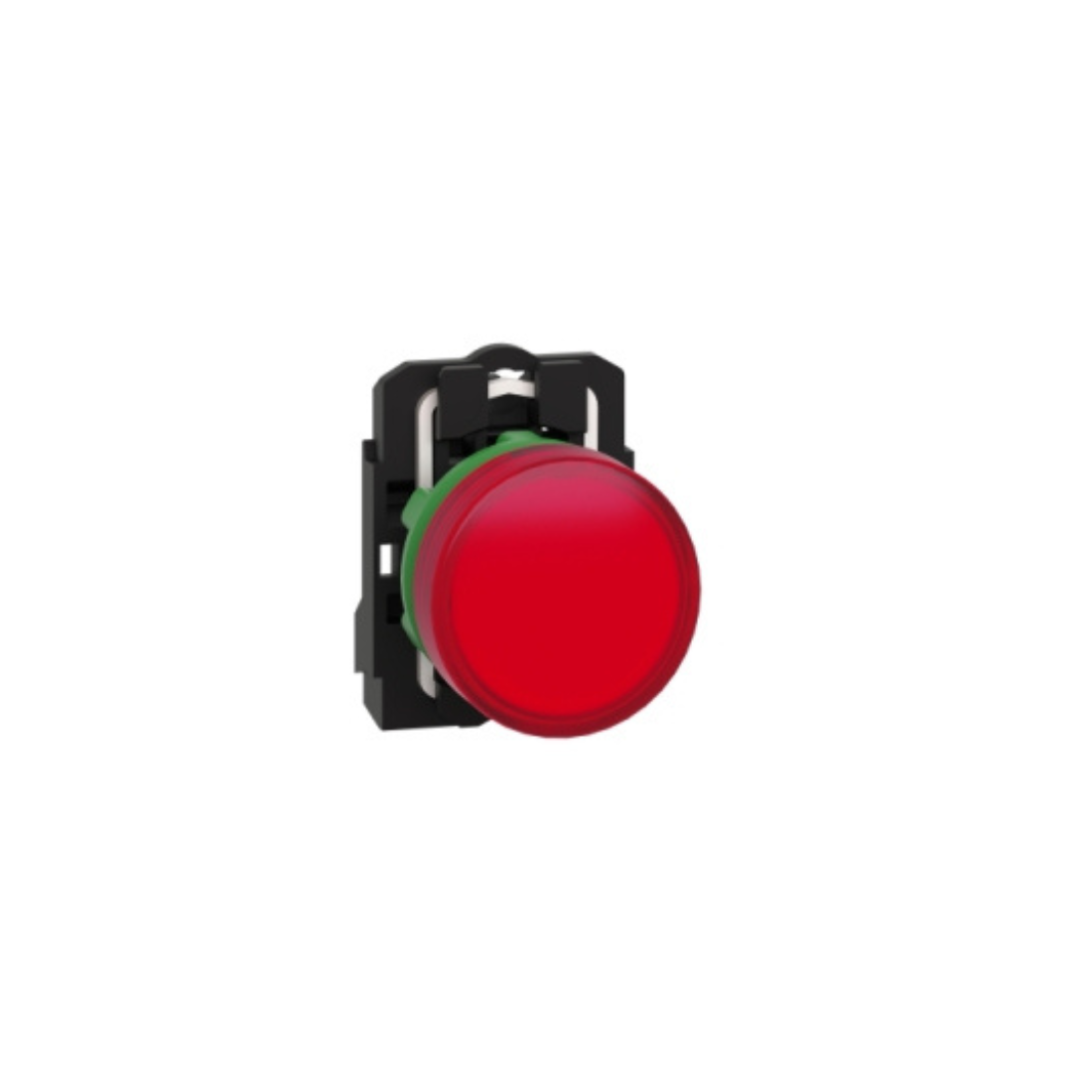

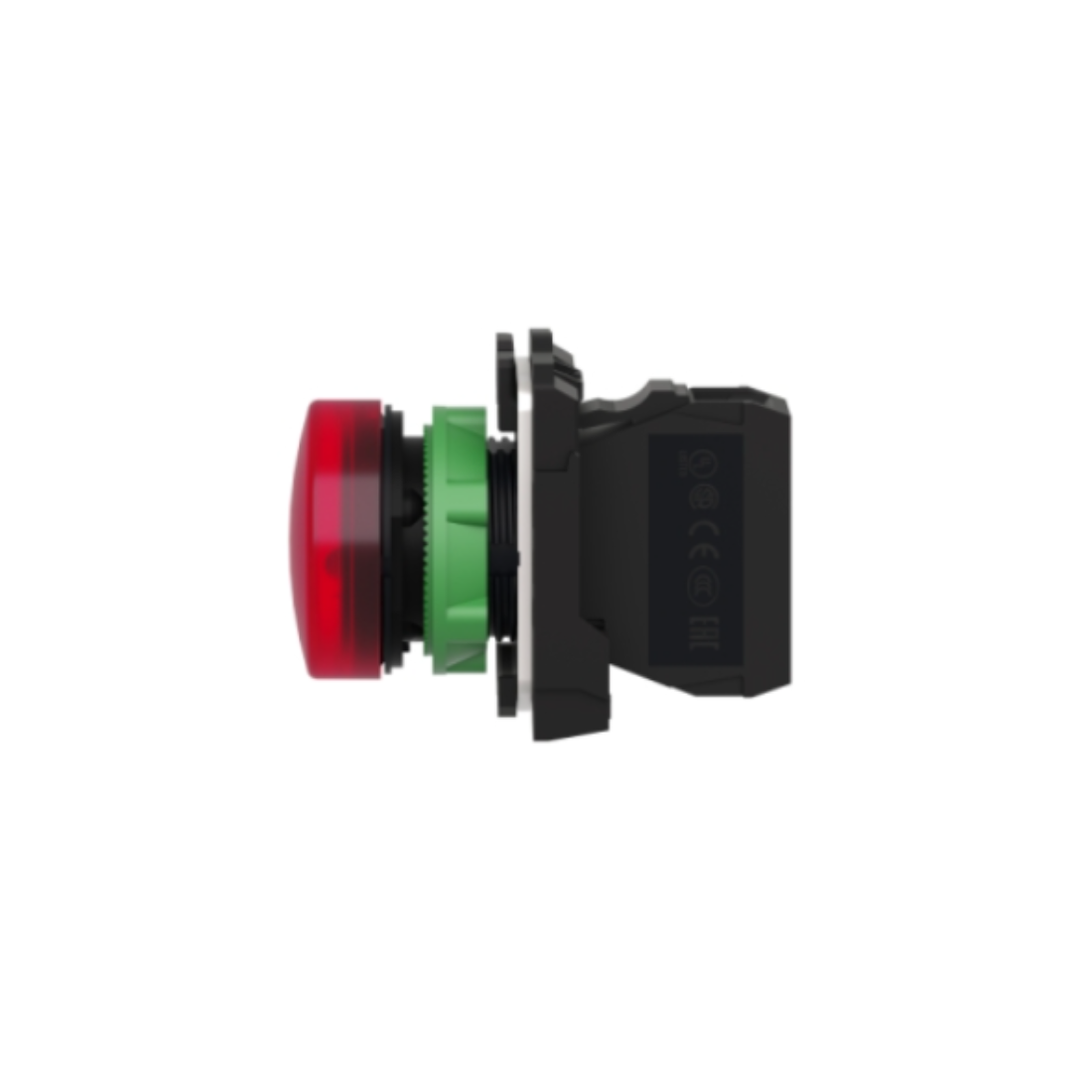

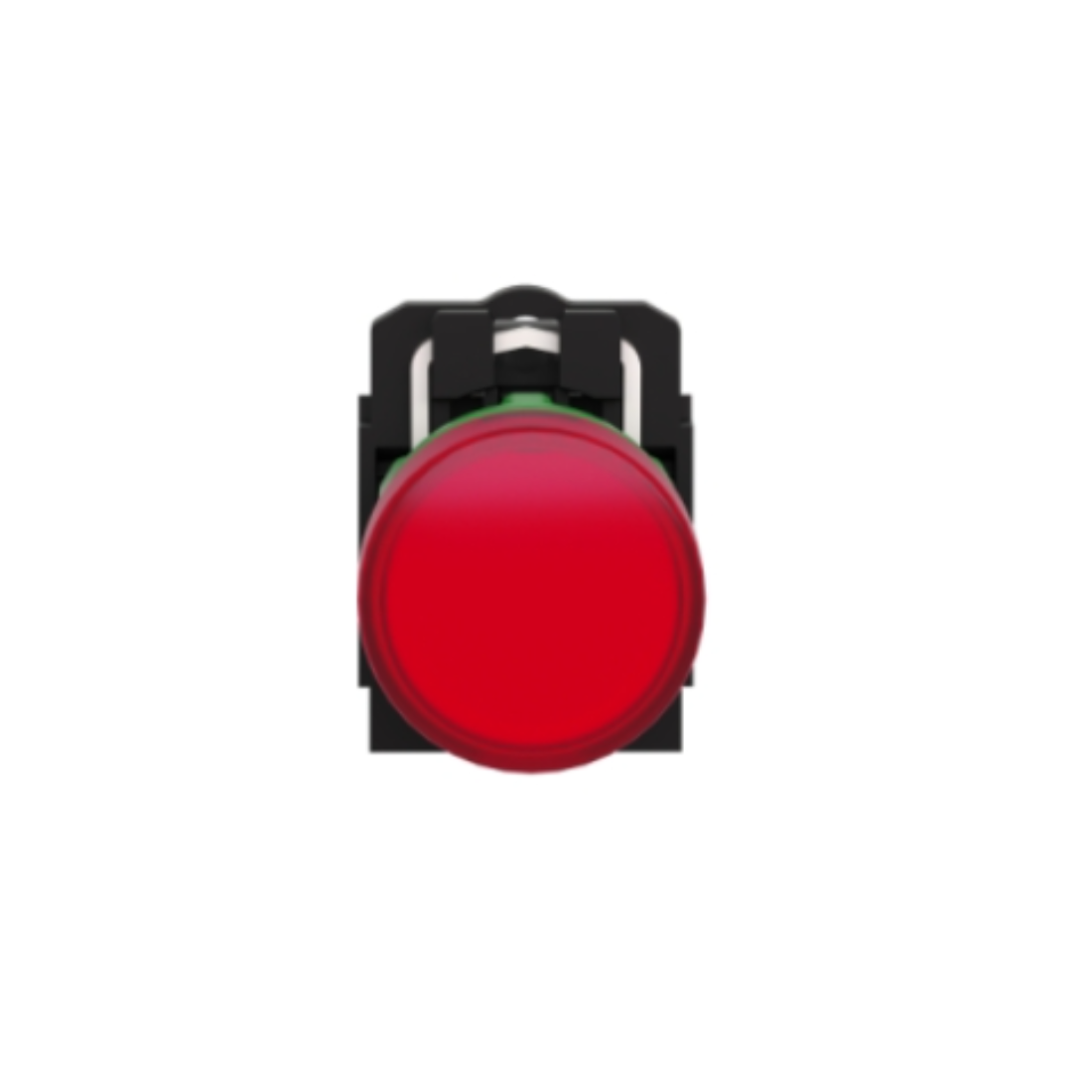

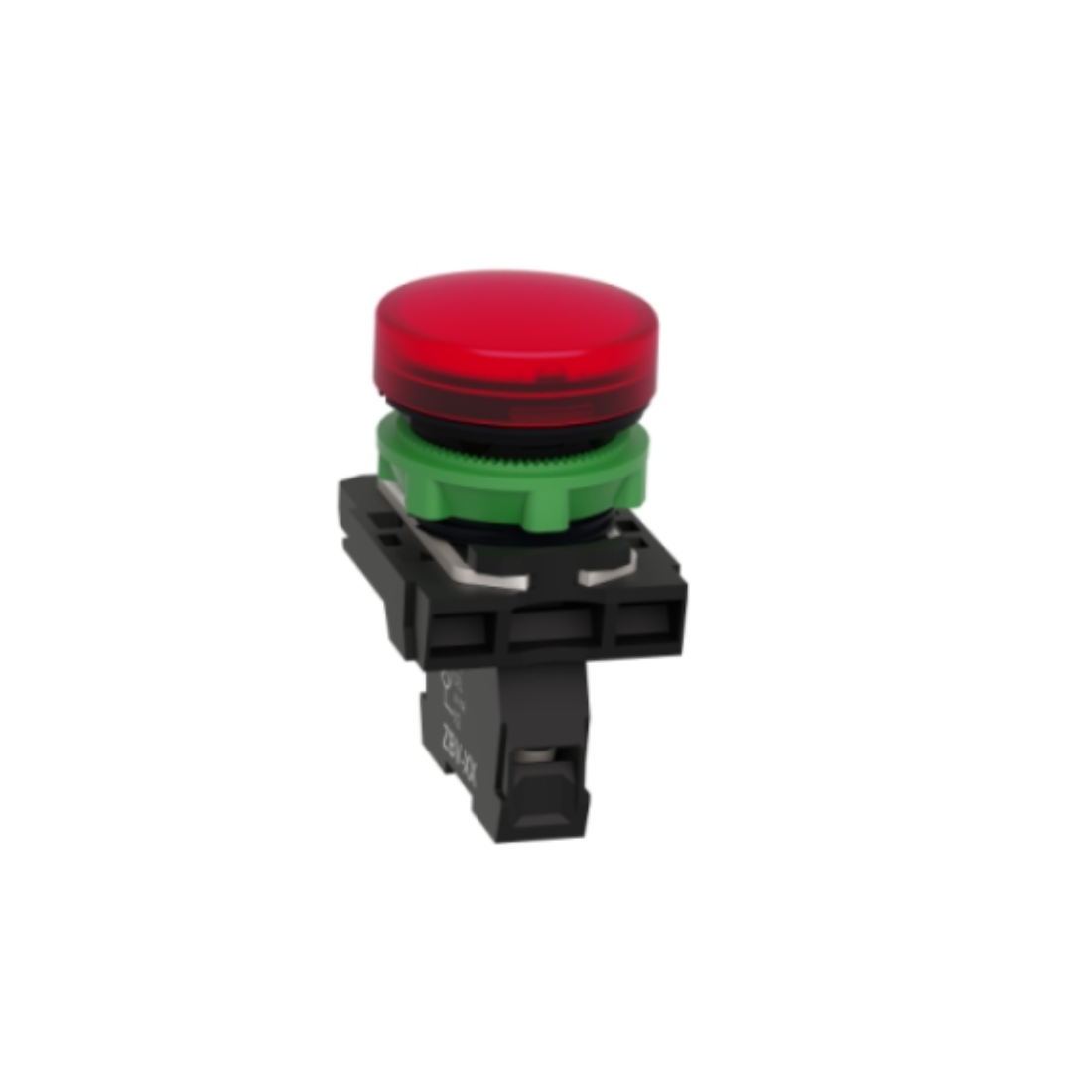

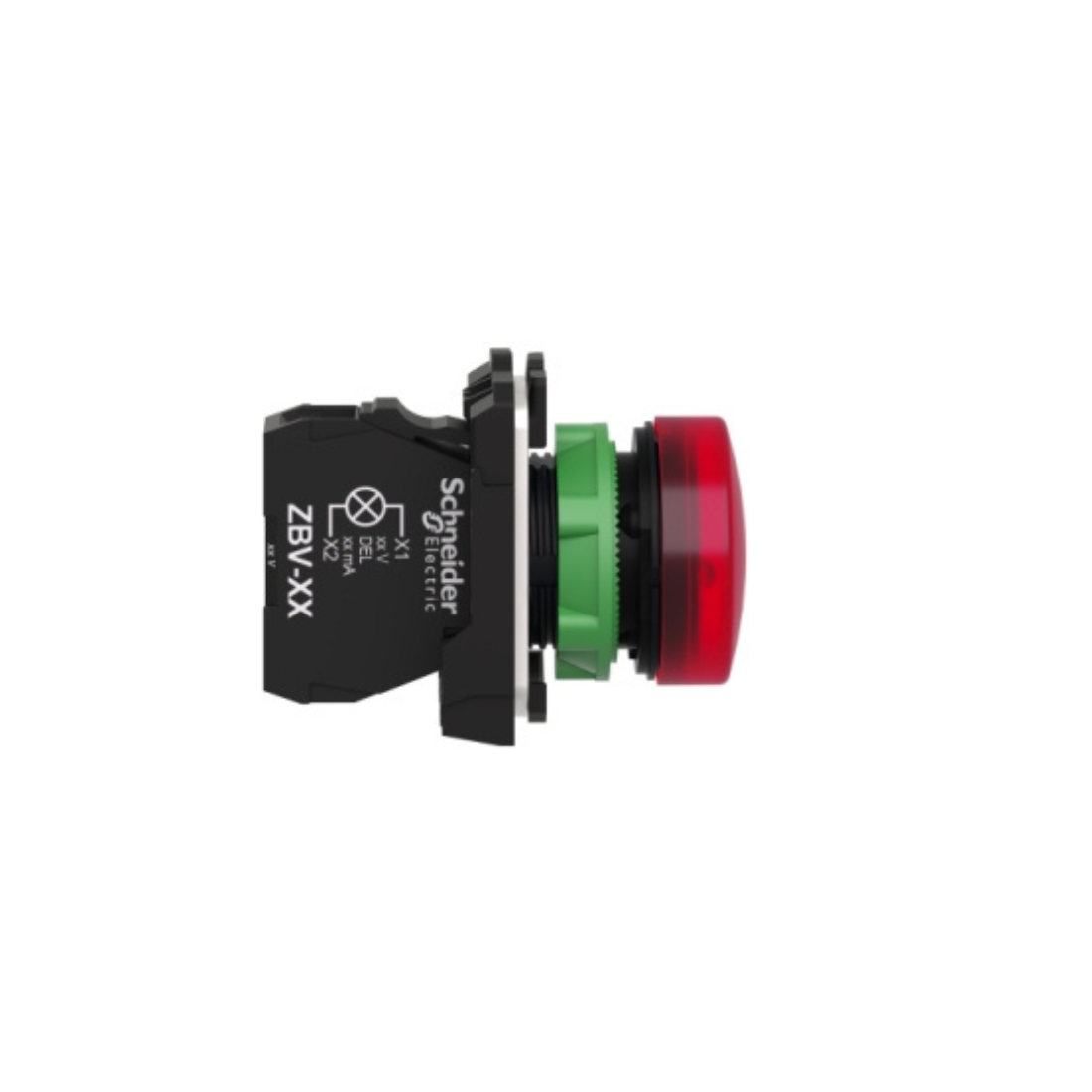

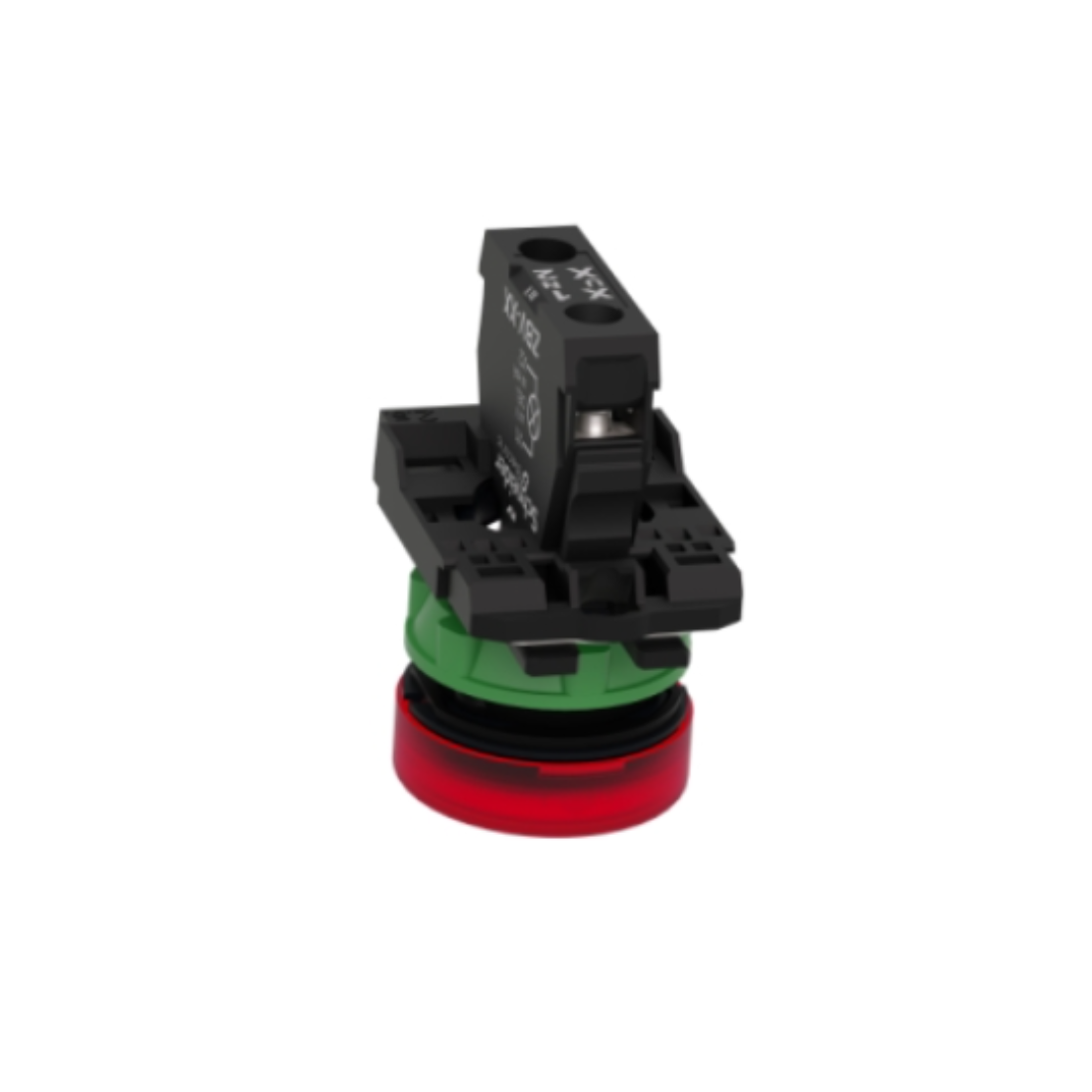

Schneider Electric Harmony XB5 Pilot Light Grey Plastic Red 22mm Universal LED Plain Lens 110-120V AC XB5AVG4
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Pilot Light
Description
Schneider Electric XB5AVG4 Red Pilot Light is supplied with 110V to 120V AC, uses an integral LED and screw clamp terminals. Easily installs into standard 22mm diameter cutouts and connects with simple screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Supplied with 110V to 120V AC, uses an integral LED.
- Bright and long lasting LED illumination
- Ideal for operation in harsh environments
| Brand | Schneider Electric |
| Item Name | Pilot Light |
| Model | XB5AVG4 |
| Resistance to Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 4 kV conforming to EN 60947-1 |
| Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Bezel Material | Dark grey plastic |
| Bulb Base | Integral LED |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Current Consumption | 14 mA |
| Depth | 54 mm |
| Fixing Collar Material | Plastic |
| Height | 47 mm |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653 |
| Mounting Diameter | 22 mm |
| Certifications | UL listed, CSA |
| Light Source | Universal LED |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Signalling Type | Steady |
| Supply Voltage Limits | 100-132 V AC |

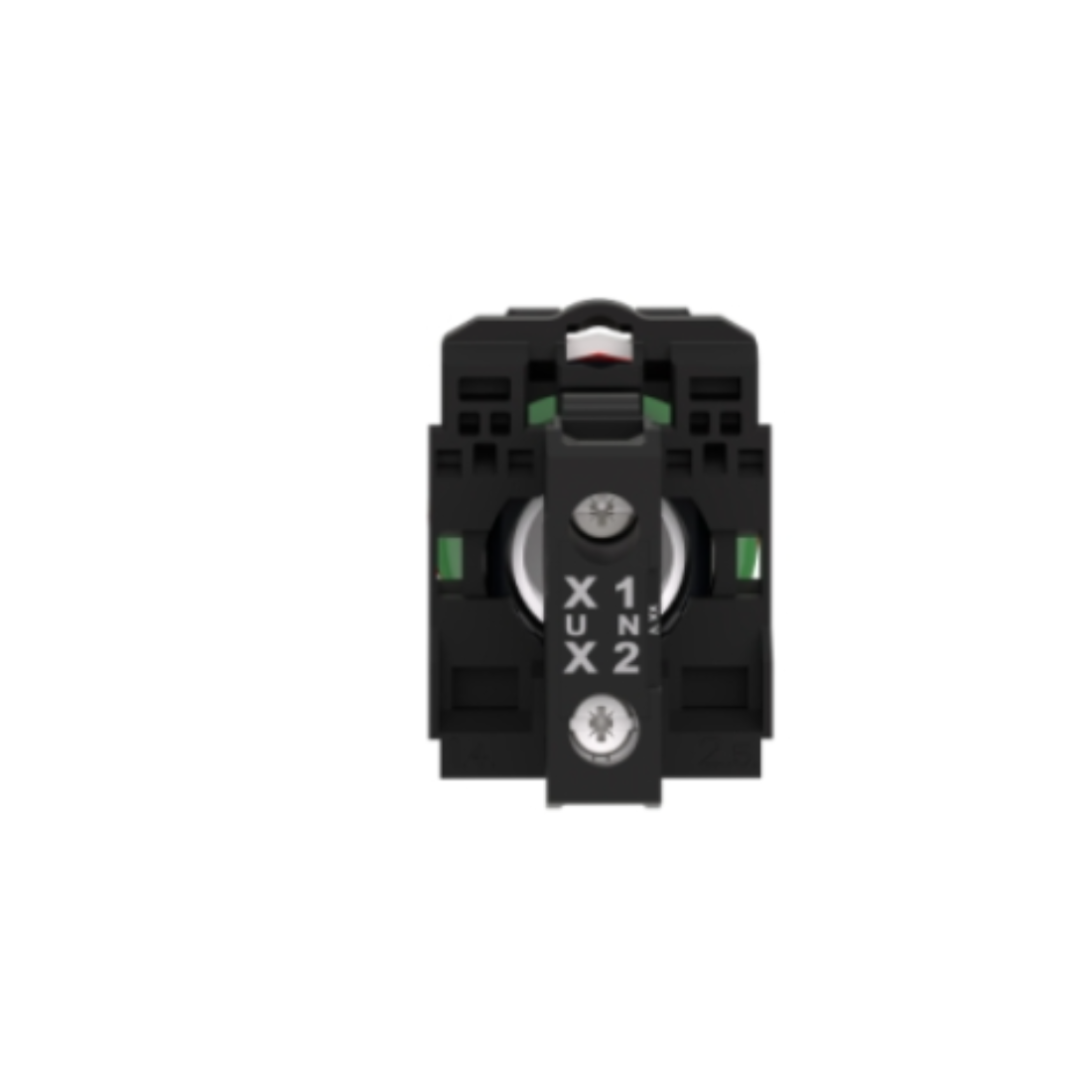

| Terminals Description ISO n°1 | (X1-X2)PL |
| Width | 30 mm |
| Resistance to Electromagnetic | 10 V/m conforming to IEC 61000-4-3 |
| Operator Additional Information | With plain lens |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Customizable | No |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | XB5AVCUST04 |
| Light Source Color | Red |
| Resistance to Fast Transients | 1 kV conforming to IEC 61000-4-4 |
| Electromagnetic Compatibility | Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-5-4, JIS C8201-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Device Presentation | Complete product |
| Weight | 0.038 kg |
