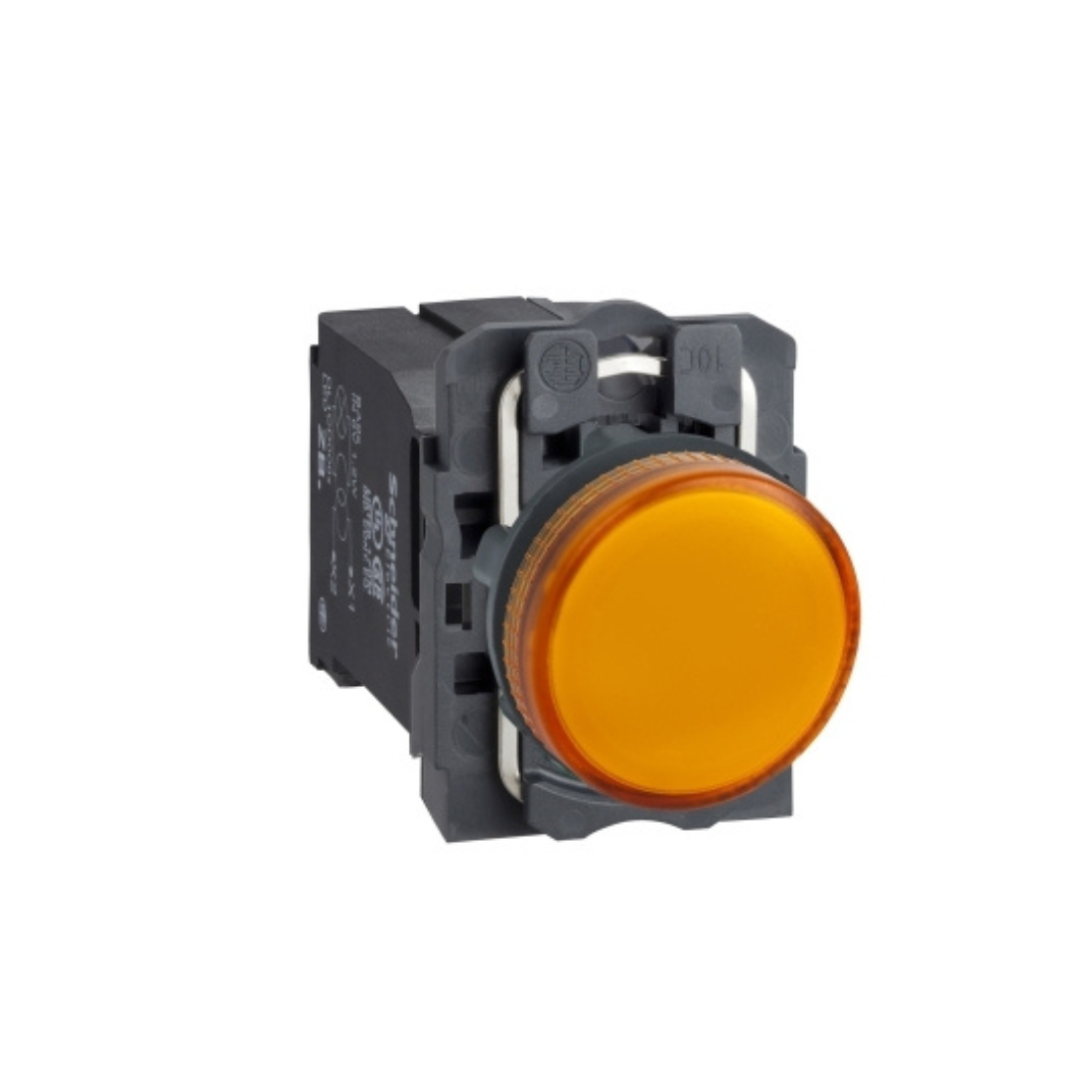

Schneider Electric Harmony XB5 Orange Complete Pilot Light Ø22 Plain Lens with BA9s Bulb 220-240V XB5AV45
Schneider Electric Harmony XB5 Orange Complete Pilot Light Ø22 Plain Lens with BA9s Bulb 220-240V XB5AV45

Schneider Electric Harmony XB5 Orange Complete Pilot Light Ø22 Plain Lens with BA9s Bulb 220-240V XB5AV45

Regular price AED 80.85
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Complete Pilot Light
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

    Schneider Electric XB5AV45 Orange Complete Pilot Light is supplied with 220V to 240V AC, uses an integral transformer with BA9s base and has screw-clamp terminals. This Harmony modular orange indicator light is designed to be maintenance-free and provide a bright indication of process and machine operation. It can be easily installed into standard 22mm diameter cutouts and connected with simple screw terminal connections.

    Schneider Electric XB5AV45 Orange Complete Pilot Light is clearly visible from a distance thanks to a bright, long-lasting BA9s base lighting and transformer. Thanks to IP66/IP67/IP69/IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

    Features
    • Provide a bright indication of process and machine operation
    • It has a metal bezel
    • Connected with simple screw terminal connections.
    • It is shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Pilot Light

    Model : XB5AV45

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

    Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1

    Rated Supply Voltage : 230...240 V

    Bezel Material : Dark Grey Plastic

    Bulb Base : BA 9s

    CAD Overall Depth : 101 mm

    CAD Overall Height : 45 mm

    CAD Overall Width : 40 mm

    Cap/Operator Or Lens Colour : Orange

    Compatibility Code : XB5

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Depth : 55 mm

    Height : 42 mm

    Fixing Collar Material : Plastic

    IK Degree Of Protection : IK05 conforming to IEC 50102

    IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69 conforming to IEC 60529, IP69K conforming to ISO 20653

    Light Source : Incandescent

    Overvoltage Category : Class II conforming to IEC 60536

    Mounting Diameter : 22 mm

    Protective Treatment : TH

    Certifications : CSA, UL listed

    Range Of Product : Harmony XB5

    Sale Per Indivisible Quantity : 1

    Service Life : 100000 h at rated voltage and 25 °C

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Terminals Description ISO n°1 : (X1-X2)PL

    Width : 30 mm

    Signalling Type : Steady

    Operator Additional Information : With plain lens

    Light Block Supply Via Transformer : 1.2 VA 6 V

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Customizable : 1

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    GCR BRIDGE : XB5AVCUST01

    Surge Withstand : 1 kV conforming to IEC 61000-4-5

    Light Source Colour : Orange

    Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

    Electromagnetic Emission : Class B conforming to IEC 55011

    Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-55 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : CSA C22.2 No 14, UL 508, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1

    Electrical Shock Protection Class : Class II conforming to IEC 60536

    Device Presentation : Complete Product

    Weight : 0.11 kg
