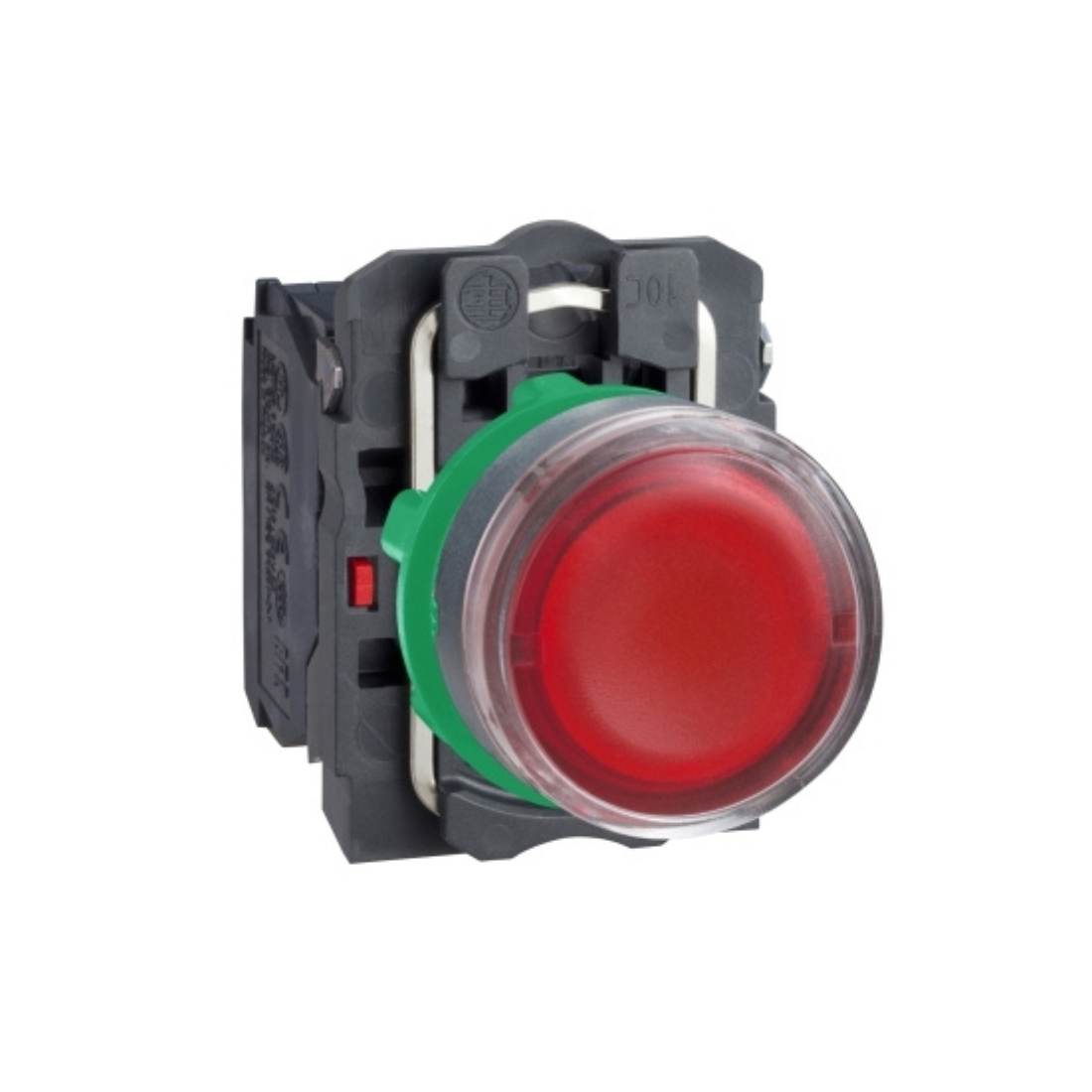

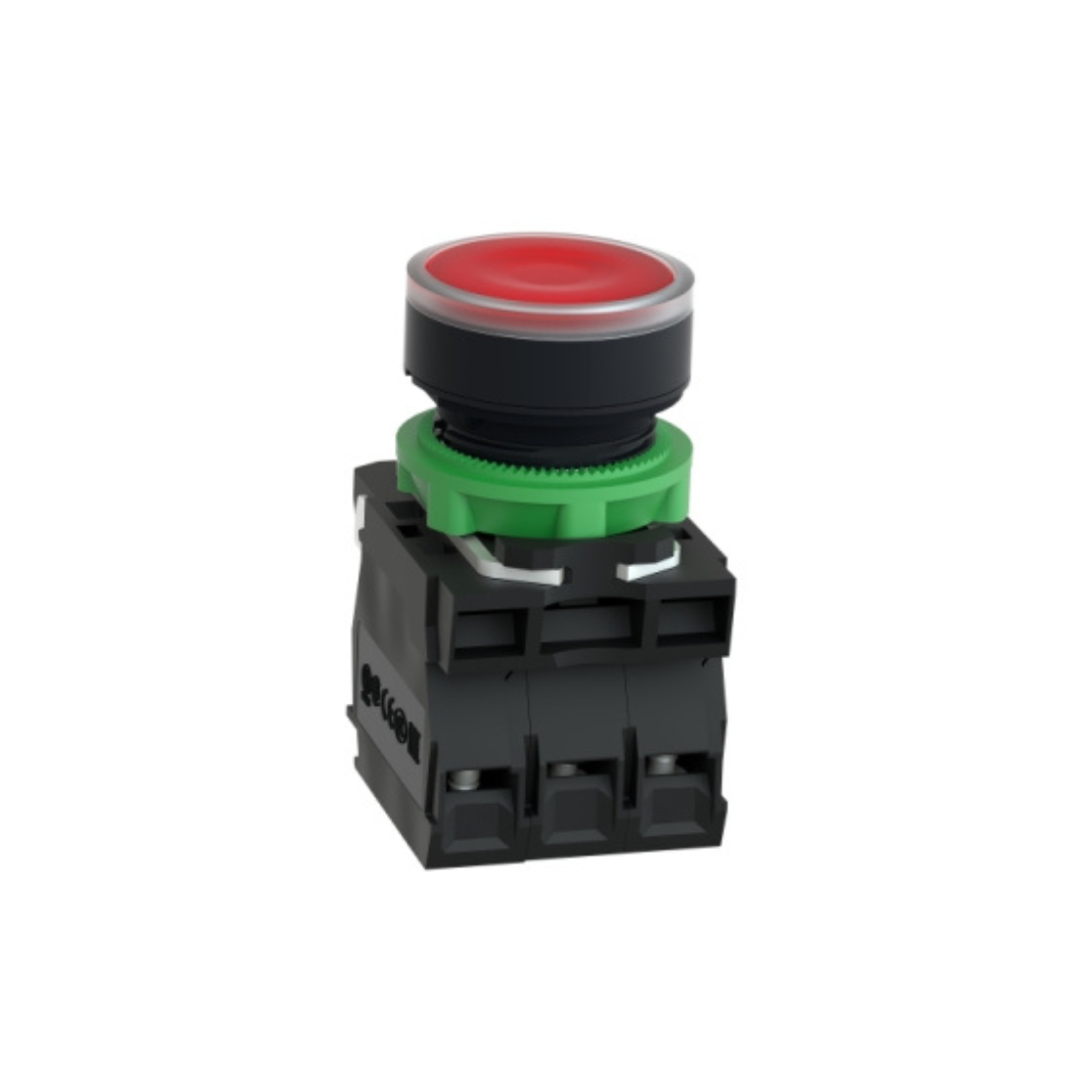

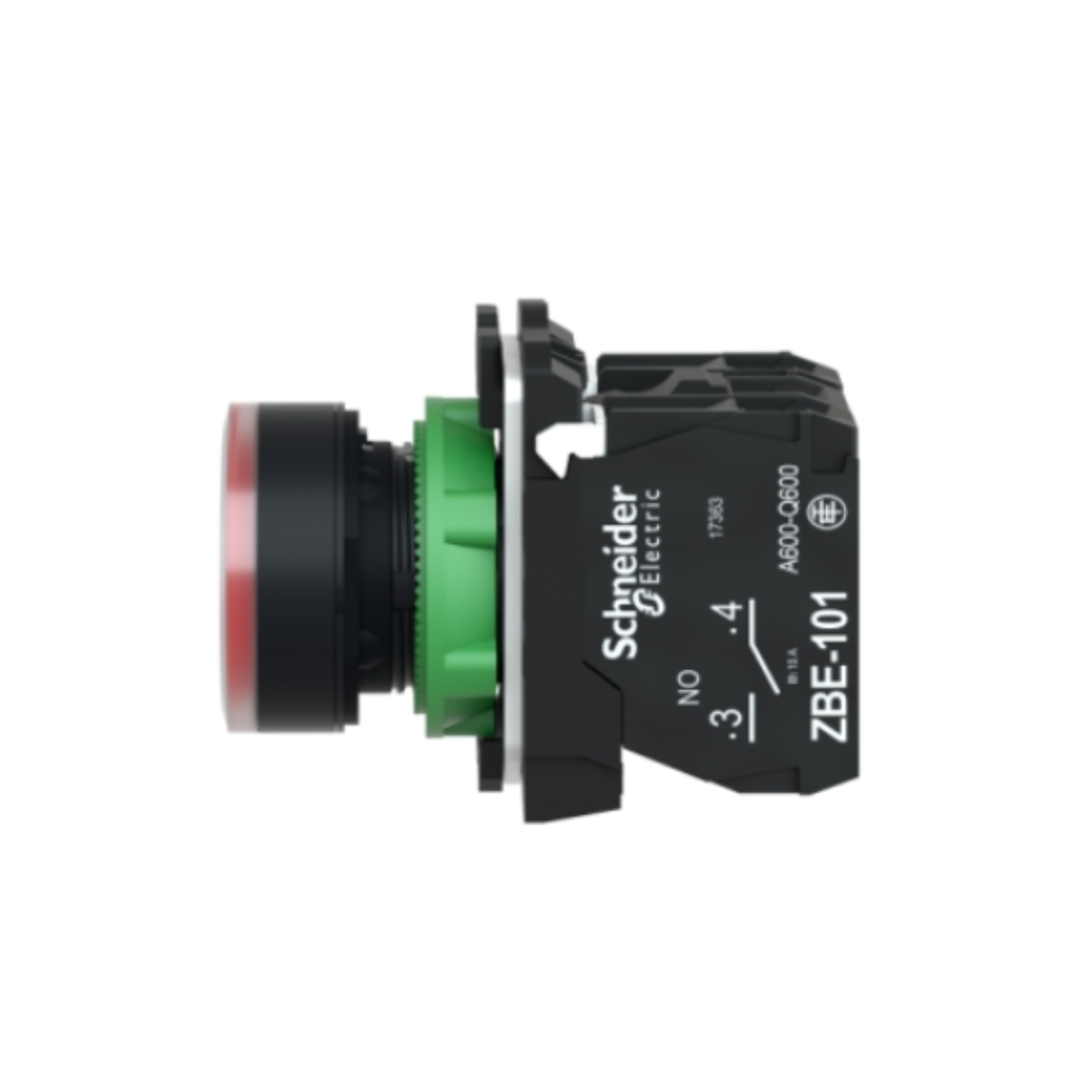

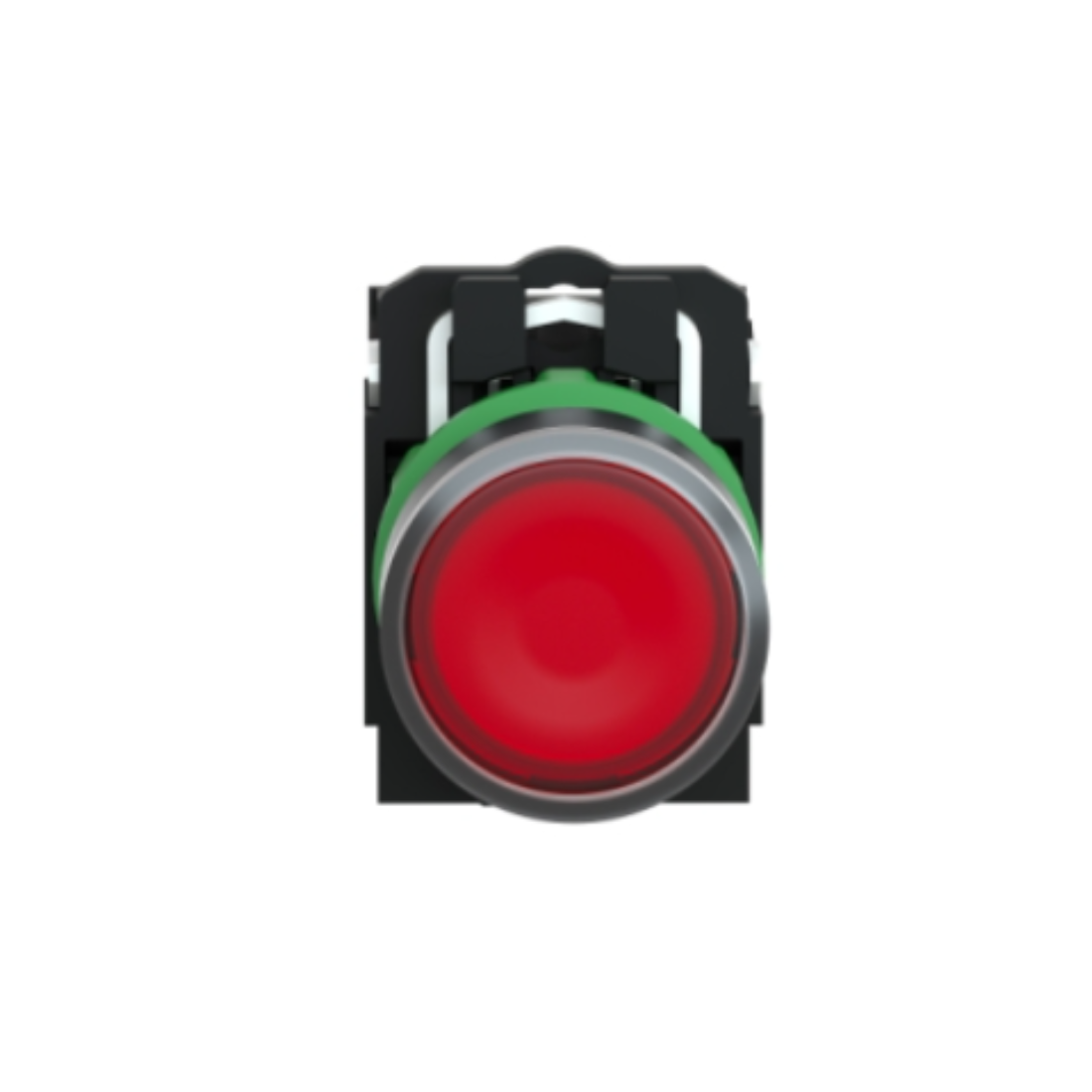

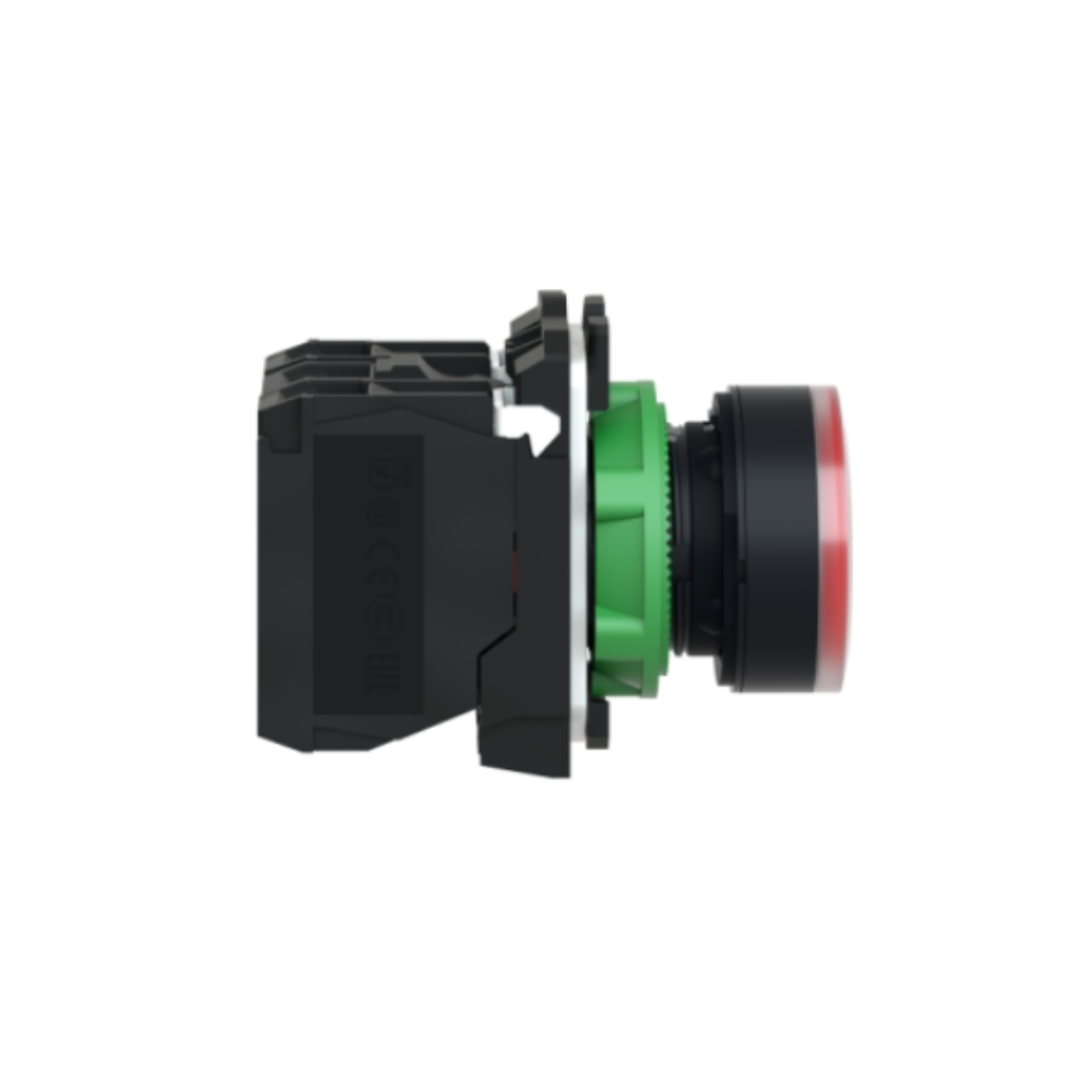

    Schneider Electric XB5AW3465 Red Flush Illuminated Push Button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC and uses screw-clamp terminals. It provides a visual and ergonomic interface to control your machines. It can be easily installed into standard 22mm diameter cutouts and connected to control circuits using classic screw terminal connections.

    Schneider Electric XB5AW3465 Red Flush Illuminated Push Button is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

    Features
    • Quick and easy assembly and disassembly
    • Robustness to withstand harsh environments
    • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • Excellent mechanical connection with operator head
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Illuminated Push-Button

    Model : XB5AW3465

    Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

    Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

    Rated Supply Voltage : <= 250 V

    Bezel Material : Dark Grey Plastic

    Bulb Base : BA9s

    Cap/Operator Or Lens Color : Red

    Compatibility Code : XB5

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Contact Operation : Slow-break

    Contacts Material : Silver alloy (Ag/Ni)

    Current Consumption : 14 mA

    Depth : 57 mm

    Electrical Reliability : λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

    IK Degree of Protection : IK05 conforming to IEC 50102

    IP Degree of Protection : IP66 conforming to IEC 60529, IP69, IP69K, IP67

    Light Source : Bulb not included

    Fixing Collar Material : Plastic

    Height : 42 mm

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : White flush

    Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

    Certifications : BV, UL listed, DNV, LROS (Lloyds register of shipping), GL, CSA

    Operator Profile : Red flush, unmarked

    Overvoltage Category : Class II conforming to IEC 60536

    Protective Treatment : TH

    Range Of Product : Harmony XB5

    Sale Per Indivisible Quantity : 1

    Service Life : 100000 h at rated voltage and 25 °C

    Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    Signalling Type : Steady

    Supply Voltage Limits : 195-264 V AC

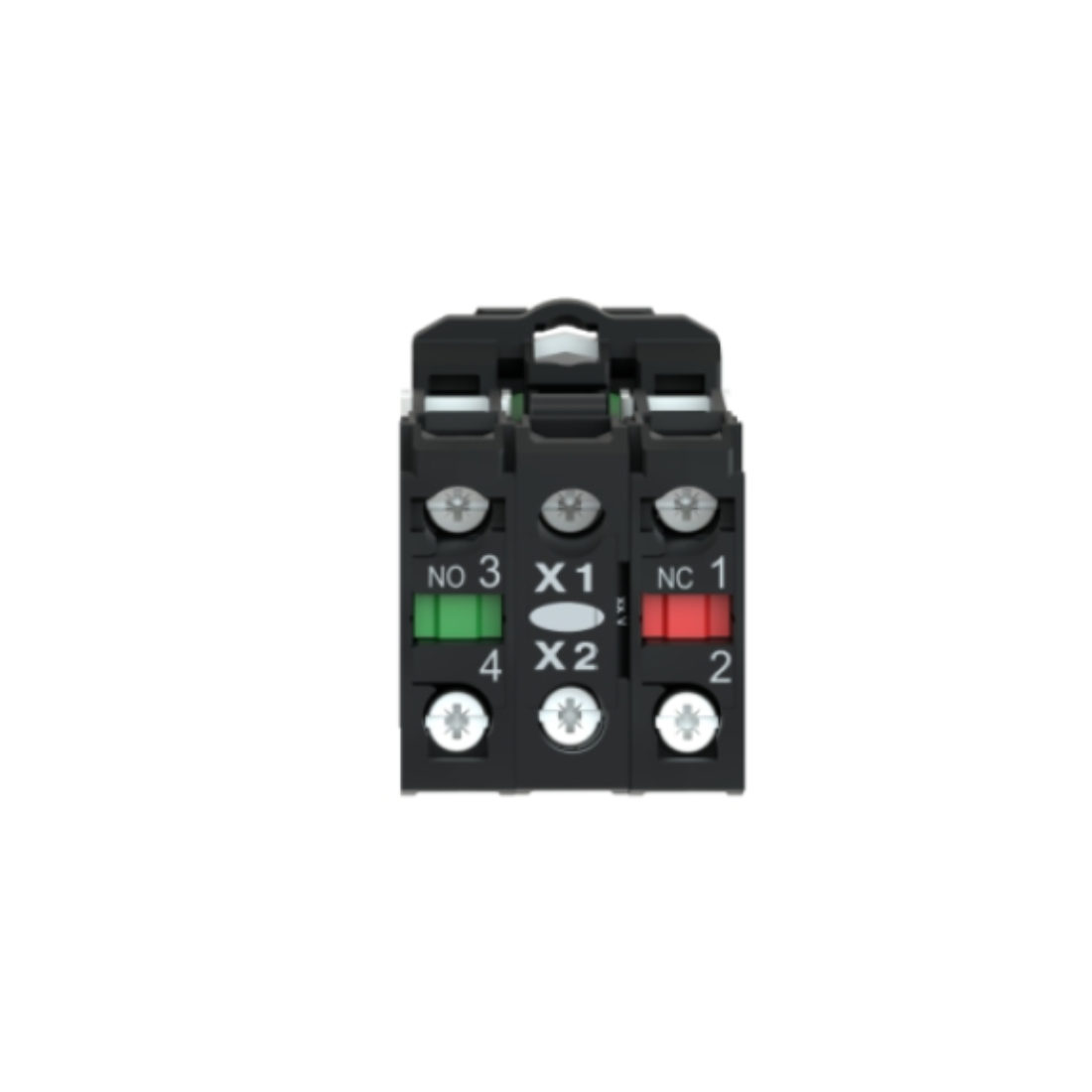

    Terminals Description ISO n°1 : (13-14)NO, (21-22)NC

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Width : 30 mm

    Contacts Type And Composition : 1 NO + 1 NC

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

    Operator Additional Information : With plain lens

    Customizable : 0

    Light Block Supply : Direct <2.4 W

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Contacts Usage : Standard contacts

    GCR BRIDGE : XB4BWCUST05

    Surge Withstand : 1 kV conforming to IEC 61000-4-5

    Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

    Electromagnetic Emission : Class B conforming to IEC 55011

    Operating Force : 3.5 N NC changing electrical state, 3.8 N

    Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-55 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508, JIS C8201-1

    Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

    Device Presentation : Complete product

    Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    Electrical Shock Protection Class : Class I conforming to IEC 60536

    Weight : 0.057 kg
