Schneider Electric Harmony XB5 Illuminated Push Button Plastic Flush Blue Ø22 Spring Return 230-240V AC 1 NO + 1 NC XB5AW36M5

Regular price AED 57.51
(Price Inclusive of VAT)
Marketplace
Delivery by 2-3 Days
Cash On Delivery
7 Days Returnable
15+ Years Of Trust
15+ Branches
Quantity
Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.
Brand:Schneider Electric
Collections:Electricals
Type:Illuminated Push Button
Description
Description
Description Specifications Reviews
  • Description
  • Specifications
  • Reviews

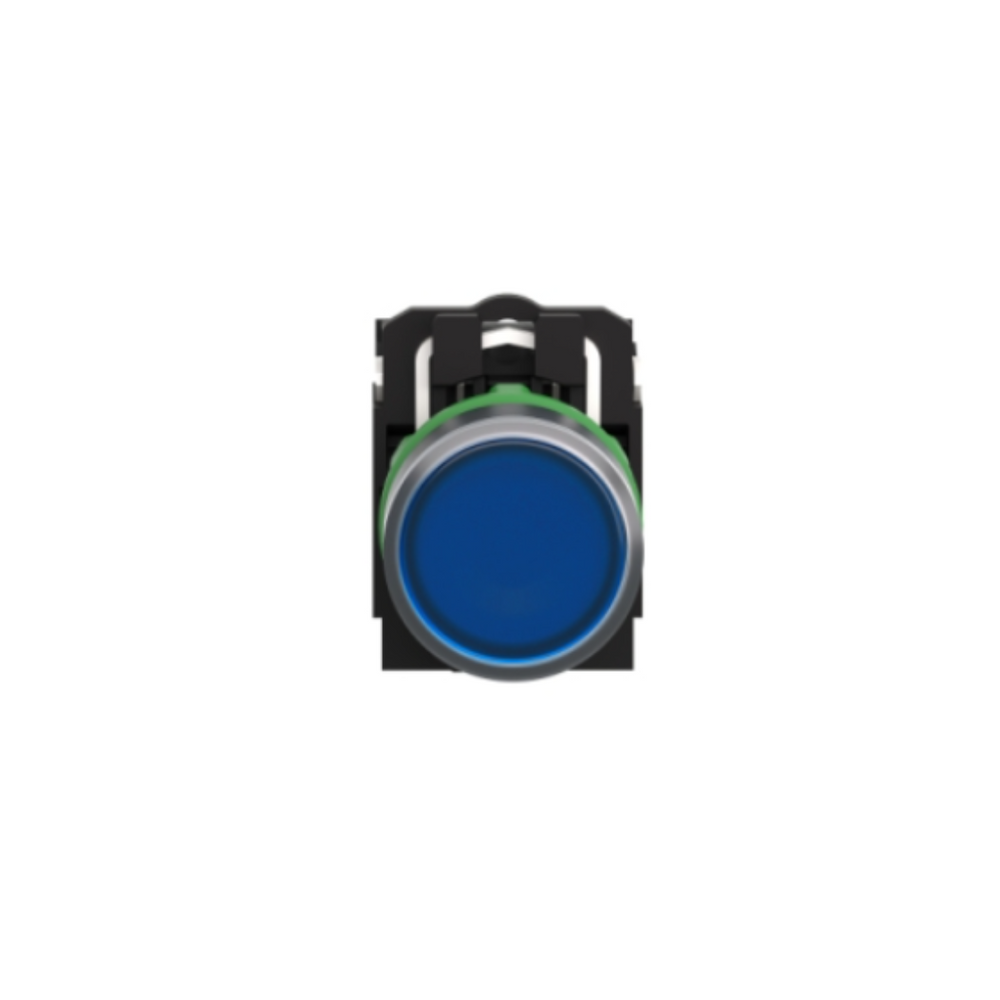

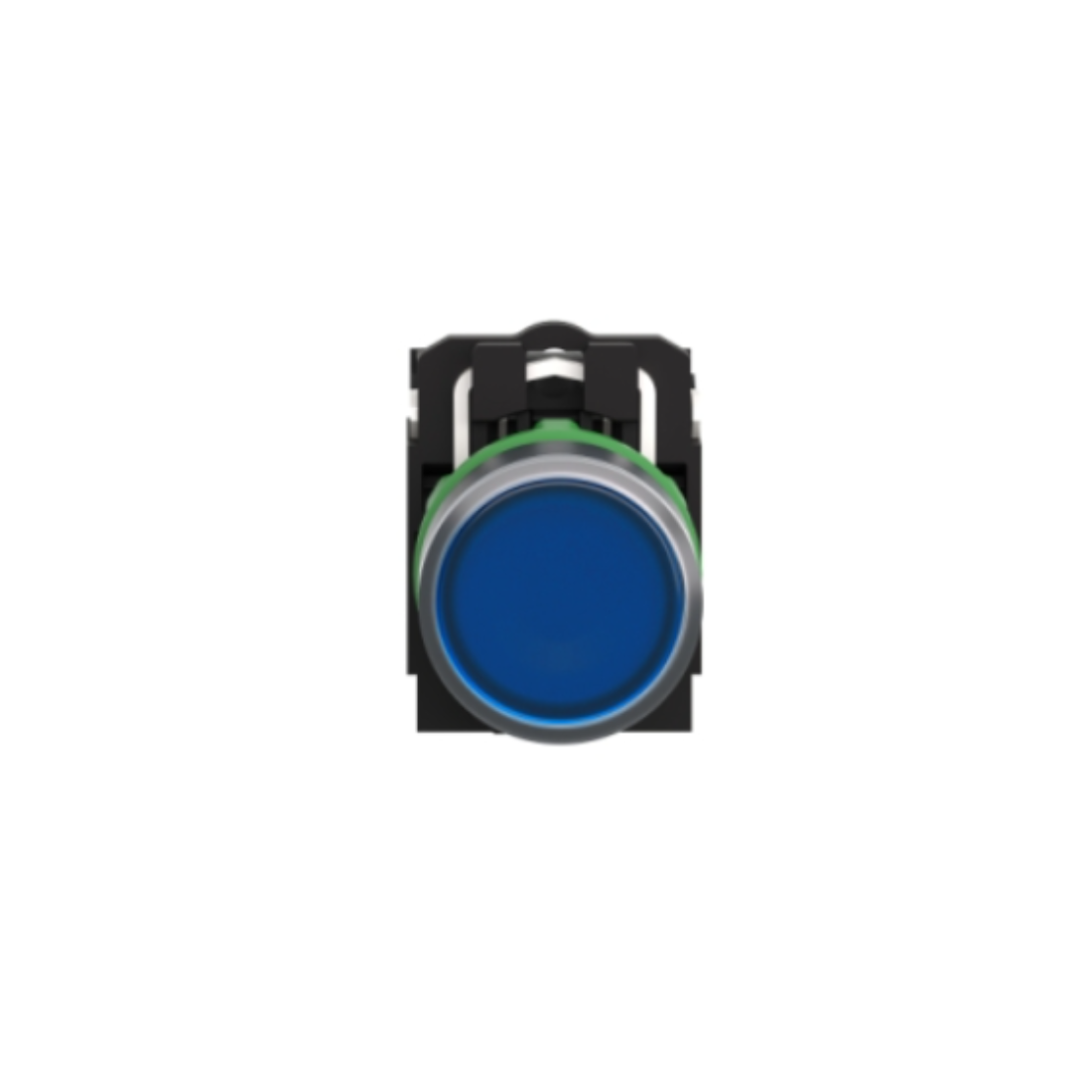

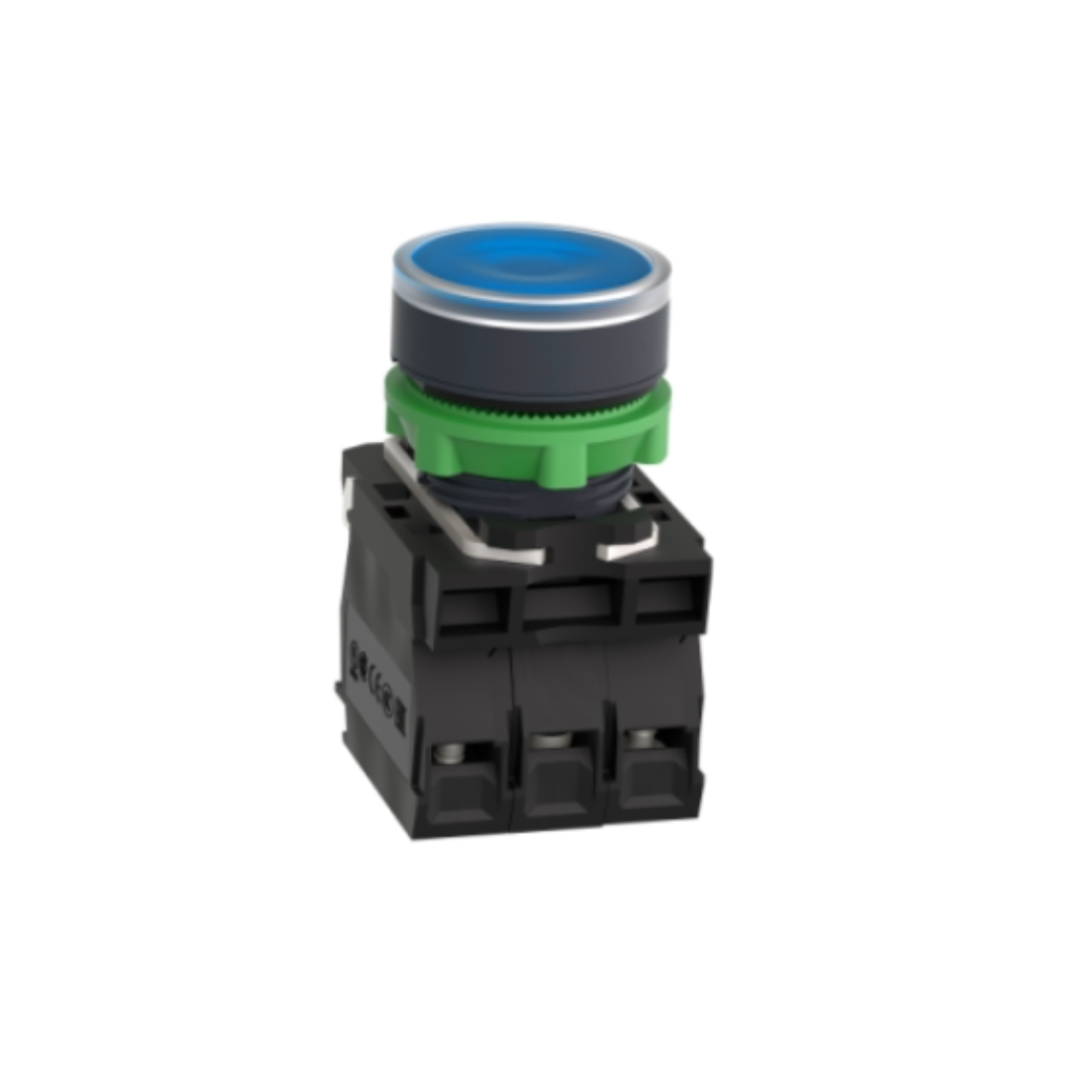

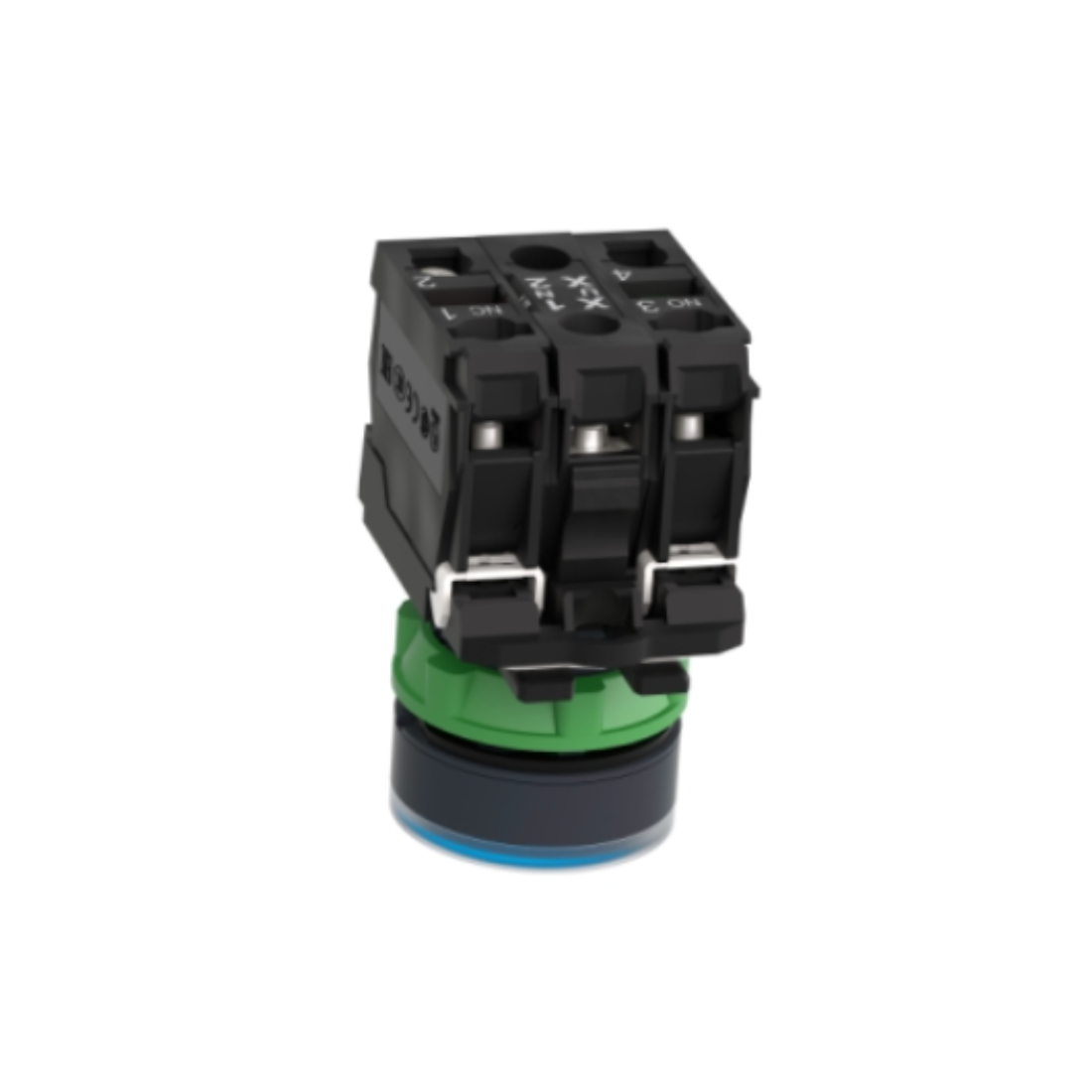

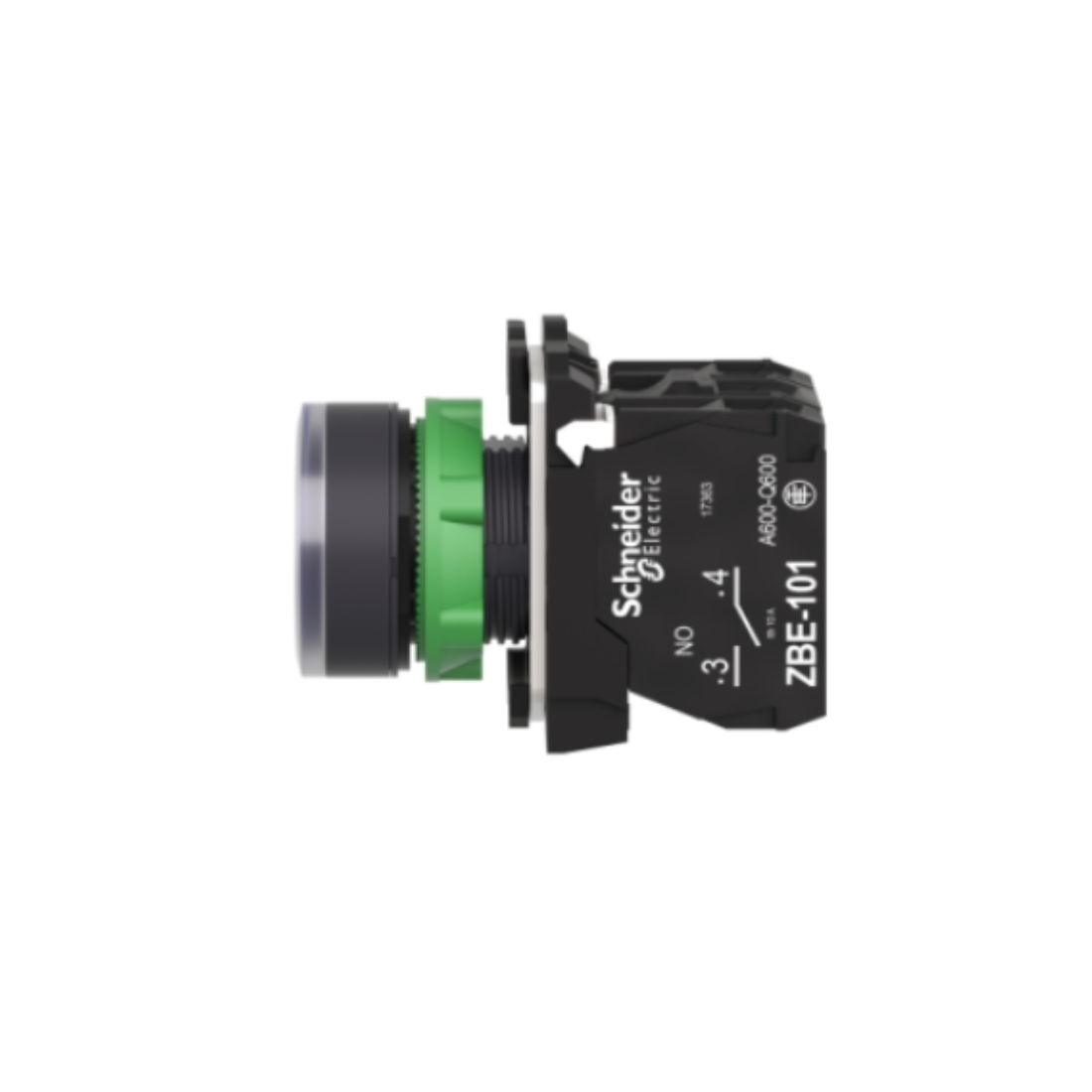

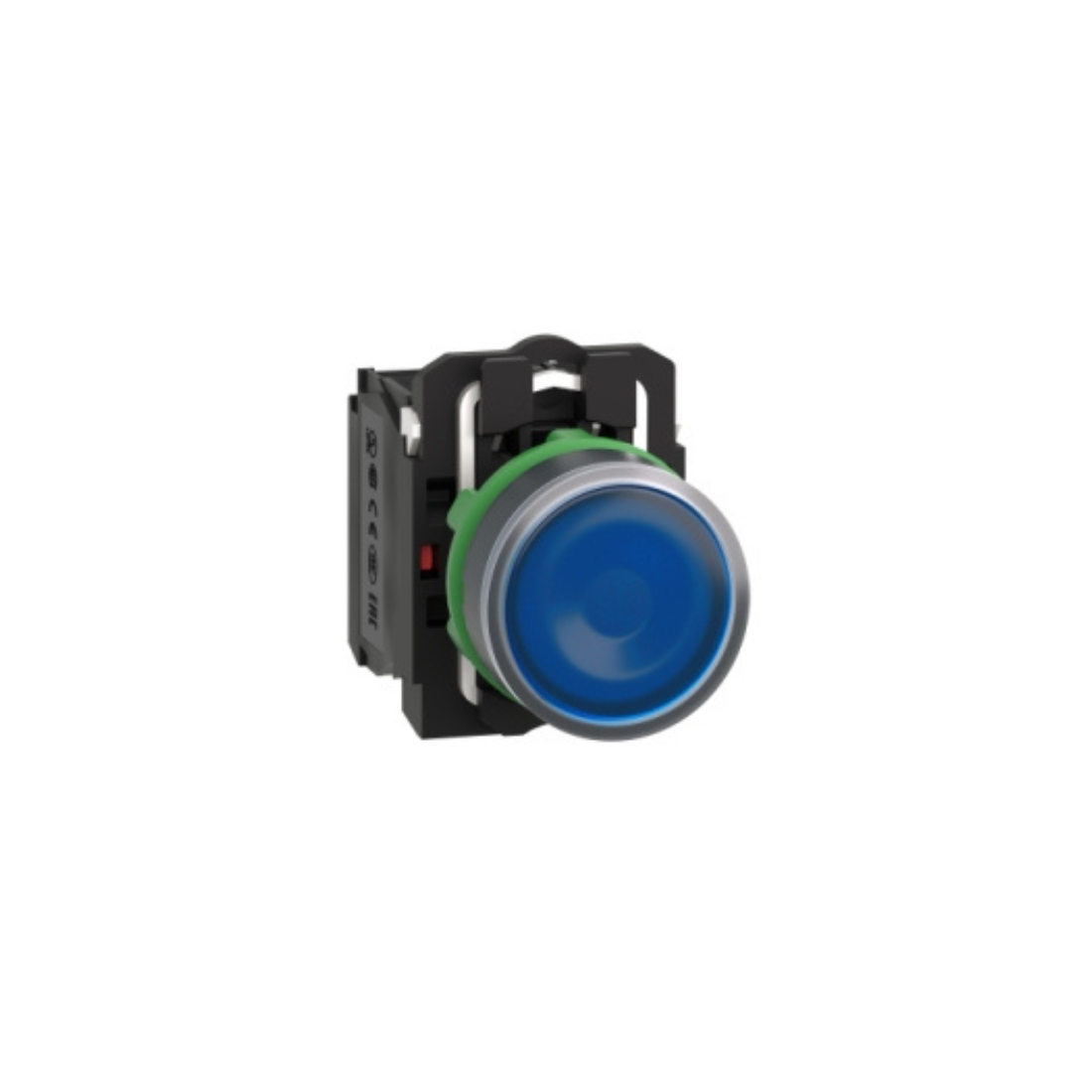

    Schneider Electric XB5AW36M5 Blue Flush Illuminated Push Button operates with a spring return mechanism, is supplied with 230V to 240V AC, uses an integral LED and screw clamp terminals. It provides an ergonomic and visual interface to control the machines. Easily installs into standard 22mm diameter panel cutouts and connects to control circuits using classic screw terminal connections. Thanks to the bright and long-lasting LED lighting, it is clearly visible even from afar.

    Thanks to IP66 / IP67 / IP69 / IP69K, it is resistant to impacts, dust, water and vibrations, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

    Features
    • Provides a visual and ergonomic interface to control the machines
    • Ideal for use in harsh environments
    • It is shock, dust, water and vibration proof
Specifications
Specifications
Specifications
  • Specifications

    Brand : Schneider Electric

    Item Name : Illuminated Push-Button

    Model : XB5AW36M5

    Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

    Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

    Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN/IEC 60947-1

    Rated Impulse Withstand : 6 kV conforming to EN/IEC 60947-1

    Rated Supply Voltage : 230...240 V

    Bezel Material : Dark grey plastic

    Bulb Base : Integral LED

    Cap/Operator Or Lens Color : Blue

    Compatibility Code : XB5

    Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

    Contact Operation : Slow-break

    Contacts Material : Silver alloy (Ag/Ni)

    Current Consumption : 14 mA

    Depth : 57 mm

    Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

    Fixing Collar Material : Plastic

    Height : 42 mm

    Light Source : Universal LED

    Mechanical Durability : 10000000 cycles

    Mounting Diameter : 22 mm

    Operator Profile : Blue flush

    Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

    Certifications : DNV, LROS (Lloyds register of shipping), BV, GL, UL listed, CSA

    Protective Treatment : TH

    Range Of Product : Harmony XB5

    Sale Per Indivisible Quantity : 1

    Service Life : 100000 h at rated voltage and 25 °C

    Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

    Shape of Signaling Unit Head : Round

    Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

    Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

    Signalling Type : Steady

    Supply Voltage Limits : 195-264 V AC

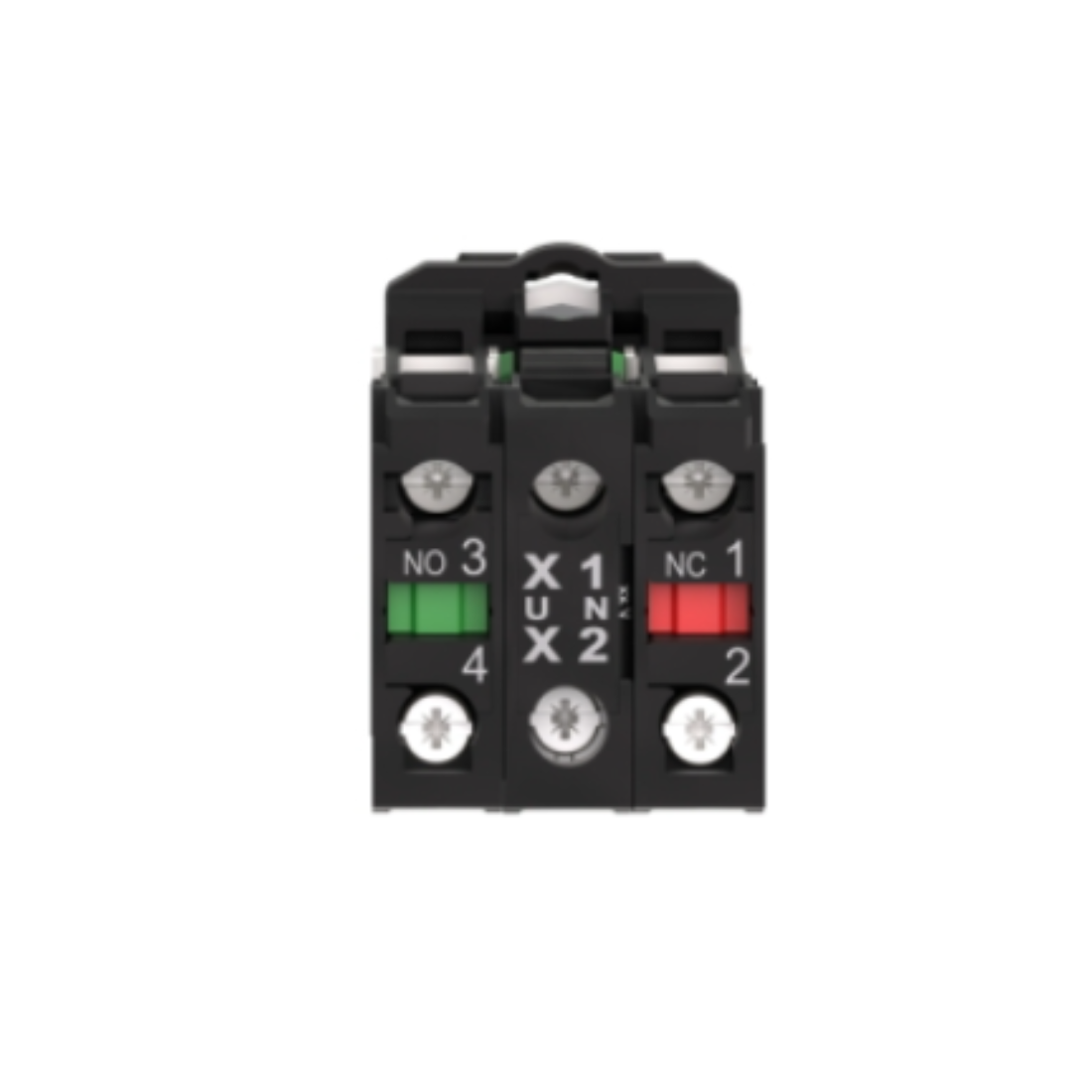

    Terminals Description : (21-22)NC, (13-14)NO

    Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

    Width : 30 mm

    Contacts Type And Composition : 1 NO + 1 NC

    Type of Operator : Spring Return

    NEMA Degree Of Protection : NEMA 13, NEMA 4X

    Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

    Operator Additional Information : With plain lens

    Customizable : No

    Head Type : Standard

    Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

    Contacts Usage : Standard contacts

    GCR BRIDGE : XB5AWCUST09

    Surge Withstand : 1 kV conforming to IEC 61000-4-5

    Resistance To Fast Transients : 2 kV conforming to IEC 61000-4-4

    Electromagnetic Emission : Class B conforming to IEC 55011

    Operating Force : 3.5 N NC changing electrical state, 3.8 N

    Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

    Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

    Ambient Air Temperature For Operation : -40-70 °C

    Ambient Air Temperature For Storage : -40-70 °C

    Standards : UL 508, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, JIS C8201-1

    Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

    Device Presentation : Complete product

    Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

    Weight : 0.056 kg
