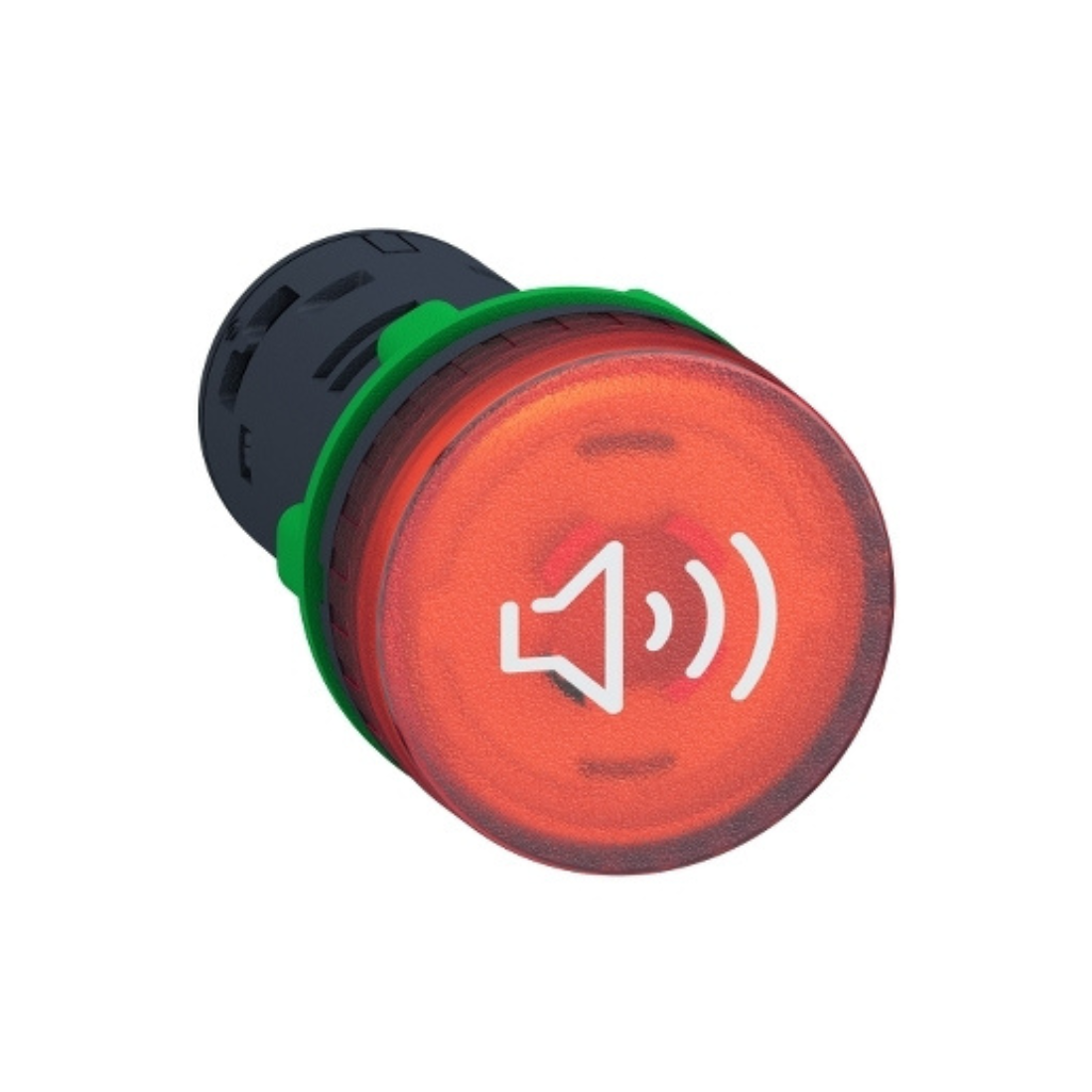

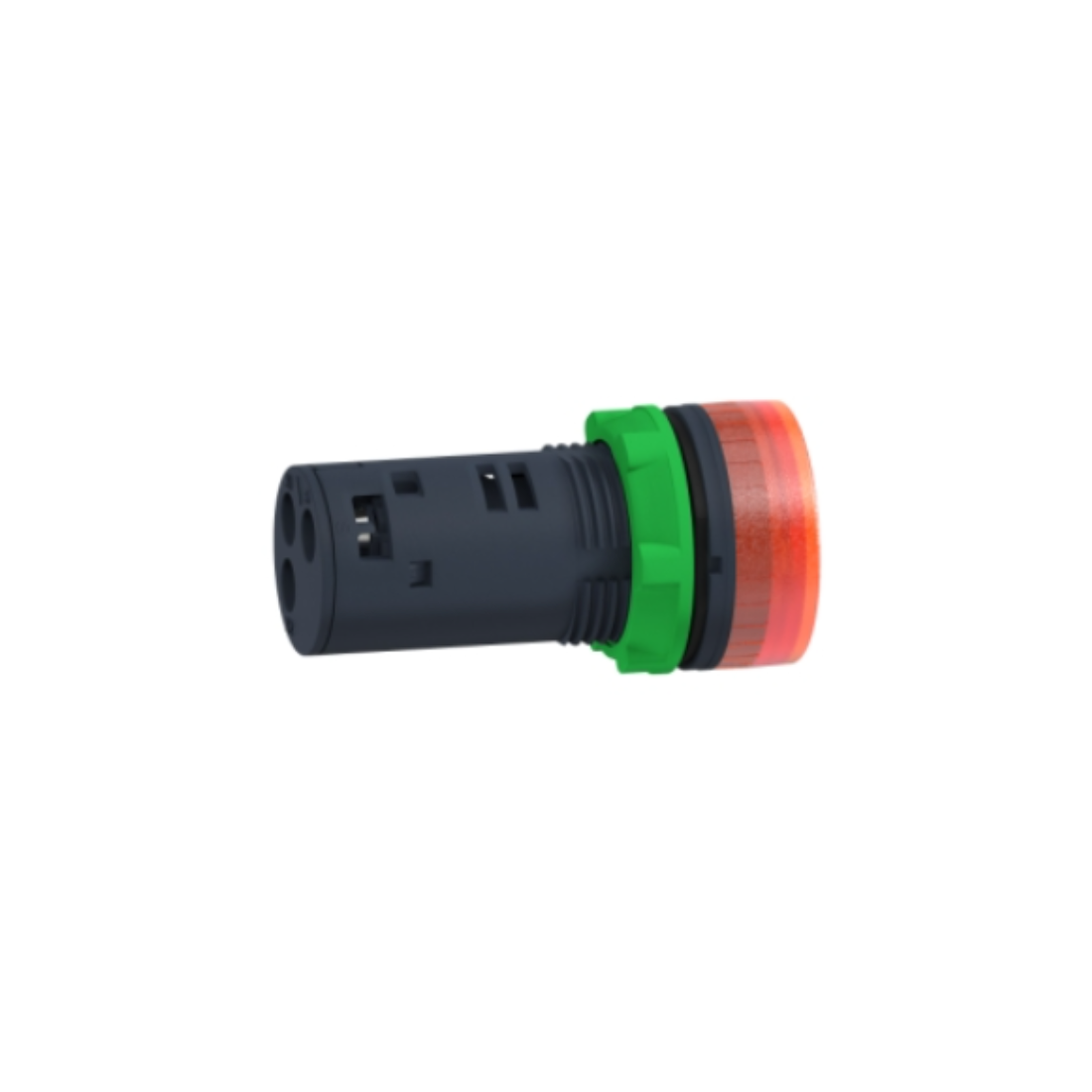

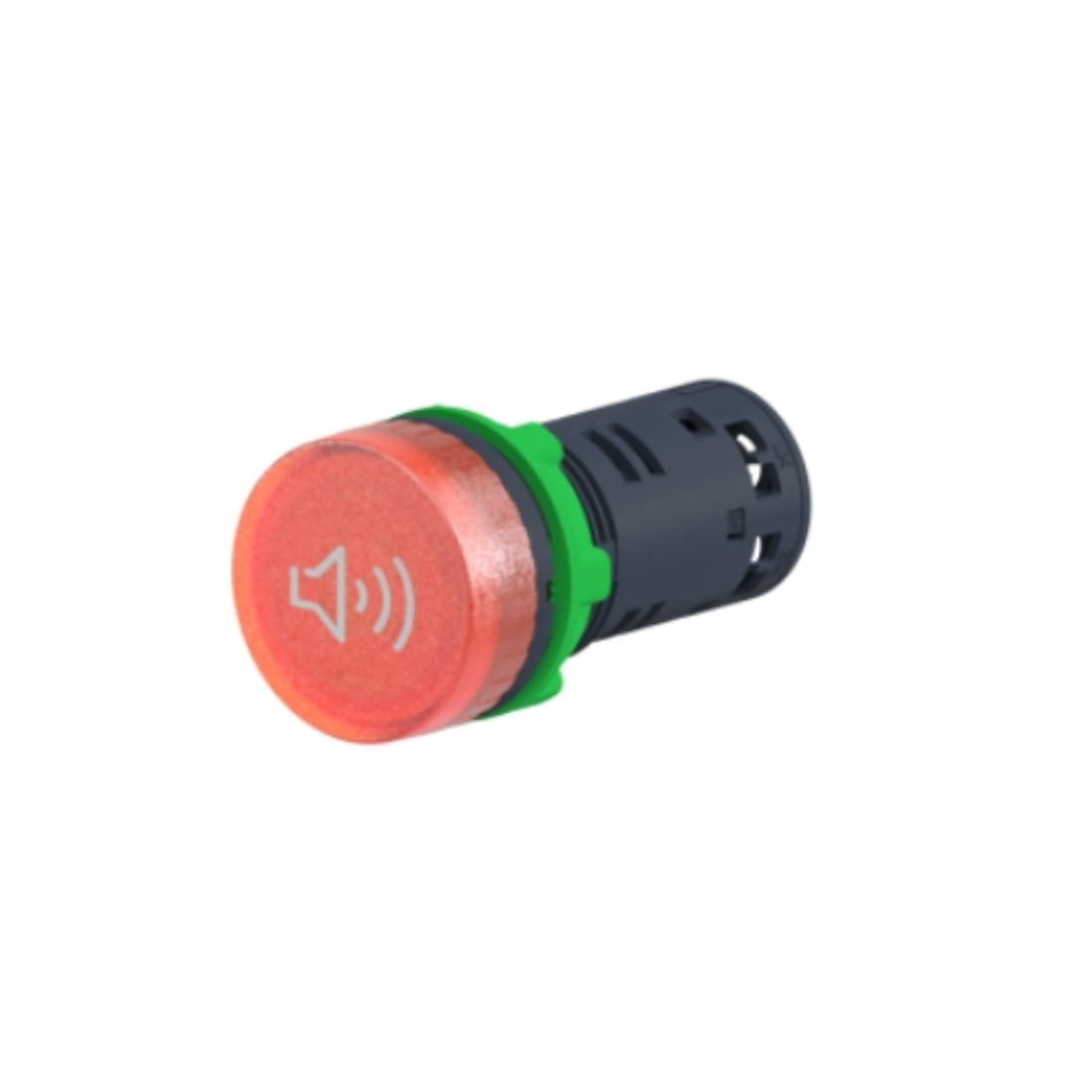

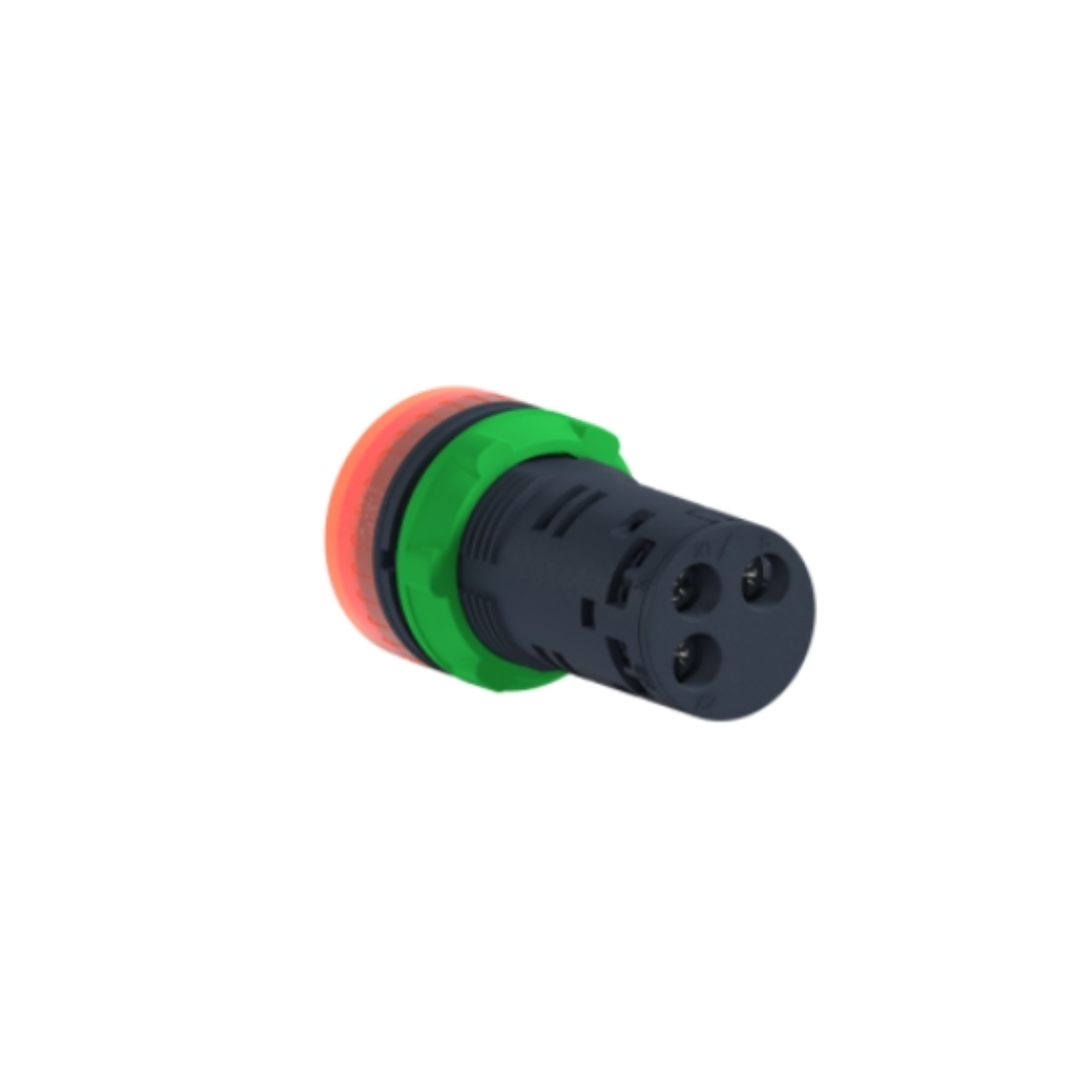

Schneider Electric Harmony XB5 Illuminated Buzzer Plastic Red 22mm Continuous or Intermittent Tone 230-240V AC XB5KS2M4
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Illuminated Buzzer
Description
Schneider Electric XB5KS2M4 Illuminated Buzzer is designed as an acoustic and signaling unit for individual mounting. It has a continuous or intermittent signal and its acoustic sound level is adjustable. Complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No. 14. Thanks to protection class IP69, IP67 and IP66. It is also resistant to dust, shock, pressure washing, vibration and corrosion, making it ideal for use in harsh environments.
Features
- An acoustic and signaling unit for individual mounting.
- It has continuous or intermittent signal
- Resistant to dust, shock, pressure washing, vibration and corrosion,
| Brand | Schneider Electric |
| Item Name | Annunciator |
| Model | XB5KS2M4 |
| Rated Supply Voltage | 230...240 V, 230...240 V +/- 10 % |
| Bezel Material | Plastic |
| Cap/Operator Or Lens Colour | Red |
| Current Consumption | <= 35 mA |
| Depth | 55 mm |
| Height | 29 mm |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | UL listed, CSA, BV |
| Range Of Product | Harmony XB5 |
| Signalling Type | Continuous or intermittent tone |
| Width | 29 mm |
| Supply Frequency | 50/60 Hz |
| NEMA Degree Of Protection | NEMA 4X, NEMA 13 |
| Resistance To High Pressure Washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Supply Circuit Type | AC |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, EN 60947-1, IEC 60947-1, UL 508, EN 60947-5-1, EN 60947-5-4, JIS C8201-5-1, JIS C8201-1, IEC 60529, EN 50102, IEC 50102 |
| Noise Level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Weight | 0.24 kg |
