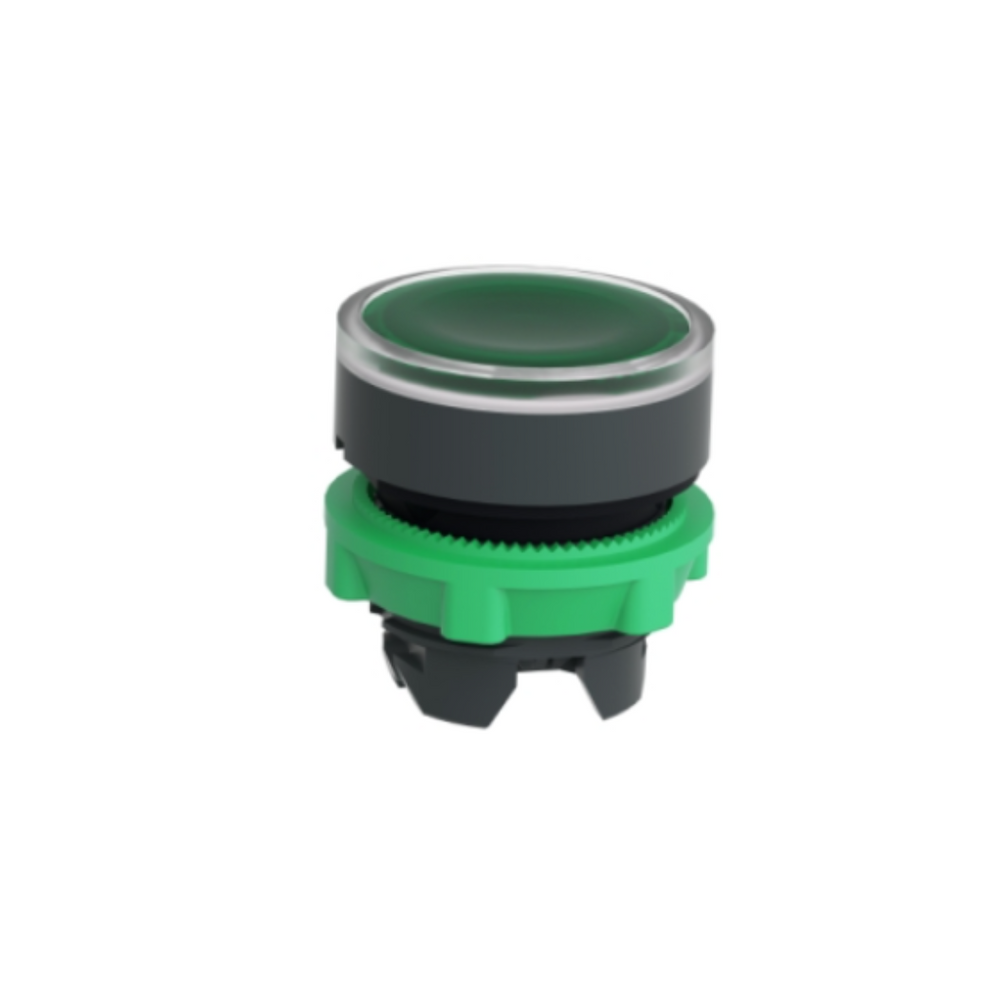

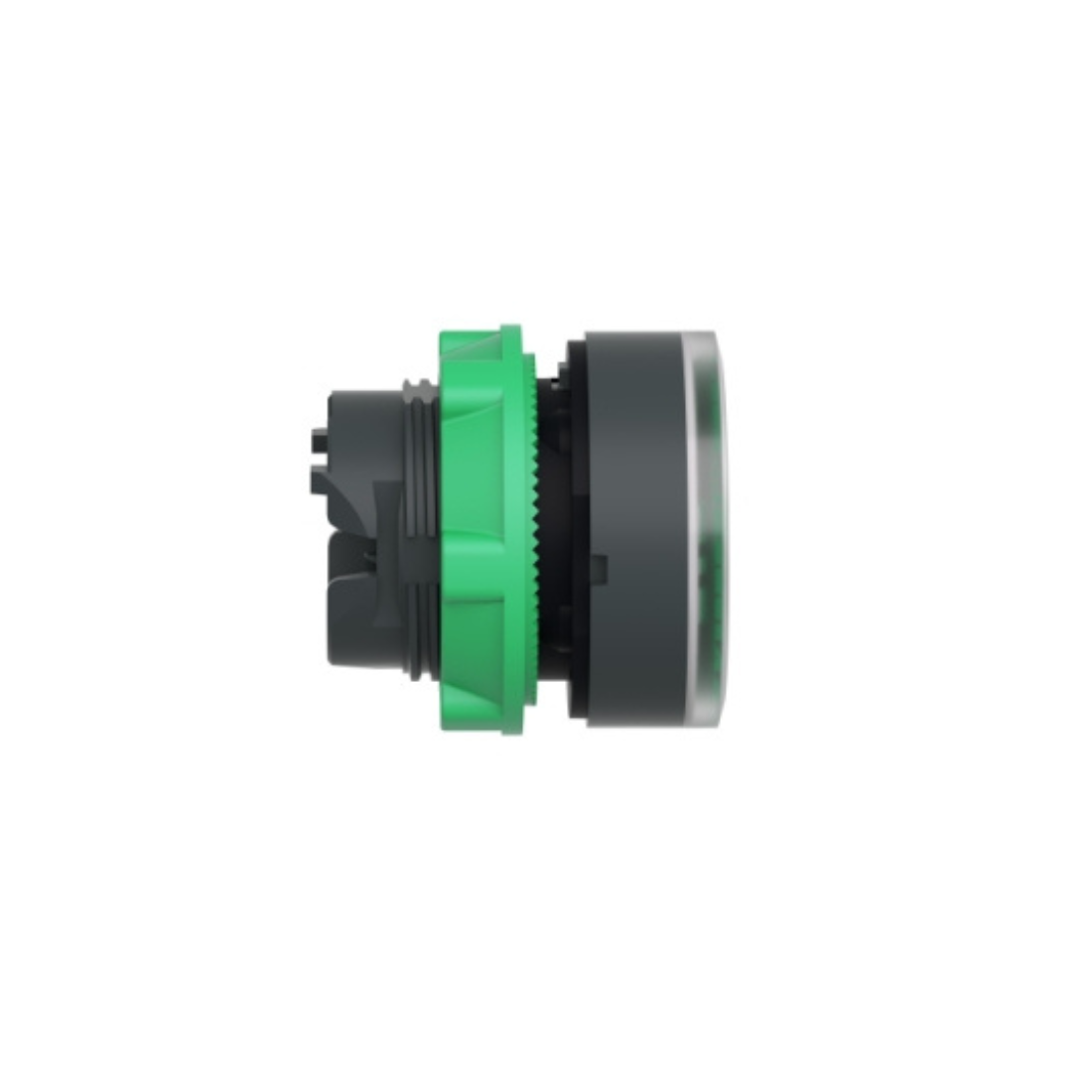

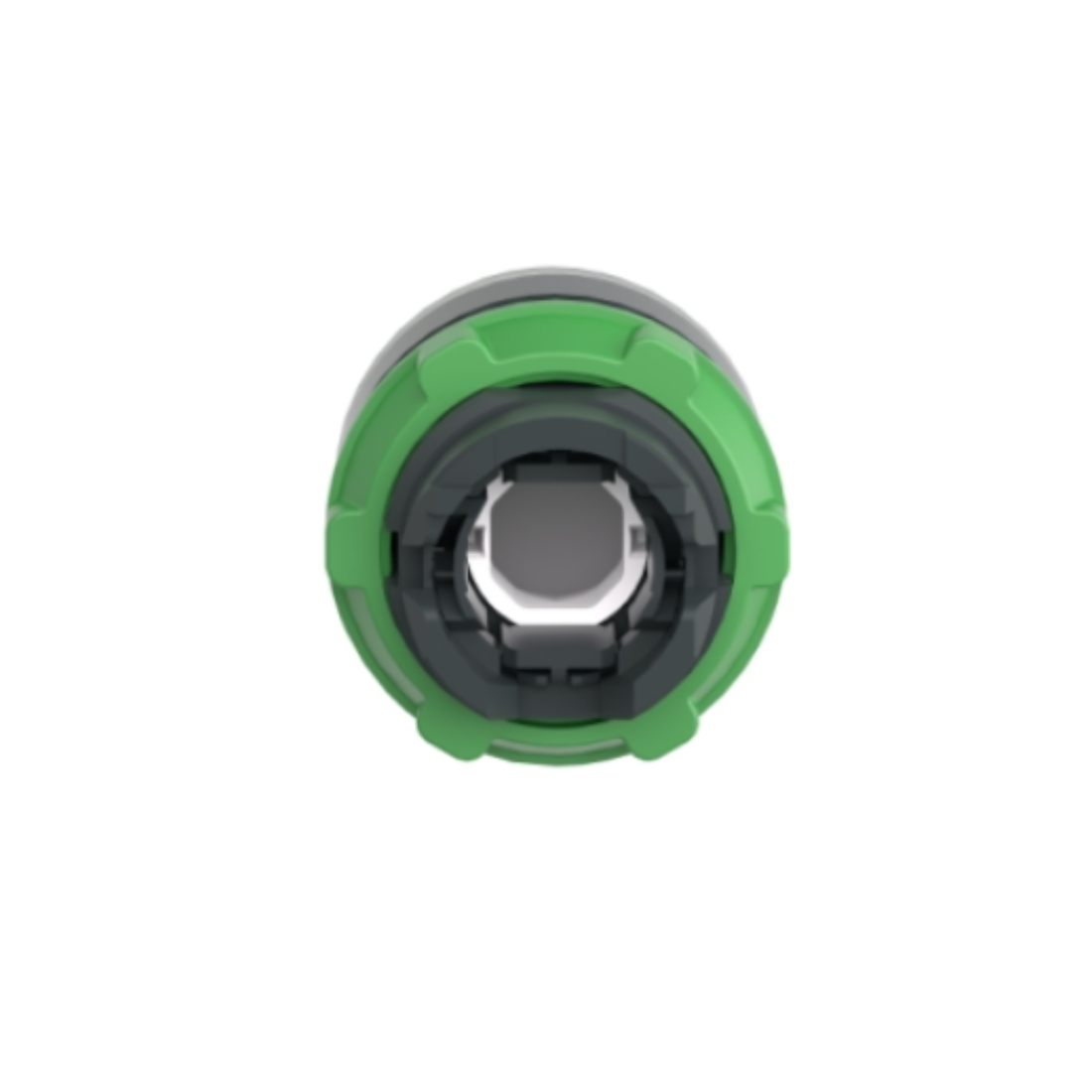

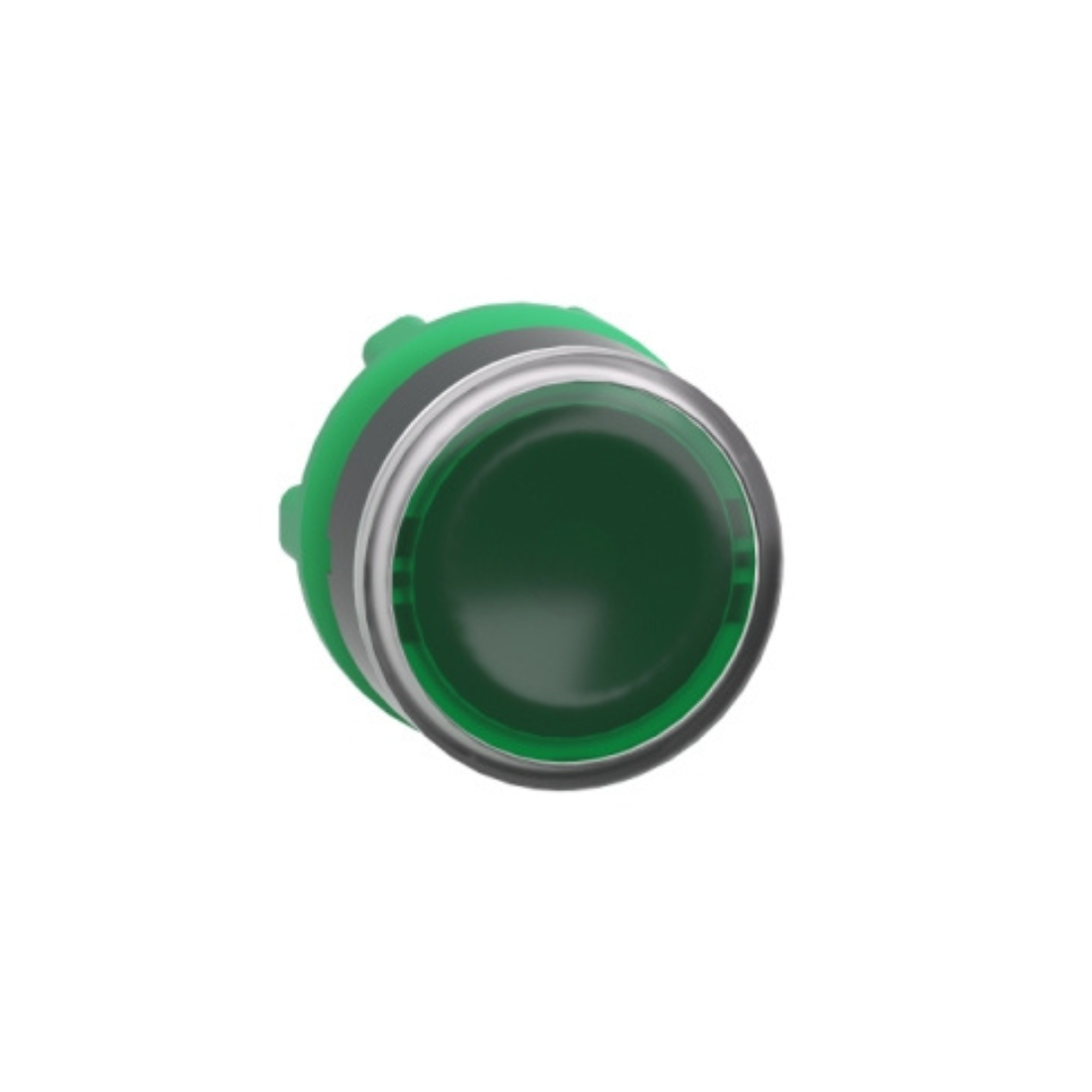

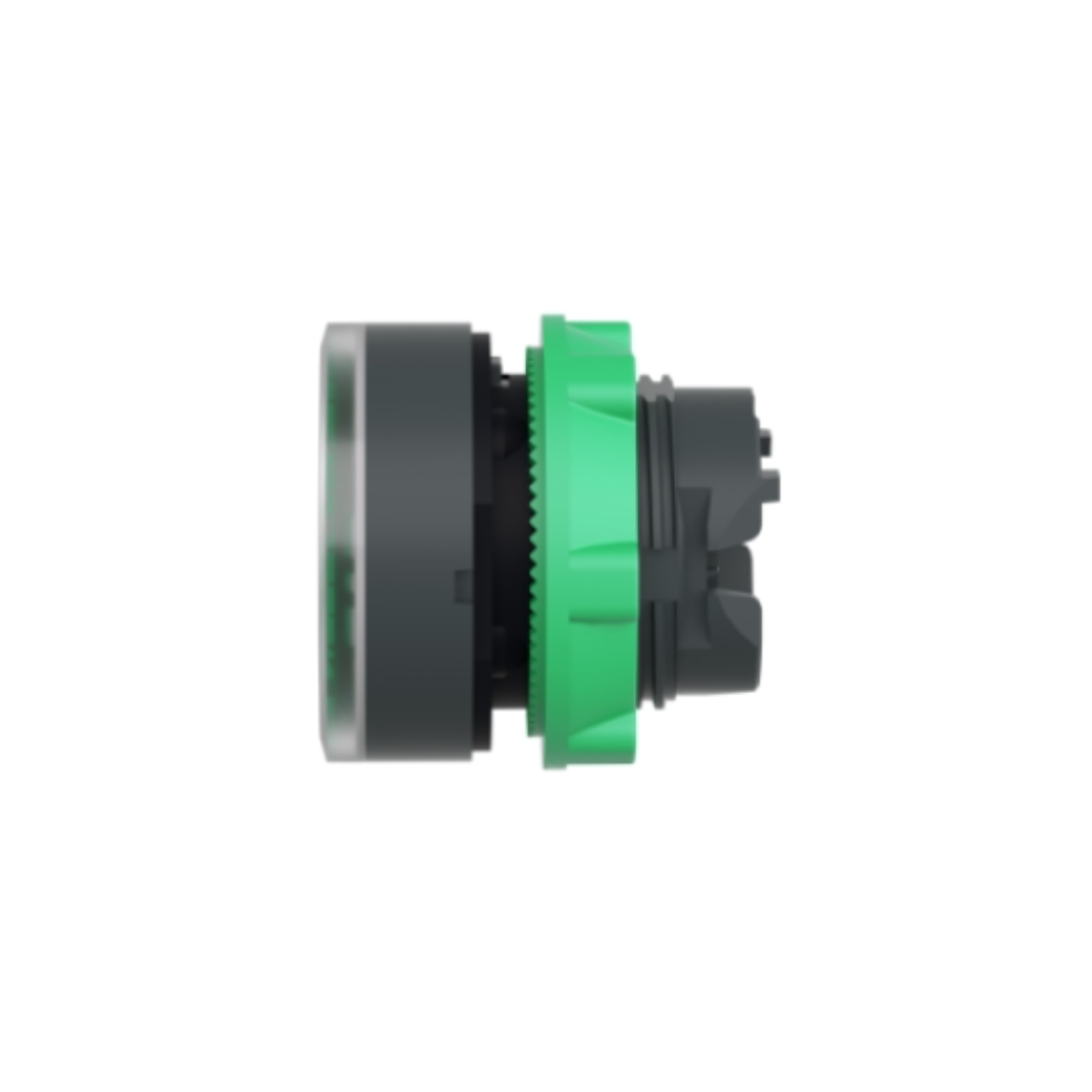

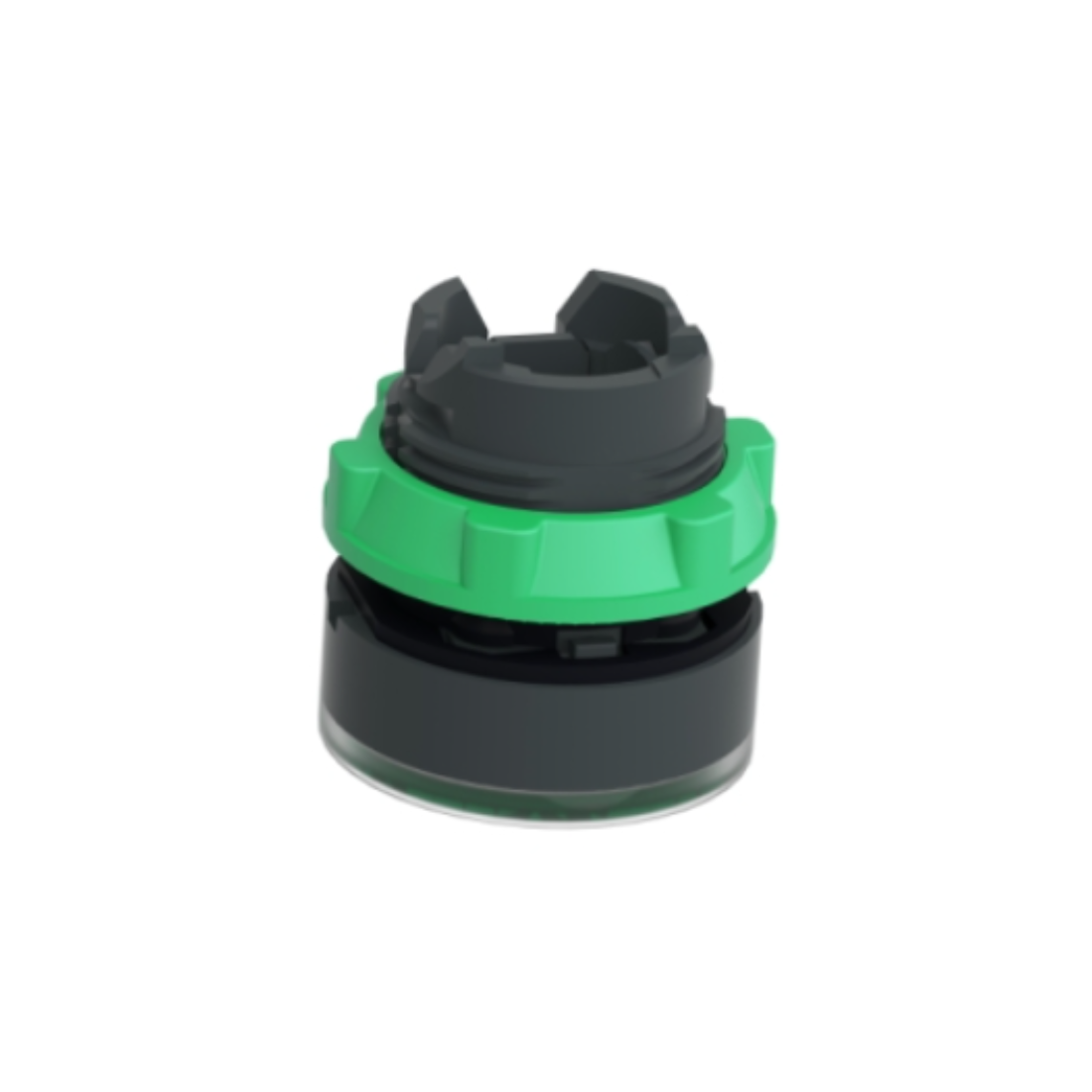

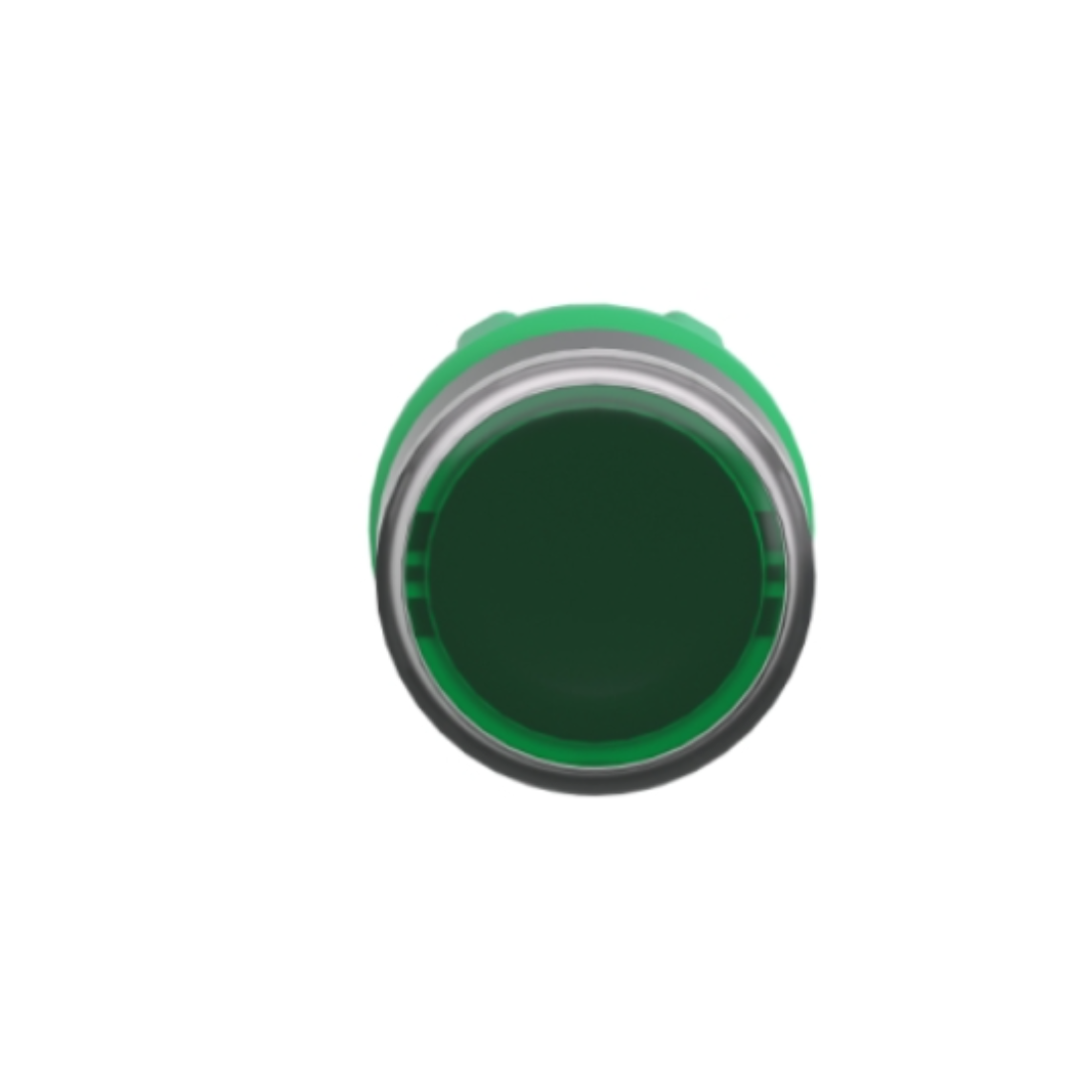

Schneider Electric Harmony XB5 Green Flush Illuminated Push Button Head Ø22 Spring Return for Integral LED ZB5AW333
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Illuminated Pushbutton Head
Description
Schneider Electric ZB5AW333 Green Flush Illuminated Pushbutton Head for universal LED operates with a spring return / impulse mechanism. It provides a versatile interface for controlling the machines. Installation and replacement on compatible pushbutton units and complete contact blocks is simply snap-on. It is clearly visible from afar thanks to the light illuminated color and also tactile thanks to the recessed element, minimizing errors in machine control. Thanks to IP66, it is shock, dust, water and vibration proof.
Schneider Electric ZB5AW333 Green Flush Illuminated Pushbutton Head has a plastic frame, making it ideal for applications requiring good chemical resistance and/or double electrical insulation. It is designed to fit a standard 22mm cutout, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 70°C allows the pushbutton head to be used in a variety of ways. Offers high brightness for easy identification of function and operating mode, even in brightly lit environments.
Features
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
| Brand | Schneider Electric |
| Item Name | Head For Illuminated Push-Button |
| Model | ZB5AW333 |
| Bezel Material | Dark grey plastic |
| CAD Overall Depth | 30 mm |
| CAD Overall Height | 29 mm |
| CAD Overall Width | 29 mm |
| Cap/Operator Or Lens Color | Green |
| Compatibility Code | ZB5 |
| IK Degree Of Protection | IK05 conforming to EN 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Green flush, unmarked |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Protective Treatment | TH |
| Certifications | GL, BV, LROS (Lloyds register of shipping), DNV, UL listed, CSA |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Spring Return |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Flush push integral LED |
| Operator Additional Information | With plain lens |
| Customizable | 1 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| GCR BRIDGE | ZB5AWCUST05 |
| Main Group | Illum Push-button |
| Electrical Composition Code | M1 for <6 contacts using single blocks in front mounting with integral LED, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M10 for <2 contacts using single blocks in front mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, MR1 for <2 contacts using single blocks in rear mounting with integral LED |
| Station Name | XALD 1...5 cut-outs, XALK 2...5 cut-outs |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-4, JIS C8201-5-1, GB 14048.5, UL 508, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1 |
| Compatibility | Universal LED |
| Device Presentation | Basic sub-assemblies |
| Weight | 0.017 kg |
