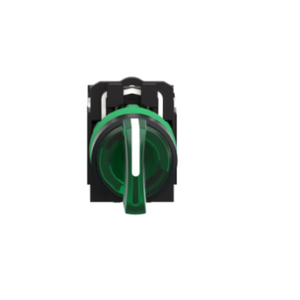

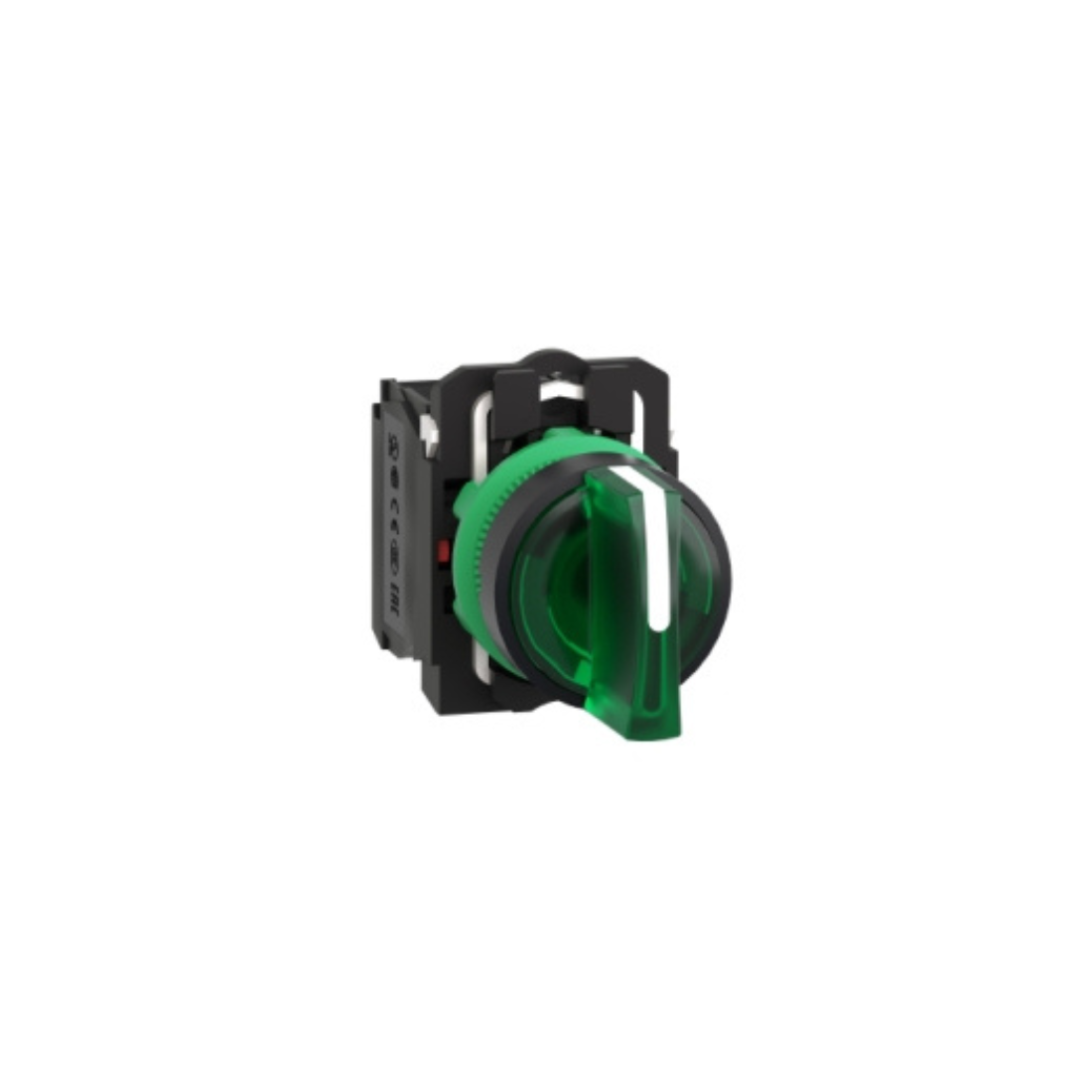

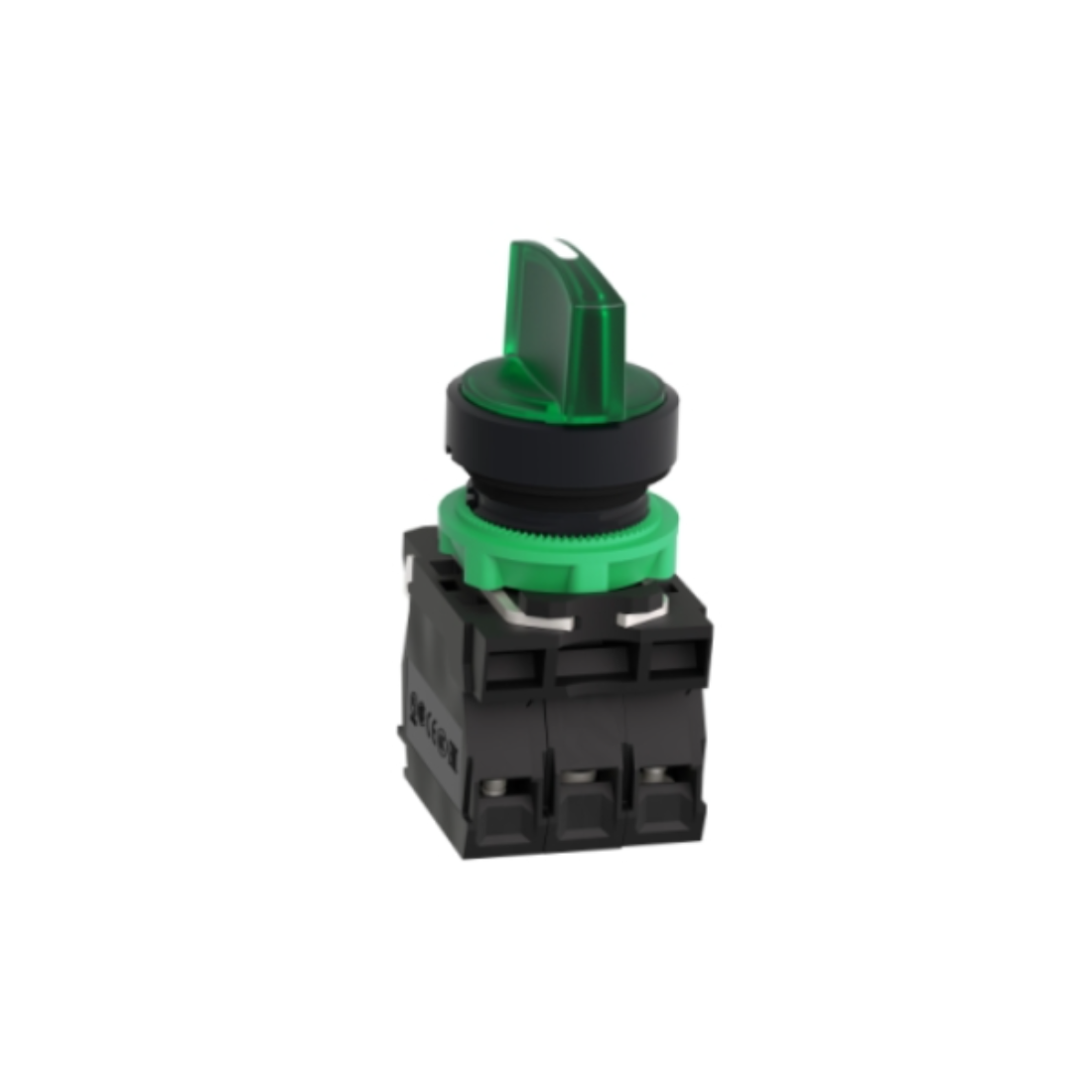

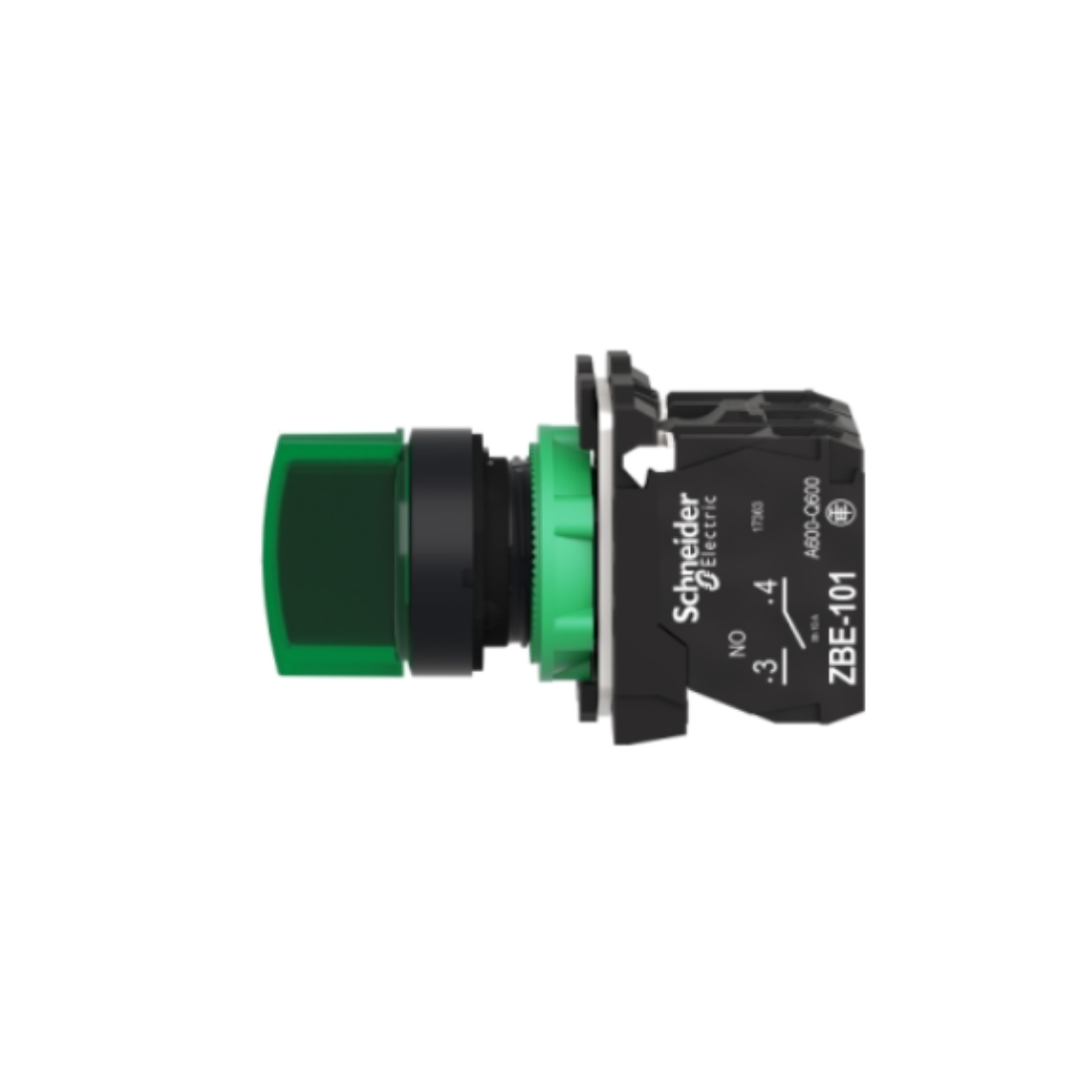

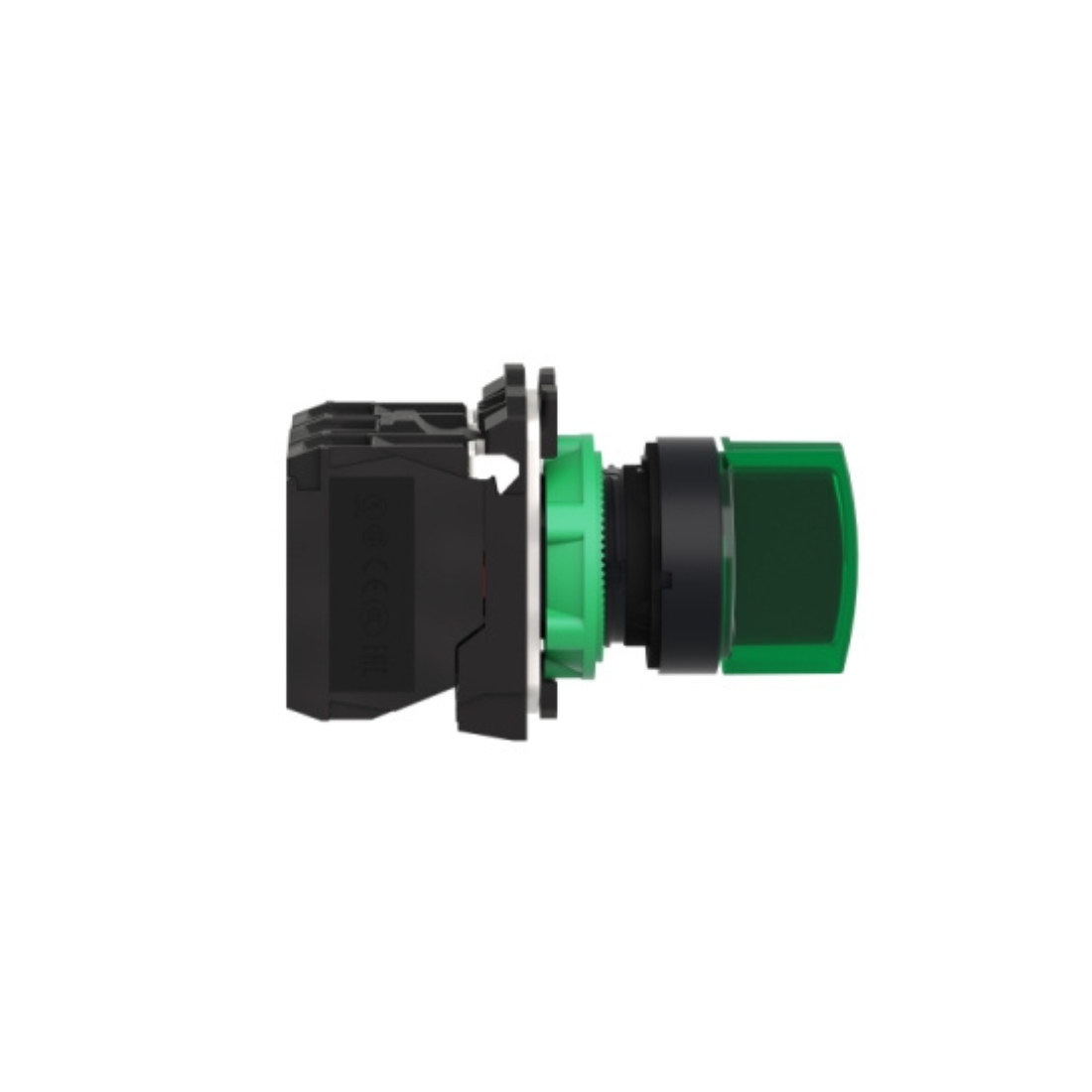

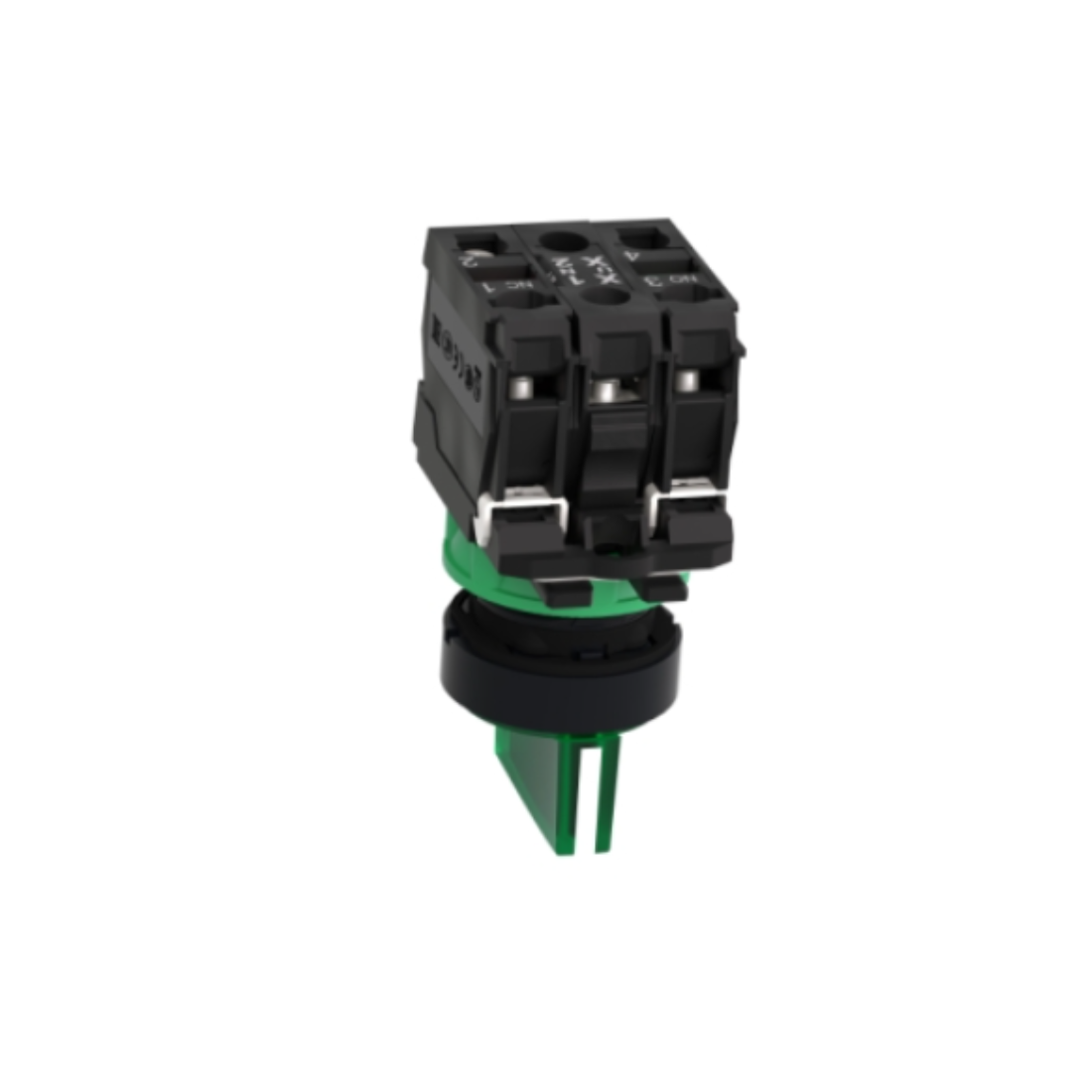

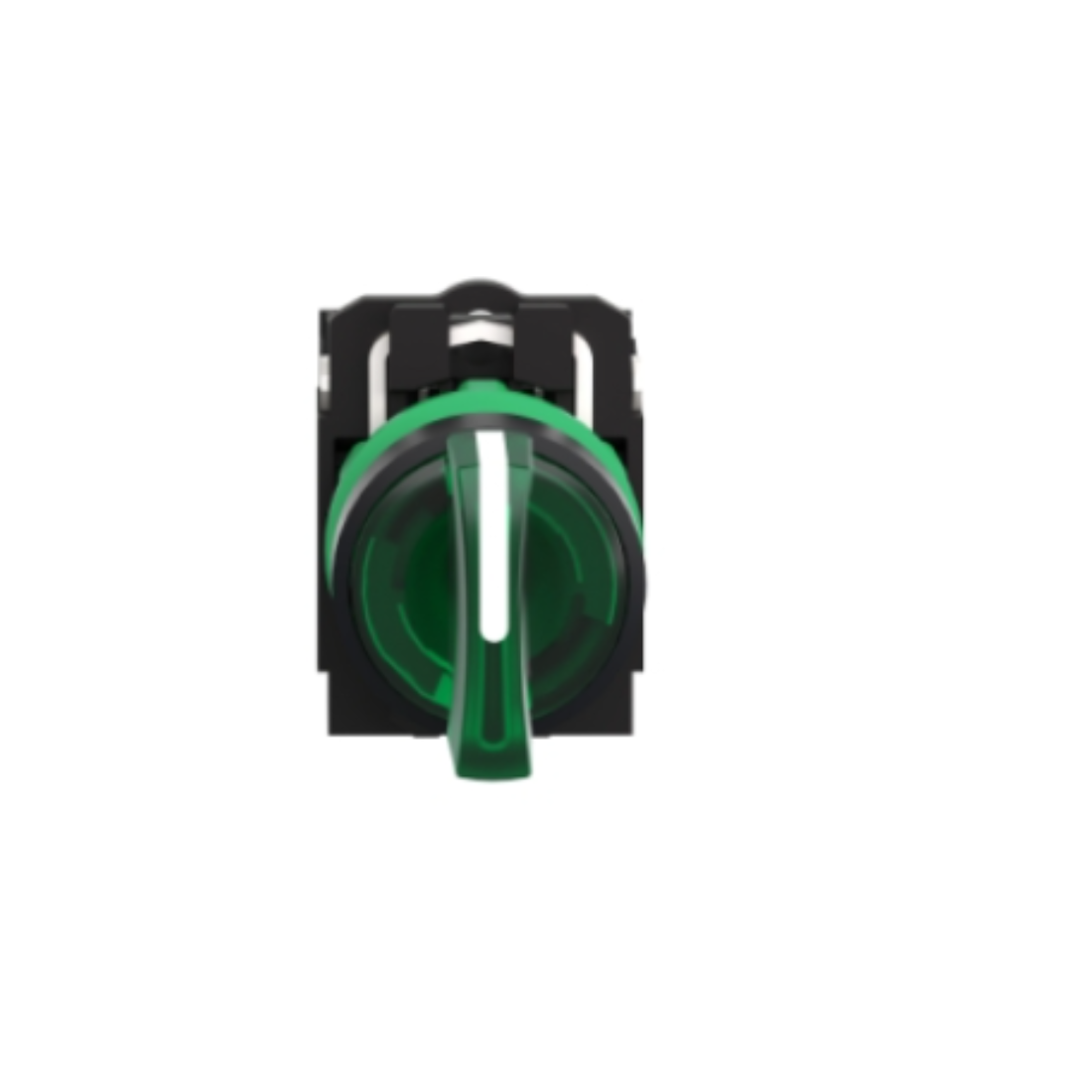

Schneider Electric Green Complete Illuminated Selector Switch Ø22, 3 Position 1NO + 1NC 24V XB5AK133B5

Schneider Electric Harmony XB5 Green Complete Illuminated Selector Switch Ø22 3 Position 1NO + 1NC 24V XB5AK133B5

Name: Schneider Electric Harmony XB5 Green Complete Illuminated Selector Switch Ø22 3 Position 1NO + 1NC 24V XB5AK133B5
Brand: Schneider Electric
Price: 78.75 AED
Availability: InStock

AED 78.75

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Illuminated Selector Switch

Description

Schneider Electric XB5AK133B5 Green Complete Illuminated Selector Switch has 3 positions, operates with a stay-put mechanism, a 24V AC integral LED and uses screw clamp terminals. This illuminated selector switch provides a versatile, highly visible interface for controlling the machines. Easily installs into standard 22mm diameter cutouts and connects to the control circuits with simple screw terminal connections.

Schneider Electric XB5AK133B5 Green Complete Illuminated Selector Switch provides clear assistance in setting up the machines in different operating modes, even in darker control rooms, and with clear visual information. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Provides a versatile, highly visible interface for controlling the machines.
Shock, dust, water and vibration proof
Ideal for use in harsh environments

Specifications

Brand : Schneider Electric

Item Name : Illuminated Selector Switch

Model : XB5AK133B5

Resistance to Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-4-2, 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1

Rated Supply Voltage : 24 V AC/DC at 50/60 Hz

Bezel Material : Dark Grey Plastic

Bulb Base : Integral LED

Cap/Operator Or Lens Colour : Green

Compatibility Code : XB5

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

Contact Operation : Slow-break

Contacts Material : Silver alloy (Ag/Ni)

Current Consumption : 18 mA

Depth : 70 mm

Electrical Reliability : λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

Height : 42 mm

IK Degree Of Protection : IK05 conforming to IEC 50102

IP Degree Of Protection : IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69, IP69K

Light Source : Universal LED

Mechanical Durability : 500000 cycles

Mounting Diameter : 22 mm

Operator Position Information : 3 positions +/- 45°

Operator Profile : Green standard handle

Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

Protective Treatment : TH

Certifications : LROS (Lloyds register of shipping), DNV, GL, CSA, UL, BV

Range Of Product : Harmony XB5

Sale Per Indivisible Quantity : 1

Service Life : 100000 h at rated voltage and 25 °C

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shape of Signaling Unit Head : Round

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC

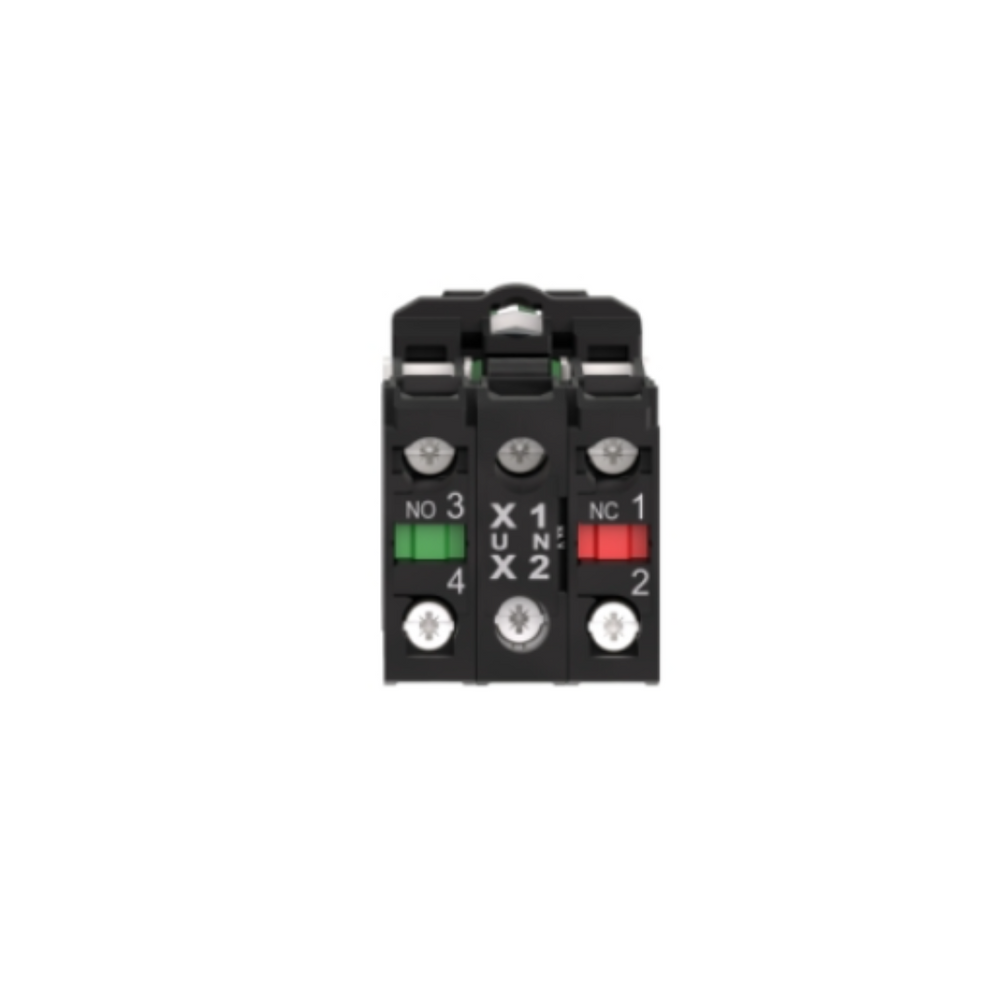

Terminals Description ISO n°1 : (11-12)NC, (13-14)NO

Type Of Operator : Stay put

Width : 30 mm

Contacts Type And Composition : 1 NO + 1 NC

NEMA Degree Of Protection : NEMA 13, NEMA 4X

Customizable : No

Head Type : Standard

Resistance To Electromagnetic Fields : 10 V/m conforming to IEC 61000-4-3

Resistance To High Pressure Washer : 7000000 Pa at 55 °C, distance : 0.1 m

Contacts Usage : Standard contacts

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Resistance to Fast Transients : 2 kV conforming to IEC 61000-4-4

Electromagnetic Emission : Class B conforming to IEC 55011

Operating Torque : 0.14 N.m NO changing electrical state

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-1, UL 508, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Electrical Durability : 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Device Presentation : Complete Product

Electrical Shock Protection Class : Class II conforming to IEC 60536

Weight : 0.516 kg
