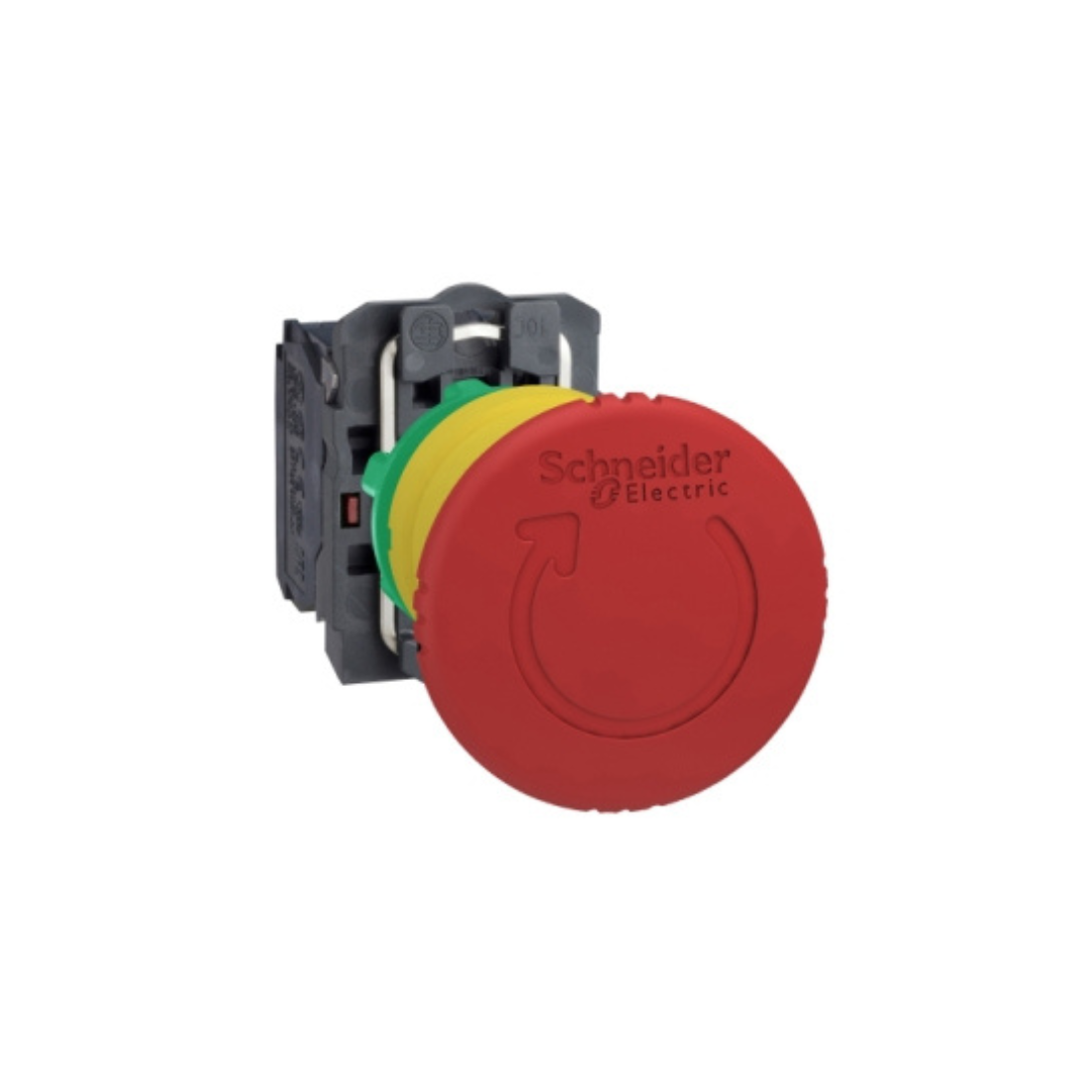

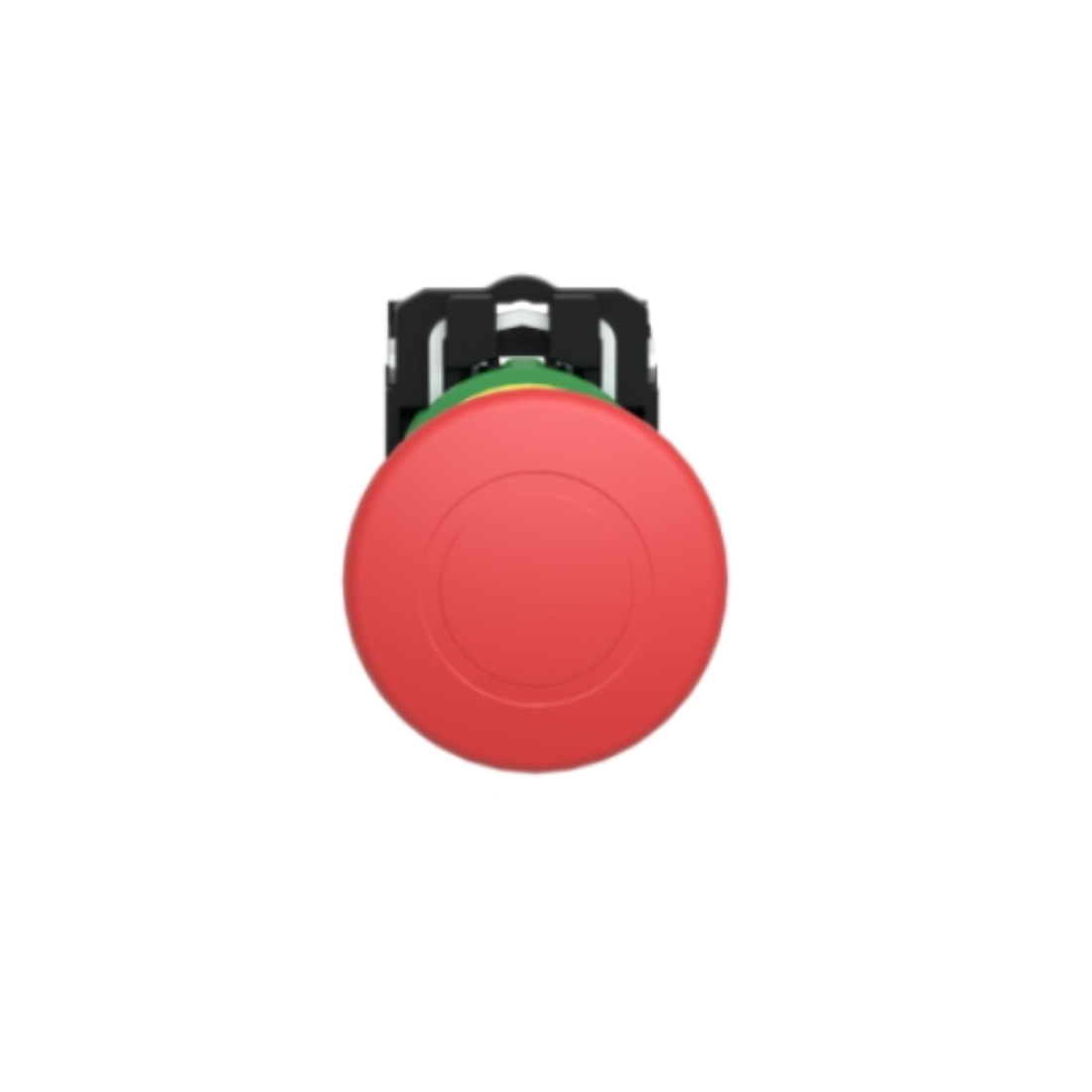

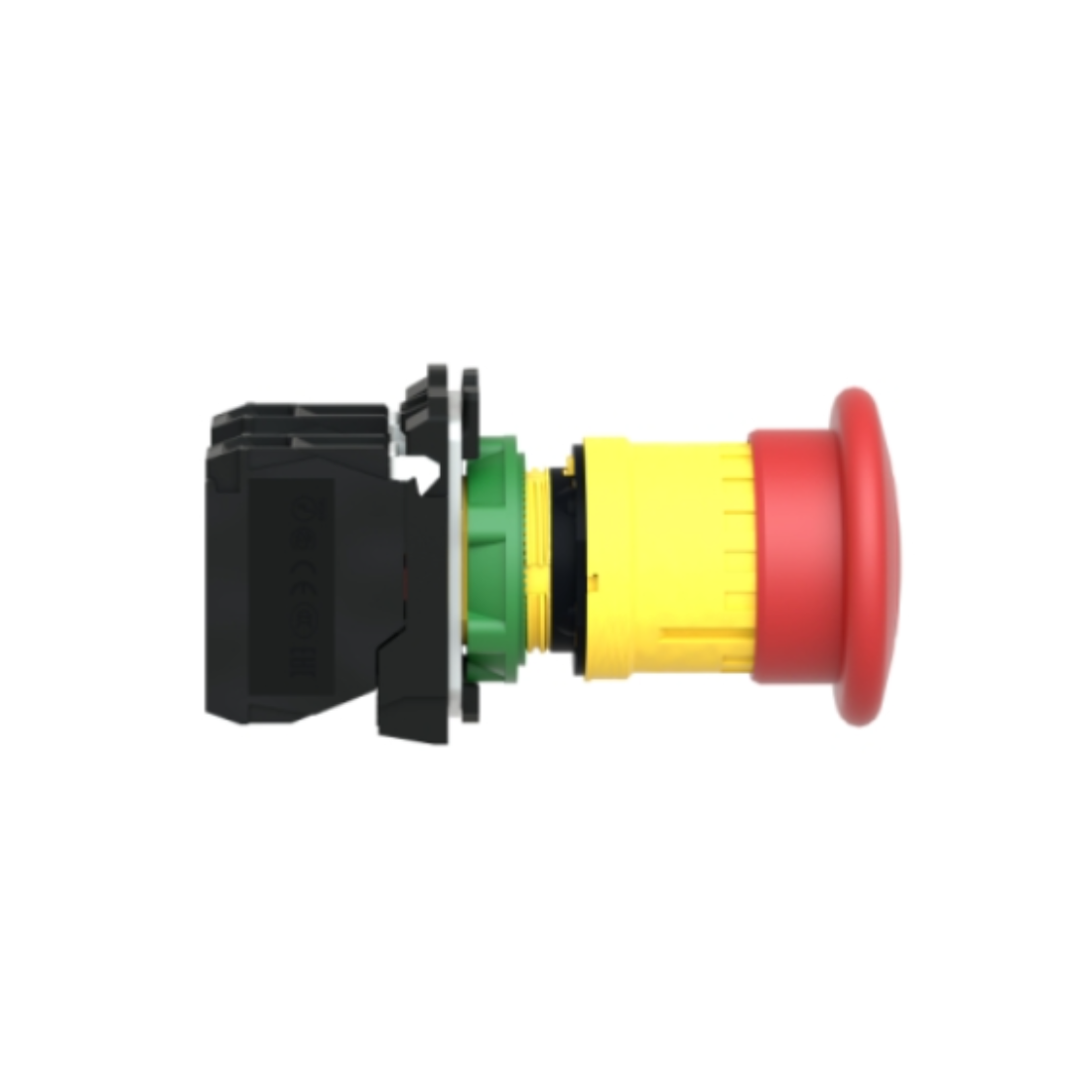

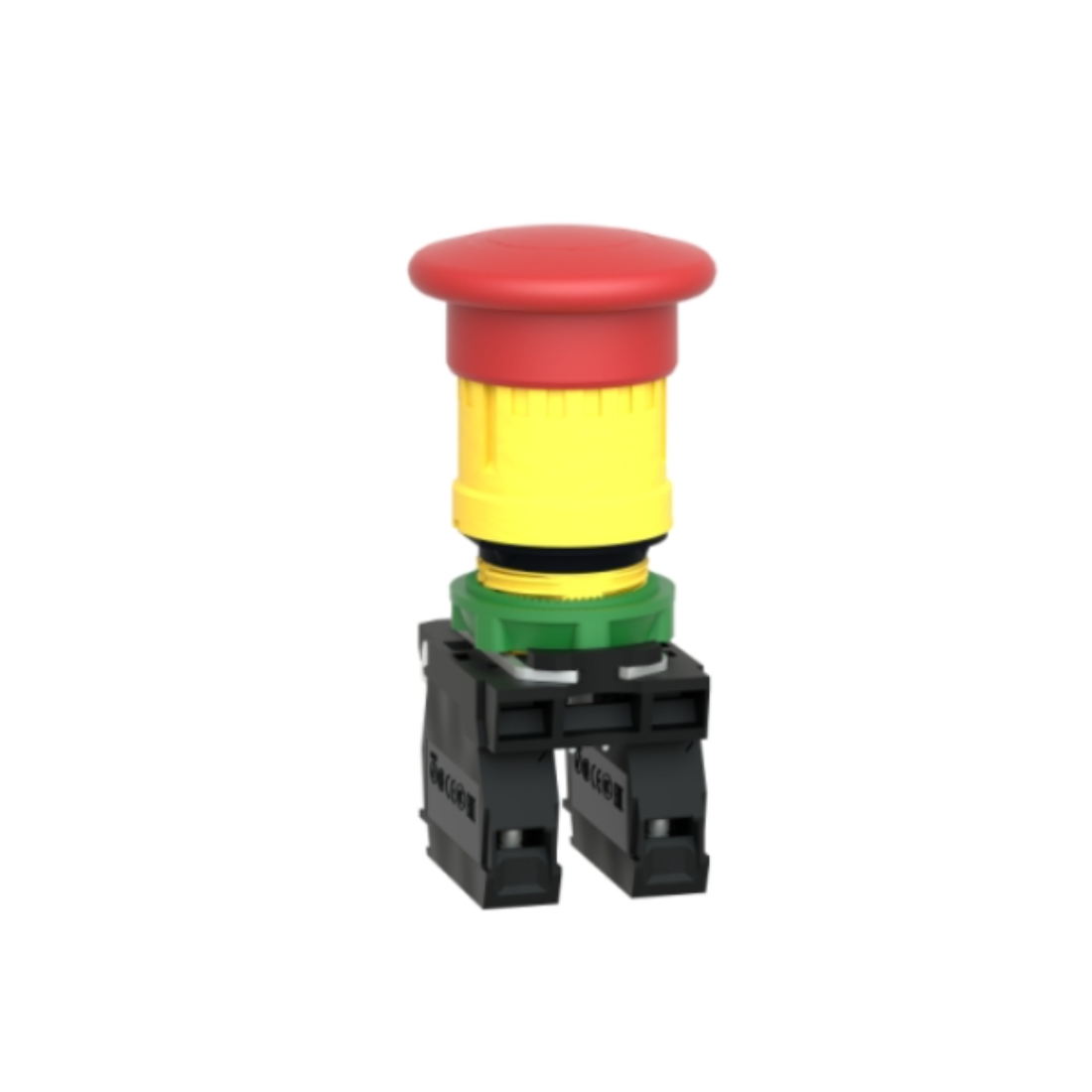

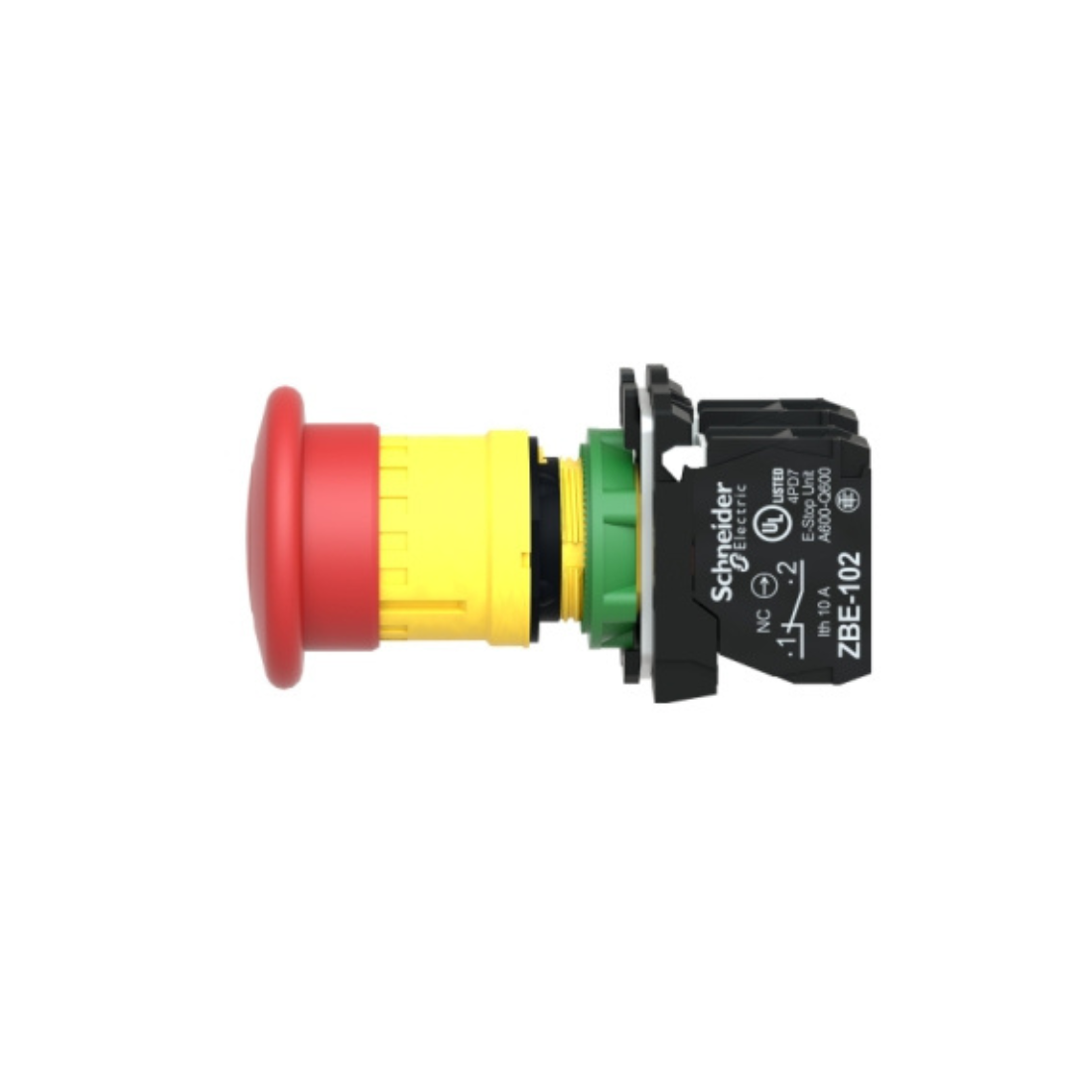

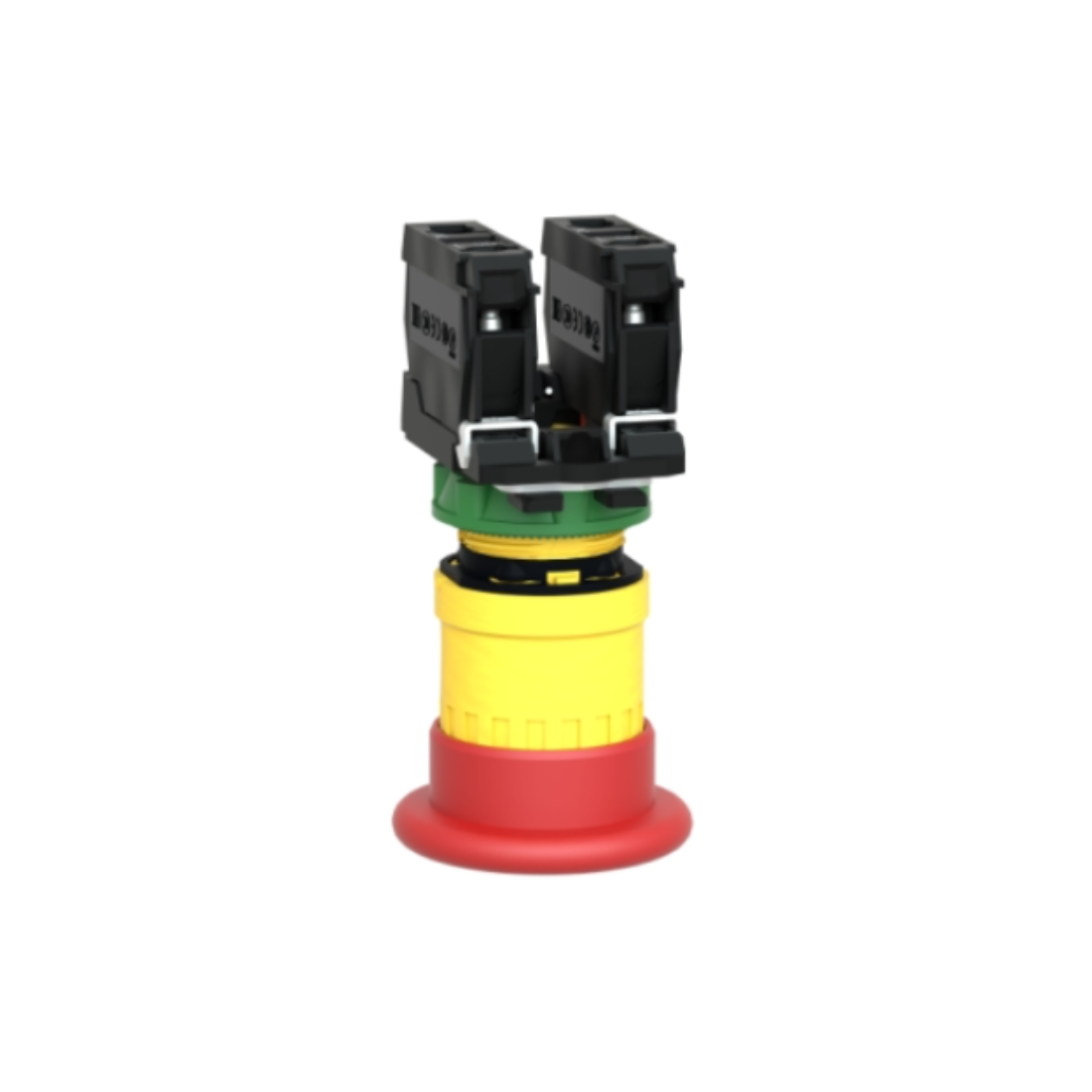

Schneider Electric Harmony XB5 Emergency Stop Switching Off Plastic Red Mushroom Ø40 Ø22 Trigger Latching Turn to Release 2NC XB5AS8444
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Pushbutton
Description
Schneider Electric XB5AS8444 Red Ø40 Emergency Stop Pushbutton operates with a latched-turn-to-release mechanism and uses screw clamp terminals. This emergency stop/off button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easy to install into standard 22mm diameter cutouts and connects with simple screw terminal connections .
It is clearly visible from a distance thanks to its light color and distinctive 40mm mushroom shape. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Operates with a latched-turn-to-release mechanism
- Ideal for use in harsh environments
- Shock, dust, water and vibration resistant
| Brand | Schneider Electric |
| Item Name | Emergency Stop Push-Button |
| Model | XB5AS8444 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand Voltage | 6 kV conforming to EN 60947-1 |
| Bezel Material | Dark Grey Plastic |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 82 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Plastic |
| Height | 43 mm |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Marking | Unmarked |
| Mechanical Durability | 300000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red Mushroom Ø 40 mm, unmarked |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Certifications | GL, CSA, DNV, UL listed, BV, LROS (Lloyds register of shipping) |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Reset | Turn To Release |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |

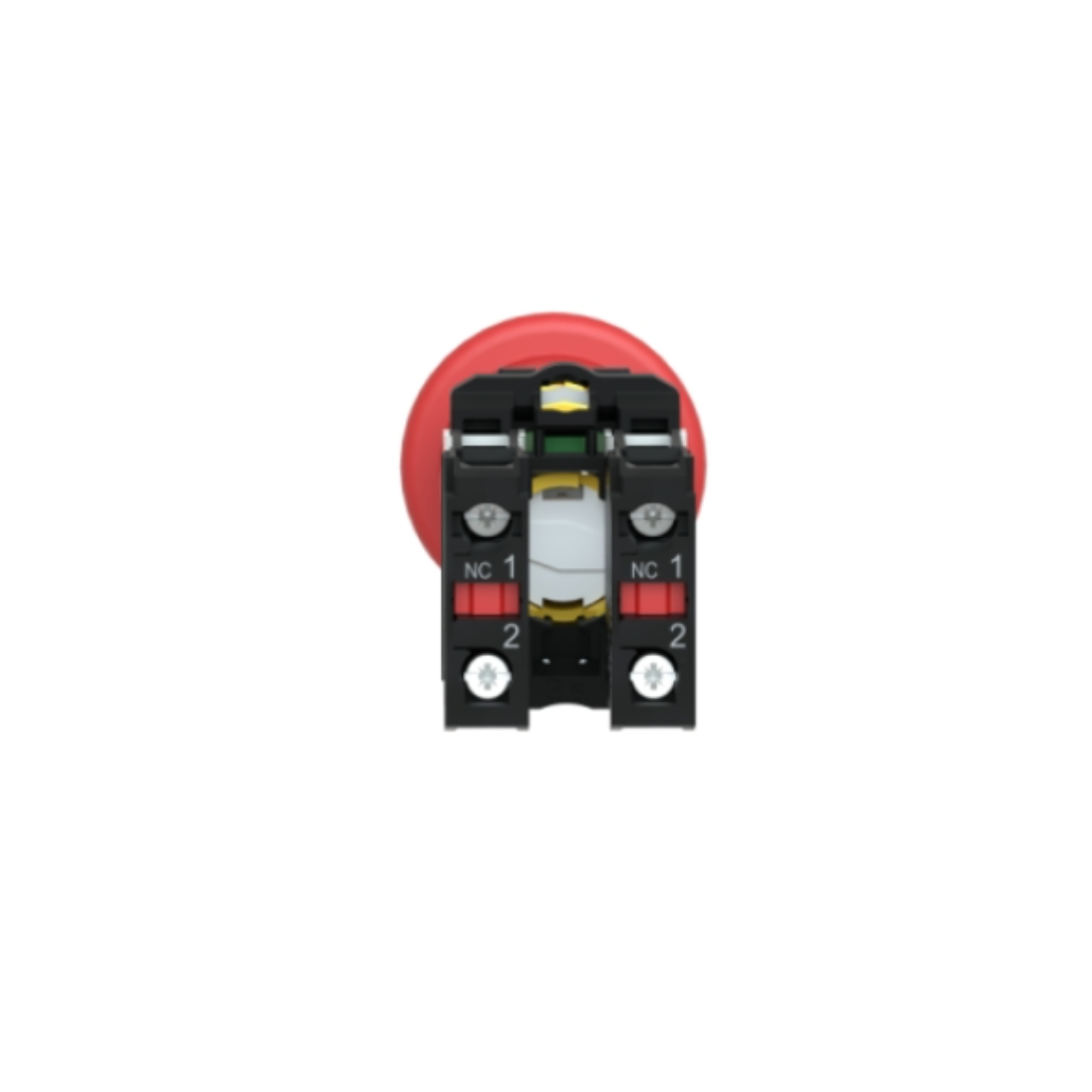

| Terminals Description ISO n°1 | (11-12)NC |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Type of Operator | Trigger Action and mechanical latching |
| Width | 40 mm |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Group Of Product | Emergency stop turn to release |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Operating Travel | 1.5 mm (NC changing electrical state), 4.3 mm (total travel) |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60204-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/ISO 13850, EN/IEC 60947-5-5, IEC 60364-5-53, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508, EN/IEC 60947-1, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Device Presentation | Complete Product |
| Weight | 0.072 kg |
