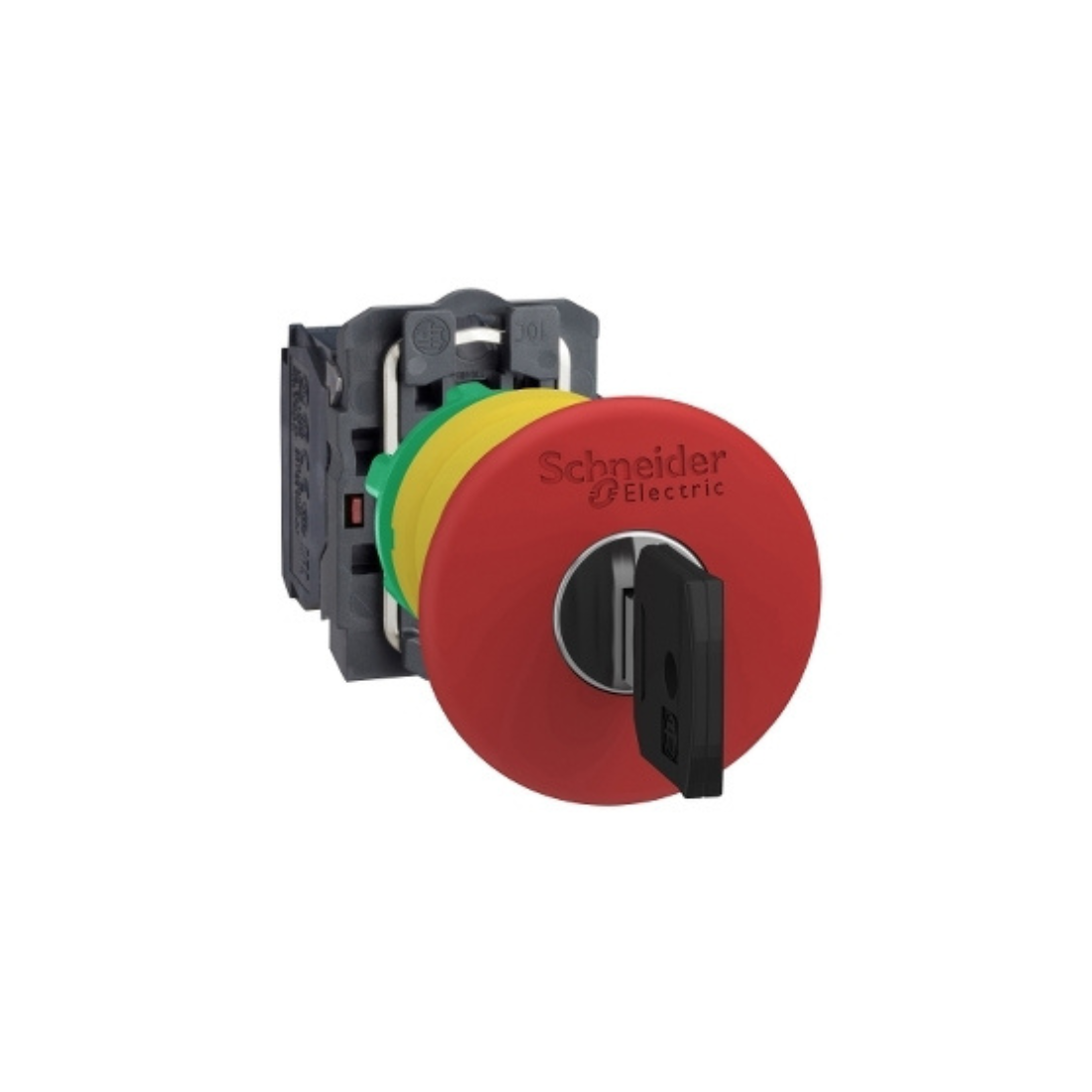

Schneider Electric Harmony XB5 Emergency Stop Switching Off Plastic Red Mushroom Ø40 Ø22 Trigger Latching Key Release 1 NO + 1 NC XB5AS9445
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Emergency Stop Pushbutton
Description

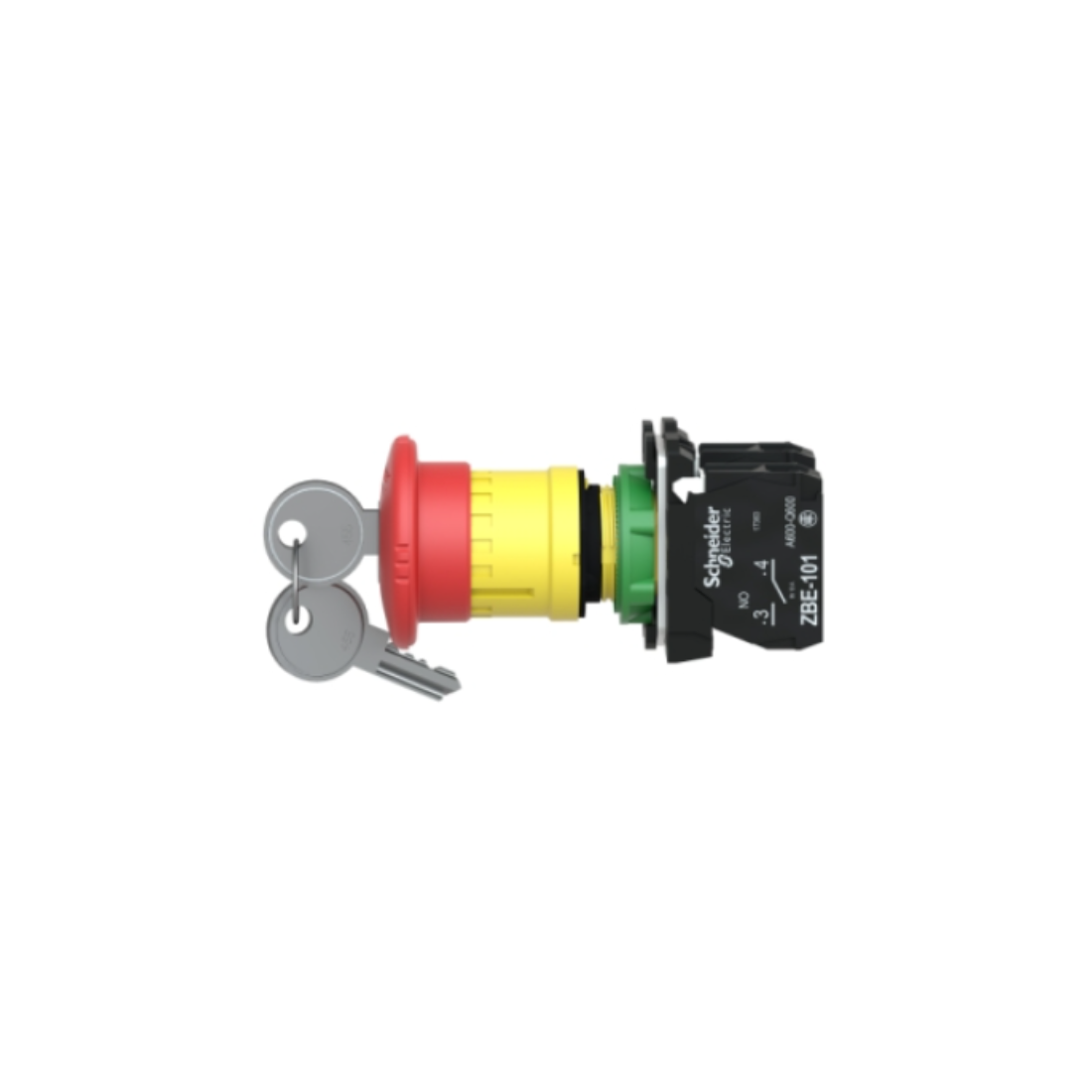

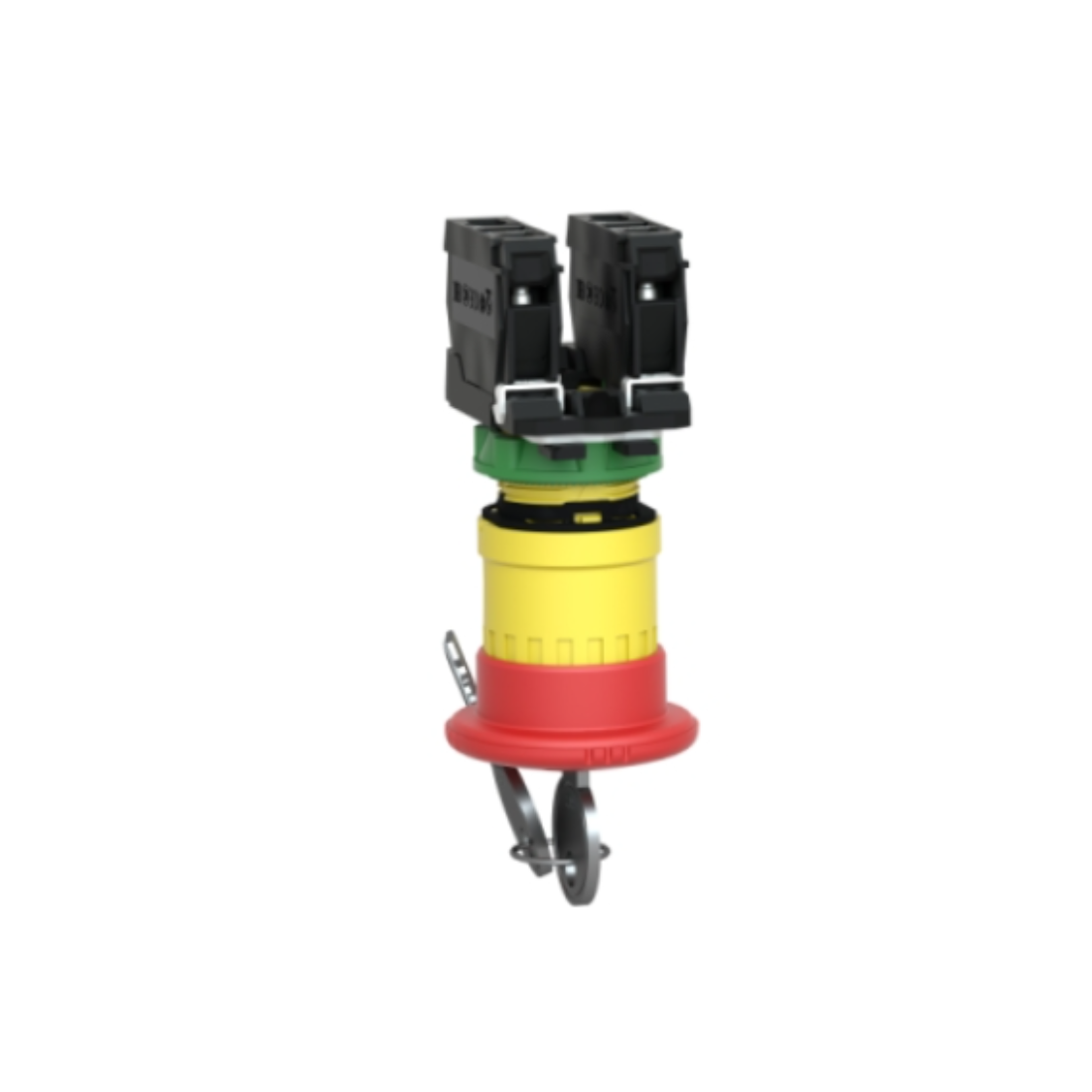

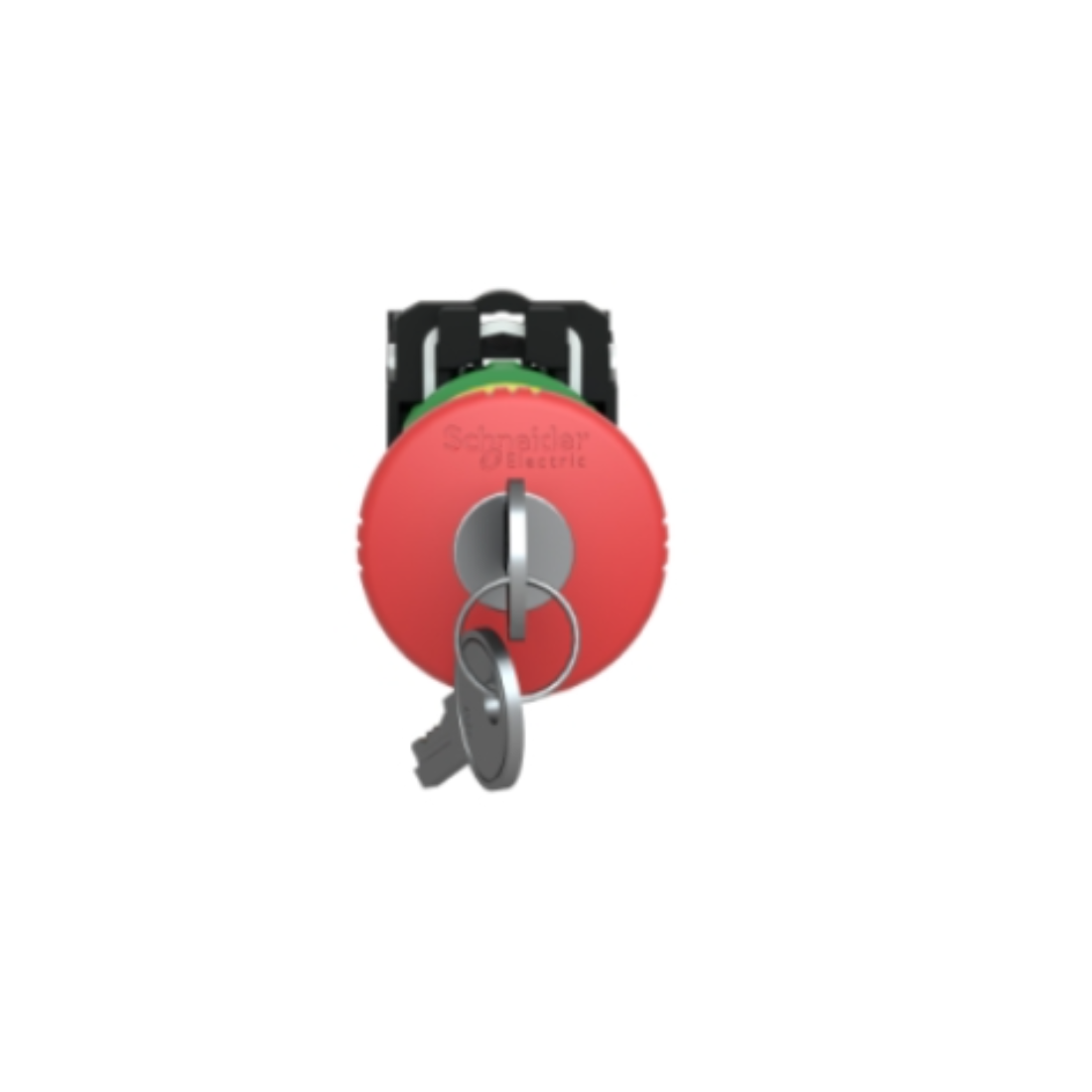

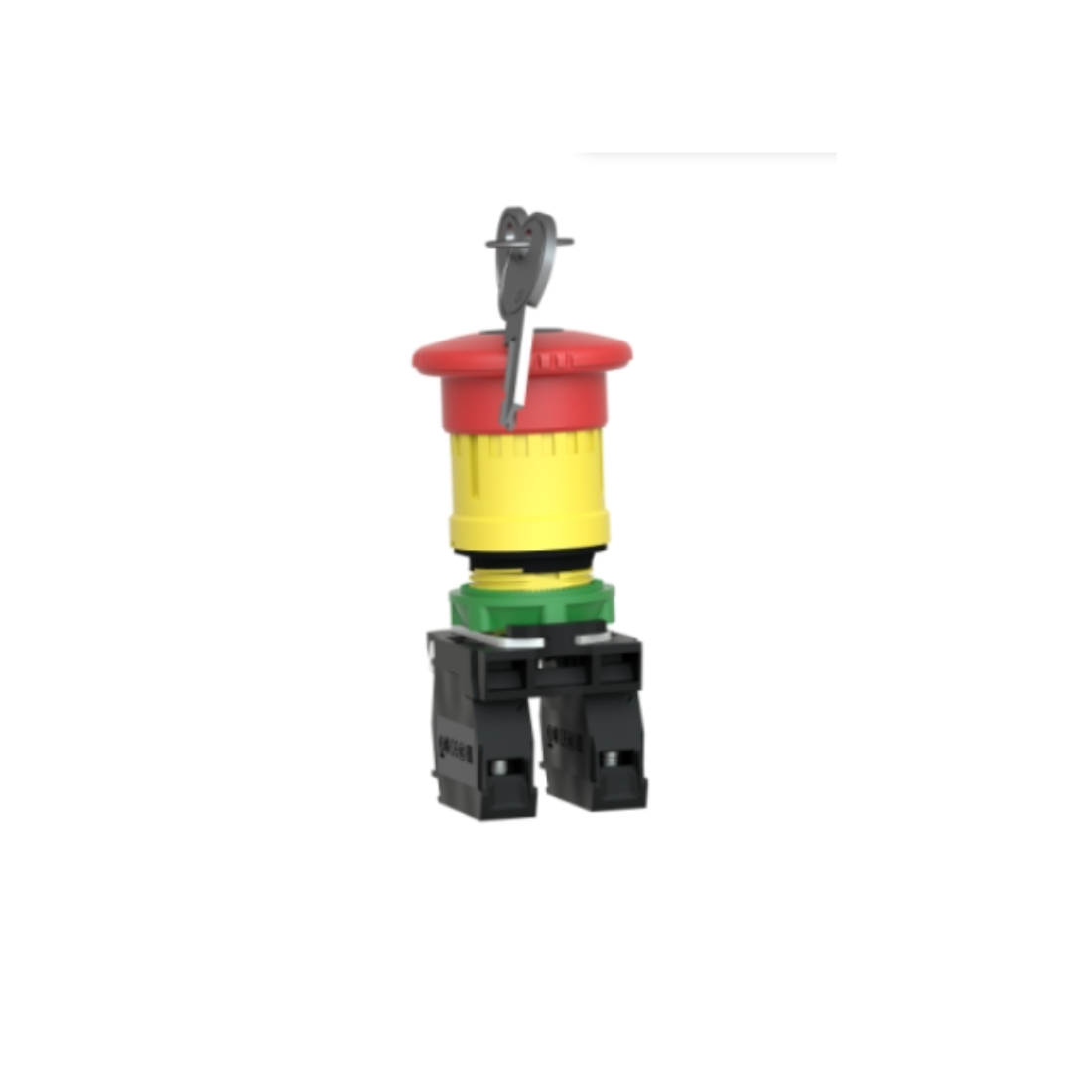

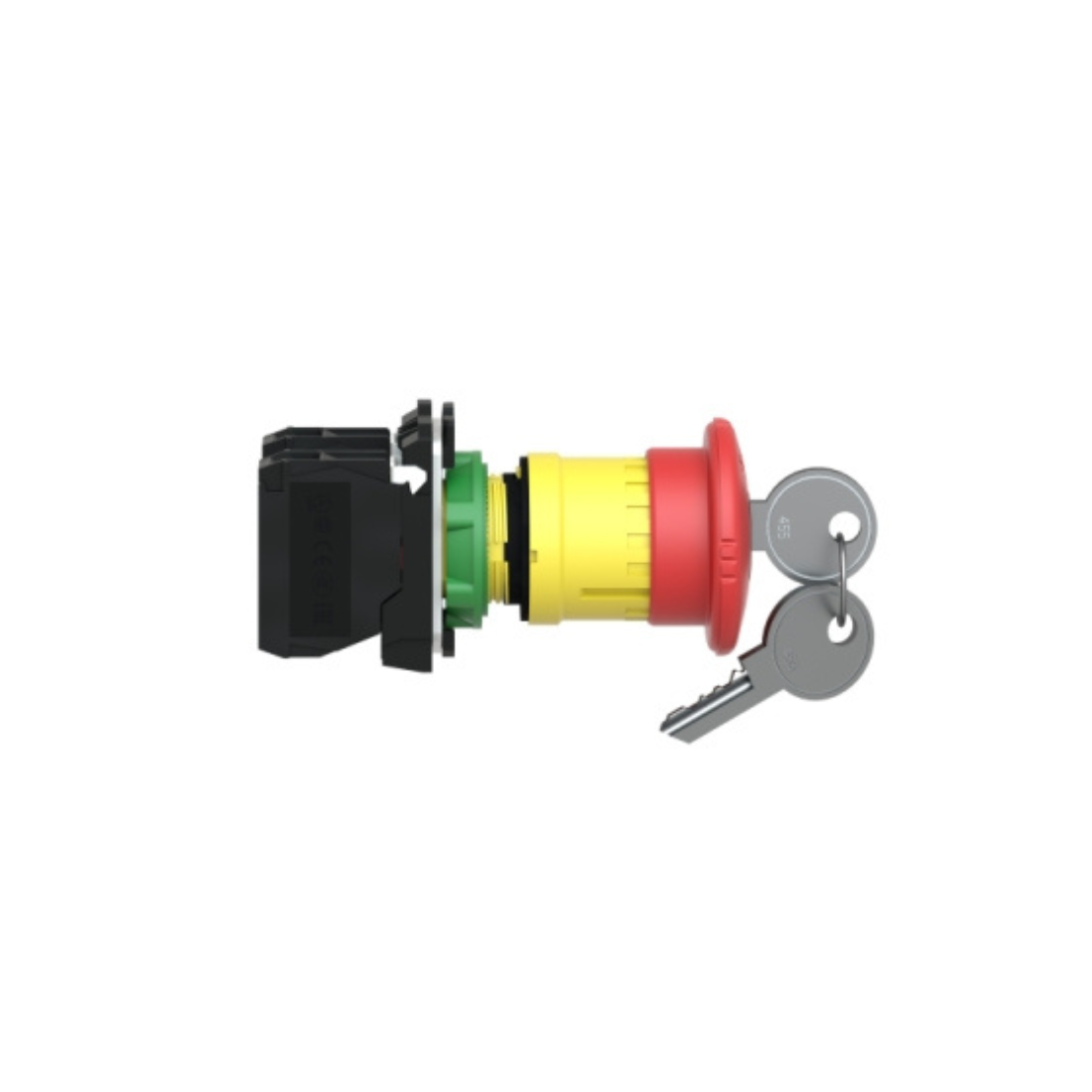

Schneider Electric XB5AS9445 Red Ø40 Emergency Stop Switching Off Push-Button operates with a latched key release (key no.455) mechanism and uses screw clamp terminals. This emergency stop/off button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easy to install into standard 22mm diameter cutouts and connects with simple screw terminal connections .
Schneider Electric XB5AS9445 Red Ø40 Emergency Stop Switching Off Push-Button is clearly visible from a distance thanks to its light color and distinctive 40mm mushroom shape. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
- Operates with a latched key release mechanism
- Shock, dust, water and vibration resistant
- Ideal for use in harsh environments
| Brand | Schneider Electric |
| Item Name | Emergency Stop Switching Off Push-Button |
| Model | XB5AS9445 |
| Bezel Material | Dark grey plastic |
| Cap/Operator Or Lens Color | Red |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 100 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar | Material plastic |
| Height | 43 mm |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67, IP69, IP69K |
| Key Withdrawal Position | Center |
| Mechanical Durability | 300000 cycles |
| Mounting Diameter | 22 mm |
| Operator Profile | Red Mushroom Ø 40 mm, unmarked |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Certifications | CSA, BV, DNV, LROS (Lloyds register of shipping), UL listed, GL |
| Protective Treatment | TH |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Range Of Product | Harmony XB5 |
| Reset | Key release |
| Sale Per Indivisible Quantity | 1 |
| Shape of Signaling Unit Head | Round |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Type of Operator | Trigger Action and mechanical latching |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |

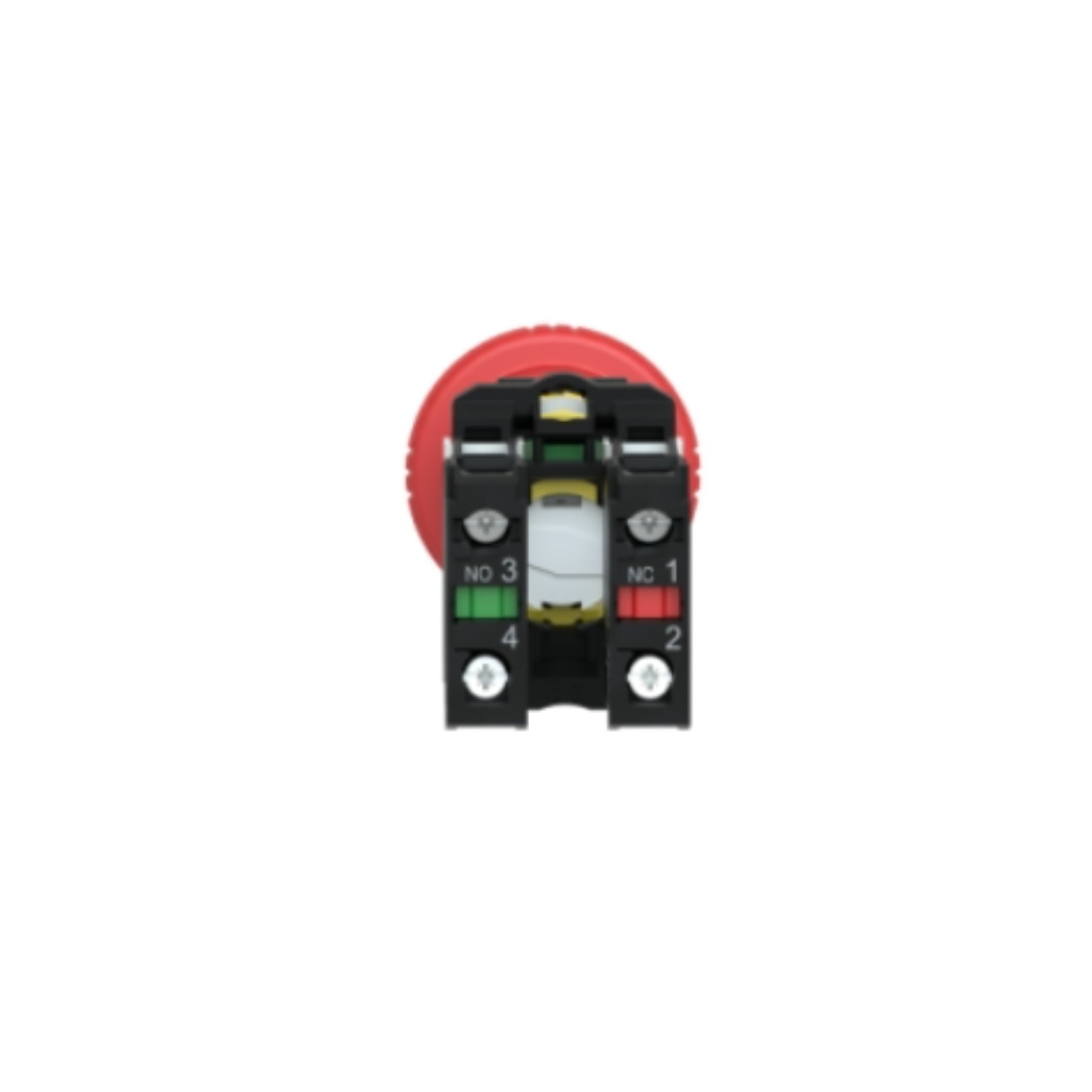

| Terminals Description ISO n°1 | (11-12)NC, (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Width | 40 mm |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Group Of Product | Emergency stop key release |
| Customizable | 0 |
| Contacts Usage | Standard contacts |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Main Group | E-stop |
| Electrical Composition Code | C7 for <4 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C10 for <4 contacts using single and double blocks in front mounting |
| Operating Force | 44 N |
| Operating Travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Type of Keylock Key | 455 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60204-1, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60364-5-53, EN/ISO 13850, EN/IEC 60947-5-5, EN/IEC 60947-1, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Complete product |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Weight | 0.112 kg |
