Schneider Electric Harmony XB5 Double-Headed Push Button Plastic Ø22 1 Green Flush Marked I + 1 Red Projecting Marked O 1 NO + 1 NC XB5AL73415
(Price Includes VAT)
Due to current global supply and market conditions, product prices may occasionally change. If there is any change in the price of items in your order, our customer support team will reach out to you for confirmation before proceeding further. We sincerely appreciate your understanding and thank you for your continued support.
Order Now & Get it by 2 - 3 Working Days
Sold by: Marketplace
Brand : Schneider Electric
Type : Double-Headed Push Button
Description

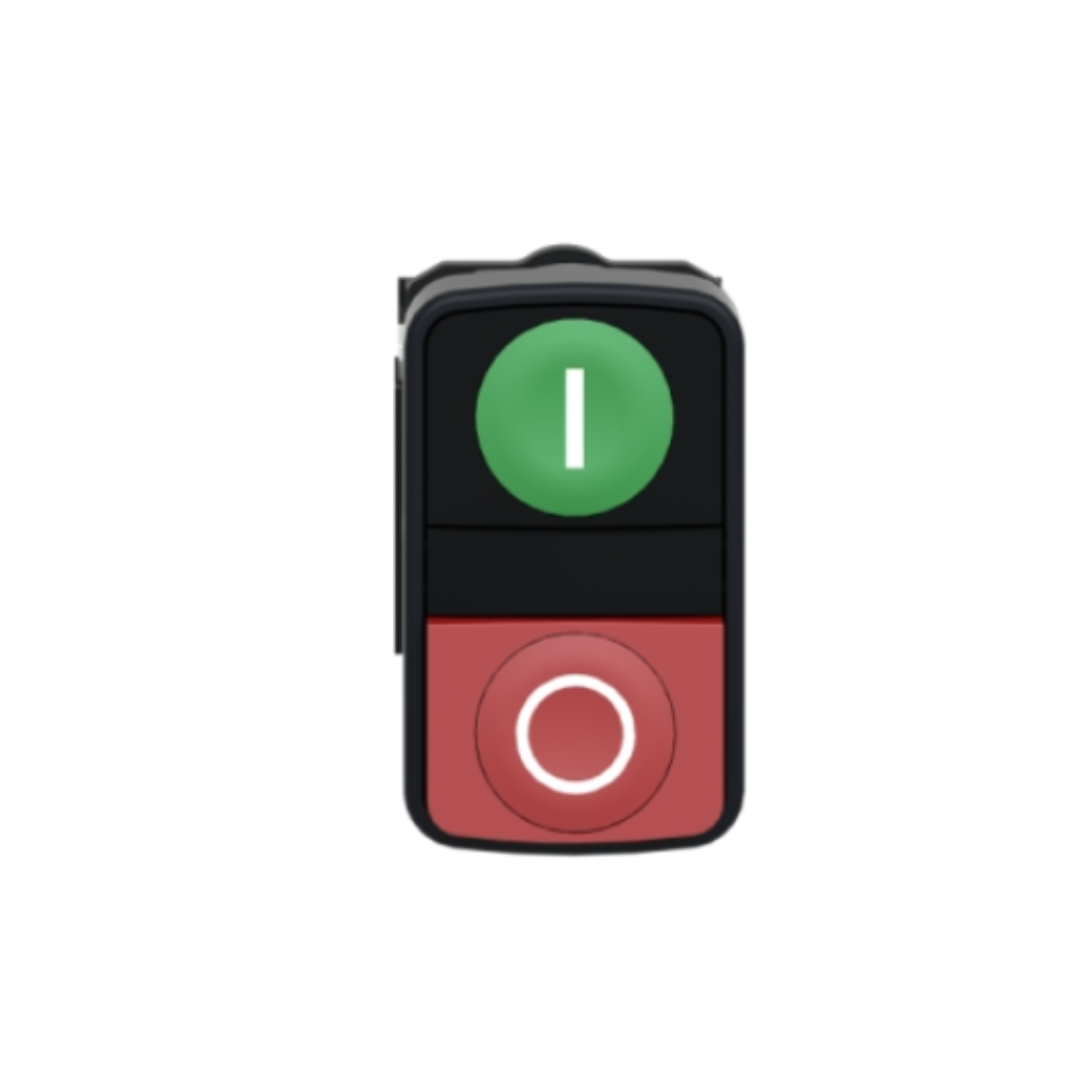

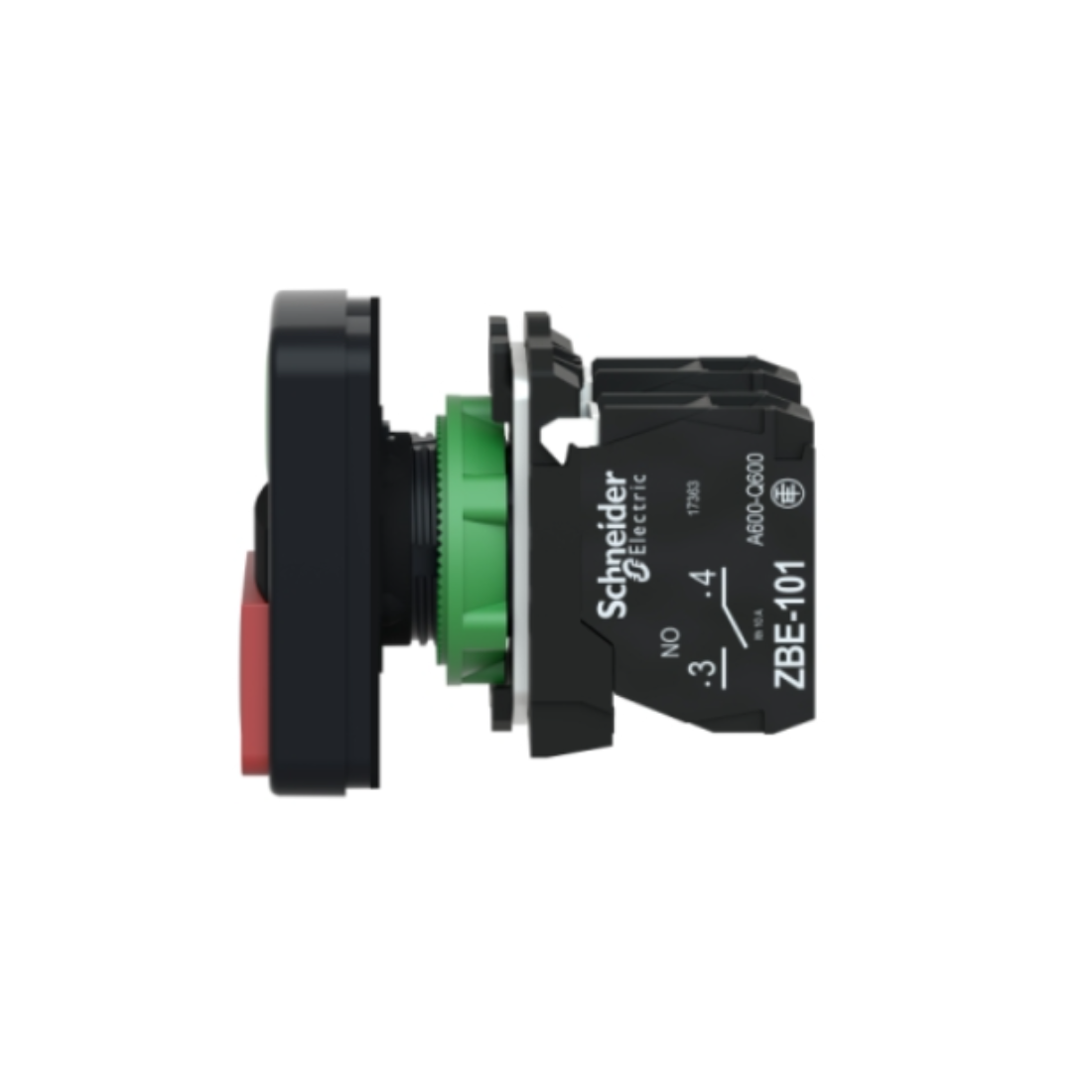

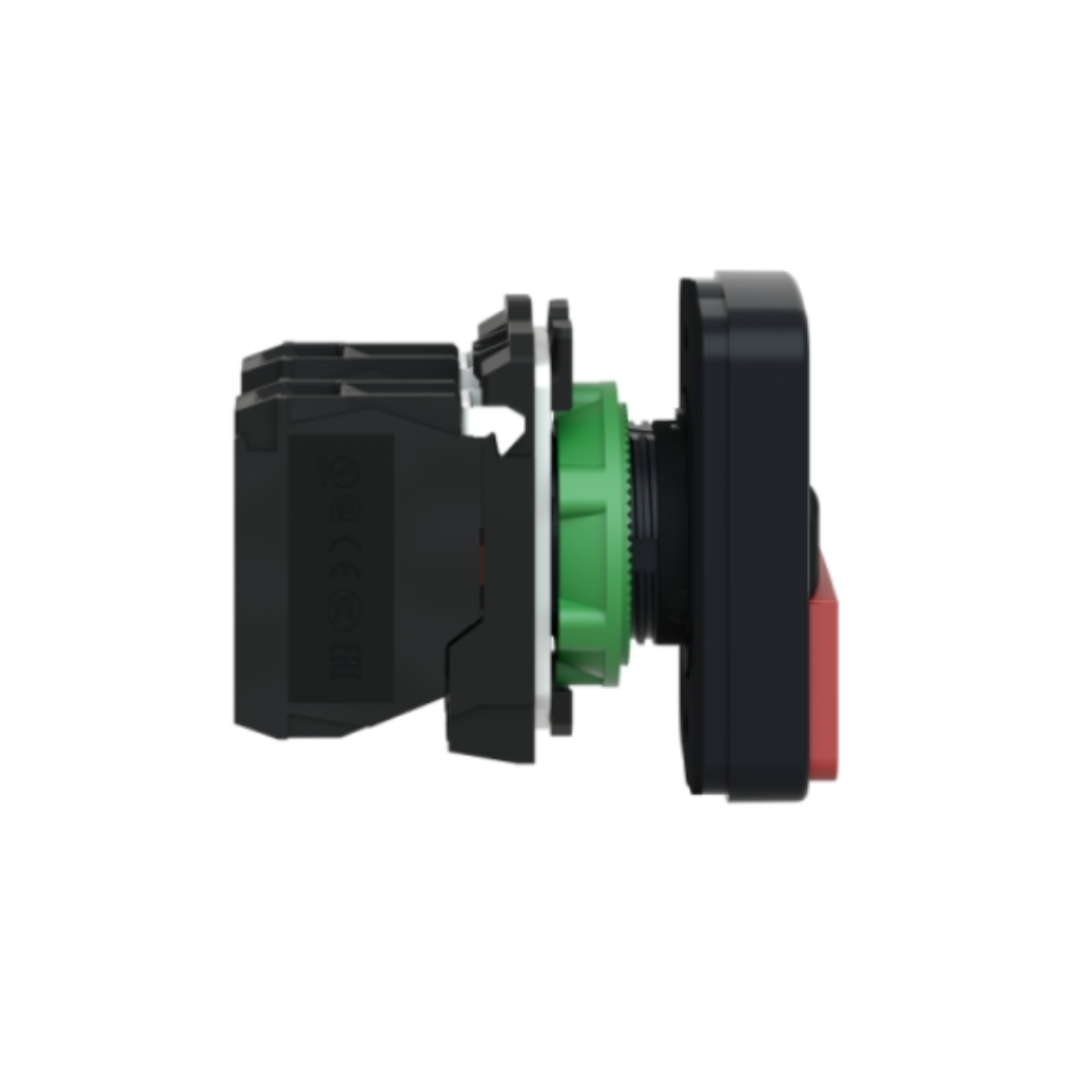

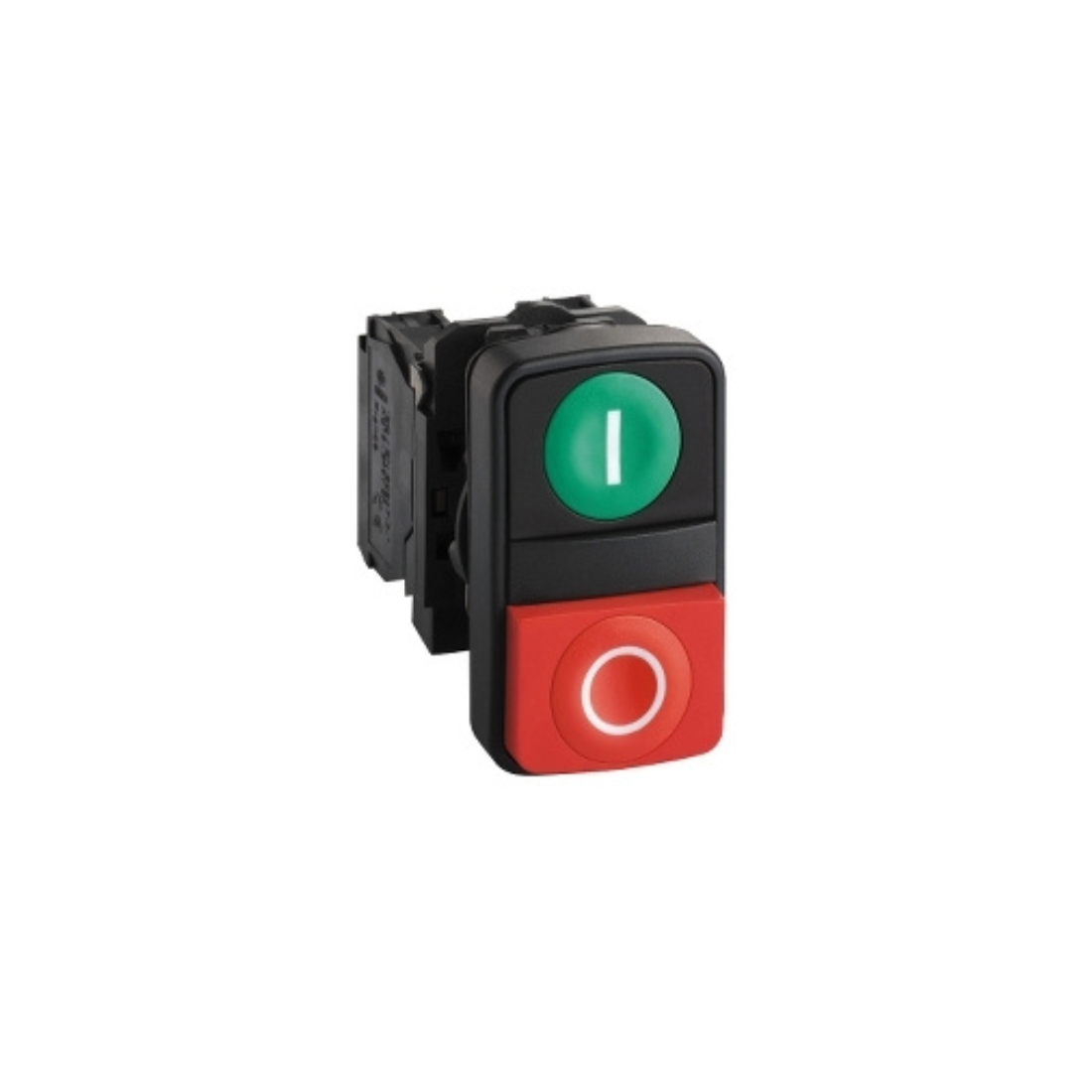

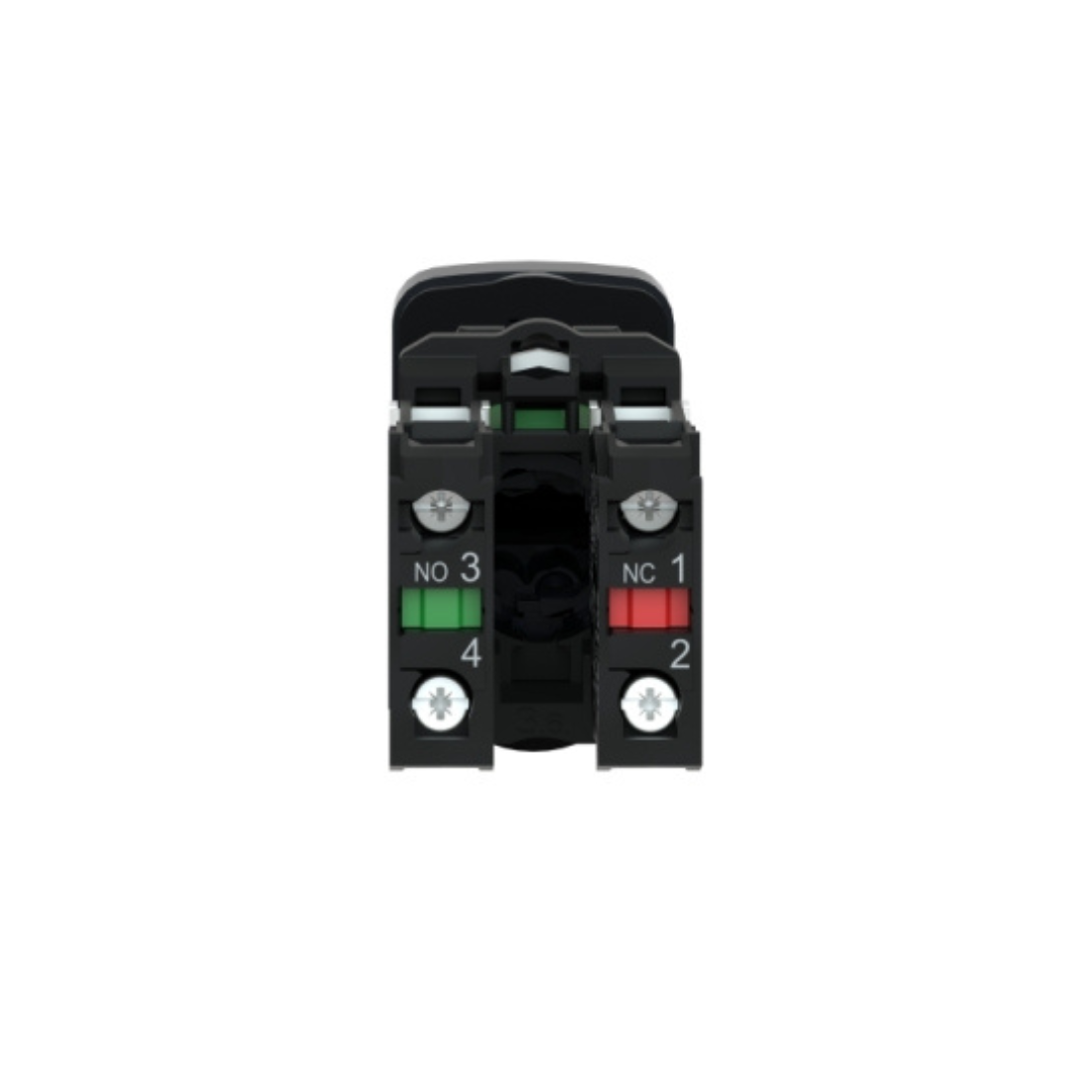

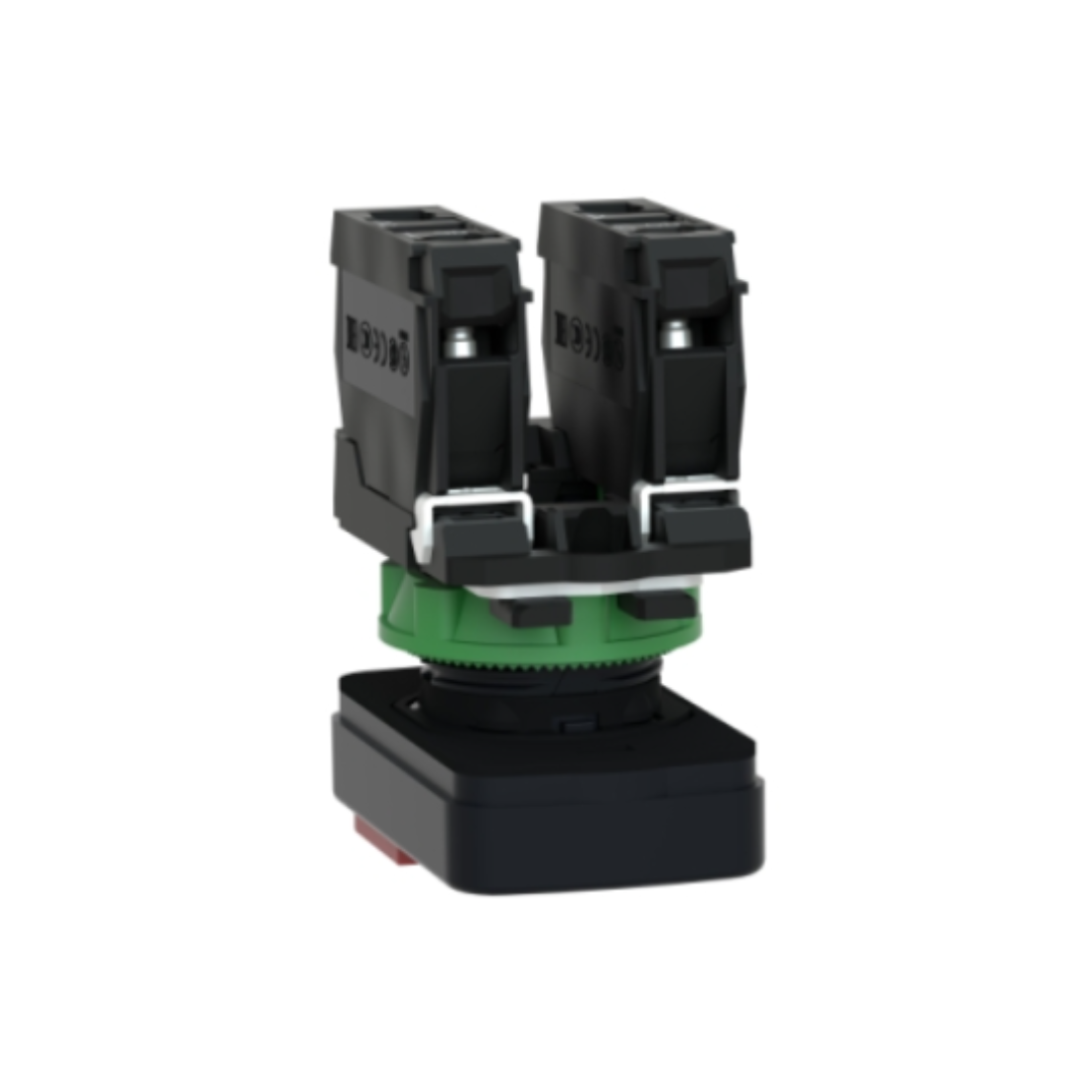

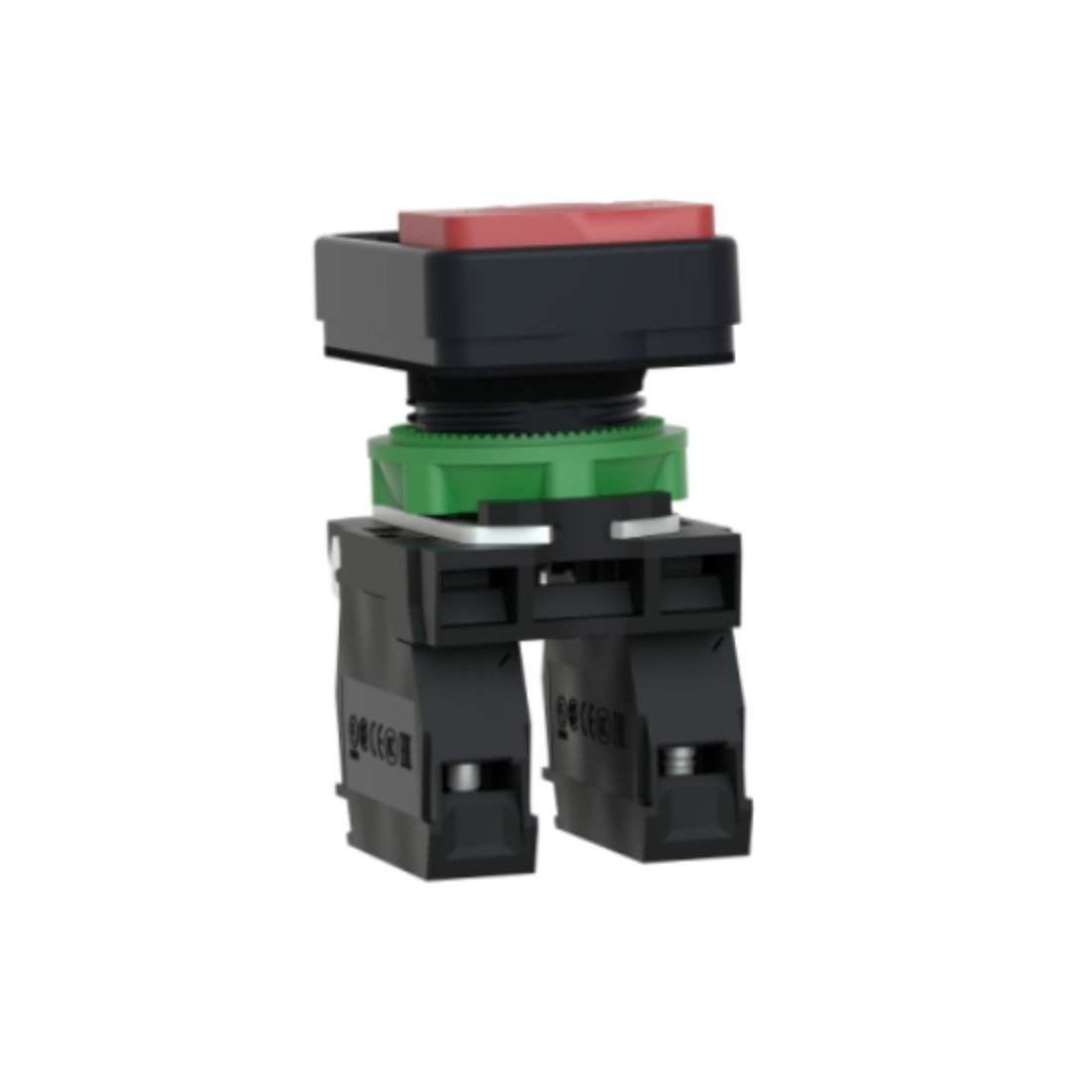

Schneider Electric XB5AL73415 Green Flush And Red Projecting Double-Headed Push Button has 1 red and 1 green button, operates with a spring return mechanism and uses screw clamp terminals. It is marked with the symbols “I” and “O”. This dual-head pushbutton provides a complete 2-button interface for the machines with a single cutout in the panel.
Schneider Electric XB5AL73415 Green Flush And Red Projecting Double-Headed Push Button easily installs into standard 22mm diameter cutouts and connects with simple screw clamp connections. Thanks to IP66 / IP67 / IP69 / IP69K, it is shock, dust, water and vibration proof, making it ideal for use in harsh environments. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.
Features
-
Operates with a spring return mechanism and uses screw clamp terminals.
- It has a metal bezel
- Provides a visual and ergonomic interface to control the machines.
| Brand | Schneider Electric |
| Item Name | Double-Headed Push Button |
| Model | XB5AL73415 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN/IEC 60947-1 |
| Rated Supply Voltage | 24 V AC/DC at 50/60 Hz |
| Bezel Material | Dark grey plastic |
| Bulb Base | Integral LED |
| Cap/Operator Or Lens Color | Green, Red |
| Compatibility Code | XB5 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1, spring terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1, spring terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Depth | 59 mm |
| Electrical Reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Plastic |
| Height | 50 mm |
| IK Degree Of Protection | IK03 conforming to IEC 50102 |
| IP Degree Of Protection | IP67 conforming to IEC 60529, IP69, IP69K |
| Mechanical Durability | 10000000 cycles |
| Mounting Diameter | 22 mm |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Operator Profile | 1 flush - 1 projecting push-buttons |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Certifications | CSA, GL, UL listed, LROS (Lloyds register of shipping), DNV, BV |
| Protective Treatment | TH |
| Range Of Product | Harmony XB5 |
| Sale Per Indivisible Quantity | 1 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shape of Signaling Unit Head | Rectangular |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Signalling Type | Steady |
| Supply Voltage Limits | 19.2-30 V DC, 21.6-26.4 V AC |
| Terminals Description | (13-14)NO, (21-22)NC |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Width | 30 mm |
| Contacts Type And Composition | 1 NO + 1 NC |
| NEMA Degree Of Protection | NEMA 13, NEMA 4X |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Customizable | 0 |
| Head Type | Standard |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Color of Marking | White marking when green, red or black caps, black marking when white caps |
| Operating Force | 3.5 N NC changing electrical state, 3.8 N |
| Operating Travel | 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Operators Description | Green ''I'' - red ''O'' |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, UL 508, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Complete product |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Weight | 0.053 kg |
