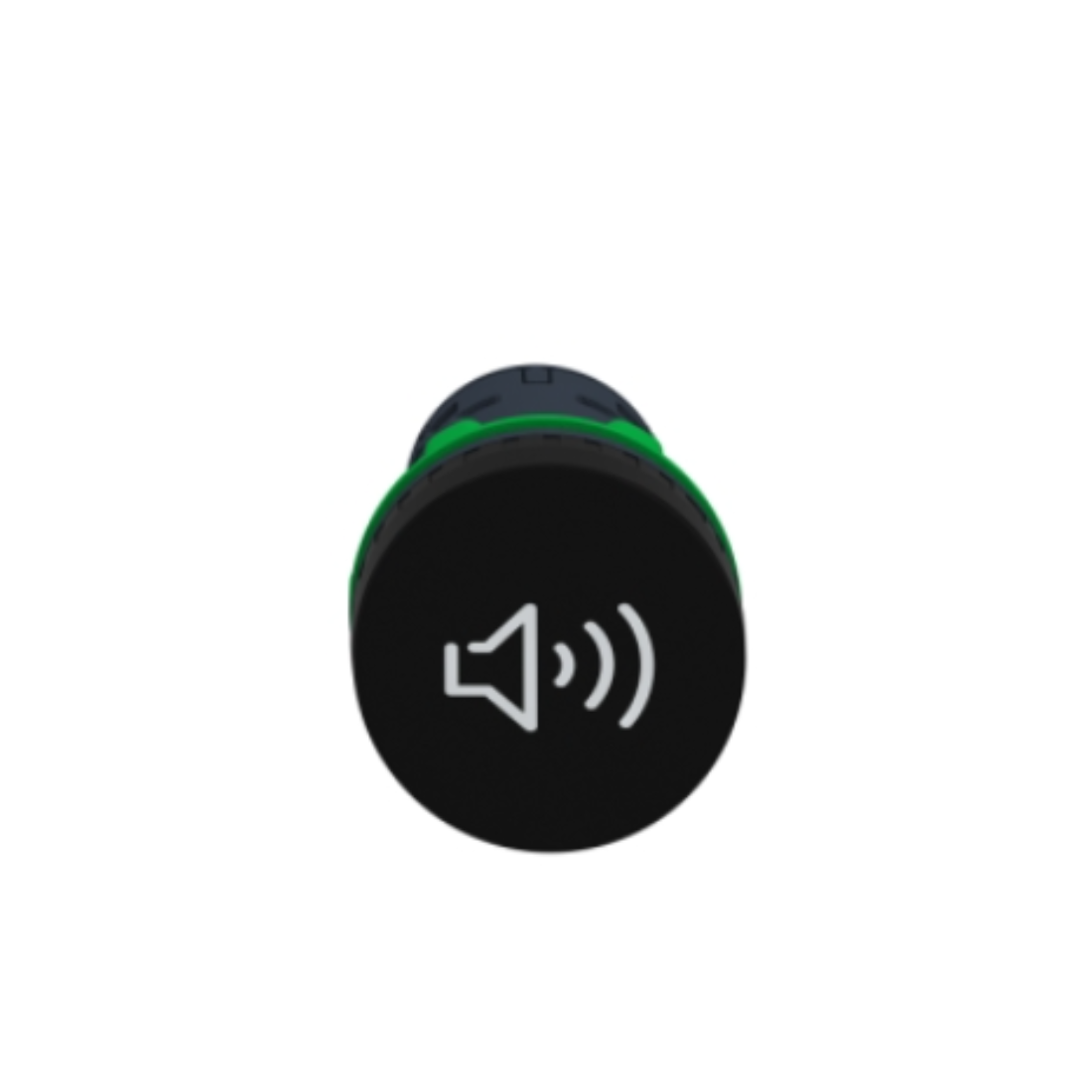

Schneider Electric Harmony XB5 Complete Buzzer Plastic Ø22 Continuous or Intermittent Tone 24V AC/DC XB5KSB

Schneider Electric XB5KSB Complete buzzer, Plastic, Ø22, Continuous Or Intermittent Tone, 24V AC/DC

Schneider Electric Harmony XB5 Complete Buzzer Plastic Ø22 Continuous or Intermittent Tone 24V AC/DC XB5KSB

Name: Schneider Electric Harmony XB5 Complete Buzzer Plastic Ø22 Continuous or Intermittent Tone 24V AC/DC XB5KSB
Brand: Schneider Electric
Price: 218.4 AED
Availability: InStock

AED 218.40

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Annunciator

Description

Schneider Electric XB5KSB Complete buzzer operates on 24V AC/DC with a noise level of 85 dB. This annunciator siren provides an audible alarm signal for the system. It can be easily installed into standard 22mm diameter cutouts. It has IP40 protection. Thanks to its plastic cover, it is ideal for applications that require good chemical resistance and/or double electrical insulation.

Features

Operates on 24V AC/DC with a noise level of 85 dB
It has IP40 protection.
Provides an audible alarm signal for the system.

Specifications

Brand : Schneider Electric

Item Name : Annunciator

Model : XB5KSB

Rated Supply Voltage : 24 V, 24 V +/- 10 %

Bezel Material : Dark Grey Plastic

Cap/Operator Or Lens Color : Black

Current Consumption : <= 18 mA

Depth : 55 mm

Height : 29 mm

Mounting Diameter : 22 mm

Overvoltage Category : Class II conforming to IEC 60536

Protective Treatment : TH

Certifications : UL listed, CSA, BV

Range Of Product : Harmony XB5

Signalling Type : Continuous or intermittent tone

Width : 29 mm

Supply Frequency : 50 Hz

NEMA Degree Of Protection : NEMA 4X, NEMA 13

Head Type : Standard

Resistance To High Pressure Washer : 9000000 Pa at 80 °C, distance : 0.1 m

Supply Circuit Type : AC/DC

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : IEC 60947-5-1, EN 60947-1, EN 60947-5-1, EN 60947-5-4, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-1, UL 508, JIS C8201-5-1, JIS C8201-1, IEC 60529, EN 50102, IEC 50102

Electrical Shock Protection Class : Class II conforming to IEC 60536

Noise Level : 90 dB 6.8 kHz 0.1 m +/- 10 %
Weight : 0.24 kg

Weight : 0.024 kg
