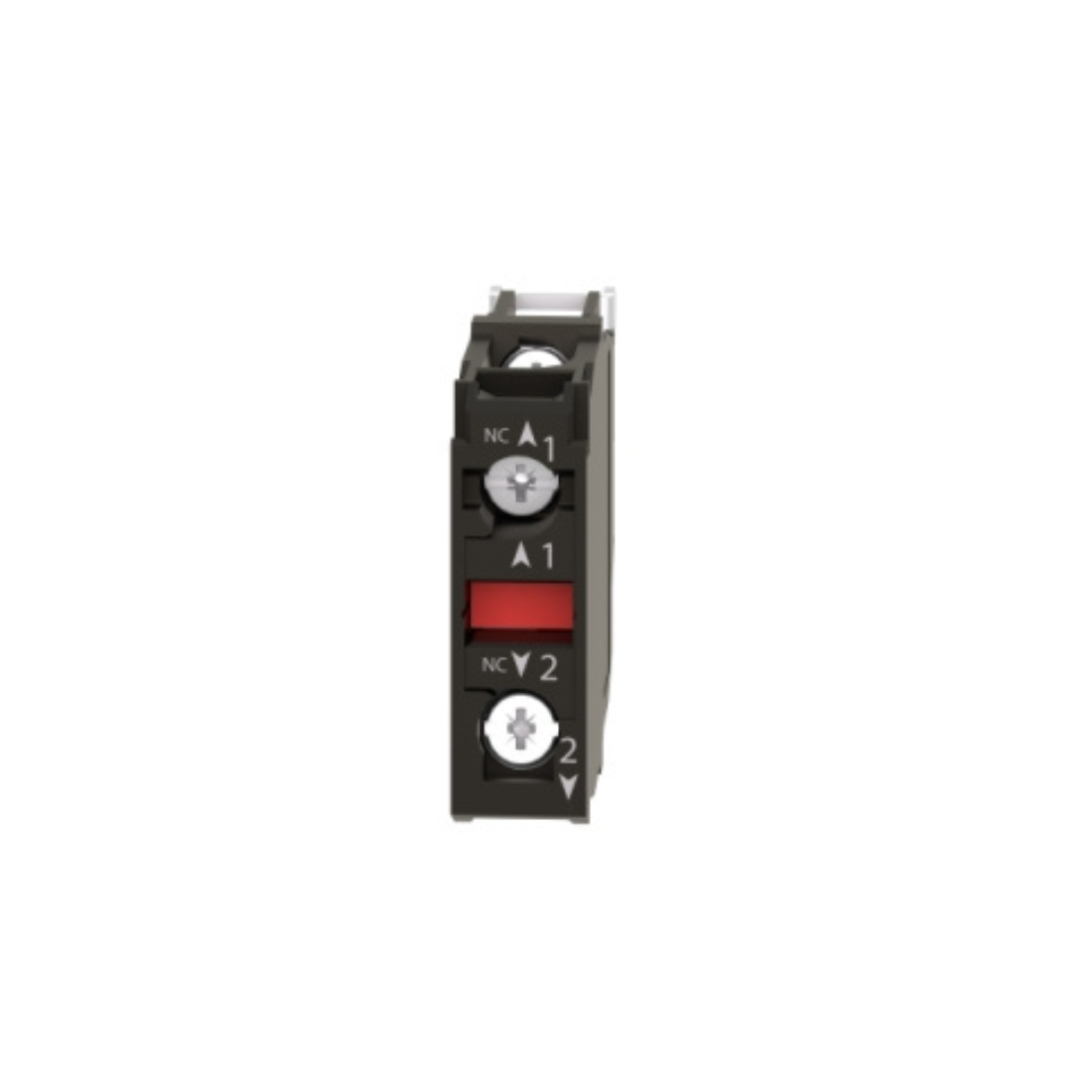

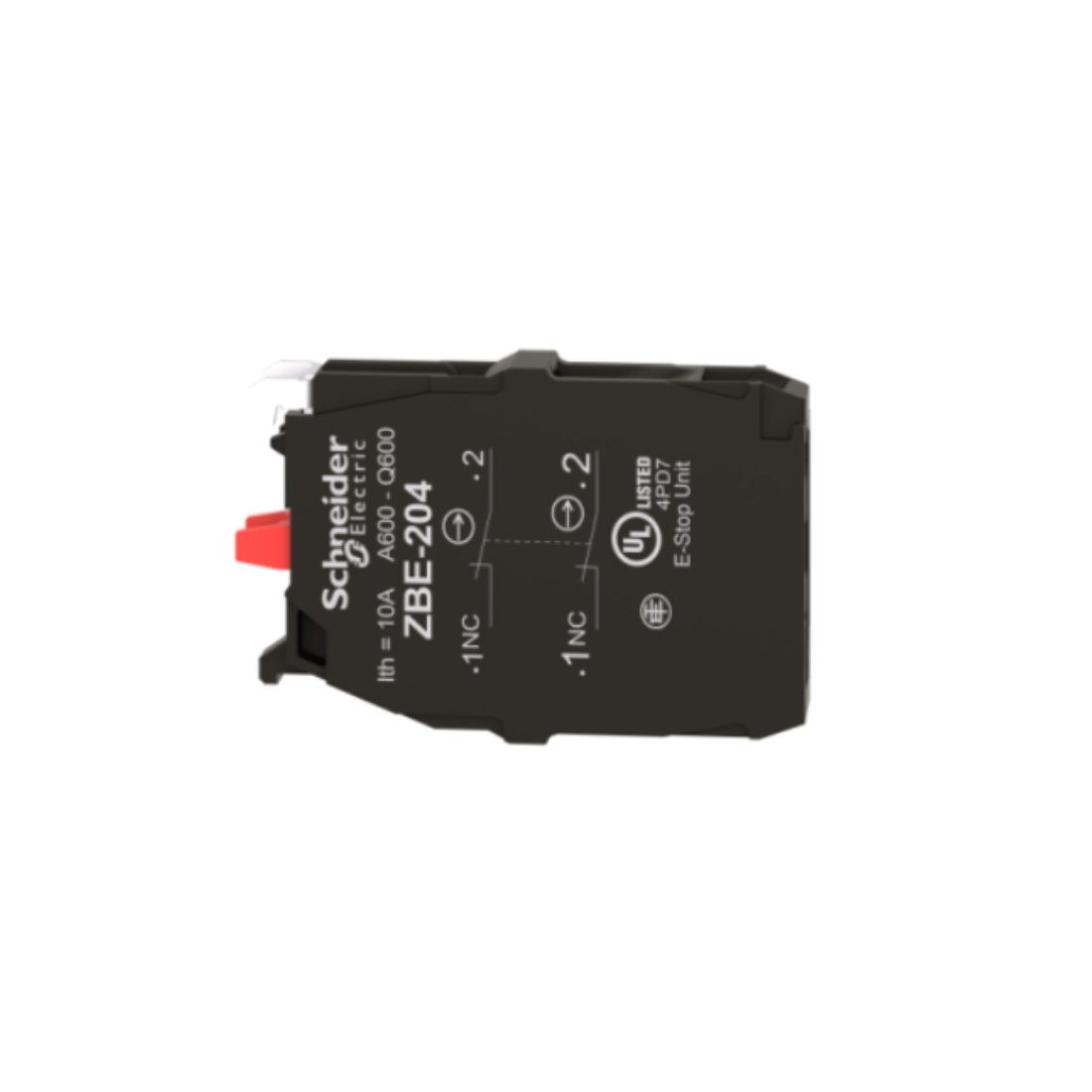

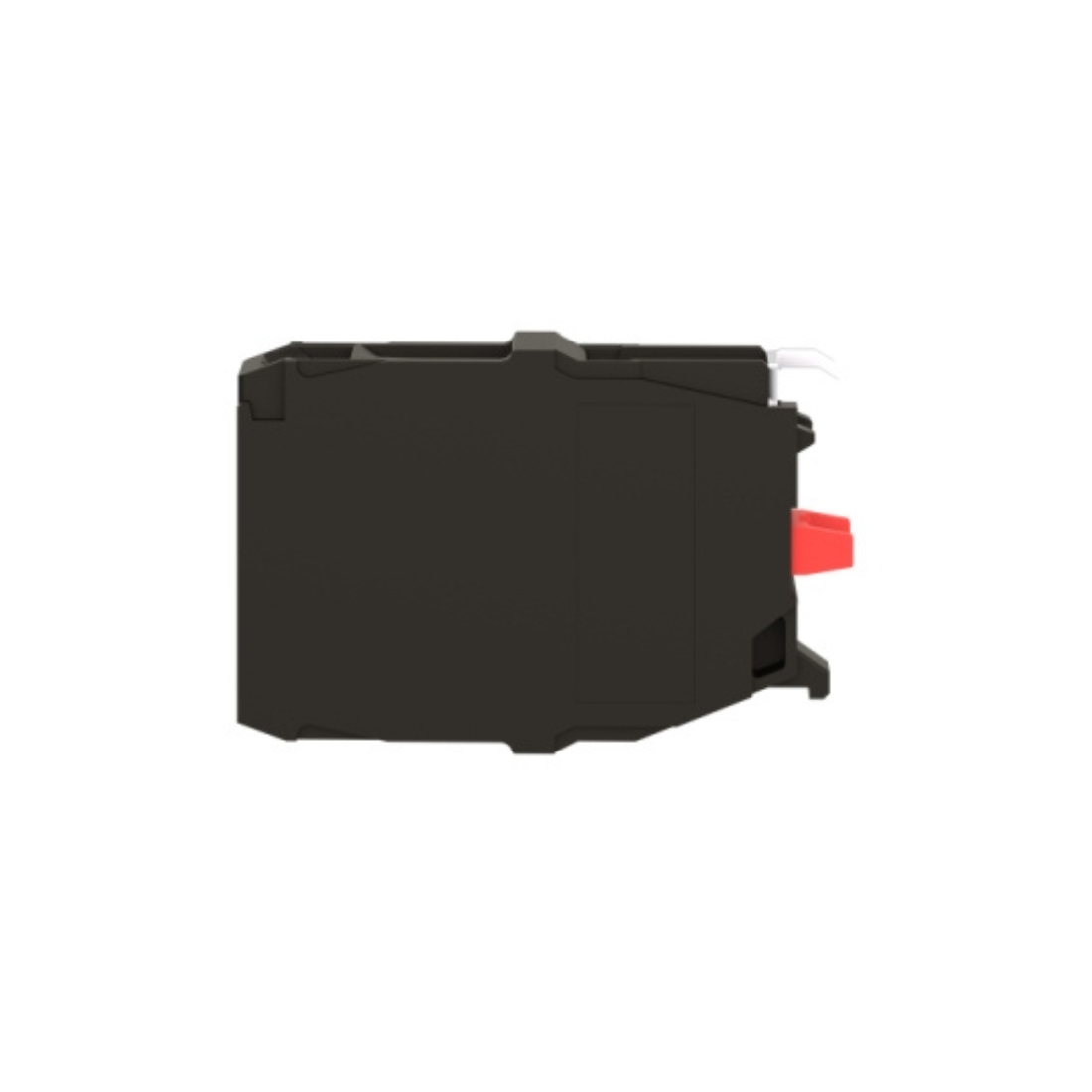

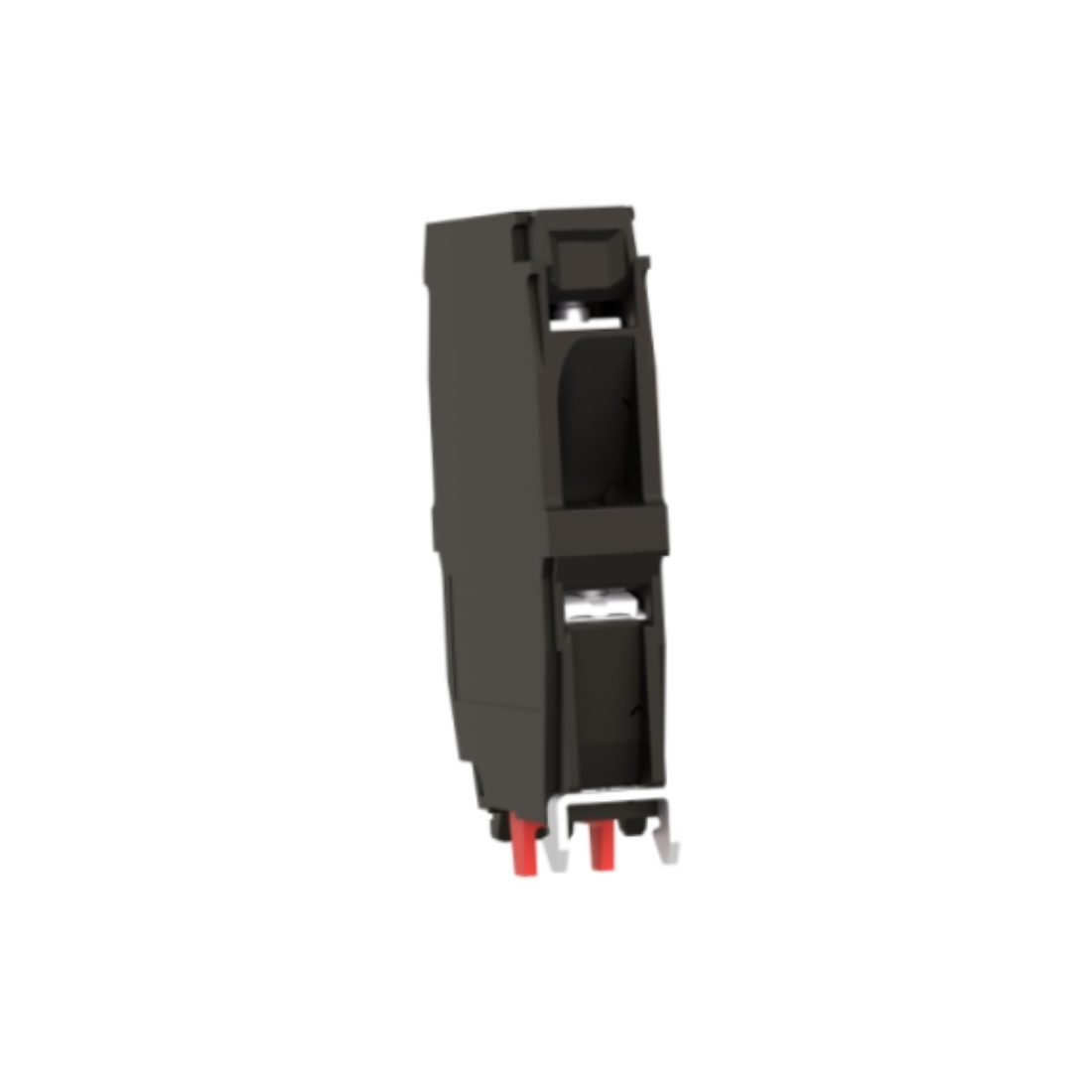

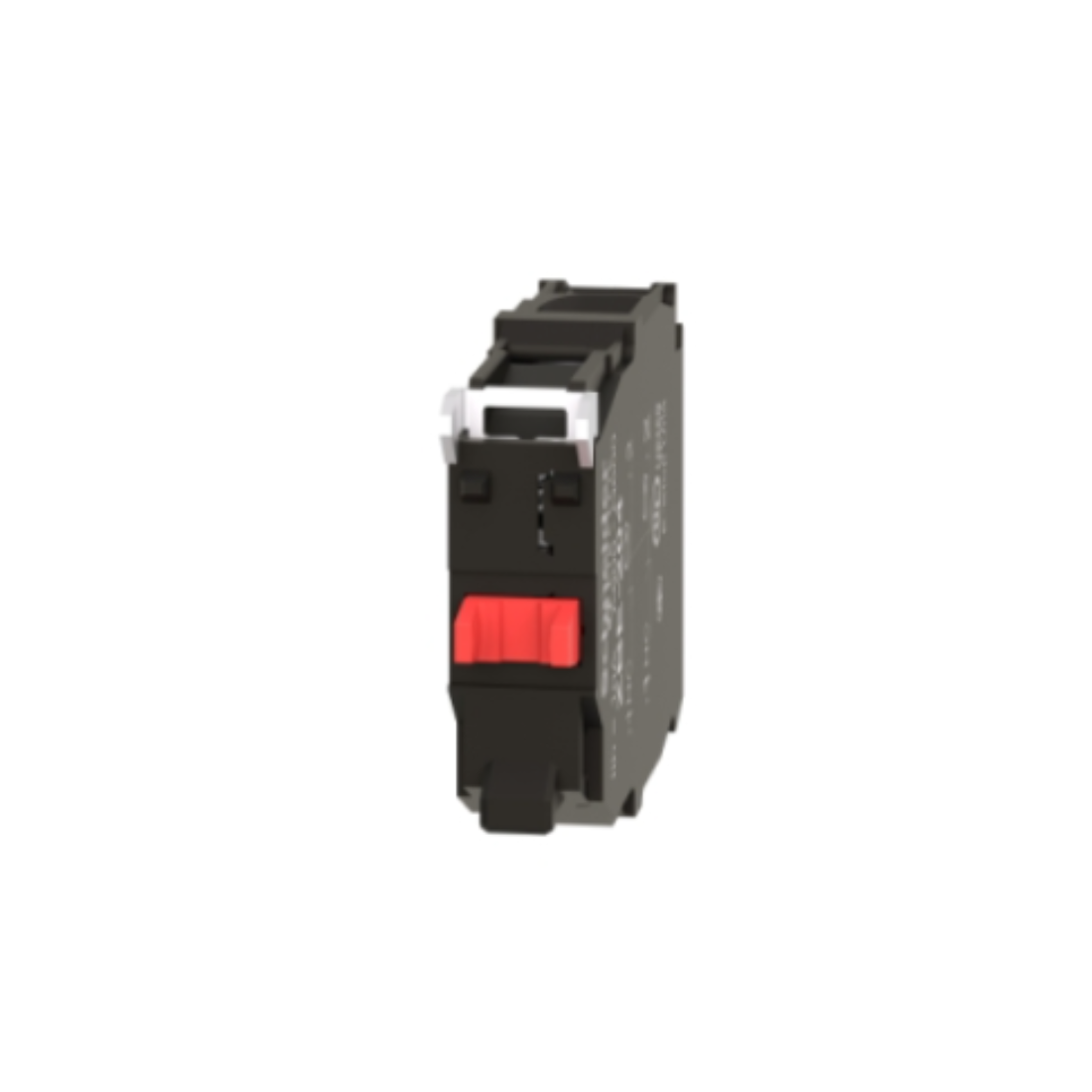

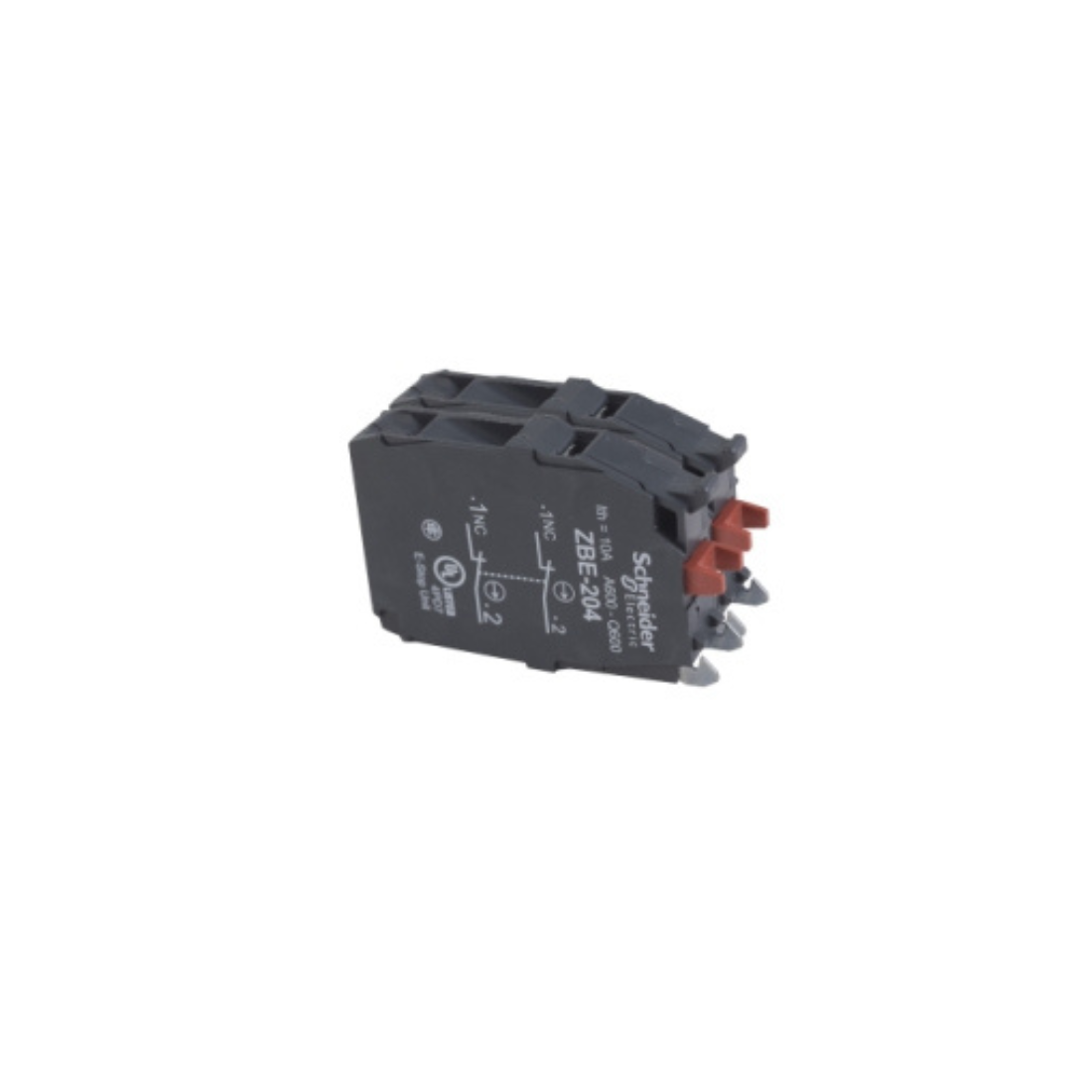

Schneider Electric Harmony XB4 XB5 Double Contact Block's for Head Ø22 2NC Screw Clamp Terminal ZBE204

Schneider Electric Harmony XB4 XB5 Double Contact Block's for Head Ø22 2NC Screw Clamp Terminal ZBE204

Name: Schneider Electric Harmony XB4 XB5 Double Contact Block's for Head Ø22 2NC Screw Clamp Terminal ZBE204
Brand: Schneider Electric
Price: 50.4 AED
Availability: InStock

AED 50.40

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Double Contact Block's

Description

Schneider Electric ZBE204 Double Contact Block's For Head uses screw terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This dual contact block allows for quick and easy replacement and configuration of the push buttons and selector switches. It easily connects to the XB4 and thanks to its IP20 protection rating, it protects operators from unexpected contact with active circuits.

The long life of 1 million cycles with 6 A load allows for less maintenance and damage to your installation. Features a clear color scheme for NO and NC contact block types. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
Various types of connection: screw clamp, connector, Fast on connector or spring terminal
Excellent mechanical connection with operator head
A wide choice of contact blocks for general purposes or specific applications (low current, standard)

Specifications

Brand : Schneider Electric

Item Name : Contact Block

Model : ZBE204

Conventional Free Air Thermal Current : 10 A conforming to EN/IEC 60947-5-1

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1

Compatibility Code : ZBE

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

Contact Operation :Slow-break

Contacts Material : Silver alloy (Ag/Ni)

IP Degree Of Protection : IP20 conforming to IEC 60529

Mechanical Durability : 10000000 cycles

Positive Opening : With conforming to EN/IEC 60947-5-1 appendix K

Certifications : CCC, CSA, GL, BV, DNV, LROS (Lloyds register of shipping), UL, GOST

Protective Treatment : TH

Range Of Product : Harmony XB4, Harmony XB5

Sale Per Indivisible Quantity : 5

Shape Of Screw Head : Cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Short-Circuit Protection : 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

Tightening Torque : 0.8-1.2 N.m conforming to EN 60947-1

Contacts Type And Composition : 2 NC

Contacts Usage : Standard contacts

Operating Force : 3.4 N NC changing electrical state

Operating Travel : 1.5 mm (NC changing electrical state), 2.6 mm (NO changing electrical state), 4.3 mm (total travel)

Contact Block Type : Double

Electrical Composition Code : C2 (quantity <= 3 ), C4 (quantity <= 2 ), C6 (quantity <= 2 ), C8 (quantity <= 1 ), C10 (quantity <= 2 ), C13 (quantity <= 3 ), M2 (quantity <= 2 ), M4 (quantity <= 2 ), M8 (quantity <= 2 )

Mounting Of Block : Front mounting

Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, UL 508, JIS C8201-1

Rated Operational Current : 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

Device Presentation : Basic element

Electrical Durability : 1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Weight : 0.02 kg
