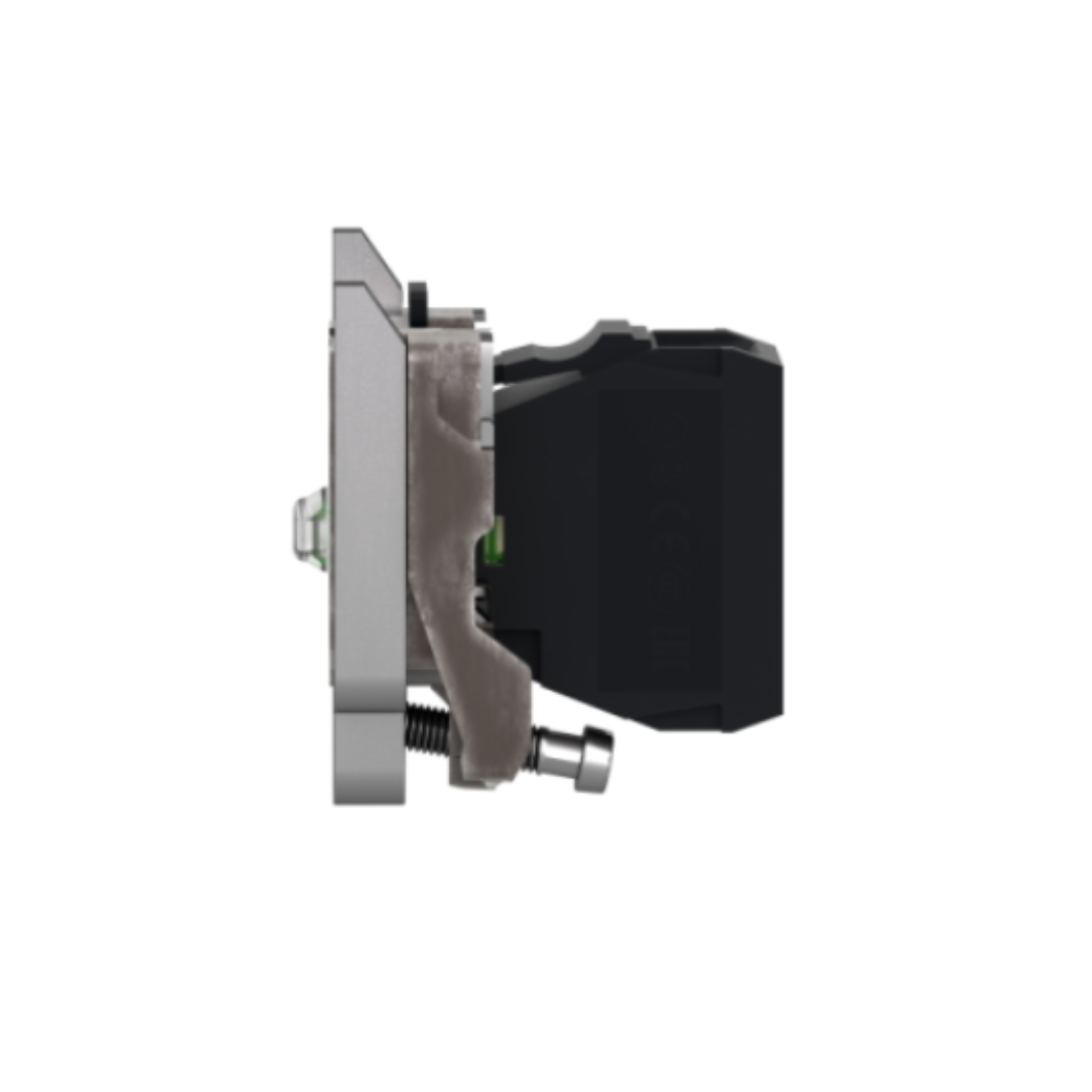

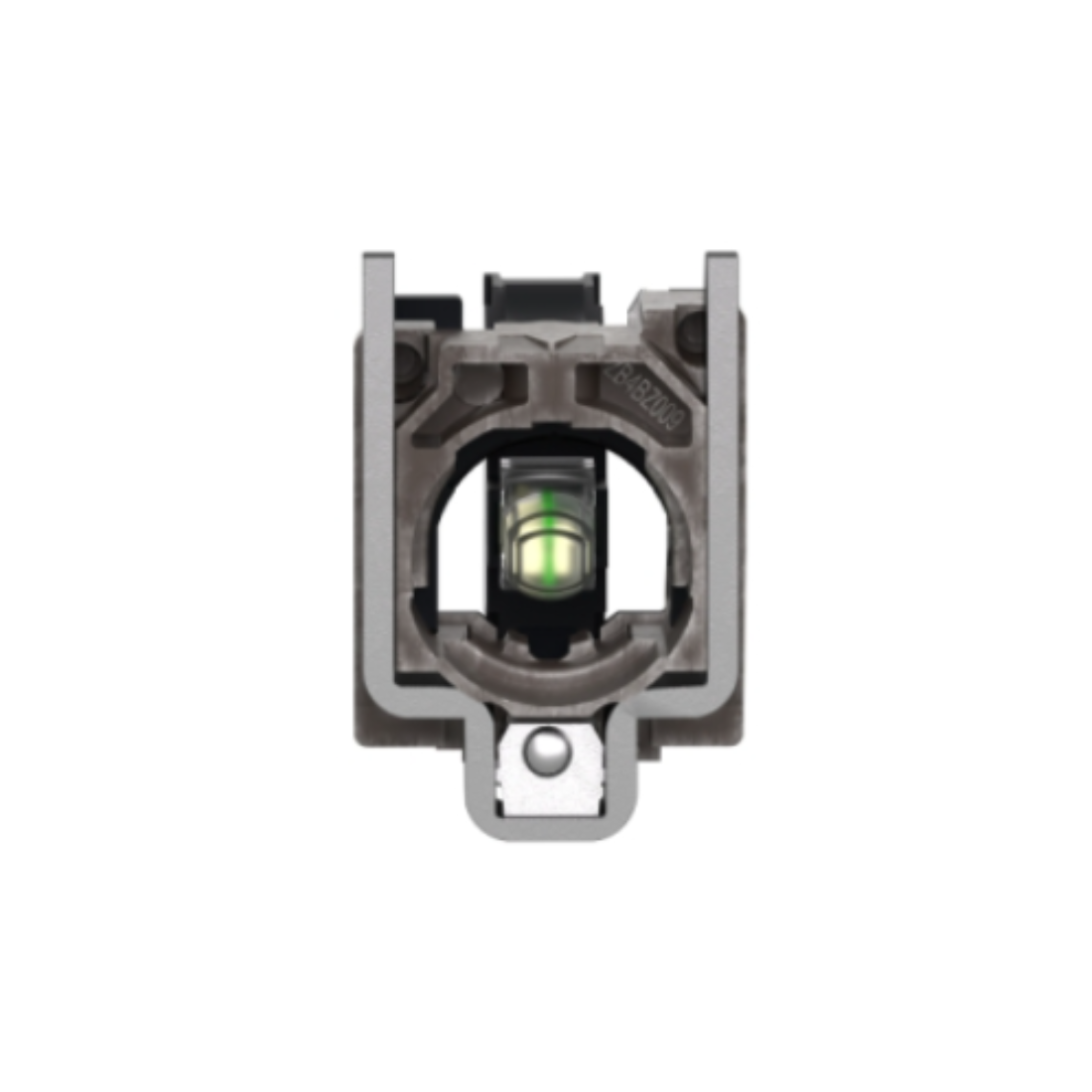

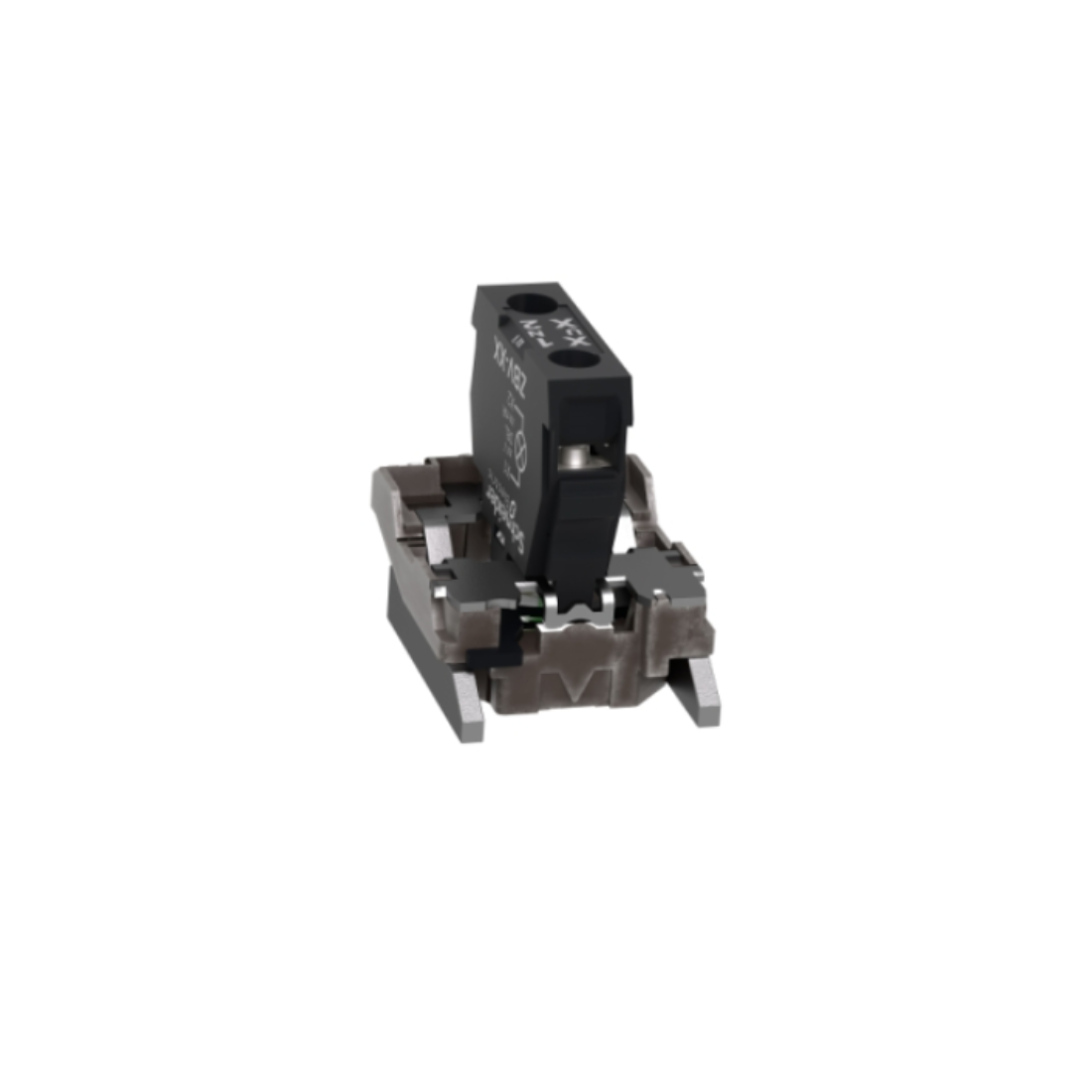

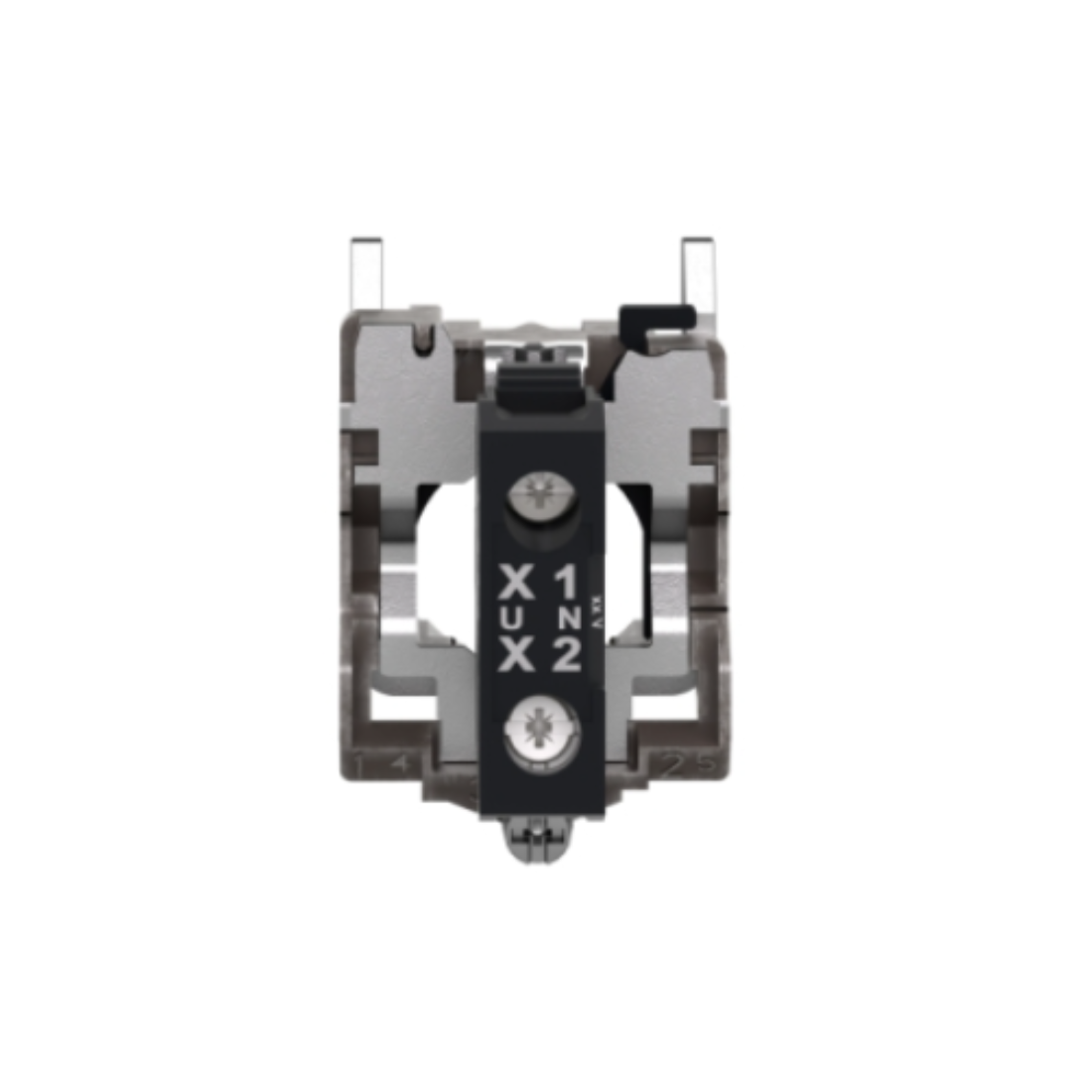

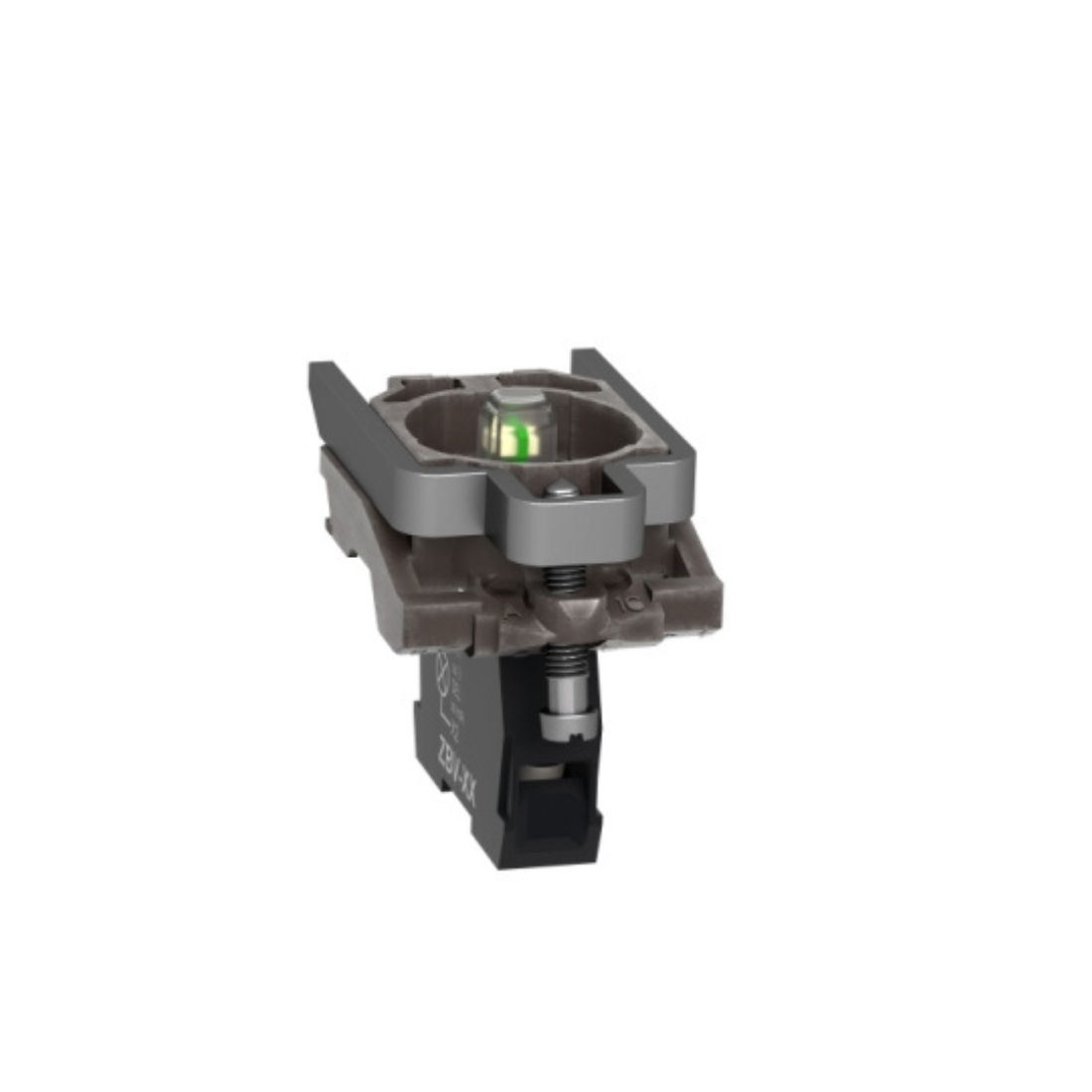

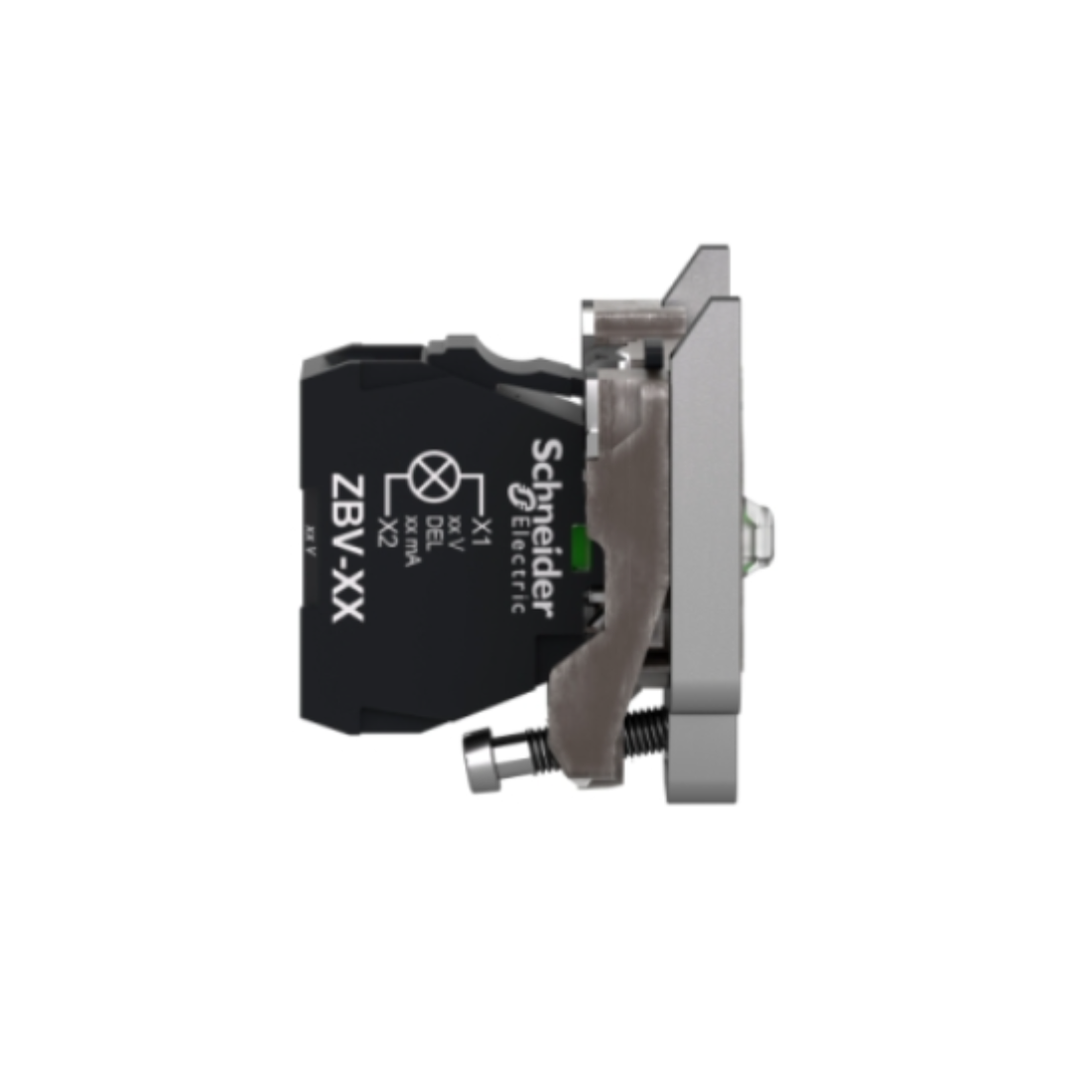

Schneider Electric Harmony XB4 White Light Block with Body/Fixing Collar Integral LED 230-240V ZB4BVM1

Schneider Electric Harmony XB4 White Light Block with Body/Fixing Collar Integral LED 230-240V ZB4BVM1

Name: Schneider Electric Harmony XB4 White Light Block with Body/Fixing Collar Integral LED 230-240V ZB4BVM1
Brand: Schneider Electric
Price: 59.85 AED
Availability: InStock

AED 59.85

(Price Inclusive of VAT)

Marketplace

Delivery by 2-3 Days

Cash On Delivery

7 Days Returnable

15+ Years Of Trust

15+ Branches

Note: This product is a marketplace product, it's availability and delivery time will be inform you, when you place an order or you can check by contacting us through whatsapp or by call.

Brand:Schneider Electric

Collections:Electricals

Type:Light Block

Description

Schneider Electric ZB4BVM1 White Light Block With Body/Fixing Collar operates with an integrated LED. It has a metal casing and is compatible with Harmony XB4 pilot lights. This light block allows for quick and easy replacement and setup of your signaling devices. Installation and replacement of compatible illuminated pushbutton or selector switch units is simply done using a clip assembly and connection is made using simple screw terminal connections.

Schneider Electric ZB4BVM1 White Light Block With Body/Fixing Collar allows signaling devices to be visually distinguished by lighting using integrated LEDs. Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. It is designed to fit standard 22mm signaling and control units, ensuring compatibility when installed on existing machines. Its wide operating temperature range of -40°C to 55°C allows the product to be used in a variety of ways.

Features

It has a metal casing and is compatible with Harmony XB4 pilot lights.
Quick and easy replacement and setup of the signaling devices.
IP20 Protection
Operates with an integrated LED

Specifications

Brand : Schneider Electric

Item Name : Complete Body/Light Body Assembly

Model : ZB4BVM1

Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) conforming to IEC 61000-2-6, 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Rated Insulation Voltage : 600 V (pollution degree 3) conforming to EN 60947-1

Rated Impulse Withstand Voltage : 6 kV conforming to EN 60947-1

Rated Supply Voltage : 230...240 V

Bulb Base : Integral LED

CAD Overall Depth : 37 mm

CAD Overall Height : 47 mm

CAD Overall Width : 30 mm

Compatibility Code : ZB4

Connections - Terminals : Screw clamp terminals, <= 2 x 1.5 mm² with cable end, screw clamp terminals, >= 1 x 0.22 mm² without cable end

Fixing Collar Material : Zamak

Light Source : Universal LED

Light Source Color : White

Certifications : GL, LROS (Lloyds register of shipping), BV, DNV, CSA, UL listed

Protective Treatment : TH

Range Of Product : Harmony XB4

Sale Per Indivisible Quantity : 1

Shape Of Screw Head : Cross compatible with Philips no 1 screwdriver, Cross compatible with pozidriv No 1 screwdriver, Slotted compatible with flat Ø 4 mm screwdriver, Slotted compatible with flat Ø 5.5 mm screwdriver

Shock Resistance : 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Signalling Type : Steady

Supply Voltage Limits : 195-264 V AC

Service Life : 100000 h at rated voltage and 25 °C

Surge Withstand : 1 kV conforming to IEC 61000-4-5

Tightening Torque : 0.8…1.2 N.m conforming to EN 60947-1

Vibration Resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Ambient Air Temperature For Operation : -40-70 °C

Ambient Air Temperature For Storage : -40-70 °C

Standards : JIS C8201-5-1, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1

Device Presentation : Basic sub-assemblies

Electrical Shock Protection Class : Class I conforming to IEC 60536

Weight : 0.054 kg
