Schneider Electric Harmony XB4 Single Contact Block with Body/Fixing Collar 2NO Screw Clamp Terminal ZB4BZ103
(Price Includes VAT)
Order Now & Get it by 2 days
Sold by: Marketplace
Brand : Schneider Electric
Type : Single Contact Block
Description

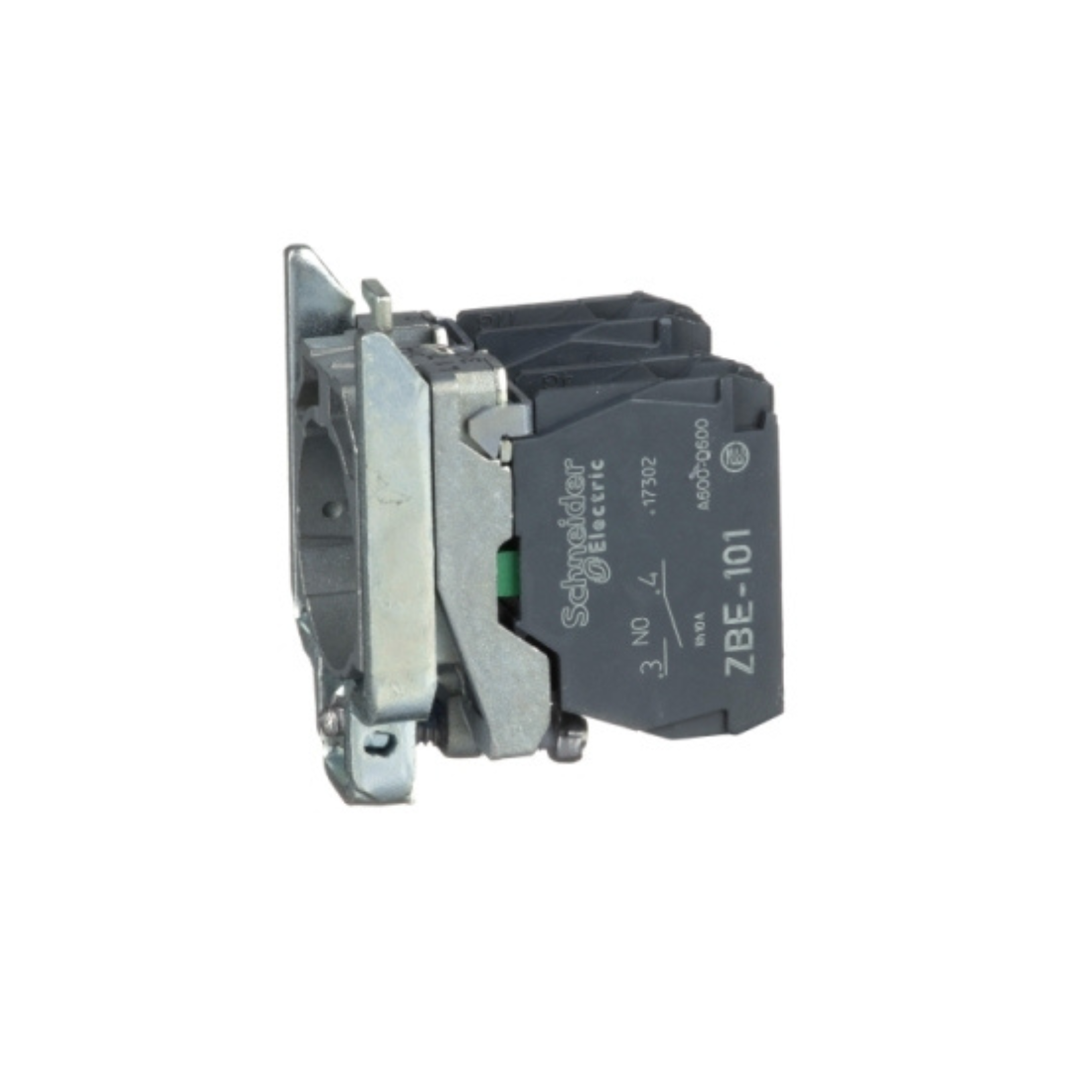

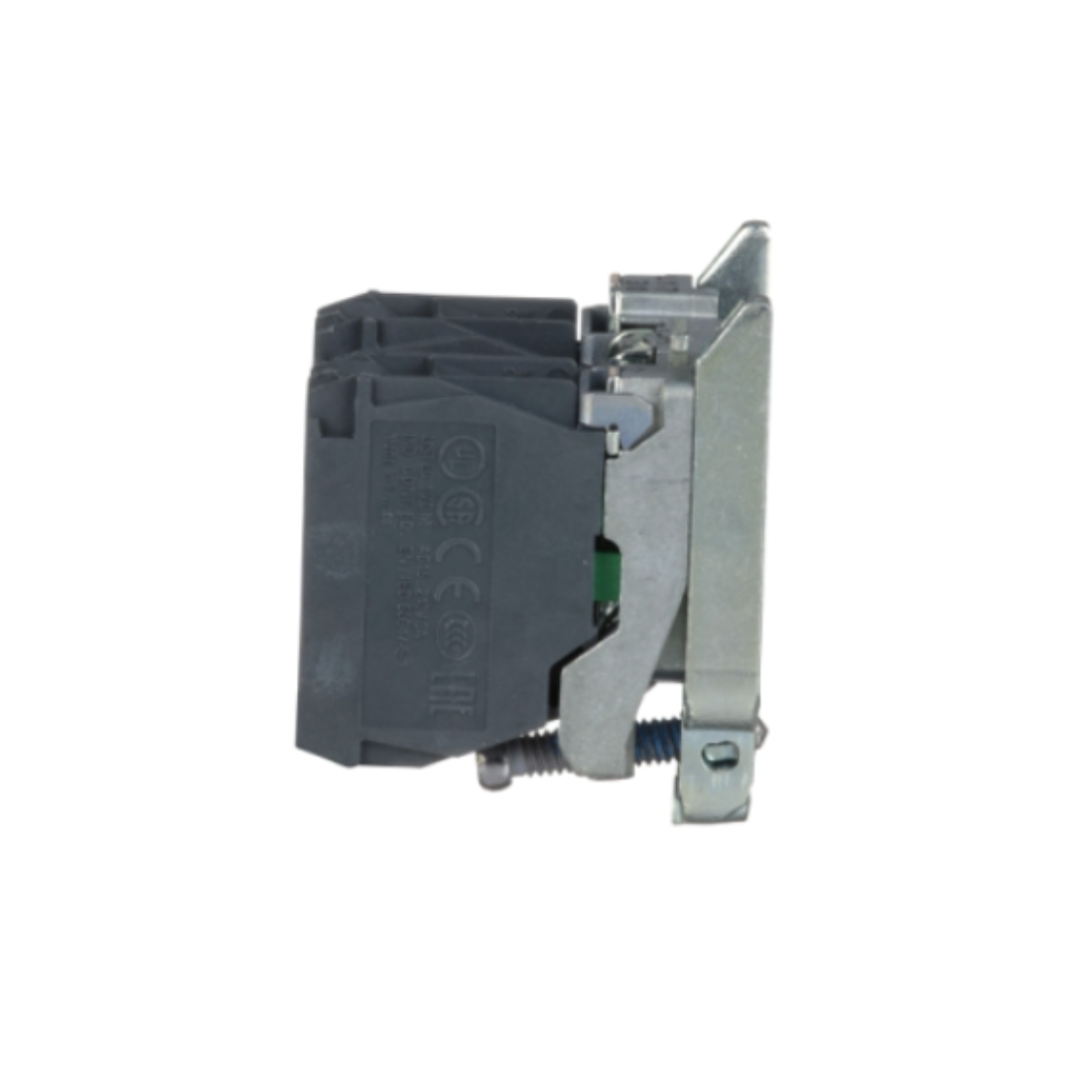

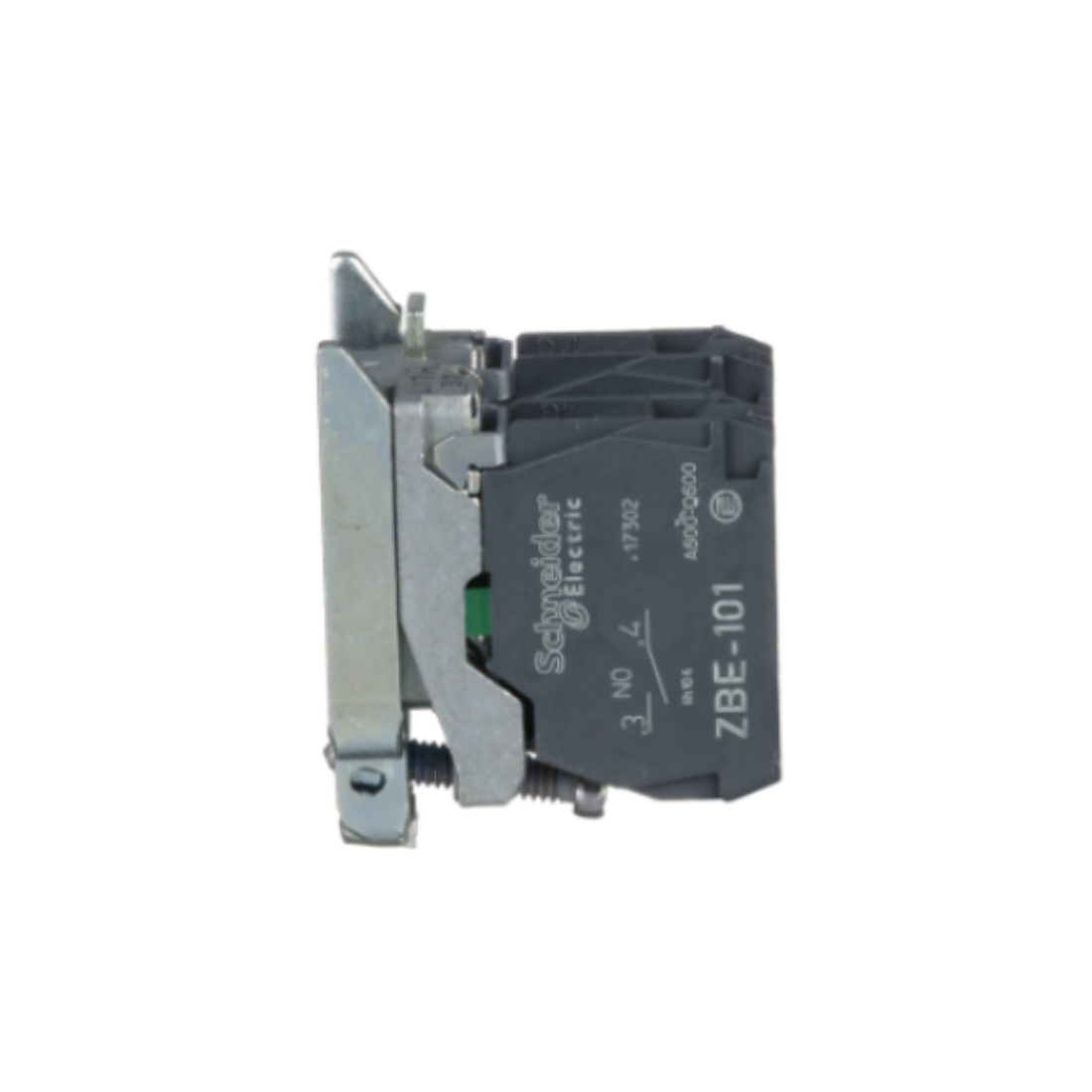

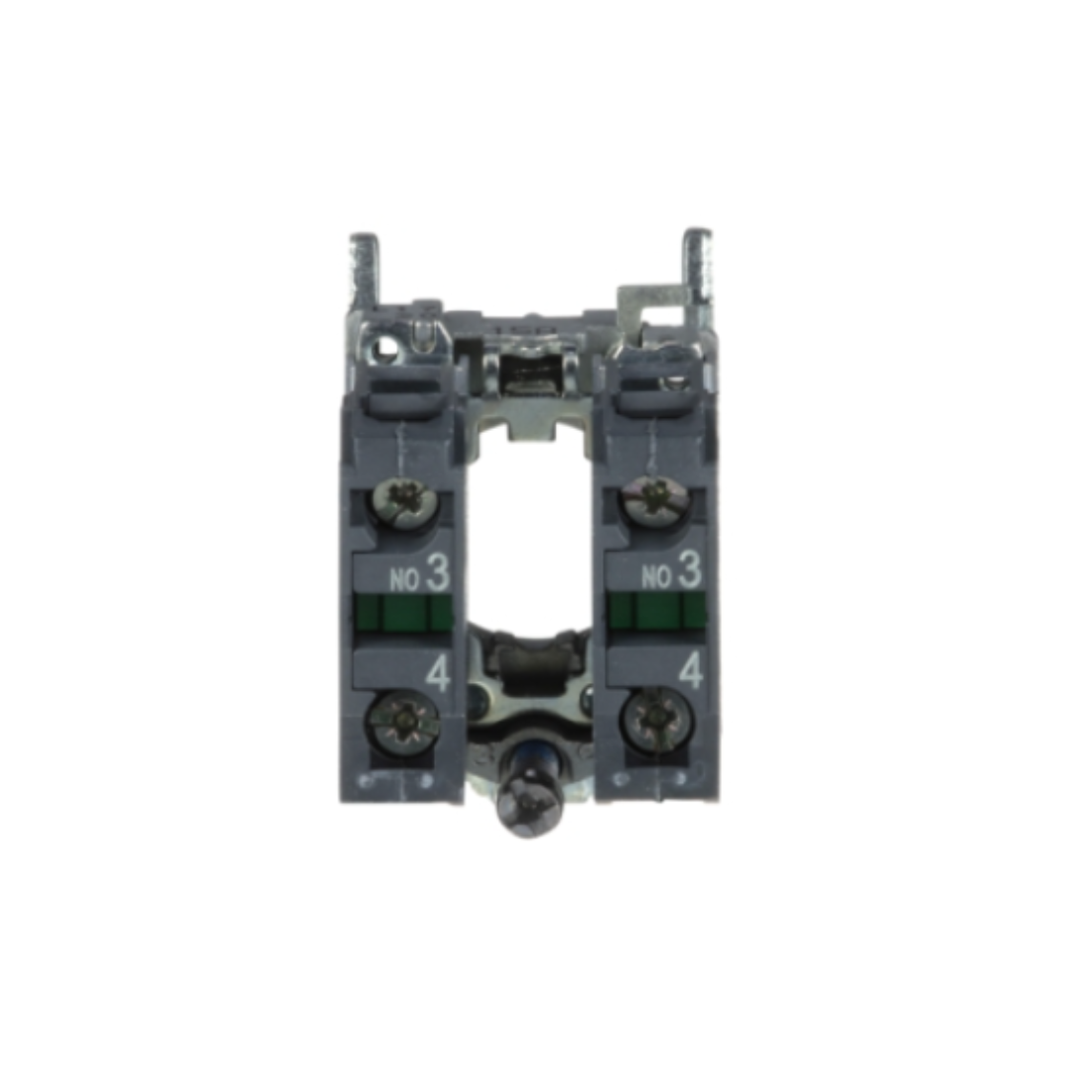

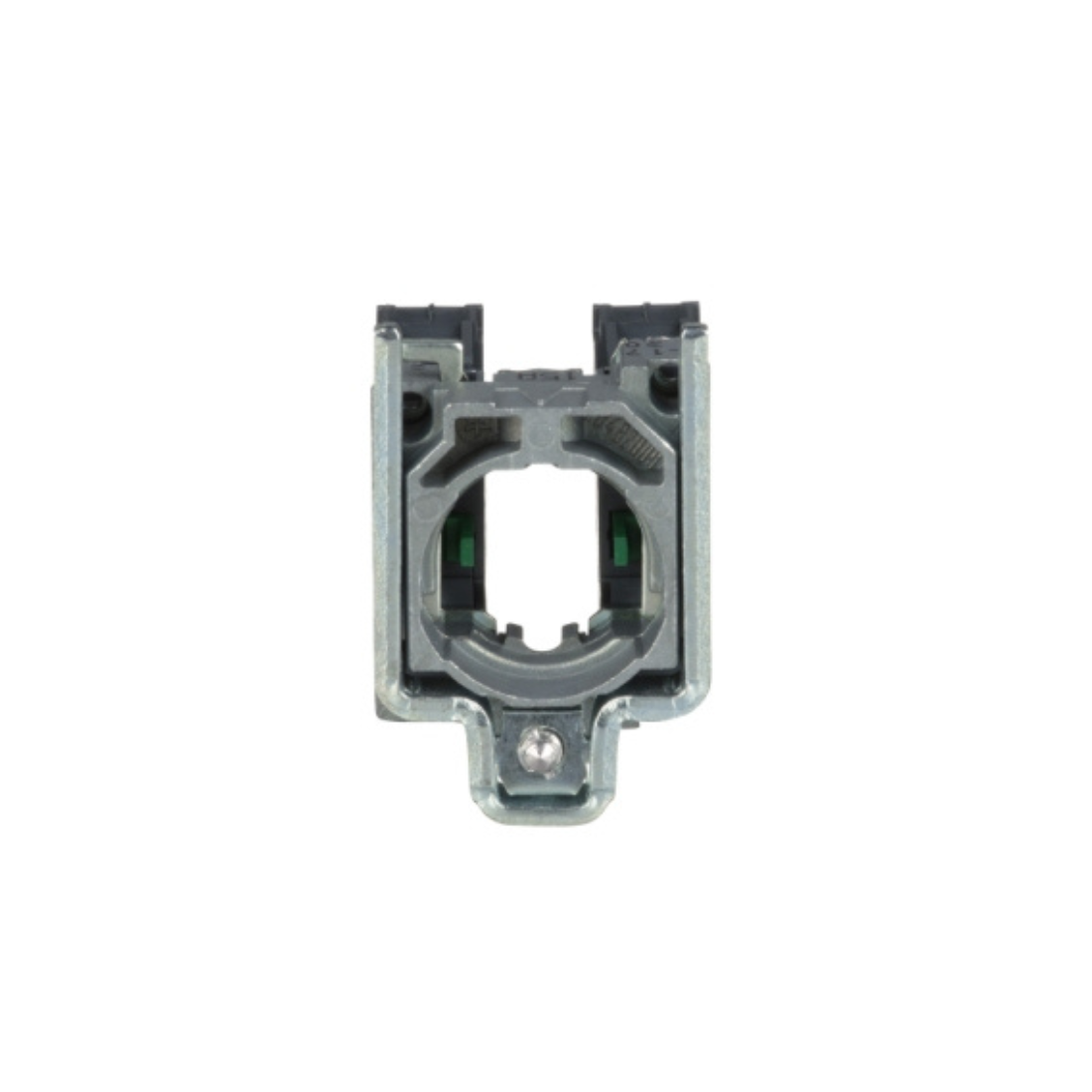

Schneider Electric ZB4BZ103 Single Contact Block is pre-assembled into a body/collar mounting assembly. It has 2 normally open contacts and a chrome metal cover. It is compatible with Harmony XB4. This body mounting collar is pre-assembled with a contact block. By simply adding a head to this set you will have a snap closure complete and ready to use.
Thanks to its IP20 rating, it protects operators from unexpected contact with live circuits. Long life of 1 million cycles ensures less maintenance and damage to your system. Its wide operating temperature range of -40°C to 70°C allows the product to be used in a variety of ways.
Features
- The base unit to start assembling the push-button or switch
- Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists
- Designed to perform up to 1 million cycles
- Clear color scheme for NO and NC contact block types
- Wide range of operating temperature from -40 to +70 °C/-40 to +158 °F
| Brand | Schneider Electric |
| Item Name | Complete Body/Contact Assembly |
| Model | ZB4BZ103 |
| Conventional Free Air Thermal Current | 10 A conforming to EN/IEC 60947-5-1 |
| Rated Insulation Voltage | 600 V (pollution degree 3) conforming to EN 60947-1 |
| Rated Impulse Withstand | 6 kV conforming to EN 60947-1 |
| CAD Overall Depth | 37 mm |
| CAD Overall Height | 47 mm |
| CAD Overall Width | 30 mm |
| Compatibility Code | ZB4 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Contact Operation | Slow-break |
| Contacts Material | Silver alloy (Ag/Ni) |
| Electrical Reliability | λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4, λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
| Fixing Collar Material | Zamak |
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
| Mechanical Durability | 5000000 cycles |
| Positive Opening | Without |
| Certifications | BV, CSA, UL, DNV, LROS (Lloyds register of shipping), GL |
| Protective Treatment | TH |
| Range Of Product | Harmony XB4 |
| Service Life | 100000 h at rated voltage and 25 °C |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver, cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Short-Circuit Protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Terminals Description ISO n°1 | (13-14)NO |
| Tightening Torque | 0.8-1.2 N.m conforming to EN 60947-1 |
| Contacts Type And Composition | 2 NO |
| Customizable | 0 |
| Head Type | Standard |
| Operating Travel | 2.6 mm (NO changing electrical state), 4.3 mm (total travel) |
| Contact Block Type | Single |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards | JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-5, UL 508, JIS C8201-1 |
| Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Device Presentation | Basic sub-assemblies |
| Device Composition | Fixing collar, body |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
